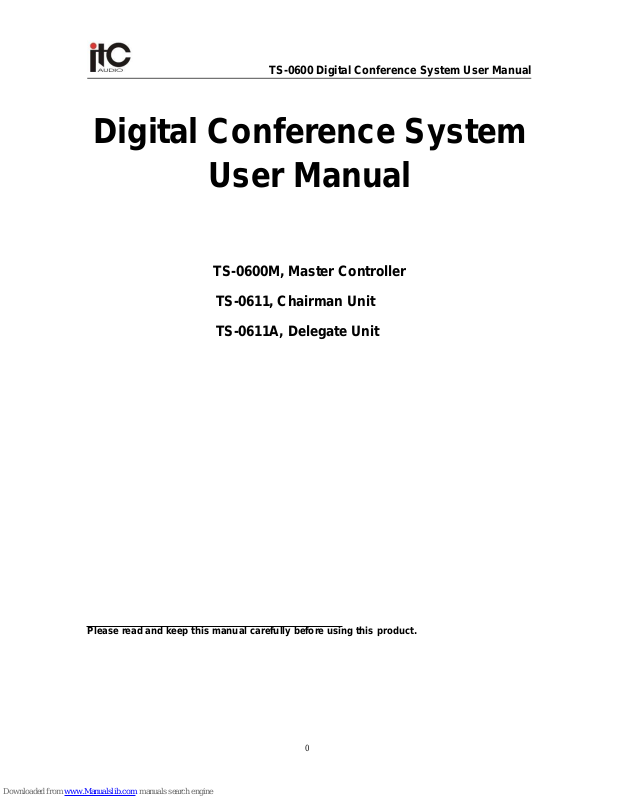

TS-0600 Digital Conference System User Manual
0
Digital Conference System
User Manual
TS-0600M, Master Controller
TS-0611, Chairman Unit
TS-0611A, Delegate Unit
Please read and keep this manual carefully before using this product.
TS-0600 Digital Conference System User Manual
0
Notice：
Professional Digital Conference System
TS-0600M Conference System Controller
TS-0611 Chairman Unit
TS-0611ADelegate Unit
TS-0616 Interpreter Unit
TS-0600F IR Generator
TS-0600FT IR Radiator
TS-0613 IR Receiver
TS-820 Earphone
TS-920 Headphone
TS-0600 Digital Conference System User Manual
1
Safety Operation Guide
In order to ensure the credibility use of the product and the user’s safety, please comply with the
following items during installation and maintenance:
The system must be earthed properly. Please do not use two blades plugs and ensure the
alternating power supply ranged from 100v to 240v and from 50Hz to 60Hz.
Do not put the machine in a place of too hot or too cold.
To avoid any damage by over heat, please keep the working environment good in ventilation to
radiate the heat when running the machine.
The machine should be turned off when in rainy and humid days or nonuse for a long time.
The AC power supply line should be disconnected with the power socket during the following
operation.
A. Take out or reinstall any component of the machine.
B. Disconnect or re-connect any connector of the machine.
Please do not attempt to maintain and uncover the machine for there is a high-voltage component
inside and the risk of the electric shock.
Do not splash any chemical product or liquid on or near the equipment.
TS-0600 Digital Conference System User Manual
2
Index
1 Audio Conference System Introduction
...............................................................................
1
1.1 About this system........................................................................................................................1
1.2 Features ........................................................................................................................................1
1.3 Product list.....................................................................................................................................2
2 Master Controller
................................................................................................................
2
2.1 Introduction................................................................................................................................... 2
2.2 TS-0600M..........................................................................................................................................
2.3 TS-0600ME........................................................................................................................................
2.4 Technical parameter.................................................................................................................... 6
2.5 System Diagram........................................................................................................................... 6
2.6 Coding Description......................................................................................................................7
3 Microphone Unit
.........................................................................................................................
9
3.1 Products introduction...................................................................................................................9
3.2 TS-0611................................................................................................................................................
3.3 TS-0611A...........................................................................................................................................9
4 Interpreter Unit
........................................................................................................................
10
4.1 Introduction.................................................................................................................................10
4.2 TS-0616..............................................................................................................................................
4.3 Features........................................................................................................................................11
4.4 Technical Data.............................................................................................................................12
4.5 Connection Diagram..................................................................................................................12
5 IR Language Distribution System
....................................................................................
12
5.1 Introduction.................................................................................................................................12
5.2 TS-0600F..............................................................................................................................................
5.3 TS-0600FT...........................................................................................................................................
5.4 TS-0631................................................................................................................................................
5.5 Technical Data.............................................................................................................................15
5.6 System Diagram......................................................................................................................... 16
TS-0600 Digital Conference System User Manual
1
1 Audio Conference System Introduction
1.1 About this system
ACS (Audio Conference System), central control system and matrix switcher system are 3 most
important product lines. It consists of the function modules as contribution, simultaneous
interpretation, IR language distribution, telephone conference, voting and video tracking.
We are always dedicated to integrated system solutions. Therefore, the ACS is not only a Hi-tech
electronic system, but also a powerful conference control solution while cooperating with the central
control system seamlessly.
1.2 Features of ACS
Safety: The safety of every delegate is the most important thing to each conference.
n The power of delegate unit and chairman unit are supplied by the central control unit with
24V safety current.
n
To improve the antistatic performance, the parts are selected carefully to avoid point
discharge current and the earth line is ensured to be enough thick. As a result, the
antistatic performance is up to 8000V.
Security and anti-jamming: Everything discussed in a conference must be important and sensitive.
To keep the signals and information securely and distortion-free is highly required.
n The discussion system is shielded-cable linked, which can prevent the radio disturbance
and wiretapping effectively.
Perfect audio quality: The more clearly we “say”, the more clearly we get.
n The contribution equipment adopts condenser microphone with unidirectional response.
n
The contribution equipment adopts built-in hi-fi loudspeaker.
n
The lightweight earphone with a hanging design can reproduce the audio vividly and it is
comfortable to wear. It is very suitable for a long time use without any feeling of oppressive
or unhappy.
Maneuverability: Simple operation and control represent efficiency.
n Easy installation: the communication method of daisy-chaining the units simplifies the work
of installation and saves the cost.
n Easy operation: every one can easily control the unit by press a button to address and turn
the knob to adjust the volume of speaker or earphone.
Maintainability: An excellent system design leads to low maintenance cost, lesser upgrade
expense, long life-span and high efficiency.
n The communication method of daisy-chain is easy to maintain and locate the problem unit.
n
Even the end user technician can maintain the system well with a short-term training.
n
All the equipments are produced and tested under ISO9001 strictly. They are international
qualified.
Expansibility: The capability of expansible protects users’ benefit and makes the system more
flexible and powerful.
TS-0600 Digital Conference System User Manual
2
n To cope with the increasing number of delegates, the only thing to do is just adding in the
delegate units.
The modular system can be easily expanded by putting in the proper functional module. When
adding in a voting unit, it becomes a voting conference system; when adding in the camera
tracking module, it becomes a simultaneous A/V conference system.
1.3 Product list
Audio Conference System Product Models
ACS Control Units
TS-0600M Mater Controller
ACS Microphone Units
TS-0601 Chairman Unit (Discussion)
TS-0601A Delegate Unit (Discussion)
TS-0611 Chairman Unit (Discussion + Voting)
TS-0611A Delegate Unit (Discussion + Voting)
ACS Simultaneous Interpreter Unit
TS-0616 Interpreter Unit, support 6 channels
IR Language Distribution System
TS-0600F IR Generator
TS-0600FT IR Radiator
TS-0613 IR Receiver
Accessories
TS-820 Single earphone
TS-920 Headphone
TS-*L 13-pole extension cable with connectors
2 ACS Control Units
2.1 Introduction
n TS-0600M Master Controller
TS-0600 Digital Conference System User Manual
3
2.2 TS-0600M
2.2.1 Front Panel
1 POWER
2 MODE
Configure the working mode of active microphones. There are 2 modes to choose.
n NORMAL
——The mode with a maximum number of active delegate units. The number of
contribution units may be set to 1/2/4/6, except the chairman unit. When the active
microphones reach the limitation, one delegate unit must be closed to leave the place
for the other who wants to speak.
n FIFO
——It is the first in first out mode with the configurable number of 1/2/4/6 speaking units,
except the chairman unit.
3 EQUALIZER
Switch the audio frequency from one to another to restrain howling.
n ON: Open the equalizer.
n OFF: Close the equalizer.
4 ACTIVE MICRO’S
Configure the maximum number of active microphone to be use at a same time. Users can
choose from 1, 2, 4 and 6.
5 BASS
Adjust bass up to eliminate the howling or squeal and adjust it down to get a more clear audio
reproduction.
6 TREBLE
Adjust treble down to eliminate the howling or squeal and adjust it up to get a more clear audio
reproduction.
7 LINE LEVEL
Adjust the master volume from 1, the minimum, to 6, the maximum.
TS-0600 Digital Conference System User Manual
4
2.2.2 Rear Panel
1) IN
It is the audio-in connector to input the audio signal like background music.
2) OUT
It is the audio-out connector to output the audio signal to amplifier or audio recorder.
3) OUTPUTS
There are 6 channels of audio-out connectors to output the audio signal to amplifier or audio
recorder etc.
4) IR PORT
Interface to the IR language distribution system
Connect to the TS-0600F IR Generator for expanded function.
5) INTERPRET
It is the interface to the TS-0616 interpreter unit. Up to 5 interpreter units can be connected in
the hand in hand daisy-chain.
6) ROUTE
It is the expanded interface to the TS-0600ME expanded control host. Up to 4096 contribution
units can access the system by daisy-chaining the expanded hosts hand in hand.
7) DELEGATE
It is the interface to the contribution units TS-0611 and TS-0611A. There are 3 channels to
access the system, and each can link to not more than 64 contribution units in hand in hand
daisy-chain. There is no limitation for the chairman unit. It can be located anywhere in the
chain.
8) CONTROL SYSTEM
It is the interface to the central control system host.
PC
It is the serial control port to the console PC. With the application on the console pc, users can
control the conference system remotely.
9) SET ID
Set “ON” to code the contribution units for the host and set “OFF” to run normally. Please refer
to the chapter 2.6 Coding Description for the details of coding method.
10) POWER INPUT
Power supply of 100V－240V AC.
TS-0600 Digital Conference System User Manual
5
2.2.3 Features
1. The host itself can provide system accessing for up to 128 contribution units and can be
expanded to 4096 at the most.
2. It supports 5 interpreter units and achieves 6 languages simultaneously interpretation at a
same time including the original one.
3. Communicating in the hand in hand daisy-chain, it is easy to install and maintain.
4. Equipped with audio-in connector, it is able to have background music.
5. Equipped with enough audio-out connectors, it is able to output the audio signal to different
audio devices.
6. The activity microphones can be limited in different numbers according to requirements.
7. FIFO mode can automatically control the active microphones.
8. Built-in equalizer can adjust and balance the audio signals as well as restrain the howling for
excellent audio quality.
9. Cooperating with the central control system, it becomes a powerful conference controller and
achieve the super function of camera auto-tracking.
10. Working with the telephone coupler, it can open a telephone conference with remote user.
11. Support voting and its data managing.
12. Cover with metal material and earth well to ensure the 8000V antistatic performance.
13. Rack-mountable enclosure. It can be installed in the standard 19” rack conveniently.
2.3 TS-0600ME Extension Controller
2.3.1 Front Panel
1) POWER and power indicator
2) ACTIVE indicator
3) NETWORK indicator
4) COMMUNICATION indicator
TS-0600 Digital Conference System User Manual
6
2.3.2 Rear Panel：
1. DELEGATE
It is the interface to the contribution units TS-0611 and TS-0611A. There are 3 channels to
access the system, and each can link to not more than 64 contribution units in hand in hand
daisy-chain. There is no limitation for the chairman unit. It can be located anywhere in the
chain.
2. ROUTE
A is the interface to the TS-0600M master controller. B is the expanded interface to another
expanded control host. When in a multilevel expansion, A is the interface to the front level, and
B is the interface to the next level.
3. POWER INPUT
Power supply of 100V－240V AC.
2.3.3 Features
1. Working with TS-0600M master controller to expand the contribution units in system
2. Input voltage between 100－240V, it can endure 3500V high voltage.
3. Cover with metal material and earth well to ensure the 8000V antistatic performance.
4. Rack-mountable enclosure. It can be installed in the standard 19” rack conveniently.
2.4 Technical parameter
TS-0600M TS-0600ME
Power supply 100-240V 100-240V
Static consumption 10W 10W
Nominal power consumption 350W 350W
Output power ≤110W/24V ≤110W/24V
Audio output Impedance: 600Ω unbalanced
Impedance: 600Ω
unbalanced
Audio input
Impedance: 100kΩ
Level：-60 dB
Unbalanced
Impedance: 100kΩ
Level：-60 dB
Unbalanced
Frequency response 60－12kHz 60－12kHz
SNR > 80dB > 80dB
Harmonic distortion < 0.5% < 0.5%
Harmonic distortion at
overload <1% <1%
TS-0600 Digital Conference System User Manual
7
Crosstalk attenuation at 1kHz >50dB >50dB
Weight 7.2KG 7.2KG
Dimension 430L x 275W x90H (mm) 430L x 275W x90H (mm)
Color White/grey Grey
2.5 System Diagram
2.6 Coding Description
2.6.1 Coding Method
1. After the system cabling and test, turn down the ACS control host. Then, connect the COM1 or
COM2 of console PC to the CONTROL SYSTEM connector in the rear panel of control host.
And configure the COM port in the serial port test application with 9600 baud rate, none parity
bit, 8 data bit and 1 stop bit.
2. Switch the SET ID in the rear panel of control host to OFF. Then, turn on the control host and
switch the SET ID back to ON.
3. If there are interpreter units in the system, set the id for them first, then the other contribution
units one by one. Firstly, press the MIC button on the contribution unit to enter the set id status.
Secondly, input the id for the unit from the serial port test application and send it to the unit.
After receiving the id code, the contribution unit will light up. Thirdly, after lighting for 2 seconds,
press the MIC button on the unit again to finish coding for it. Then, repeat the process to finish
all the coding. When all the codings were done, all the contribution units will light up. We can
test their id one by one by open it and watch its id displayed in the serial port test application.
Notice:
Please do not insert or pull out the equipment when the system turns on, or it will do harm to their
connectors or modules.
TS-0600 Digital Conference System User Manual
8
2.6.2 Coding Format
Format：A0 [XX] 10 00 07 [YY] FF FF FF AF [ZZ]
Directions：
1. [XX], [YY] and [ZZ] are in Hex. [YY] is the ID code.
2. [ZZ]=FFFF-([XX]+10+00+07+[YY]+FF+FF+FF). [ZZ] is the last two number of the result.
3. The contribution id begins with 1 and increasing by 1 in decimal as the list shown below.
4. The ID code begins with 1 and increasing by 2 in Hex as the list shown below.
As shown below, every 128 ID code is a circle. Every circle [YY] carries 1 to [XX]. In each circle, the
contribution unit id increased by 128 and ID code/[YY] by 7F. After each circle, [YY] returns to 0
again.
Contribution unit id in decimal ID code in Hex/[YY] Coding on serial port in Hex
0002 1 A0 10 10 00 07 01 FF FF FF AF DA
0003 2 A0 10 10 00 07 02 FF FF FF AF D9
0004 3 A0 10 10 00 07 03 FF FF FF AF D8
0005 4 A0 10 10 00 07 04 FF FF FF AF D7
… … …
0128 7F A0 10 10 00 07 7F FF FF FF AF 5C
0129 100 A0 11 10 00 07 00 FF FF FF AF DA
0130 101 A0 11 10 00 07 01 FF FF FF AF D9
0131 102 A0 11 10 00 07 02 FF FF FF AF D8
0132 103 A0 11 10 00 07 03 FF FF FF AF D7
0133 104 A0 11 10 00 07 04 FF FF FF AF D6
… … …
0256 17F A0 11 10 00 07 FF FF FF FF AF 5B
0257 200 A0 12 10 00 07 00 FF FF FF AF D9
0258 201 A0 12 10 00 07 01 FF FF FF AF D8
0259 202 A0 12 10 00 07 02 FF FF FF AF D7
0260 203 A0 12 10 00 07 03 FF FF FF AF D6
0261 204 A0 12 10 00 07 04 FF FF FF AF D5
… … …
0384 27F A0 12 10 00 07 7F FF FF FF AF 5A
0385 300 A0 13 10 00 07 00 FF FF FF AF D8
0386 301 A0 13 10 00 07 01 FF FF FF AF D7
0387 302 A0 13 10 00 07 02 FF FF FF AF D6
0388 303 A0 13 10 00 07 03 FF FF FF AF D5
0389 304 A0 13 10 00 07 04 FF FF FF AF D4
… … …
0512 37F A0 13 10 00 07 FF FF FF FF AF 59
TS-0600 Digital Conference System User Manual
9
… … …
ID code list
※ Notice：
In the course of system installation it is forbidden to pull or insert with power on. It will risk of
damaging the system module or system port.
3 ACS Microphone Unit
3.1 Product introduction
Model Description Type MIC
button
Voting
buttons
Channel
selection
LCD
TS-0601 Delegate unit Tabletop √ × × ×
TS-0601A Chairman unit Tabletop √ × × ×
TS-0611 Delegate unit Fold-away √ √ × √
TS-0611A Chairman unit Fold-away √ √ × ×
3.3 TS-0611/TS-0611A
3.3.1 Function Directions
1) Microphone: pluggable, easy to transport and maintain
2) Multi voting buttons
“1，2，3，4，5”
——For/against: buttons 2/3/4 stand for For/Abstain/Against, respectively.
——Multiple election: buttons 1/2/3/4/5 can stand for different candidates, respectively.
——Evaluation Poll: buttons 1/2/3/4/5 stand for 5 level ――/－/0/＋/＋＋, from low to high.
Notice:
Ÿ
Button 4 on the chairman unit has a special function of intermission. The chairman can
press it to temporarily close all the microphones on delegate units and release it to resume
the conference.
TS-0600 Digital Conference System User Manual
10
Ÿ The conference holder can press the START button on the chairman unit to start voting. At
this time, all the contribution units will sound “Di” and the button 1 will flash to ask for
confirmation. Then, the delegates should press the button 1 to confirm and start voting.
Their last choice on the buttons will be considered as their final decision and will be
indicated by the button indicator. When the conference holder press the STOP button on
the chairman unit, the voting is finished and all the contribution units will sound “Du” in a
same time. Pressing button 4 for 2 seconds, to return the normal discussion status.
3) LCD displayer
4) MIC button: press it to open the microphone and repress it to close the microphone.
5) Build-in flat panel loudspeaker: it will automatically mute while the microphone opens.
6) Earphone jack: install and connect the earphone for ACS here.
7) Volume adjustment: adjust the volume of the contribution unit.
3.3.2 Features
1. Voting function integrated.
2. Working with TS-0600M master controller.
3. Build-in flat panel loudspeaker and earphone jack with excellent audio quality and adjustable
volume control.
4. Pluggable unidirectional microphone with red ring indicator.
5. Chairman unit has the function to approve or deny the talking request from delegate units.
6. Chairman unit is not limited by the active microphone limitation.
7. The flat panel loudspeaker will automatically mute to avoid howling when the microphone turns
on.
8. Chairman unit can cut the microphone of delegate units at any time to manage and control the
whole conference conveniently
9. With the LCD displayer, chairman unit can monitor the operation information from the
interpreter units and check the result of voting.
10. The power of delegate unit and chairman unit are supplied by the central control unit with 24V
safety current.
11. There is no limitation for the chairman unit. It can be located anywhere in the daisy chain.
Communicating in the hand in hand daisy chain, it is easy to install and maintain.
3.3.3 Connection Diagram
M3101 M3104A2 M310 4A2 M3104A 2 M3102A2
TS-0600 Digital Conference System User Manual
11
3 ACS Simultaneous Interpreter Unit
4.1 Introduction
TS-0616 interpreter unit
4.2 TS-0616
1) Microphone: pluggable, easy to transport and maintain
2) DIRECT button: press this button to select the original language channel and interpret it directly
3) INDIRECT button: press this button to select an interpretation channel to interpret it indirectly.
Press CHANNEL IN buttons to select the interpretation channels.
4) SLOW button: press this button to request the addresser slow down the speaking speed. At this
time, the conference holder can read this message “Please speak slowly” from the LCD
displayer on the chairman unit. Then, require the addresser to slow down the speaking speed.
5) COUGH CUT button: when the interpreter can’t help coughing, he/she can press this button to
cut the voice of couth temporarily without closing the microphone.
6) LOCK button: press this button to lock the output channel and repress it to unlock the output
channel.
7) The status of the output channel will be displayed on the LCD.
8) CHANNEL IN buttons: in the “INDIRECT” mode, interpreter can choose one of six input
channels by these buttons.
9) CHANNEL OUT:press these buttons to choose the output channels.
10) MIC button: press it to open the microphone and repress it to close the microphone.
11) Earphone jack for channel in: use this connector to hear the original or interpreted language.
12) Earphone jack for self-monitor: use this connector to hear the interpretation language from the
interpreter itself.
13) Volume adjustment: adjust the volume of the contribution unit.
4.3 Features
1. Listen with the special earphone covering the whole ear.
2. TS-0600M master controller supports 5 interpreter units and achieves 6 languages
simultaneously interpretation at a same time including the original one.
TS-0600 Digital Conference System User Manual
12
3. Direct or indirect interpretation mode.
4. Interlock channels ensures that each channel can carry only one language at one time.
5. Select the original channel or the interpretation channels through “DIRECT” or “INDIRECT”
button.
6. SLOW button let the interpreter keep pace with the addresser well.
7. Build-in earphone jacks with excellent audio quality and adjustable volume control.
8.
9. The power of delegate unit and chairman unit are supplied by the central control unit with 24V
safety current.
10. The contribution units are equipped with shielded 13-pole cable, which can prevent the radio
disturbance well.
11. Easy operation. Wear the earphone and select the channel in, then press the MIC button to start
interpretation.
COUGH CUT is a very thoughtful design for interpreter.
4.4 Technical Data
TS-0616
Power supply DC24V supplied by the control host
Intercommunication connector DIN 13-pole
Power consumption ≤2.5W
Earphone output 9dBu，8－32Ω，3.5mm jack
Speaker wattage ≤2W
Transducer type Electrets condenser
Directional pattern Cardioids
SNR > 80dB
Crosstalk attenuation > 80dB
Distortion <1%
Frequency response
60－12kHz
Equivalent noise ≈20dB SPL
Maximum SPL
105dB（3% threshold）
Sensitivity －22dBv/Pa
Dimension 247L x 155W x 60H (mm)
Color Grey
4.5 Connection Diagram
CR-M3101CR-M3101 CR-M3103A3 CR-M3103A3
TS-0600 Digital Conference System User Manual
13
5 ACS IR Language Distribution System
5.1 Introduction
n TS-0600F IR Generator
n TS-0600FT IR Radiator
n TS-0613 IR Receiver
5.2 TS-0600F
5.2.1 Features
0
1
2 3
4
5
1
3
2 4
1) POWER
2) Input channel indicators: indicates the working channel from 1 to 6 in red and from 7 to 12 in
green.
3) Channel selector: select a channel to display its status with the level indicators.
4) LEVEL indicators
OUTPUTS
1
3
2 4 5 6 7
1) INPUTS: input the audio signal like background music.
2) OUTPUTS: output the audio signal to amplifier or audio recorder.
3) LINK: the interface to the TS-0600M master controller.
4) NEXT: the expansion interface to the next TS-0600F IR generator.
5) SINGEL: the modulated signal output interfaces to the radiator unit.
6) Test button
7) POWER INPUT: power supply of 100V－240V AC.
5.2.2 Features
1. Wireless directional transmission avoided the radio disturbance and wiretapping.
2. Automatic Level Control（ALC）
3. Adopt high frequency（2M-6MHz） transmission to ensure anti-jamming from high frequency
TS-0600 Digital Conference System User Manual
14
lamp-house.
4. Adopt phase-locked loop (PLL) technique to achieve stabile transmitting frequency.
5. Equipped with 12 input audio connectors, it is able to input external audio signals.
6. Equipped with 12 output audio connectors, it is able to output audio signals to different audio
devices like amplifier and audio recorder.
7. The test function can create 12 various frequency audio signals for system test.
8. Level indicators can monitor the intensity of the input audio level directly.
9. Alarm function can automatically send out the warning message to all the audio channels.
10. 100-240V power supply. 3500V high current test.
11. Cover with metal material and earth well to ensure the 8000V antistatic performance.
5.3 TS-0600FT
5.3.1 Physical View
1. Power indicator: indicator lights when it turns on.
2. IR radiator area
3. LOW/HIGH: power magnitude selector for IR radiation.
4. MODULATION OUT: the interface to connect the MODULATION IN of another radiator unit.
5. MODULATION IN: the interface to connect the SINGAL OUTPUTS of the transmitter host or the
MODULATION OUT of the front radiator unit.
6. Bracket installation hole.
7. DC input interface （24V/2-3A）
5.3.2 Features
1. Powerful ability of IR radiation (50 meters at 25W or 30 meters at 15W).
2. Synchronized with the transmitter host.
3. Adjustable IR radiation （15W/25W）.
4. Communicating in the hand in hand daisy-chain, it is easy to install and maintain.
5. Easy installation with free attachable bracket or triangle bracket.
6. Half radiator angle: ±22°
TS-0600 Digital Conference System User Manual
15
5.4 TS-0613
5.4.1 Physical View
1) Battery box: AAA battery box
2) Belt clip
3) Strap hole
4) IR receiver module
5) Power indicator
6) LCD displayer: display the language channel.
7) Channel selector buttons.
8) Starter and volume adjustment.
9) Earphone jack (3.5mm)
5.4.2 Features
1. Ergonomically designed, modern, compact and beautiful.
2. Cooperate with TS-820 single earphone or TS-920 headphone.
3. Convenient to keep. Strap and hang it up on the neck or just put it in the pocket.
4. 12 selectable channel
5. Adjustable volume
6. The quantity of the receiver unit is not limited in the covered area of IR radiation.
7. The position of the receiver unit is not limited for the wireless characteristic.
8. LCD displayer can indicate the information of selected channel.
9. Adopt PLL technique for improving received stability to up to 10PPM
10. Integrated excellent charging circuit for long battery lifetime.
Use green environmentally-friendly NiMH rechargeable battery for up to 60 hours working time.
5.5 Technical Data
IR language distribution system
Model TS-0600F
Power supply 100-240V
Power consumption 25W （selectable）
TS-0600 Digital Conference System User Manual
16
Crystal Crystal control
Modulation PPL, narrow band
Carrier wave frequency 2M—20MHz （BAND4）
Pre-emphasis
100µs
Deviation
±6kHz（peak value ± 7kHz）
Total harmonic distortion <1%
SNR >80dB
Frequency response 60—12KHz
Input Sensitivity 50mV-1.5V
RF output 2 BNC, 100mV RMS
RF output impedance 50Ω
Dimension 430L x 275W x 90H (mm)
Weight 6.8KG
Color Black
Model TS-0600FT
Power supply AC100-240V
Transmit power
25W （selectable）
Average transmit angle ±22°
RF input Impedance: 5kΩ, voltage: 150mV－3V
Maximum covered distance 30M（15W）
Automatically opened threshold 50mV RF signal
Dimension 430L x 320W x 95H（mm）
Weight 7.8KG
Color Purple
Model TS-0613
Power supply AAA NIMH rechargeable battery
Receiving frequency
2M-20MHz，40KHz channel separated
Intermediate frequency 10.7MHz
Modulation FM
Nominal frequency difference ±6kHz
Peak value deviation ±8kHz
Signal reversion 150ms
Total harmonic distortion <1%
SNR > 80dB
Am restraint > 45dB
Maximum sound pressure level 110dB
Frequency response 608 kHz
Distortion <1.5%
Dimension 108L x 62W x 28H (mm)
Weight 0.4KG
Color Black
TS-0600 Digital Conference System User Manual
17
5.6 System Diagram
6 Accessories
6.1 TS-820 Single Earphone
6.1.1 Features
n Working with interpreter units or TS-0613 IR
receiver units.
n Avoid being interfered in conference.
n Build-in 1.5 meter cable.
Hi-fi audio quality.
6.1.2 Technical Data
TS-820
Interface 3.5mm mono connector
Frequency response 80Hz – 2KHz
Sensitivity 90dB
SNR > 80dB
Distortion < 0.1dB
Impedance 32 Ω
Dynamic range > 85 dB
Output power 80mW
6.2 TS-920 Headphone
6.2.1 Features
n Working with interpreter units or TS-0613 IR
receiver units.
n Avoid being interfered in conference.
n Build-in 1.5 meter cable.
n Hi-fi audio quality.
TS-0600 Digital Conference System User Manual
18
6.2.2 Technical Data
TS-920
Interface 3.5mm stereo connector
Frequency response 80Hz – 2KHz
Sensitivity 90dB
SNR > 80dB
Distortion < 0.1dB
Impedance 32 Ω
Dynamic range > 85 dB
Output power 100mW
6.3 Cable
Introduction
n TS-5L 5 meters cable with connectors (male & female)
n TS-10L 10 meters cable with connectors (male & female)
n TS-20L 20 meters cable with connectors (male & female)
n TS-100L 100 meters cable with connectors (male & female)
Features
n Use to connect the contribution units and the host.
n 13-pole cable with connectors (male & female)
Loading...
