SPEAKER SELECTOR
OPERATION MANUAL
AUDIOAUDIO
PUBLIC ADDRESS SYSTEM
T-6217
POWER
T-6217
SPEAKER SELECTOR
ON
OFF
AUDIO
1 2 3 4 5 6
SPEAKER ZONES
7 8 9 10
Page 2
TABLE OF CONTENTS
T-6217
2
1. SAFETY PRECAUTIONS .......................................................................................3
2. GENERAL DESCRIPTION ....................................................................................5
3. FEATURES ...............................................................................................................5
4. NOMENCLATURE AND FUNCTIONS
4.1 Front Panel ..............................................................................................................6
4.2 Rear Panel.............................................................................................................. 7
5. .........................................................................................8
6. APPLICATIONS .......................................................................................................9
7.SPECIFICATIONS .................................................................................................. 10
8.DIMENSIONAL DIAGRAM ....................................................................................11
MACHINE OPERATION
V1.1-2009-03-24
Page 3
Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
When Installing the Unit
Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is
specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in fire or
electric shock.
Be sure to replace the unit's terminal cover after
connection completion. Because high voltage is
applied to the speaker terminals, never touch these
terminals to avoid electric shock.
Be sure to ground to the safety ground (earth)
terminal to avoid electric shock. Never ground to a
gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down, causing personal injury and/or property
damage.
When the Unit is in Use
Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and
contact your nearest dealer. Make no further
attempt to operate the unit in this condition as this
may cause fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
If it is malfunctioning (no tone sounds.)
To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest dealer.
ITC
ITC
Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a fire
or electric shock.
Do not insert nor drop metallic objects or
flammable materials in the ventilation slots of the
unit's cover, as this may result in fire or electric
shock.
3
1. SAFETY PRECAUTIONS
T-6217
Page 4
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in
the electrical installation of the building.
When Installing the Unit
Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.
When unplugging the power supply cord, be sure
to grasp the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.
When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock. When removing the power cord, be
sure to hold its plug to pull.
Do not block the ventilation slots in the unit's cover.
Doing so may cause heat to build up inside the unit
and result in fire.
Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
When the Unit is in Use
Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.
Make sure that the volume control is set to
minimum position before power is switched on.
Loud noise produced at high volume when power is
switched on can impair hearing.
Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
Contact your dealer as to the cleaning. If dust
is allowed to accumulate in the unit over a long
period of time, a fire or damage to the unit may
result.
ITC
If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.
Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.
1. SAFETY PRECAUTIONS
4
T-6217
Page 5
5
3. FEATURES
The T-6217 provides all the features above with the addition of three more amplifier inputs. In this way, the
T-6217 can work like an audio matrix providing different audio source programs to different speaker zones.
2. GENERAL DESCRIPTION
=Generate EMC signal.
=Built-in siren and user-recorded message.
=Two minutes recording and output.
=Recording signal and volume control.
=Automatic or manual operation.
=LED power indicator.
T-6217
Page 6
6
1. POWER
Power indicator
2. POWER SWITCH
On top of the opening Power
Press the end, power shut down
4. NOMENCLATURE AND FUNCTIONS
2 3

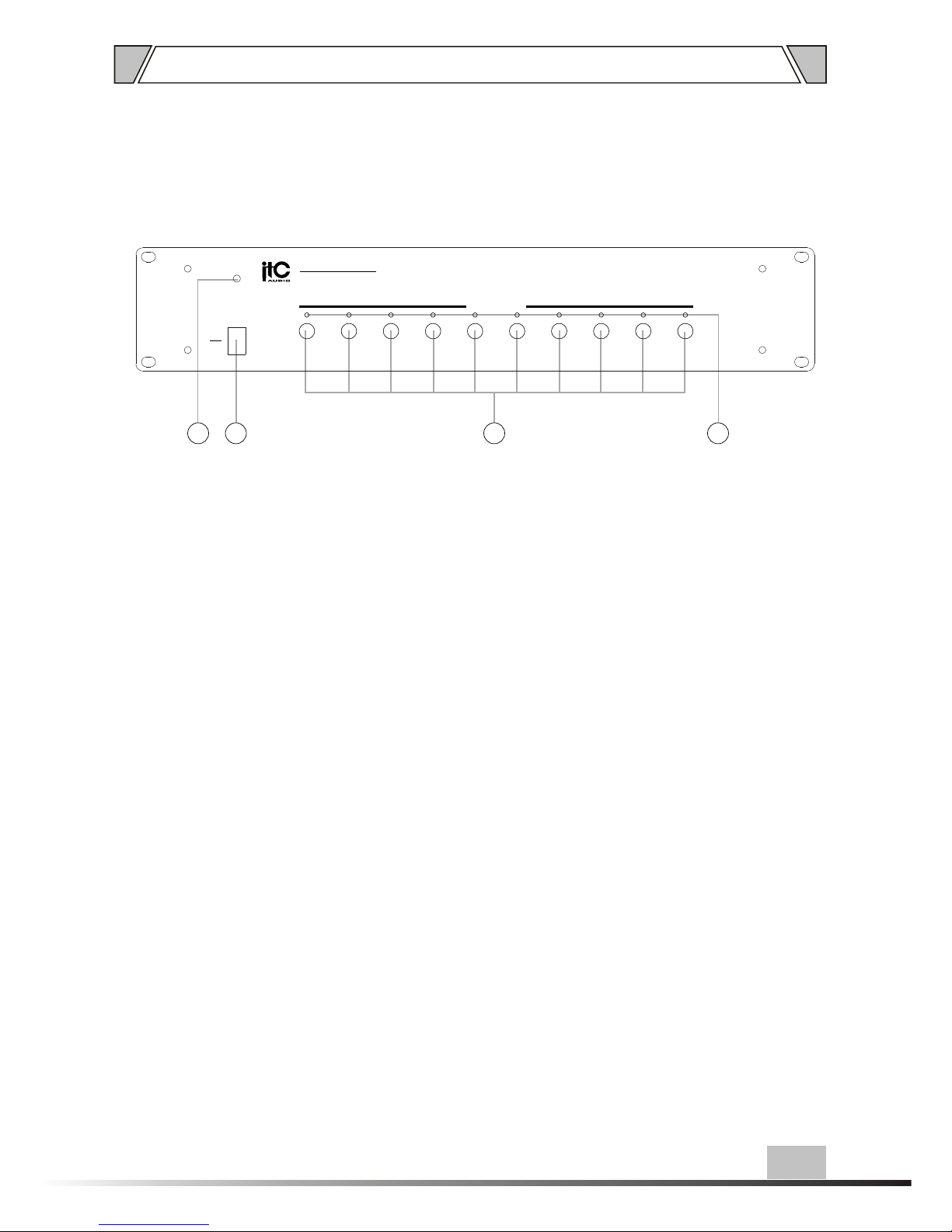

3. SPEAKER ZONES(1~10)
Zone activation switches
4. SPEAKER ZONES(1~10)
Speaker zones (1~10) indicators
1
4.1 FRONT PANEL
4
POWER
T-6217
SPEAKER SELECTOR
ON
OFF
1
2 3 4
5
6
7
8
9
10
SPEAKER ZONES
T-6217
Page 7
NOMENCLATURE AND FUCTIONS
7
5. MUSIC POWER OUTPUT
Connecting speakers(CH1~CH10)
6. MUSIC POWER INPUT
Connecting speakers(CH1~CH10)
7. ALARM POWER
Amp power input
8. ~230V/50HZ AC POWER INTERFACE
ALARM OUT
Alarm signal output terminal
10.ALARM LINK OUT
Alarm output signal
11.ALARM IN
Alarm signal input terminal
9.
5

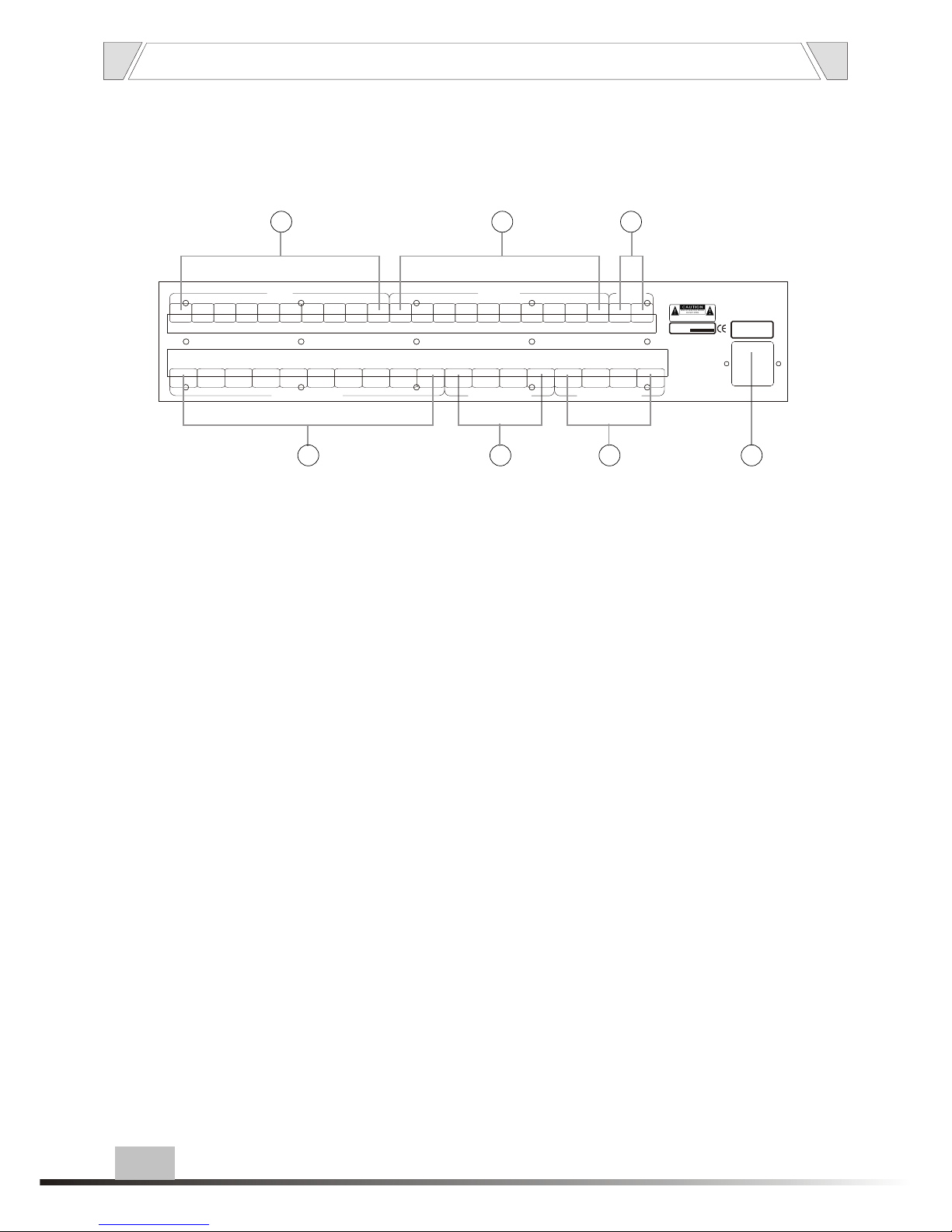

4.2 REAR PANEL
8
6
91011
~230V 50Hz
T1AL250V
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:.
+ CH 10 -
+ CH 9 -
+ CH 8 -+ CH 7 -+ CH 6 -
+ CH 5 -
+ CH 4 -+ CH 3 -+ CH 2 -+ CH 1 -
+ D -+ C -+ B -+ A -+ D -+ C -+ B -+ A -
MUSIC POWER OUTPUT MUSIC POWER INPUT ALARM POWER INPUT
+ 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 - + 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 -
+ B -+ A -
ALARM IN
ALARM LINK OUT
ALARM OUT
7
T-6217
Page 8
OPERATION
5. MACHINE OPERATION
1. Background music signal due to rear panel A.B.
C.D socket input, exigence broadcast signal due
to socket input .
2. Press arbitrainess at subarea choose key be but
through ought to subarea .
3. Larm signal input socket"ALARM IN" ,1-10 nu mber sit up parting corresponding supervise
CH1-CH10 dicker channels ,arbitrariness sit up
grounding correspond give an alarm ,correspond
to channels reproducer be automatism A.B.C.D
input
8
A+B+C+D
B+C
A+B+C
A+B
CH4 CH5 CH6 CH7 Ch8
CH1 Ch2 CH3 CH4 CH5 CH6
CH1 CH2 CH3 CH4
Ch5 Ch6 CH7 CH8
CH1 CH2 CH3 CH4 CH5
Ch6 CH7 CH8 CH9 Ch10
INPUT PORT Parallelism output port
A
CH1 CH2 Ch3
CH4 Ch5 CH6
CH7 CH8
CH9 Ch10
B
C
D
A\B\C\D
Be able to connect more dais power simultaneity
input can random assenmbled input sit up arrive
apron string parallelism output connector .
ALARM POWER INPUT
T-6217
Page 9
6. APPLICATIONS

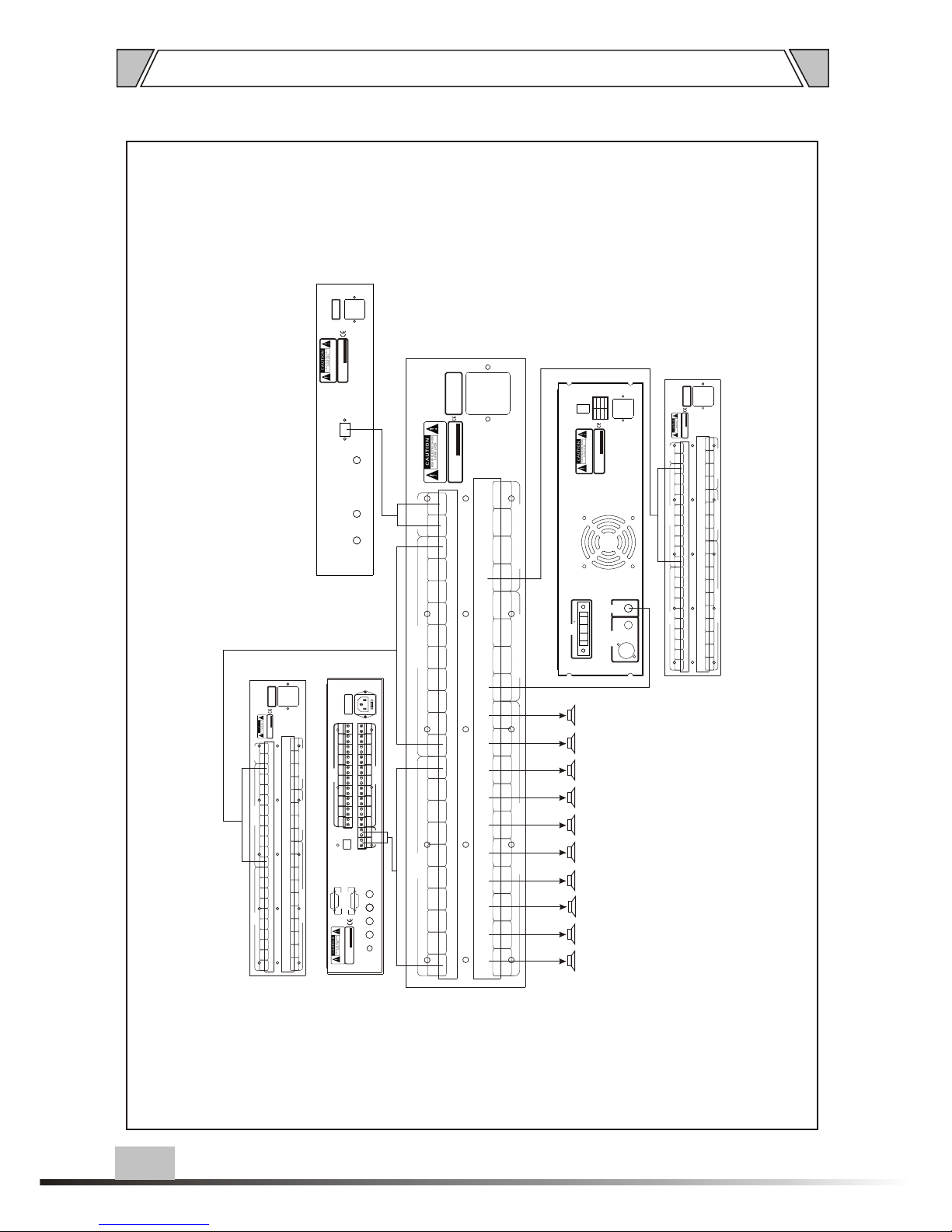

REAR PANEL CONNECTIONS
9
SPEAKER
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~230V/50Hz
FUSE
T8AL250V
POWER
FUSE
350W
500W
650W
T10AL250V
T12AL250V
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:
POWER AMPLIFIER
SPEAKER SELECTORS
+ ALARM IN -
MIC
LINE
ALARM OUT
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:
~230V 50Hz
T1AL250V
EMERGENCY PANEL
SPEAKER SELECTORS
PAGING SELECTOR
ALARM IN
+ 1 - + 2 - + 3 - + 4 - + 5 - + 6 - + 7 - + 8 - + 9 - + 10 -
+ 1 - + 2 - + 3 - + 4 - + 5 - + 6 - + 7 - + 8 - + 9 - + 10 -
ADDRESS TAG
REMOTE OUT
REMOTE IN
CHIME
VOL
MIC 2
IN
LINE 1
IN
LINE 2
IN
AUDIO
OUT
~230V 50Hz
T1AL250V
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:.
+ A - + B -
ALARM OUT
SWITCH OUT
~230V 50Hz
T1AL250V
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:.
+ CH 10 -
+ CH 9 -
+ CH 8 -+ CH 7 -+ CH 6 -
+ CH 5 -
+ CH 4 -+ CH 3 -+ CH 2 -+ CH 1 -
+ D -+ C -+ B -+ A -+ D -+ C -+ B -+ A -
MUSIC POWER OUTPUT MUSIC POWER INPUT ALARM POWER INPUT
+ 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 - + 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 -
+ B -+ A -
ALARM IN
ALARM LINK OUT
ALARM OUT
~230V 50Hz
T1AL250V
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:.
+ CH 10 -+ CH 9 -+ CH 8 -+ CH 7 -+ CH 6 -+ CH 5 -
+ CH 4 -+ C H 3 -+ CH 2 -+ CH 1 -
+ D -+ C -+ B -+ A -+ D -+ C -+ B -+ A -
MUSIC POWER OUTPUT MUSIC POWER INPUT ALARM POWER INPUT
+ 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 - + 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 -
+ B -+ A -
ALARM IN
ALARM LINK OUT
ALARM OUT
~230V 50Hz
T1AL250V
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:.
+ CH 10 -+ CH 9 -+ CH 8 -+ CH 7 -+ CH 6 -+ CH 5 -
+ CH 4 -+ C H 3 -+ CH 2 -+ CH 1 -
+ D -+ C -+ B -+ A -+ D -+ C -+ B -+ A -
MUSIC POWER OUTPUT MUSIC POWER INPUT ALARM POWER INPUT
+ 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 - + 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 -
+ B -+ A -
ALARM IN
ALARM LINK OUT
ALARM OUT
T-6217
Page 10
7.SPECIFICATIONS
10
MODEL
SPEAKER SELECTORSSPEAKER SELECTORS
T-6217
MAX POWER PER ZONE
SPEAKER ZONES
INDICATORS
POWER REQUIREMENTS
DIMENSIONS(MM)
CONTROL
PROTECTION
POWER CONSUMPTION
NET WEIGHT
484X368X88
500W
MAX POWER
INPUT
~230V AC 50Hz
Individual zone selectors
power switch
AC fuse,1A
40W
5.7Kg
10
Power LED,channel status LEDs-BGM or Priority
4.5Kg
1500W speaker load
GROSS WEIGHT
A(BGM), B(priority):100V or 70V,COM
T-6217
Page 11
100
Over
100
Over
Over
100

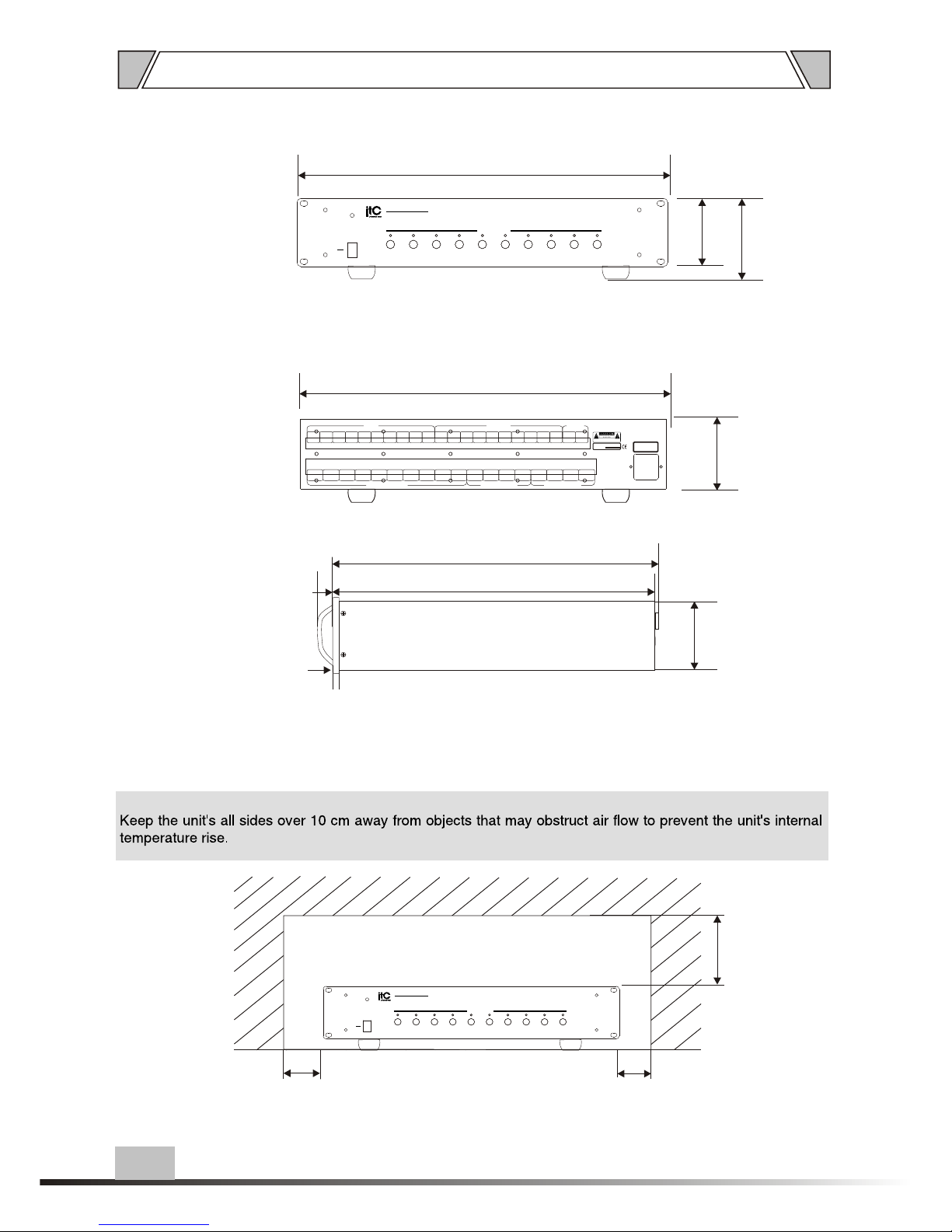

8. DIMENSIONAL DIAGRAM
UNIT :mm
6
84
84
25
337
331
88
94
436
484
UNIT :mm
11
POWER
T-6217
SPEAKER SELECTOR
ON
OFF
1
2 3 4
5
6
7
8
9
10
SPEAKER ZONES
POWER
T-6217
SPEAKER SELECTOR
ON
OFF
1
2 3 4
5
6
7
8
9
10
SPEAKER ZONES
~230V 50Hz
T1AL250V
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:.
+ CH 10 -+ CH 9 -+ CH 8 -+ CH 7 -+ C H 6 -+ CH 5 -
+ CH 4 -+ CH 3 -+ CH 2 -+ CH 1 -
+ D -+ C -+ B -+ A -+ D -+ C -+ B -+ A -
MUSIC POWER OUTPUT MUSIC POWER INPUT ALARM POWER INPUT
+ 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 - + 1 - + 2 - + 3 - + 5 - + 6 - + 9 - + 10 -+ 8 -+ 7 -+ 4 -
+ B -+ A -
ALARM IN
ALARM LINK OUT
ALARM OUT
T-6217
Page 12
AUDIOAUDIO
Guangzhou ITC Electronic Technology Limited
Http://www.itc-pa.com.cn
PUBLIC ADDRESS SYSTEM
2009-03 Version1.1
Loading...
