Page 1
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
PAGING STATION
T-328
OPERATION MANUAL
AUDIOAUDIO
PUBLIC ADDRESS SYSTEM
Page 2
TABLE OF CONTENTS
T-328
2
1. SAFETY PRECAUTIONS .......................................................................................3
2. GENERAL DESCRIPTION ....................................................................................5
3. FEATURES ...............................................................................................................5
4. NOMENCLATURE AND FUNCTIONS
4.1 Front Panel ..............................................................................................................6
4.2 Rear Panel..............................................................................................................7
5. CONNECTIONS .......................................................................................................8
6. APPLICATIONS .......................................................................................................9

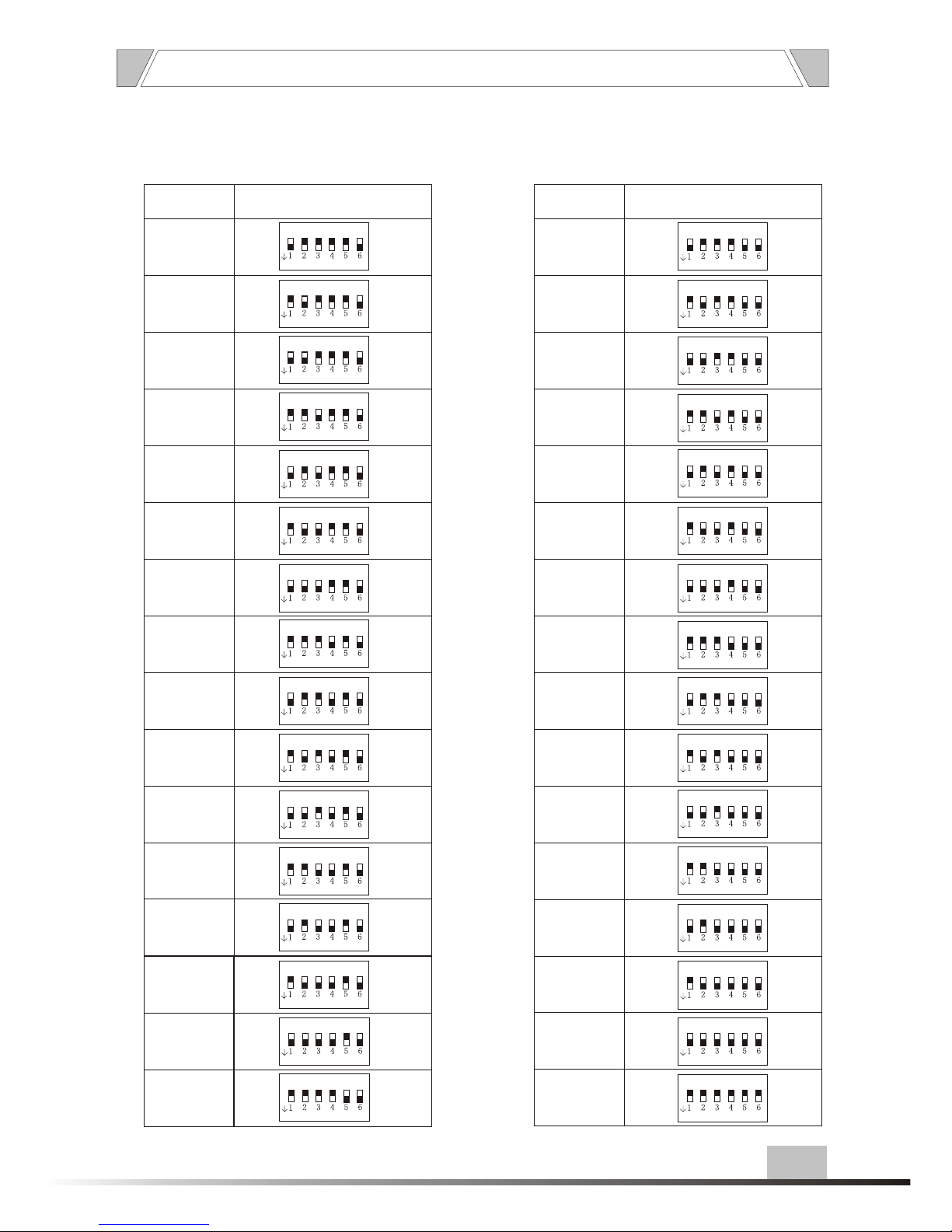

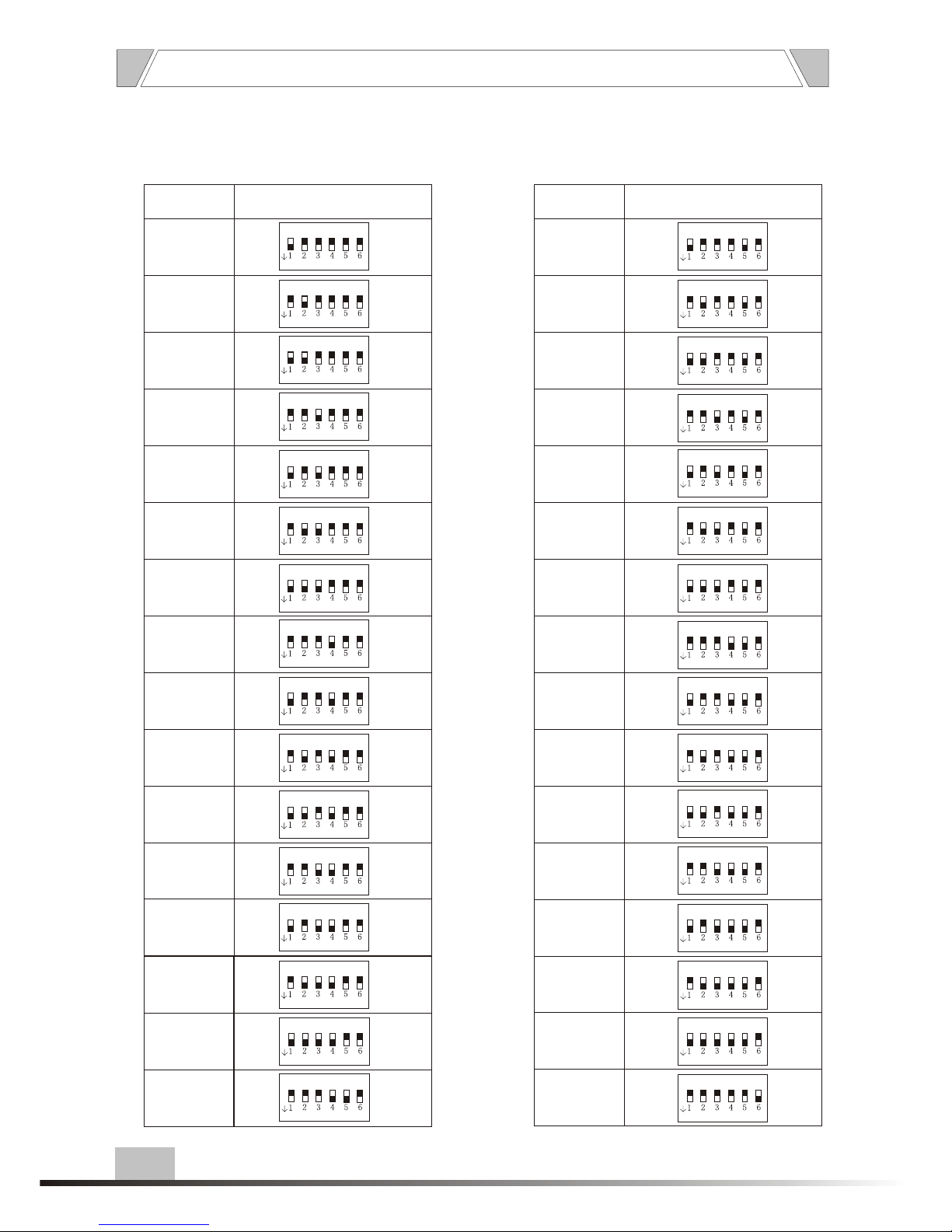

7.ADDRESS SET ........................................................................................................11

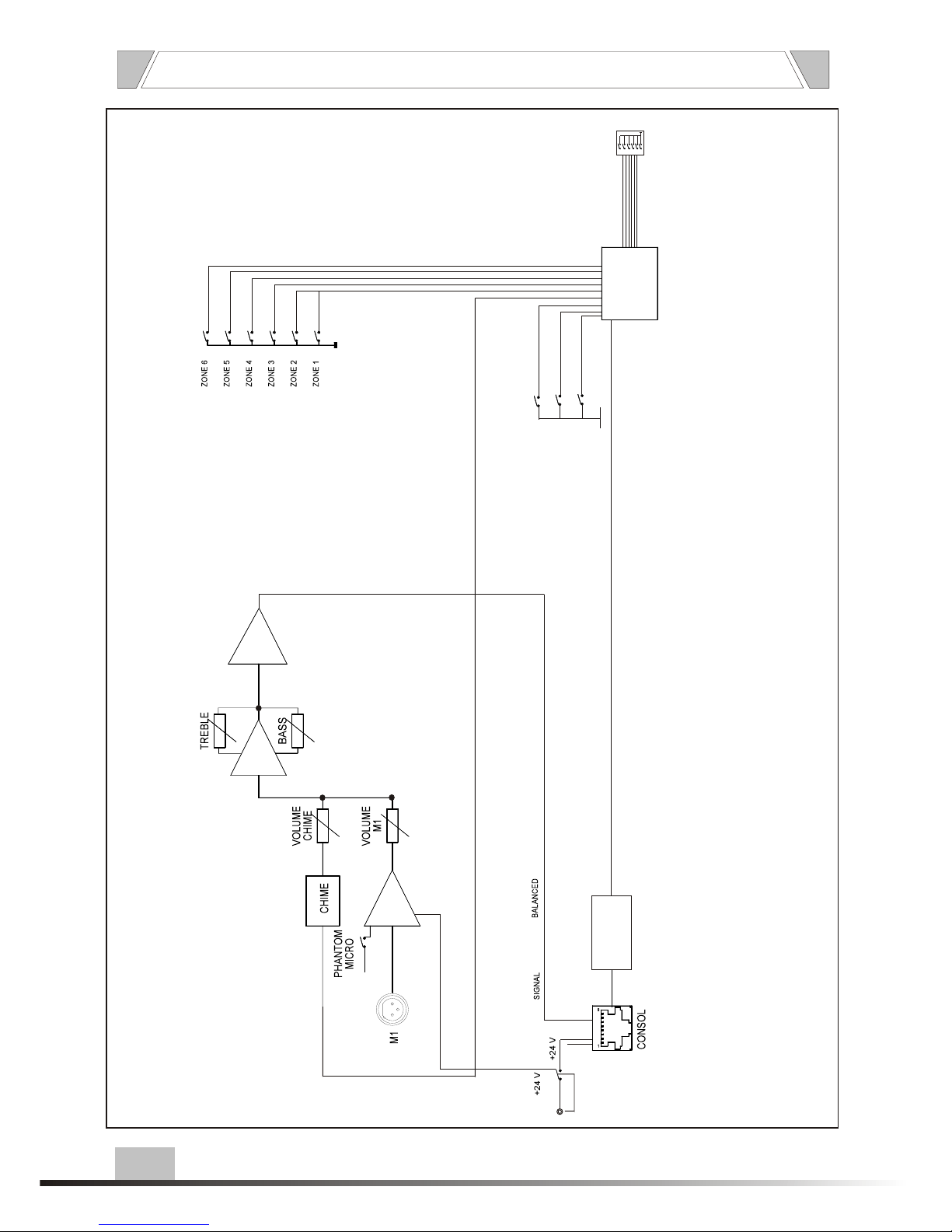

8.BLOCK DIAGRAM ..................................................................................................13
9.SPECIFICATIONS ..................................................................................................14

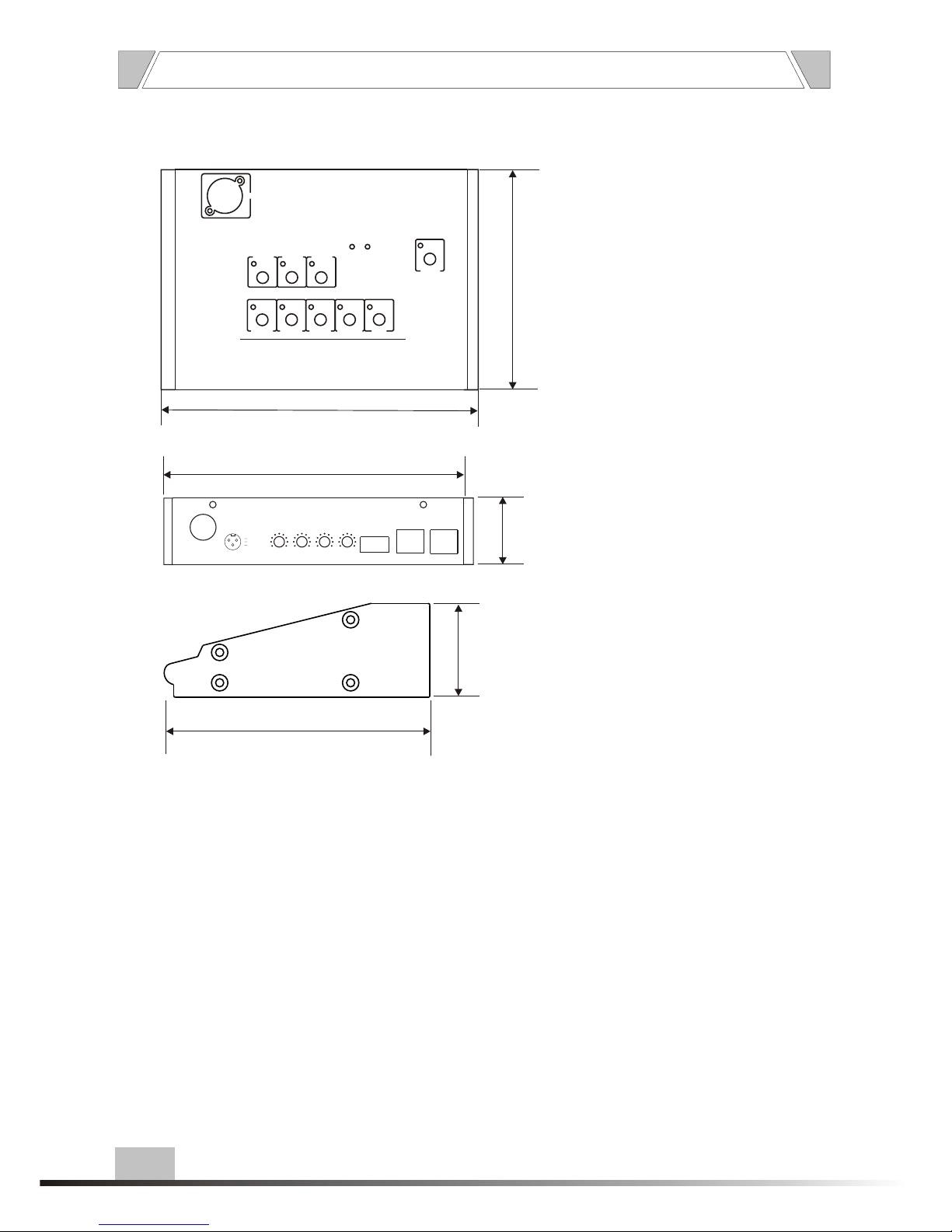

10.DIMENSIONAL DIAGRAM ..................................................................................15
Page 3
Be sure to replace the unit's terminal cover after
connection completion. Because high voltage is
applied to the speaker terminals, never touch these
terminals to avoid electric shock.
Be sure to ground to the safety ground (earth)
terminal to avoid electric shock. Never ground to a
gas pipe as a catastrophic disaster may result.
Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down, causing personal injury and/or property
damage.
When the Unit is in Use
Should the following irregularity be found during
use, immediately switch off the power,
disconnect the power supply plug from the AC
outlet and contact your nearest dealer.
Make no further attempt to operate the unit in this
condition as this may cause fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
If it is malfunctioning (no tone sounds.)
To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest dealer.
ITC
ITC
Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a fire
or electric shock.
Do not insert nor drop metallic objects or
flammable materials in the ventilation slots of the
unit's cover, as this may result in fire or electric
shock.
3
T-328
When Installing the Unit
Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is
specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in fire or
electric shock.
Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
1. SAFETY PRECAUTIONS
Page 4
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in
the electrical installation of the building.
When Installing the Unit
Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.
When unplugging the power supply cord, be sure
to grasp the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.
When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock. When removing the power cord, be
sure to hold its plug to pull.
Do not block the ventilation slots in the unit's cover.
Doing so may cause heat to build up inside the unit
and result in fire.
Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
When the Unit is in Use
Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.
Make sure that the volume control is set to
minimum position before power is switched on.
Loud noise produced at high volume when power is
switched on can impair hearing.
Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
Contact your dealer as to the cleaning. If dust is
allowed to accumulate in the unit over a long period
of time, a fire or damage to the unit may result.
ITC
If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.
Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.
SAFETY PRECAUTIONS
T-328
4
Page 5
3. FEATURES
T-328 Series paging station is equiped with priority function. They are designed to suit all PA System application
in schools homes offices and stores.
2. GENERAL DESCRIPTION
1. Zone selection Push the switch for one zone or all zone and the zone led turn on.
2. Announcement After selecting the zone where to play the announcement, Keep pushing the talk
button, the led turn on , the internal chime play,and the user could proceed with the announc
ement.If at the same time another connected microphone base is already making an
announcement(and therefore the line is already busy), the talk led start blinking.
3. Activation
message 3 After selecting the zones, open alarm switch. Protection and push the button. Base
of T-6245 setting, the system plays the message once or continuously till the alarm switch is not
push back.
4. Priority Microphone base has priority on music and on recorded Message.
5. Recorded messages Three different messages,60 seconds max each,could be recorded.the
first and second message are activate bycontact play message on T-6245 and they go to all
zones. The third message could be only activated by microphone base console and it goes only
in the pre-selected zone.messages have priority on all music sources.
6. Maximum can connect with 6pcs T-328
5
T-328
Page 6
1. ZONE(1~6)
N.6 zone activation switches with led (see picture n.1
for possible labels solution)
2. ALL CALL
N.1 activation switch for all zones with led
3. TALK
N.1 microphon activation push button (talk) with led
(in case more microphone bases require to talk at the
same time, the first base get the line and all the others
will have the led blinking)
4. NOMENCLATURE AND FUNCTIONS
4. ALARE
N.1 alarm message activation switch for pre-selected
zone. (This switch with led must be protected ,press
this button two seconds to activate alarm message)
5. POWER
Power indicator
6. LINK
Link indicator
7. MIC
N.1 electret microphone
4.1 FRONT PANEL
ALARM
LINK
POWER
MIC
ZONE 4 ZONE 5 ZONE 6 ALL CALL TALK
ZONE 1 ZONE 2 ZONE 3
5
6
7
4
1
2 3
T-328
6
Page 7
NOMENCLATURE AND FUNCTIONS
11. BASS
Adjust bass response. Rotate clockwise to increase
bass output and anticlockwise to reduce it.
12. CHIME
Volume chime control
13. ID CONSOL
Dip-switches for microphone base ID (from 1 to 6)
14. LINE IN
Rj45 port for connection to T-328.
Two wires are used for 24 Vdc power provided by
T-328, two wires for the data bus 485 and 3 wires for
0dB microphone signal.
15. LINK OUT
Connected to the next T-328

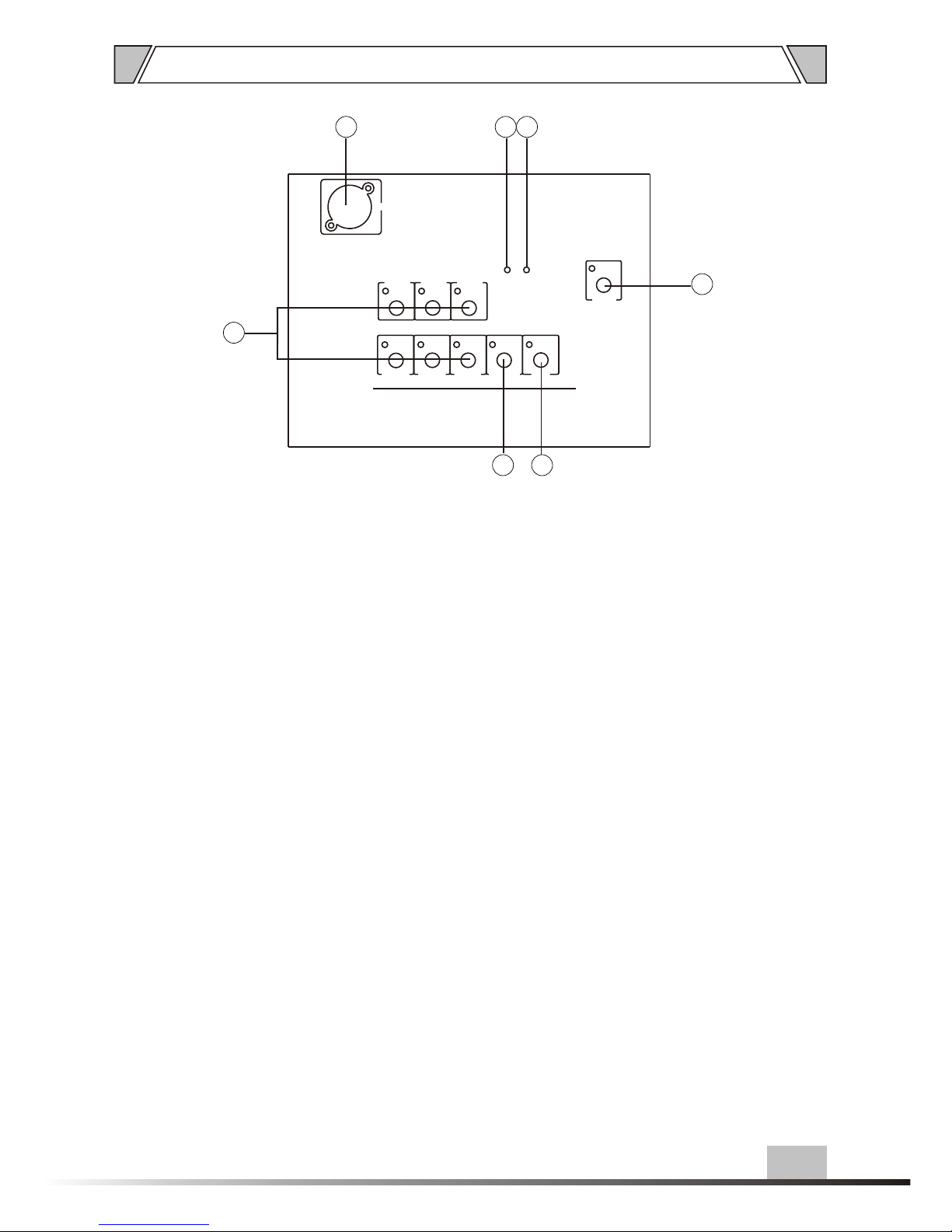

4.2 REAR PANEL
8. 24V DC POWER SUPPLY
24 Vdc power connection with secure screw for a
potential external power transformer.
This 24V DC power transformer should be used when
the distance (the distance could vary based on cable
section) between the microphone base and T-328 is
too much for the 24 Vdc provided by RJ45 connection.
The connection of the external power supply disable
the 24 Vdc provided by T-328.
9. VOLUME
Volume control output
10.TREBLE
Adjust treble response. Rotate clockwise to increase
treble output and anticlockwise to reduce it.
When the distance between the T-6245 and T-328 is
greater than 50m, we must use the 24V DC power input.
POWER
24VDC
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
-10
+10
-10
+10010
1
2
3
1 GND
2 GND
3 +24DC
LINK OUT
8 9 10 11 12 13 14 15
7
T-328
Page 8

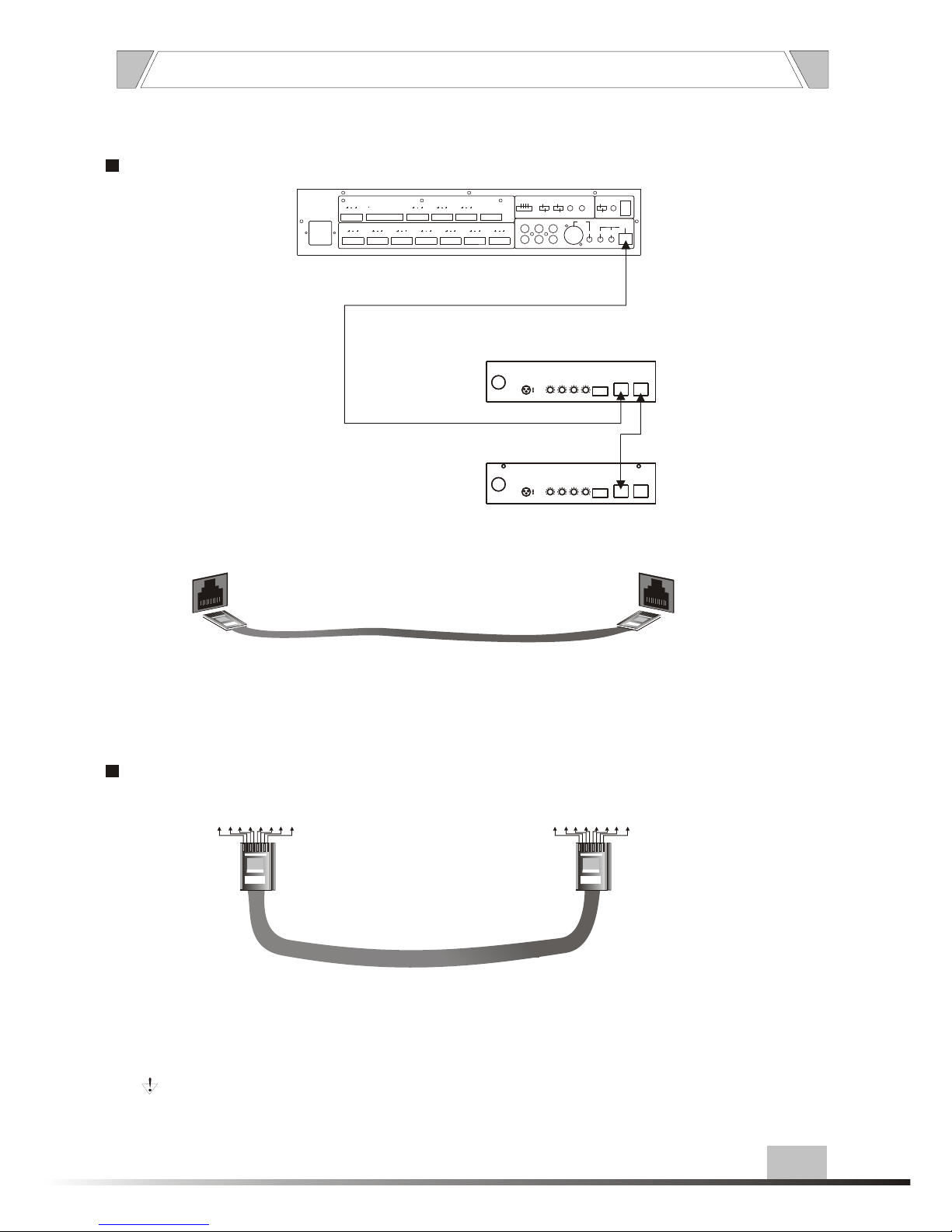

5. CONNECTIONS
NETWORK CONNECTION LINE
7
8
A
1 2 3
4
5
6
NET PRODUCTION LINE METHOD
Note: Network lines must adopt the five categories of twisted-pair with double-layer
shielding, RJ45 connectors must be used with shielded connector.
B: 1 Blue 2 White Blue 3 Brown 4 White Brown 5 Orange 6 White Orange
7 Green 8 White Green
A: 1 Blue 2 White Blue 3 Brown 4 White Brown 5 Orange 6 White Orange
7 Green 8 White Green
Paging Station
Digital Mixer 6 zone
1 2 3
4
5
678
B
A
B
Network Line
A
B
~220-240V 50/60Hz
T1AL250V
OPEN RELE INPUT ZONE 1 OUT ZONE 2 OUT ZONE 3 OUT ZONE 4 OUT ZONE 5 OUT ZONE 6 OUT
COM NO1 NO2
PLAY MESSAGE
+1
RELE ZONE CONSOL OUT
MIX MUSIC-PAGE OUT MUSIC OUT
PAGE OUTIN COM ZONE
+2
+3
+4
+5
+6
PRIORITY
TAPE
CD TUNER MICRO
CONSOL
GAIN GAIN
CONSOL
VOLUME
VOLUME
CHIME
OFF
12
3
REC
MESSAGE
1 TIME
CONTINUOS
MESSAGE
NORMAL
ALARM
VOL.PLAY
MESSAGE
VOL.REC
MIC
+48V
PHANTOM
POWER
24VDC
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
-10
+10
-10
+10010
1
2
3
1 GND
2 GND
3 +24DC
LINK OUT
Paging Station
POWER
24VDC
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
-10
+10
-10
+10010
1
2
3
1 GND
2 GND
3 +24DC
LINK OUT
A
B
T-328
8
Page 9

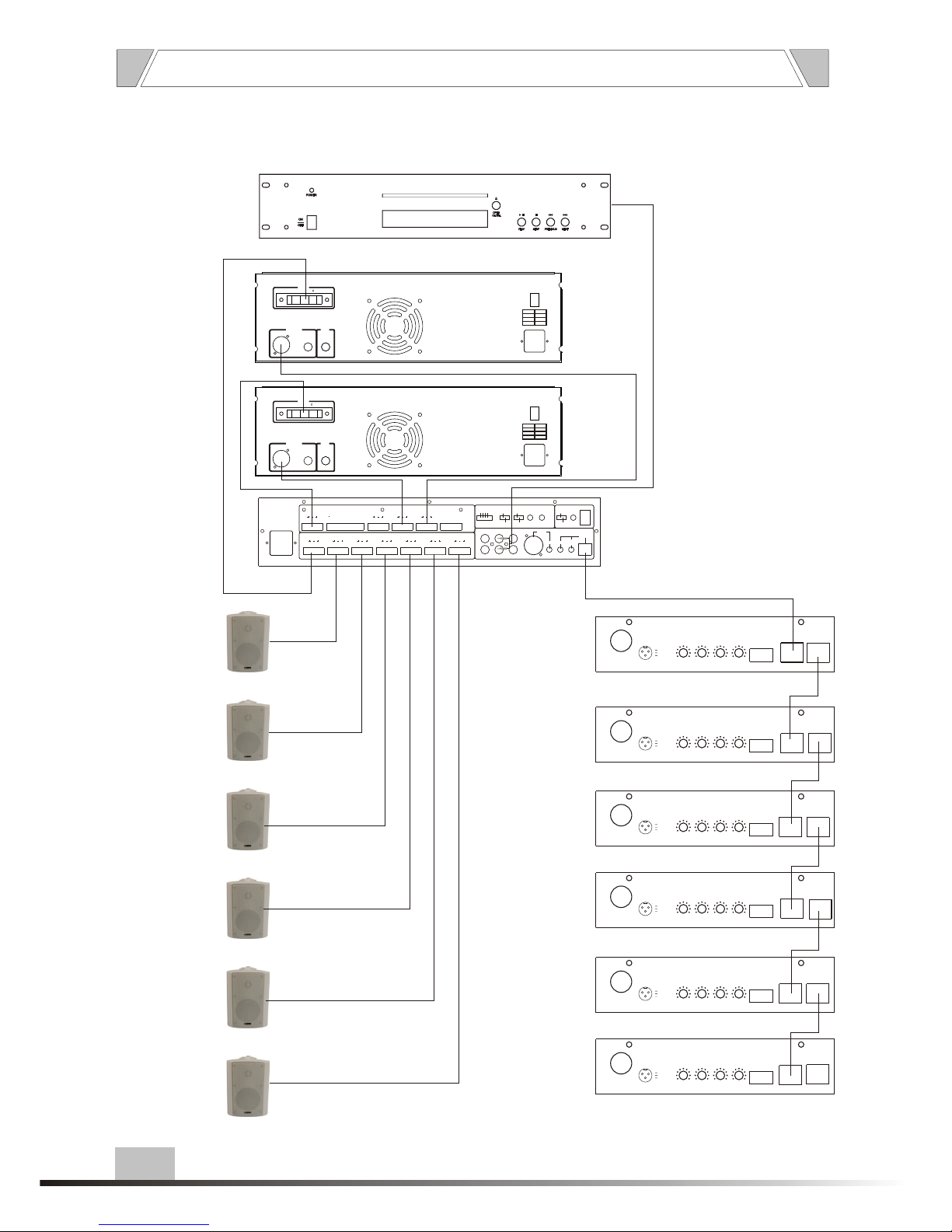

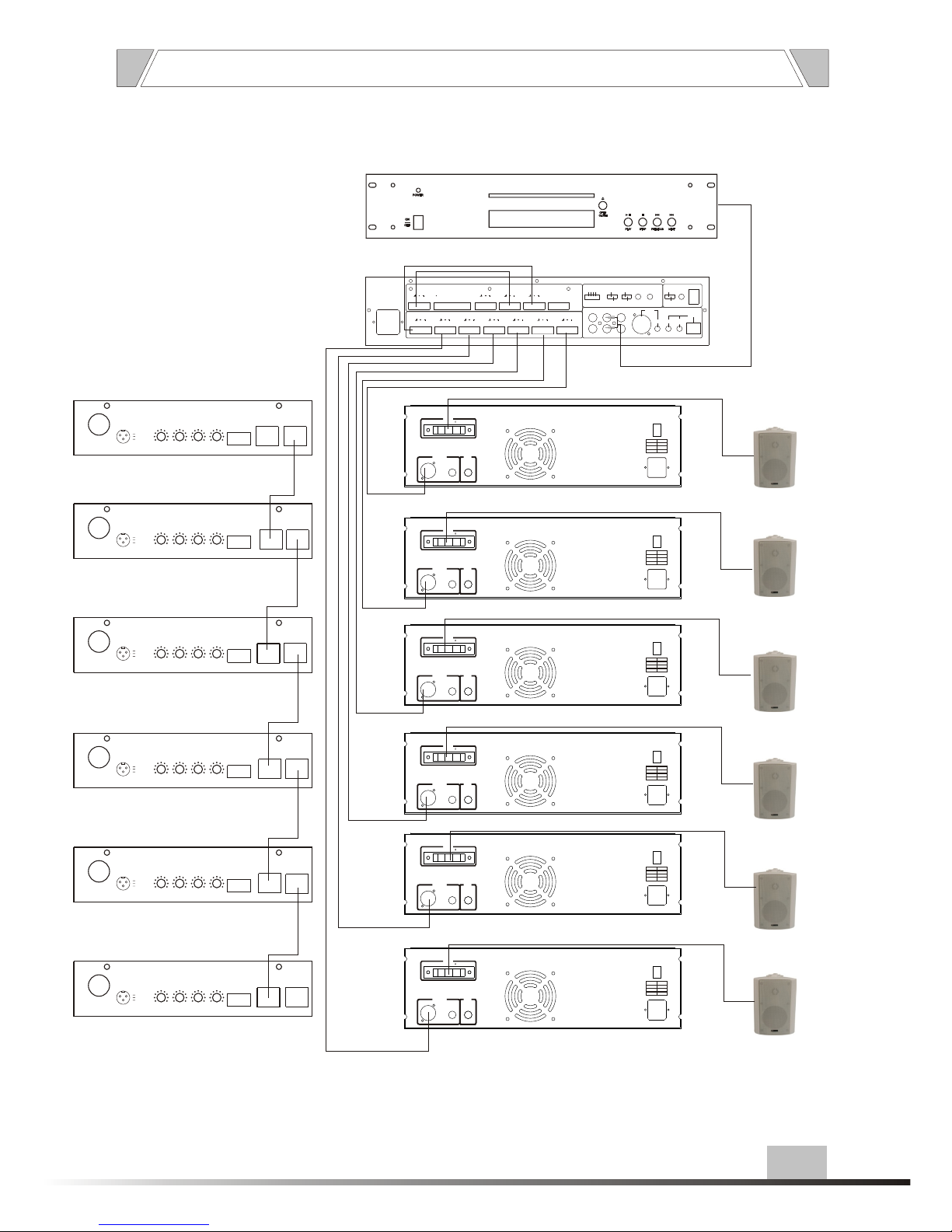

6. APPLICATIONS
1 amplifier for music 1 amplifier for voice for 6 zone
Voice
Music
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
Compact disc
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Zone 6
ZONE 6 OUT
NO2
PLAY MESSAGE
PRIORITY
TAPE
CD TUNER MICRO
CONSOL
GAIN GAIN
CONSOL
VOLUME
VOLUME
CHIME
OFF
12
3
REC
MESSAGE
1 TIME
CONTINUOS
MESSAGE
NORMAL
ALARM
VOL.PLAY
MESSAGE
VOL.REC
MIC
+48V
PHANTOM
~220-240V 50/60Hz
T1AL250V
OPEN RELE INPUT ZONE 1 OUT ZONE 2 OUT ZONE 3 OUT ZONE 4 OUT ZONE 5 OUT
COM NO1
+1
RELE ZONE CONSOLOUT
MIX MUSIC-PAGE OUT MUSIC OUT
PAGE OUT
IN COM ZONE
+2
+3
+4
+5
+6
LINK OUT
LINK OUT
LINK OUT
LINK OUT
LINK OUT
LINK OUT
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~220-240V 50/60Hz
FUSE
T6.3AL250V
POWER
FUSE
350W
500W
650W
T8AL250V
T10AL250V
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~220-240V 50/60Hz
FUSE
T6.3AL250V
POWER
FUSE
350W
500W
650W
T8AL250V
T10AL250V
9
T-328
Page 10
APPLICATIONS
6 amplifier one for each zone
Compact disc
Zone 6
Zone 5
Zone 4
Zone 3
Zone 2
Zone 1
ZONE 6 OUT
NO2
PLAY MESSAGE
PRIORITY
TAPE
CD TUNER MICRO
CONSOL
GAIN GAIN
CONSOL
VOLUME
VOLUME
CHIME
OFF
12
3
REC
MESSAGE
1 TIME
CONTINUOS
MESSAGE
NORMAL
ALARM
VOL.PLAY
MESSAGE
VOL.REC
MIC
+48V
PHANTOM
~220-240V 50/60Hz
T1AL250V
OPEN RELE INPUT ZONE 1 OUT ZONE 2 OUT ZONE 3 OUT ZONE 4 OUT ZONE 5 OUT
COM NO1
+1
OUT RELE ZONE CONSOL
OUT MIX MUSIC-PAGE MUSIC OUT
PAGE OUTIN COM ZONE
+2
+3
+4
+5
+6
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
LINK OUT
LINK OUT
LINK OUT
LINK OUT
LINK OUT
LINK OUT
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~220-240V 50/60Hz
FUSE
T6.3AL250V
POWER
FUSE
350W
500W
650W
T8AL250V
T10AL250V
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~220-240V 50/60Hz
FUSE
T6.3AL250V
POWER
FUSE
350W
500W
650W
T8AL250V
T10AL250V
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~220-240V 50/60Hz
FUSE
T6.3AL250V
POWER
FUSE
350W
500W
650W
T8AL250V
T10AL250V
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~220-240V 50/60Hz
FUSE
T6.3AL250V
POWER
FUSE
350W
500W
650W
T8AL250V
T10AL250V
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~220-240V 50/60Hz
FUSE
T6.3AL250V
POWER
FUSE
350W
500W
650W
T8AL250V
T10AL250V
INPUTS
LINK
GND
LIFT
100V 70V 4~16
COM
OUTPUT
~220-240V 50/60Hz
FUSE
T6.3AL250V
POWER
FUSE
350W
500W
650W
T8AL250V
T10AL250V
T-328
10
Page 11
7.ADDRESS SET
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
ADDRESS
DEFINITION
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ADDRESS
DEFINITION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ID CONSOL ADDRESS SET
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
11
T-328
Page 12
ADDRESS SET
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
ADDRESS
DEFINITION
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ADDRESS
DEFINITION
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
ID CONSOL ADDRESS SET
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
T-328
12
Page 13
MCU
CONTROL
+12v
MAX485
GND
GND
Talk
All zone
CONTROL
Gnd
Alarm
ID
GND
8. BLOCK DIAGRAM
13
T-328
Page 14
Sensitivity
-50 / -2 dB 2, 5 / 500 mV
S/N ratio
>68dB
Frequency response
100/17.000Hz(-3dB)
Phantom power
12V
Bass
12dB
12dB
Treble
2 tone active for contact free in
priority and BGM
>0.1%
Normal distortion
Chime
Main power supply
24 DC
Dimension(mm)
230X150X56
Max number of microphone bases
Weight
6
0.96Kg
9. SPECIFICATIONS
T-328
14
MIXER AMPLIFIER WITH CD
T-328
Model
Page 15
220 mm
Side Panel
Fack Panel
Front Panel
56 mm
56 mm
150 mm
220 mm
150 mm
10. DIMENSIONAL DIAGRAM
POWER
24VDC
-10
+10
010-10
+10
CHIME
VOLUME
TREBLE
BASS VOLUME ID CONSOL
LINE IN
0
10
1
2
3
1 GND
2 GND
3 +24DC
UNIT :mm
LINK OUT
ALARM
LINK
POWER
MIC
ZONE 4 ZONE 5 ZONE 6 ALL CALL TALK
ZONE 1 ZONE 2 ZONE 3
15
T-328
Page 16
PUBLIC ADDRESS SYSTEM
Version A
AUDIOAUDIO
Loading...
