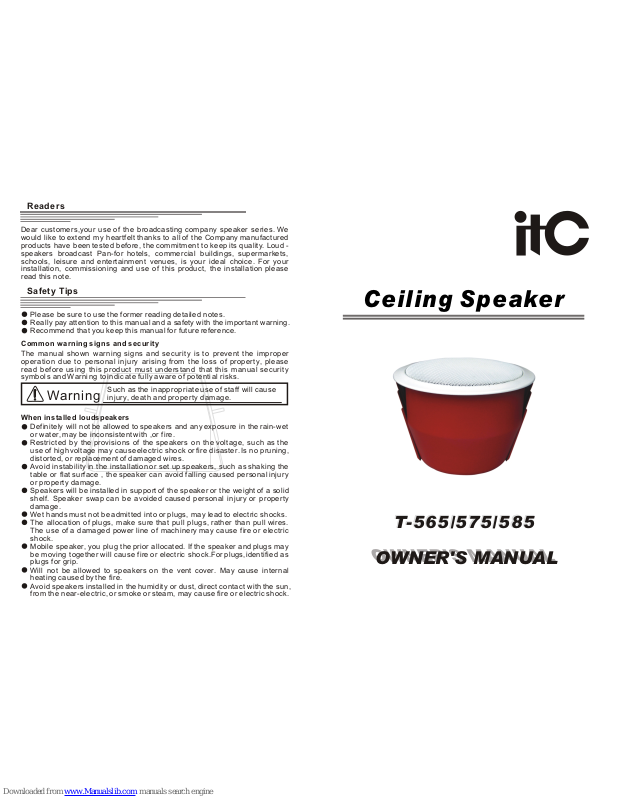

Page 1
T-565/575/585T-565/575/585
T-565/575/585
OWNER'S MANUAL
Ceiling Speaker
Safety Tips
Readers
Warning
Such as the inappropriate use of staff will cause
injury, death and property damage.
Please be sure to use the former reading detailed notes.
Really pay attention to this manual and a safety with the important warning.
Recommend that you keep this manual for future reference.
When installed loudspeakers
Definitely will not be allowed to speakers and any exposure in the rain-wet
or water, may be inconsistent with ,or fire.
Restricted by the provisions of the speakers on the voltage, such as the
use of high voltage may cause electric shock or fire disaster. Is no pruning,
distorted, or replacement of damaged wires.
Avoid instability in the installation or set up speakers, such as shaking the
table or flat surface , the speaker can avoid falling caused personal injury
or property damage.
Speakers will be installed in support of the speaker or the weight of a solid
shelf. Speaker swap can be avoided caused personal injury or property
damage.
Wet hands must not be admitted into or plugs, may lead to electric shocks.
The allocation of plugs, make sure that pull plugs, rather than pull wires.
The use of a damaged power line of machinery may cause fire or electric
shock.
Mobile speaker, you plug the prior allocated. If the speaker and plugs may
be moving together will cause fire or electric shock.For plugs,identified as
plugs for grip.
Will not be allowed to speakers on the vent cover. May cause internal
heating caused by the fire.
Avoid speakers installed in the humidity or dust, direct contact with the sun,
from the near-electric, or smoke or steam, may cause fire or electric shock.
Common warning signs and security
The manual shown warning signs and security is to prevent the improper
operation due to personal injury arising from the loss of property, please
read before using this product must understand that this manual security
symbols and Warning to indicate fully aware of potential risks.
Dear customers,your use of the broadcasting company speaker series. We
would like to extend my heartfelt thanks to all of the Company manufactured
products have been tested before, the commitment to keep its quality. Loud speakers broadcast Pan-for hotels, commercial buildings, supermarkets,
schools, leisure and entertainment venues, is your ideal choice. For your
installation, commissioning and use of this product, the installation please
read this note.

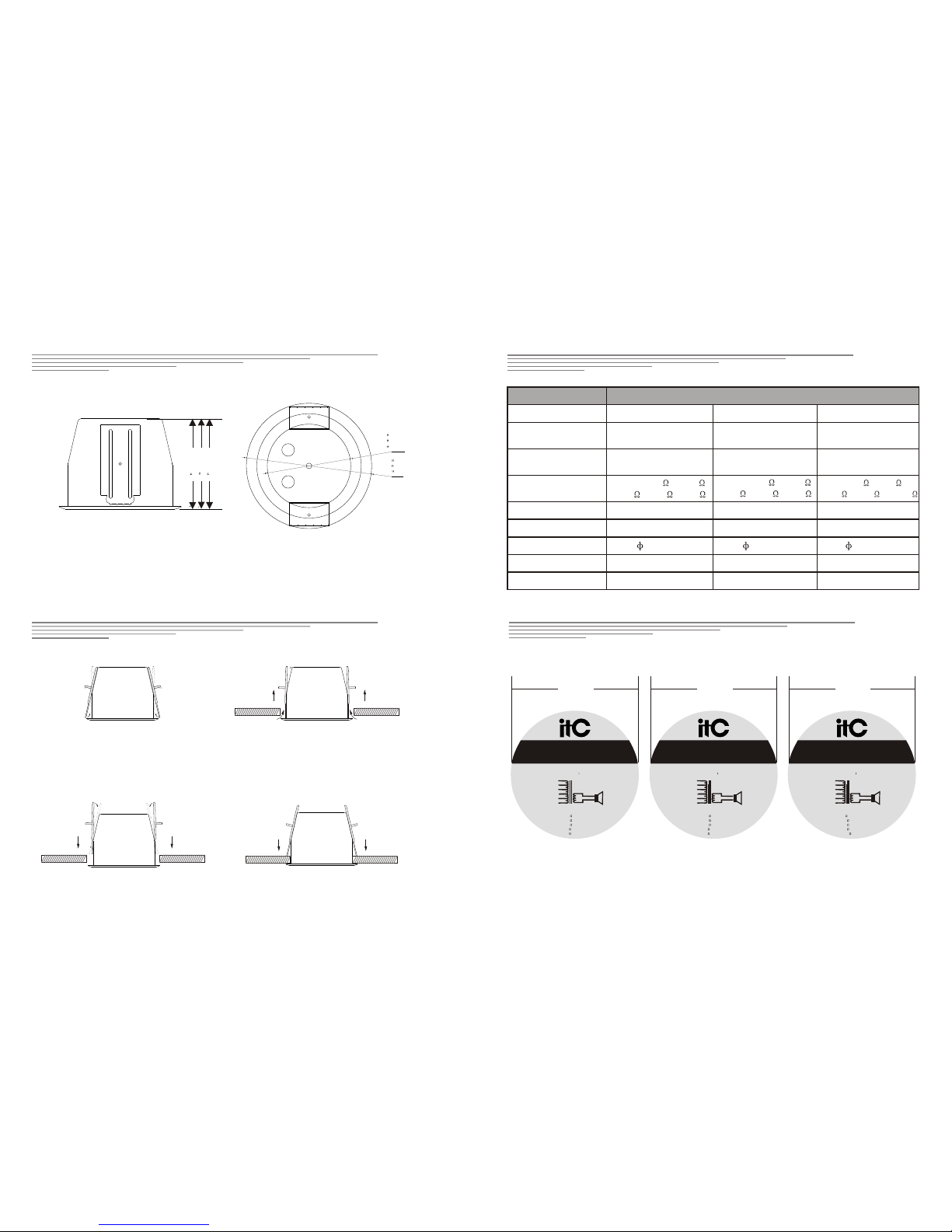

Page 2
Model
Power Taps@100V
Power Taps@70V
Freq Resp
SPL(1W/1N)
Dimensions
T-585
15W,7.5W,
3.75W,1.87W,0.93W
7.5W,3.75W,
1.87W,0.93W,0.46W
93dB
80-20KHz
270X130mm
T-565/575/585
Cutout size
240mm
8 240mm
8 270
5 125mm
Step 1
Step 1: First measuring tools, measuring
speaker mounting hole bit. Mounting
holes and then mask bit must be less
than the speakers on both sides of iron
fittings, push to the loudspeakers, so
that speakers on both sides of metal
plates into a 90-degree vertical.
Step 2: The speaker to the ceiling mounting
holes a good push.
Step 2
Step 3: When the speaker stand up to the ceiling
of the mask, the metal plates on both sides
of the speaker to change less than 90-degree
angle. Speakers on both sides of metal plates
so that the ceiling caught
Step 4: This is the net effect of speaker
installation.
Step 3 Step 4
Dimension
Specifications
Installation Labels stickers
6 126mm
8 130mm
6 207mm
5 157mm
6 230
5 180
T-575
6W,3W,
1.5W,0.75W,0.38W
3W,1.5W,
0.75W,0.38W,0.19W
92dB
120-18KHz
230X126mm
207mm
T-565
6W,3W,
1.5W,0.75W,0.38W
3W,1.5W,
0.75W,0.38W,0.19W
92dB
130-18KHz
180X125mm
Weight
1.7Kg1.6Kg1.2Kg
157mm
Impedance
COM/1.7K /3.3K /
6.7K /13K /26K
COM/1.7K /3.3K /
6.7K /13K /26K
COM/670 /1.3K /
2.6K /5.3K /10.7K
T-585
CEILING SPEAKER
0.93W
1.87W
3.75W
COM
Frequency Response(-10dB): 80-20KHz
SPL(1W/1M) 93dB
Black-------COM
670 --------15W
1.3K ------7.5W
2.6K ----3.75W
5.3K ----1.87W
10.7K ---0.93W
100Volt
Cutout Size: 240mm
53.00 mm
7.5W
15W
T-575
CEILING SPEAKER
0.38W
0.75W
1.5W
COM
Frequency Response(-10dB): 120-18KHz
SPL(1W/1M) 92dB
Black------COM
1.7K --------6W
3.3K --------3W
6.7K ------1.5W
13K -----0.75W
26K -----0.38W
100Volt
Cutout Size: 207mm
53.00 mm
3W
6W
T-565
CEILING SPEAKER
0.38W
0.75W
1.5W
COM
Frequency Response(-10dB): 130-18KHz
SPL(1W/1M) 92dB
Black------COM
1.7K --------6W
3.3K --------3W
6.7K ------1.5W
13K -----0.75W
26K -----0.38W
100Volt
Cutout Size: 157mm
53.00 mm
3W
6W
T-585
T-575T-565
