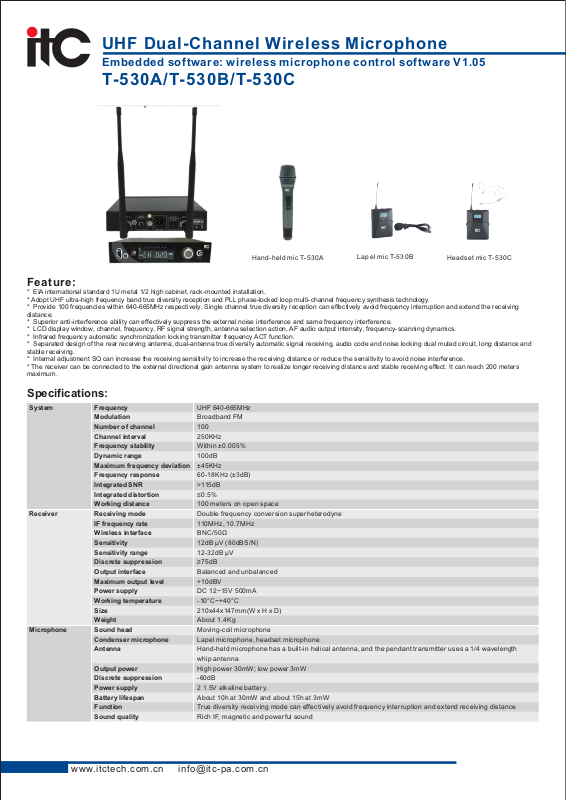

UHF Dual-Channel Wireless Microphone
Embedded software: wireless microphone control software V1.05
T-530A/T-530B/T-530C
Hand- hel d mic T-530 A
Lapel m ic T-530B
Heads et mi c T-530C
Feature:
* EIA international standard 1U metal 1/2 high cabinet, rack-mounted installation.
* Adopt UHF ultra-high frequency band true diversity reception and PLL phase-locked loop multi-channel frequency synthesis technology.
* Provide 100 frequencies within 640-665MHz respectively. Single channel true diversity reception can effectively avoid frequency interruption and extend the receiving
distance.
* Superior anti-interference ability can effectively suppress the external noise interference and same frequency interference.
* LCD display window, channel, frequency, RF signal strength, antenna selection action, AF audio output intensity, frequency-scanning dynamics.
* Infrared frequency automatic synchronization locking transmitter frequency ACT function.
* Separated design of the rear receiving antenna, dual-antenna true diversity automatic signal receiving, audio code and noise locking dual muted circuit, long distance and
stable receiving.
* Internal adjustment SQ can increase the receiving sensitivity to increase the receiving distance or reduce the sensitivity to avoid noise interference.
* The receiver can be connected to the external directional gain antenna system to realize longer receiving distance and stable receiving effect. It can reach 200 meters
maximum.
Specifications:
System
Receiver
Microphone
Frequency
Modulation
Number of channel
Channel interval
Frequency stability
Dynamic range
Maximum frequency deviation
Frequency response
Integrated SNR
Integrated distortion
Working distance
Receiving mode
IF frequency rate
Wireless interface
Sensitivity
Sensitivity range
Discrete suppression
Output interface
Maximum output level
Power supply
Working temperature
Size
Weight
Sound head
Condenser microphone
Antenna
Output power
Discrete suppression
Power supply
Battery lifespan
Function
Sound quality
UHF 640-665MHz
Broadband FM
100
250KHz
Within ±0.00 5%
100dB
±45KHz
60-18KHz (±3 dB)
>115dB
≤0.5%
100 meters on op en space
Double frequ ency conversion superheterodyne
110MHz, 1 0.7MHz
BNC/50Ω
12dB μV (80dBS /N)
12-32dB μV
≥75dB
Balanced and u nbalanced
+10dBV
DC 12~15V 500m A
-10°C~+40° C
210x44x147 mm(W x H x D)
About 1.4Kg
Moving-coi l microphone
Lapel microp hone, headset microphone
Hand-held mi crophone has a built-in helical antenna, and the pendant t ransmitter uses a 1/4 wavelengt h
whip antenna
High power 30m W; low power 3mW
-60dB
2 1.5V alkalin e battery.
About 10h at 30m W and about 15h at 3mW
True diversity receiving mode can effectively a void frequency interr uption and extend receiving dis tance
Rich IF, magnetic and p owerful sound
