ITC T-328 Operation Manual

Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

PAGING STATION

T-328

OPERATION MANUAL

PUBLIC ADDRESS SYSTEM

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .......................................................................................3

2. GENERAL DESCRIPTION ....................................................................................5

3. FEATURES ...............................................................................................................5

4. NOMENCLATURE AND FUNCTIONS

4.1 Front Panel ..............................................................................................................5

4.2 Rear Panel..............................................................................................................6

5. CONNECTIONS .......................................................................................................7

6. APPLICATIONS .......................................................................................................8

8.SPECIFICATIONS ...................................................................................................9

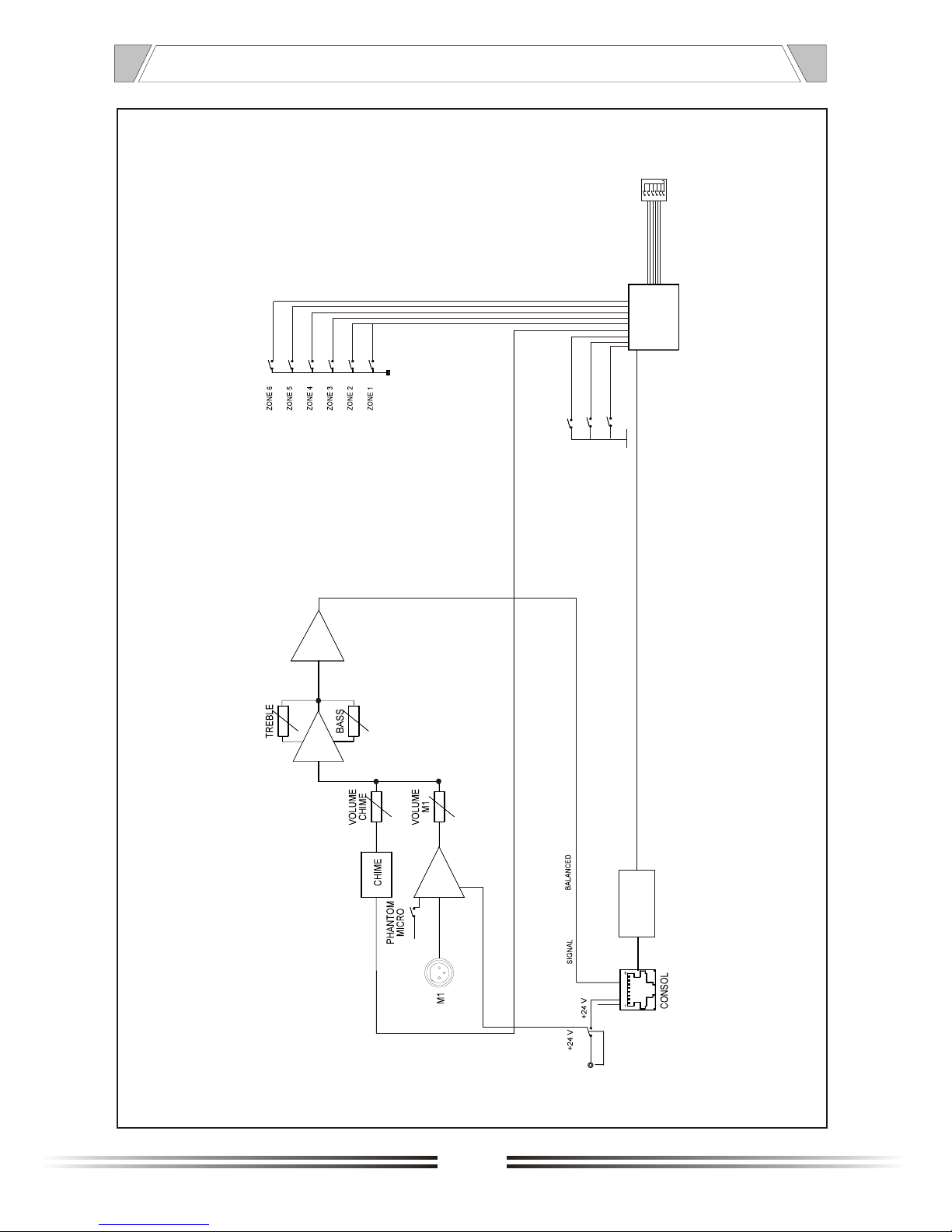

9.BLOCK DIAGRAM .................................................................................................10

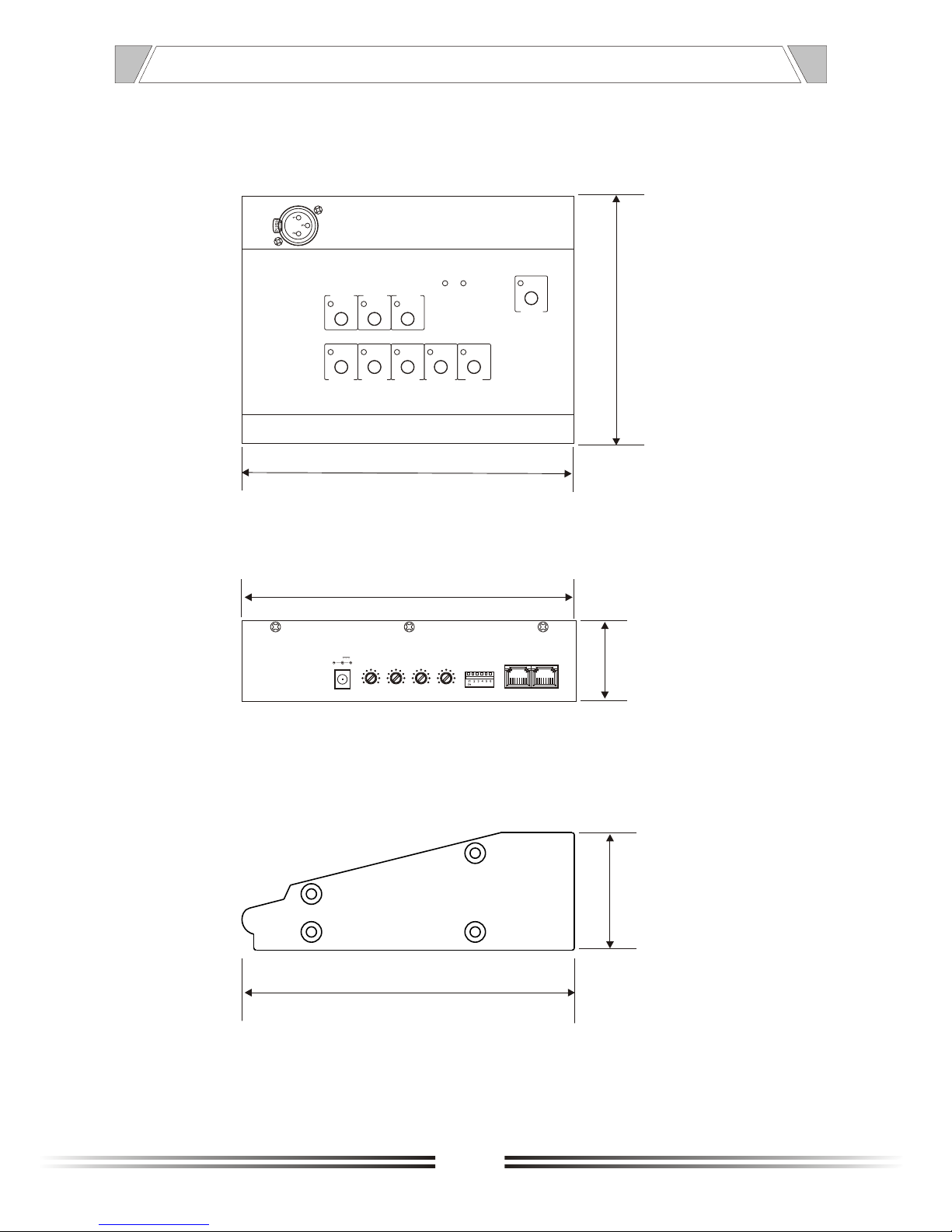

10.DIMENSIONAL DIAGRAM .................................................................................11

2

Be sure to replace the unit's terminal cover after
connection completion. Because high voltage is
applied to the speaker terminals, never touch these
terminals to avoid electric shock.

Be sure to ground to the safety ground (earth)
terminal to avoid electric shock. Never ground to a
gas pipe as a catastrophic disaster may result.

Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down, causing personal injury and/or property
damage.

When the Unit is in Use

Should the following irregularity be found during
use, immediately switch off the power,
disconnect the power supply plug from the AC
outlet and contact your nearest dealer.
Make no further attempt to operate the unit in this
condition as this may cause fire or electric shock.
If you detect smoke or a strange smell coming
from the unit.
If water or any metallic object gets into the unit
If the unit falls, or the unit case breaks
If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
If it is malfunctioning (no tone sounds.)

To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest dealer.

ITC

ITC

Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a fire
or electric shock.

Do not insert nor drop metallic objects or
flammable materials in the ventilation slots of the
unit's cover, as this may result in fire or electric
shock.

When Installing the Unit

Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.

Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is
specified may result in fire or electric shock.

Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in fire or
electric shock.

Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
We also recommend you keep this instruction manual handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety

Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.

Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.

1. SAFETY PRECAUTIONS

3

An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in
the electrical installation of the building.

When Installing the Unit

Never plug in nor remove the power supply plug
with wet hands, as doing so may cause electric
shock.

When unplugging the power supply cord, be sure
to grasp the power supply plug; never pull on the
cord itself. Operating the unit with a damaged
power supply cord may cause a fire or electric
shock.

When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power cord connected to the outlet may
cause damage to the power cord, resulting in fire or
electric shock. When removing the power cord, be
sure to hold its plug to pull.

Do not block the ventilation slots in the unit's cover.
Doing so may cause heat to build up inside the unit
and result in fire.

Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.

When the Unit is in Use

Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.

Make sure that the volume control is set to
minimum position before power is switched on.
Loud noise produced at high volume when power is
switched on can impair hearing.

Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.

Contact your dealer as to the cleaning. If dust is
allowed to accumulate in the unit over a long period
of time, a fire or damage to the unit may result.

ITC

If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.

Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.

1. SAFETY PRECAUTIONS

4

3. FEATURES

T-328 Series paging station is equiped with priority function. They are designed to suit all PA
System application in schools homes offices and stores.

2. GENERAL DESCRIPTION

1. Can remote control partition and partition paging.

2. Built-in bells function.

3. Can remote trigger pre amplifier (T-6245), emergency broadcast.

4. With the pre amplifier linkage to realize the highest priority broadcast function.

5. Built-in high and low adjusting function.

6. On line 485 communication interface.

7. Maximum can connect with 6pcs T-328.

5

1. ZONE(1~6)
Output channel selection buttons

2. ALL CALL

The bell button

3. TALK
Audio output confirm button

4. NOMENCLATURE AND FUNCTIONS

4. ALARM

Play store keys

5. POWER
Power indicator

6. LINK

Link indicator

7. MIC
elected microphone

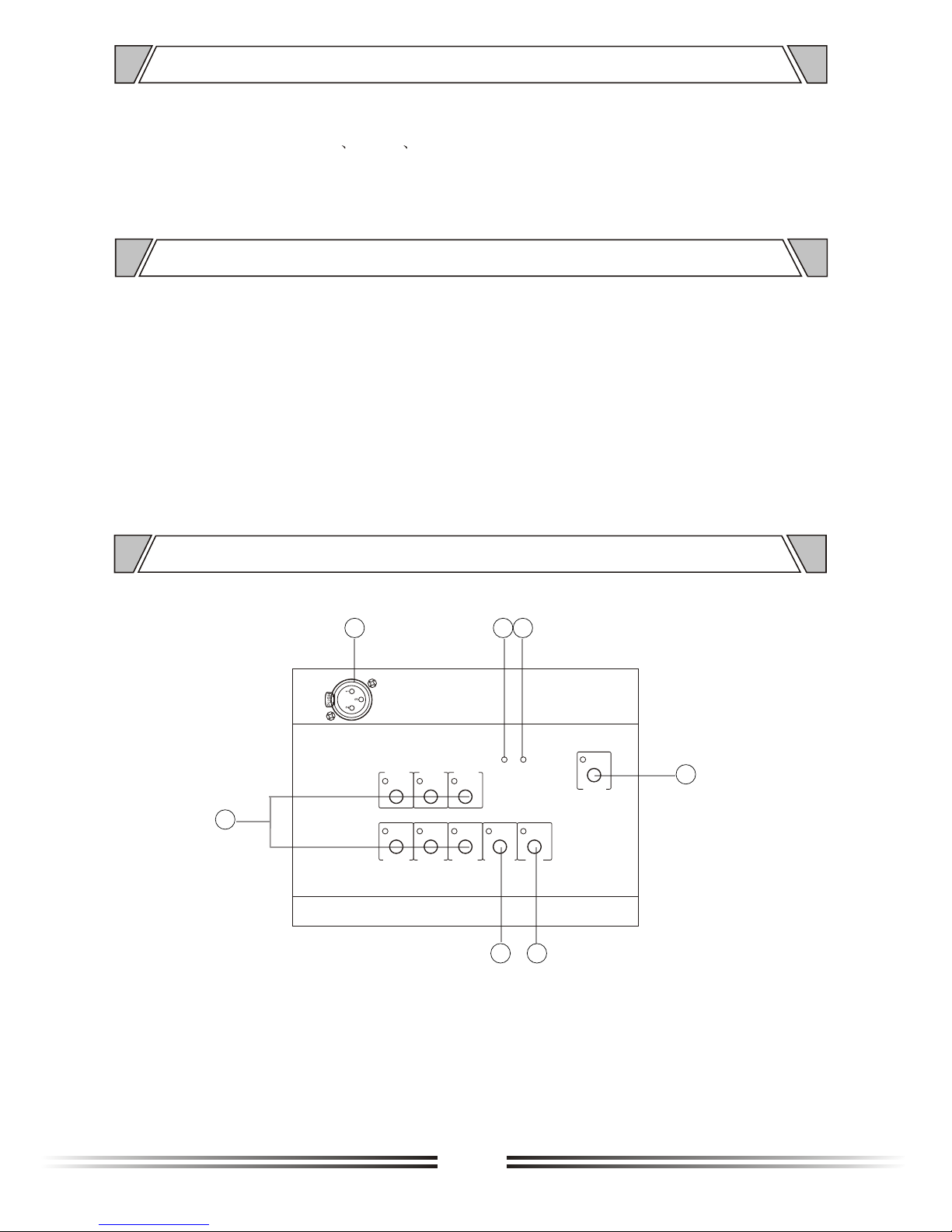

4.1 FRONT PANEL

5

6

7

4

1

2 3

ALARM

LINK

POWER

MIC

ZONE 4 ZONE 5 ZONE 6 ALL CALL TALK

ZONE 1 ZONE 2 ZONE 3

4. NOMENCLATURE AND FUNCTIONS

6

11. BASS
Adjust bass response. Rotate clockwise to increase
bass output and anticlockwise to reduce it.

12. CHIME
Volume chime control

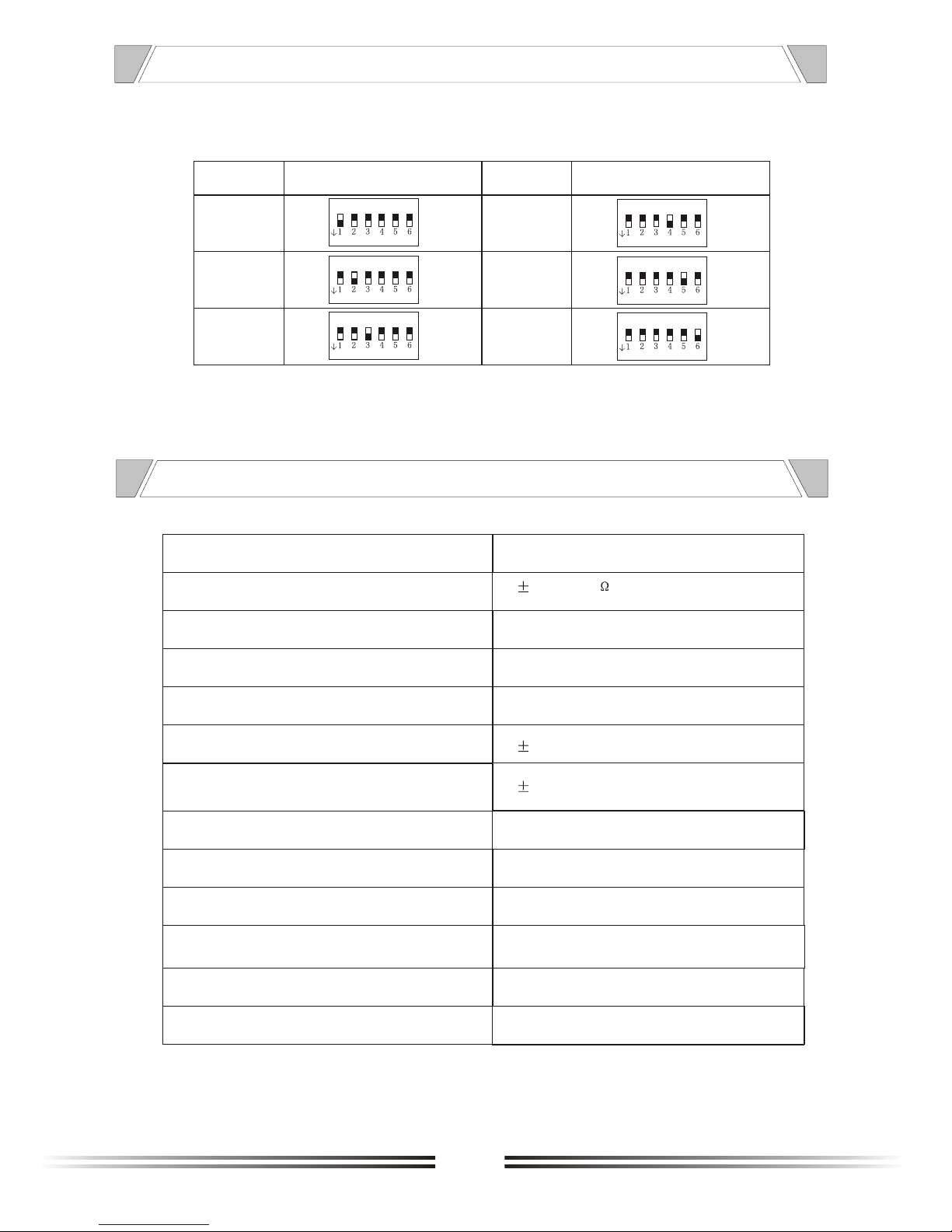

13. ID CONSOL

Dip-switches for microphone base ID (from 1 to 6)

14. LINE IN
RJ45 port for connection to T-328.
Two wires are used for 24 Vdc power provided by
T-328, two wires for the data bus 485 and 3 wires for
0dB microphone signal.

15. LINK OUT
Connected to the next T-328

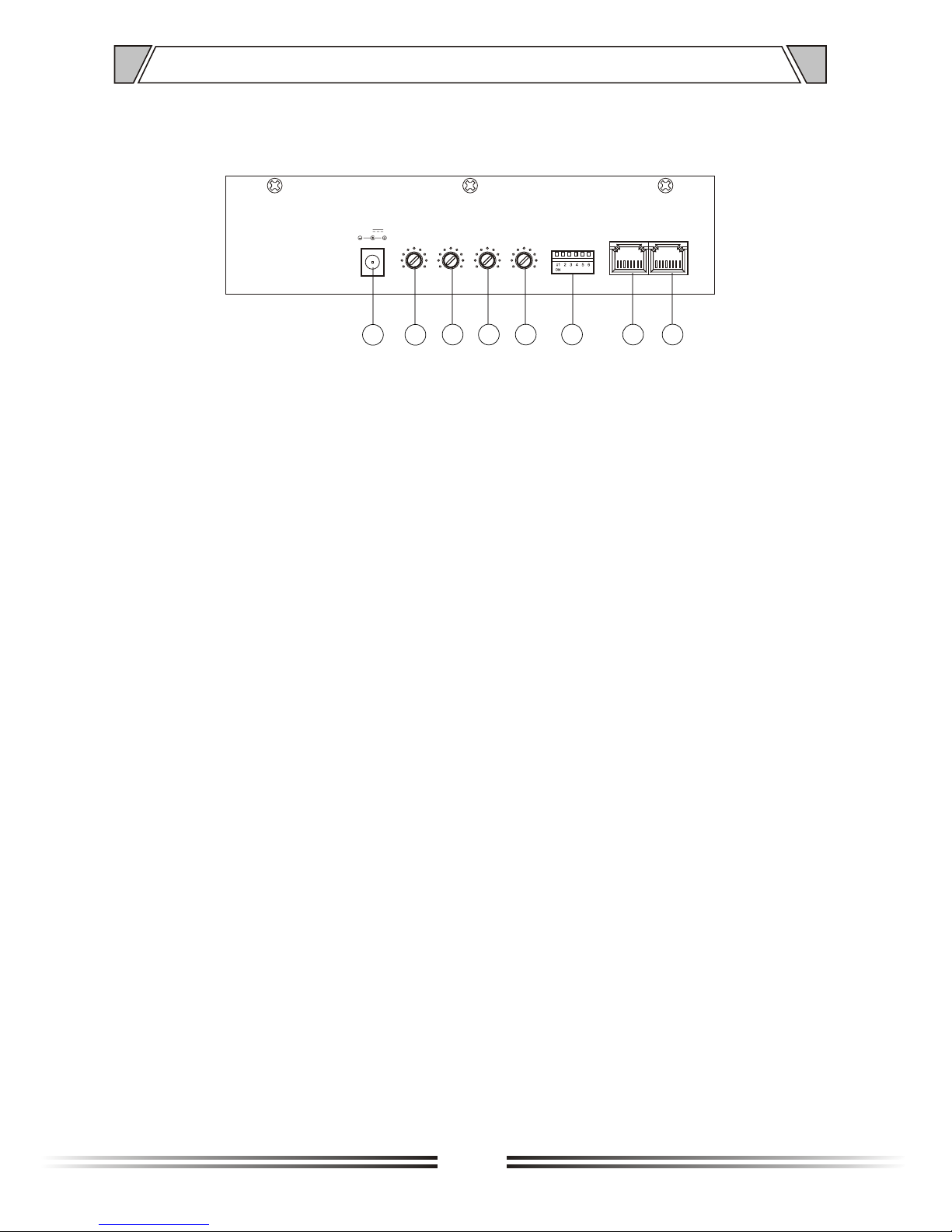

4.2 REAR PANEL

8. 24V DC POWER SUPPLY
24 Vdc power connection with secure screw for a

potential external power transformer.
This 24V DC power transformer should be used when
the distance (the distance could vary based on cable
section) between the microphone base and T-328 is
too much for the 24 Vdc provided by RJ45 connection.
The connection of the external power supply disable
the 24 Vdc provided by T-328.
When the distance between the T-6245 and T-328 is
greater than 50m, we must use the 24V DC power input.

9. VOLUME
Volume control output

10.TREBLE
Adjust treble response. Rotate clockwise to increase
treble output and anticlockwise to reduce it.

8 9

10 11 12 13 14 15

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

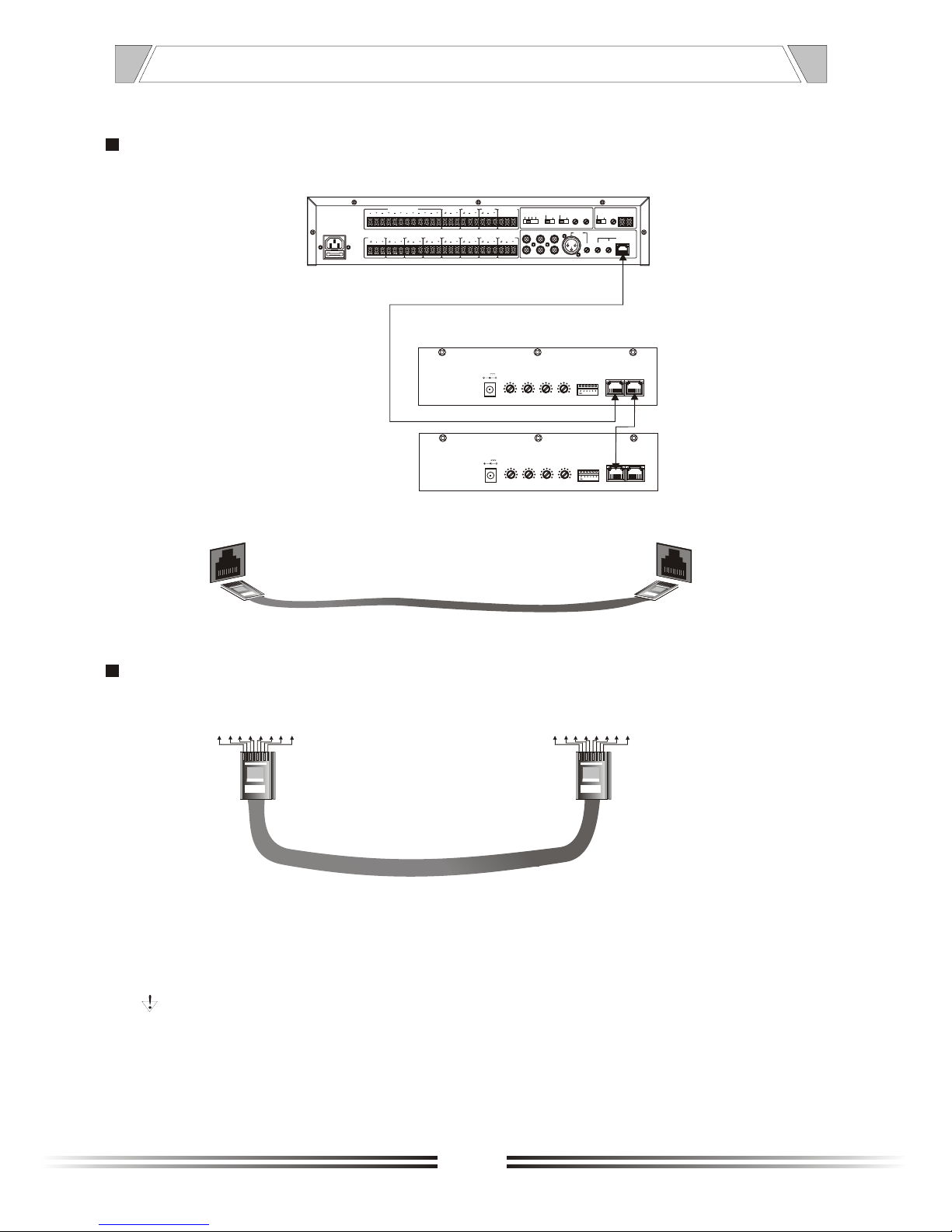

5. CONNECTIONS

NETWORK CONNECTION LINE

7

7

8

A

1 2 3

4

5

6

NET PRODUCTION LINE METHOD

Note: Network lines must adopt the five categories of twisted-pair with double-layer

shielding, RJ45 connectors must be used with shielded connector.

B: 1 Blue 2 White Blue 3 Brown 4 White Brown 5 Orange 6 White Orange
7 Green 8 White Green

A: 1 Blue 2 White Blue 3 Brown 4 White Brown 5 Orange 6 White Orange
7 Green 8 White Green

Paging Station

Digital Mixer 6 zone

1 2 3

4

5

678

B

A

B

Network Line

A

B

MUSIC OUT

~230V 50Hz T1AL 250V

PRIORITY

TAPE

CD

TUNER

MICRO

CONSOL

GAIN GAIN

CONSOL
VOLUME

VOLUME

CHIME

OFF

12

3

REC
MESSAGE

1 TIME

CONTINUOS

MESSAGE

NORMAL

ALARM

VOL.PLAY

MESSAGE

VOL.REC

MIC

+48V

PHANTOM

ZONE 6 OUT ZONE 5 OUT ZONE 4 OUT ZONE 3 OUT ZONE 2 OUT ZONE 1 OUT OPEN RELE ININ COM ZONE

COM NO1 NO2

PLAY MESSAGE

MIX MUSIC-PAGE OUT

PAGE OUTRELE ZONE CONSOL OUT

1 2

3

4

5

6

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

A

B

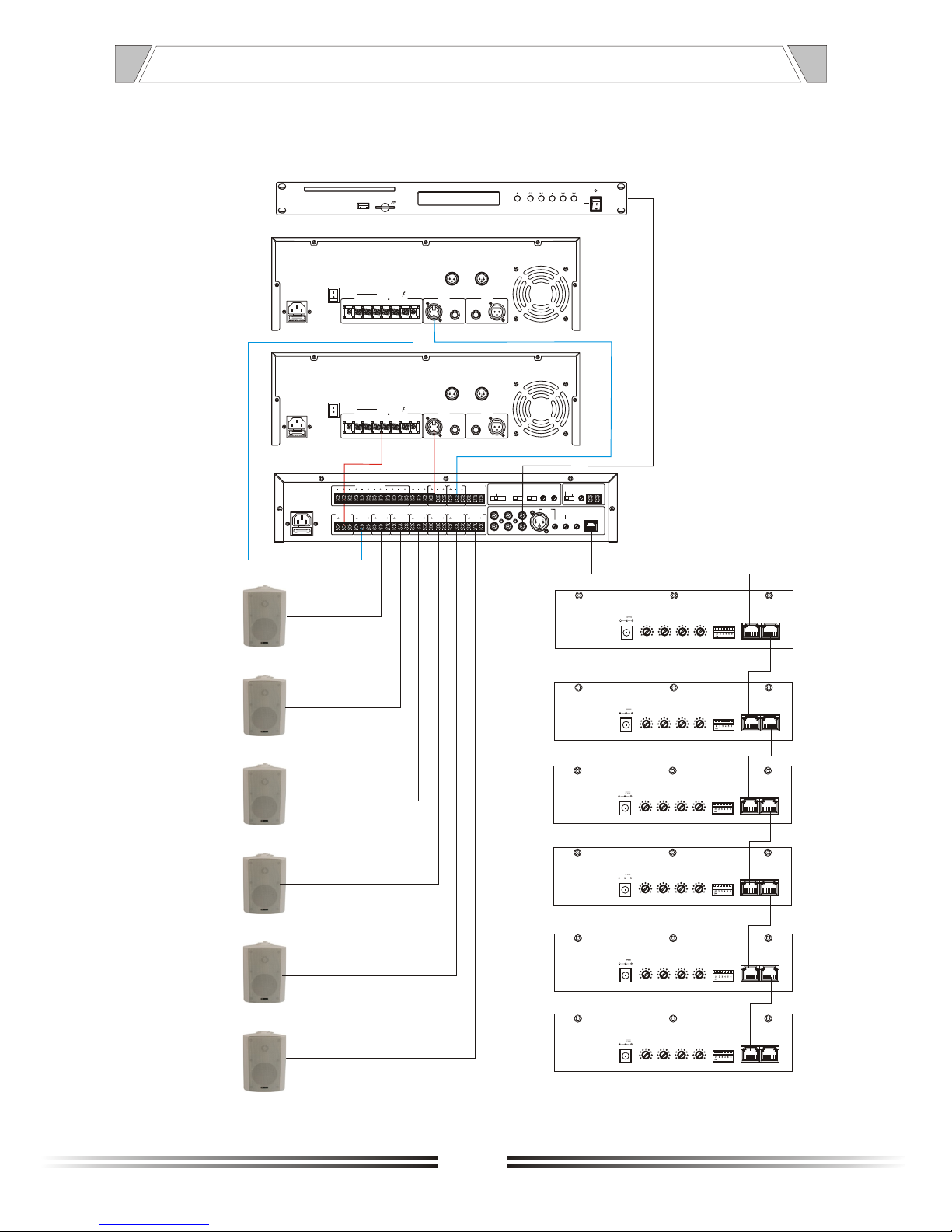

6. APPLICATIONS

1 amplifier for music 1 amplifier for voice for 6 zone

8

COM

4-16

70V 100V

OUTPUTS

COM COM

GND

LIFT

INPUTS LINK

INPUTS LINK

12

3

XLR BAL
1-GND
2-HOT+
3-COLD-

Voice

Music

CD player

Zone 1

Zone 2

Zone 3

Zone 4

Zone 5

Zone 6

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

ON

OFF

POWER

OPEN/
CLOSE

CD/
USB
/SD

PLAY STOP NEXTPREVIOUS

USB

COM

4-16

70V 100V

OUTPUTS

COM COM

GND

LIFT

INPUTS LINK

INPUTS LINK

12

3

XLR BAL
1-GND
2-HOT+
3-COLD-

MUSIC OUT

~230V 50Hz T1AL 250V

PRIORITY

TAPE CD

TUNER

MICRO

CONSOL

GAIN GAIN

CONSOL
VOLUME

VOLUME

CHIME

OFF

12

3

REC
MESSAGE

1 TIME

CONTINUOS

MESSAGE

NORMAL

ALARM

VOL.PLAY

MESSAGE

VOL.REC

MIC

+48V

PHANTOM

ZONE 6 OUT ZONE 5 OUT ZONE 4 OUT ZONE 3 OUT ZONE 2 OUT ZONE 1 OUT OPEN RELE ININ COM ZONE

COM NO1 NO2

PLAY MESSAGE

MIX MUSIC-PAGE OUT

PAGE OUTRELE ZONE CONSOL OUT

1 2

3

4

5

6

7.ADDRESS SET

ADDRESS

DEFINITION

ID CONSOL ADDRESS SET

1

2

3

ON

ON

ON

4

5

6

ON

ON

ON

9

T-328

Model

Sensitivity

5mV /600

S/N ratio

>68dB

Frequency response

80Hz~16KHz(-3dB,-3dB)

Phantom power

+12V

Bass

12dB at 100Hz

12dB at 10KHz

2 tone active for contact free in
priority and BGM

>0.1%

Treble

Normal distortion

Chime

Power supply

Dimensions(mm)

Max number of microphone bases

Weight

DC 24V

220X142.7X51.5

6

1.15Kg

8. SPECIFICATIONS

ADDRESS

DEFINITION

MCU

CONTROL

+12v

MAX485

GND

GND

Talk

All zone

CONTROL

Gnd

Alarm

ID

GND

9. BLOCK DIAGRAM

10

220 mm

Side Panel

Front Panel

56 mm

150 mm

150 mm

10. DIMENSIONAL DIAGRAM

UNIT :mm

11

220 mm

56 mm

Fack Panel

ALARM

LINK

POWER

MIC

ZONE 4 ZONE 5 ZONE 6 ALL CALL TALK

ZONE 1 ZONE 2 ZONE 3

CHIME

VOLUME

VOLUME

TREBLE

BASS

ID CONSOL

LINE IN

LINK OUT

-10 -10+10 [phone]

DC24V

1A

POWER

PUBLIC ADDRESS SYSTEM

VersionV0.2
