PAMSPAN501x

G.SHDSL.bis EFM Gateway User Manual

Version 1.5

RECYCLABLE

PAMSPAN501x G.SHDSL.bis EFM Gateway

Contents:

IINNSSTTRRUUCCTTIIOONN MMAANNUUAAL

L.................................................................................................................... 3

1 Introduction................................................................................................................................ 4

1.1

PAMSPAN501x Overview .................................................................................................................... 4

1.2

Features............................................................................................................................................... 4

1.3

Application .......................................................................................................................................... 5

1.4

Specification ....................................................................................................................................... 5

2 Hardware Setup and Startup ..................................................................................................... 7

2.1

Front Panel LED and Rear Panel description .................................................................................... 7

2.2

DSL Connectors Description .............................................................................................................. 8

2.3

Restore Factory Defaults/Reboot Button ........................................................................................... 8

2.4

Parts check.......................................................................................................................................... 9

2.5

Hardware Connection ......................................................................................................................... 9

2.6

Configuration .................................................................................................................................... 10

2.6.1 Before you begin............................................................................................................................. 10

2.6.2 Assigning static Internet information ................................................................................................ 10

2.6.3 Windows ® XP PCs ........................................................................................................................ 11

2.6.4 Windows 2000 PCs......................................................................................................................... 11

2.6.5 Windows Me PCs ........................................................................................................................... 12

2.6.6 Windows 95, 98 PCs....................................................................................................................... 13

CCoonnffiigguurree tthhee PPAAMMSSPPAANN550011xx vviiaa EEmmWWeeb

b.............................................................................. 15

3.1

Accessing EmWeb ............................................................................................................................ 15

3.2

About EmWeb pages ........................................................................................................................ 15

3.2.1 Status Pages .................................................................................................................................. 16

3.2.1.1 System Information................................................................................................................. 16

3.2.1.2 Physical Port .......................................................................................................................... 16

3.2.1.3 Routing Table ......................................................................................................................... 20

3.2.1.4 Network Interface ................................................................................................................... 21

3.2.1.5 Event Log ............................................................................................................................... 22

3.2.2 System Pages ................................................................................................................................ 23

3.2.2.1 Save config ............................................................................................................................ 23

3.2.2.3 Prompt ................................................................................................................................... 25

3.2.2.4 Firmware Update .................................................................................................................... 26

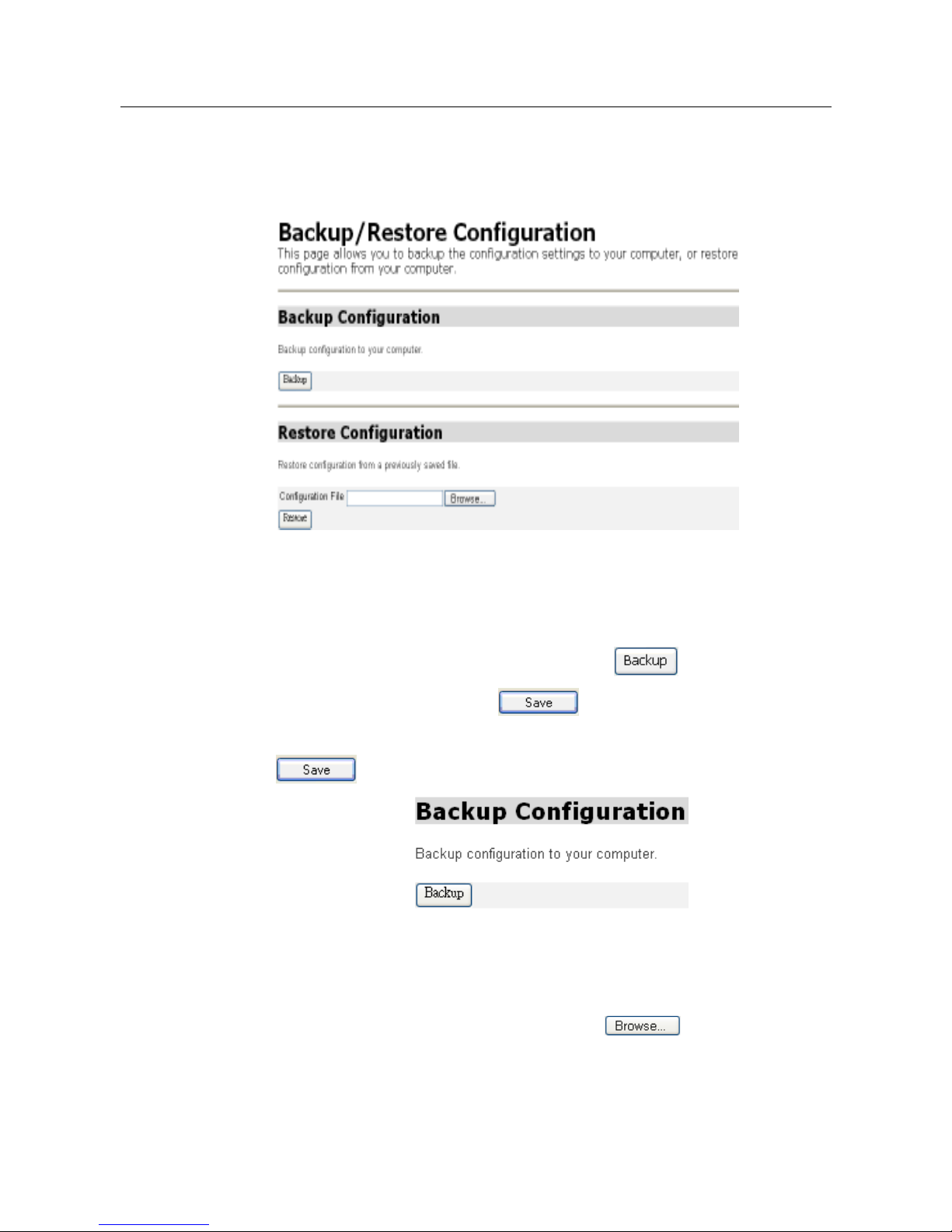

3.2.2.5 Backup/Restore ...................................................................................................................... 27

3.2.2.6 Restart ................................................................................................................................... 28

3.2.3 Configuration pages........................................................................................................................ 29

3.2.3.1 LAN connections .................................................................................................................... 29

3.2.3.1.1 Supporting multi port router ............................................................................................... 33

3.2.3.1.2 Command Line Interface for LAN....................................................................................... 34

PAMSPAN501x G.SHDSL.bis EFM Gateway

3.2.3.2

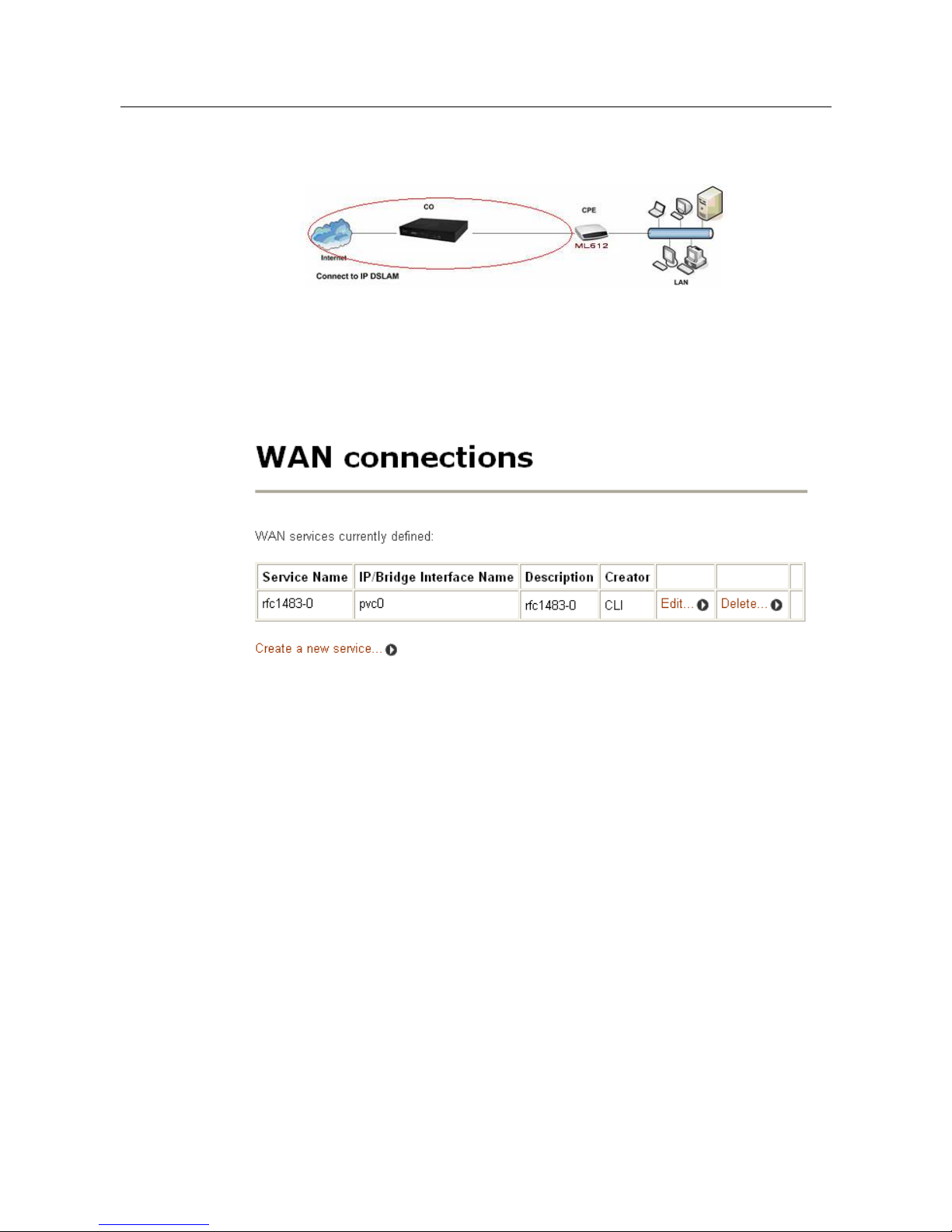

WAN Connection .................................................................................................................... 35

3.2.3.2.1 Command Line Interface for WAN ..................................................................................... 40

3.2.3.3 DHCP Server.......................................................................................................................... 41

3.2.3.3.1 Command Line Interface for DHCP Server ........................................................................ 44

3.2.3.4 DHCP Relay........................................................................................................................... 46

3.2.3.4.1 Command Line Interface for DHCP Relay.......................................................................... 48

3.2.3.5 DNS Client ............................................................................................................................. 49

3.2.3.5.1 Command Line Interface for DNS Client ............................................................................ 49

3.2.3.6 DNS Relay ............................................................................................................................. 50

3.2.3.6.1 Command Line Interface for DNS Relay ............................................................................ 53

3.2.3.7 SNTP Client ........................................................................................................................... 53

3.2.3.7.1 Command Line Interface for SNTP Client .......................................................................... 57

3.2.4 Advanced Pages............................................................................................................................. 58

3.2.4.1 Security .................................................................................................................................. 59

3.2.4.1.1 Enabling Security .............................................................................................................. 60

3.2.4.1.2 Enabling Firewall and/or Intrusion Detection ...................................................................... 60

3.2.4.1.3 Setting a default Security Level ......................................................................................... 60

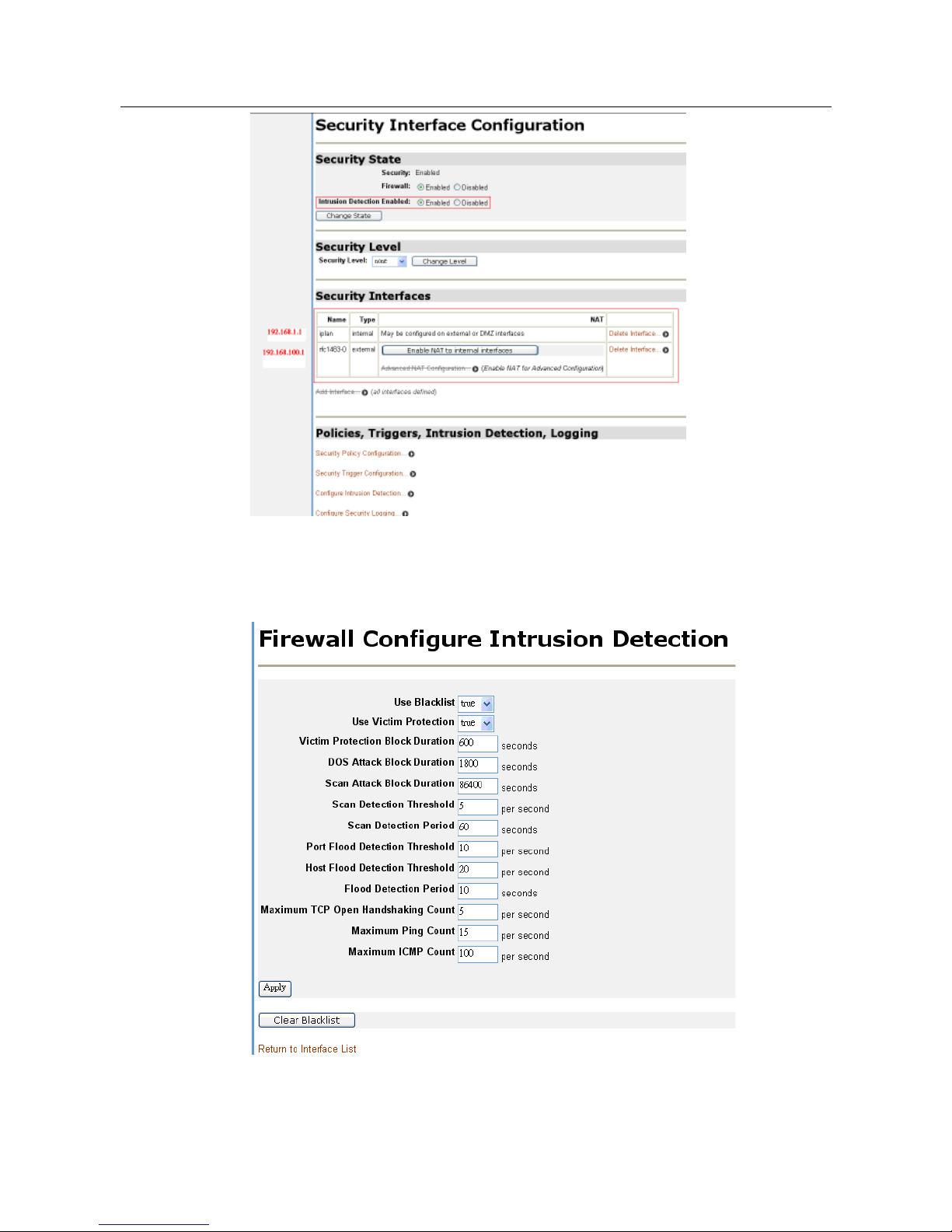

3.2.4.1.4 Configuring Security Interfaces .......................................................................................... 60

3.2.4.1.5 Configuring NAT................................................................................................................ 61

3.2.4.1.6 Configuring NAT global addresses..................................................................................... 62

3.2.4.1.7 Configuring NAT reserved mapping ................................................................................... 64

3.2.4.1.8 Configuring Firewall policies .............................................................................................. 65

3.2.4.1.9 Configuring validators........................................................................................................ 67

3.2.4.1.10 Configuring triggers ......................................................................................................... 68

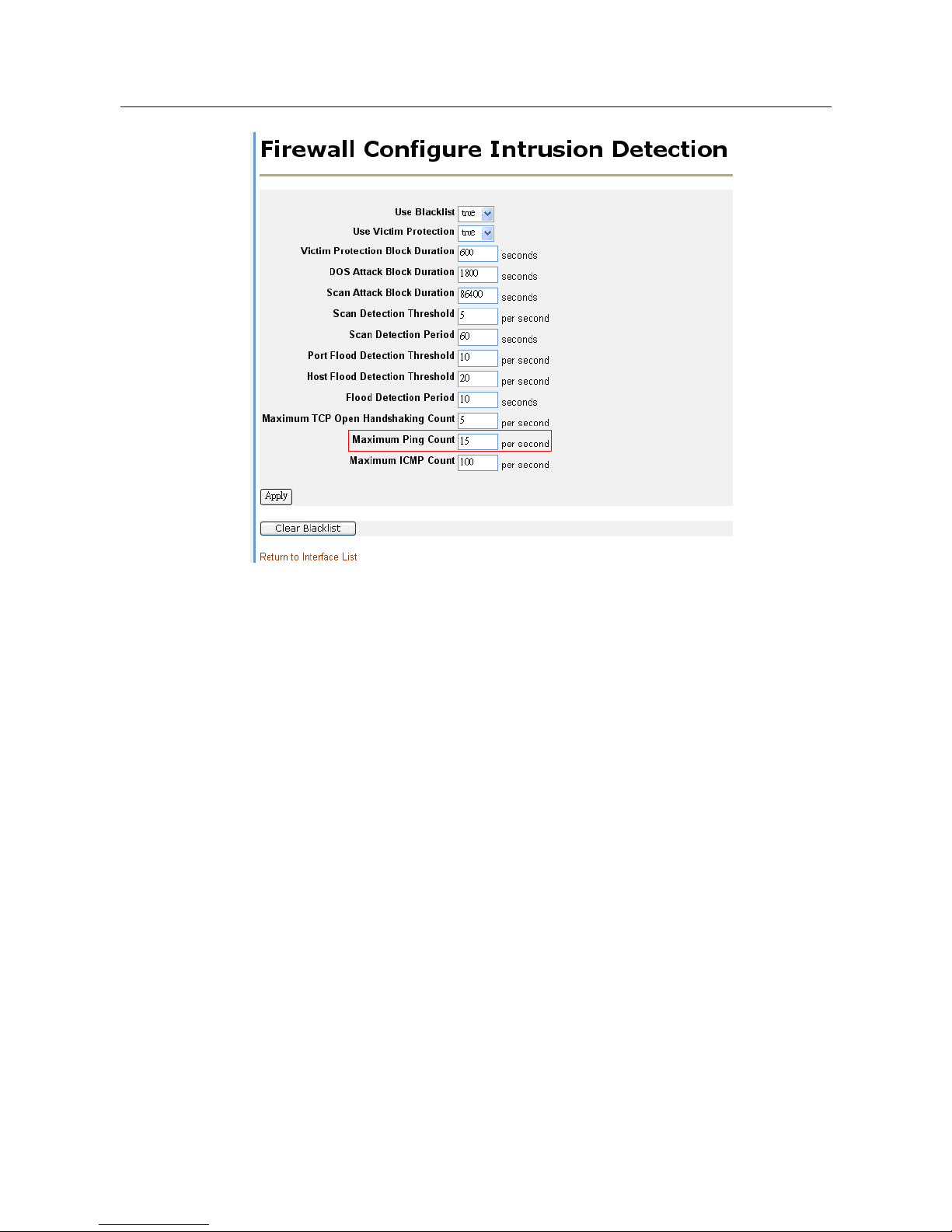

3.2.4.1.11 Configuring Intrusion Detection Settings .......................................................................... 69

3.2.4.2 IP Routes ............................................................................................................................... 82

3.2.4.3 Bridge .................................................................................................................................... 84

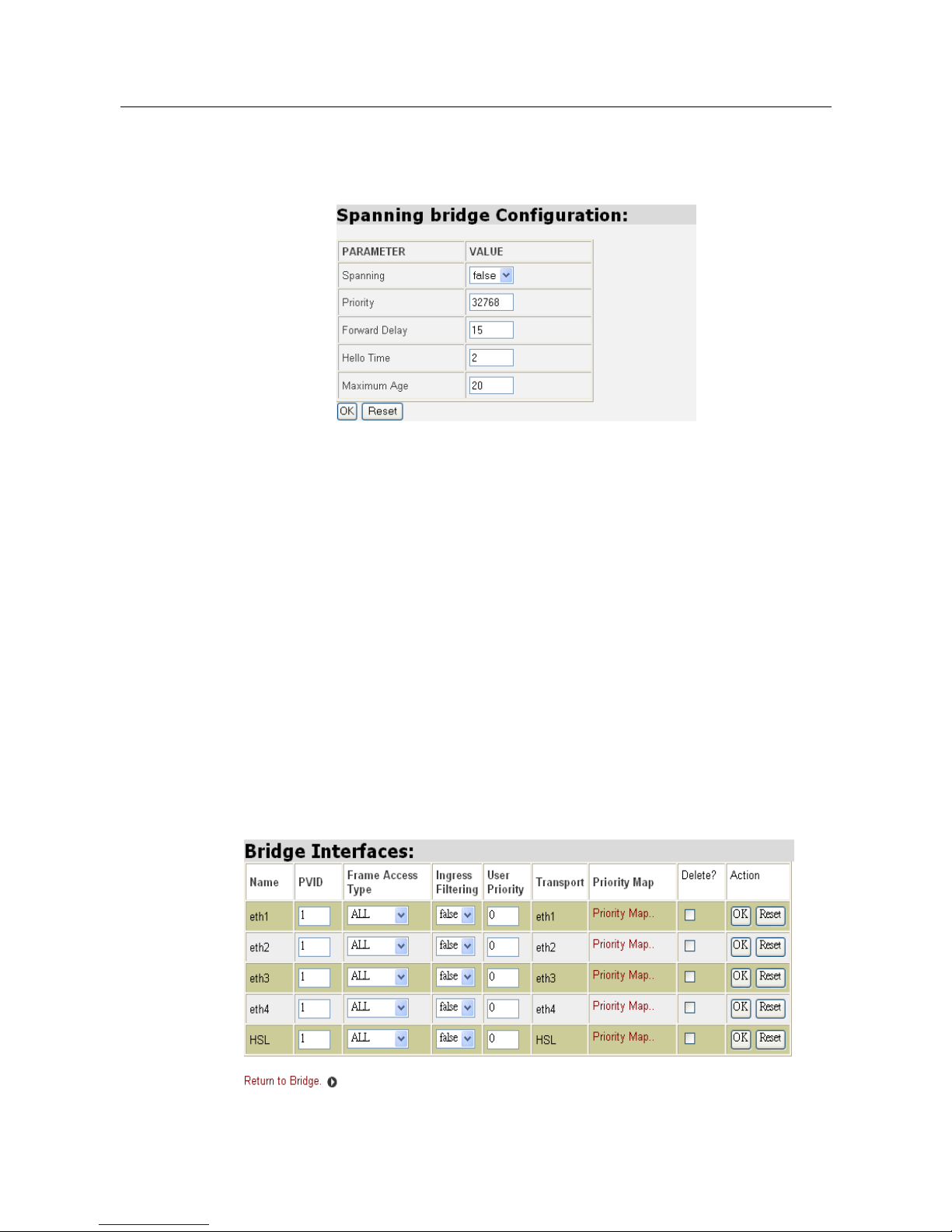

3.2.4.3.1 Spanning Bridge Configuration .......................................................................................... 87

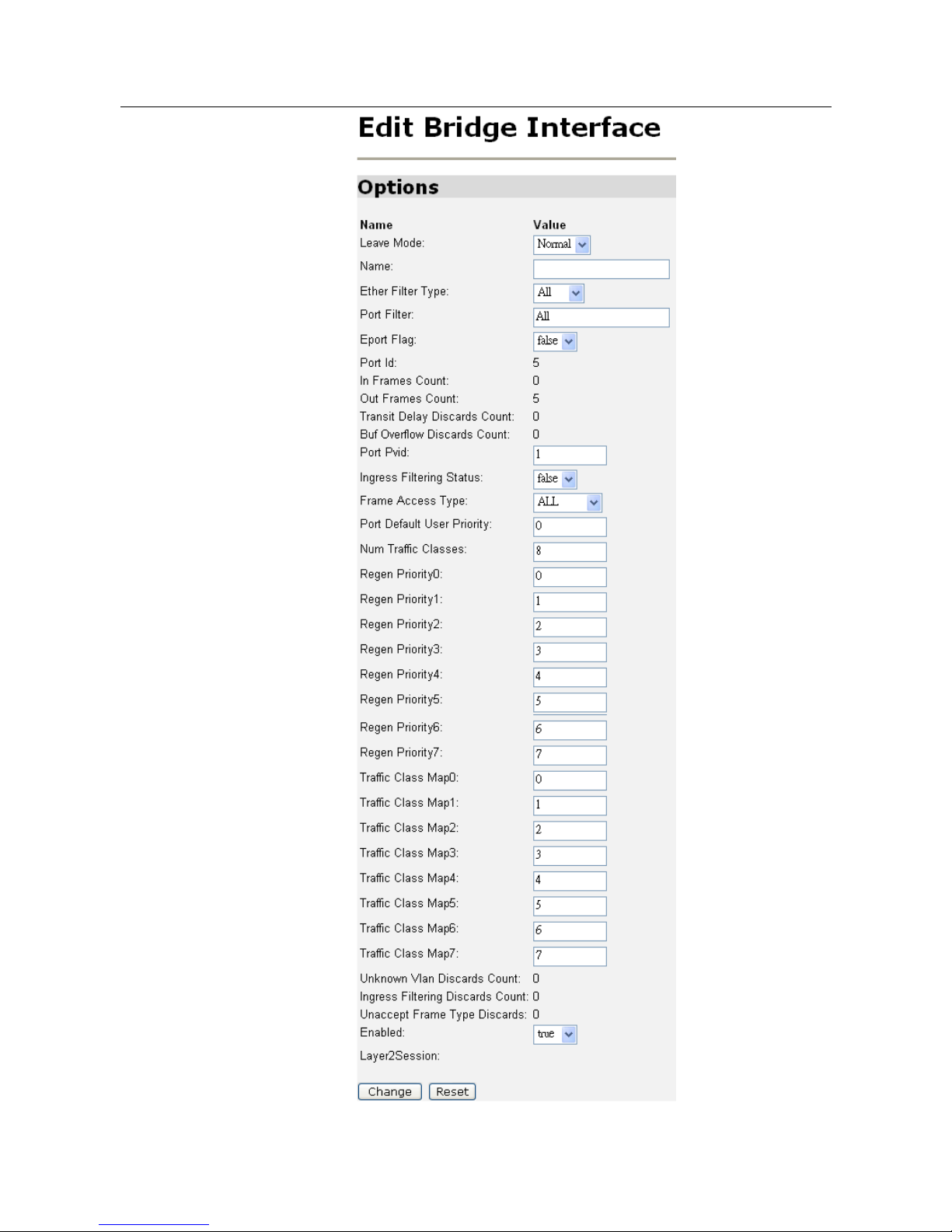

3.2.4.3.2 Interface Configuration ...................................................................................................... 87

3.2.4.4 VLAN ..................................................................................................................................... 91

3.2.4.4.2 Edit untagged Ports ........................................................................................................... 92

3.2.4.4.3 MGMT VLAN Configuration ............................................................................................... 93

3.2.4.4.4 Destination Based Unicast Filtering Entry Configuration..................................................... 93

3.2.4.4.5 Multicast Filtering Entry Configuration................................................................................ 94

3.2.4.4.6 Forward All/Unregistered Configuration ............................................................................. 95

3.2.4.5 SHDSL ................................................................................................................................... 96

3.2.4.6 QoS........................................................................................................................................ 97

3.2.4.6.1 To add a classifier profile ................................................................................................... 98

3.2.4.6.2 To add a scheduler for QoS............................................................................................. 100

3.2.4.6.3 Attach a profile to a transport ........................................................................................... 104

DDiiaaggnnoossttiicc aanndd TTrroouubblleesshhoooottiinng

g .......................................................................................... 107

AAppppeennddiixx AA –– AAccrroonnyymms

s................................................................................................................ 108

PAMSPAN501x G.SHDSL.bis EFM Gateway

IINNSSTTRRUUCCTTIIOONN MMAANNUUAALL

PAMSPAN501x G.SHDSL.bis EFM Gateway

1 Introduction

Thank you for choosing the PAMSPAN501x as your broadband access solution. This

manual will help you with the setup and configuration of your product.

1.1 PAMSPAN501x Overview

The PAMSPAN501x takes advantage of the latest technology - Extended Rate Bonded

SHDSL – opening up unprecedented possibilities for symmetric transmission.

The PAMSPAN501x comes with EFM bonding or ATM m-pair bonding; higher packet

transport allows symmetric data rates of up to 5.69 Mbps, 11.38Mbps, 17.07 Mbps, or

22.76Mbps over standard 2-wire, 4-wire, 6-wire, or 8-wire telephone lines, respectively.

EFM different rates between pair 4:1 means that speed ratio of 4 between the fastest and

slowest link of a group (according to IEEE 802.-2004)

The PAMSPAN501x is a solution that enables enterprise users to enjoy long distance, high

bandwidth and symmetric data transmission.

Distance & Rate relationship Table

26 AWG_ Without Noise _ EFM mode

Line rate (kbps)

1-Pair Longest

reach (feet)

Pairs Longest

reach (feet)

Pairs Longest

reach (feet)

Pairs Longest

reach (feet) 192 18000 18000 18000 18000 256 18000 18000 18000 18000 384 18000 18000 18000 18000 768 16400 16400 16400 16400

2560 11500 11500 11500 11500 3072 10500 10500 10500 10500 3392 10000 10000 10000 10000 3584 9500 9500 9500 9500 3848 9400 9400 9400 9400 4096 9000 9000 9000 9000 5696 7000 7000 7000 7000

1.2

Features

 Rate and Reach Improvements

The symmetric transmission rate can be up to 5.69 Mbps, 11.38Mbps, 17.07 Mbps,

or 22.76Mbps over standard 2-wire, 4-wire, 6-wire, or 8-wire telephone lines,

respectively.

Note: When one pair fails while operating in multiple pairs mode, the connection will

still be maintained. The other pairs can still operate at the maximum rates.

PAMSPAN501x G.SHDSL.bis EFM Gateway

 CO and CPE Mode selectable

Provides point-to-point connectivity

 2-wire/4-wire/6-wire/8-wire EFM bonding or ITU-T G.bonding Mode selectable

Offers flexible rate options

 Easy Management

Support both web-based GUI and CLI-based management.

 Backward Compatible to G.SHDSL (G.991.2)

1.3 Application

1.4 Specification

Standard Compliance Protocol

 ITU-T G.991.2

 Transmission rate up to 5.69 Mbps on 2-wire

 Transmission rate up to 11.38 Mbps on 4-wire

 Transmission rate up to 17.07 Mbps on 6-wire

 Transmission rate up to 22.76 Mbps on 8-wire

 Support of Annex A, Annex B, Annex F, and

Annex G

 Auto load balancing with bonded pairs



Support point-to-point configuration



Manual or auto rate selectivity

 Comply IEEE 802.3ah-2004

 ITU-T G.994.1



Support EFM over G.SHDSL.bis and G.SHDSL

 Support ATM over G.SHDSL.bis and G.SHDSL

 MAC bridging (IEEE 802.3ah-2004 and 802.1D)

 PPPoE (RFC 2416)

 RFC 1483/2684 Bridged encapsulation (routing mode

optional)

 IP support TCP, RIPv1, RIPv2, UDP, ICMP, ARP

 IEEE802.1P Priority Output Queuing

 IEEE 802.1Q VLAN

 IEEE802.3u Fast Ethernet 100BaseT

 MAC Filtering



QoS support VBR-rt, VBR-nrt, CBR and UBR

PAMSPAN501x G.SHDSL.bis EFM Gateway

Maintenance

 Firmware upgradeable via FTP or TFTP (optional)

 Support Telnet

 Support ATM OAM F5 End to End and Segment loop

backs

 Statistics on DSL link and data ports

 Sys-log

 HTTP web downloadable

 Support 8 PVCs

 NAT/PAT support

 DHCP client/server and DHCP relay functionality

 Support IGMP Snooping

 DMZ support

 Support Port-based VLAN

Management LED

 LED indicator; power, DSL links, Alarm, Ethernet ports

and CO/CPE mode

Hardware Interface

 DSL interface: 2/4 wires one RJ-11 jack. 8 wires two

RJ-11 jacks

 Ethernet interface: four RJ-45 jack; 10/100BaseT auto

sensing and crossover

 AC power adapter (100VAC ~ 240VAC, 50-60Hz)

 One craft Interface for local console access (CID)

Dimensions & Weight

 Dimensions: 35mm(H)×210mm(W)×193mm(D)

 Weight: 914g

Operating Requirements

 Password protection

 PAP and CHAP support

 Remote access management via telnet

 SNMPv1/SNMPV2

 Firewall Security

 Packet Filter

 Denial of Service

 Stateful Packet Inspection (SPI)

 Attack Alert and log

 Access Control

 Real time log

 MIB-II (RFC 1213, RFC 1573)

 Web based GUI

 Command Line Interface (CLI)

 Operating temperature: 0C to +50C

 Operating humidity: 5% to 90% RH non-condensing

 Power Consumption for 2-pair is 5.6W and 4-pair is

5.8W

PAMSPAN501x G.SHDSL.bis EFM Gateway

2 Hardware Setup and Startup

2.1 Front Panel LED and Rear Panel description

Following pictures are the front panel of 4-wire and 8-wire PAMSPAN501x respectively.

Figure 2-1 8-wire PAMSPAN501x Front Panel LED

Figure 2-2 4-wire PAMSPAN501x Front Panel LED

1. PWR

Power Indicator

2. DSL

DSL loop On--- CO

3. CO

Off--- CPE

4. ALM

Alarm for error

5. LAN

On---Ethernet Link connected

Figure 2-3 8-wire PAMSPAN501x rear view

Figure 2-4 4-wire PAMSPAN501x rear view

PAMSPAN501x G.SHDSL.bis EFM Gateway

1. DC IN:

Power Adapter Input

2. Reset Button:

Reset device to factory default setting

3. CID:

Connected to PC serial port for console

4. LAN: Connected to Ethernet Port

5. DSL 1 to 4 Connected to loop 1 to 4

6. FG

Connected to ground wire

2.2 DSL Connectors Description

DSL Connectors on back of the unit, 2 RJ-11 sockets.

DSL

1 2 3 4

RJ-11 uses a 6P4C connector and cable. The cable has 4 wires and we are using them for

2 pairs of DSL connection.

2.3 Restore Factory Defaults/Reboot Button

Press the reset button to reset the PAMSPAN501X to its factory-default settings (the

default configuration file will be uploaded). If you forget your password or cannot access

the device, you will need to reset the device to the default settings. The procedure is as

follows:

1. Power off the modem.

2. Press the reset default button.

3. Power on the Modem, and check the front panel of the modem.

4. When the “CPE LED” blinks rapidly, release the reset button.

(If you press the button for too long, the configuration file recall won't work. This is to

prevent the user from holding the button continuously)

5. The factory defaults should now be recalled. (This is called a "one-time recall")

Pin 1 Not used. Pin 2 Tip for DSL pair 2 or 4. Pin 3 Tip for DSL pair 1 or 3 Pin 4 Ring for DSL pair 1 or 3 Pin 5 Ring for DSL pair 2 or 4 Pin 6 Not used.

1 2 3 4 5 6

PAMSPAN501x G.SHDSL.bis EFM Gateway

2.4 Parts check

Check the following items in your package. Contact our sales representatives if any item is

missing or damaged.

PAMSPAN501x

RJ-11 Cable

Power Adapter

Support CD

RJ-45 Cable

Q.I.G

Quick Installation

Guide

2.5 Hardware Connection

1. Connect the RJ11 cable supplied to the port marked DSL at the back of the

PAMSPAN501X. Connect the other end of the cable to your SHDSL signal source.

2. Insert one end of the RJ45 Ethernet cable into one of the LAN ports on the back of the

PAMSPAN501X. Connect the other end of the cable to the Ethernet Network Interface

Card (NIC) in your PC. Up to four Ethernet devices can be connected to the

PAMSPAN501X.

3. Connect an earth ground to the grounding terminal (marked FG).

4. Connect the external AC adapter supplied to the DC power outlet on the back of the

PAMSPAN501X. Connect the power supply to your wall outlet or surge protector.

05-17665

DSL

LAN

CID

DC IN

Reset

Internet

RJ11

Switch

Hub

RJ45

PAMSPAN501x G.SHDSL.bis EFM Gateway

2.6

Configuration

This section provides instructions for configuring your Internet settings to work with the

router.

2.6.1 Before you begin

By default, the LAN port is assigned this IP address: 192.168.1.1. (You can change this IP

address as you need. For example: IP 192.168.1.2 NetMask 255.255.255.0).

Note: In some cases, you may want to assign Internet information manually to some or all of your

computers rather than allow the PAMSPAN501X to do so. See “Assigning static Internet information” for

instructions.

2.6.2 Assigning static Internet information

If you are like most users, you will not need to assign static Internet information to your

LAN PCs. Your ISP automatically assigns this information.

In some cases however, you may want to assign Internet information to some or all of your

PCs directly (often called “statically”), rather than allowing the PAMSPAN501X to assign it.

This option may be desirable (but not required) if:

• You have obtained one or more public IP addresses that you want to always associate

with specific computers (for example, if you are using a computer as a public web

server). (suggest to delete)

• You maintain different subnets on your LAN.

Before you begin, be sure to have the following information on hand, or contact your ISP if

you do not know it:

•

The IP address and subnet mask to be assigned to each PC to which you will be

assigning static IP information.

• The IP address of the default gateway for your LAN. In most cases, this is the address

assigned to the LAN port on the PAMSPAN501X.

•

The IP address of your ISP’s Domain Name System (DNS) server.

On each PC to which you wish to assign static information, follow the instructions on

checking for and/or installing the IP protocol. Once it is installed, continue to follow the

instructions for displaying each of the Internet Protocol (TCP/IP) properties. Instead of

enabling dynamic assignment of the IP addresses for the computer, DNS server and

default gateway, click the radio buttons that enable you to enter the information manually.

Note: Your PCs must have IP addresses that place them in the same subnet as the

PAMSPAN501x G.SHDSL.bis EFM Gateway

PAMSPAN501X LAN port. If you manually assign IP information to all your LAN PCs, you

can use the LAN Connections to update the LAN port IP address accordingly.

2.6.3 Windows ® XP PCs

1. In the Windows task bar, click the Start button, and then click Control Panel.

2. Double-click the Network Connections icon.

3. In the LAN or High-Speed Internet window, right-click on the icon corresponding to

your network interface card (NIC) and select

Properties

. (Often, this icon is labeled

Local Area Connection). The Local Area Connection dialog box displays with a list of

currently installed network items.

4. Ensure that the check box to the left of the item labeled Internet Protocol TCP/IP is

checked, and click.

5. In the Internet Protocol (TCP/IP) Properties dialog box, click the radio button

labeled Obtain an IP address automatically. Also click the radio button labeled

Obtain DNS server address automatically.

6. Click twice to confirm your changes, and close the Control Panel.

2.6.4 Windows 2000 PCs

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click

Control Panel.

2. Double-click the

Network and Dial-up Connections

icon.

3. In the Network and Dial-up Connections window, right-click the Local Area Connection

icon, and then select Properties.

The Local Area Connection Properties dialog box displays with a list of currently

installed network components. If the list includes Internet Protocol (TCP/IP), then the

protocol has already been enabled. Skip to step 10.

4. If Internet Protocol (TCP/IP) is not displayed as an installed component, click

5. In the Select Network Component Type dialog box, select Protocol, and then click

6. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click

PAMSPAN501x G.SHDSL.bis EFM Gateway

You may be prompted to install files from your Windows 2000 installation CD or other

media. Follow the instructions to install the files.

7. If prompted, click to restart your computer with the new settings.

Next, configure the PCs to accept IP information assigned by the PAMSPAN501X:

8. In the Control Panel, double-click the Network and Dial-up Connections icon.

9. In Network and Dial-up Connections window, right-click the Local Area Connection

icon, and then select Properties.

10. In the Local Area Connection Properties dialog box, select Internet Protocol

(TCP/IP), and then click .

11. In the Internet Protocol (TCP/IP) Properties dialog box, click the radio button labeled

Obtain an IP address automatically. Also click the radio button labeled Obtain DNS

server address automatically.

12. Click twice to confirm and save your changes, and then close the Control

Panel.

2.6.5 Windows Me PCs

1. In the Windows task bar, click the

Start

button, point to

Settings

, and then click

Control Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click the Network icon, and

then select Properties.

The Network Properties dialog box displays with a list of currently installed network

components. If the list includes Internet Protocol (TCP/IP), then the protocol has

already been enabled. Skip to step 11.

4. If Internet Protocol (TCP/IP) does not display as an installed component, click

5. In the Select Network Component Type dialog box, select Protocol, and then click

6. Select Microsoft in the Manufacturers box.

7. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click

You may be prompted to install files from your Windows Me installation CD or other

media. Follow the instructions to install the files.

8. If prompted, click to restart your computer with the new settings.

Next, configure the PCs to accept IP information assigned by the PAMSPAN501X.

PAMSPAN501x G.SHDSL.bis EFM Gateway

9. In the Control Panel, double-click the Network and Dial-up Connections icon.

10. In Network and Dial-up Connections window, right-click the Network icon, and then

select Properties.

11. In the Network Properties dialog box, select TCP/IP, and then click .

12. In the TCP/IP Settings dialog box, click the radio button labeled Server assigned IP

address. Also click the radio button labeled Server assigned name server address.

13. Click twice to confirm and save your changes, and then close the Control

Panel.

2.6.6 Windows 95, 98 PCs

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click

Control Panel.

2. Double-click the

Network

icon.

The Network dialog box displays with a list of currently installed network components.

If the list includes TCP/IP, and then the protocol has already been enabled. Skip to

step 9.

3. If TCP/IP does not display as an installed component, click .

The Select Network Component Type dialog box displays.

4. Select Protocol, and then click .

The Select Network Protocol dialog box displays.

5. Click Microsoft in the Manufacturers list box, and then click TCP/IP in the Network

Protocols list box.

6. Click to return to the Network dialog box, and then click

again.

You may be prompted to install files from your Windows 95/98 installation CD. Follow

the instructions to install the files.

7. Click to restart the PC and complete the TCP/IP installation.

Next, configure the PCs to accept IP information assigned by the PAMSPAN501X:

8. Open the Control Panel window, and then click the Network icon.

9. Select the network component labeled TCP/IP, and then click .

PAMSPAN501x G.SHDSL.bis EFM Gateway

Note: If you have multiple TCP/IP listings, select the listing associated with your

network card or adapter.

10. In the TCP/IP Properties dialog box, click the IP Address tab.

11. Click the radio button labeled Obtain an IP address automatically.

12. Click the DNS Configuration tab, and then click the radio button labeled Obtain an IP

address automatically

13. Click twice to confirm and save your changes.

You will be prompted to restart Windows. Click .

PAMSPAN501x G.SHDSL.bis EFM Gateway

-15

33 CCoonnffiigguurree tthhee PPAAMMSSPPAANN550011xx vviiaa EEmmWWeebb

3.1 Accessing EmWeb

To access EmWeb on the PAMSPAN501x that has been booted with an image containing

a factory default configuration:

1. Attach a PC to one of the LAN interfaces. At your web browser, enter the URL:

http://192.168.1.1

2. If you first time login the EmWeb, you will see a login box is displayed. You must enter

your username and password to access the pages. The default User name/Password as

follows

User Name: admin

Password: admin

3. Click on . You are now ready to configure PAMSPAN501x using EmWeb.

3.2 About EmWeb pages

EmWeb provides a series of web pages that you can use to setup and configure the

PAMSPAN501x. These pages are organized into three main topics. You can select each of

the following topics from the menu on the left-hand side of the main window:

• Status: information about the current setup and status of the system.

• System: The System section lets you carry out system commands like Event Log,

Firmware Update, Backup/Restore, Save configuration and Authentication.

• Configuration: information about the current configuration of various system features with

options to change the configuration.

The changes made via web pages will immediately reflect in all elements of the network.

The exact information displayed on each web page depends on the specific configuration

that you are using. The following sections give you a general overview of the setup and

configuration details.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-16

3.2.1 Status Pages

The Status homepage contains information about the current configuration of

PAMSPAN501x. It provides an overview of the current image configuration. The page

contains the following sections:

3.2.1.1 System Information

Click System Information on Status menu, and then System information page

will be displayed as shown below:

3.2.1.2 Physical Port

This option allows you to configure the ports available on your PAMSPAN501X,

depending on the type of image that you intend to boot.

Configuring ports

1. From the Status menu, click on Physical Port. The physical ports available on

your device will be displayed.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-17

2. Click on Shdsl. The Shdsl Port Configuration page will be displayed:

3. This page allows you to carry out advanced configuration of your SHDSL

port attributes. From the Shdsl Port Configuration page, click View advanced

attributes. The Shdsl Port Configuration page will be displayed. “Shdsl” is the

default SHDSL port name created in the PAMSPAN501X. You can configure

the SHDSL parameters on this page.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-18

4. In the Unit Id drop-down menu, you can set the device as either CO or CPE,

and then click to save the settings.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-19

5. To set the PAMSPAN501X to Wire pair mode, click the Wire Mode

drop-down list to select the desired Wire Pair number. After that, click to

save the settings.

Wire Mode DSL Pair to Use Illustration

1-PAIR 1 2-PAIR 1,2 3-PAIR 1,2,3 4-PAIR 1,2,3,4

DSL

1 2 3 4

6. To set the maximum and minimum line rate, enter the Max and Min Line Rate

values (where the values range from 192000bps to 5696000bps) and then click

to save the settings. Once the handshaking process between the STU-R

and STU-C devices is complete, the actual transmission rate will be displayed

in the Current Tx Rate attribute.

7. To configure a specific Ethernet port, click the appropriate port number

(eth1~eth4) in the Physical Port Table and then the Ethernet Port Configuration

page will be displayed:

The page displays the basic port attributes for the Ethernet port on your

PAMSPAN501X.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-20

8. This page allows you to view or carry out advanced configuration of your

Ethernet port attributes. For instance, Click View advanced attributes on Eth1

Port Configuration, and then the Advanced Eth1t Port Configuration page will

be displayed.

Set the Ethernet port as either enabled or disabled via the Admin Status

drop-down list, and then click to update the advanced configuration, or

to revert to the default advanced configuration settings. Click Return

to basic attributes to return to the Eth1 Port Configuration page.

3.2.1.3 Routing Table

Routing Table is a matrix with a network control protocol, which gives the

hierarchy of link routing at each node.

The Routing Table screen allows you to view the routing table built in the

device.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-21

If to create an IP route, refer to the IP Routes section on Advanced menu.

3.2.1.4 Network Interface

If to view the statistics on Bridge/Router Interfaces, select a specified interface

to invoke the Bridge/Router Interface page.

Following figure shows the statistics on the interface, rfc1483-0.

Click

to get the latest status information for this bridge interface.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-22

3.2.1.5 Event Log

Click on Event Log, the following page is displayed as follows:

This page displays a table containing all configuration errors experienced by

your Router during a current session. 3 types of logs can be selected via select

a log drop-down list.

All Events: Shows all events occurred.

Configuration errors: Shows error messages regarding configuration(s) which

the system DOES NOT allow to change

Syslog messages:

Shows all messages regarding system actions other then

Configuration errors.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-23

3.2.2 System Pages

Click on System menu, the following options appear:

The System menu contains options including, Firmware Update, Backup/Restore and

Restart Router, Prompt, Save configuration and Authentication. They will be

introduced in the following sections.

3.2.2.1 Save config

To save your current configuration to Flash ROM:

1. From the System menu, click on Save configuration. The following page is

displayed:

2. Click on to save your current configuration in the device.

After a short time the configuration is saved and the following confirmation

message is displayed: Saved information model to file //flashfs/im.conf

PAMSPAN501x G.SHDSL.bis EFM Gateway

-24

3.2.2.2 Authentication

This option allows accounts for users who access the PAMSPAN501X to be

administered. Click Authentication via the System menu. The following page will

be displayed:

To creating a new login account

1. Click Create a new user. The following page will be displayed:

2. Enter the desire information details for the new user into the username,

password and comment text fields.

3. Click . The Authentication page will be displayed. The table now

contains details for the user that has just been created.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-25

To editing/deleting a login account

1. The Authentication page table contains an Edit user hyperlink for each user

account entry. Click a link and the following page will be displayed:

This page allows:

• Details for a specific user account to be updated. Modify the necessary text

boxes then click .

• A user account to be deleted. Click the Delete this user button.

2. Once a user account has been edited or deleted, the Authentication page will

be displayed and the table will reflect any changes that have been made on the

Edit user page.

3.2.2.3 Prompt

This configuration allows user to configure the prompt name which will be

shown in the CLI prompt. Enter the name you wish to show in CLI prompt and

click .

PAMSPAN501x G.SHDSL.bis EFM Gateway

-26

3.2.2.4 Firmware Update

This option allows firmware images to be uploaded to the PAMSPAN501X using

HTTP.

1. From the System menu, click Firmware update. The following page will be

displayed:

2. Enter the location of the new firmware image that is to be uploaded, or use

the button to browse and select the file. Click .

3. Once the file has been uploaded to the RAM of your device, it is written to

the Flash ROM. A status page will be displayed confirming whether the upload

is complete or indicating how much of the file (in bytes and as a percentage)

has been written to the Flash ROM.

4. Once the file has been written to flash, the Firmware Update page is

refreshed. The page confirms completion of the update and requests that the

PAMSPAN501X be restarted in order to use the new firmware. Click Restart in

the system menu.

Note: Please do not power-off the device while updating firmware or saving the

configuration as this might cause the device to malfunction.

5. After updating the firmware, it is strongly suggested that the device is

restarted and the default configuration is recalled as this will prevent any

incompatible configuration between the former and the current firmware

versions. To do this, check the Reset to factory default settings box on the

Restart page in the system menu.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-27

3.2.2.5 Backup/Restore

From the System menu, click Backup/restore. The following page will be

displayed. This page allows the configuration to be backed up to, or restored

from, another computer.

Backing up your configuration

1. From the Backup Configuration section, click . The File Download

window will be displayed. Click . The Save As window will then be

displayed. Select a directory in which to save the backup configuration and click

Restoring a configuration

1. In the Restore Configuration section as shown below, click in the

Configuration File text box and enter the network path of the file that is to be

restored. If the path details are unknown, click and locate the file

using the Choose file window.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-28

2. Click . The page will be refreshed and a Configuration Restored

message will be displayed giving details of the number of bytes uploaded.

3.2.2.6 Restart

This page allows the PAMSPAN501X to be restarted and has the same effect

as resetting the PAMSPAN501X by pressing the reset button on the hardware.

1. From the System menu, click Restart. The following page will be displayed:

2. Click to reset the PAMSPAN501X. The Restart page also provides

an option to restart and restor the factory default settings. Check the Reset to

factory default settings checkbox, and then click . Monitor the console

status output to check the reset progress.

3. After the login and password prompt is displayed, login as usual (with login =

admin, password = admin), and then refresh the browser that is running

EmWeb. The Status page will be displayed and the PAMSPAN501X has been

reset.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-29

3.2.3 Configuration pages

The Configuration menu contains options for configuring features on PAMSPAN501x

including basic LAN and WAN connections and DHCP and DNS settings.

Note: Most of the features contain sensible default settings. You are unlikely to have to

reconfigure every feature included in the Configuration menu. From the left-hand menu

and click on Configuration. The following sub-headings are displayed:

• LAN connections: allows you to edit your LAN port IP address, create and edit a

secondary IP address and create new LAN services.

• WAN connections: allow you to create, edit and delete WAN services.

• DHCP server: allow you to enable, disable and configure your DHCP server.

• DHCP relay: allow you to enable, disable and configure your DHCP relay.

• DNS client: allow you to enable, disable and configure DNS client.

• DNS relay: allow you to enable, disable and configure DNS relay.

• SNTP client: allow you to configure Simple Network Time Protocol at Client side. (Please

point to the SNTP server, contact with your ISP provider.)

3.2.3.1 LAN connections

LAN connections, as shown below, refer to the connection of the customer end, which using different IP address than WAN.

This option allows you to:

• Configure the LAN IP address and subnet of the default LAN connection to the

PAMSPAN501X.

• Create WAN interfaces: multiple virtual interfaces can be associated with the

existing primary LAN interface.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-30

From the Configuration menu, click LAN connections. The following page will be

displayed:

The service, eth1, is not shown because it has already been created by default,

which user will not be able to delete it. The Creator column shows the method that

the services are being created. By default command, all four ports will be created

from CLI; therefore, it would show CLI under the Creator column.

To delete a service

If users would like to delete a service, simply click the specific port link, such as

“eth3” under Descriptions column, the port deletion page will be displayed as

shown below:

Click

to delete the connection. Once there is a connection

PAMSPAN501x G.SHDSL.bis EFM Gateway

-31

that has been deleted, user will then be able to use to

create a service. By clicking , users will be able to select the

type of service that they wish to create as shown below:

By using the web to create a service, it would then show WebAdmin under the

Creator column.

Configuring primary and secondary LAN connections

1. The Default LAN Port section contains two subsections:

a. IP address and subnet mask details for your primary LAN connection. To edit these

details, click and enter the new primary address details

b. Secondary IP address details. To create/configure a secondary IP address, click in

the Secondary IP Address text box and enter the new address details.

2. Once you have configured the IP address(es), click button. A message will

be displayed confirming that your address information is being updated. If you have

PAMSPAN501x G.SHDSL.bis EFM Gateway

-32

changed the primary IP address, you may need to enter the new address in your web

browser address box.

To edit IP interface

1. Click hyperlink at the bottom of the LAN connections page. The Edit IP

Interfaces page will be displayed as shows below, the user will be able to change or

modify the value of this IP Interface.

Field Definition of IP Interface

Field Definition

Ipaddr The IP address for this IP Interface Mask Mask fort this IP Interface Dhcp DHCP is a protocol used to obtain IP addresses

and other parameters such as the default gateway, subnet mask, and IP addresses of DNS servers from a DHCP server. The DHCP server ensures that all IP addresses are unique, which means that no

IP address is assigned to a second

client while the assignment for the first client's is valid.

MTU MTU refers to the size (in bytes) of the largest

packet that a given layer of a communications

protocol

can pass onwards.

A higher MTU

PAMSPAN501x G.SHDSL.bis EFM Gateway

-33

provides higher bandwidth efficiency.

Source Addr Vaildation

This command enables/disables extra checking of

the source address for packets received on this interface. If enabled, the system will only accept packets from valid addresses that have already been identified.

Icmp Router Advertise The Internet Control Message Protocol for IPv4 is

a network layer Internet Protocol that reports errors and provides other information relevant to

IP packet processing. Real Interface The actual main interface Name The name of this Interface Enabled Enable or disable this interface

3.2.3.1.1 Supporting multi port router

The device permit multi port router. To configure this, user must first delete the

default services since all ports have already been created under bridged mode by

default. Then click on the LAN connection page and choose

the routed mode as shown below:

Click “Configure” to display the service creating page. Enter the data for the required

fields and then click “Apply” to create the service as shown below:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-34

After completing the above steps, user will be able to see the permission of multi port

router on the LAN connection main page as shown below:

3.2.3.1.2 Command Line Interface for LAN

User can also use a Command Line Interface to configure the LAN. Below are some

examples:

#> ethernet add transport <ethx> <ethx>

This command adds an <ethx> Ethernet transport and allows you to specify the <ethx> Port it will use to transport Ethernet data. In order for this command to work, both <ethx> and <ethx> must be the same.

#> bridge add interface <ethx>

This command adds the interface name <ethx> to the bridge.

#> bridge attach <ethx> <ethx>

This command attaches an existing transport to an existing bridge interface to allow data to be bridged via the transport. Only one transport can be attached to an interface. If you use this command when there is already a transport attached to the interface, the previous transport will be replaced by the new one.

#> ip add interface <name> 192.168.1.1 255.255.255.0

This command adds a named interface and optionally sets its IP address. The IP address is not mandatory at this stage, but if it is not specified in this command, the interface will not be configured.

#> ip attachbridge <name>

This command attaches the named bridge to the PAMSPAN501X via an existing IP interface.

#> ip attachvirtual <virtual interface> <real ip interface>

This command creates a virtual interface. The virtual interface is associated with a ‘real’ IP interface that has already been attached to a transport using the ip attach command. Multiple virtual interfaces can be attached to a single ‘real’ IP interface.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-35

3.2.3.2 WAN Connection

WAN connections, as shown below, refer to the connection of the Internet end, which has a different IP address than the LAN side.

This option allows the user to create and configure WAN connections for your

PAMSPAN501X. You can also create virtual interfaces on routed services. Click on

WAN connections via the Configuration menu. The WAN connections page will be

displayed:

Editing a WAN service

2. Click on the Edit link for a specific service. The Edit page for that specific

connection will be displayed. From there the user will be able to modify two interfaces:

Bridge Interfaces and Spanning Bridge Interfaces.

3. Bridge Interface is the configuration settings and traffic statistics of a named

bridge interface.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-36

PAMSPAN501x G.SHDSL.bis EFM Gateway

-37

Field Definition of Bridge Interface

Field Definition

Name Name of this Interface Enter Filter Type The Enter Filter Type field allows the user to

choose IP or PPPOE, which allows control over the filtering of Internet transmission packets, such

as 080x or 886x. In Frame Count The number of incoming packets. Out Frame Count The number of outgoing packets. Transit Delay Discards Count

The number of frames discarded due to transit

delays Buf Overflow Discards Count

The number of frames discarded due to buffer

overflow Port Pvid The Port Pvid is the Port VLAN ID setting, is

non-configurable and is always enabled, i.e. the

bridge supports the ability to override the default

Pvid setting and its egress status (VLAN tagged

or untagged) on each bridge interface. Ingress Filtering Status This specifies whether the bridge interface

discards incoming VLAN tagged frames for a

VLAN that does not have this interface in its

Egress interface list, or it accepts all incoming

frames. Frame Access Type This command enables control over the types

(Tagged or Untagged) packets. When choosing

ALL, the system will accept either Tagged or

Untagged packets. When choosing Tagged, the

system will only accept Tagged packets. Port Default User Priority This command enables control over the priority of

ports. “0” means the highest priority. “7” is the

lowest. Num Traffic Classes A Traffic Class specifies a mechanism that can be

used to match incoming and/or outgoing packets

on a router's interface. Regen Priority This command specifies the mapping of user

priorities in the incoming frames to the

regenerated user priority that will be used for

traffic class mapping as well as set in the VLAN

tag of the outgoing frame. Traffic Class Map This command specifies the mapping of

regenerated priority to their traffic class values. Unknown Vlan Discards Count

The number of unknown VLANs that have been

discarded by the system. Ingress Filtering Discards Count

The number of incoming frames that have been

filtered and discarded by the system. Unaccept Frame Type Discards

The number of unaccepted frames that

have been

discarded by the system. Enabled Enable or Disable this interface.

4. Spanning Bridge Interface consist of the status, path cost, and priority used for

spanning tree protocol of the bridge interface. Spanning tree allows a network design

to include spare (redundant) links to provide automatic backup paths if an active link

fails, without the danger of bridge loops, or the need for manual enabling/disabling

the backup links. Bridge loops must be avoided to prevent flooding the network.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-38

Field Definition of Spanning Bridge Interface

Field Definition

Stp Port Status This field shows the status of the Stp Port. Enabled Enabled or disabled this interface Priority Priority of this Interface Path Cost The value indicates the distance of the

packets traveled.

Create a new service

The device supports several types of services, such as RFC 1483, MER (IPoEoA),

PPPoA, PPPoE, and IPoA. Click and the WAN connection

service creating page will be displayed as shown below.

For example: To create a PPP over AAL5 service, choose PPPoA bridged and click

on “Configure” to go to the MER service creating page as shown below. Fill in the

desire data into the appropriate fields and click “Apply” to create this service.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-39

Field Definition of PPPoA

Field Definition

Description: Text explanation of the service. VPI: ID number for the service. Must match on CPE side VCI: Secondary ID number for the service. Must match on

CPE side LLC header mode

Enable or disable the LLC header

HDLC header mode

Enable or disable the HDLC header

Authentication Enter the username and passwords for access

Another example: To create a MER (IPoEoA) service:

Choose MER (IPoEoA) and click on “Configure” to go to the MER service creating

page as shown below. Fill in the desire data into the appropriate fields and click

“Apply” to create this service.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-40

Field Definition of MER (IPoEoA)

Field Definition

Description: Text explanation of the service. VPI: ID number for the service. Must match on the CPE side VCI: Secondary ID number for the service. Must match on the CPE

side Encapsulation method:

Packet format. Choose between LLC/SNAP or VcMux

Use DHCP/ WAN

IP address

Use DHCP to assign the IP automatically or choose WAN to

assign the IP manually. Enable NAT on this interface

Check the box to enable NAT on this interface.

3.2.3.2.1 Command Line Interface for WAN

Users can also use a Command Line Interface to configure a WAN. Below are

some examples:

#> rfc1483 add transport <name> <port> <vpi> <vci> {llc|vcmux} {bridged|routed}

This command creates a named RFC1483 transport and allows the following parameters to be specified:

• The ATM port that will transport RFC1483 data.

• VPI (Virtual Path Identifier)

• VCI (Virtual Circuit Identifier)

• LLC or VcMux encapsulation (optional)

• Bridged or Routed (optional) The port/VPI/VCI combination must be unique for each transport.

#> bridge add interface <eth1> This command adds a interface name <eth1> to the bridge.

#> bridge attach <eth1> <eth1>

This command attaches an existing eth1 transport to an existing eth1 bridge

interface to allow data to be bridged via the transport. Only one transport can be

attached to an interface. If you use this command when there is already a transport

attached to the interface, the previous transport is replaced by the new one.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-41

3.2.3.3 DHCP Server

This option allows you to enable/disable the DHCP server and create, configure and

delete DHCP server subnets and DHCP fixed IP /MAC mappings. Click on DHCP server

from the Configuration menu. The following page will be displayed:

Enabling/disabling the DHCP server

The DHCP server is enabled by default. To disable the DHCP server, click

Note: User may not enable both the DHCP relay and DHCP server at the same time

because some interface is configured for DHCP server as well as for DHCP relay. If

DHCP relay is currently enabled, User will not be able to set the DHCP server to enable.

The DHCP server can’t be enabled unless the DHCP relay is disabled.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-42

Creating a DHCP server subnet

1. Click on the Create new Subnet link. The following page will be displayed:

2. This page allows you to:

Set the value and subnet mask of the subnet (either manually or by selecting an IP

interface whose value and mask is used instead), and set the maximum and default

lease times.

Set the DHCP address range (or use a default range of 20 addresses).

Set the Primary and Secondary DNS Server addresses or set your System to give out

its own IP address as the DNS Server address.

Set your PAMSPAN501X to give out its own IP address as the default Gateway

address.

3. Once you have entered the new configuration details for your DHCP server, click .

The DHCP Server page will be displayed containing details of your new subnet.

Editing a DHCP subnet

1. Click on the Advanced Options link for a specific subnet. The Edit DHCP server

subnet page will be displayed. This page allows you to edit the values that were set

when the subnet was created.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-43

2. This page also allows you to add additional option information. At the bottom of the

page, click on the Create new DHCP option link.

3. Click on the Option name drop-down list and select a name as shown below. Type a

value that matches the selected option name in the Option value text box. Click .

4. The Edit DHCP server subnet page will be displayed as shown below, and details of

your new option will be displayed under the Additional option information sub-heading.

To delete an existing option, check the Delete box for a specific option and click .

PAMSPAN501x G.SHDSL.bis EFM Gateway

-44

Creating a fixed host

1. Click on the Create new Fixed Host link. The following page will be displayed:

2. Complete the following:

Type in the IP address that will be given to the host with the specified MAC address.

Type in the MAC address and the maximum lease time (default is 86400 seconds).

3. Click . The DHCP Server page will be displayed, and details of your new fixed host

will be displayed under the Existing DHCP fixed IP/MAC mappings sub-heading. To edit

a fixed mapping, click on the IP address, MAC address or max lease time, make a new

entry and click . To delete a fixed mapping, check the Delete box for a specific

mapping and click .

3.2.3.3.1 Command Line Interface for DHCP Server

You can also use a command line interface (CLI) to configure the DHCP server.

Below are some examples:

(Please add numbering for the CLI commands)

Enable DHCP server:

#> dhcpserver enable

Create a DHCP server subnet configuration that already exists and the default and

maximum lease times are set as follows:

#> dhcpserver add subnet LAN 192.168.1.0 255.255.255.0 192.168.1.2

192.168.1.21

The following options set the IP address of the DNS server and the default

Gateway respectively

#> dhcpserver subnet LAN add option domain-name-servers 192.168.2.30

#> dhcpserver subnet LAN add option routers 192.168.3.40

PAMSPAN501x G.SHDSL.bis EFM Gateway

-45

The following option sets the IP address of an IRC (Internet Relay Chat) server:

#> dhcpserver subnet LAN add option irc-server 10.5.7.20

The following option allows the use of address auto-configuration by clients on the

network.

This is applicable when the DHCP server is unable to supply a lease to clients. If

this option is set to 1, an IP address is automatically configured for the client:

#> dhcpserver subnet LAN add option auto-configure 1

You can prompt the DHCP server to issue a DHCPFORCERENEW message to the

DHCP client at a given IP address. Note that the server will only do this if the

DHCP client is on one of the subnets that the DHCP server has been configured to

serve. The client must also be configured to respond to DHCPFORCERENEW

requests as described in Configuring DHCP Client. Enter the following:

#> dhcpserver forcerenew 192.168.1.10

You can also add a fixed host mapping to the DHCP server configuration. This

allows you to configure the DHCP server to assign a specific IP address to a

specific DHCP client based on the client’s MAC address. Enter:

#> dhcpserver add fixedhost myhost 192.168.1.20 00:20:2b:01:02:03

This adds a fixed mapping of the IP address 192.168.1.20 to a host whose Ethernet

MAC address is 00:20:2b:01:02:03. If your fixed IP mapping overlaps with an IP

address in a dynamic address range, then the fixed mapping will always supersede

the dynamic address, and so that IP address will only ever be assigned to the given

host. You will still need to have a suitable subnet declaration – for example, a

subnet 192.168.1.20 with netmask 255.255.255.0, as shown earlier. Any

configuration options you define in this subnet will also be offered to any fixed host

you have added which is also on the given subnet. You can also assign a

maximum lease duration to fixed DHCP clients as follows:

#> dhcpserver set fixedhost myhost maxleasetime 7200

In this context, a fixed lease duration would usually be used to allow DHCP clients

to quickly see changes in the offered options. The IP address itself is always

guaranteed to be available for assignment to the specific host (unless there are

other DHCP servers on the same network that are deliberately configured to

PAMSPAN501x G.SHDSL.bis EFM Gateway

-46

conflict).

Addition/deletion of the interface “iplan” to the list of allowed interfaces may be

carried out by using the following commands:

#> dhcpserver add interface iplan

#> dhcpserver delete interface iplan

You must disable the DHCP server before adjusting the list of interfaces it will bind

to. After issuing the commands above, you might see the following message if you

have previously turned off the DHCP server:

Note: the DHCP server is not currently enabled.

If you see this, issue the following command:

#> dhcpserver enable

The final step is to update the DHCP server with the new IP interface and

configuration that has been defined. To do this, enter:

#> dhcpserver update

3.2.3.4 DHCP Relay

This option allows you to:

• Enable/Disable a DHCP relay.

• Add DHCP servers to the DHCP relay list.

• Configure/delete server entries on the DHCP relay list.

Click on DHCP relay from the Configuration menu. The following page will be

displayed:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-47

Enabling/disabling DHCP relay

1. The image shows that the DHCP relay is currently disabled. You may click the

Enable button to enable the DHCP relay. If the DHCP relay is currently enabled, the

button will display Disable, which upon clicking it will disable the relay.

Note:

If the DHCP server is enabled, the DHCP relay will be disabled by default. You

can’t enable the DHCP relay unless you disable the DHCP server.

Adding a DHCP server to the DHCP relay list

1. In the Add new DHCP server section, type an address in the New DHCP server IP

address text box.

2. Click . The address will be displayed in the Edit DHCP server list section.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-48

Editing/deleting entries in the DHCP relay list

1. To edit an entry, click on an IP address and enter the new details, and then click

2. To delete an entry, check the Delete box for a specific IP address, and then click

3.2.3.4.1 Command Line Interface for DHCP Relay

You can also use the command line interface (CLI) to configure the DHCP relay

by using the following examples:

To add a DHCP server subnet to the DHCP relay’s list of server IP addresses,

use the following command:

#> dhcprelay add server 192.168.1.0

You need to update the DHCP relay in order for this addition to take effect by

entering:

#> dhcprelay update

Simultaneous use of DHCP Relay and DHCP Server

To configure this, you must first disable both the DHCP server and the DHCP

relay:

#> dhcprelay disable

#> dhcpserver disable

Bind the DHCP server to the LAN interface:

#> dhcpserver add interface iplan

Bind the DHCP relay to the wireless LAN interface and the WAN interface:

#> dhcprelay add interface wlan_filtered

#> dhcprelay add interface ipwan

PAMSPAN501x G.SHDSL.bis EFM Gateway

-49

Now enable the DHCP:

#> dhcprelay enable

#> dhcpserver enable

Now you will be able to use DHCP Relay and DHCP Server simultaneously.

3.2.3.5 DNS Client

This option allows you to:

• Create a list of server addresses. This enables you to retrieve a domain name for a

given IP address.

• Create a domain search list. DNS client uses this list when a user asks for the IP

address list for an incomplete domain name.

Click on DNS client from the Configuration menu. The following page will be displayed:

Configuring DNS servers

1. Type the IP address of the unknown domain name in the DNS servers text box.

2. Click . The IP address appears in the DNS servers table. You can add a

maximum of three server IP addresses. Each IP address entry has a Delete button

associated with it. Click to remove an IP address from this list.

Configuring DNS search domains

1. Type a search string in the Domain search order text box.

2. Click . The search string is displayed in the Domain search order table. You can

add a maximum of six search strings. Each search string entry has a Delete button

associated with it. Click to remove a string from this list.

3.2.3.5.1 Command Line Interface for DNS Client

You can also use the command line interface (CLI) to configure the DNS client.

Below are some examples:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-50

To add a server address in order to retrieve a domain name for a given IP

address, enter:

#> dnsclient add server <ipaddress>

You can add up to three server addresses. To display them, enter:

#> dnsclient list servers

To delete one or all of them, enter:

#> dnsclient delete server <number>

#> dnsclient clear servers

To create a domain search list, the DNS client refers to its domain search list

when a user asks for the IP address list for an incomplete domain name. To add

to this list, enter:

#> dnsclient add searchdomain <searchstring>

You can add up to six domain searches. To display them, enter:

#> dnsclient list searchdomains

To delete one or all of them, enter:

#> dnsclient delete searchdomain <number>

#> dnsclient clear searchdomains

3.2.3.6 DNS Relay

This option allows you to create, configure and delete a DNS relay’s primary and

secondary DNS servers. The DNS relay can forward DNS queries to the DNS

servers on this list. Click DNS Relay from the Configuration menu. The following

page will be displayed:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-51

Configuring the DNS relay list

1. In the Add new DNS server section, type an address in the New DNS server IP

address text box.

2. Click . The address is displayed in the Edit DHCP server list section as

shown.

To edit an entry, click on an IP address and enter the new details, and then click

. To delete an entry, check the Delete box for an IP address, and then click

DNS Relay LAN Database

Click the DNS Relay LAN Database link on the top of the DNS Relay page, The DNS

Relay LAN Database page will be displayed as shown below:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-52

This page allows you to view and edit the list of hosts and IP addresses present on

the local network. User has to specify the LAN domain name here since the entries in

the local database will not function until a domain name is specified.

Clicking the Create/View LAN database entry for IPv4 link at the bottom of the DNS

relay local LAN database page to display the Create new DNS relay local LAN

database entry page as shown below:

This page lets you enter the details of a new device on the local LAN. You need to

type in the name of the device and its IP address. Once you type in the name and IP

address in the appropriate fields, click to save your settings. Then the new

host name and IP address will be added in the Local host list as shown below:

Click the Edit host names and IP addresses link to rename or modify the IP address.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-53

3.2.3.6.1 Command Line Interface for DNS Relay

You can also use the command line interface (CLI) to configure the DNS relay.

Below are some examples:

To allow the DHCP to pass DNS server information to the DNS relay, enter:

#> dhcpclient set interfaceconfig WAN givetodnsrelay enabled

To set a DNS server that the DNS relay can use to obtain domain/address

information, enter:

#> dnsrelay add server <ip-address>

The DNS server address should be supplied by your ISP. To display servers,

enter:

#> dnsrelay list servers

3.2.3.7 SNTP Client

This option allows you to:

• Synchronize a Client with an NTP Server

• Configure the SNTP-NTP Server

•

Manually set the system clock

Click on SNTP client from the Configuration menu. The following page will be

displayed:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-54

Synchronize a Client with an NTP Server

1. Click will force the SNTP client to immediately synchronize the local

time with the server located in the association list (if unicast) or, if anycast is enabled,

initiate an anycast sequence on the network.

Note: to synchronize a Client with an NTP Server, the NTP server, SNTP client mode,

and local time zone information should be pre-configured.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-55

Configure an SNTP-NTP Server

1. Enter the NTP Sever IP address in the Add NTP Server IP Address text box, and

then click to validate the settings.

2. Enter the NTP Sever Hostname in the Add NTP Sever Hostname text box, and

then click to validate the settings.

Configure SNTP client mode

1. Select an SNTP Synchronization mode(s): This action enables/disables the STNP

client in a particular time synchronous access mode. There are three modes to

choose from, and each mode has enable and disable options:

a. Unicast mode:

• Enable - this mode uses a unicast server and the IP address or hostname in the

SNTP server association list is used to synchronize the client time with the server.

The SNTP client attempts to contact the specific server in the association in order

to receive a timestamp when the sntpclient sync command is issued.

• Disable - the unicast server is removed from the association list.

b. Broadcast mode:

• Enable - allows the SNTP client to accept time synchronization broadcast packets

from an SNTP server located on the network, and updates the local system time

accordingly.

• Disable - stops synchronization via broadcast mode

c. Anycast Mode:

• Enable - the SNTP client sends time synchronized broadcast packets to the

network and subsequently expects a reply from a valid timeserver. The client

then uses the first reply it receives to establish a link for future sync operations in

unicast mode.

This server will then be added to the server association list. The client ignores any

later replies from servers after the first one is received.

The enabled anycast mode takes precedence over any entries currently in the

associations list when the sntpclient sync command is issued. The entry will then be

substituted for any existing entry in the unicast association list.

• Disable - stops synchronization via anycast mode

PAMSPAN501x G.SHDSL.bis EFM Gateway

-56

Click to validate your settings, after choosing the SNTP Synchronization

mode.

2. Select a time zone:

Click on the local time zone drop down list and select a time zone, and then click

to validate your settings.

3. Enter the SNTP transmit packet timeout value, the SNTP transmit packet retries

value and the SNTP automatic resynchronization polling value in their respective text

boxes, then click

to validate your settings.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-57

Manually setting the System clock

Enter the date and time in the text box in yyyy:mm:dd:hh:mm:ss format to set the

system clock, then click to validate your settings.

Note: if manually setting the system clock, the local time will follow the internal clock

set by the user.

3.2.3.7.1 Command Line Interface for SNTP Client

You can use the command line interface to configure the SNTP client. Below are

some examples:

To enable/disable the SNTP client in a particular access mode, use the

command:

#> sntpclient set mode {unicast|broadcast|anycast} {enable|disable}

For example, to enable broadcast mode, enter:

#> sntpclient set mode broadcast enable

To disable broadcast mode, enter:

#> sntpclient set mode broadcast disable

To add a server, use the command:

#> sntpclient add server {ipaddress <sntpipaddress> | hostname

<sntphostname>}

To add a server to the list using either the server’s IP address or hostname,

enter:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-58

#> sntpclient add server ipaddress 129.6.15.28

To delete a single NTP server association from the client’s list, enter:

#> sntpclient delete server <serverid>

The number is the ID that corresponds to a particular server as displayed by the

sntpclient list servers command.

To delete all NTP servers from the client’s list, enter: #> sntpclient clear servers

To display the current status of SNTP client, enter:

#> sntpclient show status

Clock Synchronized TRUE

SNTP Standard Version Number: 4

SNTP Mode(s) Configured: Unicast Broadcast

Local Time: Tuesday, 28 Aug, 2001 - 14:39:25

Local Time Zone: EDT, Eastern Daylight Time

Time Difference +-VTC: -4:00

Precision: 1/16384 of a second

Root Dispersion: +0.2342 second(s)

Server Reference ID: GPS.

Round Trip Delay: 2 second(s)

Local Clock Offset: -1 second(s)

Resync Poll Interval: 15 minute(s)

Packet Retry Timeout: 5 seconds

Packet Retry Attempts: 3

3.2.4 Advanced Pages

The Advanced pages allow you to configure:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-59

3.2.4.1 Security

Using EmWeb, the following security settings can be enabled:

• Enable Security

• Configure Security interfaces

• Configure triggers

• NAT - EmWeb allows you to:

• Enable NAT between interfaces

• Configure global addresses

• Configure reserved mappings

• Firewall - EmWeb allows you to:

• Enable Firewall and Firewall Intrusion Detection settings

• Set the Firewall security level

• Configure Firewall policies, portfilters and validators

• Configure Intrusion Detection settings

Click on Security in the Advanced menu and the following page will be displayed:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-60

3.2.4.1.1 Enabling Security

Security must be enabled before Firewall and/or Intrusion Detection can be enabled.

In the Security State section:

Select the Security Enabled radio button.

Click to update the Security State.

3.2.4.1.2 Enabling Firewall and/or Intrusion Detection

A security interface must be created before Firewall and/or Intrusion Detection can

be enabled.

Once a security interface has been created:

1. Select the Firewall Enabled and/or Intrusion Detection Enabled radio buttons.

2. Click to update the Security State.

3.2.4.1.3 Setting a default Security Level

Both Security and Firewall must be enabled in order to set a default Security Level.

1. In the Security Level section, click on the Security Level drop-down list.

2. Select the level that you want to set; which can be either none, high, medium or

low.

3. Click the button to save the changes.

3.2.4.1.4 Configuring Security Interfaces

Security Interfaces are based on existing LAN services. A LAN service must be

created for each Security Interface that you want to configure.

For details of how to create LAN services,

1. From the Security Interfaces section, click Add Interface and the Add Interface

page will be displayed:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-61

2. Click on the Name drop-down list and select the LAN service that you want to

base your security interface on.

3. Click on the Interface Type drop-down list and specify what kind of interface it is

depending on how it connects to the network; external, internal or DMZ.

4. Click . The Security page will be displayed. The Security Interfaces section

contains a table that displays information about each security interface that has

been created:

• Name – the name of the LAN service that the security interface is based on

• Type – the type of network connection specified

• NAT settings - contains hyperlinks that allow NAT to be configured.

• Delete Interface... hyperlink - Click this to display the Security: Delete Interface

page. Check the interface details, and then click the Delete button.

3.2.4.1.5 Configuring NAT

To configure NAT:

1. Enable Security

2. Create at least two different security interface types based on existing LAN

services

3. Once more than one security interface has been created, the NAT column in the

Security Interfaces table will indicate that NAT can be enabled between the existing

security interface and a network interface type. For example, if an external interface

PAMSPAN501x G.SHDSL.bis EFM Gateway

-62

and an internal interface are created, the table will be as below:

The NAT column for the external interface indicates that NAT to internal interfaces

can be enabled. If a DMZ interface has also been configured, this column will also

include an Enable NAT to DMZ interfaces button.

4. To enable NAT between the external interface and the internal interface type,

click . The Security page is refreshed and NAT is

enabled. To disable NAT between these interfaces, click

Once NAT between interfaces has been enabled, you can:

• Configure global addresses

• Configure reserved mappings

3.2.4.1.6 Configuring NAT global addresses

Global address pools allow a pool of outside network addresses to be created that

is visible outside your network. Before global addresses can be configured, NAT

needs to be configured.

To set up a global address pool on existing NAT enabled interfaces:

1. From the NAT Security Interfaces table, click the Advanced NAT Configuration

hyperlink for the interface to which a global pool is to be added. The following page

will be displayed:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-63

2. Click Add Global Address Pool. The following page will be displayed:

3. This page allows a pool of network IP addresses that are visible outside your

network to be created. Add values for the following table entries:

• Interface Type - select the type of interface that is to be mapped to an external

interface. Click the drop-down list and select an interface type.

• Use Subnet Configuration - there are two ways to specify a range of IP addresses:

either Use Subnet Mask (specify the subnet mask address of the IP address) or

Use IP Address Range (specify the first and last IP address in the range). Click the

drop-down list and select a method.

• Enter an IP Address that is visible outside the network

• Subnet Mask/IP Address 2; the value specified here depends on the subnet

configuration that is being used. If Use Subnet Mask is chosen, enter the subnet

mask of the IP address. If Use IP Address Range is chosen, enter the last IP

address in the range of addresses that make up the global address pool.

4. Once the table has been configured, click . The

table is refreshed and the global address pool is added to the NAT configuration.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-64

To delete a global address pool, click the Delete hyperlink, and then click the

Delete Global Address Pool button.

Click Return to Interface List to display the Security Interface Configuration page.

To create a reserved mapping, click the Add Reserved Mapping hyperlink.

3.2.4.1.7 Configuring NAT reserved mapping

Reserved mapping allows an outside security interface or an IP address to be

mapped from a global pool to an individual IP address inside the network. Mapping

is based on transport type and port number. Before reserved mapping can be

configured, NAT needs to be configured. For more details, see the Configuring NAT

Section.

To set up a reserved mapping on existing NAT enabled interfaces:

1. From the NAT Security Interfaces table, click the Advanced NAT Configuration

hyperlink for the interface to which reserved mapping is to be added. The

Advanced NAT Configuration page will be displayed.

2. Click the Add Reserved Mapping hyperlink. The following page will be displayed:

3. This page allows reserved mapping to be configured. Add specific values for the

following table entries:

• Global IP Address - if mapping from a global IP address, enter the address here.

If mapping from a security interface, enter 0.0.0.0.

• Internal IP Address - the IP address of an individual host inside the network.

• Transport Type - specify the transport type that is to be mapped from the outside

interface to the inside.

• Port Number - the port number that the transport uses.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-65

4. Once the table is configured, click . The table is

refreshed and the reserved mapping is added to the NAT configuration.

To delete a reserved mapping setup, click the Delete hyperlink, and then click

Click Return to Interface List to display the Security Interface Configuration page.

3.2.4.1.8 Configuring Firewall policies

To configure firewall policies, click Security Policy Configuration from the Policies,

Triggers and Intrusion Detection page, as shown in the following figure.

The Security Policy Configuration table will then be displayed which contains

details of each Firewall policy.

The policies can now be configured to include portfilters and validators.

A portfilter is an individual rule that determines what kind of traffic can pass

between two interfaces specified in an existing policy.

To configure a portfilter:

1. From the Current Security Policies table, click the Port Filters link for the policy

that is to be configured. The page displayed contains three Add Filter hyperlinks

that allow three different kinds of portfilter to be created:

• For a TCP/UDP port filter, click Add TCP or UDP Filter. The following page will be

displayed:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-66

Specify the start and end of the port range for the TCP/UDP protocol that is to be

filtered. Then select either the TCP or UDP protocol from the Protocol drop-down

list. After that, use the Direction drop-down lists to specify whether inbound traffic

and outbound traffic is to be allowed or blocked. Click . The Firewall Port Filters

page will be displayed, containing details of the TCP portfilter that has just been

added.

• For a non-TCP/UDP portfilter, click Add Raw IP Filter. The following page will be

displayed:

Specify the protocol number in the Transport Type text box, for example, for IGMP,

enter protocol number 2. Then use the Direction drop-down lists to specify whether

inbound traffic and outbound traffic is to be allowed or blocked.. Click . The

Firewall Port Filters page will be displayed, containing details of the IP portfilter that

has just been added.

2. Each portfilter displayed in the Firewall Port Filters page has a Delete hyperlink

assigned to it. To delete a portfilter, click this link, and then, click on the

confirmation page. The port filter will be removed from the Firewall configuration.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-67

3.2.4.1.9 Configuring validators

A validator allows/blocks traffic based on the source/destination IP address and the

subnet mask. Traffic will be allowed or blocked depending on the validator

configuration specified when the policy was created. See the Configuring Firewall

policies Section. This section assumes that the instructions given in the Configuring

Firewall policies Section have previously been followed.

To configure a validator:

1. From the Current Security Policies table, click on the Host Validators link for the

policy that is to be configured. The Configure Validators page will be displayed.

Click the Add Host Validator link. The following page will be displayed:

2. In the Host IP Address text box, enter the IP address that is to be

allowed/blocked.

3. In the Host Subnet Mask text box, enter the IP mask address. If a range of

addresses is to be filtered, the mask can be specified, for example, 255.255.255.0.

If a single IP address is to be filtered, use the specific IP mask address, for

example, 255.255.255.255.

4. Click on the Direction drop-down list and select the direction of the traffic that the

validator is to filter.

5. Click . The Configure Validators page will be displayed, containing details

of the host validator that has just been added.

6. Each portfilter displayed on the Configure Validators page has a Delete Host

Validator hyperlink assigned to it. To delete a validator, click this link, and then click

on the Delete Host Validator button on the confirmation page. The validator will be

removed from the Firewall configuration.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-68

3.2.4.1.10 Configuring triggers

A trigger allows an application to open a secondary port in order to transport

packets. The most common applications that require secondary ports are FTP and

NetMeeting. This section assumes that the instructions given in the Enabling

Security Section have been followed.

To configure a trigger:

1. Go to the Policies, Triggers, Intrusion Detection, and Logging section of the

Security Interface Configuration page. Click Security Trigger Configuration, and

then the Current Security Triggers page will be displayed. Click the New Trigger

link. The following page will be displayed:

2. Configure the trigger as follows:

a. Transport Type - select a transport type from the drop-down list, depending on

whether a trigger for a TCP or a UDP application is to be added.

b. Port Number Start - enter the start of the trigger port range that the primary

session uses.

c. Port Number End - enter the end of the trigger port range that the primary

session uses.

d. Allow Multiple Hosts - select allow if a secondary session is to be initiated to/from

different remote hosts. Select block if a secondary session is to be initiated only

to/from the same remote host.

e. Max Activity Interval – enter the maximum interval time (in milliseconds) between

the uses of the secondary port sessions.

f. Enable Session Chaining - select Allow or Block depending on whether

multi-level TCP session chaining is to be allowed.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-69

g. Enable UDP Session Chaining - select Allow or Block depending on whether

multi-level UDP and TCP session chaining is to be allowed. Enable Session

Chaining must be set to allow if this is to work.

h. Binary Address Replacement - select Allow or Block depending on whether

binary address replacement is to be used on an existing trigger.

i. Address Translation Type - specify what type of address replacement is set on a

trigger. Binary Address Replacement must be set to allow if this is to work.

3. Once the trigger has been configured, click . The Current Security Trigger

page will be displayed, containing details of the trigger that has just been

configured.

4. Each trigger displayed in the Current Security Trigger page has a Delete

hyperlink assigned to it. To delete a trigger, click this link, and then click the Delete

button on the confirmation page.The Current Security Trigger page will be

displayed and details of the deleted trigger(s) have been removed. There are two

hyperlinks on the page:

a. To add a new trigger, click New Trigger.

b. To display the Security Interface Configuration page, click Return to Interface

List.

3.2.4.1.11 Configuring Intrusion Detection Settings

Intrusion Detection Settings (IDS) are network protection features that can be

configured to guard against certain Denial of Service and port scanning. Any

attempts to attack or scan the network will cause the traffic originating from the

attacking machine to be blacklisted for a set time.

 Basic IDS Configuration

 To enable/disable IDS and display status are shown as follows.

firewall {enable|disable} IDS firewall show IDS

Equal to

security enable IDS security disable IDS security show IDS

PAMSPAN501x G.SHDSL.bis EFM Gateway

-70

 Displaying information about IDS

console enable security list intrusion

 Configuring blacklisting

PAMSPAN501x G.SHDSL.bis EFM Gateway

-71

 Enable/disable/clear IDS blacklist

firewall set IDS blacklist {enable|disable|clear}

Equal to

security enable IDS blacklist security disable IDS blacklist security clear IDS blacklist

Enabling the Blacklist will block traffics from an external host when it has detected

one of the following types of attack:

Protocol Attack Name

UDP Ascend Kill

UDP Echo Scan (Port scan attack)

TCP WinNuke (Port scan attack)

TCP Xmas Tree Scan (Port scan attack)

TCP IMAP SYN/FIN Scan ((Port scan attack)

ICMP SMURF (if victim protection is set; SMURF Attack)

TCP SYN Flood (if scanning threshold is exceeded; SYN/FIN/RST

Flood )

TCP Net Bus Scan (Port scan attack)

UDP Back Orifice Scan (Port scan attack)

- If a DoS attack is detected, the host is blacklisted for 30 minutes by default

- If a port scan is detected, the host is blacklisted for 24 hours by default

PAMSPAN501x G.SHDSL.bis EFM Gateway

-72

If a web spoofing (SMURF) attack is detected, the host is blacklisted for 10

minutes by default

 Displaying blacklisting details

console enable security list blacklist

 Basic Network Configuration

PAMSPAN501x G.SHDSL.bis EFM Gateway

-73

 Port Scan attacks

 The following are port scan attacks that will be detected in system.

Scan Attack

Description

Echo scan

The attacker sends scanning traffic to the standard Echo port (TCP port 7).

Xmas Tree scan

The attacker sends TCP packets with FIN, URG and PSH flags set. If a port is closed, the device responds with an

RST. If a port is open, the device does not respond. IMAP scan

The attacker exploits vulnerability of the IMAP port (TCP

port 143) once a TCP packet is received from the victim

with the SYN and FIN flag set.

TCP SYN ACK scan

The attacker sends a SYN packet and the device

responds with a SYN and ACK to indicate that the port is

listening or an RST if it is not listening.

TCP FIN RST scan

The attacker sends a FIN packet to close an open

connection. If a port is closed, the device responds with

an RST. If a port is open, the device does not respond.

NetBus scan

NetBus is a Trojan Horse attack for Windows 95/98/NT.

Once installed on the victim’s PC, the attacker uses TCP

port 12345, 12346 or 20034 to remotely perform illicit

activities. Back Orifice scan

Back Orifice and Back Orifice 2k are Trojan Horse attacks

for Windows 95/98/NT. Once installed on the victim’s PC,

the attacker commonly listens on UDP ports 31337,

31338 (Back Orifice) and 54320, 54321 (Back Orifice 2k).

The attacker can then remotely perform illicit activities. SubSeven

attack

SubSeven and SubSeven 2.1 are Trojan Horse attacks

for Windows platforms. Once installed on the victim’s PC,

the attacker uses TCP ports 1243, 6711, 6712, 6713

(SubSeven) and 27374 (SubSeven 2.1) to remotely

perform illicit activities.

 Configuring protection against Port Scan attacks

- The device detects an attempted port scan if it receives more than 5 scanning

packets (e.g., SYN/ACK, FIN or RST packets) per second from a single host. To

modify this default threshold, enter:

security set IDS scanthreshold <max>

- The device counts the maximum number of scan packets allowed per second over

a 60 second period. To modify this default threshold, enter:

security set IDS scanperiod <duration>

- If the number of scanning packets counted within the specified duration is greater

PAMSPAN501x G.SHDSL.bis EFM Gateway

-74

than the scan threshold that is set, the suspected attacker is blocked for 86400

seconds. To modify this default duration, enter:

security set IDS SCANattackblock <duration>

 Denial of Service (DoS) attacks

 A Denial of Service (DoS) attack is an attempt by an attacker to prevent

legitimate hosts from using a service. There are two main types of DoS attack:

- Flood attack is when an attacker tries to overload your device by flooding it with

packets. Whilst your device tries to cope with this sudden influx of packets, it

causes delays to the transport of legitimate packets or prevents the network from

transporting legitimate traffic altogether.

- Logic or software attack is a small number of corrupt packets that are designed to

exploit known software bugs on the target system.

The Security module can detect the early stages of the following DoS attacks:

 SMURF Attack  SYN/FIN/RST Flood  ICMP Flood  Ping Flood

PAMSPAN501x G.SHDSL.bis EFM Gateway

-75

 Ascend Kill  WinNuke Attack  Echo Chargen  Echo Storm  Boink  Land Attack  Ping of Death  Overdrop

 SMURF Attack

In a SMURF attack, an attacker sends pings (Echo Requests) to a host with a

destination IP address of broadcast (protocol 1, type 8). The broadcast address has

a spoofed return address which is the address of the intended victim, and the

replies cause the system to crash.

Protection from SMURF attacks is provided once victim protection is enabled.

Enter:

security enable IDS victimprotection

To disable victim protection, enter:

security disable IDS victimprotection

If victim protection is enabled, the device detects the broadcast packet and blocks

the attacker from sending ICMP traffic for 10 minutes. To modify this default

duration, enter:

security set IDS victimprotection <duration>

PAMSPAN501x G.SHDSL.bis EFM Gateway

-76

 SYN/FIN/RST Flood

The attack exploits the way TCP-connections are established between two

computers. Attackers send unreachable source addresses in SYN packets, so your

device sends SYN/ACK packets to the unreachable address, but does not receive

any ACK packets in return. This causes a backlog of half-opened sessions. Once

the queue is full, your device ignores all incoming SYN requests which may include

legitimate traffic.

TCP packets with FIN and RST flags set also cause problems and constitute a

preliminary survey to gain information about the victim’s network.

The device detects an attempted SYN flood if it received more than 20 SYN

packets per second from a single host. To modify this default threshold, enter:

security set IDS floodthreshold <max>

The device also detects an attempted SYN flood if it receives more than 10 SYN

packets per second from a single host destined for a single port. To modify this

default threshold, enter:

security set IDS portfloodthreshold <max>

PAMSPAN501x G.SHDSL.bis EFM Gateway

-77

The device counts the maximum number of SYN packets (for both the flood

threshold and the port flood threshold) allowed per second over a 10 second period.

To modify this default duration, enter:

security set IDS floodperiod <duration>

If the number of SYN packets counted within the specified duration is greater than

the flood threshold or port flood threshold, traffic originating from the attacker is

blocked for 1800 seconds by default. To modify this default duration, enter:

security set IDS DOSattackblock <duration>

The device detects an SYN/ACK attack if it receives more than 100 unfinished TCP

handshakes per second from a single host. To modify this default threshold, enter:

security set IDS MaxTCPopenhandshake <max>

Once this threshold is exceeded, traffic originating from the attacker is blocked for

1800 seconds by default. To modify this default duration, enter:

security set IDS DOSattackblock <duration>

 ICMP Flood

PAMSPAN501x G.SHDSL.bis EFM Gateway

-78

The attacker floods the network with ICMP packets that are not Echo requests,

stealing bandwidth needed for legitimate services. The device detects an attempted

ICMP flood if it receives more than 100 ICMP packets per second from a single

host. To modify this default threshold, enter:

security set IDS MaxICMP <max>

Once this threshold is exceeded, traffic originating from the attacker is blocked for

1800 seconds by default. To modify this default duration, enter:

security set IDS DOSattackblock <duration>

 Ping Flood

The attacker floods the network with pings, using bandwidth needed for legitimate

services. The device detects an attempted ping flood if it receives more than 15

pings per second from a single host. To modify this default threshold, enter:

security set IDS MaxPING <max>

Once this threshold is exceeded, traffic originating from the attacker is blocked for

1800 seconds by default. To modify this default duration, enter:

security set IDS DOSattackblock <duration>

PAMSPAN501x G.SHDSL.bis EFM Gateway

-79

 Ascend Kill

This attack is aimed at Ascend routers. The attacker sends a UDP packet

containing special data to port 9 (the discard port), causing your Ascend router to

reboot and possibly crash continuously.

Traffic originating from the attacker is blocked for 1800 seconds by default. To

modify this default duration, enter:

security set IDS DOSattackblock <duration>

PAMSPAN501x G.SHDSL.bis EFM Gateway

-80

 WinNuke Attack

The attacker sends invalid TCP packets which disable networking on many

Microsoft Windows 95 and Windows NT machines. The exploit sent a string of

OOB (out of band) data to the target computer on TCP port 139 (NETBIOS),

causing it to lock up and display a Blue Screen of Death. This did not cause any

damage to, or change data on, the computer's hard disk, but any unsaved data

would be lost. NetBIOS is often used. Traffic originating from the attacker is

blocked for 1800 seconds by default. To modify this default duration, enter:

security set IDS DOSattackblock <duration>

 Echo Chargen

A chargen attack exploits character generator (chargen) service (UDP port 19).

Sessions that appear to come from the local system’s Echo service are spoofed

and pointed at the chargen service to create an endless loop of high volume traffic

that will slow your network down. Traffic originating from the attacker is blocked for

1800 seconds by default. To modify this default duration, enter:

security set IDS DOSattackblock <duration>

PAMSPAN501x G.SHDSL.bis EFM Gateway

-81

 Echo Storm

Attackers send oversized ICMP datagram to your device using ping in an attempt to

crash, freeze or cause a reboot. The device detects an attempted Echo Storm

attack if it receives more than 15 ICMP datagram per second from a single host. To

modify this default threshold, enter:

security set IDS MaxPING <max>

Once this threshold is exceeded, traffic originating from the attacker is blocked for

1800 seconds by default. To modify this default duration, enter:

security set IDS DOSattackblock <duration>

 Boink

An attacker sends fragmented TCP packets that are too big to be reassembled on

arrival, causing Microsoft Windows 95 and Windows NT machines to crash.

Traffic originating from the attacker is blocked by the router for 1800 seconds by

default. To modify this default duration, enter:

security set IDS DOSattackblock <duration>

 Land Attack

This attack targets Microsoft Windows machines. An attacker sends a forged

packet with the same source and destination IP address which confuses the

victim’s machine, causing it to crash or reboot.

Traffic originating from the attacker is blocked for 1800 seconds by default. To

modify this default duration, enter:

security set IDS DOSattackblock <duration>

 Ping of Death

It is possible to crash, reboot or otherwise kill a large number of systems by

sending a ping of a certain size from a remote machine. This ping is defined as a

ping of death when the ping payload exceeds 65535 bytes.

Traffic originating from the attacker is blocked for 1800 seconds by default. To

PAMSPAN501x G.SHDSL.bis EFM Gateway

-82

modify this default duration, enter:

security set IDS DOSattackblock <duration>

 Overdrop

This attack uses incorrect IP packet fragmentation to exploit vulnerabilities in

networked devices. Fragmented IP packets are sent and the fragment information

indicates that the packet length is over 65535 bytes (including IP header), but the

actual data in the payload is much less than this amount.

Traffic originating from the attacker is blocked for 1800 seconds by default. To

modify this default duration, enter:

security set IDS DOSattackblock <duration>

3.2.4.2 IP Routes

This option allows you to create static IP routes to destination addresses via an IP

interface name or a Gateway address. Click on IP routes from the Configuration menu.

The Edit Routes page is displayed:

This page lists the following information about existing routes:

• Whether the route is valid or invalid

• Destination IP address

• Gateway address

• Subnet mask

• Whether the route is advertised via RIP (true or false)

Editing a route

1. To edit the destination, gateway and netmask address of a route, Click in the

relevant text box, update the information then click on .

PAMSPAN501x G.SHDSL.bis EFM Gateway

-83

2. To edit the cost, interface setting or advertise status for the route, click on the

Advanced Options hyperlink for a specific route and update the relevant information.

Click on .

Deleting a route

1. To delete an existing route, check the Delete box for a specific route.

2. Click on .

Creating an IP V4 Route

1. Click on the Create new Ip V4 Route hyperlink. The following page is displayed

2. Complete the Create IP v4 Route form in order to configure the route.

3. When you have typed the details, click on . The Edit Routes page is displayed.

The table now contains details of the route that you have just created.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-84

3.2.4.3 Bridge

From the Advanced menu, click on Bridge and then the Bridge page is displayed.

This page lists the following information about bridge:

1. Global bridge configuration

2. VLAN configuration

3. Spanning tree configuration

The following shows the Global Bridge configuration settings.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-85

The following Global Bridge information is displayed:

1. Bridge MAC Address

2. Number of Ethernet Bridge interfaces configured

3. The type of Ethernet Bridge

4. Unicast learning is non-configurable and always set to Hybrid, i.e. VLAN learning, and is both “Independent” as well as “Shared” depending on the association of the VLANs with the filtering databases.

5. The Multicast Learning setting is non-configurable and always set to HVM (Hybrid VLAN Multicast Learning), i.e. if two VLANs are associated with the same FDB. The filtering information for a multicast MAC address in one VLAN will also be used in the forwarding decision for the same MAC address in the other VLAN.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-86

6. Config Pvid Status is non-configurable and is always true, i.e. the Ethernet Bridge supports the ability to override the default PVID setting and its egress status (VLAN tagged or untagged) on each Ethernet Bridge interface.

7. Tagging is non-configurable and is always enabled, i.e. each Ethernet Bridge interface supports 802.1Q VLAN tagging of frames.

8. AcceptableFrameTypeCfg is non-configurable and is always enabled, i.e. each Ethernet Bridge interface can be configured to accept all frames or only tagged frames.

9. IngressFilteringCfg is non-configurable and is always enabled, i.e. each Ethernet Bridge interface supports discarding of frames whose VLAN classification does not include that interface in its member set.

10. Filter Age (in seconds) sets the duration after which MAC addresses are removed from the filter table when there has been no activity. The time may be an integer value between 10 and 100,000 seconds. The default value is 300 seconds. To change the filter age value, enter the required number of seconds in the filter age field, and then

click to save the settings.

11. Traffic Class Mapping. To set the traffic class, select an option from the

drop-down list and click to save the settings. The following table gives the range of values for each option that can be specified with this command, and a default value.

Option Description Default value

enable Enables the mapping of each regenerated

priority to its traffic class.

Disabled

disable Disables the mapping of each regenerated

priority to its traffic class.

Disabled

prioritybased Traffic class mapping will only occur if the

traffic class has not already been set.

Disabled

12. Filter Unknown VLAN. Filters out unknown VLAN frames. The default value is set to enabled. To disable the filter, select an option from the drop-down list and choose

Disabled. Then click to save the settings. You can also use CLI to configure the unknown VLAN filter settings.

#> unknownVlanFilter (How to handle unknown VLAN frames) Enabled: Drop Unknown VLAN frames (Default action) Disabled: Pass Unknown VLAN frames based on Default VLAN ports.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-87

3.2.4.3.1 Spanning Bridge Configuration

The following shows the Spanning Bridge configurations settings.

The following Spanning Bridge information will be displayed and allows users to

configure:

1. Spanning: spanning tree setting (true or false)

2. Priority: spanning tree priority value

3. Forward Delay: spanning tree forward delay time (seconds)

4. Hello time: spanning tree hello time (seconds)

5. Maximum Age: spanning tree maximum age (seconds)

3.2.4.3.2 Interface Configuration

Click Interface configuration and then the Bridge Interfaces page will be displayed,

as shown in the following figure.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-88

The following table gives the range of values for each option that can be specified

using this command, and a default value.

Option Description Default value

Name Interface name

PVID Port VLAN ID (PVID) associated with the interface. 1

Frame Access type

Acceptable Frame Type settings. Each bridge interface can be configured to accept all frames or only tagged frames.

all

Ingress filtering Ingress Filtering Settings. Accepts VLAN tagged

frames only if the VLAN ID in the frame has this interface in its egress interface list.

false

User priority The user priority to regenerated user-priority

mapping for a bridge interface.

Transport Name of attached transport.

Priority Map The mapping of user priority in the incoming

frames to the regenerated user priority that will be used for traffic class mapping, as well as being set in the VLAN tag of the outgoing frame. Configuration methods are introduced in section

5.1.4.

3.2.4.3.3 Priority map configuration

Click Priority Map for a specific Bridge Interface, and then the Priority Map for the

Bridge Interface page will be displayed. On this page, number of Traffic Classes,

user priority to regenerate the Priority Map and the Regenerated Priority to Traffic

Class Map can be configured. The procedure is as follows:

1. The Number of Traffic Classes, as shown in the following figure, specifies the number of Traffic Classes supported by the Bridge Interface and can be any value between 1 and 8.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-89

2. User Priority to Regenerated Priority Map, as shown is the following figure, specifies the mapping of user priority in the incoming frames to the regenerated user priority that will be used for Traffic Class mapping, as well as being set in the VLAN tag of the outgoing frame.

The following table gives the range of values for each option that can be specified

using this command, and a default value.

Option Description Default value

Priority 0 The Regenerated User Priority to which the user priority with

a value of 0 in the incoming frame should be mapped.

Priority 1 The Regenerated User Priority to which the user priority with

a value of 1 in the incoming frame should be mapped.

Priority 2 The Regenerated User Priority to which the user priority with

a value of 2 in the incoming frame should be mapped.

Priority 3 The Regenerated User Priority to which the user priority with

a value of 3 in the incoming frame should be mapped.

Priority 4 The Regenerated User Priority to which the user priority with

a value of 4 in the incoming frame should be mapped.

Priority 5 The Regenerated User Priority to which the user priority with

a value of 5 in the incoming frame should be mapped.

Priority 6 The Regenerated User Priority to which the user priority with

a value of 6 in the incoming frame should be mapped.

Priority 7 The Regenerated User Priority to which the user priority with

a value of 7 in the incoming frame should be mapped.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-90

3. Regenerated Priority to Traffic Class map, as shown in the following figure, specifies the mapping of Regenerated Priority to their Traffic Class values.

The following table gives the range of values for each option that can be specified

with this command and a default value.

Option Description Default value

Priority 0 The traffic class to which the Regenerated

Priority with a value of 0 is mapped.

Priority 1 The traffic class to which the Regenerated

Priority with a value of 1 is mapped.

Priority 2 The traffic class to which the Regenerated

Priority with a value of 2 is mapped.

Priority 3 The traffic class to which the Regenerated

Priority with a value of 3 is mapped.

Priority 4 The traffic class to which the Regenerated

Priority with a value of 4 is mapped.

Priority 5 The traffic class to which the Regenerated

Priority with a value of 5 is mapped.

Priority 6 The traffic class to which the Regenerated

Priority with a value of 6 is mapped.

Priority 7 The traffic class to which the Regenerated

Priority with a value of 7 is mapped.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-91

3.2.4.4 VLAN

The current maximum number of VLAN groups allowed is 15. To configure the VLAN,

click VLAN configuration and then the VLAN Interfaces page will be displayed, as

shown in the following figure. Currently existing VLAN Interfaces can be configured or

a new VLAN Interface can be created via this page.

The following table gives the range of values for each option, which can be specified

with this command and a default value.

Option Description Default value

Name An arbitrary name that identifies the VLAN Interface and

can consist of one or more letters or a combination of letters and digits, but cannot start with a digit.

DefaultVlan

VLAN ID The VLAN ID that the user wants to assign to the VLAN

name. The valid values for the VLAN ID range between 1 and 4094.

FDB Name The name of an existing Filtering Database with which

the user wants the VLAN Interface to be associated. If the FDB already exists, the VLAN Interface becomes associated with that FDB. If the FDB does not exist, it is created and the VLAN Interface becomes associated with it.

DefaultFdb

Tagged Ports The tagged port list for the VLAN Interface

None

User priority The untagged port list for the VLAN Interface eth1, eth2,

eth3, eth4, pvc0

Edit Tagged Ports Clicking on

Edit

allows users to edit tagged ports

Edit untagged Ports

Clicking on Edit allows users to edit untagged ports

3.2.4.4.1 Edit Tagged Ports

As shown in the following figure, a specific tagged port can be added to the VLAN

Interface using name drop-down list. Click to save the settings, to clear

the settings, or to return to the previous page.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-92

3.2.4.4.2 Edit untagged Ports

As shown in the following figure, a specific untagged port can be added to or

deleted from the VLAN Interface. Click to save the settings, to clear the

settings, or to return to the previous page.

Click Create a new VLAN and the Create a new VLAN page will be displayed, as

shown in the following figure. On this page, a new VLAN Interface can be created

by configuring the VLAN name, the VLAN ID and FDB Name respectively. Click

to save the settings, to clear the settings, or to return to the

previous page.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-93

3.2.4.4.3 MGMT VLAN Configuration

First, create a VLAN group where the VLANid corresponds to the Management

VLAN Vlanid. Enter the Management Vlanid in the text box and click to confirm.

3.2.4.4.4 Destination Based Unicast Filtering Entry Configuration

Unicast transmit the same, but separate data to each computer that requesting the

same data. It might result in flooding the network. To configure Static Unicast

Entries, click Destination Based Unicast Filtering Entry Configuration under Bridge

Config. Then Destination MAC Based Unicast Filtering Entries window will be

displayed as below:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-94

To add a new entry, click and the following window will be displayed.

Enter the appropriate data into the field and click to create a new entry.

Naming the entry to correspond with the Destination MAC Address will be helpful

for the convenience of future search. User will only be able to choose “Dest Static”

from the drop-down list because the entry is being created manually. On the

contrary, Entry Type will be “Dynamic” if it is being detected from the input port.

3.2.4.4.5 Multicast Filtering Entry Configuration

In contrast with Unicast, Multicast acts like broadcast. It transmits the data to all

end-stations on a LAN or VLAN. Multicast filtering is the system by which

end-stations only receive multicast traffic if they register to join specific multicast

groups. With multicast filtering, network devices only forward multicast traffic to the

ports that are connected to registered end-stations. To configure Static Multicast

Entries, click Multicast Filtering Entry Configuration under Bridge Config. Then

Multicast Filtering Entries window will be displayed as below:

PAMSPAN501x G.SHDSL.bis EFM Gateway

-95

To add a new entry, click and the following window will be displayed.

Enter the appropriate data into the field and click to create a new entry.

Naming the entry to correspond with the MAC Address will be helpful for the

convenience of future search. HVM in the Mcast Learning Type section means that

the created entry can be shared within the VLAN.

3.2.4.4.6 Forward All/Unregistered Configuration

To configure Forward ALL/Unregistered Entries, click Forward ALL/Unregistered

Entries under Bridge Config and the following window will be displayed as shown

below. This option allows users to assign the Egress Ports that the system forward

to. FWDALLMCAST means forwarding all Multicast entries. FWDUNREGMCAST

means forwarding all unregistered Multicast entries. As the below image shown,

FWDALLMCAST under FDB: DefaultFdb has been assigned to eth1and eth2. All

the Multicast entries will then be passed to eth1 and eth2. FWDUNREGMCAST

has been assigned to eth3, and then all the unregistered entries will be passed to

eth3.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-96

3.2.4.5 SHDSL

This option allows you to configure the SHDSL port on your router, Click on SHDSL

Configuration via the Advanced menu. The SHDSL Port Configuration page appears

promptly:

“Shdsl” is the default port name of SHDSL created in PAMSPAN501x where stands

for ATM/EFM port. You can configure simple SHDSL parameters in this page. The

procedure is shown as follows:

1. In the Role drop-down list, you can set the device as CPE or CO.

2. If to set PAMSPAN501x’s Wire mode, click on Wire Pair drop-down list to select

the Wire Pair number needed.

Wire Mode DSL Pair to Use Illustration

2-WireMode 1

4-WireMode 1,2

6-WireMode 1,2,3

8-WireMode 1,2,3,4

DSL

1 2 3 4

PAMSPAN501x G.SHDSL.bis EFM Gateway

-97

3. If to set the maximum and minimum line rate, input the Max Line Rate and Min

Line Rate respectively (where values range from 192 kbps to 5696 kbps) and then click

on to submit your setting. After the handshaking between STU-R and STU-C

devices, the actual transmission rate will be presented in the Current TX Rate attribute.

4. Click the line probe drop-down list to set line probe as enable or disable.

5. Click the annex drop-down list to select the desired annex mode, including A and

6. Click the PSD drop-down list to set PSD as symmetric or asymmetric.

7. If to set the maximum and minimum line rate, click on the Max Line Rate and Min

Line Rate drop-down list respectively (range: 192 kbps to 5696 kbps).

8. If to set the target margin, input the desired number in the target margin field

(range: -1 to 21 dB).

9. Click on to submit your setting or to clear your setting.

10. To view the advanced status of SHDSL and Ethernet ports, refer to the system status section as follows:

3.2.4.6 QoS

To configure the QoS, click QoS under “Configuration”. Below are some CLI

commands and the corresponding web images for setting up and configuring the EFM

for QoS function including some examples on how to add a classifier profile, scheduler

profile and attach them on target transports.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-98

3.2.4.6.1 To add a classifier profile

Enter the desired name for the profile and click Add to create a classifier profile.

Click the link Edit of the desired profile to modify the rule of that specific profile.

Enter name for the rule to add a new rule to the profile and then set the rule by

enter the desired criteria into those fields and click “OK” to save the settings.

PAMSPAN501x G.SHDSL.bis EFM Gateway

-99

Below are some CLI regarding to the classifier. With “dscprange” and “priority” rule

commands, you can abstract a packet and tag its priority by TOS/DSCP field. The

order of the commands should follow the sequence of the examples below.

#> classifier add profile cdscp

This command adds a profile named cdscp.

#> classifier profile cdscp add rule r1

This command adds the rule r1 to the profile cdscp.

#> classifier profile cdscp set rule r1 dscprange 0 15

This command sets the dscprange with the criteria from 0 to 15 for rule r1.

#> classifier profile cdscp set rule r1 priority 0

This command tags the incoming packets that meet the r1 criteria to priority 0.

#> classifier profile cdscp add rule r2

This command adds the rule r2 to the profile cdscp.

#> classifier profile cdscp set rule r2 dscprange 16 31

This command sets the dscprange with the criteria from 16 to 31 for rule r2.

#> classifier profile cdscp set rule r2 priority 2

This command tags the incoming packets that meet the r2 criteria to priority 2.

#> classifier profile cdscp add rule r3

This command adds the rule r3 to the profile cdscp.

#> classifier profile cdscp set rule r3 dscprange 32 47

This command sets the dscprange with the criteria from 32 to 47 for rule r3.

#> classifier profile cdscp set rule r3 priority 4

This command tags the incoming packets that meet the r3 criteria to priority 4.

#> classifier profile cdscp add rule r4

This command adds the rule r4 to the profile cdscp.

#> classifier profile cdscp set rule r4 dscprange 48 63

This command sets the dscprange with the criteria from 48 to 63 for rule r4.

#> classifier profile cdscp set rule r4 priority 6

This command tags the incoming packets that meet the r4 criteria to priority 6.

#> classifier show profile cdscp

This command shows the cdscp profile information.

iTAS PAMSPAN501x User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
