iSWAG IS-XC100 User Manual

User Manual Manual de Usuario Manual do Usuário
IS-XC100
iSWAG Xtreme Cam IS-XC100 1 Capture the Adrenaline
Welcome………………………………………………………………………………………. General Information …………………………………………………………………………. Safety Information …………………………………………………………………………… Use and Care of Waterproof Case ………………………………………………………. Warnings ……………………………………………………………………………………….. Product Introduction ………………………………………………………………………… System Requirements ………………………………………………………………………... iSWAG Xtreme Cam IS-XC100 Specifications ………………………….………………. iSWAG Xtreme Cam IS-XC100 Action Accessories ..………………………………….. Getting to Know Your iSWAG Xtreme Cam IS-XC100 …………..…………………….. Using Your New Xtreme Cam IS-XC100 ……….…………………………………………
1. Charging the Built-in Lithium Battery ……………………………………………
2. Using Memory Cards ………………………………………………………………
3. Turning Your Camera ON/OFF …………………………………………………..
4. Selecting Function Modes ………………………………………………………..
5. Indicator Lights ………………………………………………………………………
6. Video Mode …………………..……………………………………………………..
7. Photo Mode …………………………………………………………………………
8. Playback Mode …………………………………………………………………….
9. System Setup Menu …………………………………………..……………………
10. Connecting the Camera to a Computer ………….………………………….
11. Details and Precautions on the Use of Batteries ……………………………..
2 2 3 5 6 8 9 10 11 12 14 14 15 16 17 17 18 23 27 31 34 36
iSWAG Xtreme Cam IS-XC100 2 Capture the Adrenaline
Welcome
Thank you for purchasing this innovative iSWAG product. Your new camera produces high-quality, high-definition videos with an incredible level of sharpness and clarity. This camera has a compact size and rugged design ideal for capturing all your high­energy activities. We invite you to read the instructions contained in this user manual so you can configure and utilize all the functions your new Xtreme Cam has to offer. For additional information visit us at: iswagmobile.com.
General Information
The specifications in this manual are subject to change without prior notice. Swagtek, Inc. reserves the final right to interpret the performance of this device. While the utmost care was taken and the latest information compiled in the production of this manual, neither Swagtek, Inc., iSWAG, nor any other affiliated company, assumes responsibility for any mistakes or errors that may be contained in this document.
Screen captures, images, diagrams or representations presented in this manual are for reference purposes. The actual screens or functions may vary due to different software versions or other factors. Please refer to your Xtreme Cam for the correct details.
iSWAG Xtreme Cam IS-XC100 3 Capture the Adrenaline
iSWAG and the iSWAG logo are registered trademarks of Swagtek, Inc. Other trademarks are the property of their respective owners.
Safety Information
To properly operate and enjoy your camera to the fullest, please read and understand all safety and warning information before using.
Do not expose your camera to direct sunlight or point the lens directly to the sun. This may damage the image sensor and degrade the device’s overall performance.
Take care of your camera by keeping it free of water, sand, dust, salt or chemical materials that can be damaging.
Keep your camera in a cool, dry, well-ventilated location. Extreme temperatures (hot or cold) and/or humidity can affect the camera’s functionality.
Properly clean the camera lens regularly, without scratching, by first blowing off any sand or dust on the surface and then clean it with a soft, clean, dry cloth suitable for use with optical equipment. If the camera or lens gets stained or dirty, use a soft, clean, dry cloth to gently wipe it clean. If needed, you may clean the camera with a cleanser but do not use any organic solutions or solvents.
iSWAG Xtreme Cam IS-XC100 4 Capture the Adrenaline
Do not touch the lens with your fingers.
Make sure to use the camera regularly. After long-term storage, please verify it is operating properly before using.
When using a memory card for the first time, make a back-up of the data before formatting the card.
The Micro SD card is a sensitive electronic component. In order to prevent data loss or damage, avoid the following actions or situations:
1. Improper use of the memory card.
2. Bending, puncturing or throwing the card.
3. High temperatures, humidity or direct sunlight.
4. Electrostatic or electromagnetic fields nearby.
5. Removing or interfering with the memory card while it is in use in the camera or computer (reading, writing or formatting).
6. Touching the memory card’s contact points with your finger or metal object.
If the memory card becomes damaged please purchase a new one.
iSWAG Xtreme Cam IS-XC100 5 Capture the Adrenaline
Use and Care of Waterproof Case
Before sealing the waterproof case, make sure the camera housing’s rubber seal is clean. A single hair or grain of sand can cause the case to leak. Test the case by closing it without inserting the camera. Submerse the case completely in water for about a minute. Remove the case from the water, dry off the exterior with a towel and open the case. If the interior is completely dry, the case is safe for use under water.
Remember to set the Mode Switch to your desired recording mode before inserting the camera in the waterproof case. The case does not have an external button for switching recording modes.
Always rinse the exterior of the waterproof housing with fresh water after using your camera in salt water. Not doing this can eventually cause corrosion of the hinge pin and salt buildup in the seal, which can cause the case to fail.
To clean the seal, rinse in fresh water and shake dry (drying with a cloth may cause lint that can compromise the seal). Re-install the seal into the grooves in the backdoor of the housing.
iSWAG Xtreme Cam IS-XC100 6 Capture the Adrenaline
Warnings
Keep this manual close at hand for future reference if needed. Always follow the safety and operating instructions. Do not use your camera near water or allow it come into contact with moisture. The device must not be exposed to dripping or splashing water nor should any
object containing liquid be placed on the device.
Do not spill any liquids into the camera’s openings. Handle the camera with care and avoid bumps, knocks or shocks. Do not obstruct the camera’s ventilation with items, such as newspapers,
tablecloths, curtains, etc.
Do not install near or expose the device or battery to a heat source like a radiator,
open flame (lighted candle), direct sunlight, fire or any other similar heat sources.
To avoid static electricity, do not use the camera in a very dry environment. Only connect the device cables as shown in this manual. Turn off the power before inserting or removing a memory card. Charge the internal battery when the battery icon appears empty and flashes, or if
the device powers-down automatically.
Never open the device or modify it yourself. Maintenance and repairs must be
performed by a qualified technician only.
iSWAG Xtreme Cam IS-XC100 7 Capture the Adrenaline
Only use accessories approved for this device. Use of power sources other than
those specifically designed for this device can cause overheating, deformation of materials, fire, electric shock and other hazards.
Do not unplug the device during a format or data transfer operation in order to
avoid damaging programs or data.
When using the device in USB mode, follow all the operating instructions related to
transferring data. Failure to do so may result in data loss. The manufacturer does not assume responsibility for any data loss that may occur on the device.
This camera has a sealed rechargeable lithium battery that is not user-replaceable.
Note: There is a risk of explosion if the battery is replaced incorrectly. If the battery needs replacing it must be replaced with an equivalent type and only by a qualified technician.
If any replacement or service is required, please contact a qualified technician or
the manufacturer for instructions.
Manipulation of the device, by the end-user, beyond what is described in this
manual will void the warranty.
iSWAG Xtreme Cam IS-XC100 8 Capture the Adrenaline
Product Introduction
This product is compact, fun and easy to use. The high-performance camera supports the H.264 HD video format and can produce high-definition videos of moving objects, with great detail and clarity, even under low­lighting conditions.
The camera supports the following: Video modes: 720P(1280*720P)Pixels @30fps;VGA(640*480)Pixels @30fps, (AVI format) Photo sizes: 5.0 Mega Pixels (2592×1944), 1.3 Mega Pixels (1280×960), (JPEG format) Time and date watermark function High-speed Mini USB 2.0. Micro SD card slot (up to 32GB max). Loop coverage recording can automatically cover the previous images achieving an endless rolling recording. On-site replay function lets you review the recorded video directly from the display.
iSWAG Xtreme Cam IS-XC100 9 Capture the Adrenaline
System Requirements
Operating System
Microsoft Windows 2000,XP,VISTA,Windows 7
CPU
Intel Pentium III greater than 800MHz or any other CPU with equivalent performance
Internal Memory
Greater than 512MB
Sound and Video Cards
The sound and video cards must both support DirectX 8 or higher.
CD/DVD Drive Speed
4x or faster
Hard Disk
More than 500MB of free space
Others
One standard USB1.1 or USB2.0 port
iSWAG Xtreme Cam IS-XC100 10 Capture the Adrenaline
iSWAG Xtreme Cam IS-XC100 Specifications*
Display
1.77 Color TFT LCD Languages: English, Spanish, Portuguese, French
Memory/Storage
Micro SD Card Slot (32GB max.)
Camera Functions
4X Digital Zoom F3.1 f=6.5mm Camera Lens 5M pixels (CMOS) Image Sensor Electronic Shutter Digital Zoom, Still Camera, Video Recorder, Play Back Mode, Removable Disk Built-in microphone
Picture Functions
Anti-shake, Electronic Shutter Control, Fixed Focus, EV Compensation, Sensitivity, While Balance (Automatic/Sunny/Cloudy/ Fluorescent light/Tungsten light), Automatic Exposure (-2.0 ~ +2.0), Scenes, Self- Timer
*Specifications subject to change without prior notice.
Interface
High-Speed Mini USB 2.0
Video Resolution
720P:1280x720 (30 fps) VGA: 640x480 (60 fps) AVI, H.264 file format
Still Image Resolution
5 MP (2592×1944) 3 MP (2048×1536) JPEG file format
Supported OS/Software
Microsoft Windows 2000,XP,VISTA, Windows 7
Action Accessories Included
Waterproof Case, Helmet Mount, Handlebar/Seatpost Mount, USB Cable
Battery
Rechargeable Lithium, 300mAh
Dimensions & Weight
66*43*27mm Approx. 46.5g.
iSWAG Xtreme Cam IS-XC100 11 Capture the Adrenaline
iSWAG Swag Cam IS-XC100 Action Accessories
Waterproof Case
Shield
Handlebar/Seatpost Mount
Helmet Mount
Micro SD Card
(size may vary)
iSWAG Xtreme Cam IS-XC100 12 Capture the Adrenaline
Getting to Know Your iSWAG Xtreme Cam IS-XC100R (red), IS-XC100B (black)
Mode switch:
- Photo
- Video
- Playback
Lens
Power on/off
LCD screen
Shutter
Charging indicator Busy indicator Up key OK key Down key
iSWAG Xtreme Cam IS-XC100 13 Capture the Adrenaline
Key/Indicator
Function
Power On/Off
Power the camera on or off. Use in menu screen to switch between normal (effect parameters and replay of image, video) and setup menu.
Shutter
Video mode: start/stop recording Photo mode: camera shutter Playback mode: play video Menu screen: confirmation key
Up key
Digital zoom-in (video/photo modes) Menu selection (in menu screen) Pause, continue playing (in playback mode)
OK key
Open/Exit from menu. Stop playing (in playback mode).
Down key
Digital zoom-out (video/photo modes) Menu selection (in menu screen)
Mode switch
Switch between modes: photo, video, playback
Operation
indicators
Upper: Charging indicator
Turns on when charger is connected
Lower: Busy indicator
Flashes when taking photos, recording video or zooming. Turns on when camera is connected to a computer.
iSWAG Xtreme Cam IS-XC100 14 Capture the Adrenaline
Using Your New Swag Cam IS-XC100
1. Charging the Built-in Lithium Battery

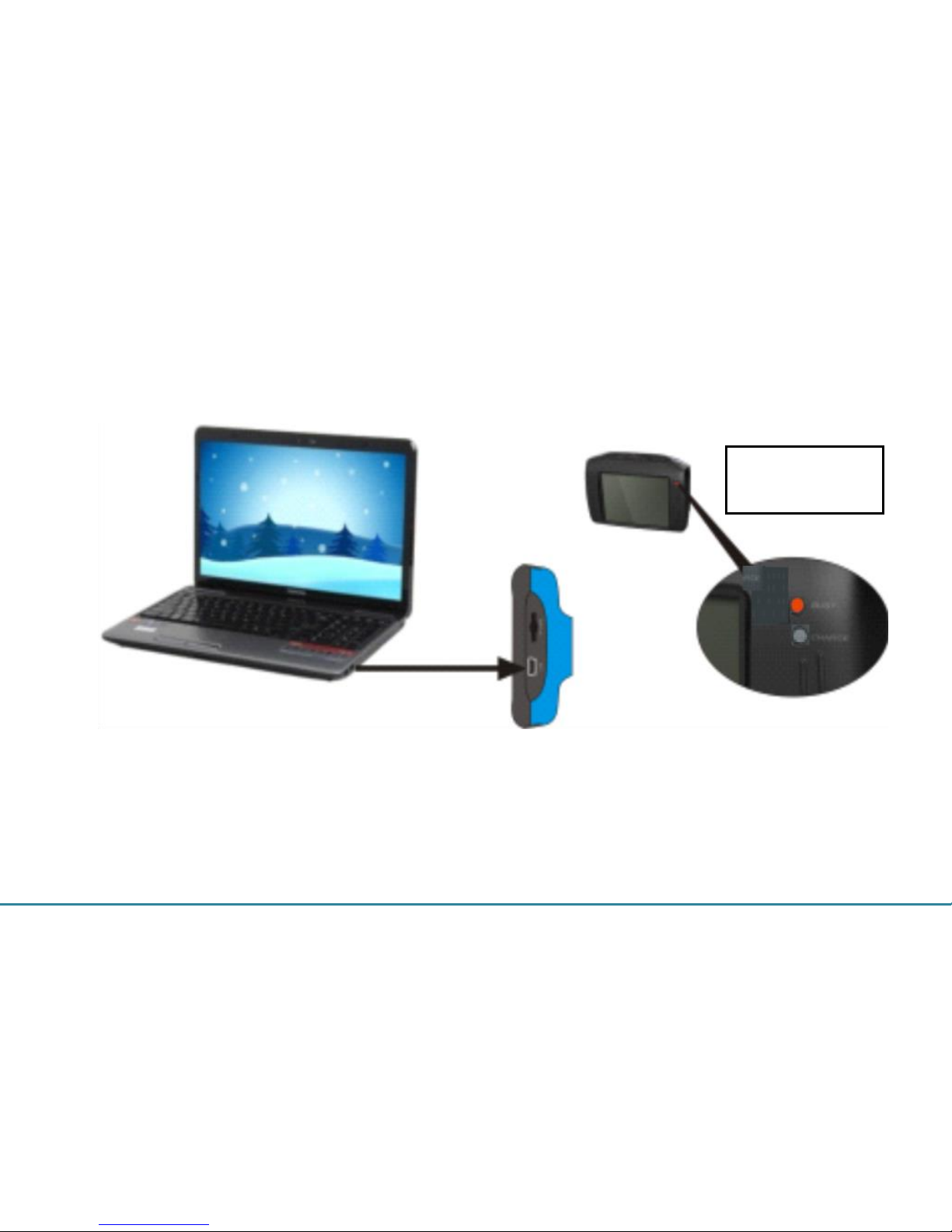

When the power is off and the camera is connected to a computer, charging will begin. At this time, the charger indicator light will turn on. It will turn off when the battery if fully charged full. Generally, it takes about 2-4 hours to charge fully.
Charger indicator lights
iSWAG Xtreme Cam IS-XC100 15 Capture the Adrenaline
2. Using Memory Cards
1. Following the instructions carved by slot of the memory card, it is to insert FT card into the card slot till entirely inserted;
2. To take the FT card out, gently press the memory card inwards, the card will eject out of the slot.
Note: The camera is not equipped with any built-in memory. A memory card is required.
iSWAG Xtreme Cam IS-XC100 16 Capture the Adrenaline
3. Turning Your Camera ON/OFF
3.1 Power-on: Press and hold POWER key for 3 seconds, the screen starts up and the camera enters startup mode.
3.2. Power-off: While in idle state, press the POWER key and the camera turns off.
Automatic power-off: When the camera is idle for the set amount of time, it
automatically turns off to save power. The default time of the system automatic power-off is 5 minutes.
3.3. Power-off due to low battery: In case of extremely low battery, an icon will
appear on the LCD screen. Please timely charge the battery. When the icon turns red and flashes, the camera will automatically power off.
iSWAG Xtreme Cam IS-XC100 17 Capture the Adrenaline
4. Selecting Function Modes
The camera is equipped with three modes: photo, video and playback. After turning on the camera, you can switch between modes with the MODE switch on the right side.
Photo: For taking pictures Video: For recording videos Playback: For playing back potos and videos
5. Indicator Lights
Operation indicator: When the camera works (e.g. recording video, capturing or
automatic screen turn-off), the operation indicator lights; Charger indicator: Constant lighting is to remind user that the camera is being charged.
iSWAG Xtreme Cam IS-XC100 18 Capture the Adrenaline
6. Video mode
When pushing Mode switch to video mode, click shutter in preview state to start
recording video; to stop video recording, it is to click it again. It will also automatically stop recording in case that no free room left in the memory card or the battery is over low:
1 00:00:01: time-meter, indicating 1 second left for recording (indicating 1 second
recorded during recording);
2 : mode icon: indicates the current mode is video recording; 3 :loop recording video time icon: indicates the current loop video recording time is 3 minutes; 4 : movie size: indicates the current movie size is 720P; 5 : indicates currently a memory card is inserted;
6 : magnification of digital zoom: press Up and down key to
adjust zoom among 1x-4x;
7 : battery icon: indicates current battery level; 8 : white balance icon: indicates the current white balance mode is automatic; 9 metering icon: indicates it is currently the pan overall perspective metering.
iSWAG Xtreme Cam IS-XC100 19 Capture the Adrenaline
Video menu setup
In video mode, press OK key to open menu, and then press Up and Down key to select menu. When selecting menu, background of the selected item will be highlighted. Press OK to enter sub-menu. In sub-menu, press Up and Down key for selection, press OK for confirmation and back to main menu. In the main menu, press shutter key to exit from the menu.
Video menu
Video menu options
Main menu
Sub-menu
Description
Video format
1280x720
High resolution format
640X480
Medium resolution format
Recording int
Off
Power-off driving record
iSWAG Xtreme Cam IS-XC100 20 Capture the Adrenaline
1min
Set driving record to 1 minute as a repeating phase.
3min
Set driving record to 3 minutes as a repeating phase.
5min
Set driving record to 5 minutes as a repeating phase.
Metering mode
Central
metering
Metering subject to the central area
Multi-point
metering
Metering subject to multi-points
Spot metering
Metering subject to one point
White balance
Automatic
Using automatic white balance, suitable
for most cases;
Daylight
Suitable for daylight environment
Cloudy
Suitable for cloudy environment
Fluorescent light
Suitable for fluorescent light source environment
Tungsten light
Suitable for tungsten light source environment
iSWAG Xtreme Cam IS-XC100 21 Capture the Adrenaline
Special effect
Normal
Normal effect
White and black
White and black effect
Sepia
Retro effect
Negative film
Negative film effect
Red
Reddish effect
Green
Greenish effect
Blue
Bluish effect
Date stamp
Off
Turn off printing date/time on the file
Date
During capturing/recording video, print date on right bottom corner of the file
Date and time
During capturing/recording video, print date and time on right bottom corner of the file
Driving video recording:
Push Mode switch to Video mode, open the menu, press Down key to select “Recording Int” menu, press OK key to enter sub-menu, “1min, 3min, 5min” recording loop mode are for free selection.
iSWAG Xtreme Cam IS-XC100 22 Capture the Adrenaline
After pressing OK key for confirmation, press shutter key again to exit from the menu. When Shutter is pressed, it starts video recording. During video recording, the camera will automatically stop recording video based on 1min, 3min, 5min selected, and immediately starts next section of video recording (e.g. when 5min is selected in the menu, the camera will automatically stop when 5min recording reached, and starts next section of video recording). When the memory card is full, the earliest recoded section of file will be deleted for corresponding room for further recording, and it repeats in such a method.
▲Open video ▲Select loop recording ▲Exit from menu and recording menu time and press OK press Shutter to start to confirm. loop video recording
Note: After selecting OFF in “Recording Int” menu, when existed from the menu, the
camera turns to normal video recording. Normal recording is beyond the limit of
time, and it will not stop until the memory card is full.
iSWAG Xtreme Cam IS-XC100 23 Capture the Adrenaline
7. Photo mode
Push Mode switch to Photo mode. Press Shutter once in preview mode to take a
picture:

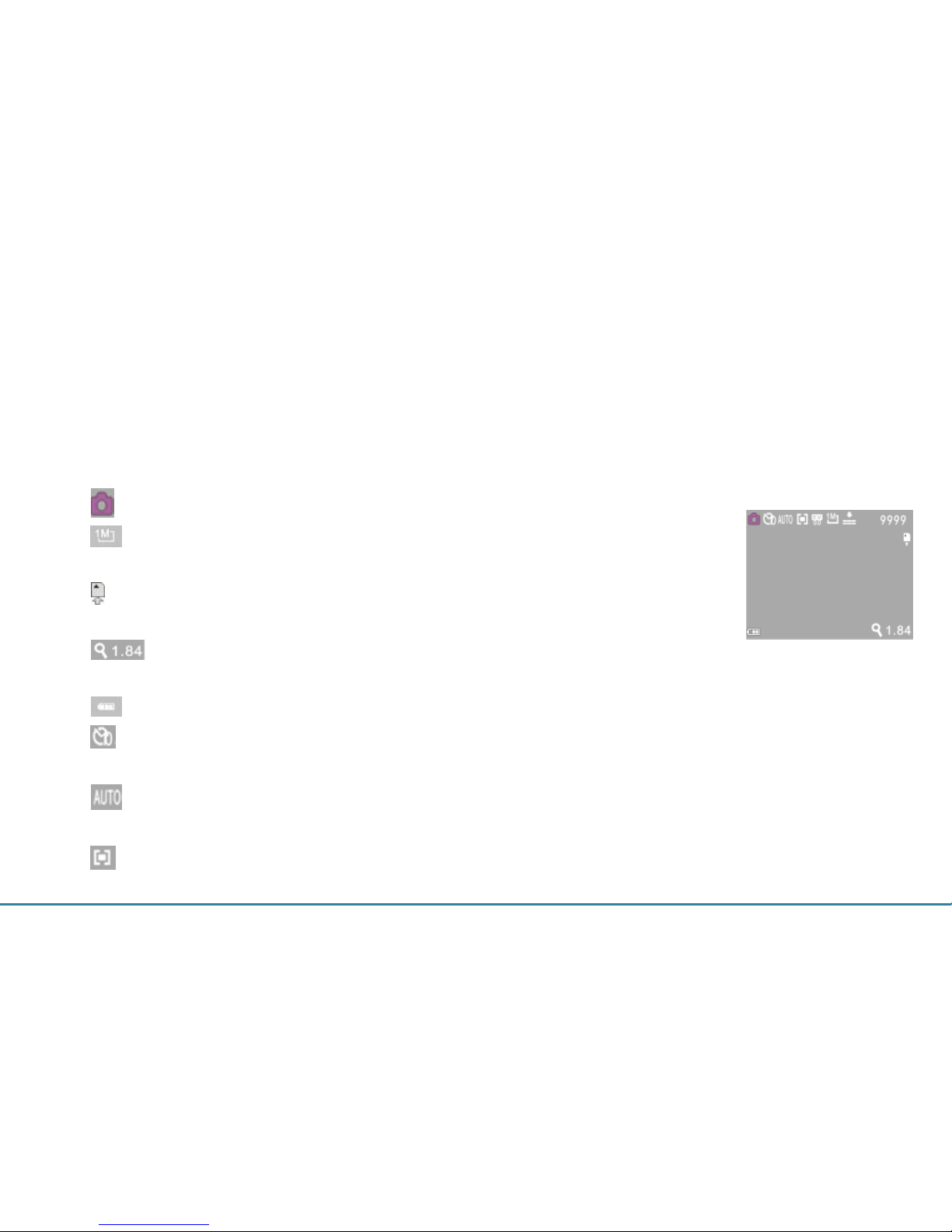

1. 9999: Counter: indicates quantity of pictures taken or available to be taken;
2. : mode icon: indicates it is currently the mode of capture;
3. : movie size: click this icon to select among 1M/3M/5M;
4. : indicates currently a memory card is inserted;
5. : magnification of digital zoom: press Up and down key to adjust zoom
among 1x-4x;
6. : battery icon: indicates current battery level;
7. Self-timer icon: indicates the current self-timer mode is set to 10 seconds;
8. : white balance icon: indicates the current white balance mode is automatic;
9. metering icon: indicates it is currently the pan overall perspective metering.
iSWAG Xtreme Cam IS-XC100 24 Capture the Adrenaline
Photo menu setup
In photo mode, press OK key to open menu, and then press Up and Down key to select menu. When selecting menu, background of the selected item will be highlighted. Press OK to enter sub-menu. In sub-menu, press Up and Down key for selection, press OK for confirmation and back to main menu. In the main menu, press shutter key to exit from the menu.
Photo menu
Photo menu options
Main menu
Sub-menu
Description
Image size
2592x1944
5 megapixel resolution (extrapolation)
2048X1536
3 megapixel resolution
Image quality
Super fine
Best quality image
Fine
Good image quality
Normal
General quality image
iSWAG Xtreme Cam IS-XC100 25 Capture the Adrenaline
Metering mode
Central metering
Metering subject to the central area
Megapixel
resolution
Metering subject to multi-points
spot metering
Metering subject to one point
White balance
Automatic
Using automatic white balance, suitable
for most cases;
Daylight
Suitable for daylight environment
Cloudy
Suitable for cloudy environment
Fluorescent light
Suitable for fluorescent light source environment
Tungsten light
Suitable for tungsten light source environment
Exposure
/
Use Left and Right key to adjust exposure compensation
Capture mode
Off
Use general single shot mode
2s
Use 2sec. delay self-timer mode
10s
Use 10sec. delay self-timer mode
Burst
Use continuous shooting
Special effect
Normal
Normal effect
iSWAG Xtreme Cam IS-XC100 26 Capture the Adrenaline
White and black
White and black effect
Sepia
Retro effect
Negative film
Negative film effect
Red
Reddish effect
Green
Greenish effect
Blue
Bluish effect
Date stamp
Off
Turn off printing date/time on the file
Date
During capturing/recording video, print date on right bottom corner of the file
Date and time
During capturing/recording video, print date and time on right bottom corner of the file
iSWAG Xtreme Cam IS-XC100 27 Capture the Adrenaline
8. Playback mode
8.1 After power-on, push Mode switch back to Playback mode:
1. mode icon: indicates it is currently the mode of playback;
2. : Indicates that there is one file in current folder/totally one folder;
3. : indicates that the current folder is locked;
4. : indicates the current file is an AVI video file.
8.2 Playback menu setup
In playback mode, press OK key to open menu, and then press Up and Down key to select menu. When selecting menu, background of the selected item will be highlighted. Press OK to enter sub-menu. In sub-menu, press Up and Down key for selection, press OK for confirmation and back to main menu. In the main menu, press shutter key to exit from the menu.
iSWAG Xtreme Cam IS-XC100 28 Capture the Adrenaline
Playback menu
Playback menu options
Main menu
Sub-menu
Description
File lock
Lock/unlock this file
Lock/unlock this file
Lock all
Lock all files
Unlock all
Unlock al files
File deletion
Delete this file
Delete the current file
Delete all
Delete all files
Slide show
Start
Start playing slide show
Interval
1sec.~10sec.
Repeat
Yes/No
iSWAG Xtreme Cam IS-XC100 29 Capture the Adrenaline
8.3 Play movie clips
During playing, press Shutter key to play, press Up key for pause, press OK key to stop playing.
8.4 Delete file
1) After selecting the file to be deleted, open the menu, press Up and Down key to select “Delete…”.
Loading...
+ 91 hidden pages
