iStarUSA D-300AS User Manual

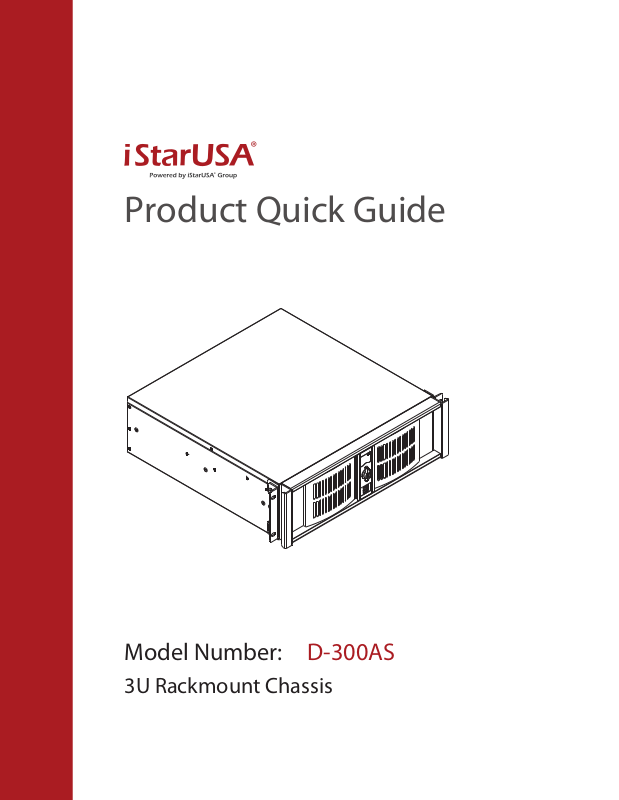

Product Quick Guide

Model Number: D-300AS

3U Rackmount Chassis

Hardware Guide

1. Aluminum Bezel

1

(3 color Options: Red, Blue, Silver)

2. Power LED

3. Alarm reset

4. HDD LED

5. Temp Sensor 1 LED (TC-ISF08 require)

Front View

6. Fan LED (TC-ISF08 require)

7. Temp Sensor 2 LED (TC-ISF08 require)

8. Handle

9.

1x 80mm

Fan

8 9 10 15

12 13 14

11

10. Key lock

11. USB 2.0

12. Reset button

13. Power button

14. 3.5” Bay X1

Front Open View

15. Ear Mount

16. For 3U Power Supply

17. Expansion slot

18. 1x 60mm Fan

19. Cross bar/ Fan bar

20. For ATX, micro-ATX MB

21. For Optional Sensor Board TC-ISF08

22. Removable Air Filter

2

3

4

5 7

6

18

19
20

21

16

17

Rear View

Product Quick Guide:

D-300AS

22

Top V iew

Tel:[phone] l Fax: [phone] l Email: [e-mail] l www.istarusa.com

Package Contents

1. Screws kit x1

2. Expansion slots covers

Optional/ Related Items

T5PF-SA

1 x 5.25” Bay Trayless
Anti-vibration SATA Mobile
Rack

T-7M1-SATA

1x5.25” Bay Audio SATA/
SAS 6.0 Gb/s Mobile Rack

BPU-2535V2

1 x 3.5” to 2 x 2.5” SATA I/
II Hot-Swap Drive Cage

T5F-SS

1x5.25” Bay Trayless Anti­vibration SAS/SATA Mobile
Rack

RP-HUB-SAUF

3.5” Combo Hub for
USB2.0/ Firewire/ e-SATA

T-7-SA

1x5.25” Bay Military Series
SAS/SATA 6.0Gb/s Mobile
Rack

BPU-124V2-SS

1 x 5.25” to 4 x 2.5” SATA/
SAS 6.0 Gb/s Hot-Swap
Cage

TC-RAIL-26

26” Sliding Rail Kit for Most
Rackmount Chassis

Product Quick Guide:

D-300AS
