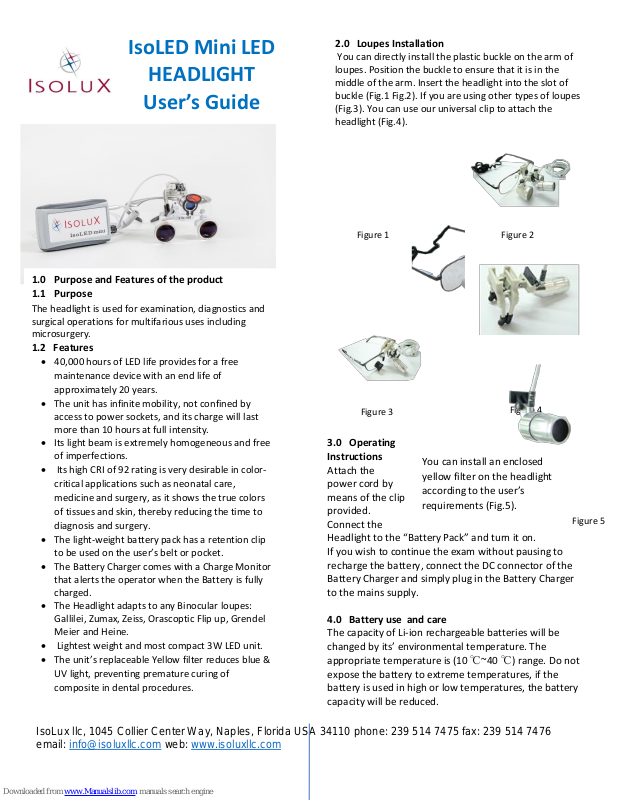

IsoLux IsoLED Mini User Manual

IsoLED Mini LED

HEADLIGHT

User’s Guide

1.0 Purpose and Features of the product

1.1 Purpose

The headlight is used for examination, diagnostics and
surgical operations for multifarious uses including
microsurgery.

1.2 Features

 40,000 hours of LED life provides for a free

maintenance device with an end life of
approximately 20 years.

 The unit has infinite mobility, not confined by

access to power sockets, and its charge will last
more than 10 hours at full intensity.

 Its light beam is extremely homogeneous and free

of imperfections.

 Its high CRI of 92 rating is very desirable in color-

critical applications such as neonatal care,
medicine and surgery, as it shows the true colors
of tissues and skin, thereby reducing the time to
diagnosis and surgery.

 The light-weight battery pack has a retention clip

to be used on the user’s belt or pocket.

 The Battery Charger comes with a Charge Monitor

that alerts the operator when the Battery is fully
charged.

 The Headlight adapts to any Binocular loupes:

Gallilei, Zumax, Zeiss, Orascoptic Flip up, Grendel
Meier and Heine.

 Lightest weight and most compact 3W LED unit.
 The unit’s replaceable Yellow filter reduces blue &

UV light, preventing premature curing of
composite in dental procedures.

2.0 Loupes Installation

You can directly install the plastic buckle on the arm of
loupes. Position the buckle to ensure that it is in the
middle of the arm. Insert the headlight into the slot of
buckle (Fig.1 Fig.2). If you are using other types of loupes
(Fig.3). You can use our universal clip to attach the
headlight (Fig.4).

Figure 1

Figure 2

Figure 3

Figure 4

You can install an enclosed
yellow filter on the headlight
according to the user’s
requirements (Fig.5).

Figure 5

IsoLux llc, 1045 Collier Center Way, Naples, Florida USA 34110 phone: [phone] fax: [phone]
email: [e-mail] web: www.isoluxllc.com

3.0 Operating
Instructions

Attach the
power cord by
means of the clip
provided.
Connect the
Headlight to the “Battery Pack” and turn it on.
If you wish to continue the exam without pausing to
recharge the battery, connect the DC connector of the
Battery Charger and simply plug in the Battery Charger
to the mains supply.

4.0 Battery use and care

The capacity of Li-ion rechargeable batteries will be
changed by its’ environmental temperature. The
appropriate temperature is (10 ℃~40 ℃) range. Do not
expose the battery to extreme temperatures, if the
battery is used in high or low temperatures, the battery
capacity will be reduced.

Dispose of worn battery safely.

Item

Qty.

Description

Part No.

1 1 Clips, bag of 2

IL-2323

2 1 Power Pack (controller)

IL-2324

3 1 Safety Glasses

IL-2328

4 1 Yellow Filter

IL-2322

5 1 Battery Charger

IL-2327

Illumination

> 22,000 lux @ 30 cm

LED Life

>40,000 hours

Color Temperature

4,000 °K

Color Rendition

Index (CRI)

92 Typical

Light Degradation

None

Spot Size

60 mm @ 300 mm working
distance

Intensity Range

3% to 100%

Operating Time

>10 hours typical at
maximum intensity

Normal Recharge

Time

3.6 hours

Quick Recharge

Time

2 hours, for 8 hours of
maximum intensity

Battery Charger

Universal: 100 to 264 VAC,
50 to 60 Hz.,8.4 VDC @ 1.3
A

Weight (headlight)

23 grams

Weight (Battery

Pack)

190 grams

Size (control

unit/battery pack)

4.25” x 2.7” x 1.1”

5.0 Cleaning and sterilization

The outer surface of the instrument may be cleaned
with a wet cloth, the remaining stains can be cleaned
off with a mixture of 50％ alcohol and 50％ distilled
water. Do not wipe with any corrosive detergent to
avoid damaging the surface.
Cleaning the lenses： Mirror-cleaning paper or a drop
of liquid solvent (50％ alcohol and 50％ ether) may be
used to clean the lens, blow it carefully. If there is dust
on the lens, blow them or brush them with a dust pen.

7.0 Symbols:

Internal electrical power source

Class Ⅱ

Attention: Read User’s Guide for warnings

and cautions and instructions for use.

8.0 Warnings and Cautions

Warning: This product must not be used in the

presence of flammable gases.

Warning: This product should not be
immersed in fluids.

Warning: Do not shine the light directly into
the patient’s eyes.

Warning: Ensure that the headband power
cord is located in the clips provided

9.0 List of Spare Components

6.0 SPECIFICATIONS

IsoLux llc, 1045 Collier Center Way, Naples, Florida USA 34110 phone: [phone] fax: [phone]
email: [e-mail] web: www.isoluxllc.com
