IsoLux IIc User manual

®

IsoLux

llc

OPERATION MANUAL

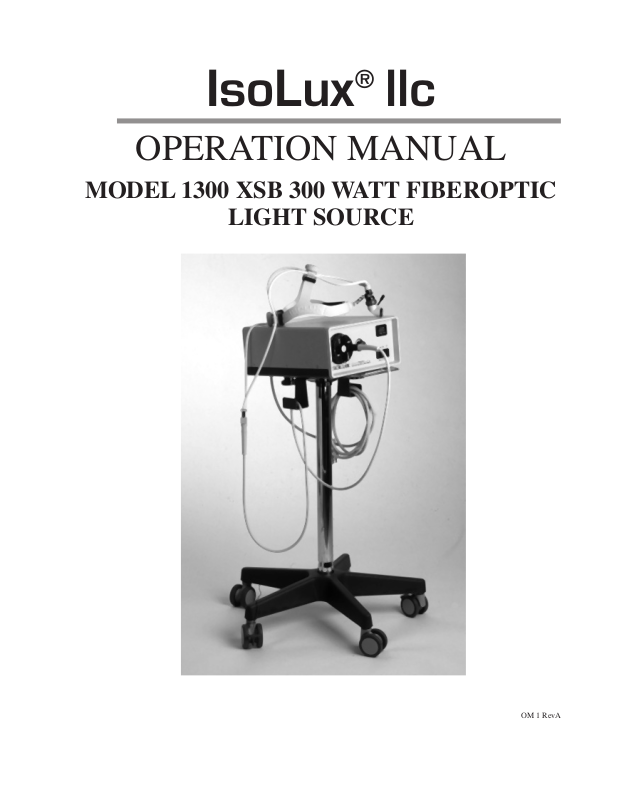

MODEL 1300 XSB 300 WATT FIBEROPTIC

LIGHT SOURCE

OM 1 RevA

TABLE OF CONTENTS

Section 1.0 INTRODUCTION Page

1.1 System Description 3

1.2 Receiving / Handling 3

1.3 System Inspection 4

Section 2.0 TECHNICAL DATA

2.1 Specifications
5

2.2 Symbols 5-6

Section 3.0 INSTALLATION

3.1 Assembly of the Mobile Floorstand with 360° Swivel 6-7

3.2 Rotary Turret Operation 7

3.3 Xenon Premium Fiberoptic Light Source Operation 8-9

OM1 RevA

Section 4.0 MAINTENANCE

4.1 Repairs 9

4.2 Cleaning 9-10

4.3 Lamp Module Replacement 10-11

4.4 Resetting Elapsed Hour Meter 11

4.5 Xenon Lamp Replacement (Optional) 11-12

4.6 Repacking and Environmental Storage Conditions 13

4.7 Service 13

4.8 Preventative Maintenance 13

Section 5.0 CAUTIONS / WARNINGS 13-14

5.1 Operating Cautions 14

5.2 Equipment Cautions 14

Section 6.0 EQUIPMENT ORDER NUMBERS 15

Section 7.0 INTERNATIONAL POWER CORDS 15

Section 8.0 REPLACEMENT PARTS 15

8.1 IsoLux Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source

Appendix A Electrical Schematic, Model 1300 XSB 16
Appendix B IsoLux llc Warranty Statement 16

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

1.0 INTRODUCTION

1.1 System Description

The IsoLux Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source is a source of continuous
high intensity daylight illumination for demanding surgical vision applications. This is a Class I
device per CE MDD 93/42/EEC, Class I per UL 2601-1, and a Class II device per FDA
regulations. Its mode of operation is continuous and its degree of electrical isolation is type “B”.

The Xenon Fiberoptic Light Source uses a 300-Watt Xenon Lamp that enables the unit to achieve
a high intensity daylight (natural light) output as a result of the lamp’s light collection efficiency.

The IsoLux Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source is intended to be used
with IsoLux fiber optic cables for surgical headlamps and other lighted instruments that contain
fiber optic bundles, and other fiber optic cables manufactured specifically for use with Xenon
illumination systems. Consult your cable manufacturer or distributor to determine compatibility.

Illumination from this device is to be used for observation of body cavities, hollow organs and
other surgical sites. This device is also intended for use as a light source for surgical headlights
used in various surgical procedures.

This Fiberoptic Light Source incorporates a graduated shutter that allows intensity control from 0
up to 100%. The Fiberoptic Light Source automatically attains full output with a stable color
temperature, natural daylight output, allowing automatic and manual video surgical procedures.
The Xenon lamp light output is precisely focused to ensure maximum light transmission to the
fiber optic cable.

OM1 RevA

The Xenon Fiberoptic Light Source has a rotary indexing turret on the front panel that allows the
Fiberoptic Light Source to be used with ACMI/CIRCON, Olympus, Storz and Wolf type fiber optic
cables for headlight adaptation.

This Fiberoptic Light Source is also equipped with an elapsed lamp life indicator on the front panel
which shows total hours elapsed. This indicates lamp replacement, avoiding a possible
premature failure of lamp.

The Xenon Fiberoptic Light Source is adaptable to a mobile floorstand with 360° swivel, as shown
in Figure 1. Additionally, an optional Storage Compartment can be adapted to the Fiberoptic Light
Source, which can serve as a drawer for Headlight and cable, loupes and video camera control.

For operation, the Xenon Fiberoptic Light Source requires connection to a 100-120V°~ or 220­240V°~, 50-60Hz Line. The Hospital Grade power cord provided by IsoLux must be used for
connection to the power mains in the USA. Elsewhere, only an approved power cord
(approved/rated for the country of destination) may be used.

1.2 Receiving / Handling

Inspect shipping container for evidence of shipping damage, preferably in the presence of the
carrier. Noted damage should be reported to the carrier’s agent.
Remove all packaging material from around the unit and carefully inspect for damage, which may
have been caused by shipping.

1.3 System Inspection

The Fiberoptic Light Source must be inspected before each use according to the procedure below.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

1. Visually inspect the power cord, plug, intensity control and the fiber optic cable to assure there
is no evidence of wear, damage or fraying.

2. Be sure that the fiber optic cable connector is clean and dry before plugging it into the rotary
indexing turret.

3. Be sure that the rotary turret port to be used is aligned directly with arrow.

OM1 RevA

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

2.0 TECHNICAL DATA

2.1 Specifications

Table 1. Optical

Nominal Light Output >500,000 lux (at exit end of 5mm dia. x 7 1/2 ft long fiber optic cable

(Initial Output)

Lamp Life 600 Hours up to 1000 Hours

Table 2. Electrical – Class I: Continuous BF

Line Input Power 100 – 120V~, 220 – 240V~, 50/60Hz

Power Consumption 590 volt-amperes (Watts)

Table 3. Environmental

Operating Temperature (+10° to + 40°C)
Storage Temperature (+ 10° to + 40°C)

Operating Relative Humidity 30% to 75%

Storage Relative Humidity 10% to 75%

Operating Atmospheric Pressure 700hPa to 1060hPa

Storage Atmospheric Pressure 500hPa to 1060hPa

Enclosure Rating IPX0 (not protected against ingress of liquids)

OM1 RevA

Table 4. Physical (excluding fiber optics and power cable)

Dimensions 5”H x 11”W x 12”D (12cm H x 28cm W x 30cm D)

Weight 14 lbs. (6.3 kg)

Space Requirements Open to the rear to prevent recirculation of cooling air.

3.2 Symbols

WARNING!

The Xenon Model 1300 XSB produces lethal voltages. Ensures that input
power is disconnected before beginning any inspection or internal
adjustment.

!

WARNUNG!

Das Xenon Model 1300 XSB erzeugt lebensgefährliche Spannungen. Es
muss deshalb darauf geachtet werden, dass der ankommende Strom
ausgeschaltet ist bevor Kontrollen order Regelungen am Great
unternommen werden!

ATTENTION!

Le Xenon Model 1300 XSB fournit des tensions dangereuses. Véuillez
verifier que la prise de courant est déconnectée avant d’entreprendre des
inspections ou des reglages sur l’appareil.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

ATTENTION!

OM1 RevA

!

°C

This symbol notifies the user to consult the accompanying documents.

ATTENTION!

This symbol signifies that the surface(s) near where the symbol is placed
are hot and may require thermal protection when touching the surface(s).

ATTENTION!

This symbol identifies that the system is a Type B Applied Part.

ATTENTION!

This symbol signifies that light intensity will increase when the knob is

turned in a clockwise motion and decrease when the motion is counterclockwise.

WARNING!

Any component with this label will be hot after operation.

!

DO NOT TOUCH!

3.0 INSTALLATION

3.1 Assembly of Mobile Floorstand with 360° Swivel Base Fiberoptic Light Source

The following instructions describe the assembly of the 30” mobile floorstand and swivel base. The 30
inch mobile floorstand consists of four (4) parts:

One (1) Five Legged Base with 2 locking and 3 rolling/non-locking Casters
One (1) Lower Column
One (1) Upper Column (with Plastic Bushing)
One (1) 360° rotating, 5° tilted up Swivel with two (2) Headlight / Power Cord Hangers

Please follow the steps below in order to complete the assembly of the 30 inch floor stand to the 300
Watt Xenon Fiberoptic Light Source (reference Figure 2):

1) Place the Five Legged Base with Casters on the floor.

2) Slide the tapered end of the lower column into the center hole of the five (5) legged base.

3) Slide the upper column into the lower column. The plastic bushing must point up when

assembled.

4) Place the Fiberoptic Light Source upside down on a soft cloth or plastic and remove the four- (4)

knobs. The four (4) studs should face up.

5) Place the Swivel on the Fiberoptic Light Source above, so that the four (4) studs protrude through

the slots of the swivel. Please note that the arrow on the swivel indicates the front, to assure that
the 5° tilt is positioned to the front panel of the Xenon Fiberoptic Light Source.

6) Tighten the four (4) knobs on the studs and make sure that the swivel and Fiberoptic Light Source

assembly are securely held together.

7) Turn the above assembly over and place the swivel column into the assembled base with casters.

Please follow steps 1 through 7 above in order to complete the assembly of the 22 inch floor stand to the

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

300 Watt Xenon Fiberoptic Light Source/ Storage Module Assembly:

Note: Steps 2 and 3 will become one step, since there is only one (1) 22” column tapered on one end and
with plastic bushing on the other end.

OM1 RevA

Figure 2

3.2 Rotary Turret Operation

The IsoLux Model 1300 XSB - 300 Watt Xenon Universal Fiberoptic Light Source is equipped with a
low profile, non-conductive, indexing rotary turret allowing the adaptation and use of a wide range of fiber
optic cables, such as: ACMI / CIRCON, OLYMPUS, STORZ and WOLF.

To select your port of choice, simply rotate the turret 360° in both directions until the desired adaptation
port lines up with your fiber optic cable. Insert the fiber optic cable into the light output port. Verify that
the cable is fully inserted and snaps into position.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

3.3 Xenon Fiberoptic Light Source Operation

CAUTION! Allow enough time for the unit to reach the minimum operating temperature of

+10°C (50°F) before turning the power switch ON.

ELECTRICAL SHOCK HAZARD

Do not open the enclosure, except to replace the lamp module, as indicated in Section 4.3.

1. Insert a compatible, clean and dry fiber optic cable connector into the turret by indexing the turret to

the adaptation of your choice, such as Acmi / Circon (standard), Olympus (Japan), Storz or Wolf
(Germany).

RISK OF ELECTRICAL SHOCK

Do not use electrically conductive fiber optic cables or any fiber optic cables using steel monocoil

protective tubing

2. Turn the manual variable intensity control knob counterclockwise to the lowest position.

3. Plug the power cord into a properly grounded electrical socket, utilizing a hospital approved safety

cord.

GROUNDING RELIABILITY

OM1 RevA

Grounding Reliability can only be achieved when the equipment is connected to an equivalent receptacle

marked “Hospital Only” or “Hospital Grade”.

MAINS DISCONNECTION

The appliance inlet located on the rear panel of the enclosure, where the detachable power cord is

plugged into, serves as the designated Mains disconnection device.

4. Verify that the air vents are not blocked, assuring proper cooling.

5. To turn the Fiberoptic Light Source on, press the main power switch to the ON position. The

Fiberoptic Light Source does not require warm-up time before use.

Note: It is normal for the power supply to strike an arc in the lamp several times (an audible
clicking sound will be heard) before the lamp lights.

6. Adjust the light intensity by turning the knob clockwise until the desired daylight brightness is

achieved.

WARNING!

Avoid looking directly at the high intensity light, whether at the unit itself or at the end of the fiberoptic

cable, as this can result in damage to the eyes.

7. When procedure is completed, turn the manual intensity control knob counterclockwise to the lowest

setting. Then, turn the power switch of the Fiberoptic Light Source in the OFF position and
disconnect the fiber optic cable.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

8. Disconnect the power cord from the back panel-mounting receptacle if the Xenon Fiberoptic Light

Source is not going to be used for a period of time.

WARNING!

It is essential that the operating specifications and parameters described in IsoLux llc literature and
those accompanying other manufacturer’s components be observed and not be exceeded under
any conditions. Please observe warnings on the Xenon Fiberoptic Light Source’s cover. To install
or operate this system in a manner for which it is not intended may cause personal injury, as well as
severe damage to the product and/or other systems.

WARNING – POSSIBLE ELECTRO-MAGNETIC OR OTHER INTERFERENCE

This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to other devices in the
vicinity. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to other devices, which can be determined by
turning the equipment on and off, the user is encouraged to try to correct the interference by one or
more of the following methods:

- Reorient or relocate the receiving device

OM1 RevA

- Increase the separation between the equipment

- Connect the equipment into an outlet on a circuit different from that to which the other
device(s) are connected.

- Consult the manufacturer or field service technician for help.

4.0 MAINTENANCE

4.1 Repairs

The Model 1300 XSB – 300 Watt Xenon Fiberoptic Light Source has no user serviceable parts. See
Section 4.7 in this manual for preventative maintenance.

WARNING!

Routinely examine hospital approved power cord provided by IsoLux Do not use if it reveals

damage.

In the event that the unit fails or does not function properly (other than lamp failure), it is strongly
suggested that no attempt be made to troubleshoot. Field repairs and customer modifications are not
authorized and, if attempted, will void the warranty and could void product certification. Repairs must be
made only by factory-authorized personnel.

4.2 Cleaning

Before attempting any maintenance or cleaning of the Fiberoptic Light Source, be sure that the Fiberoptic
Light Source is unplugged and it is cooled off.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

The Xenon 300 Fiberoptic Light Source may be cleaned by use of a cloth dampened with a mixture of
70%-denatured alcohol and 30% water. This equipment is rated IPXO, ordinary protection against
harmful ingress of liquids. Do not pour liquids on the cabinet!

4.3 Lamp Module Replacement

Warning: Disconnect the main power line before attempting any service to the Xenon lamp.

Xenon lamp replacement is recommended after 600 hours of operation time. Failure to do so may result
in insufficient or failure of illumination. It is recommended that a spare Xenon lamp module be kept on
hand in case of failure.

WARNING!

OM1 RevA

!

Xenon lamp is a high-pressure, gas-filled device. Wear safety glasses when replacing the module
or the Xenon lamp.

1. Put the power switch to the OFF (0) position and disconnect the power cord.

2. Remove the cover by removing the six (6) screws on the side of the unit. Use Phillips screwdriver
(see figure 1). Lift cover to remove.

Parts inside the Model 1300 XSB – 300 Watt Xenon Fiberoptic Light Source may exceed 70°C
and could create a burn hazard. Allow 20 minutes for cooling down.

Xenon Lamp Replacement to be done by authorized personnel only

WARNING!

WARNING!

The Model 1300 XSB – 300 Watt Xenon Fiberoptic Light Source may produce
hazardous leakage voltages. Ensure that input power cord is disconnected before
starting any inspection or internal adjustment.

WARNING!

3. Remove the screw and clamp that secure the lamp module to its platform. (see figure 2)

4. Carefully slide the Xenon lamp module out of the unit. The complete lamp module can be returned
for replacement. For on-site replacement of the Xenon lamp, proceed to Step 2 of Section 4.5 below.

WARNING!

Removing the lamp module exposes high voltage connectors. DO NOT TOUCH THE HIGH

VOLTAGE CONNECTORS!

5. Unpack a new lamp module, then install it by pressing the electrical connectors into the banana jacks
in the unit.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

6. Attach the lamp module clamp and tighten the screw to secure the lamp module to the lamp module
platform.

7. After completing a lamp replacement or lamp module replacement, reset the digital hour meter
located on the front panel. (see Section 4.5 below)

4.4 Resetting Elapsed Hour Meter

1. Turn off unit, then remove power supply protective cover by removing the two or four screws located
on top of cover and two screws on side. Lift cover to remove.

2. Locate hour meter and remove “I” connection on back of hour meter. Place connection on “R”
connection.

3. Turn ON unit to reset, until hour meter displays 0.0.

4. Turn OFF unit.

5. Move connection back from “R” to “I”.

6. Secure the protective cover back in place using the screws.

7. Secure the cover to the unit using six (6) screws.

4.5 Xenon Lamp Replacement (Optional)

OM1 RevA

WARNING!

The Xenon lamp is a high-pressure, gas-filled device. Wear safety glasses when replacing the
module.

1. Remove the Xenon lamp module from the system by performing steps 1 through 4 of Section 4.3
above.

WARNING!

When removing the Model 1300 XSB – 300 Watt Xenon lamp module, parts may exceed 70°C and
could create a burn hazard.

2. Remove the screw terminals that make the electrical connection to the unit. This also releases the
lamp heatsink assembly from the lamp module housing.

3. Slide the lamp heatsink assembly out of the plastic housing.

4. Remove the screws from both heatsinks by gently unscrewing with a screwdriver, and then slide the
heatsinks off the lamp. Remove the cooling ring from the cathode (window) side of the lamp.

5. Remove the defective Xenon lamp and set aside.

6. Carefully remove the new lamp from its shipping container.

7. Apply a light coat of the thermal compound (supplied with the lamp) on the collar (anode side +) of
the lamp. See Figure 3. Insert the lamp into the anode heatsink, line up with hole pattern on heat

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

sink and gently tighten the three (3) screws until fully seated to secure heatsink to lamp.

8. Apply a light coat of the thermal compound (supplied with the lamp) on the collar (cathode side -) of
the lamp. Insert the cooling ring into the collar (cathode side -) of the lamp. Apply a very thin coat of
thermal compound to the collar and outside of the cooling ring. See Figure 3.

WARNING!

Avoid placing thermal compound on the ceramic body or the sapphire window. Should thermal
compound or fingerprints appear on the window, remove with alcohol and a cotton swab.

OM1 RevA

Fig 3. Thermal Compound Application

9. Insert the lamp and anode heatsink assembly into the cathode heatsink. Rotate heatsink to align the
positive (+) and negative (-) electrode (threaded) holes in the heatsink. Gently tighten using the two
(2) screws. Do not over tighten!

10. Slide the heatsink assembly into the plastic housing making sure that the heatsink electrical
connection holes line up with the corresponding holes in the plastic housing. Make sure that the
reflector faces front of plastic housing.

11. Install the lamp connections by tightening the two connectors into the top of the lamp assembly
plastic housing. The 10-32 thread goes on the anode section and the 8-32 thread goes on the
cathode section. Hand tighten.

WARNING!

The lamp contains xenon gas at high pressure. Proper disposal procedures must be followed. Use
eye protection when working with Xenon lamps.

Note: The old Xenon lamp may be rendered harmless by opening the pinched off tubulation located
on the back of the lamp. This may be accomplished by cutting it with a pair of diagonal cutters. Once
this has been done, the old lamp may be discarded with normal trash. If this is not done, the lamp
should be repackaged in its original carton, and returned for disposal. Complete unit should be
disposed of in accordance with applicable federal, state and local regulations.

12. Complete the installation by performing steps 6 and 7 of Section 4.3 and Section 4.4.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

OM1 RevA

4.6 Repacking and Environmental Storage Conditions

If the IsoLux Model 1300 XSB – 300 Watt Xenon Fiberoptic Light Source is to be stored for a prolonged
period, shipped to another location, or returned to the factory for repair, repack it in the original packaging
material. If this material has been discarded, pack the unit so as to prevent movement within the
container and damage from improper handling. A storage area should have a relative humidity of 10% to
75% and an ambient temperature range of +10°C to +40°C (50°F to 104°F).

4.7 Service

Contact Customer Service at IsoLux llc by e-mail at [e-mail].

4.8 Preventative Maintenance

The following operations should be done every six months:

1. Remove the cover as explained in 4.3., item 2.

2. Inspect the inside of light source for any dirt, lint or other foreign material. Remove carefully with a

hand vacuum.

3. Inspect the heat filter and focussing lens for accumulation of dirt or dust. If accumulation is evident,

remove material with an alcohol saturated swab.

4. Check if all the mechanical components are tightened in place. Retighten if necessary.

5. Replace the cover as explained in 4.3, item 8.

5.0 CAUTIONS / WARNINGS

- To ensure safety, this manual must be read and understood in its entirety before using the IsoLux

Model 1300 XSB – 300 Watt Xenon Fiber Optic Fiberoptic Light Source.

- The Fiberoptic Light Source must not be used in the presence of flammable anesthetics due to the

danger of explosion.

- Danger: Do not look directly at the Xenon lamp. The light produces high intensity visual and

ultraviolet radiation that may burn the skin or eyes. The Fiberoptic Light Source must never be used
in procedures requiring direct illumination of the eye (s).

- Do not block air vents. Adequate cooling is required for proper operation of the unit.

- Fiber optic cables must be thoroughly cleaned and completely dried before plugging into the Premium

Fiberoptic Light Source housing.

- Ground reliability is achieved only when the Fiberoptic Light Source is connected to a “Hospital-Use”

or “Hospital-Grade” receptacle. Inspect electrical plug or cord routinely. Do not use if damage is
discovered.

- The lamp in this unit is filled with Xenon at very high pressure. It will fracture with careless handling.

Do not subject the lamp to high mechanical forces or rough handling that may fracture the lamp.

- Due to the high internal voltage of the power supply, a hazard exists for electrical shock. Always

unplug the Fiberoptic Light Source prior to servicing the lamp.

- Disconnect the main power line before attempting any service to lamp cartridge or lamp.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

5.1 Operating Cautions

- Do not switch power ON-OFF-ON-OFF. Wait sixty (60) seconds in between to discharge internal

high voltages to avoid possible damage to high voltage power supply. Minimize the number of lamp
start-ups. Use lamp intensity position as a “standby” instead of turning off the power in between
surgical procedure intermissions.

- Do not use this Xenon fiber optic Fiberoptic Light Source in the presence of flammable substances.

Danger - The distal connector of the fiber optic cable can cause burns. Do not place on protective
drapes or on the patient.

- The Xenon Fiberoptic Light Source can cause permanent eye damage if light output is viewed directly

with unprotected eyes.

5.2 Equipment Cautions

- The Xenon Fiberoptic Light Source may cause failure and possible burning of fiber optic cables that

are not designed for use with the Xenon Fiberoptic Light Sources. Consult your cable manufacturer
or distributor to determine compatibility.

- Read this manual before removing the cover of the Fiberoptic Light Source.

- Keep cooling vents free from obstruction.

OM1 RevA

- Do not operate unit with front panel facing upward.

- This unit should not be used or stored where water or other liquids may splash.

- Avoid operating the unit in dusty or dirty environments. Dirt entering the air intake will shorten the life

of the lamp.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

6.0 EQUIPMENT ORDER NUMBER

Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source, Gray

with Mobile Floor Stand, 22” (55cm) and Storage Module: 01-1300XSB

Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source, Gray
with Mobile Floor Stand, 30” (75cm), without Storage Module: 02-1300XSB

Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source, Gray
PORTABLE, without Mobile Floor Stand or Storage Module: 03-1300XSB

7.0 OPTIONAL INTERNATIONAL POWER CORDS

USA (Standard) 10A (125VAC) 3 Meter/10ft. Cord Part# 06-10NA

USA (Special) 10A (125VAC) 6 Meter/20ft. Cord Part# 06-20NA

Continental Europe 10A (220-230VAC) 2.5 Meter Cord Part# 06-25WE

Australia/New Zealand 10A (240VAC) 2.5 Meter Cord Part# 06-25AN

China 10A (220VAC) 2.5 Meter Cord Part# 06-25CH

Denmark 10A (220-230VAC) 2.5 Meter Cord Part# 06-25DE

India/South Africa 10A (220-250VAC) 2.5 Meter Cord Part# 06-25SA

Israel 10A (250VAC) 2.5 Meter Cord Part# 06-25IS

Italy 10A (250VAC) 2.5 Meter Cord Part# 06-25IT

Japan 7A (100VAC) 2.5 Meter Cord Part# 06-25JA

Switzerland 10A (250VAC) 2.5 Meter Cord Part# 06-25SW

UK/Ireland 10A (230VAC) 2.5 Meter Cord Part# 06-25UK

8.0 REPLACEMENT PARTS

8.1 IsoLux Model 1300 XSB - 300 Watt Xenon Fiberoptic Light Source

Description Order #

Replacement Xenon 300 Watt Lamp 08-X300

Replacement Xenon 300 Watt Lamp Cartridge 07-X300

Power Supply 07-X3PS

Elapsed Hour Meter 07-XEHM

To obtain additional replacement parts not listed above, please contact Customer Service at
IsoLux llc by e-mail at [e-mail].

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]

Appendix A – Electrical Schematic, Model 1300 XSB Premium

OM1 RevA

Appendix B

IsoLux llc Warranty Statement

Effective Date March 1, 2004

Xenon “Mobile” and “Portable” Illumination systems mechanical parts are warranted for a total of five (5)

years from the casters to the cover of the xenon illuminator.

Xenon “lamps” are warranted for a total of five hundred (500) elapsed hours. The supplier of the xenon

lamp will determine the pro-rated refund against the purchase of a new lamp. Allow four to six
weeks for a reply.

Xenon “power supplies” are warranted for a total of one (1) year.

Fiber optic bifurcated headlight cables are warranted for a period of two (2) years against defects in material

and workmanship. We reserve the right to pass judgment on the cause of defect. Misuse and
breakage of the fibers by the end user may invalidate the warranty.

Headlight modules and headgear are warranted for a total of one (1) year.

Warranties are void if service is performed by unauthorized persons.

Warranties are not transferable, unless authorized in writing by IsoLux llc.

Warranties are null and void due to accidental dropping of the xenon illuminator(s) and headlight(s).

Warranties to be processed within a period of approximately 10-20 working days, excluding holidays.

IsoLux llc reserves the right to pass judgment on any and all warranties of product(s) abused or

mishandled, including full or partial disassembled.

IsoLux llc reserves the right to modify the above warranty statement with 60 days notice.

IsoLux llc 100 Ferncroft Road, Danvers, MA USA 01923 PH 978.774.9136 FAX [phone]
