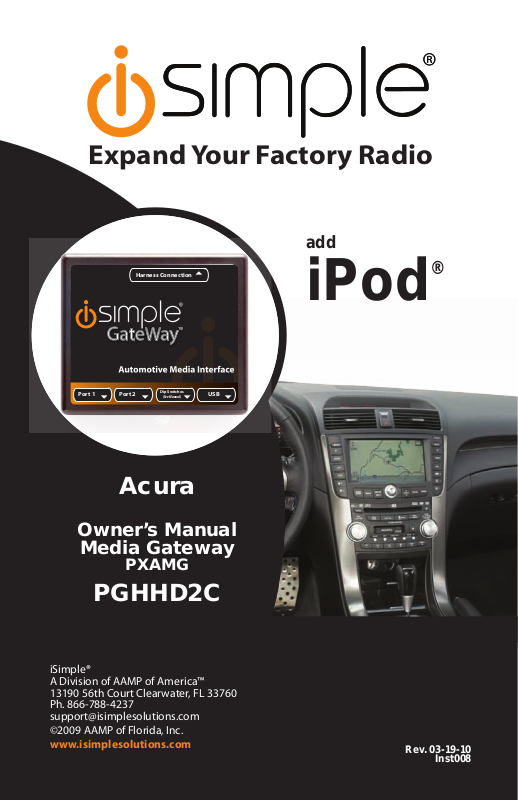

Expand Your Factory Radio
iSimple®
A Division of AAMP of America™
13190 56th Court Clearwater, FL 33760
Ph. 866-788-4237
support@isimplesolutions.com
©2009 AAMP of Florida, Inc.
www.isimplesolutions.com
Harness Connection
Port 1
Port 2
Dip Switches
(See Manual)
USB
add
iPod
Acura
Owner’s Manual
Owner’s
Media Gateway
PXAMG
Manual
®
PGHHD2C
Media Gateway
PXAMG
Rev. 03-19-10
Inst008
Table of Contents
Pages
1. Introduction 2
2. Precautions 2
3. Compatibility Notes 3
4. Dipswitch Settings 3
5. Installation 4-5
6. iPod Operation 5
7. HD Radio Operation
(if equipped) 6
8. Selecting AUX Input
9. Selecting Factory Satellite
(if equipped)
10. Troubleshooting
11. Warranty Info
7
7
8
9
Harness Connection
a
Port 1
a
Port 2
a
Dip Switches
(See Manual)
a
USB
a
Media Gateway & Optional Add-ons
Harness Connection
a
Port 1
a
Port 2
a
Dip Switches
(See Manual)
a
USB
a
Factory Radio
Not Included
iPod
Not Included
Media Gateway Harness
Part #: PGHHD2C
Media Gateway
Part #: PXAMG
11Ft. iPod Cable
3Ft. HD Radio Cable
(sold with HDRT)
TM
HD Radio
(sold seperately)
Tuner
Part #: HDRT
1
1. Introduction
Thank you for purchasing the iSimple® Media Gateway. The Media Gateway is
designed to provide endless hours of listening pleasure from your factory radio. To
ensure that your iPod performs correctly with your radio, we recommend that you
read this entire manual before attempting installation of the Media Gateway.
The Media Gateway allows connectivity for iPod and the HD Radio tuner (HDRT sold
separately), enabling full control of these devices from the factory installed radio.
It also retains original system features such as satellite radio (if equipped).
2. Precautions
UPDATING iPod FIRMWARE
For proper operation of the Media Gateway, your iPod must be updated with the most
recent version of rmware from Apple. This is done on your computer. To update the
software on the iPod go to: http://www.apple.com/ipod/download/.
Follow the directions on the website to complete the download. There is no charge for
this update.
PREVENTING DAMAGE TO YOUR VEHICLE OR IPOD.
To eliminate the risk of an electrical short, we recommend disconnecting the
vehicle’s battery prior to installation. If you do not feel comfortable making these
connections, we suggest you seek professional installation. We recommend that the
iPod be disconnected from the interface when the vehicle is not in use.
PROPER MOUNTING LOCATION
Securely install the interface in a location free from; heat, humidity, moving parts,
sharp metal edges or direct sunlight. We recommend securing the interface to a
suitable location using; double sided tape, VelcroTM or zip-ties.
2
3. Compatibility
Your vehicle MUST be equipped with XM Satellite Radio that has the XM NavTrafc feature. Please visit www.isimplesolutions.com for the most up to date
application information and to verify your vehicle’s compatibility.
4. Dipswitc h Settings
Dipswitch 2 MUST be set in the ON (down) position for proper operation.
ALL VEHICLES
3
5. Installation
1. When making electrical connections it is always recommended that the vehicle’s
battery be disconnected from the electrical system before performing the installation.
2. Carefully remove the trim panels in the passenger side of the trunk to access the
XM Satellite Radio tuner . This will provide access to the factory radio connectors
where you will connect the Media Gateway harness.
3. Disconnect the factory 20-Pin harness from the Satellite Radio tuner.
4. Connect the 8-Pin iPod docking cable into the rst port on the Media Gateway
(farthest away from dipswitches). Carefully run the 20 foot iPod cable to the location
where the iPod will be mounted or stored (for example the glove box or center
console). This location will vary based on the vehicle, and the customer’s prefrence.
When running this cable through the vehicle be sure to secure it away from moving
parts or sharp metal edges that may damage the cable.
5. If connecting the HD Radio Tuner (HDRT sold separartely), make the folllowing
connections before connecting the PXAMG to the vehichle. Plug the 3 foot HD
Radio Cable (8-Pin mini-din to 8-Pin mini-din) into the second port (closest to the
dipswitches) on the Media Gateway. Connect the other end of this cable into the HD
Radio tuner. Connect the factory antenna cable into the antenna connection on the
HD Radio tuner (HDRT).
6. Plug the male connector on the PGHHD2C harness into the 20-pin port on the
XM Satellite Radio tuner. Next, connect the factory 20-pin harness into the female
connector on the PGHHD2C harness. Be sure to make a rm connection but do not
force it. Plug the Black micro-t 24-pin connector on the PGHHD2C harness into the
PXAMG Media Gateway box.
7. To complete the installation secure the Media Gateway (PXAMG) and HD Radio
tuner (HDRT if equipped) into the cavity with the XM Satellite Radio tuner . Be sure that
the cables and interface modules are not near moving parts or sharp metal edges as
they may damage the cables. To prevent rattling noises inside the trunk, use zip ties,
tape, or other fasteners to mount the interfaces securely.
8. With all connections made, reconnect the vehicle’s battery, insert the key into the
ignition, and turn the vehicle on. Check for proper operation of the Media Gateway and
HD Radio tuner before reinstalling the factory dash panels.
9. Note: The rst time you access the Gateway, your radio may display “DEV INIT”
while the device is initializing. If this is displayed, please wait one minute then cycle the
ignition off and on. Then access SAT mode again to begin normal gateway operation.
4
6. iP od Operation
Entering Mode Select Menu
Press the “AM-FM” button then press the “XM or “AUX” button. Turn the rotary TUNE
KNOB or press “TUNE ▲” until “IPOD” is displayed. The PXAMG will auto select the
mode after 6 seconds of inactivity.
Next Track
Turn the rotary TUNE KNOB clockwise or press the “TUNE ▲” button to advance to
the next track.
Previous Track
Turn the rotary TUNE KNOB counter clockwise or press the “TUNE ▼” button to move
back to the previous track.
Fast Forward
Press PRESET 4 repeatedly to fast forward the song that is playing.
Rewind
Press PRESET 3 repeatedly to rewind the song that is playing.
Entering “BROWSE” Menu / Select
Press PRESET 6 to enter the browse menu or to make a selection while in the browse
menu.
Menu UP
Press PRESET 5 to move back one step in the browse menu.
Exit Browse menu
After 10 seconds of inactivity the menu will time out and return to normal
operation.
Random
Press PRESET 2 to turn random ON/OFF (RDM song, RDM album, RDM off).
5
7. HD Radio Operation
Entering Mode Select Menu
Press the “AM-FM” button then press the “XM or “AUX” button. Turn the rotary TUNE
KNOB or press “TUNE ▲” until “HD-FM” is displayed. The PXAMG will auto select
the mode after seconds of inactivity.
Tune Up
Turn the rotary TUNE KNOB clockwise or press the “TUNE ▲” button to manually tune
up.
Seek Up
Press the SEEK> button to seek up to next available station.
Tune Down
Turn the rotary TUNE KNOB counter-clockwise or pressthe “TUNE ▼” button to manually
tune down.
Seek Down
Press the <SEEK button to seek down to the next available station.
Changing Bands
Press the “XM” or “AUX” button to switch between AM and FM bands.
Store Presets
Press and hold the preset button (1-6) for 2 seconds where you wish to store the preset. An audible beep will be heard when station has been stored sucessfully .
Recall Presets
Press the preset button (1-6) for the preset you wish to recall.
Changing Display
Press the “DISP” button to toggle between HD artist and HD title.
8. Selecting AUX Input
Entering Mode Select Menu
Press the “AM-FM” button then press the “XM or “AUX” button. Turn the rotary TUNE
KNOB or press “TUNE ▲” until “AUX” is displayed. The PXAMG will auto select the
mode after 6 seconds of inactivity.
6
9. Selecting F actory Installed Sat
(if equipped)
Entering Mode Select Menu
Press the “AM-FM” button then press the “XM or “AUX” button. Turn the rotary TUNE
KNOB or press “TUNE ▲” until “SAT” is displayed. The PXAMG will auto select the
mode after 6 seconds of inactivity.
Factory Sat Operation
Refer to the owners’ manual that came with your vehicle.
7
10. T roubleshooting
Symptom Cause Remedy
Radio shows iPod
not connected
iPod cable is not
connected to iPod or
Gateway.
Verify the docking cable is connected
to the Media Gateway, and the iPod
I can not correctly
control the iPod
through the radio.
I have updated my
iPod’s rmware
and still have
control issues
I don’t see iPod
artist or song
information on the
screen
I can’t use my
iPod’s click wheel
to select music
The Media
Gateway does
not recognize the
HD Radio tuner
(HDRT)
Radio shows “DEV
INIT”
When I listen to
the factory AM or
FM radio there
is only static, no
audio.
No AM or FM
reception using the
HD Radio source
The iPod rmware
may be out of date.
Sometimes the
iPods needs to be
reset
The radio is
displaying a different
text eld
The iPod is in
external control
mode. This allows
text to be displayed
on the radio screen
The HD tuner
was not properly
connected when
the PXAMG was
rst connected and
initialized.
Gateway device is
initializing
Factory antenna
cable is connected
to the HD Radio
tuner.
Factory antenna
cable is not
connected to the HD
Radio tuner (HDRT)
Update iPod rmware for free at http://
www.apple.com/ipod/download
Press and hold the click wheel (center
button) and the menu button for 10
seconds. This will reboot the iPod.
YOU WILL NOT LOSE MUSIC on the
iPod by doing this reset
Press the Text / Scan button to see
text
Press the Aux / Sat button and select
AUX 2 source to control the iPod
manually using the click wheel
HDRT must be connected before the
PXAMG is powered on. Disconnect
the PXAMG from the vehicles harness
for 5 minutes. Verify the 8 pin DIN
HDRT cable is securely connected
at both ends before reconnecting the
vehicle harness.
This only occurs the rst time the
PXAMG is powered on. Wait a few
minutes, cycle ignition off and on then
enter SAT Mode.
Use Gateway to access HD Radio
source. This will provide all AM and
FM reception for your vehicle.
Remove from factory radio, connect
into HDRT module. Note* some
vehicles need to use the supplied
antenna adaptor to make this
connection.
HD Radio station
quality uctuates
or is lost randomly
The HD Tuner is
temporarily losing
reception of the
Digital HD Radio
broadcast signal
This is expected performance. The
Digital HD Radio playback will resume
in areas of higher broadcast signal
strength.
11
11. Warranty
One Year Limited Warranty
The quality controls used in the manufacture of this product will ensure your satisfaction.
This warranty applies only to the original purchaser of this product from an authorized
®
iSimple
uct that, upon inspection by iSimple
normal use due to defects in material or workmanship. This warranty does not apply to
installation expenses. Attempting to service or modify this unit, operating this unit under
conditions other than the recommended voltage will render this WARRANTY VOID.
Unless otherwise prescribed by law , iSimple
property damage and or any incidental or consequential damages of any kind (including water damage) resulting from malfunctions, defects, misuse, improper installation or
alteration of this product. All parts of this iSimple
of 1 year as follows:
Within the rst 12 months from date of purchase, subject to the conditions above,
iSimple
or workmanship providing it is returned to an Authorized iSimple
OF PURCHASE from an authorized iSimple
Warning:
This equipment may be reset by unintentional electrostatic discharge during operation.
Exposure to direct sunlight or extreme heat may cause damage or malfunction.
FCC Class B Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Re-orientate or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from
that of which the receiver is connected.
4. Consult the dealer or an experienced radio / television technical for help.
Notice : The changes or modications not expressly approved by the party responsible
for compliance could void the user authority to operate the equipment.
dealer. This warranty covers any supplied or manufactured parts of this prod-
®
will repair or replace the product at their discretion, if it is defective in material
®
authorized personnel, is found to have failed in
®
shall not be liable for any personal injury,
®
product are guaranteed for a period
®
®
dealer.
dealer, with PROOF
12
www.isimplesolutions.com
For Best Performance Have It
Professionally Installed.
Loading...
