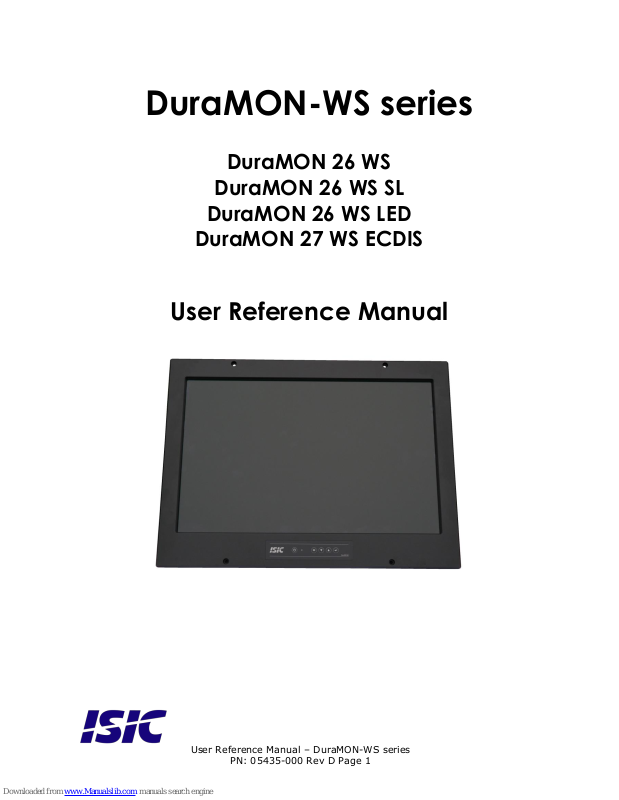

User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 1
DuraMON-WS series
DuraMON 26 WS
DuraMON 26 WS SL
DuraMON 26 WS LED
DuraMON 27 WS ECDIS
User Reference Manual
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 2
Disclaimer
ISIC A/S makes no representation or warranties with respect to the contents or use of this manual,
and specifically disclaims any express or implied warranties of merchantability or fitness for any
particular purpose. Further, ISIC A/S reserves the right to revise this publication and to make
changes to its content at any time, without obligation to notify any person or entity of such revisions
or changes.
Image sticking: If the monitor is operated with static images (logo’s etc) it will inevitably lead to
images sticking on the display (like on old CRT’s). This is not a permanently situation and can be
removed by operating the monitor with a completely black screen.
FCC Warning
Computing devices and peripherals generate and radiate radio frequency energy, and if not
installed and used in accordance with the instructions advised by ISIC A/S, it may cause
interference to radio communication.
The DuraFLEX series, manufactured by ISIC A/S, is designed to comply with the emerging generic
EEC standards, that cover applications in maritime environment.
Classification
The monitor is classified as “protected from the weather” according to IEC 60945 ed.4 (former class
b).
Approvals
Approval according to IACS E10 ed. 5 and IEC 60945 ed. 4, Maritime navigation and radio
communication equipment and systems – General requirements.
ECDIS IEC 61174 ed. 3
Radar IEC 62288 ed. 1
Radar IEC 62388 ed. 1
ISIC A/S is complying with the WEEE directive within the European Union, stating that electronic and
electric products must be collected separately.
Products are marked according to the directive.
Copyright 2014 ISIC A/S
ISIC PN: 05435-000 rev. D
ISIC A/S
Edwin Rahrsvej 54
DK-8220 Brabrand
Denmark
Phone: +45 70 20 70 77
Fax: +45 70 20 79 76
Web: http://www.isic-systems.com
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 3
Table of Contents
1 FEATURES ............................................................................................................................................................... 5
2 GENERAL CONSIDERATIONS ON INSTALLATION AND OPERATION .................................................. 6
3 DURAMON WS CONNECTIONS ......................................................................................................................... 7
4 DURAMON WS FRONT PANEL CONTROLS (ECDIS AND RADAR)........................................................... 8
4.1 DURAMON WS FRONT FOIL: .............................................................................................................................. 8
5 POPUP MENU .......................................................................................................................................................... 9
6 ADVANCED OSD ................................................................................................................................................. 11
6.1 INPUT SELECT .................................................................................................................................................... 12
6.2 IMAGE ADJUSTMENTS ........................................................................................................................................ 13
6.3 COLOR ADJUSTMENTS........................................................................................................................................ 15
6.4 ADV. COLOR SETTINGS ..................................................................................................................................... 16
6.5 SCALING ADJUSTMENTS .................................................................................................................................... 17
6.6 OSD SETTINGS .................................................................................................................................................. 18
6.7 SYSTEM SETTINGS ............................................................................................................................................. 20
6.8 SERIAL COMMUNICATION .................................................................................................................................. 22
6.9 VIDEO SETTINGS (OPTIONAL) ............................................................................................................................. 23
7 SERIAL CONNECTION PIN-OUT ..................................................................................................................... 25
8 TECHNICAL SPECIFICATIONS DURAMON WS .......................................................................................... 26
9 MECHANICAL OUTLINE DURAMON 26 WS................................................................................................. 28
10 MECHANICAL OUTLINE DURAMON 26 WS SL ....................................................................................... 29
11 MECHANICAL OUTLINE DURAMON 26 WS LED ................................................................................... 30
12 MECHANICAL OUTLINE DURAMON 27 WS ECDIS ............................................................................... 31
13 MECHANICAL OUTLINE DURAMON26WS/SL/LED BRACKET STAND OPTION ............................ 32
14 MECHANICAL OUTLINE DURAMON26WS/SL/LED BRACKET WALLMOUNT OPTION .............. 33
15 MECHANICAL OUTLINE DURAMON27 WS ECDIS BRACKET STAND OPTION ............................. 34
16 MECHANICAL OUTLINE DURAMON27 WS ECDIS BRACKET WALLMOUNT OPTION ............... 35
17 ECDIS MODE ..................................................................................................................................................... 36
18 DURA COMMUNICATION PROTOCOL ..................................................................................................... 36
19 COMPASS SAFE DISTANCE .......................................................................................................................... 36
20 POWER CONSUMPTION ................................................................................................................................ 36
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 4
21 IN RUSH CURRENT ......................................................................................................................................... 37
22 TROUBLESHOOTING ..................................................................................................................................... 37
23 SERVICING THE UNIT ................................................................................................................................... 37
24 TERMS, ACRONYMS AND ABBREVIATIONS ........................................................................................... 38
25 ISIC INFO / SUPPORT ..................................................................................................................................... 39
26 REVISION HISTORY ....................................................................................................................................... 40
27 APPENDIX A: PIXEL POLICY ....................................................................................................................... 41
28 APPENDIX B: LATEST FIRMWARE VERSIONS ....................................................................................... 44
29 APPENDIX C: DECLARATION OF CONFORMITY .................................................................................. 45
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 5
1 Features
Congratulations on your purchase of a DuraMON WS. This short form manual is designed to get you
started working with your new DuraMON WS.
The DuraMON WS series of monitors are all made as rugged monitors especially designed for the
demanding operating conditions at sea.
The DuraMON WS series are tested for full compliance to marine-standards IACS E10 and IEC 60945.
The monitor comes with excellent brightness and contrast levels that, together with wide viewing
angles, ensure a good readability thus making it very eye-friendly. For the best picture quality,
always use a double shielded cable with ferrites, like the one supplied with the monitor.
Direct dimming control (0-100%) from UP/DOWN buttons.
Full settings control via menu or serial link.
Picture in picture function, scalable on the screen.
Anti-glare coated glass.
IP65 protection and liquid resistant front.
Multiple connections to cover the widest range of signal sources:
DVI-D
RGB
S-Video (optional)
Composite (optional)
Firmware update via RS232
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 6
2 General considerations on Installation and
Operation
The DuraMON WS is designed to work at conditions according to IEC 60945. However, keeping the
temperature and vibration level at a minimum will extend the life time of the product. ISIC
recommend operating this product at normal room temperature (20-25 °C), with the lowest level of
vibration and humidity.
Installation of the DuraMON WS
In order to obtain the best possible operating conditions, please note the following precautions.
- Room for cooling.
When designing the cabinet/console for the DuraMON WS, please ensure that air can
flow freely around the cabinet, in order to avoid any unnecessary rise in temperature. If
it is not possible to have an adequate natural airflow, use a fan to force the airflow to
be higher.
- Mounting positions
To obtain adequate cooling by convection ISIC recommends that the DuraMON WS is
mounted at least 30 degrees from horizontal. If this is not possible, forced cooling must
be applied directly to the unit in order not to overheat it.
- Sunlight
If the unit can be exposed to direct sunlight, there is a potential risk that the unit can be
overheated. Please take measures to prevent direct sunlight. Do also consider forced
cooling on the back of the unit.
Operation of the DuraMON WS
To ensure that colors and luminance on the display is correct in ECDIS applications, do not use the
monitor until the warm-up period has completed.
The warm-up period is as follows:
Day mode
Dusk mode
Night mode
DuraMON 26 WS
3 hours
1 hour and 45 min
2 hours
DuraMON 26 WS SL
3 hours
1 hour and 45 min
2 hours
DuraMON 26 WS LED
40 min
40 min
40 min
DuraMON 27 WS ECDIS
1 hour
1 hour
1 hour
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 7
3 DuraMON WS connections
Below is a view of optional connections to the monitor. The default inputs are: power, RS-232,
DVI and VGA.
Remote Control - RS232
VGA
Power ac
DVI-D
Composite video
S-Video
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 8
4 DuraMON WS front panel controls (ECDIS
and Radar)
The front panel is illuminated and will be dimmed continuously depending on changing of
backlight brightness.
4.1 DuraMON WS front foil:
ON/OFF:
This key is used to turn the product on or off. Pressing it will turn the power on, while holding it
pressed will turn the power off. The light in the button will change from blue to red to indicate it’s
powered down. It is important to notice that, when powered off, the product still consumes some
power from the mains. To cut off the power from the product it is necessary to unplug its power
cord from the mains.
If there is no active signal, the monitor will go to suspend mode until an active signal is detected.
While the monitor is in suspend mode, the blue light will blink in the ON/OFF button.
MENU:
Pressing this key the Popup menu will appear. See Popup Menu section for details.
UP/DOWN:
Used to adjust backlight or to navigate and adjust settings in menus. Pressing UP and DOWN
together will restore the backlight level to the last selected ECDIS mode by the serial link. (See
document 04924-000 for protocol details).
ENTER:
This key is used to confirm and to enter the advanced OSD by pressing ENTER and thereafter MENU
while holding ENTER pressed.
ON/OFF
MENU
UP
DOWN
ENTER
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 9
5 Popup Menu
Press “MENU” button once, and the Popup Menu will appear. While the Popup Menu is active, no
settings sent over the serial link will be executed.
Press once on the
“MENU” key
Backlight
80
It is now possible to
adjust the backlight
level by pressing
either up- or down
key.
Press twice on the
“MENU” key
Press ENTER to select default values
Press MENU to exit
It is now possible to
default backlight,
brightness and
contrast by pressing
the ENTER key.
For ECDIS calibrated
displays, the
backlight level will
be set to the last
selected ECDIS
mode by the serial
link. (See 04924-000
document for
details on how to
change ECDIS
mode over the serial
link).
NOTE: See
advanced OSD
chapter for default
values.
Press three times on
the “MENU” key
Leaving Popup
Menu.
If color control in the advanced menu is set to user mode the Popup Menu will include Brightness
and Contrast adjustments.
Press once on the
“MENU” key
Backlight
80
It is now possible to
adjust the backlight
level by pressing
either up- or down
key.
Press twice on the
“MENU” key
Brightness
50
It is now possible to
adjust the brightness
level by pressing
either the up- or
down key.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 10
Press three times on
the “MENU” key
Contrast
50
It is now possible to
adjust the contrast
level by pressing
either the up- or
down key.
Press four times on
the “MENU” key
Press ENTER to select default values
Press MENU to exit
It is now possible to
default backlight,
brightness and
contrast by pressing
the ENTER key.
For ECDIS calibrated
displays, the
backlight level will
be set to the last
selected ECDIS
mode by the serial
link. (See 04924-000
document for
details on how to
change ECDIS
mode over the serial
link).
NOTE: See
advanced OSD
chapter for default
values.
Press five times on
the “MENU” key
Leaving Popup
Menu.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 11
6 Advanced OSD
With the Advanced OSD (On Screen Display) you can modify the settings and control the special
features of the DuraMON WS as described on the next pages.
To enter the Advanced OSD keep the “ENTER” key down and at the same time press the “MENU”
key.
To navigate the Advanced OSD use the “UP” and “DOWN” buttons and press “ENTER” to select a
specific setting. To get back to the previous menu point, press the “MENU” button.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 12
6.1 Input select
Input Select – Main Picture Channel
Input Select – Scan Inputs
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
DVI
Composite Video
S-Video
VGA2
Main Picture Channel
Image Adjustments
Scan Inputs
PiP Mode
PiP Channel
PiP Hor. Position
PiP Ver. Position
Swap Main & PiP
Input Select
PiP Size
Main Picture Channel
VGA
DVI2
The Main Picture Channel
can be selected between all
available inputs (Composite
Video, S-Video, VGA2 and
DVI2 are optional).
Default is VGA
When “Scan Inputs” is
enabled all inputs are
continuously being
monitored for input signals.
Default is on
Input Select – PIP Mode
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Picture in Picture
Side by Side
PiP Mode
Image Adjustments
Scan Inputs
PiP Mode
PiP Channel
PiP Hor. Position
PiP Ver. Position
Swap Main & PiP
Input Select
PiP Size
Main Picture Channel
Off
By enabling the PIP (Picture in
Picture) function it is possible
to define the PIP channel, size
and position of it. It is also
possible to swap between
the main picture channel
and PIP channel.
Default is off
It is not possible to select
composite and s-video at the
same time.
Input Select
Color Adjustment
Adv
.
Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
On
Scan Inputs
Image Adjustments
Scan Inputs
PiP Mode
PiP Channel
PiP Hor
.
Position
PiP Ver
.
Position
Swap Main
&
PiP
Input Select
PiP Size
Main Picture Channel
Off
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 13
6.2 Image Adjustments
Image Adjustments – Auto Adjust
Image Adjustments – Clock
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Clock
Phase
Bandwith
Image Adjustments
Hor. Position
Auto Adjust
Ver. Position
Select to execute auto
adj.
Selecting auto adjust will
force the system to adjust the
image (clock, phase,
bandwith and position)
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Clock
Image Adjustments
Clock
Phase
Bandwith
Image Adjustments
Hor. Position
Auto Adjust
1840
Ver. Position
The pixel clock for the main
picture channel can be
selected here.
Image Adjustments – Phase
Image Adjustments – Bandwith
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Phase
Image Adjustments
Clock
Phase
Bandwith
Image Adjustments
Hor. Position
Auto Adjust
4
Ver. Position
The phase of the display can
be set for the main picture
channel.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Bandwith
Image Adjustments
Clock
Phase
Bandwith
Image Adjustments
Hor. Position
Auto Adjust
0
Ver. Position
The bandwith of the display
can be set here for the main
picture channel.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 14
Image Adjustments – Hor. Position
Image Adjustments – Ver. Position
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Hor. Position
Image Adjustments
Clock
Phase
Bandwith
Image Adjustments
Hor. Position
Auto Adjust
112
Ver. Position
The horizontal position of the
picture of the main picture
channel can be set here.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Ver. Position
Image Adjustments
Clock
Phase
Bandwith
Image Adjustments
Hor. Position
Auto Adjust
24
Ver. Position
The vertical position of the
picture of the main picture
channel can be set here.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 15
6.3 Color adjustments
Color Adjustment – Backlight
Color Adjustment – Gamma
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Backlight
Image Adjustments
Gamma
Color Control
Brightness
Saturation
Hue
Fleshtone
Color Adjustment
Contrast
Backlight
80
Auto Color Adjust
It is possible to set the
backlight level.
Default is 100% for nonECDIS calibrated displays.
For ECDIS calibrated
displays, the default value
is the value for the
backlight level for ECDIS
Day mode.
Unless popups or OSD is
present it is possible to
press the “UP”or “DOWN”
button to adjust the
backlight level and then
press “ENTER” afterwards.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
2.2
Custom
Gamma
Image Adjustments
Gamma
Color Control
Brightness
Saturation
Hue
Fleshtone
Color Adjustment
Contrast
Backlight
Native
Auto Color Adjust
The gamma correction for
the “main picture channel”
is set here. It can be set to
native, 2.2 or custom
defined.
Native = The panel default
curve
2.2 = Gamma curve 2.2
Custom = Special gamma
curve that can be
implemented to fit a user
needs.
Default is native.
Color Adjustment – Color Control
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
User
Color Control
Image Adjustments
Gamma
Color Control
Brightness
Saturation
Hue
Fleshtone
Color Adjustment
Contrast
Backlight
Native
Auto Color Adjust
The “Color Control” of the
“Main Picture Channel”
can be either Native or
User.
Setting the Color Control
to User, adjustments like
Brightness, Contrast,
Saturation, Hue, Fleshtone
and AutoColor Adjust
becomes possible.
Also the Advanced Color
Adjustments becomes
possible by setting the
Color Control to User.
Default is Native
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 16
6.4 Adv. Color Settings
Adv. Color Settings – Color Space
Adv. Color Settings – Color Temp
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Color Space
Image Adjustments
Color temp
Red
Green
Adv. Color Settings
Blue
Color space
Default
RGB
Yuv
YPbPr
Here the correct color space
for the main input channel
can be selected (only on
RGB signal).
Default is Default.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Color temp
Image Adjustments
Color temp
Red
Green
Adv. Color Settings
Blue
Color space
User
4200K
5000K
5400K
6500K
7500K
9300K
Here the color temperature
can be selected. Set to user
the color temp is adjusted
by the three fundamental
colours.
Default is User
Adv. Color Settings – Red/Green/Blue
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Red
Image Adjustments
Color temp
Red
Green
Adv. Color Settings
Blue
Color space
255
The rate for Red/Green/Blue
can be set here from 0 – 255.
Default is 255/255/255
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 17
6.5 Scaling Adjustments
Scaling Adjustments – Scaling Mode
Scaling Adjustments – Picture Flip
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Stretch
Aspect
1:1
Scaling Mode
Image Adjustments
Picture Flip
Zoom
Hor. Pan
Scaling Adjustments
Ver. Pan
Scaling Mode
Expand
Scaling Mode can be set to
either Expand, Stretch,
Aspect or 1:1
Default is Expand
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Mirror Vertical
Picture Flip
Image Adjustments
Picture Flip
Zoom
Hor. Pan
Scaling Adjustments
Ver. Pan
Scaling Mode
Mirror Horizontal
The Main Picture Channel
can be mirrored horizontally
and/or vertically.
Default is all unchecked
Scaling Adjustments – Zoom
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Zoom
Image Adjustments
Picture Flip
Zoom
Hor. Pan
Scaling Adjustments
Ver. Pan
Scaling Mode
100
It is possible to zoom the
picture of the Main Picture
Channel from 80 to 300.
If zoom differs from 100 (no
zoom) it is possible to pan
both horizontally and
vertically.
Default value is 100 (no
zoom)
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 18
6.6 OSD settings
OSD Settings – Menu Timeout
OSD Settings – Menu Hor. Pos.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Menu Timeout
Image Adjustments
Menu Hor. Pos.
Menu Ver. Pos.
Popup Timeout
Popup Ver. Pos.
Blending
Orientation
Osd Settings
Popup Hor. Pos.
Menu Timeout
60
The Menu Timeout period can
be set between 0 and 60
seconds in steps of 5 seconds.
Default is 30 seconds
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Menu Hor. Pos.
Image Adjustments
Menu Hor. Pos.
Menu Ver. Pos.
Popup Timeout
Popup Ver. Pos.
Blending
Orientation
Osd Settings
Popup Hor. Pos.
Menu Timeout
0
The Horizontal Position of the
OSD can be set from 0 (left
margin) to 100 (right
margin).
Default is 0 (left margin).
OSD Settings – Menu Ver. Pos.
OSD Settings – Popup Timeout
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Menu Ver. Pos.
Image Adjustments
Menu Hor. Pos.
Menu Ver. Pos.
Popup Timeout
Popup Ver. Pos.
Blending
Orientation
Osd Settings
Popup Hor. Pos.
Menu Timeout
50
The Vertical Position of the
OSD can be set from 0 (upper
margin) to 100 (bottom
margin).
Default is 50 (center of the
display)
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Popup Timeout
Image Adjustments
Menu Hor. Pos.
Menu Ver. Pos.
Popup Timeout
Popup Ver. Pos.
Blending
Orientation
Osd Settings
Popup Hor. Pos.
Menu Timeout
5
The Popup Menu Timeout
(Easy-to-use OSD menu)
period can be set between
0 and 60 seconds in steps of
1 second.
Default is 5 seconds
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 19
OSD Settings – Popup Hor. Pos.
OSD Settings – Popup Ver. Pos.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Popup Hor. Pos.
Image Adjustments
Menu Hor. Pos.
Menu Ver. Pos.
Popup Timeout
Popup Ver. Pos.
Blending
Orientation
Osd Settings
Popup Hor. Pos.
Menu Timeout
50
The Horizontal Position of the
Popup can be set from 0 (left
margin) to 100 (right margin).
Default is 50 (center of the
display)
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Popup Ver. Pos.
Image Adjustments
Menu Hor. Pos.
Menu Ver. Pos.
Popup Timeout
Popup Ver. Pos.
Blending
Orientation
Osd Settings
Popup Hor. Pos.
Menu Timeout
50
The Vertical Position of the
OSD can be set from 0
(upper margin) to 100
(bottom margin).
Default is 50 (center of the
display)
OSD Settings – Blending
OSD Settings – Orientation
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Blending
Image Adjustments
Menu Hor. Pos.
Menu Ver. Pos.
Popup Timeout
Popup Ver. Pos.
Blending
Orientation
Osd Settings
Popup Hor. Pos.
Menu Timeout
3
The transparency of both the
OSD and the Popup can be
selected from 0 (solid) to 15
(clear)
Default is 2
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Mirror Vertical
Rotate 90°
Orientation
Image Adjustments
Menu Hor. Pos.
Menu Ver. Pos.
Popup Timeout
Popup Ver. Pos.
Blending
Orientation
Osd Settings
Popup Hor. Pos.
Menu Timeout
Mirror Horizontal
The Orientation of the OSD
and Popup can be rotated
and mirrored both
horizontally and vertically
here.
Default is all unchecked
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 20
6.7 System settings
System Settings – Splash Timeout
System Settings – Monitor Timeout
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Splash Timeout
Image Adjustments
Monitor Timeout
Save Settings
Load Settings
Keypad LED min.
Keypad LED max.
Monitor info
System Settings
Reset Factory Settings
Splash Timeout
3
The time a splash menu
appears (startup logo) can
be varied from 0 to 60
seconds.
Default is 3 seconds
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Monitor Timeout
Image Adjustments
Monitor Timeout
Save Settings
Load Settings
Keypad LED min.
Keypad LED max.
Monitor info
System Settings
Reset Factory Settings
Splash Timeout
8
The time before the
DuraMON WS will enter
power down mode if no
input signal is available can
be adjusted from 0 to 120
seconds.
Default is 8 seconds
System Settings – Save Settings
System Settings – Load Settings
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Save Settings
Image Adjustments
Monitor Timeout
Save Settings
Load Settings
Keypad LED min.
Keypad LED max.
Monitor info
System Settings
Reset Factory Settings
Splash Timeout
Select to save user settings
It is possible to save the user
settings.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Load Settings
Image Adjustments
Monitor Timeout
Save Settings
Load Settings
Keypad LED min.
Keypad LED max.
Monitor info
System Settings
Reset Factory Settings
Splash Timeout
Select to load user settings
It is possible to load the user
setting.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 21
System Settings – Reset Factory Settings
System Settings – Keypad LED min.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Reset Factory Settings
Image Adjustments
Monitor Timeout
Save Settings
Load Settings
Keypad LED min.
Keypad LED max.
Monitor info
System Settings
Reset Factory Settings
Splash Timeout
It is possible to Reset Factory
Settings and bring the
DuraMON WS back to a
known state.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Keypad LED min.
Image Adjustments
Monitor Timeout
Save Settings
Load Settings
Keypad LED min.
Keypad LED max.
Monitor info
System Settings
Reset Factory Settings
Splash Timeout
0
The minimum backlight
value of the keypads can
be adjusted from 0 to 100.
Default is 10
System Settings – Keypad LED max.
System Settings – Monitor Info
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Keypad LED max.
Image Adjustments
Menu Hor. Pos.
Save Settings
Load Settings
Keypad LED min.
Keypad LED max.
Monitor info
System Settings
Reset Factory Settings
Splash Timeout
100
The maximum backlight
value of the keypads can be
adjusted from 0 to 100.
Default is 100
The Monitor Info contains
information about the
Product name and firmware
version.
For list over current firmware
versions see appendix B.
Input Select
Color Adjustment
Adv
.
Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Monitor info
Image Adjustments
Menu Hor
.
Pos . Save Settings
Load Settings
Keypad LED min
.
Keypad LED max
.
Monitor info
System Settings
Reset Factory Settings
Splash Timeout
DuraMON26WS
OSD FW
:
XXXXX - XXX - X
IF FW
:
XXXXX - XXX - X
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 22
6.8 Serial Communication
Serial Com. – Monitor Address
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Monitor Address
Image Adjustments
Interface
Duplex
Data Format
Broadcast Backlight
Serial Communication
Register Base
Monitor Address
0
To communicate with a
DuraMON WS the address has
to be set between 0 and 254.
Default is 0
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 23
6.9 Video settings (optional)
Video Settings – Motion Processing
Video Settings – Sharpness
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Sharpness
Film Mode
Noise Reduction
Decoder Dettings
Video Settings
Mpeg Processing
Motion Processing
Motion Processing
3
The type of Motion
Processing is defined here. If
Motion Processing is set to 0 it
is switched off.
Default value is 3
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Sharpness
Film Mode
Noise Reduction
Decoder Dettings
Video Settings
Mpeg Processing
Motion Processing
Sharpness
0
The Sharpness of the video
signal can be selected
between -15 to 29.
Default value is 0
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
Video Settings – Film Mode
Video Settings – Noise Reduction
The Film Mode can be
disabled/enabled here
Default value is ON
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Sharpness
Film Mode
Noise Reduction
Decoder Dettings
Video Settings
Mpeg Processing
Motion Processing
Noise Reduction
2
The Noise Reduction level
can be adjusted here
between 0 and 6.
Default value is 2
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
Input Select
Color Adjustment
Adv
.
Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Sharpness
Film Mode
Noise Reduction
Decoder Dettings
Video Settings
Mpeg Processing
Motion Processing
Film Mode
Off
On
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 24
Video Settings – Mpeg Processing
Video Settings – Video Brightness
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Sharpness
Film Mode
Noise Reduction
Decoder Settings
Video Settings
Mpeg Processing
Motion Processing
Mpeg Procesing
0
The level of Mpeg Processing
can be adjusted between 0
and 15.
Default value is 0
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Video Contrast
Video Saturation
Video Hue
Decoder Settings
Video Sharpness
Video Brightness
Video Brightness
50
The level of Video Brightness
can be adjusted between 0
and 100.
Default value is 50
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
Video Settings – Video Contrast
Video Settings – Video Saturation
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Video Contrast
Video Saturation
Video Hue
Decoder Settings
Video Sharpness
Video Brightness
Video Contrast
50
The Video Contrast can be
adjusted from 0 to 100.
Default value is 50
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Video Contrast
Video Saturation
Video Hue
Decoder Settings
Video Sharpness
Video Brightness
Video Saturation
50
The Video Saturation level
can be adjusted from 0 to
100.
Default value is 50
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 25
Video Settings – Video Hue
Video Settings – Video Sharpness
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Video Contrast
Video Saturation
Video Hue
Decoder Settings
Video Sharpness
Video Brightness
Video Hue
50
The Video Hue level can be
adjusted from 0 to 100.
Default value is 50
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
Input Select
Color Adjustment
Adv. Color Settings
Scaling Adjustments
OSD Settings
System Settings
Serial Communication
Loudspeaker Settings
Video Settings
Main Menu
Image Adjustments
Video Contrast
Video Saturation
Video Hue
Decoder Settings
Video Sharpness
Video Brightness
Video Sharpness
0
The Video Sharpness level
can be adjusted from 0 to
100.
Default value is 0
The Video Settings are only
available when a video
source is available and
selected as Main Picture
Channel.
7 Serial connection pin-out
Data Rate:
The monitor is configured to transmit and receive data at 19200 bits/second.
Data Format:
Data shall be transmitted with no parity, 8 data bits, one start bit, and one stop bit.
Pin
RS-232
SUB-D 9-pol female
1 2
Monitor TX
3
Monitor RX
4 5
GND 6 7
8 9
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 26
8 Technical specifications DuraMON WS
DuraMON WS I/O
Video inputs:
RGB :
DVI:
Analogue 0.7 Vpp positive at 75,
Separate sync or sync on green
Generally all VESA compatible video modes are supported up to
165MHz (up to UXGA 60Hz and WUXGA 60Hz reduced blanking).
Horizontal sync: 15-100 kHz (automatic)
Vertical sync: 30-85 Hz up to 1280x1024
30-60 Hz up to 1920x1200
Generally all VESA compatible video modes are supported up to
160MHz (up to UXGA 60Hz and WUXGA 60Hz
reduced blanking).
Special modes supported on request.
Control inputs:
1x RS232 – for remote control
DuraMON WS Power Supply Options
Standard:
90-264Vac. 50-60Hz Input
DuraMON WS Environmental Conditions
Operating Temperature:
-15 to 55 °C
Storage Temperature:
-25 to 70 °C
Relative Humidity:
8 to 90 %
DuraMON WS Approvals
CE Mark:
EN61000-6-2 & EN61000-6-4
Marine:
IACS E10 ed. 5 & IEC 60945 Ed. 4
ECDIS, Radar
IEC 61174 ed. 3, IEC 62288 ed. 1, IEC 62388 ed. 1
Specification DuraMON 26 WS
Resolution:
1920 x 1200
Active Area
550.08 mm x 343.8 mm (26.0” diagonal)
Pixel Pitch:
0.2865 mm x 0.2865 mm
View angle:
88° (L/R/T/B) (typical)
Viewing distance:
1.0 m
Luminance:
350 cd/m2 (typical)
Contrast ratio:
1500:1 (typical)
Colors:
16.7 mill.
Response Time:
8 ms (GTG) (typical)
Window:
Anti-glare coated glass
Protection:
IP65 front – IP20 rear
Weight:
Approx. 12 kg
Dimensions (WxHxD):
626 mm x 463 mm x 92 mm
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 27
Specification DuraMON 26 WS SL
Resolution:
1920 x 1200
Active Area
550.08 mm x 343.8 mm (26.0” diagonal)
Pixel Pitch:
0.2865 mm x 0.2865 mm
View angle:
88° (L/R/T/B) (typical)
Viewing distance:
1.0 m
Luminance:
350 cd/m2 (typical)
Contrast ratio:
1500:1 (typical)
Colors:
16.7 mill.
Response Time:
8 ms (GTG) (typical)
Window:
Anti-glare coated glass
Protection:
IP65 front – IP20 rear
Weight:
Approx. 12 kg
Dimensions (WxHxD):
619 mm x 463 mm x 92 mm
Specification DuraMON 26 WS LED
Resolution:
1920 x 1200
Active Area
550.08 mm x 343.8 mm (26.0” diagonal)
Pixel Pitch:
0.2865 mm x 0.2865 mm
View angle:
88° (L/R/T/B) (typical)
Viewing distance:
1.0 m
Luminance:
350 cd/m2 (typical)
Contrast ratio:
1500:1 (typical)
Colors:
16.7 mill.
Response Time:
25 ms (GTG) (typical)
Window:
Anti Reflection coated front glass
Protection:
IP65 front – IP20 rear
Weight:
Approx. 12 kg
Dimensions (WxHxD):
619 mm x 463 mm x 92 mm
Specification DuraMON 27 WS ECDIS
Resolution:
1920 x 1080
Active Area
597.88 mm x 336.31 mm (27.0” diagonal)
Pixel Pitch:
0.3114 mm x 0.3114 mm
View angle:
89° (L/R/T/B) (typical)
Viewing distance:
1.08 m
Luminance:
250 cd/m2 (typical)
Contrast ratio:
1000:1 (typical)
Colors:
16.7 mill.
Response Time:
14 ms (GTG) (typical)
Window:
Anti Reflection coated front glass
Protection:
IP65 front – IP20 rear
Weight:
11.7 kg
Dimensions (WxHxD):
684 mm x 452 mm x 68 mm
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 28
9 Mechanical outline DuraMON 26 WS
439
340143
12
463
626
59416
92
77
422
20,5
426
598
340129
439
6,5
15
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
Approved by
Projection method:
Drawing size:
Units: mm
Designed by
General tolerances: 0,2
Hole position: 0,1
Scale:
Drawing no.
Replaces:
Rev.
Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Angle, straightness and flatness: DS/ISO 2768-H
pas
04-10-2010
A2
Mechanical outline 26'' DuraMON WS
PAS
03-08-2011
1:4
05260-000
05260-000 Rev. 2
A
Recommended panel cut out
4 x M6
4 x 7
12 8
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 29
10 Mechanical outline DuraMON 26 WS SL
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
426
598
340129
439
6,5
Recommended panel cut out
4 x M6
439
463
345,8
71,45
12
552,1
340
R5
619
0
61
57,55
15
42
77
(92)
592
290
13,5
13,5
422
20,5
20,5
4 x 7
12 8
Approved by
Projection method:
Drawing size:
Units: mm
Designed by
Mechanical Outline DuraMON 26" WS SL
General tolerances: 0,2
Hole position: 0,1
Angle, straightness and flatness: DS/ISO 2768-H
Scale:
Drawing no.
Replaces:
05260-003
A
Rev.Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Material: Surface:
Sheet: 1 of 1
ksc 19-02-2014
A2
NHL 19-02-2014
1:3
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 30
11 Mechanical outline DuraMON 26 WS LED
Approved by
Projection method:
Drawing size:
Units: mm
Designed by
General tolerances: 0,2
Hole position: 0,1
Angle, straightness and flatness: DS/ISO 2768-H
Scale:
Drawing no.
Replaces:
Rev.
Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8 220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Material: Surface:
Sheet: 1 of 1
ksc 20-01-2014
A2
Mechanical Outline DuraMON 26" WS LED
NHL 20-02-2014
1:4
05260-004 A
0
15
42
77
83,62
592
520
13,5
13,5
340
43912463
71,45
76
422
20,5
20,5
290
110
619
426
596
340128
439
6,5
Recommended panel cut out
4 x M6
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 31
12 Mechanical outline DuraMON 27 WS ECDIS
16
68
0
37,2
33,7
18
15
683,5
600,9
340
451,6
339,3
427,6
651,5
16
410,6
20,5
20,5
4 x 7
12 8
340
427,6
414,6
655,5
4x M6x1
R5
12
68,5
157,8
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
Recommended panel cut out
Approved by
Projection method:
Drawing size:
Units: mm
Designed by
General tolerances: 0,2
Hole position: 0,1
Angle, straightness and flatness: DS/ISO 2768-H
Scale:
Drawing no.
Replaces:
Rev.
Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Material: Surface:
Sheet: 1 of 1
ksc
27-11-2013
A2
Mechanical Outline DuraMON 27'' WS ECDIS
NHL
27-11-2013
1:3
05261-001
A
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 32
13 Mechanical outline DuraMON26WS/SL/LED bracket stand option
4 x M6x1
For standard monitor screw
4 x 7
Footprint for mounting bracket
170
494,3
439
Turnable 180°
170
5
340
360
6
4
8
5
Screw into monitor front
Screw into monitor rear part
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Approved by
Projection method:
Drawing size:
Units: mm
Designed by
General tolerances: 0,2
Hole position: 0,1
Scale:
Drawing no.
Replaces:
Rev.
Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Angle, straightness and flatness: DS/ISO 2768-H
pas
13-09-2011
A3
DuraMON 26'' WS Bracket standard
PAS
13-09-2011
1:4
05300-000
A
Lock nut M10 A2 DIN 98500245-00518
Screw hex cap M10x160 A2 ISO 401405185-1601
7
Washer ø10,5x30x2,5 A2 ISO 709300239-00546
SCREW CS M5x16 HEX A2 DIN 799100201-02210
5
Bracket support 26'' DuraMON WS
05762-00014
Bracket front 26'' DuraMON WS
05760-00023
Bracket arm 26'' DuraMON WS
05761-00022
Bracket table tower DuraMON WS
05288-00011
Parts List
DESCRIPTIONPART NUMBERQTYITEM
5
3
2
2
3
1
6
7
5
150
150
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 33
14 Mechanical outline DuraMON26WS/SL/LED bracket wallmount option
439
340
360
Turnable - 15° to +15°
128,7
150
150
288,7
456
180
159,2
4 x 12,6
10
4
Screw into monitor front
Screw into monitor rear part
5
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Approved by
Projection method:
Drawing size:
Units: mm
Designed by
General tolerances: 0,2
Hole position: 0,1
Scale:
Drawing no.
Replaces:
Rev.
Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Angle, straightness and flatness: DS/ISO 2768-H
pas
13-09-2011
A3
DuraMON 26'' WS Bracket wallmount
PAS
13-09-2011
1:4
05299-000
A
Bracket wall DuraMON WS
05281-00018
Lock nut M10 A2 DIN 98500245-00517
Screw hex cap M10x160 A2 ISO 4014
05185-16016
Washer ø10,5x30x2,5 A2 ISO 7093
00239-00545
SCREW CS M5x16 HEX A2 DIN 799100201-022104
Bracket support 26'' DuraMON WS05762-00013
Bracket front 26'' DuraMON WS05760-00022
Bracket arm 26'' DuraMON WS05761-00021
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
4
2
1
1
2
8
5
6
4
3
7
4
4 x 7
4 x M6x1
For standard monitor screw
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 34
15 Mechanical outline DuraMON27 WS ECDIS bracket stand option
4
8
7
360
340
27'' monitor
24'' monitor
22'' monitor
150
150
Notice! Use 6 pcs. for 27'' monitor
4 x M6x1
For standard monitor screw
Turnable 180°
14
13
Screw for mounting bracket
170
Footprint for mounting bracket
11
Screw into monitor front
Screw into monitor rear part
Note: Use this for 27'' monitor
9
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Approved by
Projection method:
Drawing size:
Units: mm
Designed by
General tolerances: 0,2
Hole position: 0,1
Scale:
Drawing no.
Replaces:
Rev.
Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8220 Brabrand. Tlf.: +45 70207077. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Angle, straightness and flatness: DS/ISO 2768-H
pas
30-05-2011
A3
Mechanical outline DuraMON WS bracket
standard
PAS
30-05-2011
1:4
05292-000
B
ECO
1460 19-04-2012
Screw CH M6x25 hex A2 black RoHS ISO 476205408-000414
Washer ø6,4x12x1,6 A2 black RoHS ISO 7089
05409-000413
Bracket table tower DuraMON WS
05288-000112
Washer ø10,5x30x2,5 A2 ISO 7093
00239-005411
Screw hex cap M10x160 A2 ISO 4014
05185-160110
Lock nut M10 A2 DIN 98500245-00519
Screw CS M5x20 hex A2 DIN 799100201-0214 (6)8
Bracket lower arm DuraMON WS
05283-0002
7
Bracket upper arm DuraMON WS
05285-00026
Bracket front part DuraMON WS
05282-00025
Washer ø5,3x9x1 A2 DIN 433
00238-003
6
4
Screw CH M5x20 hex low head A2 DIN 798404551-00163
Screw CH M4x16 hex A2 ISO 476200195-01622
Washer ø4,3x8x0,5 A2 DIN 43300238-00221
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
22'' : 356
24'' : 384,3
27'' : 427,6
3
11
10
2
6
5
7
12
3
22'' : 410,6
24'' : 438,9
27'' : 482,2
170
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 35
16 Mechanical outline DuraMON27 WS ECDIS bracket wallmount option
Approved by
Projection method:
Drawing size:
Units: mm
Designed by
General tolerances: 0,2
Hole position: 0,1
Scale:
Drawing no.
Replaces:
Rev.Subject:
ISIC A/S, Edwin Rahrs Vej 54, DK-8220 B rabrand. Tlf.: +45 70207077. Web: www.isic.dk
This docoment contains proprietary information and is not to be
used or reproduced without the written permission of ISIC A/S
Angle, straightness and flatness: DS/ISO 2768-H
pas
31-05-2011
A3
DuraMON WS Bracket wallmount
PAS 31-05-2011
1:4
05293-000
A
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Bracket wall DuraMON WS
05281-000112
Washer ø10,5x30x2,5 A2 ISO 709300239-005411
Screw hex cap M10x160 A2 ISO 401405185-160110
Lock nut M10 A2 DIN 98500245-00519
Screw CS M5x20 hex A2 DIN 799100201-0214 (6)8
Bracket lower arm DuraMON WS
05283-00027
Bracket upper arm DuraMON WS
05285-00026
Bracket front part DuraMON WS05282-0002
5
Washer ø5,3x9x1 A2 DIN 43300238-00364
Screw CH M5x20 hex low head A2 DIN 798404551-00163
Screw CH M4x16 hex A2 ISO 476200195-01622
Washer ø4,3x8x0,5 A2 DIN 43300238-00221
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
22'' : 356
24'' : 384,3
27'' : 427,6
11
Screw into monitor front
Screw into monitor rear part
Note: Use this for 27'' monitor
9
131
83,6
111,9
155,2
180
289,4
150
150
Turnable -15° to +15°
180
3
11
10
2
6
5
12
3
4
8
7
360
340
27'' monitor
24'' monitor
22'' monitor
Notice! Use 6 pcs. for 27'' monitor
4 x M6x1
For standard monitor screw
Turnable 180°
129,4
Footprint for mounting bracket
4 x 7
4 x 12,6
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 36
17 ECDIS mode
ECDIS warning:
Be aware that use of the backlight, brightness or contrast controls in ECDIS mode may inhibit
visibility of information particularly at night!
See document no. 04924-000 for ECDIS protocol details.
18 Dura Communication protocol
See document 04924-000 for protocol details.
19 Compass safe distance
Test object / condition
Minimum Compass safe
distance [cm]
(5.4°/H deviation or a
horizontal magnetic flux of
0.094µT)
Minimum Compass safe
distance [cm]
(18°/H deviation or a horizontal
magnetic flux of 0.313µT)
DuraMON 26 WS
160
110
DuraMON 26 WS SL
160
110
DuraMON 26 WS LED
225
135
DuraMON 27 WS ECDIS
180
110
20 Power Consumption
Test object / condition
Ptyp [W]
Pmax [W]
DuraMON 26 WS
125
-
DuraMON 26 WS SL
125
-
DuraMON 26 WS LED
65
-
DuraMON 27 WS ECDIS
30
45
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 37
21 In rush current
Test object / condition
115 [VAC]
230 [VAC]
[Atyp]
[Amax]
[Atyp]
[Amax]
DuraMON 26 WS
30
35
65
70
DuraMON 26 WS SL
30
35
65
70
DuraMON 26 WS LED
30
35
65
70
DuraMON 27 WS ECDIS
- - -
100
22 Troubleshooting
Problem
Cause
Solutions
No picture on display
Backlight level set to minimum
Increase backlight
Monitor turned off
Turn on the monitor
No input signal present
Apply signal
No power cord connected
Apply power
Buttons on front doesn’t work
Unit in ECDIS mode
Press Menu + Enter to unlock
the monitor
No power cord connected
Apply power
Keypad defect
Please do not try to open the
unit. Send it to ISIC A/S for
repair.
The unit smells burned / smoke is
coming from the unit
There might be something
burned inside
Please do not try to open the
unit. Send it to ISIC A/S for
repair.
23 Servicing the unit
In case that the unit still fails after following the troubleshooting send the unit to ISIC for repair. There
are no user serviceable parts inside and to ensure ECDIS compliance the monitor has to be
recalibrated at ISIC.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 38
24 Terms, Acronyms and abbreviations
Brill Brilliance of the display (backlight level)
Communication protocol:
Use a serial link to control various settings in the monitor
DVI:
Digital Visual Interface
ECDIS:
FW:
GTG:
IF:
Electronic Chart Display and Information System
Firmware
Grey to Grey
Interface card
IP20:
International Protection Rating (protected against objects with
a size larger than 12.5mm)
IP65:
International Protection Rating (dust tight and protected
against water jerks)
OSD:
On Screen Display
TBD:
To be defined
VGA:
Video Graphics Array
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 39
25 ISIC info / Support
In case you have inquiries or problems with your DuraMON WS, you have a number of possibilities to
get support.
Company name: ISIC A/S
Head office: Edwin Rahrs Vej 54
DK – 8220 Brabrand
Denmark
Shipping address: Holmstrupgaardvej 5
DK-8220 Brabrand
Denmark
Telephone: +45 70 20 70 77
Fax: +45 70 20 79 76
Mail: mail@isic-systems.com
www: www.isic-systems.com
VAT number: DK 16 70 45 39
Bank Name/Address: Handelsbanken A/S
Havneholmen 29
DK – 1561 København V
Denmark
Bank Code: 0892
SWIFT: HANDDKKK
IBAN for DKK: DK53 0892 0001 0159 69
IBAN for EUR: DK48 0892 0003 0026 19
IBAN for USD: DK26 0892 0003 0026 27
Contacts:
RFQ’s: By fax to +45 70 20 79 76
By mail to sales@isic-systems.com
Orders: By fax to +45 70 20 79 76
By mail to orders@isic-systems.com
Support: Via homepage www.isic-systems.com under aftersales
By mail to service@isic-systems.com
During office-hours (Mo-Fr: CET 0800 - 1600) at +45 70 20 70 77
Service: Before shipment for service Request Return Material Authorization number
at homepage www.isic-systems.com under RMA
By mail to service@isic-systems.com
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 40
26 Revision history
Rev A
July 2011
First release
Rev B
Dec 2013
DuraMON27WS ECDIS added
DuraMON26WS SL added
Optional connections added to chapter 3
Appendix A update
Appendix B and C added
Rev C
Jan 2014
DuraMON26WS LED added
Bracket outline added
Rev D
Feb 2014
Mechanical outline for DuraMON26WS SL and DuraMON26WS LED updated
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 41
27 Appendix A: Pixel policy
ISO 9241-307:2008 guidelines for LCD pixel defects
Introduction
TFT displays consist of a set number of pixels. Each pixel consists of 3 sub-pixels also called dots (one red,
one blue and one green). Every sub-pixel is addressed by its own transistor. As a result, the manufacturing
of glass substrate is very complex.
Due to the nature of this manufacturing process, occasional defects can occur. Pixel defects or failures
cannot be fixed or repaired and may occur at any stage during the service life of the TFT display.
To regulate the acceptability of defects and protect the end user, ISIC A/S complies with the ISO 9241307:2008 standard. This standard recommends how many defects are considered acceptable in a display,
before it should be replaced within the terms of the warranty.
Monitor classification
ISO 9241-307:2008
Allowed defects per type per million pixels
Defect classes
Pixel defects
Cluster defect
Type 1
Type 2
Type 3 total
(2xN3a + N3b)
Type 1
Type 2
Type 3
Class: 0
0 0 0 0 0
0
Class: I
1 1 5 0 0 0 Class: II
2 2 10 0 0 1 Class: III
5
15
100 0 0
5
ISIC TFT monitors comply with ISO 9241-307:2008 Class II.
Special agreements about other classifications can be made between ISIC A/S and the customer.
Measurement method/monitoring conditions for pixel defects
In compliance with the ISO-9241-307:2008 standard, the following conditions are observed:
Final check for pixel fault undertaken right after burn-in, i.e. with pre-heating of the display.
Surrounding temperature 25ºC ± 5ºC
Relative air humidity 40–70%
Pixel definition
Every pixel consists of three sub-pixels/dots (red, blue, green).
Every sub-pixel has its own transistor.
The three sub-pixels/dots must be considered as one unit.
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 42
Pixel
Pixel defect type 1 Pixel constantly lit Pixel defect type 2 Pixel constantly dark
Pixel defect type 3a Pixel defect type 3b
Sub-pixel/dot (red, blue, green) constantly lit Sub-pixel/dot (red, blue, green) constantly dark
Cluster
A cluster consists of 5 x 5 pixels.
Cluster pixel defect type 1 Cluster pixel defect type 2
Pixels in a cluster area constantly lit Pixels in a cluster area constantly dark
Cluster pixel defect type 3a Cluster pixel defect type 3b
Sub-pixels/dots in a cluster area constantly lit Sub-pixels/dots in a cluster area constantly dark
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 43
Pixel faults accepted by ISIC A/S
The maximum number of pixel faults that is considered acceptable at different screen resolutions is shown in
the table below.
This is the native resolution and not the resolution as adjusted by user.
Class II
Allowable number of pixel faults in monitor applications
Screen
type
Native
resolution
Number of
pixels
Pixel defect
type 1
Pixel defect
type 2
Pixel defect
Type 3 total
(2xN3a + N3b)
Cluster
defect type
1 and 2
Cluster
defect
type 3
XGA
1024x768
768,432
1 1 7 0 0
SXGA
1280x1024
1,310,720
2 2 13
0
1
UXGA
1600x1200
1,920,000
3 3 19 0 1
FHD
1920x1080
2,073,600
4 4 20
0
2
WUXGA
1920x1200
2,304,000
4 4 23
0
2
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 44
28 Appendix B: Latest firmware versions
DuraMON 26 WS / SL
OSD FW 05316-000 REV C : IF FW 04837-000 REV K
OSD FW 05316-001 REV C : IF FW 04837-101 REV A
OSD FW 05316-003 REV G : IF FW 04837-000 REV K
OSD FW 05316-102 REV B : IF FW 04837-101 REV A
DuraMON 26 WS LED
OSD FW 05316-100 REV A : IF FW 04837-001 REV A
DuraMON 27 WS ECDIS
OSD FW 06078-000 REV A : IF FW 04837-001 REV A
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 45
29 Appendix C: Declaration of Conformity
User Reference Manual – DuraMON-WS series
PN: 05435-000 Rev D Page 46
Edwin Rahrs Vej 54
DK-8220 Brabrand
Denmark
Web: http://www.isic-systems.com
Email: service@isic-systems.com
Loading...
