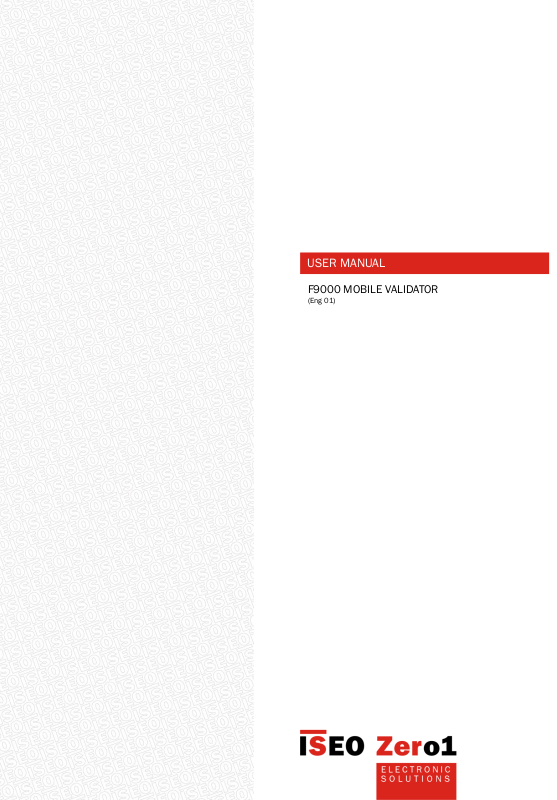

USER MANUAL

F9000 MOBILE VALIDATOR

(Eng 01)

SIRIO

How to use this manual

How to use this manual

Thanks for choosing this innovative ISEO product.
This user manual was compiled to offer a guide on the installation of SIRIO.
For the installation of the devices, set-up of the opening and other operations not described herein, refer to the installation

and configuration manuals, available in the download area of ISEO Zero1’s website, at:

www.iseozero1.com
The installation, initial set-up and changes to the setting, require the intervention of qualified staff, properly trained by

ISEO Zero1.

•Read this manual prior to use the device in order to ensure a safe and proper use

•Preserve this manual as future reference

Informative icons

Please familiarise with the icons below, for an easy reading of the manual:

Information on copyright

The rights concerning all technologies and products which are part of this device, belong to the relative holders.

Warning: it indicates situations that could cause harm to people or animals

Be careful: it indicates situations that could cause damages to the device or other equipment

Note: it indicates notes, suggestions and additional information

SIRIO

Sezione

Install the F9000 Mobile app from this site: app.iseo.com

Before to use this app, you have to be sure that the bluetooth is enabled on your mobile device.

F9000 Mobile – Configuration

When you open the app, you see this page.

To set the configuration push the «Info» button.

This two images shows you the status of the

internet connection (on the left) and the bluetooth
connection with the F9000 Mobile Validator (on the
right).

If the background color is:

DARK GRAY device connected
BLUE an operation is in progress
RED device unconnected

F9000 Mobile – Install the app

SIRIO

Sezione

On this page you can see all the configuration

parameters of the F9000 Mobile app.

If you want to change these parameters you have to

push the «gear» button.

By default the app understand if the linked device
is an V1 or V2.
In that example, the F9000 Mobile Validator has a
V1 firmware.

Set the IP Address and Port defined on the Ethernet
Gateway (see its configuration) if you use the
device in your network.
Otherwise you have to set a public IP Address and
Port reachable from the outside of your network.
You can ask it to your network administrator.

Push the button «major» to search the F9000
Mobile Validator.

SIRIO

Sezione

This function is used when you want update the
F9000 Mobile Validator.

Select SCAN to find your F9000 Mobile Validator.

Select the right Mac Address (read it on the label on
the bottom of the device).

If pairing failed, before training again, remove the
device from the bluetooth list (if exist) and then
switch off and switch on the bluetooth.

Pairing

SIRIO

Sezione

This function is used when you want update the
F9000 Mobile Validator.

When the F9000 Mobile Validator is in «Firmware
Update Mode» you can use IseoUpdater to update
the firmware.

The firmware code are:

MH0Z3xxx (V1)

MH10Pxxx (V2)

where «xxx» are the release of the firmware.

Firmware update

SIRIO

Sezione

After the configuration, get back to the first page.

Follow the instructions to validate the CSF Key.

F9000 Mobile – Use
