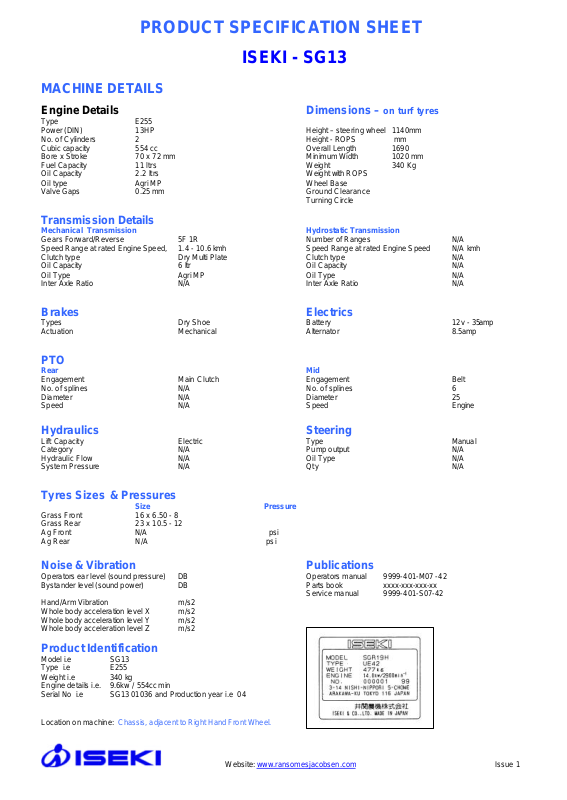

PRODUCT SPECIFICATION SHEET

ISEKI - SG13

MACHINE DETAILS

Engine Details Dimensions – on turf tyres

Type E255
Power (DIN) 13HP Height – steering wheel 1140mm
No. of Cylinders 2 Height - ROPS mm
Cubic capacity 554 cc Overall Length 1690
Bore x Stroke 70 x 72 mm Minimum Width 1020 mm
Fuel Capacity 11 ltrs Weight 340 Kg
Oil Capacity 2.2 ltrs Weight with ROPS
Oil type Agri MP Wheel Base
Valve Gaps 0.25 mm Ground Clearance
Turning Circle

Transmission Details

Mechanical Transmission Hydrostatic Transmission

Gears Forward/Reverse 5F 1R Number of Ranges N/A
Speed Range at rated Engine Speed, 1.4 - 10.6 kmh Speed Range at rated Engine Speed N/A kmh
Clutch type Dry Multi Plate Clutch type N/A
Oil Capacity 6 ltr Oil Capacity N/A
Oil Type Agri MP Oil Type N/A
Inter Axle Ratio N/A Inter Axle Ratio N/A

Brakes Electrics

Types Dry Shoe Battery 12v - 35amp
Actuation Mechanical Alternator 8.5amp

PTO

Rear Mid

Engagement Main Clutch Engagement Belt
No. of splines N/A No. of splines 6
Diameter N/A Diameter 25
Speed N/A Speed Engine

Hydraulics Steering

Lift Capacity Electric Type Manual
Category N/A Pump output N/A
Hydraulic Flow N/A Oil Type N/A
System Pressure N/A Qty N/A

Tyres Sizes & Pressures

Size Pressure

Grass Front 16 x 6.50 - 8
Grass Rear 23 x 10.5 - 12
Ag Front N/A psi
Ag Rear N/A psi

Noise & Vibration Publications

Operators ear level (sound pressure) DB Operators manual 9999-401-M07 -42
Bystander level (sound power) DB Parts book xxxx-xxx-xxx-xx
Service manual 9999-401-S07 -42
Hand/Arm Vibration m/s2
Whole body acceleration level X m/s2
Whole body acceleration level Y m/s2
Whole body acceleration level Z m/s2

Product Identification

Model i.e SG13
Type i.e E255
Weight i.e 340 kg
Engine details i.e. 9.6kw / 554 cc min
Serial No i.e SG13 01036 and Production year i.e 04

Location on machine: Chassis, adjacent to Right Hand Front Wheel.

Website: www.ransomesjacobsen.com Issue 1
