Dear ISE customer!
Welcome to the family of ISE customers.
We hope that you will have many years of use from your new
machine.
The machine has many special functions. To ensure that you
get the most out of these functions, we recommend that you
read the operating instructions before using the machine.
The operating instructions contain information on how to
avoid damaging the environment.
Operating Instructions
Washing Machine
ISEW1607W
4
Before using your machine for
the first time
4Transport protection
4Packing material
4Washer door
4Checking water hardness
5Safety instructions
5General
5Installation
5Overflow guard function
5Transport/Winter storage
5Recycling
6Child safety
6Keep an eye on children!
7
Description of the washing
machine
7Detergent compartment
8Advice and tips before washing
8Sorting your laundry
8Clothing
8Laundry labels
8Laundry label symbols
8Coloured cotton
8Unbleached linen
9Wool
9Rayon fibres and synthetic fibres
9Reducing allergic reactions
9Save time and energy
9High water level
9Economy and efficiency
9Detergents
9Dyeing fabrics
11Washing
11Sort your laundry.
11Turn on the main power switch
11
Open the washer door and load
the washing
11
Add detergent and fabric softener,
as required
12Select the programme
15Select options
17
Close the washer door and press
the Start/Stop button
17Once the program has finished
18Settings
18
You can change the following
settings:
18Door opening
18Extra rinses
19Care and cleaning
19
Cleaning the trap and the drainage
pump
19
Cleaning the detergent
compartment
19
Cleaning the outside of the
machine
20
Cleaning the inside of the machine
to avoid unpleasant smells
21Rinse holes under the agitator
21If you have hard water
22Troubleshooting
22The washer door will not open
22The machine will not start
23Error messages
24Technical information
24Technical data
24Information for test institute
25Transport protection
2
Contents
26Installation
26Positioning the washing machine
26Adjusting the feet
26Connection to water supply
27Drainage connection
27Electrical installation
28Service
28
Before contacting the service
division
32Quick guide
3
Contents
Transport protection
Remove any transport protection devices before
installing the machine. See the "Transport
protection" chapter.
Packing material
Please sort waste materials in accordance with
local guidelines.
Washer door
•
The washer door cannot be opened until the
machine is connected to the electricity supply.
•
To open the door manually, see "The washer
door will not open" in the "Troubleshooting"
chapter.
•
The machine cannot be started when the door
is open.
•
To open the washer door while a programme
is running, see "Close the door and press the
Start/Stop button" in the "Washing" chapter.
Checking water hardness
The quantity of detergent needed depends,
amongst other things, on how hard the water is.
See the detergent pack for details. Phone your
local water company to check the water hardness
in your area.
Note!
Each machine is tested before leaving the
factory. A small amount of water may remain in
the drain pump, though this does not affect
quality or damage the machine.
See Quick guide on the last page
4
Before using your machine for the first time
General
•
Read the operating instructions and keep them
in a safe place.
•
Installation of water and electricity, if required,
should be carried out by a qualified
professional.
•
The machine should only be used for washing
items as described in these instructions. It is
not intended for dry cleaning.
•
Use only detergent intended for machine
washing!
•
Remove any transport protection devices
before using the machine. See the "Transport
protection" chapter.
•
Repairs and maintenance relating to safety or
performance must be carried out by a qualified
professional.
•
Damaged mains cables must only be replaced
by a qualified electrician.
•
The machine is not designed to be used by
persons (even children) that are physically or
mentally handicapped or lack experience and
knowledge. Such persons must receive
instruction in how to use the machine from the
person responsible for their safety.
•
Children must be watched to ensure they do
not play with the machine.
•
In the enclosed plastic bag you will find a tool
for opening the washer door in emergencies.
Installation
See the "Installation" chapter.
Overflow guard function
If the machine’s water level rises above the normal
level, the overflow guard function begins to pump
water out and shuts off the water intake. If the
water level has not dropped within 60 seconds,
the program is terminated.
Transport/Winter storage
If the machine is to be transported or stored in
unheated premises where the temperature can
fall below freezing, do as follows:
•
Empty the filter and the drainage pump. See
the "Care and cleaning" chapter.
•
Shut off the water to the washing machine,
loosen the supply hose to the intake valve and
let the water run out from the valve and hose.
•
After emptying the pump, a small amount of
water may remain in the machine. This does
not affect quality or damage the machine.
Recycling
This machine is manufactured and labelled for
recycling. In order to prevent injuries, the machine
must be made unusable once the decision has
been taken to dispose of it. Contact your local
authority for information about where and how
your machine can be recycled correctly.
5
Safety instructions
Keep an eye on children!
•
Always close the washer door and start the
programme immediately after you have added
detergent.
•
Do not allow small children to use or play with
the washing machine.
•
Store detergent and fabric softener out of the
reach of children.
6
Child safety
1 2 3
4
5,6 7
1.
Main power switch
2.
Detergent compartment
3.
Programme panel
4.
Type plate (on the inside of the washer door)
5.
Drainage pump cover
6.
Drainage pump (behind hatch)
7.
Washer door
Detergent compartment
1.
Pre-wash
2.
Main wash
3.
Fabric softener
1 2 3
7
Description of the washing machine
Here are some tips that may help you before
washing.
Sorting your laundry
Sort items according to:
•
how soiled they are
•
colour
•
material
Clothing
1.
Do up zips and close Velcro straps so that they
don’t harm fabrics.
2.
New coloured items may contain excess dye
and should therefore be washed separately
the first few times.
3.
Turn delicate items inside out. This reduces
the risk of burling and fading.
4.
Empty pockets and wash them inside out if
possible.
Laundry labels
Look at the item's laundry label. The table below
shows suitable wash programmes for different
materials and wash loads. Using modern washing
machines and detergents, for example compact
detergents, you can usually wash at lower
temperatures. It is a good idea to use trial and
error to find out what produces the best results.
Laundry label symbols
Examples of washing instructions and recommended programmes. Always follow the washing instructions
for each garment.
LoadProgramMaterialLaundry labels
1/1 drumColour/White 60°C to 95°CCotton, linen, white and light-coloured items.
1/1 drumQuick 60°CCotton, linen, cotton/polyester. Light and dark-
coloured garments.
1/1 drumSynthetics 40°CPolyester, polyamide, elastane, acrylic. Light
and dark-coloured garments.
1/2 drumEasy Care 40°CAcrylic, viscose, modal, acetate.
1/3 drumSynthetics 30°CSilk and very delicate items
1/3 drumWool/hand wash 30°C to 40°CWool and other very delicate garments
Coloured cotton
Coloured cotton items with the washing instruction
60°C should be washed at 60°C for the first time
in order to remove any excess dye. If you do not
do so, there is a risk that the colour will run. Use
detergent without bleach in order to preserve the
colour of the fabric.
Unbleached linen
Unbleached linen fabrics should be washed at
60°C, using detergent containing no bleach or
optical whiteners. Heavily-soiled linen can
occasionally be washed at higher temperatures,
but not too often because the heat can destroy
the linen’s shine and strength.
8
Advice and tips before washing
Wool
These fabrics are labelled either machine wash
or hand wash. The Wool/hand wash programme
is at least as gentle as washing by hand.
Wool is especially sensitive to processes such as
washing.
If you do not wish to spin dry, you can squeeze
out the water using terry towels. In this case select
No spin.
To find out how to choose this setting, see the
"Washing" chapter. However, most garments can
withstand a short spin. Choose a short spin by
selecting a spin speed of 800 rpm or less.
Rayon fibres and synthetic fibres
Materials made of rayon fibres, such as viscose,
and some synthetic fibres are very delicate and
require much space so as not to crease. Only half
fill the drum when washing and choose a spin
speed of 800 rpm or lower.
Note!
Viscose and acetates are fragile when wet.
Reducing allergic reactions
The washing machine has a Super Rinse option.
Use this for people with sensitive skin, such as
those with allergies and small children.
Save time and energy
Use the Colour/White programme to save time
and energy. This programme has a shorter main
wash than Normal, but is often sufficient for lightly
soiled washing.
High water level
If you want more water for the main wash and
rinses, you can use the High water level option.
High water level is used automatically in the
Wool/Hand programme.
Economy and efficiency
You can save a lot of energy by not using higher
temperature programs than necessary.
•
Select Quick if you just need to freshen up
shirts or exercise clothes, for example. This
will save both water and energy.
•
If you select a fast spin speed, this reduces
energy consumption when drying in a tumble
dryer or drying cabinet.
•
Always wash with a full load when using the
Heavy, Colour/White and Normal programmes.
•
Avoid pre-washing. Modern machines and
detergents clean effectively without
pre-washing. Pre-washing is only necessary
for heavily soiled washing.
Detergents
Eco-labelled detergents are less harmful to the
environment.
Detergent overdosing does not give better
washing results; it merely causes a greater impact
on the environment.
Try to use less detergent, and increase only if you
are not satisfied with the results.
Dyeing fabrics
If you want to dye fabrics in the machine, select
the Colour/White programme with the Super Rinse
option. Select temperature according to the dye
manufacturer’s recommendations.
Choose a low spin speed if the fabric to be dyed
is a blended material such as
polyester/cotton.
Note!
Add the dye directly to the washing drum – not
to the detergent compartment. After dyeing, you
should run the machine empty using the same
program. Use the normal amount of detergent.
9
Advice and tips before washing
Note!
Due to environmental concerns, we discourage
the use of strong chemicals.
When using agents for bleaching or stain
removal, there is a risk of rust (corrosion) and
discolouration of the machine.
10
Advice and tips before washing
1
Sort your laundry.
See the "Advice and Tips before washing"
section.
Place underwired bras in a laundry net.
Empty pockets. Coins, nails and the like can
cause damage to the machine and fabrics. See
the "Advice and Tips" section before washing.
2
Turn on the main power switch
3
Open the washer door and load
the washing
If the washer door is closed, press the Door
opening button (key symbol). The door opens
once all water has drained from the machine.
Load the washing. The wash programme chart
shows how much washing can be washed with
each programme.
4
Add detergent and fabric
softener, as required
The detergent packaging will have
recommendations for how much detergent you
should use. The machine holds 8kg of washing.
If you only have a small amount of laundry in the
machine, you can reduce the amount of detergent
used.
Powder detergent
Pour the powder into the compartment for the
main wash, and pre-wash as well if desired.
Liquid detergent
When using liquid detergent, follow the detergent
manufacturer’s recommendations. We
recommend always using a wash ball with very
thick liquid detergent.
Wash ball or net
If you use a wash ball or net, place it directly in
the drum and select a programme without
pre-wash.
Note!
Detergent overdosing does not give better
washing results; it merely causes a greater
impact on the environment.
Try using less detergent, and increase only if
you are not satisfied with the results.
Fabric softener
Pour the fabric softener into the compartment with
the symbol. Follow the recommendations on
the fabric softener packaging.
Note!
Do not fill above the compartment’s maximum
fill level. Otherwise fabric softener will run in too
early, which impairs the washing effect.
11
Washing
5
Select the programme
Temperature
Spin
Delayed Start
Super rinse
Door opening
Selector
Main power switch
Display
Super wash
High water level
Start/Stop
You select a programme by turning the programme selector. An LED lights up beside the selected
programme and the estimated programme time is shown in the display. The programme time is based
on the time last taken by the same programme. Use the option buttons to select any options.
1. Auto
This program automatically adjusts the length of
the main wash and the number of rinses to the
amount of laundry loaded in the machine.
2. Heavy
Programme for heavily soiled laundry, with dirt
that needs to be fully dissolved before the main
wash. A pre-wash is used to do this. You can
select the temperature freely, so follow the
washing instructions for each garment. The
highest temperature, 95°C, is suitable for very
heavily soiled laundry. The spin speed can be
selected freely. The machine adapts the
programme time and water consumption to the
load size.
3. Normal
Program for normally to heavily soiled laundry,
whites and colors. You can select the temperature
freely, so follow the washing instructions for each
garment. 60°C is a good temperature for heavily
soiled cotton garments, as well as for garments
worn next to the skin. Select 40°C if the laundry
is less soiled. The spin speed can be selected
freely. The machine adapts the program time and
water consumption to the load size.
4. Colour/White
A standard programme for lightly to moderately
soiled laundry. The temperature can be selected
freely, so follow the washing instructions for each
garment. Garments worn next to the skin ought
to be washed at 60°C. Very lightly soiled laundry
often comes clean already at 40°C. The spin
speed can be selected freely. The machine adapts
the programme time and water consumption to
the load size.
5. Quick
Fast program for laundry that just needs
freshening up. The program can be run at any
temperature, so follow the washing instructions
for each garment. The lower the selected
temperature, the shorter the program time.
Garments worn next to the skin ought to be
washed at 60°C. The spin speed can be selected
freely.
12
Washing
6. Easy Care
Programme for blended materials, permanent
press shirts and functional sports clothing. The
programme has a high water level and as such is
also suitable for cushions, quilted jackets and the
like. Read the washing instructions carefully and
remember, for example, that fabric softener must
not be used with the membranes found in some
outer garments. A washing temperature up to
60°C and a spin speed up to 1200 rpm can be
selected.
7. Synthetics
Programme for delicate fabrics made of synthetic
fibres, blended materials or silk. The maximum
temperature is 60°C, but follow the washing
instructions for each garment. Many synthetics
will come clean at 40°C. Garments worn next to
the skin ought to be washed at 60°C. The
maximum spin speed is 800 rpm.
8. Wool/hand wash
A gentle laundry programme for wool, silk and
garments that should be washed by hand. The
highest temperature is 30°C. This programme has
a short spin. The maximum spin speed is 800 rpm.
9. Rinse
This program performs one cold rinse cycle +
spin. Suitable for laundry that just needs to be
dampened and for cleaning cloths and mops.
10. Spin & Drain
Used to just spin the wash. If you only want to
drain the machine of water, select the symbol
(no spin).
13
Washing
Programme chart
Programme time
(approx. hrs and
min.)
Energy consumption
(approx. kWh)
Water consumption
(approx. liter)
Max. load
(kg)
Spin Speed
rpm
Number of
RinsesTemp. °C
PrewashProgram
1. Auto
2:452.28581600595X
2. Heavy
2:401.27581600560X
2:151.26581600360
1)
3. Normal
1:570.676581600340
2)
1:401.260816003604. Colour/White
0:400.4254.016002405. Quick
1:200.5504.01200240
1)
6. Easy Care
1:200.4304.08003407. Synthetics
0:450.5702.78003308. Wool/hand wash
0:200.1154.0160019. Rinse
0:150.14.0160010. Spin & Drain
1) Test programme for cold water connection in accordance with EN 60456.
2) 40°C programme for test institutes. The 40°C option must be selected.
Information for test institute
The above table presents a few examples of the energy, water and time consumption of a few different programme settings. Consumption
can vary according to water pressure, water hardness, water supply temperature, room temperature, load weight and content, variations
in the power supply and selected options. In the examples provided here the rinse setting is set to Normal and no options are selected.
14
Washing
6
Select options
You can select options to adjust the wash programme to suit your own specific requirements. The
available options depend on the selected programme. If the option is available for the selected
programme, the symbols lights up when you press the button.
The machine will remember the options you select for each programme (with one exception – Delayed
Start). You can still change the selected options the next time you select the programme in question.
Temperature
•
Select the temperature by pressing the button until the LED by the desired temperature lights.
•
If you select Cold, the washing temperature will be the same as that of the water entering the machine.
For Wool/hand wash you cannot choose a temperature higher than 40°C. For Time program and Easy
Care the maximum temperature is 60°C.
You can select temperatures between 20°C and 95°C. For Wool/Hand you cannot choose a temperature
higher than 40°C, when choosing Synthetics or Easy Care the maximum temperature is 60°C.
Spin
•
Select the spin speed by pressing the button until the LED by the desired speed lights.
•
You can select speeds between 400 and 1600 rpm, No spin or No drain. The maximum spin speed
varies according to the programme selected, so check the LEDs around the button.
•
, means that the programme does not include a spin cycle and ends by draining.
•
No drain means that the programme does not include a spin cycle and ends with the water from
the final rinse still in the machine. The washing will remain covered by the water from the final rinse,
stopping it from getting creased. If you have selected "No drain", you must select the Spin & Drain
programme and the symbol (no spin) once the programme has ended to drain the water from the
machine before you open the washer door.
Delayed Start
When you select Delayed Start, the machine will start 1-24 hours after you press the Start/Stop button.
•
Press the button by the symbol to activate Delayed Start.
•
By pressing the button again you can delay the start in whole hours up to a maximum of 24 hours.
•
Press Start/Stop, and the machine counts down 1 hour at a time and starts after the selected delay.
If you change your mind and want to cancel Delayed Start, you must press and hold Start/Stop for three
seconds.
Important!
Remember to press the Start/Stop button to start the programme.
Note!
Make sure the detergent compartment is completely dry before you add detergent, otherwise there is
a risk that the detergent will clump before the machine starts.
15
Washing
Super Rinse
Use the Super Rinse option if you want to increase the number of rinses. The maximum number of rinses
is seven, and the number of rinses varies depending on the selected programme. Recommended for
persons with extremely sensitive skin and/or in areas with very soft water. This option cannot be selected
with Rinse or Spin & Drain.
•
Select Super Rinse by pressing the button by the symbol.
•
An LED next to the button lights when this option is activated.
High water level
High water level means that additional water is used during the main wash and rinse cycles. This option
can be used with all programmes except Wool/hand wash, Rinse and Spin & Drain.
•
Select High water level by pressing the button by the symbol.
•
An LED next to the button lights when this option is activated.
Note!
The machine takes in the additional water for the high water level about 15 minutes after the main wash
has started.
Super wash
Super wash can be selected to better dissolve difficult stains and heavy soiling on clothing. This option
adds a cold pre-wash and the wash time in cold water is extended by approximately six minutes. The
main wash time is also extended.
•
Select Super wash by pressing the button by the symbol.
•
An LED next to the button lights when this option is activated.
16
Washing
7
Close the washer door and
press the Start/Stop button
Time remaining
The time remaining is shown in hours and
minutes. Once a programme is selected, the
estimated programme time is displayed. This may
differ from time to time depending on the
temperature of the water entering the machine
and the size of the load. If the programme time is
longer than the previous wash with the same
programme, "0:01" will be displayed until the
programme finishes. This is normal! The next time
you use the programme under similar conditions,
the estimated programme time will be more
accurate.
To add or remove washing after the
program starts
If you want to add or remove items after the
programme has started, you can stop the
programme by pressing and holding the Door
opening button (key symbol) for three seconds.
The programme time flashes on the display. When
you restart the machine, add any extra detergent
needed and close the washer door. The machine
continues automatically from the point where the
programme was interrupted.
Stopping or changing a programme
You can stop a programme by pressing the
Start/Stop button for three seconds. To restart the
machine, select a new programme, add any extra
detergent needed and press the Start/Stop button.
Note!
Do not open the detergent compartment while
the machine is running.
8
Once the program has finished
Once the programme has finished, "End"
appears in the display.
The washer door opens automatically once the
programme has finished. If you want to deactivate
the automatic door opening function, see the
"Selecting settings" section.
•
Remove the load.
•
Turn off the main power switch, this will
save energy.
If you have small children or pets at home, close
the washer door once you have removed the
laundry.
Backlighting
Two minutes after the wash programme finishes
the display backlighting enters energy saving
mode.
17
Washing
You can change the following settings:
Automatic door opening.
Extra rinses.
Door opening
If you choose Automatic door opening the Washer door will open once the programme has finished.
1.
Turn off the machine using the main power switch.
2.
Press and hold the Super rinse button and then switch on the main power switch.
3.
"AdO" is shown on the display if Automatic door opening is activated or "AdF" if the option has not
been activated.
4.
Press the Super Rinse button to change the setting.
5.
Press the Door opening button to save the setting.
Extra rinses
1.
Turn off the machine using the main power switch.
2.
Press and hold the Delayed start button and then switch on the main power switch.
3.
The display shows "R O" if extra rinses (5 rinses) is activated or "R F" if it is not activated (3 rinses).
4.
Turn the programme selector to change the setting.
5.
Press the Door opening button to save the setting.
18
Settings
Cleaning the trap and the drainage
pump
The washing machine has a trap where smaller
objects such as coins and hairpins can collect.
To clean the trap and the drainage pump, do as
follows:
1.
Make sure the machine is empty of water and
switched off at the mains.
2.
Open the door.
3.
Unhook the drainage hose from the connector
inside the door and drain the water into a
suitable container, such as a bowl.
4.
Turn the cover anti-clockwise to open the
pump. Remove the cover.
5.
Remove any items and so forth from the pump
housing and the cover. Also check that the
pump blades right at the back rotate.
6.
Screw on the cover, replace the drainage hose
on the hatch pin and close the hatch.
Cleaning the detergent
compartment
Note!
Do not run the detergent compartment through
a dishwasher!
Pull the detergent compartment out as far as it
will go.
Lift the detergent compartment upwards and then
outwards to remove it from the machine.
Rinse the compartment and scrub it clean. The
fabric softener compartment cover can be
removed.
Cleaning the outside of the machine
Clean the outside of the machine and the program
panel with a mild cleaner. Do not use any
solvents, as these can damage the machine.
Note!
Do not hose down the machine with water!
19
Care and cleaning
Cleaning the inside of the machine
to avoid unpleasant smells
Modern detergents often allow clothes to be
washed at low temperatures. This means that
small deposits can build up in the machine. These,
in turn, may lead to unpleasant smells developing.
To avoid this, we recommend running a 95°C
wash programme once a month. When you do
this, use a small quantity of detergent. It is not
necessary to put any washing in the machine.
20
Care and cleaning
Rinse holes under the agitator
If you suspect that objects such as nails or paper
clips may have fallen into the wash drum, you
should check the space under the agitator. Such
objects can rust and cause spots on clothing.
Nails and other sharp objects can cause holes in
fabrics.
Do as follows:
1.
Insert a screwdriver or the like into the hole on
the agitator as illustrated and carefully pry to
the left.
2.
Use your other hand to grasp the agitator and
pull it towards you.
3.
Lift the agitator.
4.
Remove any objects.
5.
Place the agitator in the mounting hole with the
F-mark towards you. Ensure that all the agitator
fasteners are in their holes in the drum. Push
it in until it catches.
If you have hard water
If you live in an area with hard water (high
limescale content), a greyish-white coating may
form on the wash drum. To remove this coating,
empty about 20gram of citric acid into the wash
drum and run any 95°C programme. Repeat if
necessary.
21
Care and cleaning
The washer door will not open
1.
Check that the main power switch is on.
2.
Is there power? Check your home’s fuses
(circuit breakers). The washer door cannot be
opened with the door opening button (with the
key symbol) if power is off.
If nothing else works, the washer door can
be opened as follows:
Caution!
The door may only be opened manually if the
electric power is cut and the machine has
been drained of water.
A
Select the Spin & Drain programme and the
option with the symbol (no spin) to drain
the water from the machine. If this does not
work the machine must be drained
manually. See "Cleaning the trap and the
drainage pump" in the "Care and cleaning"
chapter.
If this does not work the machine must be
drained manually. See "Cleaning the trap
and the drainage pump" in the "Care and
cleaning" chapter.
B
Ensure that the main power switch is turned
off and that the plug has been removed from
the wall socket.
C
Take the emergency door opening tool and
place it in the gap on the right side of the
washer door lock. This tool is found in the
enclosed plastic bag.
D
Push the tool upwards to open the washer
door.
If in the future the washer door does not open
when the wash programme has finished, call the
service division.
The machine will not start
1.
Is the washer door properly closed? Push it
firmly.
2.
Is there power? Check your home’s fuses.
3.
Check that you have not selected Delayed
Start. To cancel Delayed Start, press the
Start/Stop button for three seconds.
22
Troubleshooting
Error messages
If an error occurs during the programme a
message is shown on the display. To exit the
message after taking measures, turn the machine
off and then back on.
The error messages that may be shown in the
display are:
F10 Overfilling
1.
Shut off the water tap.
2.
See "Drainage error".
F11 Drainage error
Check:
•
that no objects are stuck in the drainage hose
outlet.
•
that the drainage pump is not blocked by
foreign objects. Clean the pump. See the "Care
and cleaning" chapter.
•
that there are no kinks in the drainage hose.
After taking measures, run the Drain programme
or press the Door opening button (key symbol) to
empty the machine. If this does not resolve the
problem, call the service division.
F12 Water inlet fault
Check:
•
that the tap on the water pipe is open.
•
that the filter in the machine’s water intake is
not blocked.
Action:
1.
Shut off the water tap.
2.
Unscrew the hose.
3.
Clean the filter in the intake valve on the
machine.
4.
Screw the hose back on.
5.
Turn on the tap.
6.
Run the program again to check if the fault is
fixed.
7.
If this does not resolve the problem, call the
service division.
23
Troubleshooting
Technical data
850mmHeight:
595mmWidth:
585mmDepth:
73kgWeight:
60lCylinder volume:
8kgMax. washing capacity:
400-1600Spin speed (rpm):
See type plate.Rated power:
See type plate.Heater output:
0,1-1 MPa
1-10 kp/cm
2
10-100 N/cm
2
Water pressure:
Stainless steelWash drum and liquid compartment material:
Powder-coated and hot-galvanized sheet steel or
stainless steel.
Outer casing material:
1.5m pex pipeWater connection:
1.7m polypropylene hose 3/4 BSP connectionDrain:
Information for test institute
Energy declaration
EN 60456European test standard:
Colour/White 60°C, 8kg cottonWashing program:
Cold water 15°CConnection:
IEC-60704-2-4Test method for noise measurement:
< 0,3 WPower requirement when machine turned off
< 6,0 WPower requirement for Delayed Start
< 3,0 WPower requirement when programme finished
24
Technical information
Before the machine is used, the three transport
screws should be removed as shown below.
1.
Loosen and remove the screws.
2.
The enclosed plastic bag contains three plastic
plugs to fit in the empty screw holes.
Note!
If the machine is to be moved and transported,
the transport screws must be refitted to prevent
damage to the machine through shaking. If the
transport screws or plastic plugs have been lost
you can order new ones from your retailer.
DesignationArticle number
Screw80 882 77
Plastic plug80 884 67
Order three of each item!
25
Transport protection
Positioning the washing machine
The washing machine can be installed as a built-in
or freestanding unit. Position the machine so that
the electrical plug is easily accessible.
A. Built-in
The washing machine can be installed under a
counter top with a working height of 850-900 mm.
Leave a 5 mm space around the entire machine,
including between the rear edge of the top cover
and the wall behind it.
B. Freestanding
The washing machine can be positioned beside
or under a tumble dryer.

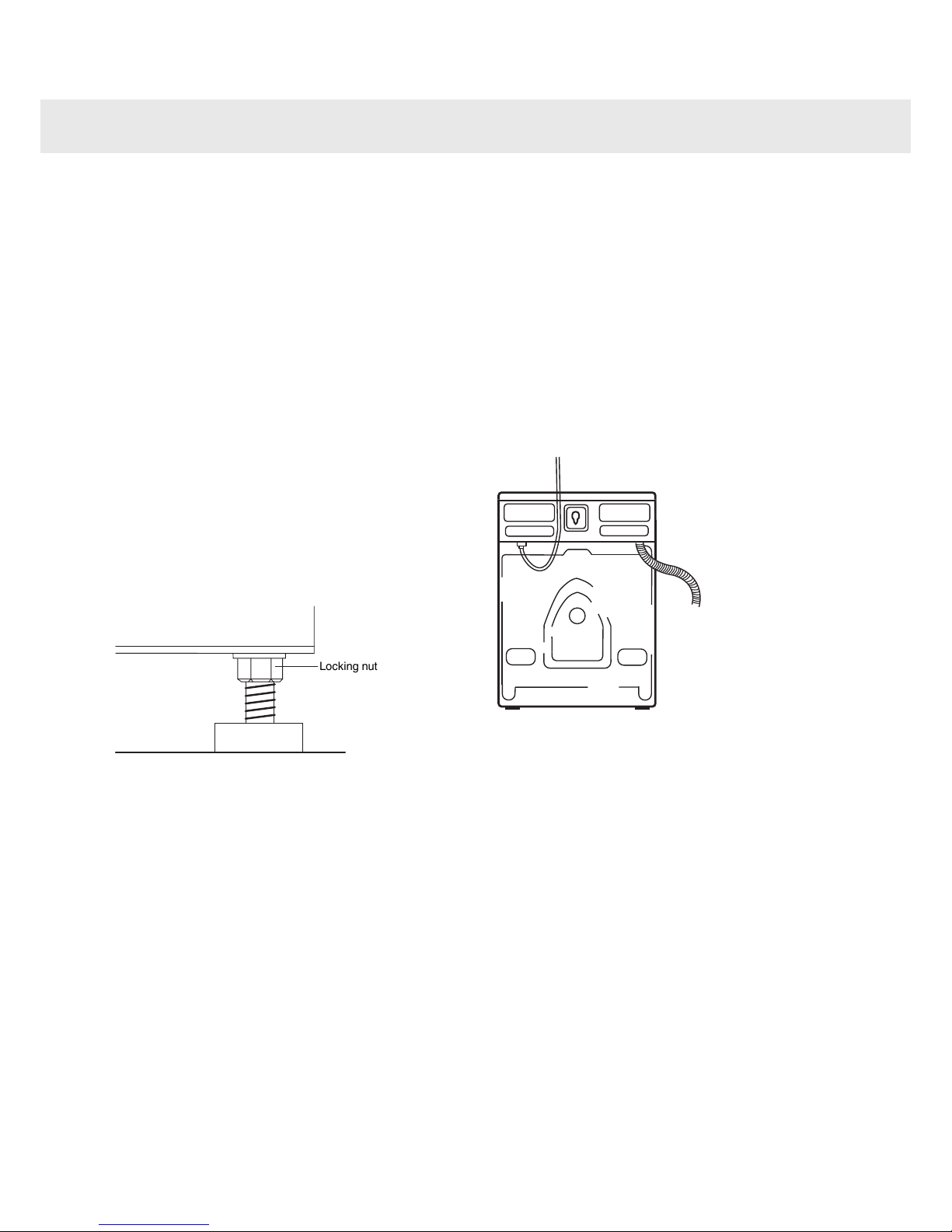

Adjusting the feet
Keep the noise that the machine produces to a
minimum by adjusting the feet so that the machine
is steady and balanced on the floor. Tighten the
lock nuts.
Locking nut
Connection to water supply
Water connection should be carried out by an
appropriately qualified person. Connect the
machine using the accompanying supply hose.
Water pressure should be 0.1–1MPa (approx.
1–10kp/cm2; 10–100N/cm2). There should be a
stopcock on the water pipe.
If the pipes are newly installed, it may be wise to
flush them through so that any dirt is washed
away. Otherwise, dirt can clog the filter in the
machine’s water intake and cut off the water
supply.
Use only the supply hose supplied with the
machine. Do not re-use old hoses or other loose
supply hoses.
26
Installation

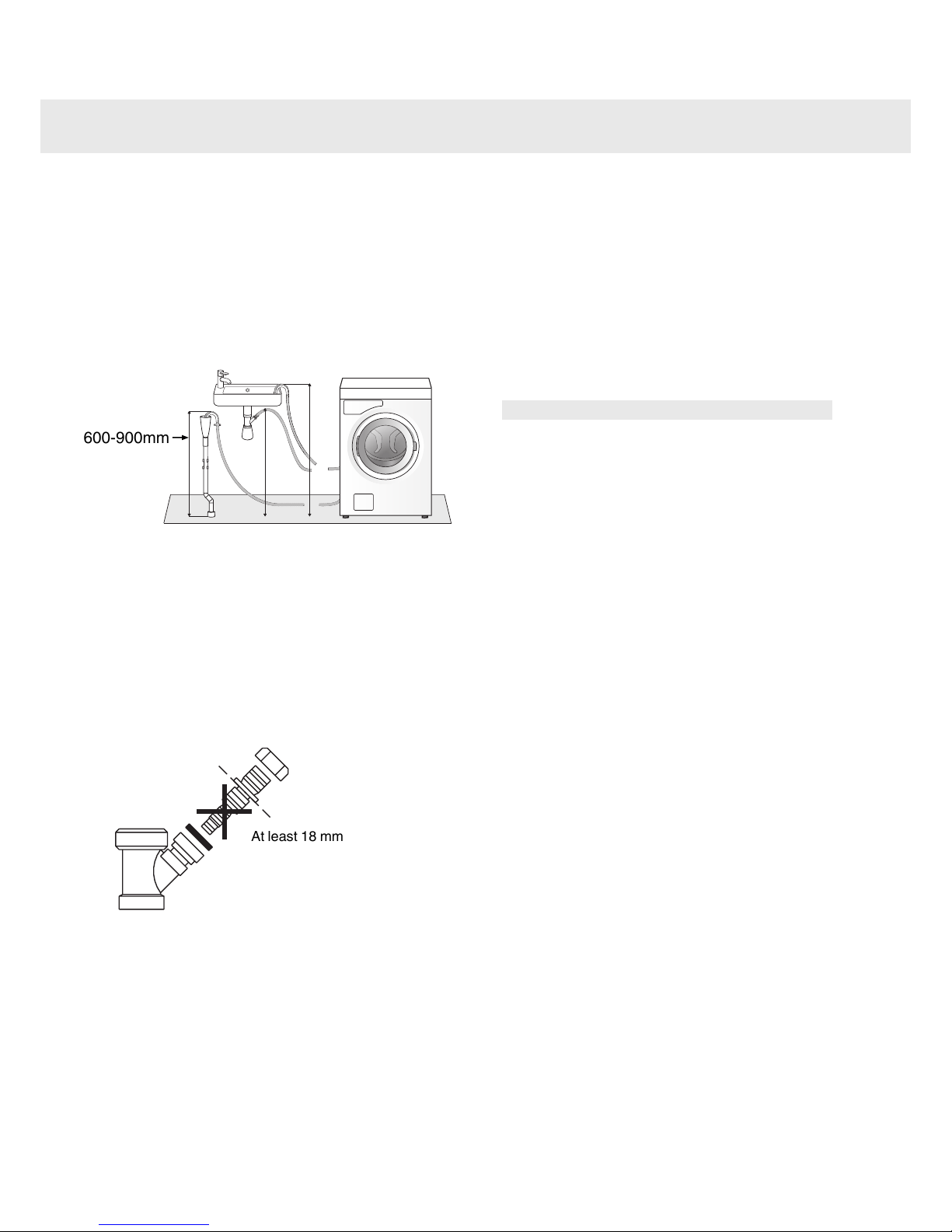

Drainage connection
The machine is supplied with a drainage hose
attached, which must be connected to a drain.
See the examples below. The height must be
600-900 mm above floor level.
The lower position (600 mm) is always preferable.
Ensure that the drainage hose has no kinks.
600-900mm
The machine can also be connected to the drain
via a spigot connection. In this case the hose
should also be 600-900 mm above the floor. The
internal diameter of the hole should be at least 18
mm.
•
Cut the nipple
•
Remove burrs from the hole.
See the illustration.
At least 18 mm
Electrical installation
Connect the machine by plugging it into an
earthed wall socket. The electrical wall socket
must be placed outside of the installation area to
be easily accessible.
Connection on delivery
The machine is supplied as 1-Phase, 220-230V,
50-60Hz, heat output 2000W and has a 10A plug.
Any residual current devices must be type A.
Note!
Repairs and maintenance relating to safety or
performance must be carried out by a qualified
professional.
27
Installation
Before contacting the service
division
Before you contact the service division, make sure
that you know the model designation, type
designation and serial number.
The model designation can be found on the panel.
The type designation and serial number can be
found on the type plate on the inside of the washer
door.
1
Type designation
Serial number (12 digits)
70.1
Model
designation
Type
plate
28
Service
29
Your notes
30
Your notes
31
Your notes
1
Washing
1.
Empty pockets and refasten zips.
2.
Read the item’s laundry label.
3.
Sorting laundry.
Note!
Place underwired bras in a laundry net.
2
Load the laundry
1.
Press the main power switch.
2.
If the washer door is closed, press the
Door opening button (key symbol) and
the door will open.
3.
Load the washing and close the washer
door.
3
Detergent compartment
1.
Pour detergent into the main wash
compartment, and pre-wash
compartment as well if required. Pour
fabric softener into the compartment on
the right with the -symbol.
2.
If you use liquid detergent, follow the
detergent manufacturer’s
recommendations.
4
Select the programme
1.
Select a programme by turning the
programme selector.
2.
Select any options and settings.
3.
Press the Start/Stop button.
5
Program finished
1.
The text "End" on the display indicates
that the wash programme has finished.
2.
The washer door opens automatically
once the programme has finished.
3.
Remove the load.
4.
Turn off the main power switch.
If you have small children or pets at home, close
the washer door once you have removed the
laundry.
Art. No.: 80 901 29. Rev. 01. We reserve the right to make changes.
Printed on environmentally friendly paper that meets the requirements of MIljöförbundet and Naturskyddsföreningen.
32
Quick guide
Loading...
