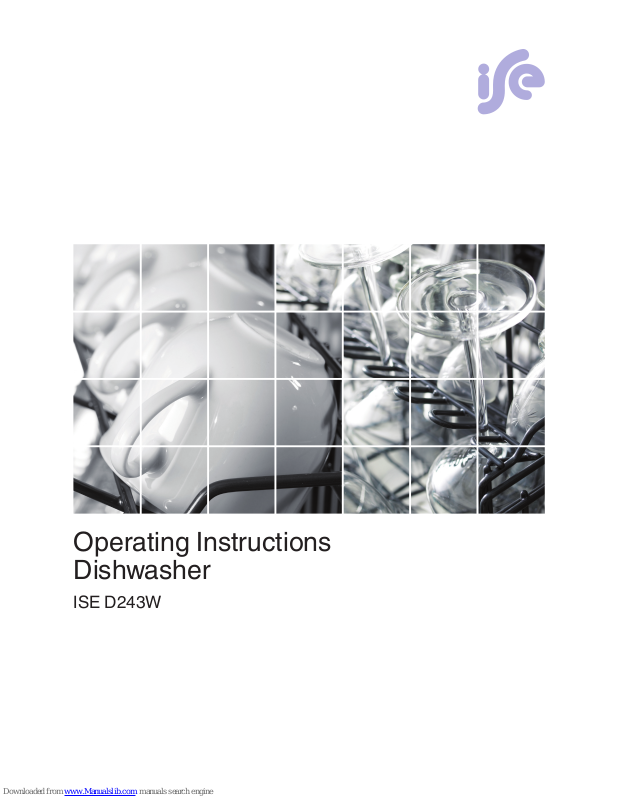

Operating Instructions
Dishwasher
ISE D243W
Dear ISE customer!
We hope that you will have many years of use from your new machine.
The machine has many features. To make the most of its functions, we
recommend that you read the operating instructions before using the
machine. The operating instructions include information on how you
can help protect the environment.
Operating Instructions
Dishwasher
D243W
3Before washing for the first time
3
Read the operating instructions
3
Be careful with certain materials
3
Checking water hardness
4Safety instructions
4
General
4
Installation
4
Winter storage/Transport
4
Overflow guard function
4
Cleaning
4
Packing material
4
Disposal
5Child safety
5
Child safety and dishwashing
5
Activate the child safety lock
5
Activate child lock (button lock)
6Dishwasher components
7Dishwasher baskets
9Front panel
10Dispenser
11Economic dishwashing
12Fragile dishes
13Dishwashing
13
Load the baskets correctly
13
Add detergent
14
Select the programme
16
Select options
17
After dishwashing
18Settings
21Time remaining
22Care and cleaning
25Rinse aid
26Salt
26
Top up with salt
27Error messages
28Troubleshooting
31Information for test institute
31
Energy labelling
31
Dosages during testing
31
Loading the dishwasher
32Technical information
32
Information on energy labelling
32
Technical data
33Installation
33
Safety instructions
34
Suggested machine installations
34
Adjust the height and slide the
dishwasher into place
35
Drainage connection
35
Connection to water supply
36
Electrical connection
36
Attaching sealing strip (to floor
plinth cover panel)
37Service
40Quick guide
2
Contents
Read the operating instructions
Read through the operating instructions before using
the dishwasher, especially the sections Safety
instructions, Child safety and Dishwashing.
Be careful with certain materials
Read the section Fragile dishes before dishwashing
porcelain with unglazed decoration or other utensils
made from plastic, wood or crystal that you value.
Checking water hardness
Contact the local waterworks to check the water
hardness in your area. This is important when
adjusting the water softener (see the section Settings).
Before you begin washing, you may also need to fill
up the salt (see the section Salt). Once you have
adjusted the water softener, use detergent and rinse
aid doses suitable for soft water.
3
Before washing for the first time
General
• Read the operating instructions and keep them in
a safe place!
• Never use the dishwasher for any purpose other
than that specified in these operating instructions.
• Do not load the dishwasher door or dishwasher
baskets with anything other than dishes.
• Never leave the dishwasher door open as
someone may trip on it.
• Use only dishwasher detergent!
• Place knives and other sharp items so that they
cannot harm anyone or damage the dishwasher.
• The machine is not designed to be used by
persons (even children) that are physically or
mentally handicapped or lack experience and
knowledge. Such persons must receive instruction
in how to use the machine from the person
responsible for their safety.
• Children must be watched to ensure they do not
play with the dishwasher.
• Damaged mains cables must only be replaced by
a qualified electrician.
• This dishwasher is for household or similar use,
such as:
- staff kitchens in shops, offices and other
workplaces.
- farms.
- for guests at hotels, motels and other types of
accommodation.
- bed & breakfast hotels.
• Never place dishes with solvent residues in the
dishwasher due to the risk of explosion. Nor may
dishes that contain ash, wax or lubricants be
washed in the dishwasher.
Installation
See the section Installation.
Winter storage/Transport
• Store the dishwasher where the temperature
remains above freezing.
• Avoid long transport distances in very cold
weather.
• Transport the dishwasher upright or laying on its
back.
Overflow guard function
The overflow protection starts pumping out the
machine and turns off the water supply if the water
level in the dishwasher exceeds the normal level. If
the overflow protection is triggered, turn off the water
supply and call the service division.
Cleaning
When cleaning the edge around the door, use only a
slightly damp cloth. Do not spray water around the
edge! Moisture can make its way into the lock, which
contains electrical components.
Packing material
Please sort waste materials in accordance with local
guidelines.
Disposal
• When the dishwasher has reached the end of its
service life and is to be disposed of, it should
immediately be made unusable. Pull out the power
cable and cut it as short as possible.
• The dishwasher is manufactured and labelled for
recycling.
• Contact your local authority for information about
where and how your dishwasher should be
correctly recycled.
4
Safety instructions
Child safety and dishwashing
• Use the knife stand for all long/sharp items.
• Always close the door and start the programme
immediately after you have added the detergent.
• Keep children away from the dishwasher when
the door is open. Some detergent may remain
inside!
• Do not allow children to use or play with the
dishwasher. Be especially vigilant when the door
is open.
WARNING!
Children must be supervised –
dishwasher detergent is corrosive!
Store detergent and rinse aid out of the reach of
children! If anyone swallows dishwasher detergent,
they should immediately drink one or two glasses of
milk or water. Do not attempt to induce vomiting.
Contact a doctor! If anyone gets dishwasher
detergent in their eyes, rinse (for at least 15 minutes)
with plenty of water.
Activate the child safety lock
(only certain models)
A child safety lock is fitted to prevent children from
opening the dishwasher door. To activate the child
safety lock, press in the door latch and use a
screwdriver to turn the screw slot (top left-hand
corner) to a vertical position. To open the door, you
must press the white plastic catch (illustrated below)
to the left while pressing the door latch up. Reset by
turning the screw slot back to a horizontal position.
Locked
Open
Activate child lock (button lock)
You can activate the child lock (button lock) to prevent
children from starting the dishwasher (see the section
Settings).
5
Child safety
5
6
7
6
8
9
10
11
1
2
3
4
Serial number plate7.Filters1.
Salt compartment8.Cutlery basket2.
Lower basket9.Detergent compartment3.
Rinse aid compartment10.Main power switch4.
Panel11.Upper basket5.
Spray arms6.
*Specifications may differ depending on the model and market.
6
Dishwasher components*
Upper basket
1. Wine glass shelf
2. Cup shelf
3. Knife guard
2
1
3
Lower basket
1
2
2
3
1
1. Fold-down plate support
2. Forward mount for plate support (used for plates
with a diameter greater than 25 cm)
3. Handle
Cutlery basket
a
c
b
*Specifications may differ depending on the model and market.
7
Dishwasher baskets*
Cutlery basket with lid
a
c
b
Positioning of cutlery basket lid (in upper basket)
The cutlery basket lid can be removed and used, for example, as an extra cutlery basket in the upper basket (see
below).
a
b
*Specifications may differ depending on the model and market.
8
Dishwasher baskets*
The panel is fitted with touch buttons with audible feedback (see the chapter Settings).
11
1
2 3 4 5 6
12 13
14
15 16
7 8 9 10
Rinse aid indicator9.Auto wash1.
TAB (3-in-1/all-in-one detergent)10.Heavy wash2.
Programme selector11.Normal wash3.
High temperature12.Eco wash4.
Long dry13.Quick wash5.
Delayed start14.Rinse & Hold6.
Start/Stop15.Child lock (button lock)7.
Display16.Salt indicator8.
NOTE!
• Keep the touch buttons clean and free from grease. Wipe them clean with a dry or slightly damp cloth. Never
use cleaners – they can scratch the surface. Use the main power switch to turn off the dishwasher before
cleaning the touch buttons to avoid activating any buttons unintentionally.
9
Front panel
1. Prewash detergent compartment
2. Main wash detergent compartment
3. Rinse aid compartment
4. Detergent compartment lid
5. Rinse aid compartment lid
1
2
4
5
3
10
Dispenser
Run programmes only with a full
load
Wait to run a programme until the dishwasher is full,
this way you save energy. Use the Rinse & Hold
programme to rinse the dishes if there are any
unpleasant odours while you wait for the dishwasher
to become fully loaded.
Run programmes at a lower
temperature
If the dishes are only slightly dirty, you can select a
lower temperature with certain programmes. See also
the section Select options in the chapter Dishwashing.
Select a programme with Short dry
To save energy, use Short dry. The drying result will
be better if, once the programme is finished, you leave
the door slightly open.
Do not rinse under running water
Simply scrape off large food particles before loading
the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Connect to cold water...
If you use oil or electricity to heat your home.
Connect to hot water (max. 70 °C)...
If you use district heating, solar power or geothermal
power to heat your home. Choosing a hot water
connection cuts programme times and reduces the
dishwasher's electricity consumption.
11
Economic dishwashing
Some cookware is not dishwasher safe. This can be
for several reasons. Some materials cannot withstand
strong heat, others can be damaged by dishwashing
detergent.
Fragile decoration
Porcelain with decoration on top of the glazing (the
items feel rough) should not be washed in a
dishwasher.
Crystal / Glass
Position items so that they do not touch each other
during the wash. Use the lowest possible wash
temperature and the shortest possible programme.
Select Short dry. Antique and very fragile items should
not be washed in a dishwasher.
Glass washed in a dishwasher at high temperatures
can gradually develop a grey film that cannot be
removed. Wash fragile glasses at a low temperature
and with a small amount of detergent.
Silver
Silver and stainless steel items should not come into
contact, as the silver can become discoloured.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such
cases, the handles may loosen.
Wood
Wooden items should only be washed in a dishwasher
if marked dishwasher safe.
Aluminium
Aluminium can lose its shine if washed in a
dishwasher. However, good quality aluminium pans
can be washed in a dishwasher, even if some of the
shine will be lost.
Plastic items
Avoid washing plastic items that cannot withstand
high temperatures.
12
Fragile dishes
Below are step-by-step instructions to help you
achieve the best possible dishwashing results.
1
Load the baskets correctly
Do not rinse dishes under running water before
loading them in the dishwasher. Simply scrape
off large food particles before loading the dishwasher.
See the section Fragile dishes if you want to wash
items that may be considered fragile.
Upper basket
Place glasses, cups, bowls, side plates and saucers
in the upper basket. Wine glasses are placed on the
wine glass shelf and knives are placed in the knife
stand on the right (if fitted).
NOTE!
All dirty surfaces should face inwards and
downwards!
Lower basket
Place plates, side plates, serving dishes, pots and
cutlery (in the cutlery basket) in the lower basket.
Lower the fold-down plate supports when washing
pots.
Cutlery basket
Place cutlery with the handles facing down, except
for knives, and spread them out as much as possible.
Ensure that spoons do not stack inside each other.
The cutlery basket is placed in the lower basket.
WARNING!
Knives and other pointed items must be placed with
the points down in the cutlery basket or horizontally
in other baskets.
Do not place cutlery made of different materials, such
as silver and stainless steel, in the same place (risk
of discolouration).
The cutlery basket has a fold-down section in the
middle for small items, or small shafts, such as electric
whisk attachments.
2
Check that the spray arms can
rotate freely
3
Add detergent
Detergent is added according to water
hardness.
Follow the instructions on the detergent packaging.
This dishwasher is fitted with a water softener, so use
detergent and rinse aid doses suitable for soft water.
Too much detergent can result in less effective
dishwashing and also entails greater environmental
impact.
Add the detergent to the detergent compartment.
There is one compartment for the prewash and one
for the main wash (see the section Dispenser). If
tablets are not used, add a small amount of the
detergent to the prewash compartment. Contact the
detergent manufacturer if you have any questions
about the detergent.
WARNING!
Children must be supervised – dishwasher detergent
is corrosive!
13
Dishwashing
NOTE!
Use only dishwasher detergent! Washing up liquid
must not be used as the foam that forms prevents
the dishwasher from operating effectively.
Dishwasher tablets
Halve the tablet if it is difficult to close the dispenser
lid. There is a risk that the detergent will not be
released properly if the lid is tight and will not open
correctly.
NOTE!
Dishwasher tablets are not recommended for short
programmes (less than 75 minutes). Use powder or
liquid dishwasher detergent instead.
3-in-1/ All-in-one detergent
Read through the directions for these products
carefully. If anything is unclear, contact the detergent
manufacturer.
4
Press the main power switch
and close the door
5
Select the programme
Press the Programme selector one or more
times until the desired programme symbol
lights.
Auto wash
The dishwasher can measure how dirty the dishes
are and adjust water consumption and temperature
accordingly. When newly installed, the programme
needs to be run five times before it is fully adapted
and can provide the best results.
Heavy wash
Programme for very dirty dishes, such as pans,
casserole dishes and oven dishes. If these dishes do
not completely fill the dishwasher, you can add plates
and the like.
Normal wash
Use to wash normally dirty dishes, and even dishes
with dried leftovers, such as plates, serving dishes,
cups, glasses and so on.
Eco wash
Use when you want to save energy. For normally dirty
dishes.
Quick wash
This programme is used for glasses and porcelain
that is slightly dirty, such as coffee cups.
Rinse & Hold
Used to rinse dishes while you wait for the dishwasher
to become fully loaded.
14
Dishwashing
Programme chart
Consumption values
1)
Final
rinse tem-
perature
(°C)
Numberofrinses
Main
wash (°C)
Pre-
washes
Op-
tions
Program
Hot water
3)
Cold water
2)
Water con-
sumption (liter)
Energy
(approx. kWh)
Wash time
(approx.
hours:minutes)
Energy
(approx. kWh)
Wash time
(approx.
hours:minutes)
13-260,7-1,01:40-2:401,3-1,61:50-2:50652-455-651-3-Auto wash
180,73:001,33:15603552-Heavy wash
110,72:351,02:55602600-
Normal wash
4)
201,02:201,62:30653652Normal wash
120,62:201,02:40552551-Eco wash
100,10:200,20:20-2300-Quick wash
30,010:060,010:06-1-0-Rinse & Hold
1) Consumption values vary depending on the water supply temperature, the ambient temperature, the size of the load, the selected options and more.
2) Connection to cold water, approx. 15 °C.
3) Connection to hot water, approx. 60 °C.
4) The energy label performance figures are based on this programme.
15
Dishwashing
6
Select options
To select an option, press one of the option
buttons. The indicator lamp for a button lights
when the option is activated. The available options
depend on the selected programme. Once you have
started the programme, the options you selected are
saved for the next time you use the same programme.
An exception is the Delayed start option.
High temperature
Activate this option for improved dishwashing results.
The machine then uses a higher temperature for the
main wash.
If you want to use the lower temperature, press so
that the indicator lamp turns off.
You can vary the temperature as shown below:
55 °C/ 70 °CHeavy wash:
60 °C/ 65 °CNormal wash:
30 °C/ 60 °CQuick wash:
55 °C/ 60 °CEco wash:
Long dry
A higher temperature in the final rinse and a longer
drying phase improves the drying result if you activate
the Long dry option. This causes a slight increase in
energy consumption. This option can be used with
all programmes except Auto wash.
If you want a programme with Short dry, press so that
the indicator lamp turns off.
Delayed start
When you select Delayed start, the dishwasher will
start 1-24 hours after you press the Start/Stop button.
1. Press the button once to activate Delayed start.
Press the button several times – or hold it in – to
set the desired number of hours.
2. Press Start/Stop and the dishwasher counts down
1 hour at a time and starts after the selected delay.
Press and hold Start/Stop for five seconds if you want
to cancel the Delayed start option.
NOTE!
Remember to press the Start/Stop button to start
the programme.
7
Press Start/Stop
The display flashes three times with the
remaining time to indicate that the programme
has started. Close the door properly, otherwise the
dishwasher will not start. The display indicates
if the door is open.
NOTE!
If the machine does not start within 2 minutes of the
last button press, the display returns to showing the
last programme run.
Stopping or changing a programme
In order not to accidently press a button and cancel
the current programme, you must press and hold
Start/Stop for five seconds if you want to change
programmes after starting the dishwasher. Add more
detergent if the lid of the detergent dispenser has
opened. Then choose a new programme and press
Start/Stop.
Do you want to add more dishes?
Open the door. The dishwasher stops automatically.
Add the dishes, close the door and the dishwasher
continues the programme.
If the dishwasher is turned off using the
main power switch or due to a power
failure
If the dishwashing programme was not finished, the
interrupted programme continues when power is
restored.
NOTE!
During drying, the programme is interrupted if the
power is cut or the door is open for more than 2
minutes.
16
Dishwashing
8
After dishwashing
Once the programme has finished, "End"
appears on the display.
A buzzer also sounds at the end of the programme.
See the section Settings, which describes how to
change this function.
Once the dishwasher has finished, it uses only
standby power. Turn off the dishwasher using the
main power switch if you want to completely cut the
power. Turn off the water supply valve after each use.
17
Dishwashing
Do as follows to open the settings menu:
Turn off the dishwasher using the main power switch. Wait about five seconds.1.
Then press the main power switch again. Wait until the numbers appear in the right-hand display
before continuing to the next step.
2.
Within five seconds, press and hold the Programme selector (wait for the audible signal confirming
the button press) and then immediately press the Long dry button without releasing the Programme
selector.
3.
+
Keep the buttons pressed until the symbols for the Auto wash and Rinse & Hold programmes start
to flash.
4.
TIP!
Be sure to press right on the symbols, so as not to inadvertently activate any other button. Try
again if you fail to open the settings menu the first time.
Press to save the set value and continue to the
next setting.
Current setting.
Current setting value.
Press to browse between setting values.
Display
You can now adjust the following settings:
DescriptionSettingsOptionsButton
press
You can activate the child lock (button lock) option
to prevent children from starting the dishwasher.
Press the High temperature and Long dry buttons
simultaneously to temporarily deactivate the button
lock when you want to start the dishwasher. The
button lock is automatically reactivated after 2
minutes.
Child lock
(button lock)
(Off)
(On)
Press Start/Stop to save the setting value and continue to the next setting.
If you do not want to change any other settings, keep pressing Start/Stop to step through the entire settings
menu.
18
Settings
DescriptionSettingsOptionsButton
press
The dishwasher uses a buzzer to indicate when a
programme is finished or when a fault has occurred.
Buzzer volume
(Off)
(Low)
(High)
Press Start/Stop to save the setting value and continue to the next setting.
This sound is used to confirm each button press.Operation volume
(Off)
(Low)
(High)
Press Start/Stop to save the setting value and continue to the next setting.
For adjusting the contrast of the display.LCD contrast
(Low)
(High)
Press Start/Stop to save the setting value and continue to the next setting.
Rinse aid dosage setting.Rinse aid
(Off)
(Low dosage)
(High dosage)
Press Start/Stop to save the setting value and continue to the next setting.
19
Settings
DescriptionSettingsOptionsButton
press
This option can be activated when using 3-in-1/allin-one detergents. The dishwashing programme
automatically adapts to provide the best possible
dishwashing and drying results every time. If you
deactivate this option, the dishwasher will return
to ordinary function for all programmes.
If this setting is activated there is no need to add
rinse aid since this option disables rinse aid dispensing. It also reduces the amount of salt added
to the water softener.
NOTE!
In order to achieve good dishwashing results, it
is essential to check which type of detergent or
all-in-one product best suits your needs! Read
the detergent packaging carefully for information
on proper use. Always follow the directions for
use or information on the detergent packaging!
TAB
(3-in-1/all-in-one detergent)
(Off)
(On)
Press Start/Stop to save the setting value and continue to the next setting.
If your dishwasher is fitted with a water softener
you may need to adjust its setting depending on
the water hardness. Contact the local waterworks
to check the water hardness in your area. Water
hardness is specified using the following scales:
The German water hardness scale (°dH) and the
French water hardness scale (°fH). 0=low water
hardness.
°dH
0-5
6-8
9-11
12-14
15-19
20-24
25-29
30-39
40-49
50+
0-9
9-14
15-20
21-25
26-34
35-43
44-52
53-70
71-88
89+
°fH
Water hardness
(Soft water)
(Hard water)
Press Start/Stop to exit the settings menu.
20
Settings
Once you have selected a programme and options,
the display indicates how long the programme took
the last time it was used.Once you have started the
dishwasher, the display indicates how much
programme time remains. The remaining time is
updated after the water for the final rinse has been
heated.
This may differ somewhat from time to time depending
on the temperature of the water supply, the amount
of dishes, the ambient temperature and other factors.
While the programme is running, the time counts down
and the remaining programme time is shown on the
display. The remaining time is shown, for example,
as 1:15, which means the programme will run for
another 1 hour and 15 minutes.
NOTE!
During the first run of each programme, the
remaining time displayed can be slightly misleading,
as the dishwasher is estimating the time. When you
run the programme a second time, the dishwasher
will calculate the remaining time based on the
previous duration of the programme.
21
Time remaining
The dishwasher tub is made of stainless steel and is
kept clean through normal use. However, if you have
hard water, limescale deposits may form in the
dishwasher. If this happens, run the Normal wash
programme with high temperature and two
tablespoons of citric acid in the detergent
compartment (with no dishes in the machine).
Spray arm
Fine filter
Coarse filter
Pipe
section
Coarse filter
The coarse filter traps larger food particles, which
cannot get past the drainage pump. Empty the coarse
filter as necessary.
1. Lift the coarse filter by the handle.
2. Empty the coarse filter. Remember to replace it!
Fine filter
Debris that collects on the fine filter is automatically
rinsed away during each wash. However, the fine filter
and its pipe section should be cleaned a couple of
times a year.
1. Turn the handle anticlockwise once.
1x
2. Lift the pipe section straight up by the handle. Free
the coarse filter to clean the pipe section.
3. Remove and clean the fine filter.
4. Replace in reverse order. Check that the edges
seal properly when replacing the fine filter.
5. Lock the filter in place by turning the handle
clockwise to the stop position. The handle should
point straight out from the dishwasher.
1x
NOTE!
The dishwasher must not be used without the filter
in place!
Dishwashing efficiency can be affected if the coarse
filter is incorrectly fitted.
22
Care and cleaning
Drainage pump
The pump can be accessed from inside the
dishwasher.
1. Cut the power to the dishwasher by pulling out the
plug from the wall socket!
2. Remove the coarse filter and pipe section.
3. Remove the small yellow fitted piece at the left of
the bottom drain (see illustration below).
4. By inserting your finger into the hole you can turn
the pump blade to release anything blocking it.
5. Reinstall the fitted piece and filters.
6. Plug the machine in again.
If the dishwasher still does not start and a whirring
sound is heard, the overflow protection has been
activated.
• Shut off the water.
• Remove the plug from the wall socket.
• Call the service division.
NOTE!
Do not forget to reinstall the fitted piece.
Lower spray arm
Holes and bearings can sometimes become blocked.
1. Pull the lower spray arm straight up to release it.
2. Remove any debris using a needle or the like. The
spray arms also have holes underneath.
Upper spray arm
The upper basket must be removed before the upper
spray arm can be released.
1. Pull out the upper basket and turn the basket catch
on each runner outwards (see illustration). The
basket can now be removed.
2. Loosen the upper spray arm in the same manner
as the lower spray arm and clean it.
23
Care and cleaning
Door
When cleaning the edge around the door, use only a
slightly damp cloth (with a little cleaner if necessary).
WARNING!
Do not use a spray bottle or the like around the door
lock. This is to ensure that water does not penetrate
the door catch and come into contact with the
electrical components.
24
Care and cleaning
Drying is faster if you use rinse aid. When the rinse
aid needs topping up, the above symbol lights on the
display.
Top up with rinse aid
Top up with rinse aid as follows:
1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid. Only add rinse aid
to the level marked max.
3. Wipe up any splashes of rinse aid around the
compartment.
4. Close the lid firmly.
NOTE!
After topping up, it may take a while before the
symbol goes out.
Select dosage
The rinse aid dispenser can be adjusted between 0
(off) and 6.
Increase the rinse aid dosage:
• If the dishes have water marks.
Reduce the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the
rinse aid can be diluted 50:50 with water.
Set the dosage
The section Settings describes how to set the rinse
aid dosage.
25
Rinse aid
When the salt needs topping up, the above symbol
lights on the display.
Top up with salt
Before you begin using a dishwasher with a water
softener, you must fill the salt compartment with salt.
Use large grain salt or special dishwasher salt.
NOTE!
Top up the salt just before running a programme. To
avoid the risk of rust stains, the dishwasher must be
rinsed immediately after topping up the salt.
Do as follows the first time:
1. Unscrew the lid as illustrated.
2. Place the funnel supplied with the dishwasher in
the salt compartment top-up hole. First, pour in
about 1 l of water.
3. Then add salt, a maximum of 1,5 kg, until the
compartment is full.
4. Wipe up any excess salt so that the lid can be
screwed on firmly.
5. Run the Normal wash programme with high
temperature so that any salt in the dishwasher is
rinsed away.
When the salt runs out, unscrew the lid and fill the
compartment with salt. Water is only added the first
time! Wipe clean and tighten the lid. Run the Normal
wash programme with high temperature so that any
salt in the dishwasher is rinsed away.
Salt compartment lid
NOTE!
After topping up, it may take a while before the
symbol goes out.
WARNING!
Never pour dishwasher detergent into the salt
compartment. This destroys the water softener!
26
Salt
ActionType of faultDisplay
Call the service division.Overfilling
See "Possible causes" in the chapter
Troubleshooting.
Water outlet fault
Check that the water tap is on.Water inlet fault
Turn off the water tap and call the service
division
Inlet valve leakage
Turn off the machine with the main power switch and then turn it on again to clear the error message from the
display.
27
Error messages
ActionPossible causesProblem
Remove the arms and clean them.The spray arms do not rotate.The dishes are not clean.
Check that the dishes are not blocking
the spray arms.
Avoid large packages.Old detergent. Detergent is a perish-
able product.
Dose according to water hardness. Far
too much or far too little detergent results in poorer dishwashing results.
Incorrect detergent dosage.
Select a higher temperature or a more
powerful programme.
Dishwashing programme too weak.
Do not cover porcelain with large
bowls or the like. Avoid placing very
tall glasses in the corners of the baskets.
Dishes loaded incorrectly.
Place dishes to sit steady.Glasses and cups have toppled over
during the programme.
Screw the filter firmly into place. See
the section Care and cleaning.
The filter is not correctly fitted.
Check that the salt compartment lid is
properly tightened. Otherwise call the
service division.
The water softener is leaking salt.Spots or films on the dishes.
See the section Settings.Incorrect water softener setting.
See the sections Rinse aid and Settings.
Incorrect rinse aid dosage setting.
Top up with salt. See the section Salt.Salt compartment empty.
Wash crystal at a low temperature and
with a conservative amount of detergent. Contact the detergent manufacturer.
Too high temperature and/or too much
detergent can cause etching on crystal. Unfortunately, this cannot be repaired, only prevented.
Reduce the amount. See the sections
Rinse aid and Settings. If you have
very soft water, you may want to dilute
the rinse aid 50:50 with water.
Rinse aid dosage setting too high.The dishes have a sticky white/blue
film.
Rinse off these types of foodstuffs if
not starting the dishwasher immediately. Why not use the Rinse & Hold
programme.
Some foodstuffs, such as mustard,
mayonnaise, lemon, vinegar, salt and
dressings, can cause spots on stainless steel if left for too long.
Spots on stainless steel or silver.
Silver and stainless steel items should
not come into contact during dishwashing.
All stainless steel can cause spots on
silver if they come into contact during
dishwashing. Aluminium can also
cause spots on dishes.
Use a detergent with a bleaching
agent.
Lipstick and tea can be difficult to wash
off.
Spots left after washing.
28
Troubleshooting
ActionPossible causesProblem
Check that the dishes are placed securely. Spin the spray arms to make
sure they can rotate.
The dishes are not correctly placed or
the spray arms are not rotating.
Rattling sound when dishwashing.
Press the main power switch.You have forgotten to turn on the main
power switch.
The dishwasher does not start.
Check.The door is not properly closed.
Check.A fuse/circuit breaker has been
tripped.
Check.The plug is not plugged into the wall
socket.
Check.The water tap is turned off.
Check.Overflow/leaks.
Turn off the water tap. Pull out the plug
and call the service division.
A whirring sound (the drainage pump)
is heard from the dishwasher and does
not stop when the main power switch
is turned off.
Press and hold Start/Stop for five
seconds if you want to cancel the
Delayed start option.
Check that the Delayed start option
has not been selected.
None, next time the programme is run
the corrected time will be displayed.
The programme is taking longer than
estimated.
1 minute appears in the display.
Loosen the drainage hose where it
connects to the sink unit's water trap.
Check that no debris has fastened. Is
the cone-shaped part of the pipe cut
to an inner diameter of at least 14 mm?
Blocked drainage hose.Water remains in the dishwasher.
Check that the hose is free from kinks
and sharp bends.
Kink in drainage hose.
Clean the coarse and fine filters.The filters are blocked.
Clean the drainage pump. See the
section Care and cleaning.
Debris in the drainage pump.
Clean with washing-up brush and low
foaming cleaner.
Dirt around the seals and in corners.Bad odour in dishwasher.
Run a programme with a higher temperature about once a month.
Low temperature programmes have
been selected for a prolonged period.
29
Troubleshooting
ActionPossible causesProblem
Activate the Long dry option.Drying power too low.The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully loaded.
Top up with rinse add or increase the
rinse aid dosage. See the sections
Rinse aid and Settings.
Rinse aid needs topping up or dosage
is set too low.
Open the door a little once the programme has finished.
Check that the baskets are correctly
positioned horizontally.
The baskets are not correctly positioned.
Cannot close door.
Check that the dishes are not blocking
the baskets from sliding properly into
place.
Wait a moment then try again.You have pressed the touch buttons
too soon after opening the door.
The touch buttons do not react when
pressed.
Clean with a dry or slightly damp cloth.Dirt on the touch buttons.
See the section Settings.Child lock (button lock) activated.
30
Troubleshooting
Energy labelling
EN 50242European test standard:
13Number of standard place settings:
Normal wash, no optionsDishwashing programmes:
Cold water 15 °CConnection:
IEC 60704-2-3Test method for noise measurement:
Dosages during testing
In accordance with EN 50242Detergent:
7,5 gramPrewash:
25 gramMain wash:
In accordance with EN 50242Rinse aid:
5Rinse aid dosage:
Loading the dishwasher
b
b
c
a
egga
minced meatb
spinachc
1.
Teaspoons
2.
Dessertspoons
3.
Soupspoons
4.
Forks
5.
Knives
6.
Serving cutlery – fork
7.
Serving cutlery – gravy ladle
8.
Serving cutlery – spoons
2
5
5
5
5
5 5
5
5
5 3
3
3
3
3
3
3
3
3
3
3
3
3
4
5 5
5
5
1
8 8
1 1 1 1 7 1 1
1 1 1 1 1 1
2
2
2
2
2
2 2
2
2
2
24 4
4
4
4
4
6
4
4
4
4
4
4
2
31
Information for test institute
Information on energy labelling
Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010
ISE
D243WModel designation:
13
1)
Number of standard place settings:
A+Energy efficiency class:
295 kWh per year
2)
Annual energy consumption (AEC):
1,04 kWhEnergy consumption of the standard cleaning cycle (Et):
Power consumption
0,12 WOff-mode (Po):
0,75 WLeft-on mode (Pl):
2990 litres per year
3)
Annual water consumption (AWC):
A
4)
Drying efficiency class:
Normal wash, no options
5)
Dishwashing programmes:
175 minutesProgramme time for the standard cleaning cycle:
InfiniteDuration of the left-on mode (Tl):
44 dB(A) re 1 pWNoise emissions:
1) In accordance with standard, EN 50242.
2) Based on 280 standard cleaning cycles with a cold water connection and consumption in accordance
with energy saving mode. The actual energy consumption depends on how the machine is used.
3) Based on 280 standard cleaning cycles. The actual water consumption depends on how the machine is
used.
4) On a scale from G (least efficient) to A (most efficient).
5) This dishwashing programme is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective programme in terms of
combined energy and water consumption.
Technical data
847-905 mmHeight:
600 mmWidth:
596 mmDepth:
67 kg
1)
Weight:
0.03–1.0 MPaWater pressure:
0.3–10 kp/cm
2
3–100 N/cm
2
See type plate.Electrical connection:
See type plate.Rated power:
1) Weight can vary due to different specifications.
32
Technical information
600
670
717
700
1235
596
556
93
30
831
861 - 905
127 - 170
32
[mm]
Remove rubber feet, locking nuts and coasters for
an installed height of 850-861 mm.
Safety instructions
• Connections to electricity, water and drainage
must be performed by a qualified professional.
• Electrical, water and drainage installations must
be carried out by a qualified professional.
• Always follow applicable regulations for water,
drainage and electricity.
• An incorrect or flawed installation can result in
higher consumption of energy, water and
detergent, which can result in increased costs and
poor dishwashing results. In order to minimise
noise it is important that you follow the instructions.
• Exercise caution during installation! Use protective
gloves! Always have someone assist you!
• Place a watertight protective tray on the floor under
the dishwasher to prevent damage from any water
leaks.
• Before screwing the dishwasher into place, test
the dishwasher by running the Rinse & Hold
programme. Check that the dishwasher fills with
water and drains. Check also that none of the
connections leak.
WARNING!
Turn off the water supply when installing the
dishwasher!
WARNING!
The plug must be disconnected or power to the
socket turned off while the work is carried out!
33
Installation
Suggested machine installations
The dishwasher is intended for freestanding
installation, but can also be installed under a worktop.
Check that there is an air gap of 3 mm around the
dishwasher.
Adjust the height and slide the
dishwasher into place
Freestanding
1. Attach the coasters (if applicable) to the
dishwasher.
2. Make sure the area on which the dishwasher is to
be installed is firm. Adjust the dishwasher's height
using the four steel feet so that the dishwasher is
level. The dishwasher may lean no more than 5
mm.
3. Lock the steel feet with the lock nuts.
Steel feet
4. Once the steel feet are properly adjusted, tighten
the two rubber feet against the floor. The rubber
feet now prevent the machine from tipping over.
Built-in
1. Attach the coasters (if applicable) to the
dishwasher.
2. Start by measuring the height from the floor to the
bottom edge of the worktop.
3. Measure the height from the floor to the top edge
of the dishwasher.
4. Adjust all feet by turning them clockwise to raise
or anticlockwise to lower the dishwasher.
5. Check that there is an air gap of at least 3 mm
between the underside of the worktop and the top
edge of the dishwasher.
6. Tighten the lock nuts (lock nut) on the rear feet.
7. Slide the dishwasher into place.
• Pull through the drainage and supply hoses
when the machine is slid into place.
• Check that the hoses have no kinks or sharp
bends, and check that there is nothing that can
damage the hoses.
8. Make any final adjustments to the front feet (the
dishwasher may lean no more than 5 mm) and
tighten the lock nuts.
34
Installation
9. Once the steel feet are properly adjusted, tighten
the two rubber feet against the floor. The rubber
feet now prevent the machine from tipping over.
Drainage connection
When the drainage hose is routed to a connection
nipple on the sink unit's water trap (see illustration 1),
please note that the hose must be attached at the
same height as the underside of the sink unit,
otherwise dishwater from the sink may flow back into
the dishwasher. The drainage hose is threaded onto
the cone-shaped connection pipe on the sink unit's
water trap. The cone-shaped pipe must be cut to an
internal diameter of at least 14 mm. For other
connection alternatives, see illustrations 2 and 3.
The drainage hose may be extended by a maximum
of 3 m (the total length of the drainage hose must not
exceed 4,5 m). Any joins and connecting pipes must
have an internal diameter of at least 14 mm. However,
the drainage hose should ideally be replaced with a
new hose without joins.
No part of the drainage hose may be more than 950
mm above the bottom of the dishwasher. The hose
must not be routed directly to a floor drain or the like.
In such cases, the hose can act as a siphon and
empty the dishwasher.
The hose must always discharge at least 350 mm
above the bottom of the machine.
Ensure that the drainage hose has no kinks.
NOTE!
The hose must be attached at the same height as
the underside of the sink.
Max. 950 mm
Min. 350 mm
Min. 14 mm
Figure 1
Max. 950 mm
Min. 350 mm
Max. 3 m
Figure 2
Max. 950 mm
Min. 350 mm
Figure 3
Connection to water supply
Use only the supply hose provided with the
dishwasher. Do not re-use old hoses or other spare
supply hoses.
The supply pipe must be fitted with a stopcock. The
stopcock must be easily accessible, so that the water
can be shut off if the dishwasher has to be moved.
Once the installation is complete, the stopcock should
be opened to allow the pressure to settle for a while
and to check that all connections are tight.
Connect to cold water...
If you use oil or electricity to heat your home.
35
Installation
Connect to hot water (max. 70 °C)...
If you use district heating, solar power or geothermal
power to heat your home. Choosing a hot water
connection cuts programme times and reduces the
dishwasher's electricity consumption.
Electrical connection
Information about the electrical connection can be
found on the serial number plate This specification
must match the electricity supply.
Dishwashers fitted with a plug must be connected to
an earthed socket.
The electric wallsocket must be placed outside of the
installation area to be easily accessible after installing
the dishwasher. Do not use an extension cord!
NOTE!
Repairs and maintenance relating to safety or
performance must be carried out by a qualified
professional.
Attaching sealing strip (to floor
plinth cover panel)
(Not applicable to all models)
Follow these instructions:
1. Remove the plastic plinth by grabbing it with both
hands with your fingers under the plastic plinth (A)
and pulling it out and up.
A
2. Unscrew the two screws on the cover panel (B).
3. Glue the supplied rubber seal (C) to the bottom
edge of the cover panel (facing the floor).
4. Screw the cover panel back into place. Adjust the
cover panel so that the rubber seal just touches
the floor.
C
5. Replace the plastic plinth.
36
Installation
Read the chapter Troubleshooting before contacting
the service division. Make a note of the information
on the serial number plate on the right inside the
dishwasher. Note the type number (1) and the serial
number (2).
SERIAL NO
TYPE
1
2
37
Service
38
Your notes
39
Your notes
1
Load the baskets
Do not rinse dishes under running water before
loading them in the dishwasher. Simply scrape
off large food particles before loading the
dishwasher.
2
Add detergent
The detergent compartment has one smaller
compartment for the prewash and one for the
main wash.
3
Check that the spray arms can
rotate freely
4
Press the main power switch
and close the door
5
Select a programme and any
options
6
Press Start/Stop
Art. No.: 8093332. Rev. 01. We reserve the right to make changes.
40
Quick guide
Loading...
