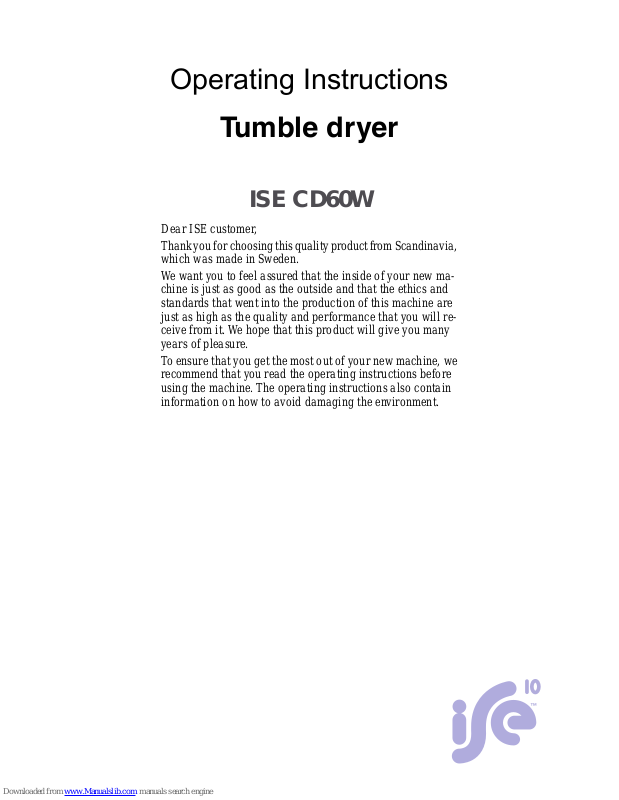

ISE CD60W Operating Instructions Manual

Dear ISE customer, Thank you for choosing this quality pr oduct from Scandinavia,
which was made in Sweden. We want you to feel assured that the inside of your new ma-
chine is just as good as the outside and that the ethics and standards that went into the production of this machine are just as high as the quality and performance that you will re­ceive from it. We hope that this product will give you many years of pleasure.
To ensure that you get the most out of your new mac hine , we recommend that you read the operating instructions before using the machine. The operating instructions also contain information on how to avoid damaging the environment.
Operating Instructions
Tumble dryer
ISE CD60W
3
Before using your machine for the first time
3Do not tumble-dry 4Safety instructions 4General 4Installation 4Safety 4Interrupting a programme 4Transport/Winter storage 4Packing material 5Recycling 6Child safety 6General 7Description of the tumble dryer 8Front panel 8Options button
9
Advice and tips before you tumble-dry
9Have the clothes been spun? 9Materials that can be tumble-dried
9
Materials that must not be tumble-dried
10Tumble drying 10Sort your fabrics 10Turn on the main power switch.
10
Open the door, load the items and then close the door
10Select the programme 12Selecting Options 13Press the Start button 13Drying programme finished 14Once drying has finished 15Care and cleaning 15Cleaning the lint filter
15
Emptying the condensed water container
15
Cleaning the outside of the machine
16Cleaning the condenser
17Troubleshooting 17The machine will not start 17Overheating cut-out 17Drying takes too long
17
The washing does not dry, or is too dry
17Error messages 18Technical information 18Technical data 18Standard tests 19Service
19
Before contacting the service division
20Installation 20Positioning the tumble dryer 21Adjusting the feet 21Condensed water 22Electrical installation 23Door hanging 23Door hanging 28Quick guide 28Fabrics 28Turn on the main power switch 28Load the laundry
28
Select a programme and any options
28Press the button 28Drying programme finished 28Once tumble-drying has finished
2
Contents
Do not tumble-dry
Certain materials are not suitable for tumble­drying. Always check and follow the instruc­tions on each item's laundry label. You can find more information in the chapter "Advice and tips before you tumble-dry".
Note!
When starting the tumble dryer for the first time or after a long period without use, you may notice a slight thumping noise. This noise is completely normal and will disappear after a few loads.
See the Quick guide on the last page.
3
Before using your machine for the first time
General
• Read the operating instructions and keep them in a safe place!
• Electrical installation, if required, should be carried out by a qualified electrician.
• The machine should only be used for tumble-drying as described in these instruc­tions.
• Repairs and maintenance relating to safety or performance must be carried out by a qualified professional.
• Damaged mains cables must only be re­placed by a qualified electrician.
• Sufficient ventilation is required to prevent smoke from open fires or fumes from equipment burning other fuels being sucked into the room.
• Do not try dirty laundry in the tumble dryer.
• Items that are stained with e.g. cooking oil, acetone, alcohol, petrol, kerosene, stain remover, turpentine, wax and wax remover should be washed in hot water with extra detergent before they go in the tumbler dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber­coated items and clothes or latex foam­filled cushions may not be dried in the tumbler dryer.
• Fabric softener or similar products should be used as per the recommendations of the detergent manufacturer.
• The last phase of the drying cycle is carried out without any heat (cool down cycle) in order to ensure that items are not ruined by excess heat after the programme is fin­ished.
Caution!
Never stop a tumble dryer before the pro­gramme is completed unless you immediately remove all the laundry and spread it out so that the heat can disappear.
Installation
See the “Installation” chapter.
Safety
• The machine must not be used for drying items that have been dry-cleaned at home or fabrics that may contain residues of flammable liquids.
• The tumble dryer is protected by an over­heating cut-out. This shuts off the machine if the temperature gets too high.
• A float shuts off the machine in the event of a blockage in the condensed water hose or if there is a risk of the condensed water container overflowing.
Caution!
When the tumble dryer is operating, the back of the tumble dryer will get very hot. Leave the machine to cool completely before touching the back.
Interrupting a programme
You can stop a drying programme by:
• Open the door. The drum will then then stop automatically.
• Press the main power switch.
• Press the Stopp button for three seconds.
When you want to resume tumble-drying, simply close the door and press the Start button.
Transport/Winter storage
If you need to move your machine or store it over the winter in unheated premises, make sure that you drain the condensed water container beforehand.
Packing material
Please sort waste materials in accordance with local guidelines.
4
Safety instructions
Recycling
This machine is manufactured and labelled for recycling. In order to prevent injuries, the machine must be made unusable once the decision has been taken to dispose of it. Contact your local authority for information about where and how your machine can be recycled correctly.
5
Safety instructions
General
Do not allow children to play with the tumble dryer.
The tumble dryer does not start automatically when the door closes (e.g. if a child closes the door from inside).
The tumble dryer has a magnetic catch, which allows the door to be opened from the inside. The door has a door switch that automatically stops the tumble dryer when the door is opened.
6
Child safety
1
2
3
4
5
6
7
Outer door5.Panel1. Fan (behind hatch)6.Condensed water container2. Condenser (behind the front plate)7.Type plate3. Lint filter8.Lint filter holder4.
8
7
Description of the tumble dryer
1
2
5 6
7
3
4
Main power switch1. Options buttons2-4 Programme selector5. Display6. Start/Stop7.
Options button
2
4
3
Button for selecting Low Temperature2. Button for selecting Anti crease3. Button for selecting Delayed Start 1-24h4.
8
Front panel
Here are some tips that may help you before you begin tumble-drying.
Have the clothes been spun?
Items to be tumble-dried should be spun at 1000 rpm or faster. Higher spin speeds save both energy and drying time.
Materials that can be tumble-dried
This symbol means that the material is suit­able for tumble-drying. Fabrics best suited to tumble-drying are cotton fabrics, terry cloth and synthetic fibres. Garments will be softer and lighter when tumbled than when hung out to dry.
Note!
The tumble dryer does not cause any signific­ant wear to fabrics. The lint that is trapped in the lint filter consists of dust and fibre residues which form when the items are used.
Materials that must not be tumble-dried
This symbol means that the material is not suitable for tumble-drying. Certain materials may melt or become a fire hazard if exposed to heat, and others can lose their shape or shrink.
And do not tumble-dry
• materials labelled "Do not dry near heat".
• garments that have been dry-cleaned at home.
• plastic foam.
• fibreglass material.
• wool must not be tumble-dried because of the risk of felting.
Note!
If the door is opened during the programme, the programme will be interrupted and will return to the start. The clothes may be too damp or too dry as a result.
9
Advice and tips before you tumble-dry
Below are step-by-step instructions to help you achieve the best possible tumble-drying results.
1
Sort your fabrics
You will achieve the most uniform drying
results if the items are made of the same type of material. Do up zips and buttons, fasten belts, sort the items and adjust the load and temperature.
2
Turn on the main power switch.
3
Open the door, load the items
and then close the door
4
Select the programme
The choice of programme depends on
what you intend to do with the items after drying them.
Guidelines as to what specific programmes can be used for.
Extra Dry
Dry Normal dry
Iron dry
Timed dry Air fluff
Extra Dry
This programme is for items that are particu­larly difficult to dry, e.g. jeans with very thick seams.
Note!
Knitted fabrics in particular are prone to shrinkage. Use the Dry, Normal dry or Iron dry programmes for these items. Stretch clothes back into shape immediately after drying.
Dry and Normal dry
These programmes shut off the heat once the load is dry but before it is "bone-dry". The Dry programme shuts off the heat slightly later than Normal dry. Use trial and error to find out what works best. Use these programmes when you want items to be completely dry.
Iron dry
This programme shuts off the heat once the load is just damp enough for ironing or pressing.
Timed dry
The Timed dry programme has a fixed drying time and tumble-dries the load for 60 minutes
Air fluff
Use the Air fluff programme when you just want to refresh, air or soften up items.
10
Tumble drying
Menu overview
Programme chart
For the consumption values given below, the requirements are as follows:
20°CTemperature of intake air:
65 %Moisture content of intake air:
Normal or lowDrying temperature:
2500WHeater output:
Before tumble-drying, cotton fabrics should be spun at 800 and 1600 rpm (long spin). Before tumble-drying, other fabrics (crease-resistant and acrylic) should be spun at 800 rpm (short spin).
Programme chart
Programme time (ap­prox. min)
Energy consumption (approx. kWh)
Max. load (kg)
TemperatureMaterialProgram
1600 rpm800 rpm1600 rpm800 rpm
951153,74,56NormalCotton, linenExtra Dry
801003,24,06NormalCotton, linenDry
-45-1,83NormalCrease-resistant, polyes-
ter/cotton
Dry
70902,93,86NormalCotton, linenNormal dry
-45-1,63NormalCrease-resistant, polyes-
ter/cotton
Normal dry
-75-2,13LowAcrylic, rayon, acetateNormal dry
50802,03,06NormalCotton, linenIron dry
11
Tumble drying
5
Selecting Options
By selecting options, you can tailor dry-
ing programmes to suit your own laun­dry requirements. The machine remembers the option you have chosen and uses it the next time you select the programme in ques­tion. You can, of course, change this if you want.
Low temperature
Select or deselect Low Temperature by pressing the Temperature button. Once Low Temperature has been selected, the red field next to the button lights up.
Anti-crease function
This option means that the drum will rotate for three seconds per minute for two hours once the drying programme has finished. The option prevents the items from remaining in the same position and becoming creased. This is a useful feature if you are not able to remove the load as soon as tumble-drying has finished. A lighted red field next to the button indicates that the Anti crease option has been activated.
Delayed Start
When you select Delayed Start, the machine will start 1-24 hours after you press the Start/Stop button.
• Press the Delayed Start button the same number of times as the number of hours you want to delay the start by (1-24 hours). A lighted red field next to the button indic­ates that the option has been activated.
• The number of hours delay until start is shown in the display window.
• Press the Start/Stop button.
• The number of hours to start is displayed with a countdown one hour at a time.
• Cancel Delayed Start by pressing the Start/Stop button for 3 seconds. The red field will go out.
• Select a programme and press the Start/Stop button.
Important!
Remember to press the Start/Stop button to start the programme.
12
Tumble drying
6
Press the Start button
Remaining drying time
An estimate of the remaining drying time will be shown on the display within 2 minutes of the drying programme starting. For ex­ample, 1:35 means that it will take approxim­ately 1 hour and 35 minutes for the load to dry. If the Anti-crease option has been selec­ted, the drum will rotate every minute for 2 hours after cooling.
Stopping or changing a programme
Press and hold the Start/Stop button for three seconds. The red field next to the button will go out.
Note!
The programme will not be affected if you change the programme selector after the programme has started.
Loading or removing washing
If you want to load or remove washing once you have started the machine, open the door and the programme will stop. Load more washing or take out the items you want, close the door and press the Start/Stop button.
7
Drying programme finished
The text "END" appears on the display
when the programme is finished. If the Anti-crease option has been selected, the drum will rotate every minute for 2 hours after cooling.
Important!
• Clean the lint filter after each load.
• Empty the condensed water contain­er after each load.
Caution!
If the lint filter becomes clogged, the ma­chine’s automatic overheating cut-out may be triggered. In order to be able to restart the machine, you must clean the filter and allow the machine to cool down for around 30 minutes.
Cleaning the lint filter
1. Grasp the filter handle and pull it towards you.
2. Pull the filter out of its holder.
1
2
3. Open the filter and remove the lint by hand.
4. Fold the filter up and re-insert it into its holder. The filter may need to be cleaned if it has limescale deposits. See the "Care and cleaning" chapter.
13
Tumble drying
Emptying the condensed water container
The condensed water container must be drained after each load. Remove the con­densed water container, empty out the water and replace the container. If the condensed water container becomes too full, the pro­gramme is interrupted and F1 appears on the display. Empty the container and press the Start/Stop button to restart the programme. See also the "Error Messages" section in the "Troubleshooting" chapter.
Note!
Do not remove the condensed water contain­er while the machine is running.
Tip!
As the condensed water is decalcified, it can be used in steam irons. Pour it through a cof­fee filter.
Automatic emptying
If you want the water to empty automatically, see the "Installation" chapter.
8
Once drying has finished
Turn off the main power switch. Remove
the clothes and close the door to pre­vent small children from climbing into the machine.
14
Tumble drying
Cleaning the lint filter
The lint filter must be cleaned after each load. If you have very hard water, this can cause limescale deposits in the lint filter. Check for any limescale deposits when cleaning the lint filter and, if necessary, wash the filter by hand.
1. Grasp the filter handle and pull it towards
you.
2. Pull the filter out of its holder.
1
2
3. Open the filter and remove the lint from all
sides of it by hand. Use a soft, dry cloth to remove any deposits.
4. Replace the filter in its holder.
Note!
If you have hard water, the filter should be washed with water to get rid of any limescale deposits. Use a sponge and a little dishwash­ing detergent if necessary. Dry the filter care­fully with a towel. If you cannot remove the limescale, you can buy a new filter from the retailer where you bought the tumble dryer.
Emptying the condensed water container
The condensed water container must be drained after each load. Remove the con­densed water container, empty out the water and replace the container. If the condensed water container becomes too full, the pro­gramme is interrupted and F1 appears on the display. Empty the container and press the Start/Stop button to restart the programme. See also the "Troubleshooting" chapter.
Note!
Do not remove the condensed water contain­er while the machine is running.
Cleaning the outside of the machine
Clean the outside of the machine and the programme panel with a mild cleaner. Do not use solvents, as these can damage the ma­chine. Do not hose down or spray the ma­chine with water.
Note!
Do not allow dust to accumulate around the machine. Keep the area around the tumble dryer clean and cool; dust, heat and moisture prolong drying times.
15
Care and cleaning
Cleaning the condenser
The condenser should be cleaned at least three times a year. If you have pets, the con­denser must be cleaned more frequently.
1. Turn off the main power switch.
2. Remove the lower plinth.
3. Open the condenser panel by turning the
two knobs anticlockwise.
4. Remove the condenser and rinse the
lamellas clean using a hand-held shower, for example. Do not touch the lamella springs, as you may damage the condens­er. Do not use pointed metal objects during cleaning.
Note!
Do not put the condenser in a dishwasher.
5. Replace the condenser. When refitting the condenser, check that it is replaced cor­rectly. The top of the condenser is labelled "upp", "up" and "oben".
UPP
UP
OBEN
6. Before you replace the plinth, clean the fil­ter from the plinth's air gaps with a soft cloth.
7. Replace the plinth.
16
Care and cleaning
The machine will not start
Check
• that the door is properly closed.
• that the main power switch is on.
• that the Delayed Start option has not been selected. If so, the time remaining until the start will be shown in full hours in the dis­play (e.g. 5, 4, 3h). To cancel Delayed Start, press the Start/Stop button for 3 seconds.
• that the machine is not programmed to start at a specific time (e.g. 13.30)
• that the plug is connected.
• that the fuses (circuit breakers) in your house are intact. Swap two circuit breakers over to make sure. You cannot always tell from the outside if a circuit breaker is broken.
• that the overheating cut-out has not been triggered (see below).
Overheating cut-out
The overheating cut-out shuts off the tumble dryer if the temperature is too high, e.g. be­cause dust is clogging the lint filter.
• Clean the filter.
• Check also that the condensed water container is not full and, if necessary, clean the condenser. See the "Care and clean­ing" chapter.
• The overheating cut-out will reset automat­ically once the machine has cooled down.
Drying takes too long
• Empty the condensed water container and check that neither the lint filter nor the condenser are clogged. See the chapter "Care and cleaning".
• Prolonged drying times may also be due to the tumble dryer being located in a room that is too small and the air in the room (cooling air) being too hot.
• Make sure that the tumble dryer has ac­cess to more cold air, e.g. by opening doors and/or windows.
The washing does not dry, or is too dry
• The door has been opened while the pro­gramme is running, which disrupts the moisture monitoring function.
Error messages
• If F1flashes in the display, the condensed water container is full. Empty the container and restart the programme.
• If F2 flashes on the display, the maximum permitted programme time has been reached. Read "Drying takes too long" in the "Troubleshooting" chapter to find out what to do.
17
Troubleshooting
Technical data
850mmHeight: 595mmWidth: 585mmDepth: 47kgWeight: 111 lCylinder volume: 6kgMax. drying capacity: 52 rpmSpeed: See type plate.Rated power: Stainless steelDrum material: Powder-coated and hot-galvanized sheet steel
or stainless steel.
Outer casing material:
Stacking or freestandingSetup 2,0m rubber hoseDrain:
Standard tests
Europe:
EN 611 21 (95/ 13/ EEC). Programme 3 Normal dry, 6kg cotton, temperature Normal.
Drying performance:
EN 611 21 (95/ 13/ EEC). Programme 3 Normal dry, 6kg cotton, temperature Normal. The ma­chine has been tested for single-phase 10/16A.
Energy declaration:
IEC 60 704-2-6.Test method for noise measurement:
18
Technical information
Before contacting the service division
Before contacting the service division, you should find out whether you can resolve the fault yourself. See the "Troubleshooting" and "Care and cleaning" chapters. If you still need to contact the service division, make sure that you know the model designa­tion, type designation and serial number. The model designation can be found in the stamped hole on the first page of the operat­ing instructions and on the machine's panel. The type designation and serial number can be found on the type plate.
25
Type designation TDxx
Serial number (12 digits)
Model designation
Type plate
19
Service
Positioning the tumble dryer
The tumble dryer can be free-standing or in a stack. Remember that the tumble dryer produces heat and should therefore not be located in a room that is too small. If the room is very small, drying will take longer due to the limited quantity of air.
Caution!
The machine must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to those of the tumble dryer.
Caution!
The ventilation in the tumble dryer's plinth must not be blocked by a carpet or rug.
Tip!
To improve ventilation, leave the door to the room where the tumble dryer is located open.
Caution!
Any electrical installation must be carried out by qualified professionals.
A. Free-standing
The tumble dryer can be positioned beside the washing machine.
B. Stack
The tumble dryer can be placed on top of a Asko washing machine. In this case you use the stacking attachments (foot cups and anti­tilt devices) that come with the machine: You will find 2 foot cups in a bag in the drum and 2 anti-tilt devices are attached to the bottom left corner at the back of the machine. Extend­ing plates can be ordered from your local re­tailer.
How to assemble the stack:
1. Undo the anti-tilt device.
2. Undo the two screws indicated on the back of the washing machine.
3. Secure the anti-tilt device using the screws as shown in the picture.
4. Attach the plastic cups for fixing the tumble dryer’s front feet to the washing machine’s top cover. This is essential, as only when the tumble dryer’s feet are resting in the plastic cups can you be sure that the dryer is correctly positioned on the washing ma­chine.
Break off tag A on the cup fitted on the right-hand side and tag B on the cup fitted on the left-hand side. Then remove the paper from the self-adhesive surface under the plastic cups.
20
Installation
A
B
5. Fit the plastic cups so that the “tags” marked with arrows are against the front edge or side edge of the cover and press them firmly onto the cover. Then break off the remaining tags.
6. Push out the knock-out hole on the back of the dryer (you must not remove it, just open it) using a hammer and screwdriver.
7. Push the tumble dryer in under the metal brackets. At the same time keep the front edge raised by 10mm to 20mm.
8. Lower the tumble dryer’s front feet into the plastic cups and adjust the dryer to ensure that it is balanced.
Adjusting the feet
Screw the feet in or out so that the tumble dryer is steady and balanced on the floor or on the washing machine. Then tighten the lock nuts.
Locking nut
Condensed water
The machine is supplied as shown in Option 1 (inset). This means that the condensed water is pumped into the condensed water container. This must then be removed and emptied by hand.
Option 2 allows you to remove the small short hose from the nipple. Attach the rubber hose supplied to the same nipple. The water can then be pumped out into a sink or a floor drain (2a).
2
1
2a
Max 1000 mm
21
Installation
Electrical installation
The machine must only be connected to an earthed wall socket.
Connection on delivery
The machine is supplied as 1-fas, 230V, with a heat output of 2500W and a 16A fuse. Any earth fault fuses must be type A.
Switch-over
It is possible to switch over from 16A (heat output 2500W) to 10A (heat output 1950W).
1. Shut off the power.
2. Press and hold the Start/Stop button, and switch on the power
3. Release the Start/Stop button once the programme indicator lights up.
4. Press the Start/Stop 5 times (within 10 seconds).
5. Adjust the programme selector so that the Extra dry light comes on (10 o’clock).
6. Press the Start/Stop button to store the setting:
If you want to reset the machine to a 16A connection:
1. repeat steps 1-4.
2. In step 5, turn the programme selector until the Extra dry light goes out.
3. Press the Start/Stop button to store the setting.
The machine now has 16A connection.
22
Installation
Door hanging
The tumble dryer comes with the door hung on the left. However, it is possible to change the door so that it is hung on the right.
Follow these instructions:
1. Remove the lower front plate and undo the three screws holding the hinge attachment.
2. Angle the lower edge of the door out to the left while turning the hinge attachment as indicated by the arrows.
Hinge attach-
ment
3. Move the hinge pin. To hang the door on the right, the hinge attachment must then be turned upside down.
Hinge pin
4. Then move the hinge pin in the panel’s lower edge.
5. Next you must move the plastic plugs on the upper and lower edges of the door. Use a flat screwdriver.
6. Unscrew the two screws on the sides of the door by around five millimetres, to allow the door magnet and cover washer on the inside of the door to be removed.
7. Then remove the door magnet (1) and cover washer (2).
1
2
23
Door hanging
8. Insert the door magnet in place of the cover washer.
9. Insert the cover washer in place of the door magnet.
10. Insert the screws so that the door magnet and cover washer are held in place.
11. Remove the screw indicated. If using a condenser dryer, you must also open the condenser panel.
12. Then fit the door securely on the right side of the machine.
13. Secure the hinge attachment using the screws in the sequence shown in the pic­ture.
1
3
2
14. Replace the screw which you removed in point 11.
15. Replace the lower front plate.
24
Door hanging
25
Your notes
26
Your notes
27
Your notes
1
Fabrics
Dry fabrics of the same type together to ensure that they dry as evenly as possible.
2
Turn on the main power switch
3
Load the laundry
Close the door.
4
Select a programme and any options
Turn the programme selector to the re­quired programme.
Select any options
5
Press the Start/Stop button
6
Drying programme finished
The text "END" appears on the display when the programme has finished. If you have selected the Anti crease op­tion, the drum will rotate every minute for 2 hours after cooling.
Clean the lint filter after each load.
Empty the condensed water container.
7
Once tumble-drying has finished
Turn off the mains power switch and close the door.
Programme chart
Programme time (ap­prox. min)
Energy consumption (approx. kWh)
Max. load (kg)
TemperatureMaterialProgram
1600 rpm800 rpm1600 rpm800 rpm
951153,74,56NormalCotton, linenExtra Dry
801003,24,06NormalCotton, linenDry
-45-1,83NormalCrease-resistant, polyes-
ter/cotton
Dry
70902,93,86NormalCotton, linenNormal dry
-45-1,63NormalCrease-resistant, polyes-
ter/cotton
Normal dry
-75-2,13LowAcrylic, rayon, acetateNormal dry
50802,03,06NormalCotton, linenIron dry
Art. No.: 81 820 87. Rev. 01. Printed on environmentally friendly paper that meets the requirements of MIljöförbundet and Naturskyddsföreningen.
28
Quick guide
Loading...
