ISC GLH 661 User Manual [en, de]

GLH 661

Hedge Trimmer

Artikel-Nr.: 3403634

Ident-Nr.: 01015

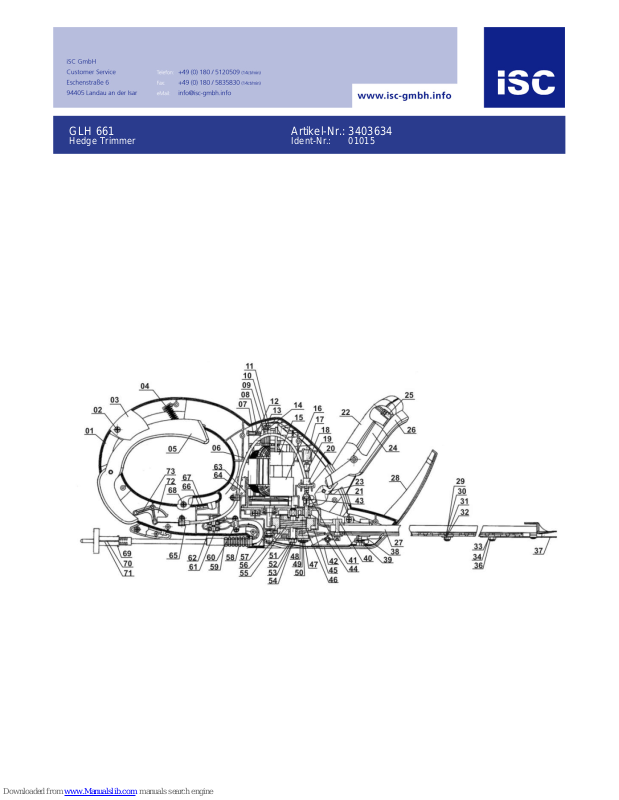

Komponenten / Ersatzteile

Position Artikel-Nr. Beschreibung
5 340363501005 handle

6 340363501006 pulling cable

9 340363501009 carbon brush assembly

10 340363501010 cover of the carbon brush

14 340363501014 rotor

17 340363501017 switch

20 340363501020 tightwire

21 340363501004 handle complete

22 340363501022 upper cover of front handle für Zusatzhandgriff

24 340363501024 nether cover of front handle für Zusatzhandgriff

28 340363501003 hand guard

29 340363501029 bolt

34 340363501034 upper blade

35 340363501035 nether blade

37 340363501002 shock guard

41 340363501041 reposition spring of brake

43 340363501043 adjustable slice of brake

46 340363501046 pulling pole

55 340363501055 needle bearing

72 340363501072 connection pole

73 340363501073 position pin

0 340363501076 housing right

Art.-No.: 1283

GLH 661



Operating instructions for
Hedge Trimmer GLH 661

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 1

2

1. General safety regulations

2. Items supplied

3. Layout

4. Explanation of the sign

5. Technical data

6. Mains connection

7. Start-up and operation

8. Notes on working practice

9. Maintenance, care and storage

10. Troubleshooting

11. Waste disposal

12. Ordering spare parts



Read the complete operating manual
with due care and keep it in a safe
place. If you give the machine to any
other person, hand over this operating
manual as well!

 Please pull out page 2

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 2

3

1

4

5

2











햲







3



1

2

3

5

4





햴

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 3

4

8

10

9

7

6

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 4

5

GB

Before you operate this hedge trimmer, thoroughly
read through the following safety regulations as well
as the operating instructions.
If you give the equipment to any other persons, give
them the operating instructions as well.

Keep these instructions in a safe place.

Packaging

Your tool is packaged to protect it from damage in
transit.
Packaging is raw material and can therefore be
reused or returned to the raw material system.

1. General safety information

Caution! When using electric tools it is imperati­ve to take the following basic safety precautions
in order to reduce the risk of electric shock,
injury and fire. Read and take note of these
instructions before you use this tool.

1. Keep your work area tidy

- An untidy work area invites accidents.

2. Check the working conditions

- Do not expose electric tools to rain. Never use
electric tools in damp or wet locations. Make sure
there is good lighting. Do not use electric tools
near flammable liquids or gases.

3. Guard against electric shock

- Avoid body contact with earthed components
such as pipes, radiators, cookers, refrigerators.

4. Keep children away!

- Do not allow other persons to touch the tool or
cable. Keep all persons out of your work area.

5. Store tools in a safe place

- When tools are not in use they should be stored
in a dry, locked room out of children’s reach.

6. Do not overload your tools

- Tools work better and safer when used within
their quoted capacity range.

7. Use the right tool

- Never use tools or attachments with insufficient
power for the job in hand. Never use tools on
jobs for which they were not intended.

8. Wear suitable work clothes

- Do not wear loose clothing or jewelry as they
may get caught in moving parts. Rubber gloves
and non-slip shoes are recommended when wor­king outdoors. Wear a hair net if you have long
hair.

9. Wear safety goggles

- and use a dust mask when working on dusty
jobs.

10. Do not mis-use the cable

- Do not carry the tool by its cable or pull on the
cable to remove the plug from the socket-outlet.
Protect the cable from heat, oil and sharp edges.

11. Don’t overreach

- Avoid abnormal working postures. Make sure
you stand squarely and keep your balance at all
times.

12. Look after your tools

- Keep your tools sharp and clean for better and
safer performance. Follow the instructions for
maintenance work and for changing any attach­ments. Check the plug and cable regularly and, if
damaged, have them replaced by an authorized
specialist. Check the extension cable regularly
and replace it if damaged. Keep handles dry and
free from oil and grease.

13. Always pull out the power plug

- when the tool is not being used, before carrying
out any maintenance work and when changing
attachments such as blades, bits and cutters of
any kind.

14. Remove adjusting keys and wrenches

- Make sure that all keys and adjusting wrenches
are removed from the tool before switching it on.

15. Avoid unintentional starting

- Never carry a tool with your finger on the switch
if it is connected to the power supply. Make sure
that the switch is in OFF position when inserting
the power plug.

16. When using an extension cable outdoors

- check that it is approved for outdoor duty and is
marked accordingly.

17. Be alert at all times

- Watch what you are doing. Use common sense.
Do not operate the tool if your mind is not on your
work.

18. Check the tool for damage

- Each time before re-using the tool, carefully
check that the guards or any slightly damaged
parts are working as intended. Check that the
moving parts are in good working order, that they
do not jam, and that no parts are damaged. Make
sure that all parts are fitted correctly and that all
other operating conditions are properly fulfilled.
Unless otherwise stated in the operating instruc­tions, damaged guards and parts have to be
repaired or replaced by an authorized service
center. It is imperative to have damaged switches
repaired by an authorized service center. Never
use any tool if its switch cannot be turned off and
on.

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 5

6

GB

19. Important!

- For your own safety, use only accessories and
attachments which are listed in the operating
instructions or recommended or listed by the tool
manufacturer. The use of any accessory or
attachment other than those recommended in the
operating instructions or catalogue may involve a
risk of injury for you personally.

20. Have repairs carried out only by a qualified
electrician

- This electric tool complies with the pertinent
safety regulations. Repairs are to be carried out
only by a qualified electrician or the user may
suffer an accident.

21. Replacing the power cable

To prevent injury, damaged power cables may
only be replaced by the manufacturer or the
customer service center.

22. Noise

- The noise level of this electric tool is measured
in accordance with ISO 3744 and NFS 31-031
(84/537 EWG). Noise at the workplace may
exceed 85 dB(A). In this case, the operator must
wear ear-muffs or similar.

Keep these safety instructions in a safe
place.

Specific safety information

Please read this safety information and the directions
for use carefully and be sure to follow the instructions
to the letter.

1. Always remove the power plug from the socket-

outlet before you perform any work on the
hedge trimmer, e.g.

- repairing a damaged cable

- cleaning the blades

- troubleshooting

- cleaning and maintenance
or before leaving the tool unattended.

2. The hedge trimmer can cause serious injuries!

Read the directions for use carefully in order to
acquaint yourself with the correct way to hand­le, set up, service, start and put down the
machine. Familiarize yourself with all the
machine’s control elements and its proper use.

3. Always handle the hedge trimmer with both

hands.

4. When working with the hedge trimmer, wear

sturdy shoes and make sure of your footing.

5. Never work with the hedge trimmer in the rain

or on wet hedges and never leave the hedge

trimmer outdoors. The hedge trimmer must not
be used if it is wet.

6. We recommend that you wear safety goggles
and ear-muffs when working with the hedge
trimmer.

7. Wear suitable working clothes such as rubber
gloves and non-slip shoes. Do not wear loose
garments. Keep long hair in a hairnet.

8. Avoid abnormal postures and make sure of
your footing, particularly when working on lad­ders and steps.

9. Be sure to hold the hedge trimmer well away
from your body when it is switched on.

10. Make sure there are no other persons or ani­mals within your working area (radius of swing).

11. Carry the hedge trimmer only by its guide hand­le.

12. Keep cables clear of the work area.

13. Before you use the hedge trimmer, examine the
power cable for signs of damage and aging.

14. Use the hedge trimmer only when the power
cable is in good working order.

15. Do not remove the power plug from the socket­outlet by pulling on the cable. Never carry the
tool by its cable. Take care not to damage the
cable in any way.

16. Protect cables from heat, caustic fluids and
sharp edges. Replace damaged cables imme­diately.

17. Examine the cutting system regularly for signs
of damage and, if necessary, arrange for the
hedge trimmer to be professionally repaired.

18. If the blades become jammed, e.g. due to thick
branches or the like, switch off and unplug the
hedge trimmer immediately. Only then are you
to remove the cause of the obstruction.

19. Keep the hedge trimmer in a dry place out of
children’s reach.

20. During transportation and storage of the hedge
trimmer, keep the blades covered at all times
with the special guard.

21. Take care not to overload the hedge trimmer
and do not use it on jobs for which it is not
intended, i.e. you are allowed to use the hedge
trimmer only to cut hedges, shrubs and peren­nials.

22. Use only cables and connectors approved for
outdoor use: power cable HO7RN-F 2x1.0 with
integral two-plug plug; extension cable HO7RN­F 3G1.5 with rain-water-protected earthing-pin
plug and earthing-contact coupling.
The use of a leakage-current or earth-leakage
circuit-breaker is recommended for operating
electric tools. Ask your electrician!

23. The hedge trimmer requires regular inspection
and maintenance. Always replace damaged

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 6

7

GB

blades in pairs. If the hedge trimmer suffers any
damage from impact (falling on hard ground
etc.), have it checked immediately by a specia­list.

24. Look after your hedge trimmer carefully. Keep it
clean and sharp to ensure efficient and safe
cutting. Follow the maintenance and cleaning
instructions.

25. Do not use the hedge trimmer with a damaged
or excessively worn cutting system.

26. Never try to work with an incomplete machine
or a machine with unapproved modifications.

27. Check your surroundings and take note of any
potential dangers which you may not be able
hear due to the machine’s noise.

28. It is advisable not to use the hedge trimmer
when other persons, and particularly children,
are nearby.

29. Noise at the workplace may exceed 85 dB(A).

In this case, the operator must wear ear-muffs
or similar. The noise level of this electric tool is
measured in accordance with IEC 59 CO 11;
IEC 704; DIN 45635-1, D.3.1; and NFS 31-031
(84/537 EWG).

30. Vibrations on the handle were measured in
accordance with EN 50144-2-15.

31. Please use an RCD with this unit.

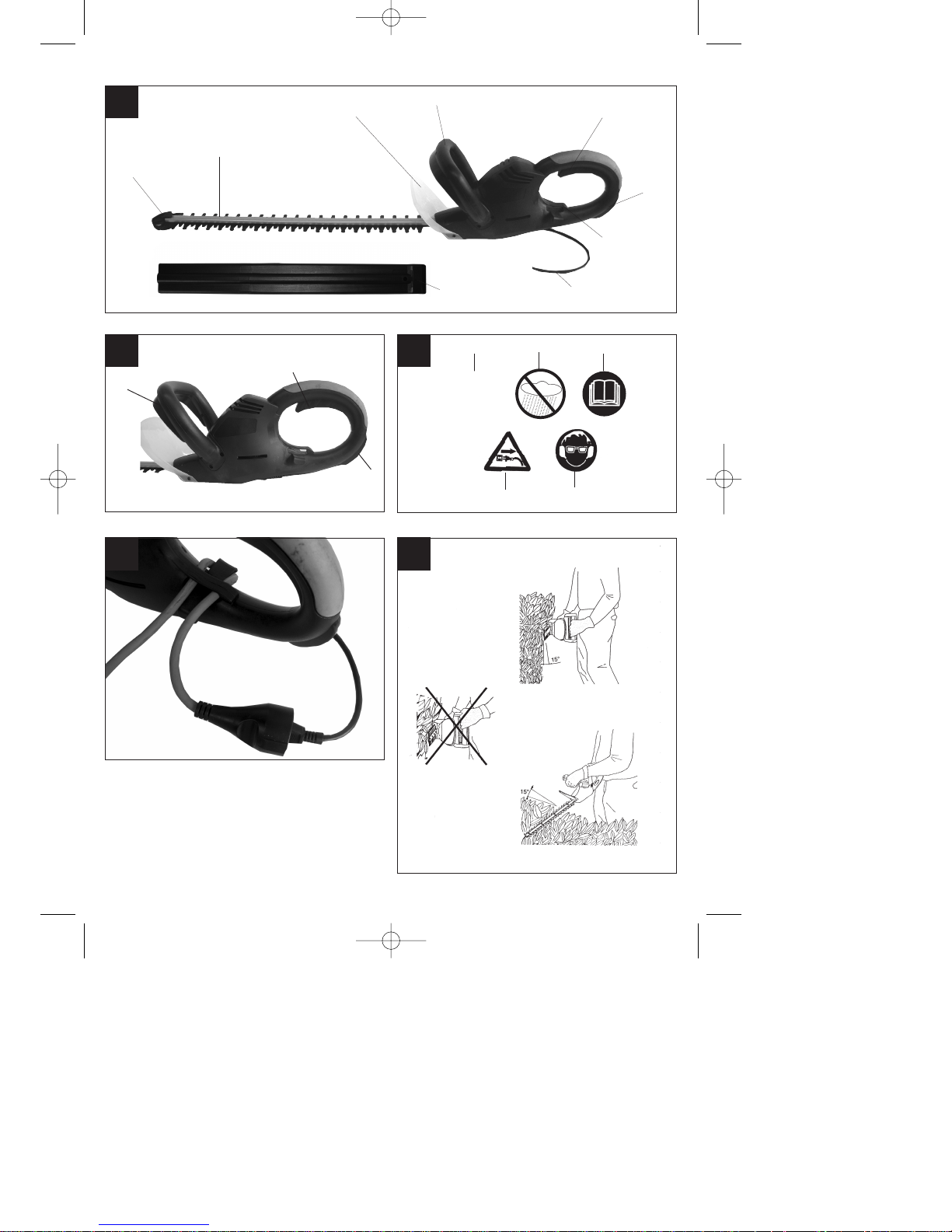

2. Items supplied (see Fig. 1)

- 1 hedge trimmer

- 1 cutter guard (7)

3. Layout (see Fig. 1)

1. Cutter

2. Hand guard

3. Guide handle with switch button

4. Handle with switch buttons above and below

5. Cable strain relief clip

6. Power cable

7. Cutter guard

8. Impact guard

Important! You must never use the hedge trim­mer without wearing gloves.

4. Explanation of the plate (see Fig. 3)

1. Warning

2. Keep out of the rain and protect from getting wet.

3. Read the operating instructions before using for

the first time.

4. Pull the plug from the power supply immediately
if the cable gets damaged or severed.

5. Wear goggles and ear protection.

5. Technical data

Voltage 230V ~ 50Hz
Power consumption 600 W
Cutting length 590 mm
Cutter rail length 660 mm
Tooth spacing 20 mm
Cuts/min 3200/min
Sound power level LWA 96 dB(A)
Sound pressure level LPA 88,6 dB(A)
Vibration aw 3,3 m/s

2

Weight 4,0 kg

6. Voltage

The machine can only be run on single-phase alter­nating current with 230V ~ 50Hz a.c. voltage. Before
you use the machine for the first time, check that the
mains voltage is the same as the operating voltage
shown on the machine rating plate.

7. Using for the first time and operation

Important! This hedge trimmer is designed for the
trimming of hedges, bushes and shrubs. If it is used
for any other purpose not expressly permitted by
these operating instructions there may be a risk of
damage to the hedge trimmer or serious injury to the
user. The hedge trimmer comes with a two-hand
safety switch. It only works if the switch on the guide
handle (Fig. 2 / Item 1) is pressed with one hand and
either the switch on top of the handle (Fig. 2 / Item 2)
or the switch below the handle (Fig. 2 / Item 3) is
pressed with the other hand.
Releasing any of the switches will bring the hedge
trimmer to a stop.

Please watch out for the cutters as they slow
down to a standstill.

- Please check that the cutters work properly.
The twin-bladed cutters rotate in opposite direc­tions, thus guaranteeing high cutting perfor­mance and smooth operation.

- Before use, fasten the extension cable in the

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 7

8

cable strain relief clip (see Fig. 4).

- When working outdoors, use extension cables
that are approved for the purpose.

8. Tips on use

쎲 The hedge trimmer can be used not only for trim-

ming hedges but for trimming shrubs and bushes
as well.

쎲 For optimum trimming performance, guide the

blade teeth at an angle of approx. 15° to the
hedge (see Fig. 5).

쎲 Since the blades cut on both sides and run in

opposite directions to each other, you can trim in

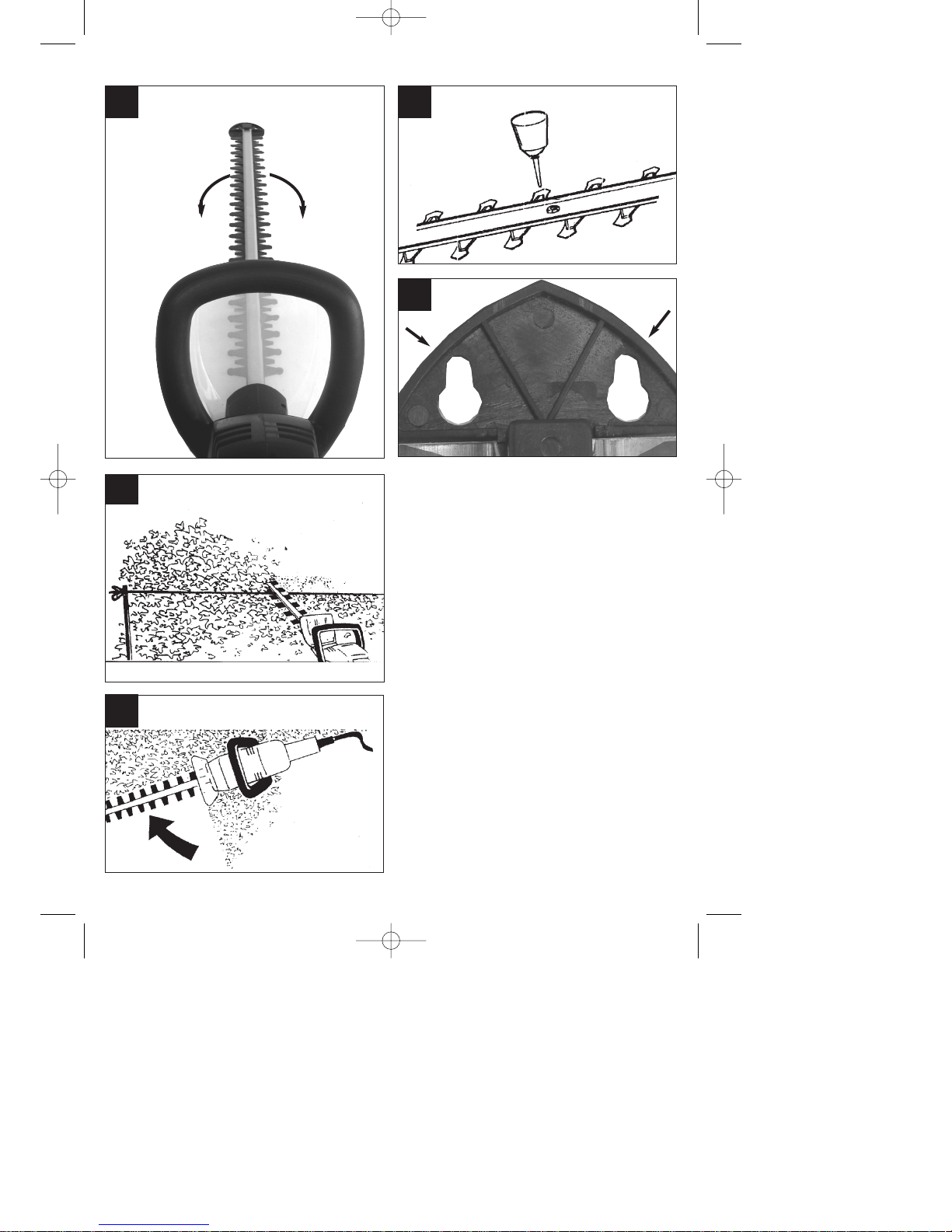

both directions (see Fig. 6).

쎲 To achieve a hedge with a uniform height it is

recommended that you stretch a piece of string
along the edge of the hedge for guidance. Then
simply cut away all twigs projecting above the
line (see Fig. 7).

쎲 The sides of the hedge should be trimmed with

arc-type movements from below upwards (see
Fig. 8).

9. Care, maintenance and storage

쎲 Always switch off the machine and pull the plug

before you start to clean the machine.

쎲 For optimum results at all times you should regu-

larly clean and lubricate the blades. Remove any
deposits with a brush and apply a light film of oil
(see Fig. 9).

Use biologically degradable oil.

쎲 Clean the plastic body with gentle domestic clea-

ning agent and a damp cloth. Never use aggres­sive media or solvents.

쎲 It is imperative that you prevent water from pene-

trating the machine. Never spray the machine
down with water.

쎲 For storage purposes the hedge trimmer can be

fastened to the wall with suitable screws and
dowels (see Fig. 10).

10. Faults

쎲 The machine does not start: Check that the

power cable is correctly connected and check
the mains fuses. If the machine still does not
work even with connected voltage, please send it
to the specified customer services address.

11. Disposal

Important!

The hedge trimmer and its accessories are made of
a diversity of materials such as, e.g. metal and plas­tic.
Defective parts must be disposed of as special
waste. Ask your specialist dealer or local authority for
details about where they can be disposed of!

12. Ordering replacement parts

Please quote the following data when ordering repla­cement parts:

앬 Type of machine
앬 Article number of the machine
앬 Identification number of the machine
앬 Replacement part number of the part required

For our latest prices and information please go to
www.isc-gmbh.info

GB

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 8

9

D

erklärt folgende Konformität gemäß EU-Richtlinie
und Normen für Artikel



declares conformity with the EU Directive
and standards marked below for the article

F

déclare la conformité suivante selon la
directive CE et les normes concernant l’article



verklaart de volgende conformiteit in overeen­stemming met de EU-richtlijn en normen voor
het artikel

E

declara la siguiente conformidad a tenor de la
directiva y normas de la UE para el artículo

P

declara a seguinte conformidade de acordo
com a directiva CE e normas para o artigo

S

förklarar följande överensstämmelse enl. EU­direktiv och standarder för artikeln



ilmoittaa seuraavaa Euroopan unionin direkti­ivien ja normien mukaista yhdenmukaisuutta
tuotteelle



erklærer herved følgende samsvar med EU­direktiv og standarder for artikkel



заявляет о соответствии товара
следующим директивам и нормам EC



izjavljuje sljedeću uskladjenost s odredbama i
normama EU za artikl.



declarå urmåtoarea conformitate cu linia direc­toare CE μi normele valabile pentru articolul.



ürün ile ilgili olarak AB Yönetmelikleri ve
Normlar∂ gere©ince aμa©∂daki uygunluk aç∂kla
mas∂n∂ sunar.



‰ЛПТУВИ ЩЛУ ·ОfiПФ˘ıЛ Ы˘МКˆУ›· Ы‡МКˆУ· МВ
ЩЛУ √‰ЛБ›· ∂∂ О·И Щ· ЪfiЩ˘Ф БИ· ЩФ ЪФ˚fiУ

I

dichiara la seguente conformità secondo la
direttiva UE e le norme per l’articolo



attesterer følgende overensstemmelse i
henhold til EU-direktiv og standarder for
produkt



prohlašuje následující shodu podle směrnice
EU a norem pro výrobek.

H

a következő konformitást jelenti ki a termékek­re vonatkozó EU-irányvonalak és normák
szerint



pojasnjuje sledečo skladnost po smernici EU
in normah za artikel.



deklaruje zgodność wymienionego poniżej
artykułu z następującymi normami na
podstawie dyrektywy WE.



vydáva nasledujúce prehlásenie o zhode podľa
smernice EÚ a noriem pre výrobok.



деклаpиpа следното съответствие съгласно
диpективите и ноpмите на ЕС за пpодукта.



заявляє про відповідність згідно з Директивою
ЄС та стандартами, чинними для даного товару

deklareerib vastavuse järgnevatele EL direktiivi
dele ja normidele



deklaruoja atitikti pagal ES direktyvas ir normas
straipsniui

izjavljuje sledeçi konformitet u skladu s odred
bom EZ i normama za artikl

Landau/Isar, den 29.09.2005

Ensing

Leiter Technik EC

Heckenschere GLH 661

Weichselgartner

Leiter QS Konzern

Einhell AG
Wiesenweg 22
D-94405 Landau/Isar

Konformitätserklärung

98/37/EG

73/23/EWG_93/68/EEC

97/23/EG

89/336/EWG_93/68/EEC

90/396/EWG

89/686/EWG

87/404/EWG

R&TTED 1999/5/EG

2000/14/EG:

95/54/EG:

97/68/EG:

x

x

x

x

Art.-Nr.: 34.036.33 I.-Nr.: 01015 Archivierung: 3403630-05-4175500
Subject to change without notice

EN 50144-1; EN 50144-2; DIN EN 774; EN 55014-1;

EN 55014-2; EN 61000-3-2; EN 61000-3-3;

ISO 4871; KBV V

gemessener Schallleistungspegel LWA= 93 dB

garantierter Schallleistungspegel LWA= 96 dB

EE

SCG

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 9

 WARRANTY CERTIFICATE

The product described in these instructions comes with a 2 year warranty cove­ring defects. This 2-year warranty period begins with the passing of risk or when
the customer receives the product. Please retain receipt as proof of purchase.
For warranty claims to be accepted, the product has to receive the correct main­tenance and be put to the proper use as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 2
years.

This warranty applies in Germany, or in the respective country of the manufactu­rer’s main regional sales partner, as a supplement to local regulations. Please
note the details for contacting the customer service center responsible for your
region or the service address listed below.

GARANTIEURKUNDE

Auf das in der Anleitung bezeichnete Gerät geben wir 2 Jahre
Garantie, für den Fall, dass unser Produkt mangelhaft sein sollte.
Die 2-Jahres-Frist beginnt mit dem Gefahrenübergang oder der
Übernahme des Gerätes durch den Kunden. Voraussetzung für
die Geltendmachung der Garantie ist eine ordnungsgemäße
Wartung entsprechend der Bedienungsanleitung sowie die be­stimmungsgemäße Benutzung unseres Gerätes.

Selbstverständlich bleiben Ihnen die gesetzlichen Gewähr­leistungsrechte innerhalb dieser 2 Jahre erhalten. Die Garan-

tie gilt für den Bereich der Bundesrepublik Deutschland oder der
jeweiligen Länder des regionalen Hauptvertriebspartners als Er­gänzung der lokal gültigen gesetzlichen Vorschriften. Bitte be­achten Sie Ihren Ansprechpartner des regional zuständigen Kun­dendienstes oder die unten aufgeführte Serviceadresse.

ISC GmbH · International Service Center

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Info-Tel. [phone] • Telefax 0180-5 835 830

Service- und Infoserver: http://www.isc-gmbh.info



The reprinting or reproduction by any other means, in whole or in
part, of documentation and papers accompanying products is
permitted only with the express consent of ISC GmbH.

Helpline-No.:



0044 (0) 151 649 1500



189 09 46244

 Technical specifications subject to change

EH 12/2005

 For EU countries only

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its
implementation in national laws, old electric tools have to be separated from other waste and disposed of
in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:
As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the
device is properly recycled if ownership is relinquished. This can also be done by handing over the used
device to a returns center, which will dispose of it in accordance with national commercial and industrial
waste management legislation. This does not apply to the accessories and auxiliary equipment without
any electrical components which are included with the used device.

Anleitung GLH 661 GB 24.01.2006 8:50 Uhr Seite 10
