ISC EZYiD User Manual

Download
®
EZYiD Retro-t System
EZYiD® Retro-t System - Issue A - August 2019
®
1
The information contained herein is provided solely for the purpose of
1.
14.
Introduction to EZYiD
Legal Notices
allowing customers to operate their EZYiD® Reader and is not to be released, reproduced, or used for any other purpose without written permission of CSP Distribution Pty. Ltd.
Information and specications contained in this document are subject to change without prior notice and do not represent a commitment on the part of CSP Distribution Pty. Ltd.
EZYiD® is a registered trademark.
NOTE: The examples and diagrams in this manual are included solely for illustrative purposes.
NOTE: Reproduction of the contents of this manual, in whole or in part, without written permission of CSP Distribution Pty. Ltd., is prohibited.
®
2.
Who Should Read this User Instruction Manual?
3.
Precautions of Use
4.
Nomenclature
5.
EZYiD Reader Operation
5.1 - Charging the Reader
5.2 - Powering the Reader
5.3 - Pairing the Reader to Your Device
5.4 - Status Notifications: Sounds & LED Lights
5.5 - How to Hold the EZYiD Reader
5.6 - Reading the EZYiD Retrofit System
EZYiD Retrofit Application
6.
Cleaning, Storage & Maintenance
7.
System Conformity
8.
Technical Specifications
9.
Lifespan & Warranty
10.
Global Service & Support
11.
Disposal of Reader
12.
Feedback
13.
®
Contents
2 3
1 Introduction to EZYiD®
Radio Frequency Identication (RFID), is a method of communicating information from one point to another point by use of electromagnetic waves (radio waves). RFID Technology has unique characteristics, making it benecial for use in industrial systems.
The EZYiD Reader is a specially designed Ultra High Frequency (UHF) device, designed for use in conjunction with EZYiD RFID Tags, Cable Ties, Stickers and Universal Moulded Tags and also with EZYiD embedded hardware products. The Reader is designed to transfer unique serial number information from the tag to a computer, tablet or mobile phone device of the user’s choice.
2 Who Should Read this User Instruction Manual?
The EZYiD Reader User Instruction Manual provides users with information about the features of the Reader, how to install, congure, operate and maintain it, together with troubleshooting information. Before working with the EZYiD Reader, users should familiarise themselves with this manual and that of the device that they wish to use the Reader in conjunction with.
It is the responsibility of the seller to provide this instruction manual and it is the responsibility of the user to read and understand these instructions prior to use. If the Reader is used in a manner contrary to the specication of the manufacturer (as dened in this manual), the performance of the equipment may be impaired.
3 Precautions of Use
Attentively read all the precautions of use and the operating instructions before use.
NOTE: The Reader device has not been designed for use in processes or machineries for the monitoring and the safety of human life or for medical treatments.
4 5
1.
Antenna
2.
Central Button
3.
LED (Blue)
4.
EZYiD® Logo
5.
Body of Reader
6.
LED (Orange)
4 Nomenclature
The Reader
7.
Product Information Label
8.
Serial Number
9.
Charging Port
10.
Identication Numbers
11.
Product Regulatory Information
EZYiD Cable Tie
EZYiD® Retrottable System
Universal Moulded Tag
EZYiD
EZYiD Sticker
Tag
EZYiD
(Not to Scale)
6 7
5 EZYiD® Reader Operation
5.1 Charging the Reader
Insert the Micro USB into the portal on the back of the EZYiD Reader Insert the USB into the computer, tablet or other USB charging portal Flashing Blue Light (when charger cable unplugged) = Battery Low Flashing Blue Light (when charger cable is connected to device and to power source) = Reader is charging Solid Blue Light (when charger is connected to device and to power source) = Reader is fully charged
NOTE:
• The Reader remains fully operational and can be used to read Tags, while the device is re-charging
• As with all battery powered, re-chargeable devices, the device should be disconnected from the power supply
• The EZYiD Reader is tted with a non-replaceable battery. This battery is capable of approximately 10,000 reads per charge.
8 9
1 Second
5.2 Powering the Reader
2 Seconds
OffOn
1. Hold down the central diamond shaped button for one (1) second
2. An orange LED will appear on the right side
3. The LED will move to the left and appear in blue. Two (2) beeps will sound. The blue LED will remain on if the Reader has been turned on successfully
4. To turn the device off, hold down the central diamond shaped button. The blue light will ick to orange
10 11
5.3 Pairing the Reader to Your Device
The EZYiD Reader is a “Plug ‘n’ Play” device. It is not necessary to download any software onto your computer, tablet or mobile phone, in order for the EZYiD Reader to function. Simply, turn on your EZYiD Reader, and follow the Bluetooth pairing instructions for your computer, tablet or mobile phone to pair the Reader to your personal device. Your Reader can only be paired to one computer, tablet or mobile phone at a time in order for it to function correctly. If you wish to pair the Reader to a different personal device, ensure you have unpaired it from the original computer, tablet or mobile phone. To unpair the Reader from your computer/device, please refer to the operating instructions of your computer/device. Note: The serial number of the Reader (shown as ‘sn’, on the label on the reverse side of the Reader), can be used to identify the Reader on your computer, tablet or mobile phone.
12 13
Status Notications: Sounds & LED Lights
Status Indicator State Indicates
One (1) sound Device is on
One (1) flash orange LED Device is readable & reader can identify & read the tag
No Sound Device is on
Two (2) LED, orange & blue Device attempting to locate a readable tag & has not yet found such tag
Three (3) short sounds Device is on
One (1) flash orange LED Tag is readable & reader can identify & read the tag
Flashing blue LED Reader battery is low
Reader is not paired to device
Data is not being sent & stored to device
Device will search for readable tag for three (3) seconds before resetting
Reader is paired to device
Information from tag is being sent to & stored onto device
Status Notications When Reading: Sounds & LED Lights
14 15
One beep with one ash of orange light: [Successful Read, Unsuccessful Data Transfer] After a single press of the central button, the device is on, the tag is readable and the reader is able to read the tag, but your Reader is not paired to a computer, tablet or mobile device. Therefore, data information is not being sent/stored on any device. [See section 5.3: Pairing the Reader to your Software]
No beep and both the blue and orange lights are on: [Unsuccessful Read] After a single press of the central button, the Reader device is on and it is currently trying to search for a readable tag but has not yet found a functioning tag to read. The Reader will attempt to nd a readable tag for three (3) seconds. If a readable tag is not found, the orange light will go off, the blue will remain on and the user will need to attempt again to read a tag.
Three (3) short beeps with one ash of orange light: [Successful Read & Successful Data Transfer] After a single press of the central button, the device is on, the tag is readable, the Reader is able to successfully read the tag, your Reader is paired to your computer, tablet or mobile device and the information from the tag is being sent to and stored onto that device.

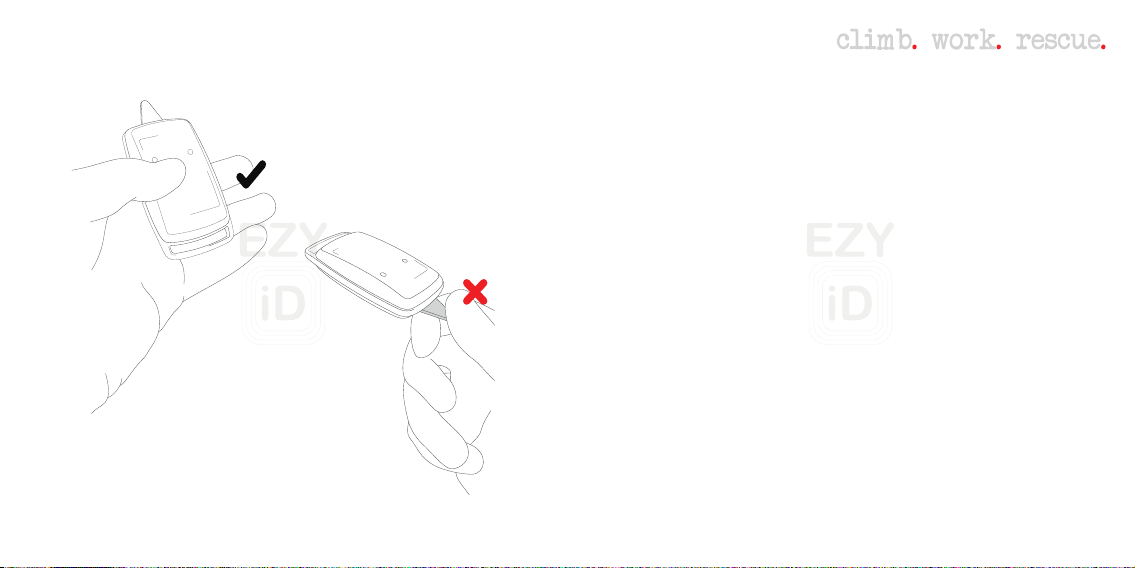

5.5 How to Hold the EZYiD® Reader
The EZYiD Reader should be held comfortably in one hand, ensuring that the antenna is not covered. Care should be taken not to press, hold or damage the antenna, as this may result in your Reader malfunctioning.
16 17
5.6 Reading the EZYiD® Retrottable System
To scan, hold the Reader 2-3mm away from the tag
Press the central button. The Reader will search for a readable tag for 3 seconds
Repeat the process if a tag is not located. Different LED and sounds will notify you of the outcome
Hold the antenna closely (2-3mm) over the Tag, Sticker, Cable Tie or Universal Moulded Tag which needs to be read Press down on the central button. The Reader will search for a readable tag for three (3) seconds If a readable tag is not located, the Reader will reset and will need to be pressed again in order to read a tag. Different LED and sounds will notify you of the outcome of the read. (See Section 5.4: Status Notications: LED Lights & Sounds).
18 19
6 EZYiD® Retrottable Application
Tags:

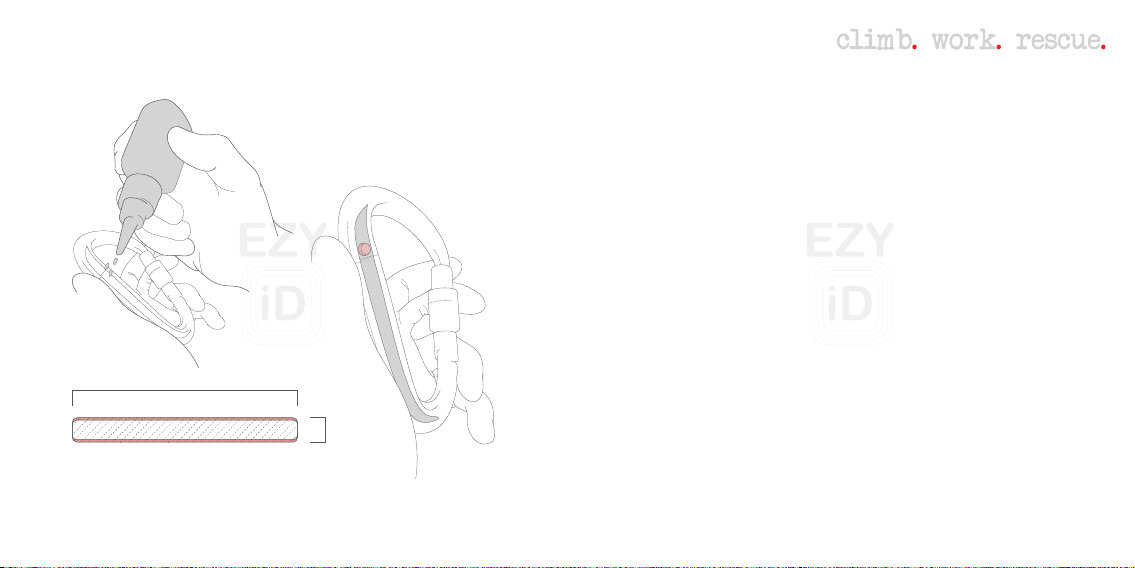

Tags are low prole, with a depth of ~2mm and diameter of 6mm. Tags can be applied to assets using a commonly available Contact Adhesive or Two-part Epoxy Resin (not supplied). It is the responsibility of the user to ensure that the adhesive used is suitable for use on the intended asset.
6mm
~2mm
Tags
20 21
6 EZYiD® Retrottable Application
Cable Ties
Cable Tie:
Cable Ties are tted with an EZYiD Tag, near the buckle-end of the tie, thus allowing the Cable Ties to be tted in the usual manner with any excess length of the Cable Tie trimmed.
22 23
6 EZYiD® Retrottable Application
25mm
25mm
Stickers
Stickers:
Stickers are 25mm x 25mm (1”x1”), with a low prole of <1mm and contain a special at RFID tag. Stickers are supplied with a self-adhesive backing and can be applied to a range of non-metal assets.
24 25
6 EZYiD® Retrottable Application
Universal Moulded Tags
Universal Moulded Tags:
Universal Moulded Tags are 19mm x 10mm x 5mm (3/4” x 25/64” x 13/64”) and can be tted to assets by using a cable tie, nail, screw, pop-rivet, or glue. The Universal Moulded Tags can be attached to any asset.
26 27
6 Considerations
Considerations when choosing tag type and tting locations:

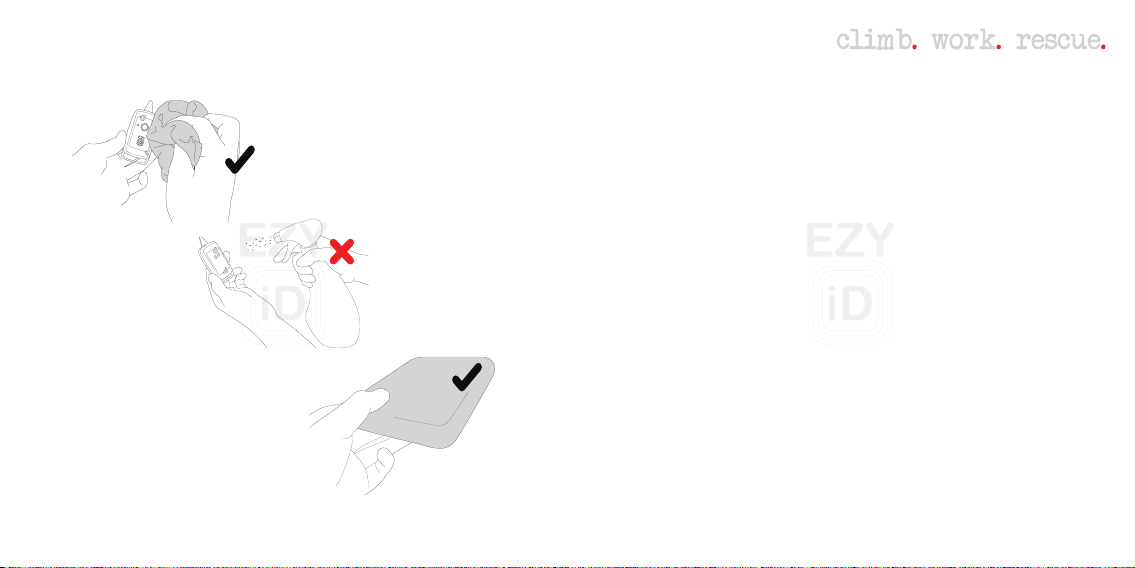

All Tags, Cable Ties, Stickers and Universal Moulded Tags should be applied to an area of the asset where they will not interfere with the function of the asset. Care should also be taken to position the tag away from the high-wear areas of the asset, in order to best defend the tags from abrasion/wear, which may cause the tag to become detached.
All Tags, Cable Ties, Stickers and Universal Moulded Tags are passive (passive components are electronic components that do not require a source of energy to perform their intended functions).
28 29
7 Cleaning, Storage & Maintenance
The EZYiD Reader should be cleaned using a dampened cloth. A mild, diluted detergent may be added to the water in which the cloth is dampened, but do NOT directly apply detergents on to the product. Do NOT immerse the device in water/liquid.
The EZYiD Reader should be handled with care and when not in use, should be stored in the protective case (as supplied with the device) and the case placed in a cool, dry place, which is free from water, heat, chemicals and other environmental conditions that could possibly cause damage to the Reader. Damage to the Reader could result in a lack of integrity in operating functions.
CAUTION: The EZYiD Reader case provided with product is designed to provide some protection to the Reader, but care should still be taken when transporting the Reader in this case. The case is not watertight, nor airtight and is not designed to withstand extreme weights or pressures. It is the responsibility of the user and owner of the reader to care for it in an appropriate manner as to avoid any damage that could result in malfunctioning of the Reader.
The EZYiD Reader is a non-maintenance device and there are no serviceable parts.
30 31
8: System Conformity:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer.
RoHS Conformity BlueBerry has been realized using materials and constructive processes conforming to the limits imposed by the directive 2003/108/CE (RoHS) concerning the use of dangerous substances in electronic products.
9: Technical Specications:
EZYiD UHF Reader: Operating System Compatibility: iOS, Android, RIM, Windows Mobile/ Phone, Windows, macOS, Linux
USB interface – Bluetooth 2.1 + EDR 4mm Antenna is suitable for EZYiD Tags, Cable Ties, Stickers, Universal Moulded Tags and embedded tags.
Frequency Options: Europe (ETSI), North America (FCC) or Australia (AMCA)
Features: Simple 1 function key for read activation, multitone beeper, 2 colour LED for device operation signalling Reading distance: 2-3mm Operating Temperature: -20°C to 70°C (-4°F to 158°F)
Battery Information: Li-Poly Battery 3.7Vdc 300mAh, USB 5Vdc re-chargeable (cable supplied). Battery life up to 10,000 readings, per full charge. Can be used and re-charged simultaneously. Dimensions: Width 44mm (1 11/16”) x Length 95mm (3 11/16”) x Thickness 18mm (3/4”). Webbing width 30mm (1”) Weight: 30g (1oz)
Retrot Range:
Tags: 6mmØ x 2mm deep (15/64 x 5/64”) Cable Ties: 200mm x 5mm (7 7/8” x 13/64”) Stickers: 25mm x 25mm (1 x 1”) Universal Moulded Tags: 19mm x 10mm x 5mm (3/4” x 25/64” x 13/64”)
NOTE: Stickers are NOT suitable for use on metal items
32 33
All Tags, Cable Ties, Stickers and Universal Moulded Tags are passive (passive components are electronic components that do not require a source of energy to perform their intended functions).
10: Lifespan & Warranty:
CSP Distribution Pty. Ltd. guarantees that EZYiD products will be free from material defects caused by workmanship or production. This guarantee extends to and no more than twelve (12) months from the date of purchase. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The warranty that covers this product does not extend to damage or malfunctions caused by improper installation, use, storage or improper modications or repairs on the product. To claim warranty, the purchaser must notify CSP Distribution Pty. Ltd. of the material defect immediately after its discovery, or within a timeframe that would be deemed as reasonable. After notication has been made, the purchaser must not use or attempt to use the defective product until CSP Distribution Pty. Ltd. has had the opportunity to assess the product’s defects and respond appropriately to the complaint. Any use of the product after notication may result in the claim becoming void.
For warranty support please contact support@ezyid.com
11: Global Service & Support Web Support:
Basic reader FAQ can be found at www.ezyid.com. Alternatively, use our online contact portal to speak to customer support regarding any other queries you may have regarding your EZYiD Reader.
Telephone Support:
For Australian or International support, call +61 8 6146 0170 (calls are charged at standard rate) Alternatively, please contact your nearest EZYiD reseller.
12: Disposal
Each country has specic legislation in place, relating to the responsible disposal of lithium batteries. When disposing of your EZYiD Reader, please consult your local authority for compliance advice.
13: Feedback
Your feedback is crucial to the continual improvement of our documentation and products. To provide feedback about this manual or the EZYiD Reader and/or Tags, please contact: CSP Distribution Pty. Ltd. Customer Service support@ezyid.com
14: Legal Notices
CSP Distribution Pty. Ltd. declines every responsibility in relation to possible damages, losses of income or any other damage resulting from the use of this product. The content of this manual cannot be brought anywhere without the permission of the producer. The technical specics of the product and the information brought
34 35
in the manual are subject to change without notice; for the latest information, visit www.ezyid.com
It is the responsibility of the user to read and understand these instructions prior to use. If the Reader is used in a manner contrary to the specication of the manufacturer (as dened in this manual), the protection of the equipment may be impaired. In no event will CSP Distribution Pty. Ltd. be responsible or liable for indirect or consequential damages resulting from the use or application of this Reader.
36 37
Notes Notes
38 39
CSP Distribution Pty. Ltd.
12/386 Scarborough Beach Road
Osborne Park, WA, 6017
www.ezyid.com
+61 8 6146 0170
support@ezyid.com
International Safety Components Ltd.
Llandygai Industrial Estate
Unit 1, Plot 2
Bangor Gwynedd LL57 4YH
United Kingdom
+44 (0) 1248 363 125
sales@iscwales.com
www.iscwales.com
www.ISC-EZYiD.com
®
40
EZYiD® Retro-t System - Issue A - August 2019
