TWIN OVER TWIN BUNK BED
PAGE 1 OF 6
ASSEMBLY INSTRUCTIONS
ITEM FU19-CPC
Weight Limit
250 Lbs
Weight Limit
350 Lbs
PAGE 2 OF 6
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
ITEM FU19-CPC
SAFETY WARNINGS AND GENERAL NOTES
：
1. Follow the information on the warnings on the bunk bed end
structure and on the carton. Do not remove the warning label from the
bed.
2. Always use the recommended size mattress on mattress support, or
both, to help prevent the likelihood of entrapment or falls.
3. Do not allow children under 6 years of age to use the upper bunk.
4. Periodically check and ensure the guardrail, ladder and other
components are in their proper position, free from damage, and all
connectors are tight.
5. Do not allow horseplay on or under beds.
6. Always prohibit jumping on the bed.
7. Prohibit more than one person on upper bunk.
8. Always use the ladder for entering and leaving the upper bunk.
9. Do not use substitute parts.Contact the manufacturer or dealer for
replacement parts.
10. Use of a night-tight may provide added safely precaution for a
child using the upper bunk.
11. Always use guardrails on both long sides of the upper bunk.
12. If the bunk bed will be placed next to a wall, the guardrail that runs
the full length of the bed should be placed against the wall to prevent
entrapment between the bed and the wall.
The use of water or sleep flotation mattresses is prohibited.
13. STRANGULATION HAZARD-Never attach or hang items to any
part of the bunk bed that are not
designed for use with the bed.
14. Keep these instructions for future reference.
15. We recommend assembling your bunk bed on the shipping carton
to protect your floor or carpet.
16. Be certain all staples are out of the box before beginning assembly
on the shipping carton.
17. USE ONLY MATTRESSES WHICH ARE AS THE TABLE
BELOW ON UPPER AND ON LOWER BUNKS.
Down bed
Bed type Length Width Thickness
Twin Standard 74” – 75” 38 ½’’ 8’’ max
Up bed (bunk bed and tribed included)
Bed type Length Width Thickness
Twin Standard 74” – 75” 38 ½’’ 6’’ max
18. SURFACE OF MATTRESS MUST BE AT LEAST 5" (127MM)
BELOW THE UPPER EDGE OF GUARDRAILS.
19. Replacement Parts:
Replacement Parts, including additional guardrails, may be obtained
from any of our dealers
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
ITEM FU19-CPC

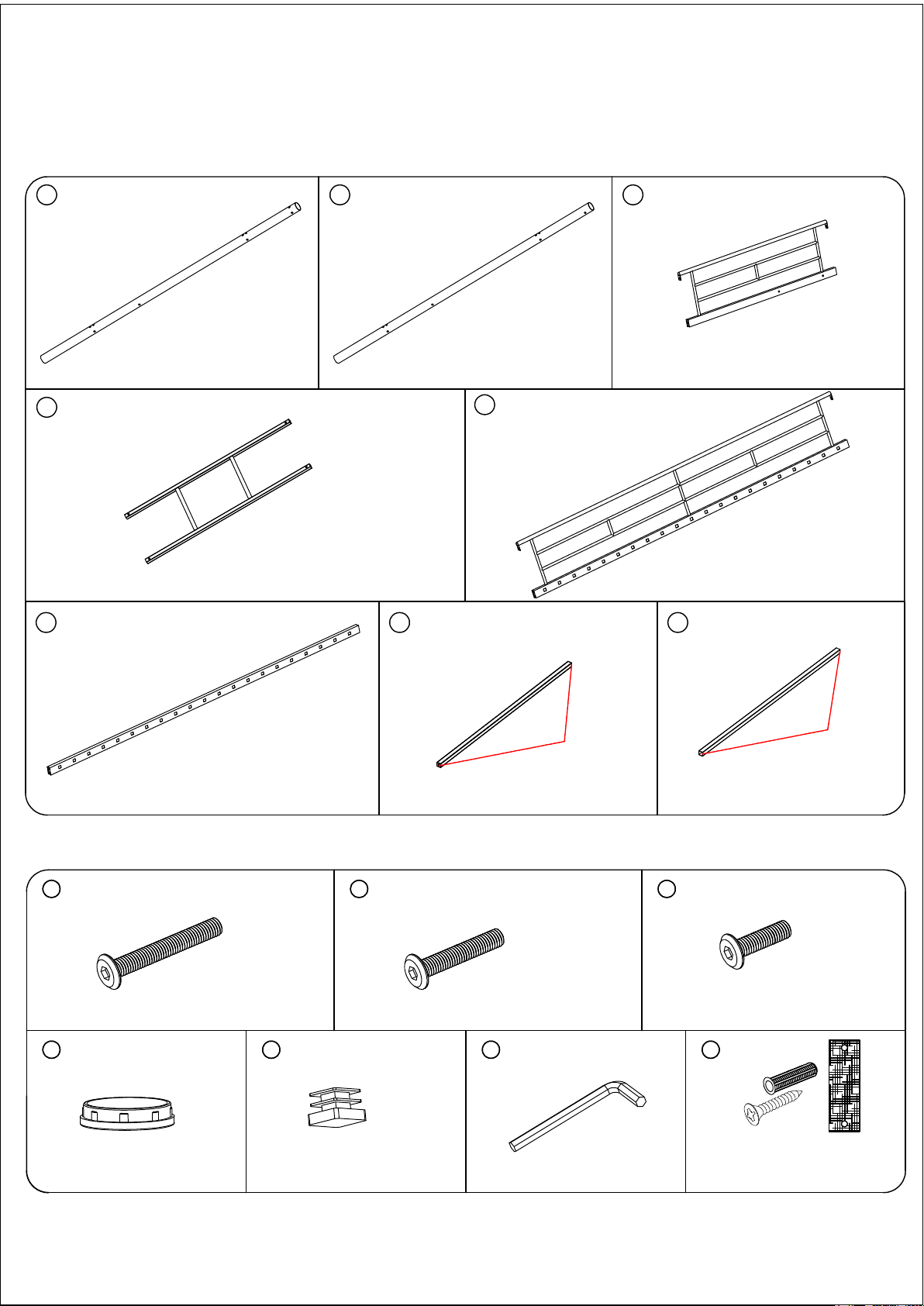

PART LIST
2
Post
2PCS
5 Guard rail
7 Slats 8 Slats
2PCS
End guard rail
3
2PCS
4PCS
2PCS
24PCS
End cap
E
8PCS
Ø42
2PCS
HARDWARE LIST
Bolts
B
1/4*60
4PCS
F G
Allen key
20*20
8PCS
Screw hole
4PCS
Bolts
C
1/4*35
Connect wall
1PC
4*59
20PCS
2 SET
Hollow
38PCS
1/4*15
1/4*40
PAGE 3 OF 6
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
ITEM FU19-CPC
DETAIL VIEW
5
3
3
5
4
1
4
2
1
3
6
3
6
8

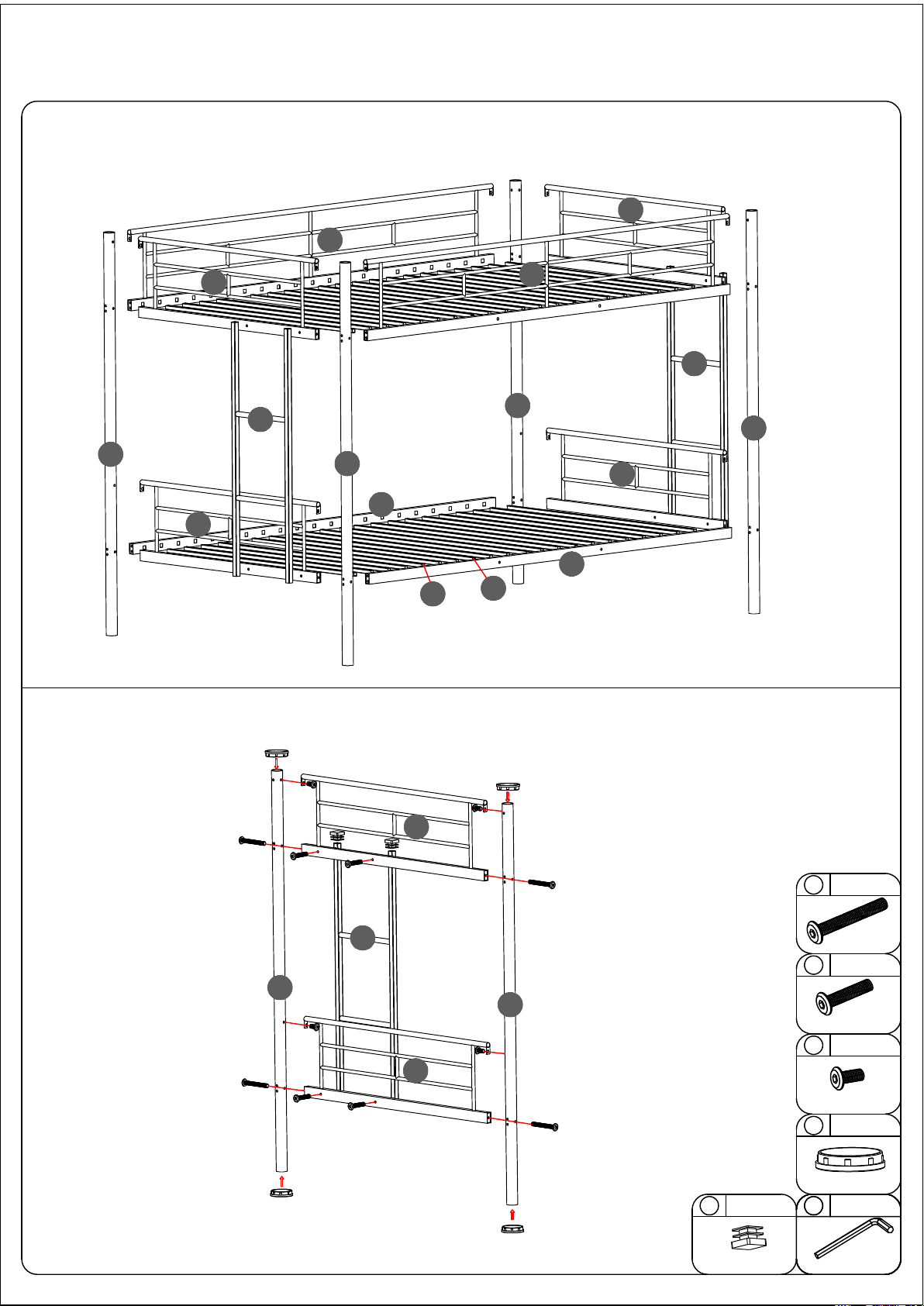

STEP 1 : Following below illustration Assembly Frame #1. 2set mirror
Using hardware #A, #B, #C, #D, #E connect #1 , #2 with #3 & #4 to complete Frame #1.
7
2
NOTE
D
D
A
A
B
C
E
B
E
3
C
4
1
2
C
A
B
D
:
In this step, DO NOT tighten any bolt until you connect all part together.
B
Frame #1
2 set mirror
3
PAGE 4 OF 6
C
A
E 4PCS
D
A 8PCS
B 8PCS
C 8PCS
D 8PCS
20*20
1/4*60
1/4*35
1/4*15
Ø42
F 1PC
4*59
4*59
PAGE 5 OF 6
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
ITEM FU19-CPC

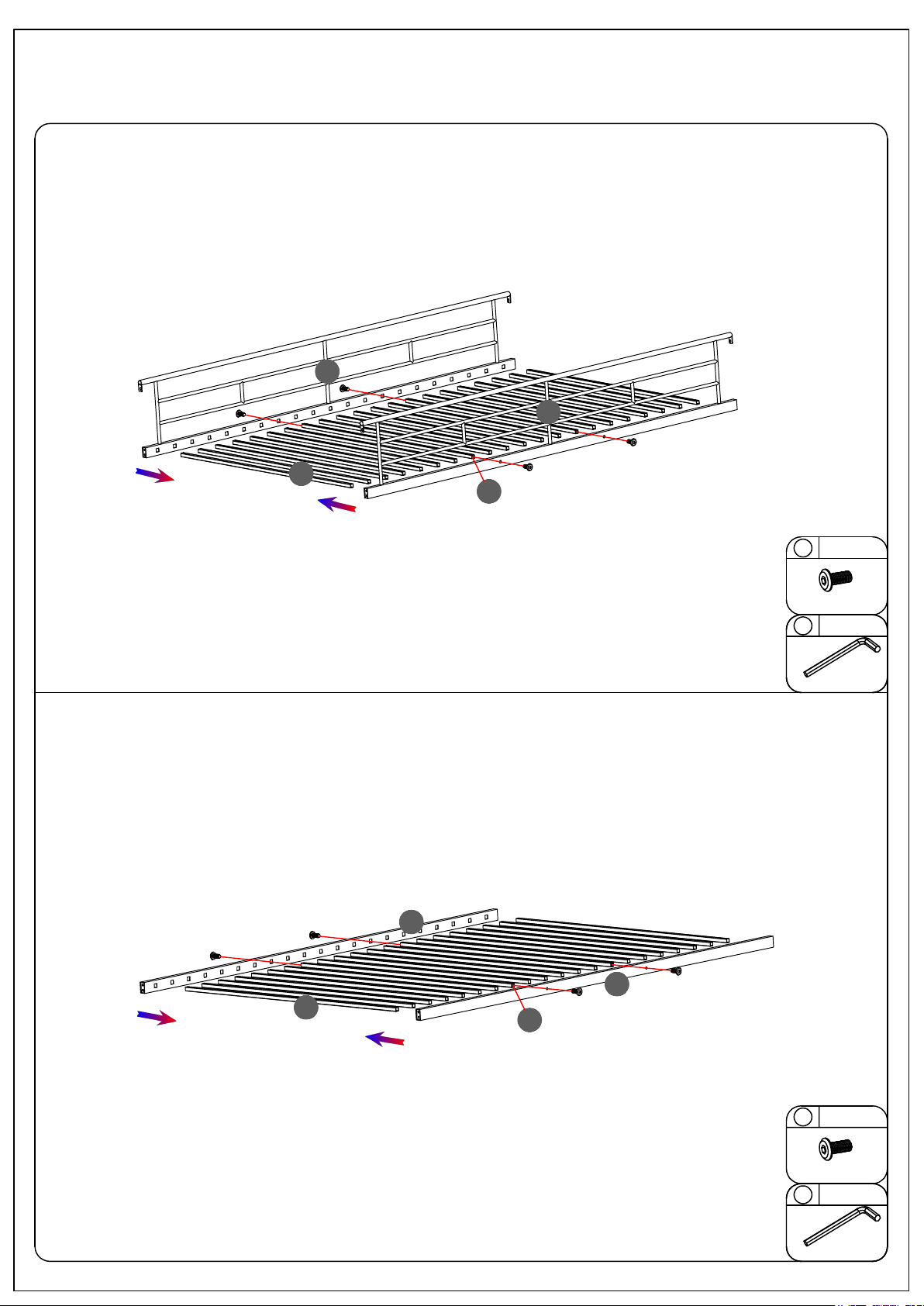

STEP 2 : Following below illustration Assembly Frame #2.
Using hardware #C connect #5 with #7, #8 to complete Frame #2.
5
C
C
8
Frame #2
In this step, DO NOT tighten any bolt until you connect all part together.
NOTE
STEP 3 : Following below illustration Assembly Frame #3.
Using hardware #C connect #6 with #7, #8 to complete Frame #3.
:
C
7
5
C
C 4PCS
1/4*15
F 1PC
4*59
In this step, DO NOT tighten any bolt until you connect all part together.
NOTE
:
C
Frame #3
C
6
6
8
C
C
7
C 4PCS
1/4*15
F 1PC
4*59
PAGE 6 OF 6
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
ITEM FU19-CPC

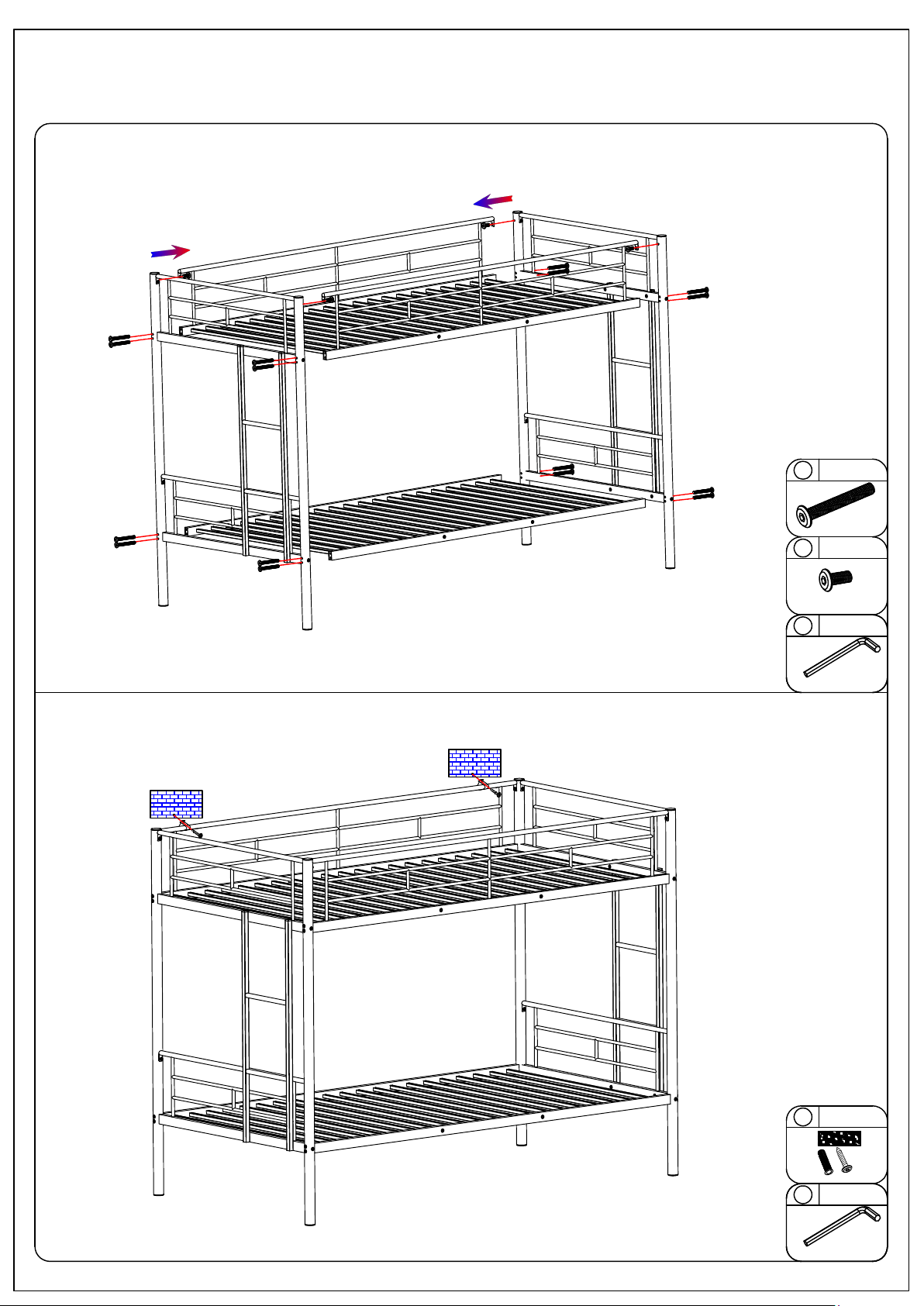

STEP 4 : Following below illustration Assembly Frame #4.
Using hardware #A, #C connect Frame #1 with Frame #2, Frame #3 to complete Frame #4.
Frame #2
C
C
C
A*2
C
A*2
A*2
A*2
Frame #1
Frame #3
A*2
A*2
In this step, DO NOT tighten any bolt until you connect all part together.
NOTE
STEP 5 : Following below illustration Assembly Frame #5.
Using hardware #G connect Frame #4 with Wall to complete .
COMPLETED BUNK BED
:
Frame #4
Frame #1
A*2
G
A 16PCS
A*2
C 4PCS
1/4*60
1/4*15
F 1PC
4*59
G
NOTE: Tighten all step before using. Thank you.
G 2 SET
F 1PC
4*59
