Parts List
1
Page 1 of 13
Headboard Panel x 1
A
Headboard Post x 1
B
Set of Bed Slats x 1
C
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
Use 2 People
Parts in Box A:
D
Side Rail x 2
E
Back Panel x 1
F
Lower Drawer- Support Bar x 5
Parts in Box B:
Storage can be assmbled
on the left or on the right.
Left Right
Twin Captain's Bed
Assembly Instructions
Page 2 of 13
Part List
1
Parts in Box C:
Q
Lower DrawerSide Panel (Left Hand) x 1
R
Lower Drawer-
Center Panel x 1
S
Lower DrawerSide Panel (Right Hand) x 1
T
Lower StorageSide Panel (Left Hand) x 1
U
Lower StorageCenter Panel x 1
V
Lower StorageSide Panel (Right Hand) x 1
Extra holes
(shown inside)
G
Footboard Panel x 1
H
Lower Storage-
Support Rail x 2
M
Lower StorageBack Panel x 1
O
Lower StorageLower Panel x 1
L
Lower StorageFront Frame x 1
P
Lower DrawerBack Panel x 2
J
Lower Storage-
Support Bar
(Left Hand) x 1
N
Lower Storage-
Shelf x 1
K
Lower Storage-
Support Bar
(Right Hand) x 1
W1
Drawer Face x 4
W2
Drawer Back x 4
W3
Drawer Bottom x 4
W4
Drawer
Rail x 4
W5
Drawer Side Panel
(Left Hand) x 4
W6
Drawer Side Panel
(Right Hand) x 4
Twin Captain's Bed
Assembly Instructions
Page 3 of 13
Hardware List
M6 x 90mm JCB
x 8
1
M6 x 40mm JCB
x 8
2
M6 x 30mm JCB
x 27
3
M6 x 20mm JCB
x 8
4
M6 x 15mm JCB
x 16
5
Wood Dowel
(6 x 25mm) x 16
6
Barrel Nut
x 6
7
Flat Washer
x 8
8
Spring
Washer x 8
9
CSK Cap Wood Screw
(M6 x 50mm) x 8
10
Wood Screw
(M4 x 32mm) x 18
11
Wood Screw
(M4 x 25mm) x 40
12
Wood Screw
(M4 x 16mm) x 22
13
Allen Key x 1
16
'L' Bracket (5005-3) x 8
14
'L' Bracket (5003) x 2
15
Fit the 'L' Bracket (14) to the Lower Storage- Front Frame (L).
3
2
L
5
14
Twin Captain's Bed
Assembly Instructions
Twin Captain's Bed
Page 4 of 13
Attach the Lower Storage- Support Bar (H) &
Lower Panel (O) to the Center
Panel (U).
4
U
O
10
10
H
10
3
3
H
O
U
V
T
3
3
3
3
3
Extra holes
(shown inside)
Assemble the Lower Storage- Left & Right hand
Side Panel (T & V) to the Support Rail (H) &
Lower Panel (O).
5
Back
Assembly Instructions
5
14
x 4
Twin Captain's Bed
Page 5 of 13
Attach the Lower Storage- Support Rail (H) & Front
Frame (L). Lastly, tighten Left & Right hand
Side Panel (T & V) with using 15mm JCBs (5).
6
L
H
V
U
T

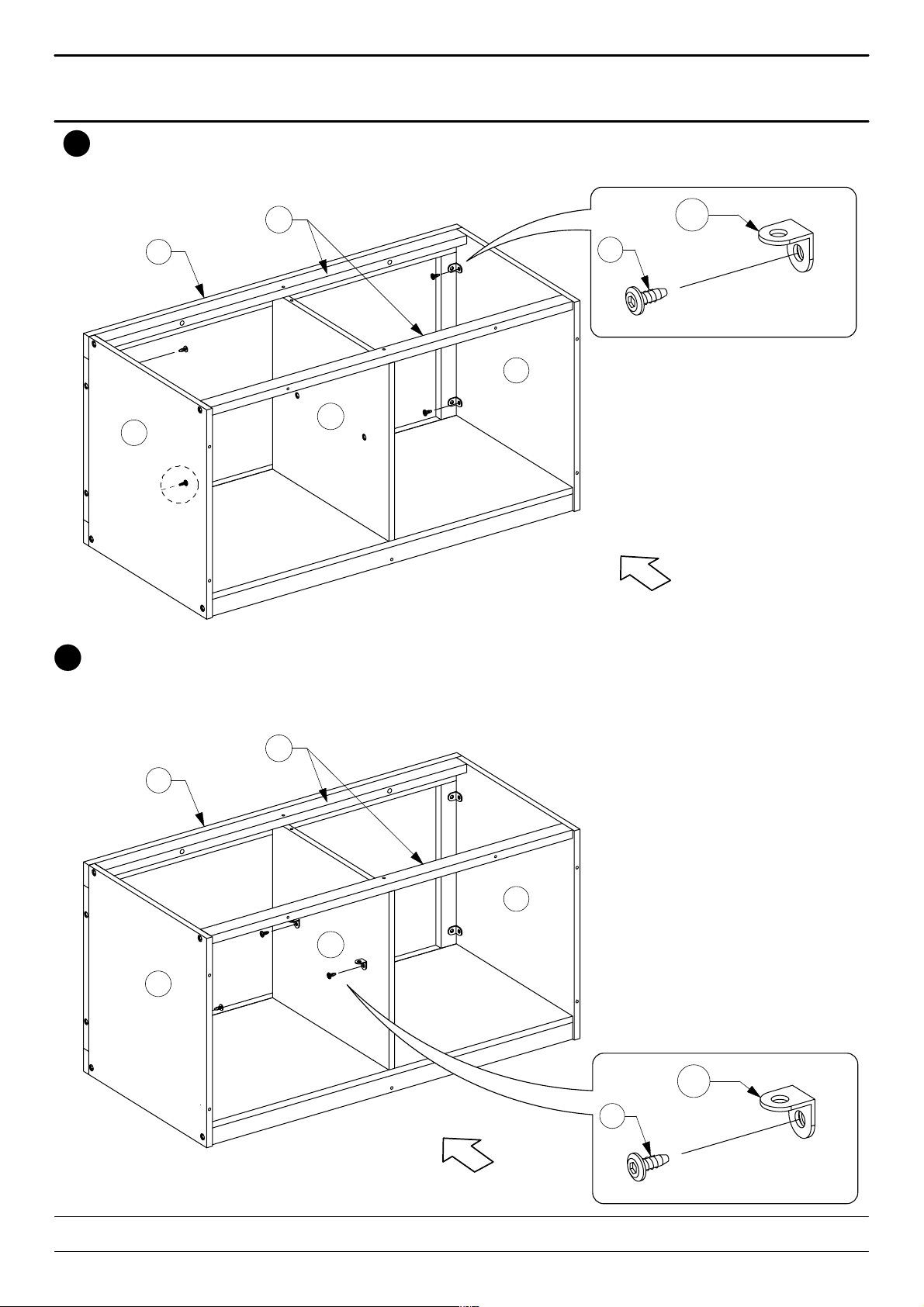

Fit the 'L' Bracket (14) to the Lower Storage- Right hand Side Panel (V) &
Center Panel (U).
7
L
H
V
U
T
5
14
x 4
Back
Back
Assembly Instructions
Twin Captain's Bed
Page 6 of 13
Slide in the Lower Storage- Shelf (N) inside the frame.
Tighthen the Lower Storage- Shelf (N) with bolts.
8
N
V
T
Fit the Lower Storage- Back Panel (M).
9
Back
5
x 4
13
13
13
13
13
13
M
V
T
Assembly Instructions
M
10
10
10
10
J
K
V
T
Twin Captain's Bed
Page 7 of 13
Attach the Left & Right hand Lower Storage- Support Bar (J & K)
to the Side Panel (T & V).
10
Assemble the Lower Drawer- Support Bar (F)
to the Lower Drawer- Center Panel (R).
11
Back
Back
F
F
3
3
3
R
F
3
Assembly Instructions
Twin Captain's Bed
Page 8 of 13

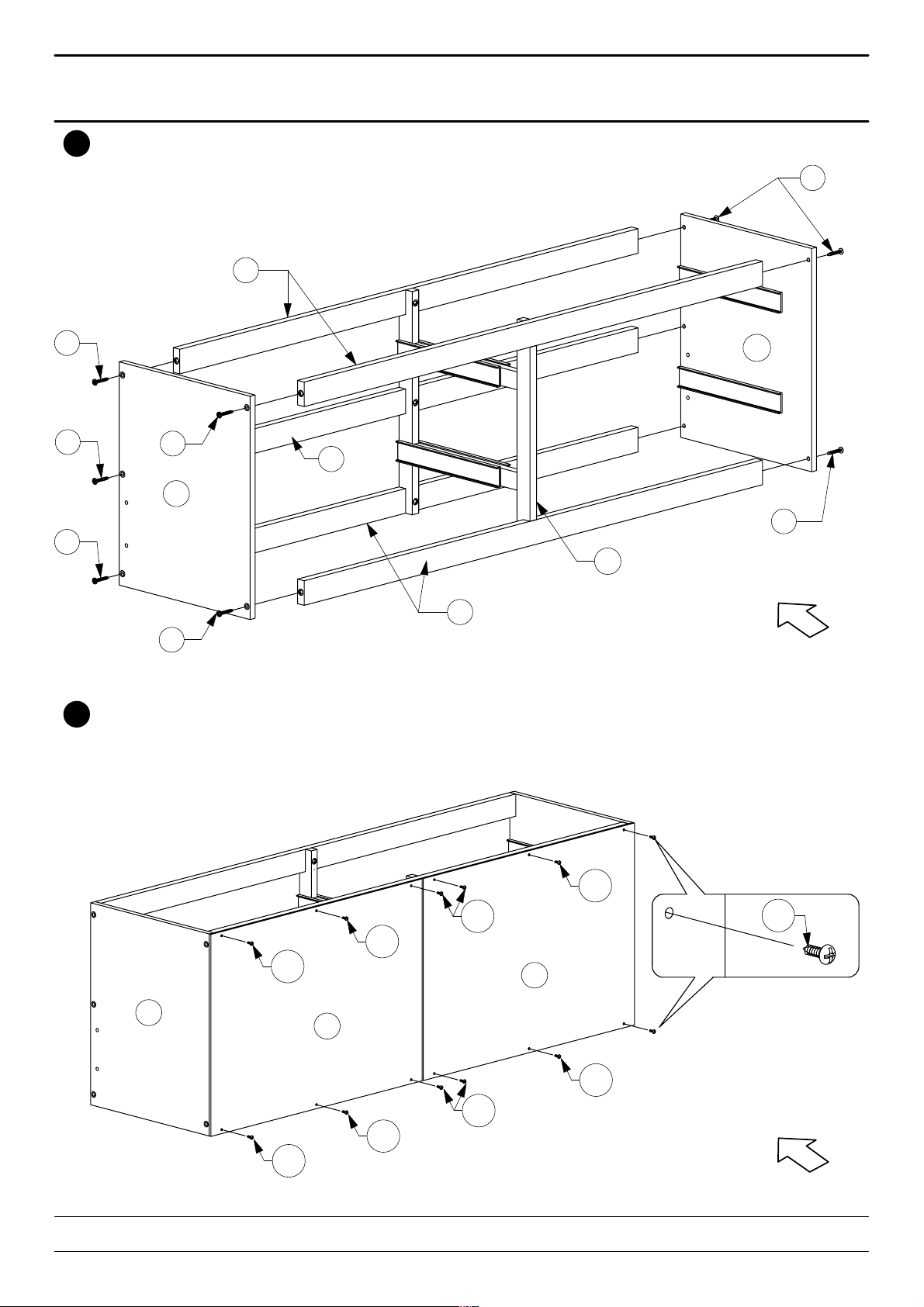

Assemble the Left & Right hand Lower Drawer- Side Panel (Q & S)
to the end of the Lower Drawer- Support Bar (F).
F
F
S
Q
3
3
3
3
3
F
3
3
R
12
Fit the Lower Drawer- Back Panel (P) in place.
13
Back
Back
P
P
13
13
13
13
13
13
13
13
S
13
Assembly Instructions
Twin Captain's Bed
Page 9 of 13
Slide the Drawer Bottom (W3) into the
groove on the Drawer Sides (W5 & W6).
Assemble the Drawer Back (W2) to the Drawer Sides (W5 & W6).
12
6
W1
W4
6
12
W6
W5
Important: Assemble the
Drawer Runner facing
Drawer Face.
W3
W6
W5
12
12
W2
W5
W6
Assemble the Left and Right hand Drawer Sides (W5 & W6) and Drawer Rail (W4)
to the Drawer Face (W1).
Turn the Drawer over to fit angled
25mm Wood screws (12)
to the Drawer
Rail (W4).
W1
12
W2
W4
14
15
16
17
x 4
Assembly Instructions
3
Twin Captain's Bed
Page 10 of 13
Storage can be assembled on the left or on the right.
18
On the Left
Assemble the assembled Lower
Storage and assembled Lower
Drawer together.
Assembled
Lower Drawer
Assembled
Lower Storage
Left
Assembled
Lower Drawer
Assembled
Lower Storage
On the Right
Right
Assembly Instructions
Twin Captain's Bed
Page 11 of 13
Assemble the Side Rail (D) & Back Panel (E) to the
Headboard Panel (A) & Headboard Post (B).
B
A
E
D
D
G
19
4
8
9
7
1
Use 2 People
9
4
8
1
D
B
1
7
A
1
E
7
Attach the Footboard Panel (G) to the
Headboard Post (B) & Side Rail (D).
20
Assembly Instructions
Twin Captain's Bed
Page 12 of 13
Assemble the assembled Lower Drawer
to the Headboard Panel (A).
21
Use 2 People
D
G
Assembled
Lower Storage
B
D
E
Assembled
Lower Drawer
1
1
13
15
Back
A
D
Assembled
Lower Drawer
G
Assembled
Lower Storage
3
Bolt the assembled Lower Storage to the
Headboard Post (B) and tighten the
'L' Bracket with M4 x 16mm
Wood Screw.
22
Assembly Instructions
Twin Captain's Bed
Page 13 of 13

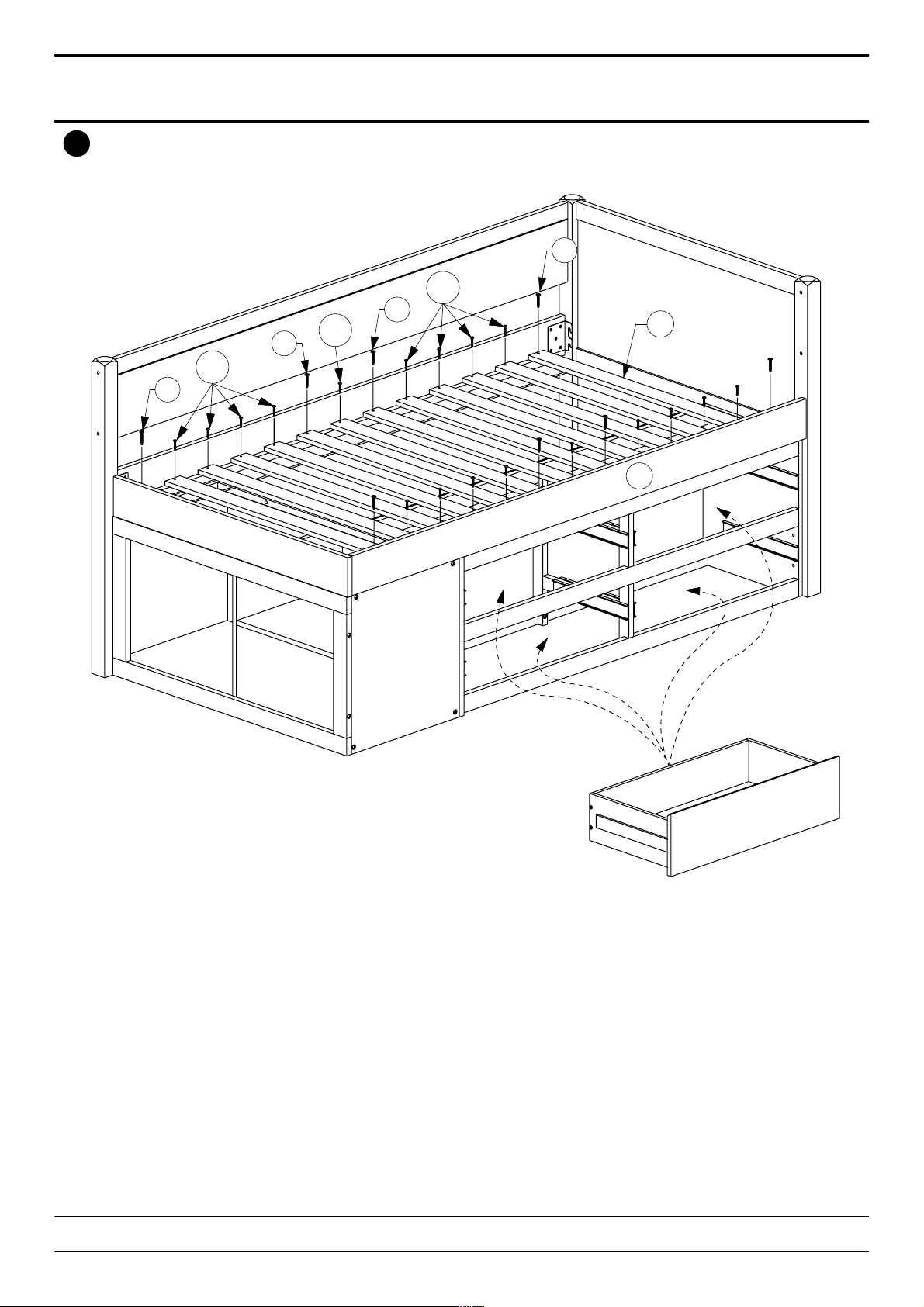

Screw & bolt the Bed Slats (C) between
the Side Rail (D). Finally, fit the
assembled Drawers.
2
2
11
2
11
11
2
C
D
23
Assembled Drawer
Assembly Instructions
