IRT Eurocard
Types MMM-4230 & MMX-4230
4 Channel ASI to G.703 Multiplexer / De-Multiplexer
I R T Electronics Pty Ltd A.B.N. 35 000 832 575
26 Hotham Parade, ARTARMON N.S.W. 2064 AUSTRALIA
National: Phone: (02) 9439 3744 Fax: (02) 9439 7439
International: +61 2 9439 3744 +61 2 9439 7439
Email: sales@irtelectronics.com
Web: www.irtelectronics.com
Designed and manufactured in Australia
IRT can be found on the Internet at:
http://www.irtelectronics.com
4230-mmm & 4230-mmx.ib.rev4.doc Page 2 of 17 17/10/2007
IRT Eurocard
Types MMM-4230 & MMX-4230
4 Channel ASI to G.703 Multiplexer/De-Multiplexer
Instruction Book
Table of Contents
Section Page
Operational Safety 2
General Description 3
Technical Specifications 4
Configuration 5
Link settings 5
Switch settings 6
45 Mb version 6
Variable Bandwidth – Channel Allocation Selection A 7
34 Mb version 8
Installation 9
SMU-4000 Installation 10
Figure 1: SMU-4000 module 10
RS-422 pin assignments 11
The RS-422 standard 12
Front and rear layouts 13
SNMP – What Is It? 14
Maintenance & Storage 16
Warranty & Service 16
Equipment return 16
Drawing List Index 17
This instruction book applies to units later than S/N 0504001.
Operational Safety:
WARNING
Operation of electronic equipment involves the use of voltages and currents that
may be dangerous to human life. Note that under certain conditions dangerous
potentials may exist in some circuits when power controls are in the OFF position.
Maintenance personnel should observe all safety regulations.
Do not make any adjustments inside equipment with power ON unless proper
precautions are observed. All internal adjustments should only be made by suitably
qualified personnel. All operational adjustments are available externally without the
need for removing covers or use of extender cards.
4230-mmm & 4230-mmx.ib.rev4.doc Page 3 of 17 17/10/2007
IRT Eurocard
Types MMM-4230 & MMX-4230
4 Channel ASI to G.703 Multiplexer/De-Multiplexer
General Description
The MMM-4230 and MMX-4230 are part of a family of data transcoders for converting between the commonly
used MPEG2 Transport Stream formats for video distribution in the broadcast industry.
With the MMM-4230 up to four ASI and one RS422 data signals can be multiplexed together and converted into a
framed or unframed DS3 signal for transmission down a single 45 Mb/s G.703 line.
The MMX-4230 converts and demultiplexes the 45 Mb/s G.703 signal back into the original four ASI signals (at
their original rates) and the RS422 data signal.
An on board switch on the MMM-4230 sets the maximum data rates for each ASI input allowing the efficient use of
the available bandwidth and for protection against overuse of the bandwidth by the other channels. Total maximum
data rate up to 43.5 Mb/s is allowed. Temporary packet stuffing is used to automatically bring the rate up to
45 Mb/s.
Inputs are automatically equalised for lengths of up to 300m of Belden 8281 or equivalent cable.
RS422 9600 Baud uni-directional data may also be sent on the same link.
Front panel indication and relay alarm on the MMM-4230 transmitter shows if there is an input data rate violation.
Corresponding alarm on the MMX-4230 receiver shows a loss of G.703 input.
An optional Simple Network Management Protocol (SNMP) plug-in module is available for remote monitoring of
input and output status, control and alarm states.
The MMM-4230 and MMX-4230 are designed to fit IRT’s standard Eurocard frames as well as IRT’s 4000 series
frame for use with IRT’s SNMP system and may be used alongside any other of IRT’s analogue or digital
Eurocards.
Note: Also available in a 34 Mb/s G.703 version. See “Configuration - switch settings” section for configuration
table.
Standard features:
• Up to 4 ASI and 1 Data stream on one 45 Mb/s G.703 link
• Input rate stuffing to 45 Mb/s G.703 rate
• Selectable input maximum data rates
• Automatic Input equalisation up to 300m
• Suitable for Single Frequency Network (SFN) use
• Optional SNMP plug-in monitoring and control module
• Eurocard format
MMM-4230 MMX-4230
Mux
&
Signal
Processing
ASI-1
Input
G.703
Output
ASI-2
Input
ASI-3
Input
DATA
Input
Processing
&
De-Mux
ASI-1
Output
G.703
Input
ASI-2
Output
ASI-3
Output
DATA
Output
ASI-4
Output
ASI-4
Input
SNMP
SNMP
4230-mmm & 4230-mmx.ib.rev4.doc Page 4 of 17 17/10/2007
Technical Specifications
MMM-4230:
Inputs:
Type 1 4 x ASI-C 75Ω, 800 mVp-p, BNC connector.
Maximum Data Rate 40.1 Mb/s (for 188 byte packet),
43.5 Mb/s (for 204 byte packet).
Channel Data Rate Assignments I/P1 I/P2 I/P3 I/P4 (Mb/s)
(for 188 byte packet length signals) 40 + 0 + 0 + 0
35 + 5 + 0 + 0
30 + 10 + 0 + 0
25 + 15 + 0 + 0
20 + 20 + 0 + 0
30 + 5 + 5 + 0
25 + 10 + 5 + 0
20 + 15 + 5 + 0
20 + 10 + 10 + 0
13.5 + 13.5 +13.5 + 0
Variable
20 + 10 + 5 + 5
15 + 15 + 5 + 5
15 + 10 + 10 + 5
10 + 10 + 10 + 10
Type 2 RS422 9600 Baud Uni directional.
Output:
Type 1 x G.703, 75Ω BNC connector.
Electrical Characteristics B3ZS encoded.
Data Rate 44.736 Mb/s.
Alarm Output: Contact closure on error, loss of power.
MMX-4230:
Input:
Type 1 x G.703, 75Ω BNC connector.
Electrical Characteristics B3ZS encoded.
Data Rate 44.736 Mb/s.
Outputs:
Type 1 4 x ASI-C 75Ω, 800 mVp-p, BNC connector.
Data Rate same as MMM-4230 input rate.
Type 2 RS-422 9600 Baud Uni directional.
Alarm Output: Contact closure on loss of G.703 input, loss of power.
Power Requirements 28 Vac CT (14-0-14) or ±16 Vdc.
Power consumption 6.5 VA.
Other
Temperature range 0 - 50° C ambient.
Mechanical Suitable for mounting in IRT 19" rack chassis with input, output and power
connections on the rear panel.
Finish Front panel Grey, silk-screened black lettering & red IRT logo.
Rear assembly Detachable silk-screened PCB with direct mount connectors to Eurocard and
external signals.
Dimensions 6 HP x 3 U x 220 mm IRT Eurocard.
Optional Accessories SNMP plug-in module for use with 4000 series frame fitted with SNMP
“Agent”.
NOTE: Also available in a 34 Mb/s G.703 version.
Due to our policy of continuing development, these specifications are subject to change without notice.
4230-mmm & 4230-mmx.ib.rev4.doc Page 5 of 17 17/10/2007
Configuration
Link settings
MMM-4230 CONFIGURATION INFORMATION
Program 4230mmm.tdf LK6A Installed
LK1 IN When using Switch 1 position A ‘Variable Bandwidth’, if the frequency of an input that has an
assignment of 26.8Mb/s falls below 13.4 Mb/s then the assignment will revert to 13.4Mb/s. All other
conditions mentioned in the Variable Bandwidth section still apply.
OUT The frequency resetting mentioned above does not occur.
LK2 IN Existing Reed Solomon encoding on ASI streams will pass through system.
If no RS is present on the input then RS encoding is added.
OUT Reed Solomon encoding added to input ASI steams regardless of whether existing RS encoding exists
or not.
LK3 Not used.
LK4
*
IN Output G.703 signal will be “framed”.
OUT Output G.703 signal will be “unframed”.
LK5
*
IN Output “unshaped” (recommended for output drive lengths > 68m (225ft)).
OUT Output “shaped” (recommended for output drive lengths < 68m (225ft)).
LK7 Installing this link will terminate the RS-422 data line.
Note: * Not applicable for 34 Mb/s (E3) version.
MMX-4230 CONFIGURATION INFORMATION
LK1 IN Allows instantaneous changes in channel bandwidth allocation as required by the “Variable” Data
Assignment.
OUT Error concealment is applied to the packet distribution.
LK2 IN Output packet size is always 204 byte and will contain Reed Solomon code regardless of
corresponding MMM-4230 input packet size.
OUT Output packet size matches that of corresponding MMM-4230 input packet size.
LK3 IN Outputs can be individually disabled by SNMP remote control. Note that this requires SNMP
functionality within IRT’s SNMP frame.
OUT All outputs are always enabled. SNMP functionality not required.
LK4
*
IN For input G.703 signal that is “framed”.
OUT For input G.703 signal that is not “framed”.
LK5 IN Input G.703 equaliser not enabled.
OUT Input G.703 equaliser enabled.
LK10 Installing this link will terminate the RS-422 data line.
Note: * Not applicable for 34 Mb/s (E3) version.
4230-mmm & 4230-mmx.ib.rev4.doc Page 6 of 17 17/10/2007
Switch settings
MMM-4230 45Mb version:
The MMM-4230 Multiplexer works in a channel protection mode. The necessity for protection arises if the data rate
of the inputs exceeds the maximum allowable for an MMM-4230 Transmitter (43.5Mb/s). Without protection all
used channels would suffer errors. With protection, the available data rate can be divided among the input channels
and if a channel tries to exceed its allocation only that channel is adversely affected.
A switch, SW1, on the MMM-4230 sets the maximum data rates for each ASI input.
For 204 byte packets the following allocation is possible.
Channel Data Rate Assignment
Switch 1 Position
I/P 1 I/P 2 I/P 3 I/P 4
0 43.5 - - 1 38.26 5.46 - 2 32.8 10.93 - 3 27.33 16.4 - 4 21.86 21.86 - 5 32.8 5.46 5.46 6 27.33 10.93 5.46 7 21.86 16.4 5.46 8 21.86 10.93 10.93 -
9 14.6 14.6 14.6 A Variable
B 21.86 10.93 5.46 5.46
C 16.4 16.4 5.46 5.46
D 16.4 10.93 10.93 5.46
E 10.93 10.93 10.93 10.93
F Remote
For 188 byte packets the following is true –
Channel Data Rate Assignment
Switch 1 Position
I/P 1 I/P 2 I/P 3 I/P 4
0 40.10 - - -
1 35.26 5.03 - -
2 30.22 10.07 - -
3 25.18 15.11 - -
4 20.14 20.14 - -
5 30.22 5.03 5.03 -
6 25.18 10.07 5.03 -
7 20.14 15.11 5.03 -
8 20.14 10.07 10.07 -
9 13.47 13.47 13.47 A Variable
B 20.14 10.07 5.03 5.03
C 15.11 15.11 5.03 5.03
D 15.11 10.07 10.07 5.03
E 10.07 10.07 10.07 10.07
F Remote
Note: For Channel allocation selection by SNMP control the Data Rate switch (SW1) must be set to “F”.
These data rates are only the maximum
allowed for the channel. Any lower rate may be used.
SW1
4230-mmm & 4230-mmx.ib.rev4.doc Page 7 of 17 17/10/2007
Variable Bandwidth – Channel Allocation Selection A:
For 188 byte packets the following allocation is possible –
Channel Data Rate Assignment
I/P 1 I/P 2 I/P 3 I/P 4
40.2 - - -
26.8 13.4 - -
26.8 - 13.4 -
26.8 - - 13.4
13.4 13.4 13.4 -
13.4 13.4 - 13.4
13.4 - 13.4 13.4
- 40.2 - -
13.4 26.8 - -
- 26.8 13.4 -
- 26.8 - -
- 13.4 13.4 13.4
- - 40.2 -
13.4 - 26.8 -
- 13.4 26.8 -
- - 26.8 13.4
- - - 40.2
13.4 - - 26.8
- 13.4 - 26.8
If only one channel is present then the total bandwidth is allocated to that channel.
If two channels are present and one exceeds a rate of 13.4 Mb/s then that channel will be assigned 26.8 Mb/s and
the other 13.4 Mb/s. However, input 1 has priority over inputs 2, 3, & 4, input 2 has priority over inputs 3 & 4, and
input 3 has priority over input 4. So even if, say, channel 2 has an input rate above 13.4 Mb/s and then input 1’s rate
also increases above 13.4 Mb/s, then input 1 will be assigned the bandwidth of 26.8 Mb/s whilst input 2’s will be
relegated to 13.4 Mb/s. Once a channel has been assigned a ba nd wid th o f 2 6. 8Mb/s it will retain the allocation until
either its input signal is removed, or until a channel with higher priority requires 26.8Mb/s allocation, or there are
any three channels connected.
If three channels are present they will each be assigned 13.4 Mb/s.
If four channels are present then channel 4 will not get any b andwidth.
The error concealment in the MMX-4230 will not allow an instantaneous change in channel allocation, so this
should be disabled when using the above option by installing link LK1.
4230-mmm & 4230-mmx.ib.rev4.doc Page 8 of 17 17/10/2007
MMM-4230 34Mb version:
Maximum payload Data Rate 30.86 Mb/s (for 188 byte packet),
33.5 Mb/s (for 204 byte packet).
Channel Data Rate Assignments I/P1 I/P2 I/P3 I/P4 (Mb/s)
(for 188 byte packet length signals) 30 + 0 + 0 + 0
27 + 3.8 + 0 + 0
23 + 7.7 + 0 + 0
19 + 11.5 + 0 + 0
15.4 + 15.4 + 0 + 0
23 + 3.8 + 3.8 + 0
19 + 7.7 + 3.8 + 0
15.4 + 11.5 + 3.8 + 0
15.4 + 7.7 + 7.7 + 0
11.5 + 11.5 + 7.7 + 0
19 + 3.8 + 3.8 + 0
15.4 + 7.7 + 3.8 + 3.8
11.5 + 11.5 + 3.8 + 3.8
11.5 + 7.7 + 7.7 + 3.8
7.7 + 7.7 + 7.7 + 7.7
In particular, for 204 byte packets the following allocation is possible.
Channel Data Rate Assignment
Switch 1 Position
I/P 1 I/P 2 I/P 3 I/P 4
0 33.5 - - -
1 29.31 4.18 - -
2 25.12 8.37 - -
3 20.93 12.56 - -
4 16.75 16.75 - -
5 25.12 4.18 4.18 -
6 20.93 8.37 4.18 -
7 16.75 12.56 4.18 -
8 16.75 8.37 8.37 -
9 12.56 12.56 8.37 A 20.93 4.18 4.18 B 16.75 8.37 4.18 4.18
C 12.56 12.56 4.18 4.18
D 12.56 8.37 8.37 4.18
E 8.37 8.37 8.37 8.37
F Remote
And for 188 byte packets the following is true –
Channel Data Rate Assignment
Switch 1 Position
I/P 1 I/P 2 I/P 3 I/P 4
0 30.86 - - -
1 27.00 3.85 - -
2 23.14 7.71 - -
3 19.28 11.57 - -
4 15.43 15.43 - -
5 23.14 3.85 3.85 -
6 19.28 7.71 3.85 -
7 15.43 11.57 3.85 -
8 15.43 7.71 7.71 -
9 11.57 11.57 7.71 A 19.28 3.85 3.85 B 15.43 7.71 3.85 3.85
C 11.57 11.57 3.85 3.85
D 11.57 7.71 7.71 3.85
E 7.71 7.71 7.71 7.71
F Remote
Note: For Channel allocation selection by SNMP control the Data Rate switch (SW1) must be set to “F”.
These data rates are only the maximum
allowed for the channel. Any lower rate may be used.
4230-mmm & 4230-mmx.ib.rev4.doc Page 9 of 17 17/10/2007
Installation
Pre-installation:
Handling:
This equipment may contain or be connected to static sensitive devices and proper static free handling precautions
should be observed.
Where individual circuit cards are stored, they should be placed in antistatic bags. Proper antistatic procedures
should be followed when inserting or removing cards from these bags.
Power:
AC mains supply: Ensure that operating voltage of unit and local supply voltage match and that correct rating
fuse is installed for local supply.
DC supply: Ensure that the correct polarity is observed and that DC supply voltage is maintained within
the operating range specified.
Earthing:
The earth path is dependent on the type of frame selected. In every case particular care should be taken to ensure
that the frame is connected to earth for safety reasons. See frame manual for details.
Signal earth: For safety reasons a connection is made between signal earth and chassis earth. No attempt should be
made to break this connection.
Installation in frame or chassis:
See details in separate manual for selected frame type.
Signal Connections:
All ASI & G.703 inputs and outputs are by 75Ω BNC connectors.
Alarm output is via a two-pin 0.1” header. Alarm condition is when there is a short between these two pins. This
corresponds to either a loss of power or if there is an input data rate violation on the MMM-4230, or a loss of power
or a loss of G.703 input on the MMX-4230.
RS-422 data input and output connections are made via HE-14 8 pin double row connectors on both the MMM4230 and the MMX-4230.
SNMP:
When used in an IRT FRU400 Frame with a CDM400 SNMP Module fitted, the MMM-4320 and MMX-4320 can
be interrogated by an SNMP Network Management System and certain functions can also be remotely controlled.
For instance, the channel bandwidth assignment can be altered and any the RS errors that have occurred can be
read.
SNMP Traps on alarm states can be optionally sent.
The MIB (management information base) associated with these devices has the following OIDs (Object Identies):
Alarms
Channel Present
Channel Enabled
Channel Measured Data Rate
Channel Rate Alarm Channel
Channel Packet size
Bandwidth Allocation
Framing
FPGA Version
Reset
Trap Enable
RS Errors
4230-mmm & 4230-mmx.ib.rev4.doc Page 10 of 17 17/10/2007
SMU-4000 Installation
The SMU-4000 plug-in SNMP management controller module can only be fitted to IRT’s 4000 series modules that
are capable of being SNMP upgradeable. To determine whether a module is SNMP upgradeable, a square section
on the main PCB is silk screened and fitted with three multipin sockets – as shown below:
This is where the SMU-4000 plug-in SNMP management controller module is fitted. The three sets of multipins on
the underside of the SMU-4000 line up with the three sets of multipin sockets on the main PCB module. Align all
pins and then gently press the SMU-4000 all the way down into place.
If the SMU-4000 is not already programmed with the correct firmware to match the module that it is being plugged
into, it then needs to be programmed via the pins on the topside of the SMU-4000.
Note that installation will generally be done by IRT Electronics at the time of ordering.
Note also that an SMU-4000 will only be functionally operational when the main module that it is plugged into is
fitted into an IRT 4000 series frame fitted with a CDM-4000 SNMP agent and being interrogated by a suitable
Network Management System.
1J2
1J1 1J3
Figure 1: SMU-4000 module
4230-mmm & 4230-mmx.ib.rev4.doc Page 11 of 17 17/10/2007
RS-422 pin assignments
Connectors viewed from top.
RB
RA
MMM-4230
TB
TA
MMX-4230
4230-mmm & 4230-mmx.ib.rev4.doc Page 12 of 17 17/10/2007
The RS-422 Standard
The RS-422 standard introduced in the early 1970s defines a balanced (or differential) data communications
interface using two separate wires for each signal. Due to the high noise immunity of the RS-422 standard, high
data speeds and long distances can be achieved.
The RS-422 specification allows reliable serial data communications for:
• Distances up to 1200 metres
• Data rates of up to 10 Mb/s
Only one line driver is allowed on a line, and up to ten line receivers can be driven by it. Figure 1.1 illustrates RS-
422.
(Ref: IDC Engineers Pocket Guide)
A(+)
B(-)
Com
Line Driver
Line Receiver
A(+)
B(-)
Com
10
1 2 9
RS-422
Transmitter
RS-422
Receiver
Balanced Line with
Differential Volta
g
es
(-5V to +5V)
Up to 1200 metres
RS-422 Receivers (up to 10 devices)

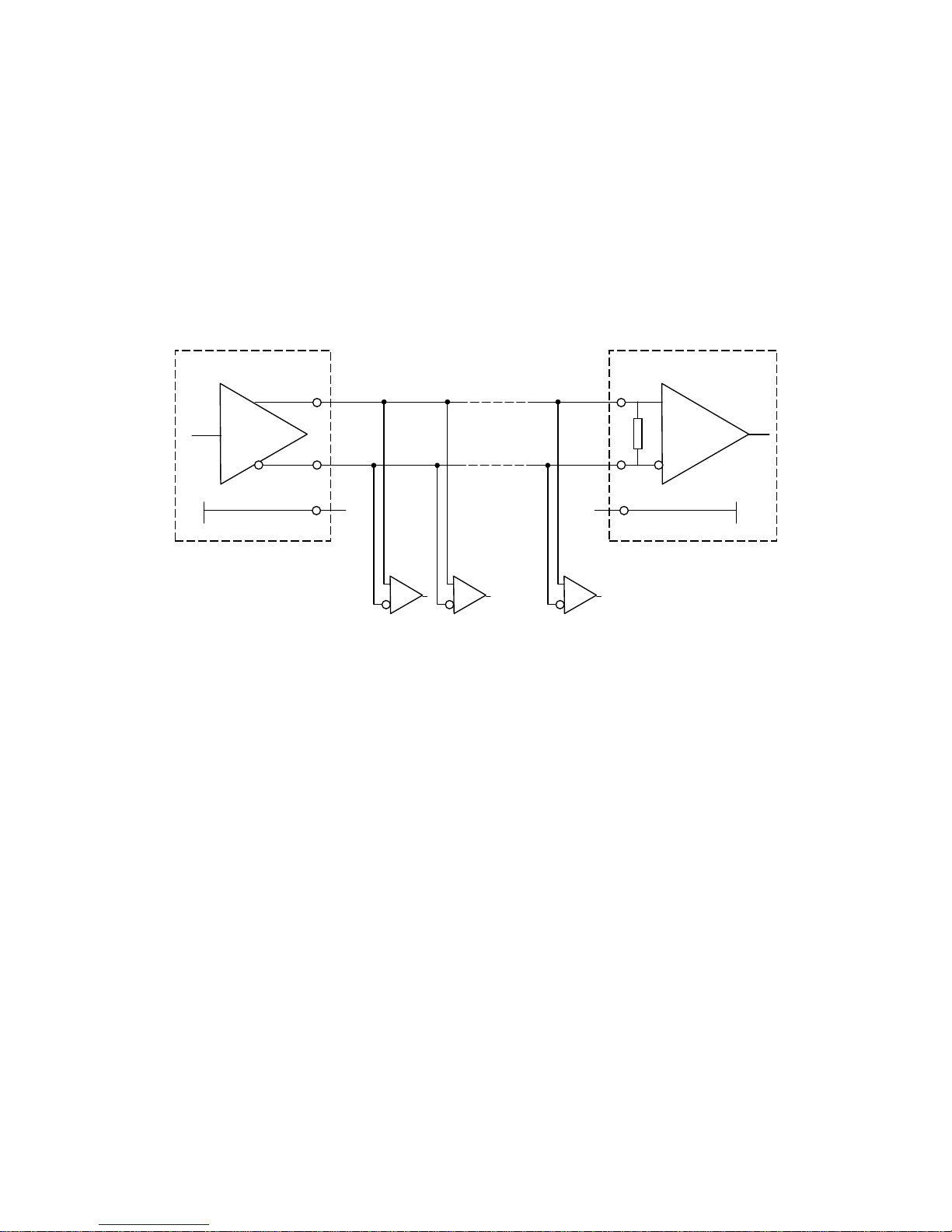

Figure 1.1: RS-422 Connection
4230-mmm & 4230-mmx.ib.rev4.doc Page 13 of 17 17/10/2007

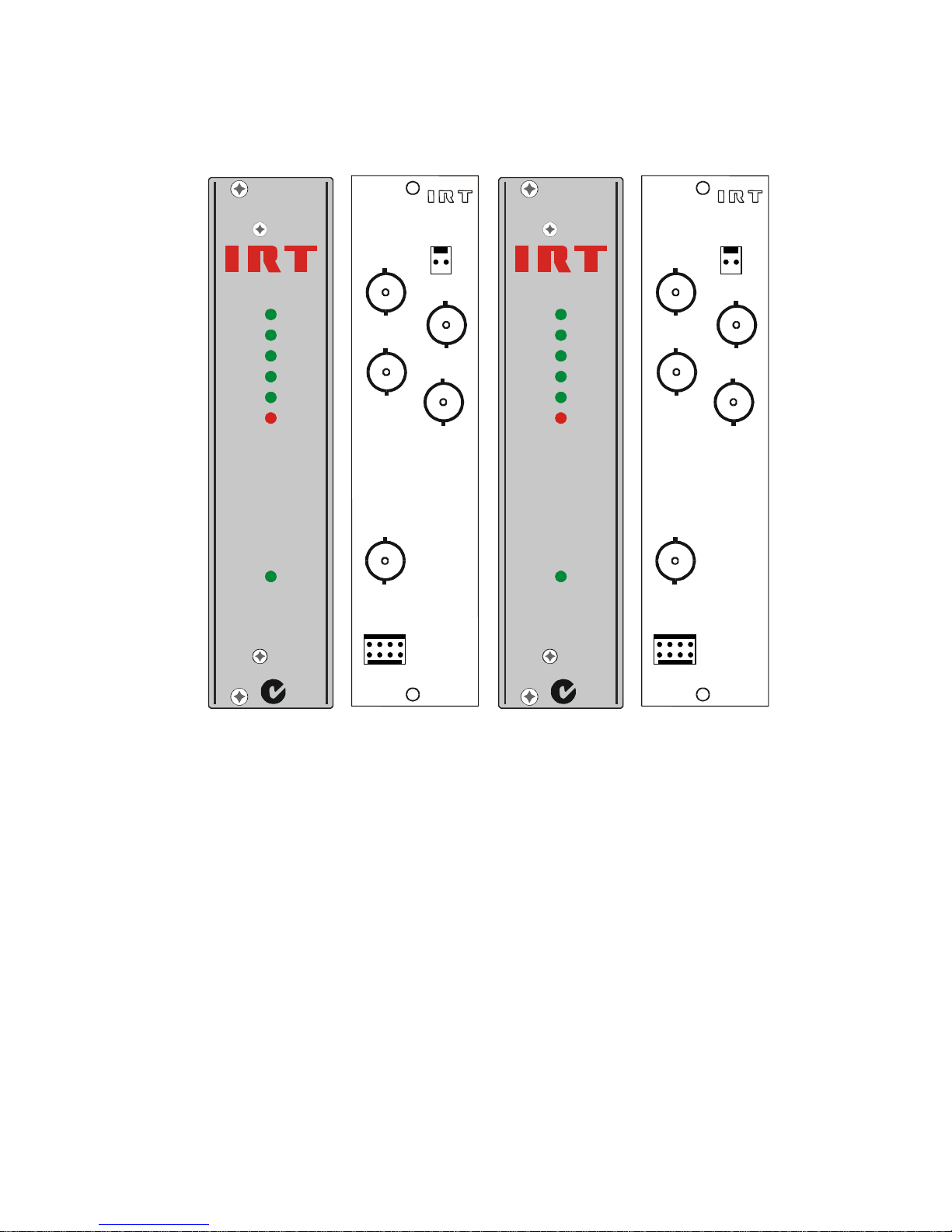

Front & rear panel connector diagrams
The following front panel and rear assembly drawings are not to scale and are intended to show connection order
and approximate layout only.
G.703 OUT
INPUT 1
INPUT 2
INPUT 3
RS-422
URGENT
ALARM
INPUT 4
G.703 IN
OUTPUT 1
OUTPUT 2
OUTPUT 3
RS-422
URGENT
ALARM
OUTPUT 4
ALARM
DC
N140
DATA
ASI 3
ASI 4
ASI 2
ASI 1
MMX-4230
ALARM
DC
N140
DATA
ASI 3
ASI 4
ASI 2
ASI 1
MMM-4230
4230-mmm & 4230-mmx.ib.rev4.doc Page 14 of 17 17/10/2007
SNMP
What Is It?
SNMP stands for Simple Network Management Protocol. It is an application layer protocol for managing IP
(Internet Protocol) based systems. SNMP enables system administrators to manage system performance, and to find
and solve system problems. SNMP runs over UDP (User Datagram Protocol), which in turn runs over IP.
Three types of SNMP exist: SNMP version 1 (SNMPv1), SNMP version 2 (SNMPv2) and SNMP version 3
(SNMPv3). It is not the intention here to discuss the differences between various versions, only to bring attention to
the fact that IRT Electronics modules, fitted with SNMP capability, use SNMPv1.
An SNMP managed network consists of three key components: Network Management Systems (NMS), agents, and
managed devices.
An NMS is the console through which the network administrator performs network management functions, such as
monitoring status (e.g. alarm states) and remote controlling, of a set of managed devices. One or more NMSs must
exist on any managed network. Generally the NMS is a computer running third party SNMP control software. There
are a number of third party SNMP software applications currently available on the market.
An NMS polls, or communicates with, an agent. An agent is a network management software module that resides in
a managed device. An agent has local knowledge of management information and translates that information into a
form compatible with SNMP. The agent, therefore, acts as an interface between the NMS and the managed devices.
The NMS sends a request message, and control commands for the managed devices, to the agent, which in turn
sends a response message, containing information about the managed devices, back to the NMS.
A managed device contains an SNMP agent and resides on a managed network. Managed devices collect and store
management information and make this information available to NMSs using SNMP.
Managed device agent variables are organised in a tree structure known as a Management Information Base (MIB).
Within the MIB are parameters pertaining to the managed device. An Object Identifier (OID) number within the
MIB defines the managed device type. This is a unique number specific to the model of managed device. Other
information relating to the device is also stored, information such as alarm states, controllable settings, etc. The MIB
tree is organised in such a way that there will be no two MIB files with conflicting placements.
Normally an NMS polls an agent for information relating to the MIB in a managed device to be sent back to the
NMS. When certain conditions are met within the MIB, such as major alarm conditions, for example, the agent
automatically sends what is known as a trap to the NMS without any prompting from the NMS. This allows
automatic notification of a predetermined event.
NMS
NMS
IP
Network
MIB
SNMP Agent
Protocol Engine
SNMP Agent
MIB
SNMP Agent
Protocol Engine
SNMP Agent
MIB
SNMP Agent
Protocol Engine
SNMP Agent
SNMP Block Diagram
4230-mmm & 4230-mmx.ib.rev4.doc Page 15 of 17 17/10/2007
SNMP with IRT Products
IRT Electronics currently employs SNMPv1 with its 4000 series frame. The frame acts as an agent when fitted with
a CDM-4000 module. This module has its own designated slot next to the power supply so as to not affect the
number of modules that the frame will take. Communication between the NMS, the frame and its loaded modules
are via this CDM-4000 module. Note that the NMS software is third party and not supplied by IRT Electronics.
Ethernet connection for SNMP operation is via an RJ45 connector on the rear of the frame, below the mains inlet.
Ethernet rate runs at either 10 baseT or 100 baseT.
Frame parameters, such as Name, Address and Location, are set via an RS232 interface, a D9 connector on the rear
of the frame below the mains inlet. A software terminal emulator, such as Tera Term or HyperTerminal, is used for
setting and reading the parameters of the frame.
IRT modules that are SNMP compatible need a plug-in SMU-4000 module with a program relevant to the module
that it is plugged into. Depending on the module, besides the module identification, parameters such as alarm states,
inputs and controls etc. are communicated to the CDM-4000 agent via a data bus on the rear of the frame. Thus the
CDM-4000 collects information on what is loaded within the frame, what positions they occupy, and their current
status for communication to the NMS when the NMS sends a request for information.
In the event of a major alarm from any of the SNMP compatible modules, or power supplies, a trap is automatically
sent by the CDM-4000 agent to the NMS without any prompting by the NMS. This alerts the operator to any fault
conditions that may exist that need immediate attention.
FRU-4000
FRAME
110/240 V 50/60 Hz
0.7 A (max.)
FUSES
110/120 Vac
1A S.B.
220/240 Vac
500 mA S.B.
AS3260 approval no.: CS6346N
Ass. no.: 804692
+
-
48Vdc
Alarm
RS232
Ethernet
IRT SNMP Connections
IRT modules fitted
with SMU-4000
PSU’s
CDM-4000
IRT 4000 Series Frame
IRT 4000 Series Frame
IRT modules fitted
with SMU-4000
PSU’s
CDM-4000
Network
Ethernet Cable
Ethernet Cable
Ethernet Cable
NMS
IRT 4000 Series SNMP Setu
p
4230-mmm & 4230-mmx.ib.rev4.doc Page 16 of 17 17/10/2007
Maintenance & storage
Maintenance:
No regular maintenance is required.
Care however should be taken to ensure that all connectors are kept clean and free from contamination of any kind.
This is especially important in fibre optic equipment where cleanliness of optical connections is critical to
performance.
Storage:
If the equipment is not to be used for an extended period, it is recommended the whole unit be placed in a sealed
plastic bag to prevent dust contamination. In areas of high humidity a suitably sized bag of silica gel should be
included to deter corrosion.
Where individual circuit cards are stored, they should be placed in antistatic bags. Proper antistatic procedures
should be followed when inserting or removing cards from these bags.
Warranty & service
Equipment is covered by a limited warranty period of three years from date of first delivery unless contrary
conditions apply under a particular contract of supply. For situations when “No Fault Found” for repairs, a
minimum charge of 1 hour’s labour, at IRT’s current labour charge rate, will apply, whether the equipment is within
the warranty period or not.
Equipment warranty is limited to faults attributable to defects in original design or manufacture. Warranty on
components shall be extended by IRT only to the extent obtainable from the component supplier.
Equipment return:
Before arranging service, ensure that the fault is in the unit to be serviced and not in associated equipment. If
possible, confirm this by substitution.
Before returning equipment contact should be made with IRT or your local agent to determine whether the
equipment can be serviced in the field or should be returned for repair.
The equipment should be properly packed for return observing antistatic procedures.
The following information should accompany the unit to be returned:
1. A fault report should be included indicating the nature of the fault
2. The operating conditions under which the fault initially occurred.
3. Any additional information, which may be of assistance in fault location and remedy.
4. A contact name and telephone and fax numbers.
5. Details of payment method for items not covered by warranty.
6. Full return address.
7. For situations when “No Fault Found” for repairs, a minimum charge of 1 hour’s labour will apply,
whether the equipment is within the warranty period or not. Contact IRT for current hourly rate.
Please note that all freight charges are the responsibility of the customer.
The equipment should be returned to the agent who originally supplied the equipment or, where this is not
possible, to IRT direct as follows.
Equipment Service
IRT Electronics Pty Ltd
26 Hotham Parade
ARTARMON
N.S.W. 2064
AUSTRALIA
Phone: 61 2 9439 3744 Fax: 61 2 9439 7439
Email: service@irtelectronics.com
4230-mmm & 4230-mmx.ib.rev4.doc Page 17 of 17 17/10/2007
Drawing List Index
Drawing # Sheet # Description

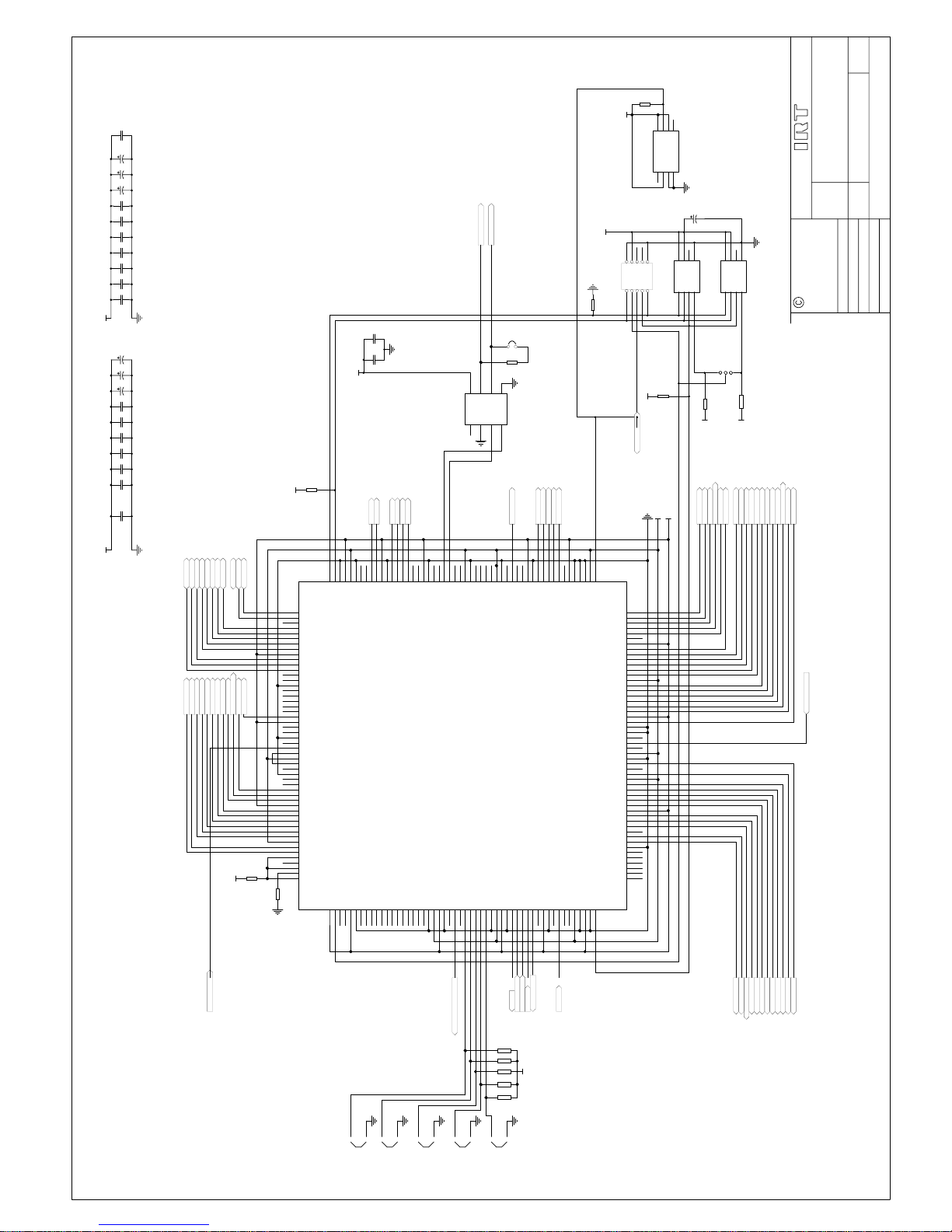

804900 1 MMM-4230 4 Channel ASI to G.703 Multiplexer Schematic – sheet 1
804900 2 MMM-4230 4 Channel ASI to G.703 Multiplexer Schematic – sheet 2
804900 3 MMM-4230 4 Channel ASI to G.703 Multiplexer Schematic – sheet 3

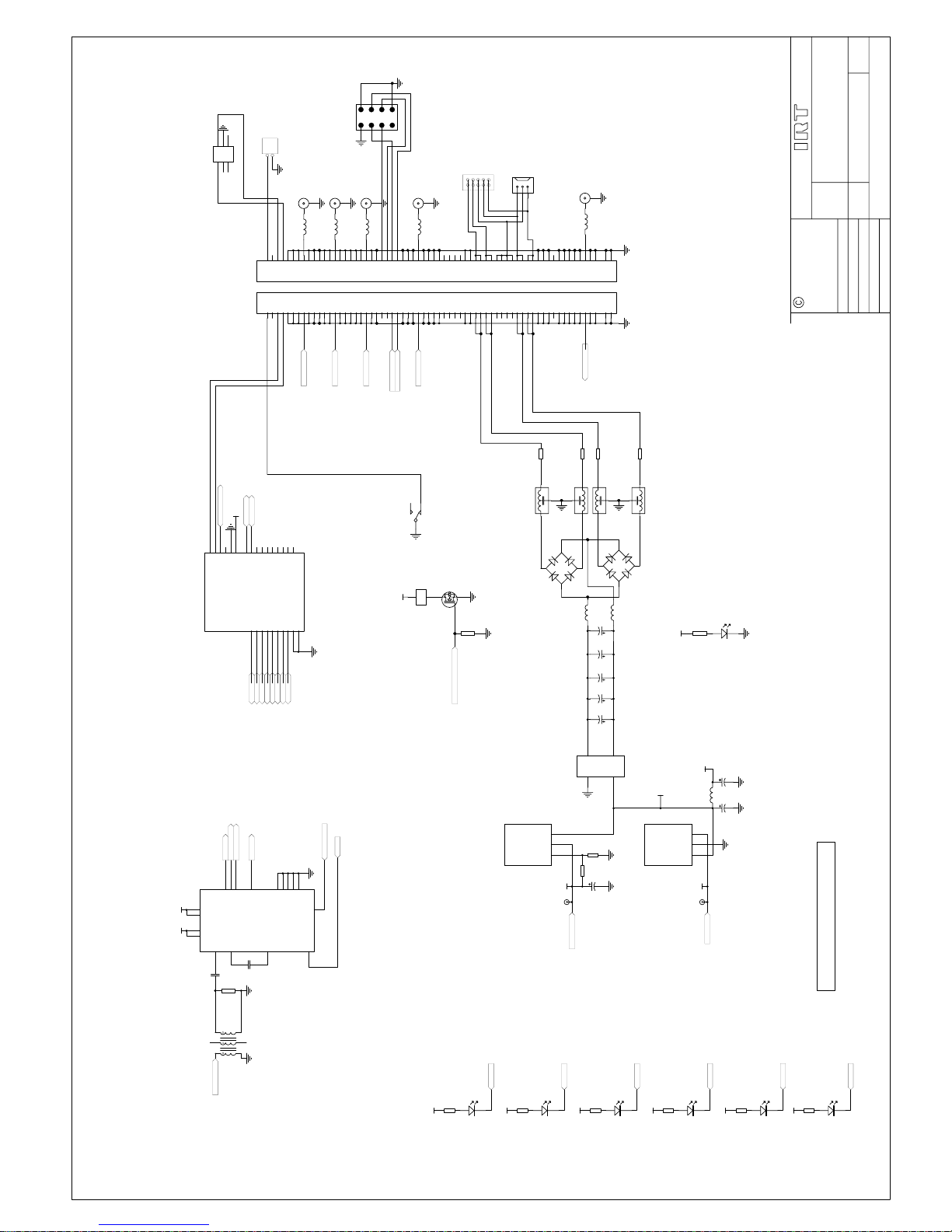

804902 1 MMX-4230 G.703 to 4 Channel ASI De-Multiplexer schematic – sheet 1
804902 2 MMX-4230 G.703 to 4 Channel ASI De-Multiplexer schematic – sheet 2
804902 3 MMX-4230 G.703 to 4 Channel ASI De-Multiplexer schematic – sheet 3
SCALE Sheet
DO NOT COPY NOR
DISCLOSE TO ANY
THIRD PARTY
WITHOUT WRITTEN
CONSENT
of
IRT Electronics Pty. Ltd.
Drawing No.
COPYRIGHT
ARTARMON NSW AUSTRALIA 2064
N.T.S.
804900
Revision:
Date:
1
1-Feb-2005
Title MMM-4230SIZE
A2
CHECKED
ENG.APR.
DRAWN
13
CHA_IN[8]
CHA_IN[9]
INA-1INA+2A/!B3!BISTEN
4
INB+28INB-27MODE
26
REFCLK
25
RF
5
GND
6
!RDY
7
GND
8
Vccn
9
Qj (RVS)
10
Qh (Q7)
11
Qg (Q6)
12
Qf (Q5)
13
Qe (Q3)
15
Qi (Q4)
14
Qd (Q2)16Qc (Q1)17Qb (Q0)
18
Qa (SC/!D)
19
GND
20
Vccq
21
CKR
22
SO
23
Vccq
24
U3
CY7B933
Vcc1Vcc2EOM3Vcc4CD5AEC+6AEC-
7
!DO
14
DO
13
!MUTE
12
Vee11Vee
10
!DI
9
DI
8
U2
CLC014
R6
75R
R5
75R
D1
BAS32L
+5VB
+5VB
C4
100pF
R3
120R
C3
0.1uF
C1
0.1uF
R2
100R
R1
75R
L1
0.022uH
Input-1
+5VB +5VB
+5VB
CHA_IN[7]
CHA_IN[6]
CHA_IN[5]
CHA_IN[4]
CHA_IN[3]
CHA_IN[2]
CHA_IN[1]
CHA_IN[0]
CHA_CKR
CHA_REF_CLK
CHA_PRES
R4
10K
CD11
10uF
CD12
0.1uF
CD13
0.1uF
CD14
0.1uF
CHB_IN[8]
CHB_IN[9]
INA-1INA+2A/!B3!BISTEN
4
INB+28INB-27MODE
26
REFCLK
25
RF
5
GND
6
!RDY
7
GND
8
Vccn
9
Qj (RVS)
10
Qh (Q7)
11
Qg (Q6)
12
Qf (Q5)
13
Qe (Q3)
15
Qi (Q4)
14
Qd (Q2)16Qc (Q1)17Qb (Q0)
18
Qa (SC/!D)
19
GND
20
Vccq
21
CKR
22
SO
23
Vccq
24
U5
CY7B933
Vcc1Vcc2EOM3Vcc4CD5AEC+6AEC-
7
!DO
14
DO
13
!MUTE
12
Vee11Vee
10
!DI
9
DI
8
U4
CLC014
R12
75R
R8
75R
D2
BAS32L
+5VB
+5VB
C10
100pF
R11
120R
C8
0.1uF
C9
0.1uF
R10
100R
R14
75R
L2
0.033uH
Input-3
+5VB
+5VB +5VB
+5VB
CHB_IN[7]
CHB_IN[6]
CHB_IN[5]
CHB_IN[4]
CHB_IN[3]
CHB_IN[2]
CHB_IN[1]
CHB_IN[0]
CHB_CKR
CHB_REF_CLK
CHB_PRES
R65
10K
CD20
10uF
CD57
0.1uF
CD53
0.1uF
CD52
0.1uF
CHC_IN[8]
CHC_IN[9]
INA-1INA+2A/!B3!BISTEN
4
INB+28INB-27MODE
26
REFCLK
25
RF
5
GND
6
!RDY
7
GND
8
Vccn
9
Qj (RVS)
10
Qh (Q7)
11
Qg (Q6)
12
Qf (Q5)
13
Qe (Q3)
15
Qi (Q4)
14
Qd (Q2)16Qc (Q1)17Qb (Q0)
18
Qa (SC/!D)
19
GND
20
Vccq
21
CKR
22
SO
23
Vccq
24
U7
CY7B933
Vcc1Vcc2EOM3Vcc4CD5AEC+6AEC-
7
!DO
14
DO
13
!MUTE
12
Vee11Vee
10
!DI
9
DI
8
U6
CLC014
R17
75R
R21
75R
D3
BAS32L
+5VB
+5VB
C11
100pF
R18
120R
C13
0.1uF
C12
0.1uF
R19
100R
R15
75R
L3
0.022uH
Input-4
+5VB
+5VB +5VB
+5VB+5VB
CHC_IN[7]
CHC_IN[6]
CHC_IN[5]
CHC_IN[4]
CHC_IN[3]
CHC_IN[2]
CHC_IN[1]
CHC_IN[0]
CHC_CKR
CHC_REF_CLK
CHC_PRES
R68
10K
CD21
10uF
CD27
0.1uF
CD22
0.1uF
CD23
0.1uF
+
C7
1uF
+
C14
1uF
+
C2
1uF
C5
0.1uF
C6
0.1uF
C15
0.1uF
CD3
0.1uF
CD50
0.1uF
CD25
0.1uF
R7
10K
R13
10K
R16
10K
+5VB
+5VB
+5VB
804900S2
804900S2.SCH
804900S3
804900S3.SCH
PC 804998
47
R33
47
R69
47
R67
CHD_IN[8]
CHD_IN[9]
INA-1INA+2A/!B3!BISTEN
4
INB+28INB-27MODE
26
REFCLK
25
RF
5
GND
6
!RDY
7
GND
8
Vccn
9
Qj (RVS)
10
Qh (Q7)
11
Qg (Q6)
12
Qf (Q5)
13
Qe (Q3)
15
Qi (Q4)
14
Qd (Q2)16Qc (Q1)17Qb (Q0)
18
Qa (SC/!D)
19
GND
20
Vccq
21
CKR
22
SO
23
Vccq
24
U9
CY7B933
Vcc1Vcc2EOM3Vcc4CD5AEC+6AEC-
7
!DO
14
DO
13
!MUTE
12
Vee11Vee
10
!DI
9
DI
8
U8
CLC014
R20
75R
R22
75R
D4
BAS32L
+5VB
+5VB
C18
100pF
R28
120R
C20
0.1uF
C19
0.1uF
R42
100R
R64
75R
L4
0.022uH
Input-2
+5VB
+5VB +5VB
+5VB+5VB
CHD_IN[7]
CHD_IN[6]
CHD_IN[5]
CHD_IN[4]
CHD_IN[3]
CHD_IN[2]
CHD_IN[1]
CHD_IN[0]
CHD_CKR
CHD_REF_CLK
CHD_PRES
R23
10K
CD1
10uF
CD2
0.1uF
CD8
0.1uF
CD10
0.1uF
+
C21
1uF
CD31
0.1uF
CD46
0.1uF
R9
10K
47
R66
SCALE Sheet
DO NOT COPY NOR
DISCLOSE TO ANY
THIRD PARTY
WITHOUT WRITTEN
CONSENT
of
IRT Electronics Pty. Ltd.
Drawing No.
COPYRIGHT
ARTARMON NSW AUSTRALIA 2064
N.T.S.
804900
Revision:
Date:
1
1-Feb-2005
Title MMM-4230SIZE
A2
CHECKED
ENG.APR.
DRAWN
23
TCLK1config_done2nCeo3TDO4VCCIO5GNDINT
6
789
clkusr
10
1112131415
RdynBsy
16
17
18
initdone19GNDINT20VCCINT21VCCIO22GNDINT
23
24252627282930
31
GNDINT32VCCINT33VCCIO34GNDINT
35
3637383940
41
VCCIO42GNDINT
43
444546
47
VCCINT48GNDINT49TMS50nTRST51nSTATUS
52
53
54
55
56
57
58
GNDINT
59
60
61
lock
62
63
64
65
VCCIO
66
67
68
69
70
71
VCCINT
72
73
74
75
GNDINT
76
VCCCLK
77
input
78
clock
79
input
80
GNDCLK
81
GNDINT
82
83
VCCIO
84
85
86
87
88
89
90
VCCINT
91
92
93
94
95
96
97
VCCIO
98
99
100
101
102
103
104 157
158
159
160
161
162
163
164
VCCIO
165
166
167
168
169
170
GNDINT
171
172
173
174
175
176
177
VCCIO
178
179
dev_clrn
180
GNDINT
181
input
182
clock
183
input
184
VCCINT
185
dev_oe
186
187
GNDINT
188
189
190
191
192
193
VCCIO
194
195
196
197
198
199
200
VCCINT
201
202
203
nRS
204
205
nWS
206
CS
207
nCS
208
nConfig
105
VCCINT
106
MSEL1
107
MSEL0
108
GNDINT
109
VCCIO
110
111
112
113
114
115
116
GNDINT
117
VCCIO
118
119
120
121
122
GNDINT
123
VCCINT
124
125
126
127
128
GNDINT
129
VCCINT
130
131
132
133
134
135
136
GNDINT
137
VCCIO
138
139
140
141
142
143
144
GNDINT
145
VCCIO
146
147
148
149
150
GNDINT
151
VCCINT
152
TDI
153
nCE
154
DCLK
155
DATA0
156
U1
EPF1K50QC208-3
+VccINT
+VccIO
R44
1K
R30
1K
VccIO
CHA_PRES
CHC_PRES
CHA_IN[9]
CHA_IN[8]
CHA_IN[7]
CHA_IN[6]
CHA_IN[5]
CHA_IN[4]
CHA_IN[3]
CHA_IN[2]
CHA_IN[1]
CHA_IN[0]
CHA_CKR
CHC_IN[8]
CHC_IN[7]
CHC_IN[6]
CHC_IN[5]
CHC_IN[4]
CHC_IN[3]
CHC_IN[2]
CHC_IN[1]
CHC_IN[0]
CHC_CHR
CHA_REFCLK
CHC_REFCLK
CHC_IN[9]
CHD_IN[8]
CHD_IN[7]
CHD_IN[6]
CHD_IN[5]
CHD_IN[4]
CHD_IN[3]
CHD_IN[2]
CHD_IN[1]
CHD_IN[0]
CHD_CKR
CHD_REFCLK
CHD_IN[9]
TXLEV
DS3/E3
TPDATA
CHD_PRES
TNDATA
ENCODDIS
RS-422RB
RS422-RA
VCC
8
B5A
6
GND
5
DI4DE3RO1RE
2
U15
MAX485
+5V
R50
220R
LK7
LK
Vout1VCC2GND3PFI
4
!PFO
5
!MR
6
!RESET
7
Vbatt
8
U12
MAX704
R40
10K
+5V
R63
22R
n/c1GND
7
OUT
8
Vcc
14
XTAL2
XTAL_OSC
+5VB
27MHz
1
2
LK5
1
2
LK4
n/c1GND
7
OUT
8
Vcc
14
XTAL1
XTAL_OSC
44.7MHz
+5VB
1
2
LK3
1
2
LK2
1
2
LK1
URGENT RELAY
R38 10K
R37 10K
R36 10K
R35 10K
R34 10K
R45
560R
R46
560R
R47
560R
R48
560R
R56
560R
LED1
LED2
LED3
LED4
LED7
VccIO
LD1
4.7uH
LD5
4.7uH
CD49
0.1uF
CD48
0.1uF
R291KR31
1K
+5V
SW1
C
842
1
R52 10K
R54 10K
R53 10K
R55 10K
+VccIO
VccIO
CD5,7,24,26,29,32,47,54,55
0.1uF
CD6,15,16,17,18,19,28,30,36
0.1uF
CD34,37
10uF
CD43
470uF
CD9,33,35
10uF
CD42
470uF
VccIO
VccIO VccIO
+VccINT
+VccINT +VccINT
TCLK
DATA1DCLK2OE3nCS
4
GND
5
nCASC
6
VCC7VCC
8
U14
EPC1
1 2
3 4
5 6
7 8
9 10
J4
HEADER 5X2
R32
1K
+5V
R41
1K
+5V
CD39
10uF
DATA1DCLK2OE3nCS
4
GND
5
nCASC
6
VCC7VCC
8
U13
EPC1
31
2
LK6
R39
1K
+5V
CHB_IN9
CHB_IN8
CHB_IN7
CHB_IN6
CHB_IN5
CHB_IN4
CHB_IN3
CHB_IN2
CHB_IN1
CHB_IN0
CHB_CKR
CHB_REF_CLK
CHB_PRES
+5V
R49
560R
LED5
nReset
PTB1
PTB0
Port
PTA0
PTA2
PTA5
PTA7
PTA6
PTA4
PTA3
PTA1
SW2
R24
10K
+VccIO
SCALE Sheet
DO NOT COPY NOR
DISCLOSE TO ANY
THIRD PARTY
WITHOUT WRITTEN
CONSENT
of
IRT Electronics Pty. Ltd.
Drawing No.
COPYRIGHT
ARTARMON NSW AUSTRALIA 2064
N.T.S.
804900
Revision:
Date:
1
1-Feb-2005
Title MMM-4230SIZE
A2
CHECKED
ENG.APR.
DRAWN
33
-V
4
+V
1
V+
8V-5
CONV1
PBBA-D
22uH
IND
LD4
22uH
CB1
330u
6
1
4
3
DB1
DB106
6
1
4
3
DB2
DB106
R62
220R
VCCIO
CB2
330u
VCCINT
VCCINT
VCCIO
CB3
330u
F1
1R
F3
1R
F4
1R
F2
1R
EMI2
FILTER
EMI4
FILTER
EMI3
FILTER
EMI1
FILTER
1A1B2A2B3A3B4A4B5A5B6A6B7A7B8A8B9A9B10A
10B
11A
11B
12A
12B
13A
13B
14A
14B
15A
15B
16A
16B
17A
17B
18A
18B
19A
19B
20A
20B
21A
21B
22A
22B
23A
23B
24A
24B
25A
25B
26A
26B
27A
27B
28A
28B
29A
29B
30A
30B
31A
31B
32A
32BM1M2
P1
DIN64M
1A1B2A2B3A3B4A4B5A5B6A6B7A7B8A8B9A
9B
10A
10B
11A
11B
12A
12B
13A
13B
14A
14B
15A
15B
16A
16B
17A
17B
18A
18B
19A
19B
20A
20B
21A
21B
22A
22B
23A
23B
24A
24B
25A
25B
26A
26B
27A
27B
28A
28B
29A
29B
30A
30B
31A
31B
32A
32B
M2
M1
J1
DIN64F
123
J3
AC
TP7
3.3V
TP5
2.5V
INPUT
1
COMMON
2
OUTPUT
3
U17
REG_LM3940
ADJUST
1
OUTPUT
2
INPUT
3
U16
LM317S
1
2
J5
RS422-RB
RS422-RA
SK1
Input-1
ASI
INPUT 1
SK2
ASI
INPUT 2
SK4
ASI
INPUT 3
L9
0.022uH
SK5
BNC
G703
OUTPUT
Input-2
Input-4
G703OUT
URGENT ALARM
R61
220R
+5VB
URGENT RELAY
RL1
COIL
+5VB
RL1
CONTACT
R43
4K7
32
1
Q1
BSS123
1
5
1A
4B
RS-422
R51
820R
LED6
POWER
+5V
3
8
LD2
CB4
470u
CB5
470u
SK3
ASI
INPUT 3
Input 3
+5V
R700RR71
0R
R72
0R
R73
0R
RCLK1RLOOP2LLOOP3DS3/E3
4
TAOS
5
VDD
6
TPDATA7TNDATA8TCLK
9
GND
10
ENCODIS11DECODIS
12
BPV
13
RNRZ14RNEG
15
RPOS
16
RCLKO
17
DMO
18
MRING19MTIP
20
GNDA
21
TRING
22
TTIP
23
VDDA
24
TXLEV25ICT
26
RPDATA27RNDATA
28
U10
XR-T7296
+5B
R57
33R
R58
33R
+5B
GND
TPDATA
TNDATA
TCLK
ENCODIS
DS3/E3
TXLEV
CD44
100n
CD45
100n
6
1342
5
T1
113B7
D6
BAV99
D5
BAV99
GND
+5B
GND
+5B
TPDATA
TNDATA
TCLK
ENCODIS
DS3/E3
TXLEV
12
3
G703OUT
RX
S1
TX
S2
nRESET
S3
S4
GND
S5
+5V
S6
PTB1B1PTB0B2PTB3B3PTB2B4PTB5B5PTB4B6PTB7B7PTB6
B8
GNDB9GND
B10
GND
A10
GNDA9PTA1A8PTA0A7PTA3A6PTA2A5PTA4A4PTA5A3PTA6A2PTA7
A1
M1
SNMP
+5V
nReset
123 4
5
6
P1
MTMM-103
12345
P3
MTMM-PWR
PTA6
PTA7
PTA5
PTA4
PTA2
PTA3
PTA0
PTA1
PTB1
PTB0
P2
CB6
330u
CB7
330u
SCALE Sheet
DO NOT COPY NOR
DISCLOSE TO ANY
THIRD PARTY
WITHOUT WRITTEN
CONSENT
of
IRT Electronics Pty. Ltd.
Drawing No.
COPYRIGHT
ARTARMON NSW AUSTRALIA 2064
N.T.S.
804902
Revision:
Date:
1
1-Feb-2005
Title MMX-4230SIZE
A2
CHECKED
ENG.APR.
DRAWN
13
CHA_D7
CHA_SVS
Output-1
CHA_D6
CHA_D5
CHA_D4
CHA_D3
CHA_D2
CHA_D1
CHA_D0
CHA_SC/D
CHA_CKW
CHA_ENA
OutB-1OutC-
2
OutC+
3
Vccn
4
OutB+28OutA+
27
OutA-
26
FOTO
25
BISTEN
5
GND
6
MODE
7
!RP
8
Vccq
9
SVS (Dj)
10
D7 (Dh)
11
D6 (Dg)12D5 (Df)13D3 (De)15D4 (Di)14D2 (Dd)16D1 (Dc)17D0 (Db)
18
SC/!D (Da)
19
GND
20
CKW
21
Vccq
22
ENA
23
ENN
24
U2
CY7B923
Q0
1
!Q0
2
Q1
3
!Q1
4
Vcc8IN+7IN-6Vee
5
U3
CLC007
+5Vb
C1
0.1uF
R6
100R
R5
75R
R4
100R
R2
75R
R3
75R
+5Vb
CHB_D7
CHB_SVS
Output-3
CHB_D6
CHB_D5
CHB_D4
CHB_D3
CHB_D2
CHB_D1
CHB_D0
CHB_SC/D
CHB_CKW
CHB_ENA
OutB-1OutC-
2
OutC+
3
Vccn
4
OutB+28OutA+
27
OutA-
26
FOTO
25
BISTEN
5
GND
6
MODE
7
!RP
8
Vccq
9
SVS (Dj)
10
D7 (Dh)
11
D6 (Dg)12D5 (Df)13D3 (De)15D4 (Di)14D2 (Dd)16D1 (Dc)17D0 (Db)
18
SC/!D (Da)
19
GND
20
CKW
21
Vccq
22
ENA
23
ENN
24
U5
CY7B923
Q0
1
!Q0
2
Q1
3
!Q1
4
Vcc8IN+7IN-6Vee
5
U4
CLC007
+5Vb
C2
0.1uF
R10
100R
R8
75R
R9
100R
R7
75R
R11
75R
+5Vb
CHC_D7
CHC_SVS
Output-4
CHC_D6
CHC_D5
CHC_D4
CHC_D3
CHC_D2
CHC_D1
CHC_D0
CHC_SC/D
CHC_CKW
CHC_ENA
OutB-1OutC-
2
OutC+
3
Vccn
4
OutB+28OutA+
27
OutA-
26
FOTO
25
BISTEN
5
GND
6
MODE
7
!RP
8
Vccq
9
SVS (Dj)
10
D7 (Dh)
11
D6 (Dg)12D5 (Df)13D3 (De)15D4 (Di)14D2 (Dd)16D1 (Dc)17D0 (Db)
18
SC/!D (Da)
19
GND
20
CKW
21
Vccq
22
ENA
23
ENN
24
U6
CY7B923
Q0
1
!Q0
2
Q1
3
!Q1
4
Vcc8IN+7IN-6Vee
5
U7
CLC007
+5Vb
C3
0.1uF
R15
100R
R17
75R
R16
100R
R18
75R
R14
75R
+5Vb
Vctrl1GND
7
OUT
8
Vcc
14
XTAL2
27MHz OSC
XTAL_27M
CD50
0.1uF
LD6 10uH
R1
22R
R12
22R
R13
22R
+5Vb
CD3
10uF
CD8
0.1uF
CD13
10uF
CD12
0.1uF
CD14
10uF
CD20
0.1uF
+5Vb
+5Vb
+5Vb
CD2
0.1uF
CD1
0.1uF
+5Vb
CD10
0.1uF
CD11
0.1uF
+5Vb
CD21
0.1uF
CD22
0.1uF
Vctrl1GND
7
OUT
8
Vcc
14
XTAL1
44MHz OSC
XTAL_44M
CD51
0.1uF
LD5 10uH
+5Vb
+5Vb
804902s2
804902s2.sch
804902S3
804902S3.SCH
PC804996
CHD_D7
CHD_SVS
Output-2
CHD_D6
CHD_D5
CHD_D4
CHD_D3
CHD_D2
CHD_D1
CHD_D0
CHD_SC/D
CHD_CKW
CHD_ENA
OutB-1OutC-
2
OutC+
3
Vccn
4
OutB+28OutA+
27
OutA-
26
FOTO
25
BISTEN
5
GND
6
MODE
7
!RP
8
Vccq
9
SVS (Dj)
10
D7 (Dh)
11
D6 (Dg)12D5 (Df)13D3 (De)15D4 (Di)14D2 (Dd)16D1 (Dc)17D0 (Db)
18
SC/!D (Da)
19
GND
20
CKW
21
Vccq
22
ENA
23
ENN
24
U8
CY7B923
Q0
1
!Q0
2
Q1
3
!Q1
4
Vcc8IN+7IN-6Vee
5
U9
CLC007
+5Vb
C6
0.1uF
R23
100R
R21
75R
R22
100R
R20
75R
R24
75R
+5Vb
CD42
10uF
CD52
0.1uF
+5Vb
CD53
0.1uF
CD54
0.1uF
+5Vb
SCALE Sheet
DO NOT COPY NOR
DISCLOSE TO ANY
THIRD PARTY
WITHOUT WRITTEN
CONSENT
of
IRT Electronics Pty. Ltd.
Drawing No.
COPYRIGHT
ARTARMON NSW AUSTRALIA 2064
N.T.S.
804902
Revision:
Date:
1
1-Feb-2005
Title MMX-4230SIZE
A2
CHECKED
ENG.APR.
DRAWN
23
TCLK1config_done2nCeo3TDO4VCCIO5GNDINT
6
789
clkusr
10
1112131415
RdynBsy
16
17
18
initdone19GNDINT20VCCINT21VCCIO22GNDINT
23
24252627282930
31
GNDINT32VCCINT33VCCIO34GNDINT
35
3637383940
41
VCCIO42GNDINT
43
444546
47
VCCINT48GNDINT49TMS50nTRST51nSTATUS
52
53
54
55
56
57
58
GNDINT
59
60
61
lock
62
63
64
65
VCCIO
66
67
68
69
70
71
VCCINT
72
73
74
75
GNDINT
76
VCCCLK
77
input
78
clock
79
input
80
GNDCLK
81
GNDINT
82
83
VCCIO
84
85
86
87
88
89
90
VCCINT
91
92
93
94
95
96
97
VCCIO
98
99
100
101
102
103
104 157
158
159
160
161
162
163
164
VCCIO
165
166
167
168
169
170
GNDINT
171
172
173
174
175
176
177
VCCIO
178
179
dev_clrn
180
GNDINT
181
input
182
clock
183
input
184
VCCINT
185
dev_oe
186
187
GNDINT
188
189
190
191
192
193
VCCIO
194
195
196
197
198
199
200
VCCINT
201
202
203
nRS
204
205
nWS
206
CS
207
nCS
208
nConfig
105
VCCINT
106
MSEL1
107
MSEL0
108
GNDINT
109
VCCIO
110
111
112
113
114
115
116
GNDINT
117
VCCIO
118
119
120
121
122
GNDINT
123
VCCINT
124
125
126
127
128
GNDINT
129
VCCINT
130
131
132
133
134
135
136
GNDINT
137
VCCIO
138
139
140
141
142
143
144
GNDINT
145
VCCIO
146
147
148
149
150
GNDINT
151
VCCINT
152
TDI
153
nCE
154
DCLK
155
DATA0
156
U1
EPF1K50QC208-3
+VccINT
+VccIO
R44
1K
R30
1K
VccIO
LED4
LED7
LED3
LED2
LED1
CHC_SC/D
CHC_CKW
CHC_ENA
URGENT RELAY
XTAL_44M
RS422-TB
RS422-TA
VCC
8
B5A
6
GND
5
DI4DE3RO1RE
2
U15
MAX485
+5V
R50
220R
LK10
LK
Vout1VCC2GND3PFI
4
!PFO
5
!MR
6
!RESET
7
Vbatt
8
U12
MAX704
R40
10K
+5V
R29
1K
+5V
CHD_SC/D
CHD_CKW
CHD_ENA
CHD_D0
CHD_D1
CHD_D2
CHD_D3
CHD_D4
CHD_D5
CHD_D6
CHD_D7
CHD_SVS
CHC_D0
CHC_D1
CHC_D2
CHC_D3
CHC_D4
CHC_D5
CHC_D6
CHC_D7
CHC_SVS
CHA_SC/D
CHA_CKW
CHA_ENA
CHA_D0
CHA_D1
CHA_D2
CHA_D3
CHA_D4
CHA_D5
CHA_D6
CHA_D7
CHA_SVS
CD9
10uF
CD6
0.1uF
VccIO+VccINT
CD15
0.1uF
CD18
0.1uF
CD19
0.1uF
CD28
0.1uF
CD30
0.1uF
CD36
0.1uF
CD33
10uF
CD35
10uF
CD32
10uF
CD5
0.1uF
CD17
0.1uF
CD16
0.1uF
CD7
0.1uF
CD24
0.1uF
CD26
0.1uF
CD34
10uF
CD37
10uF
CD29
0.1uF
CD44
0.1uF
CD48
0.1uF
CD49
0.1uF
XTAL_27M
1
2
LK5
1
2
LK4
1
2
LK3
1
2
LK2
1
2
LK1
R38
10K
R37
10K
R36
10K
R35
10K
R34
10K
VccIO
DATA1DCLK2OE3nCS
4
GND
5
nCASC
6
VCC7VCC
8
U13
EPC1
1 2
3 4
5 6
7 8
9 10
J4
HEADER 5X2
+5V
R32
1K
+5V
R26
1K
+5V
R31
10K
CD39
10uF
DATA1DCLK2OE3nCS
4
GND
5
nCASC
6
VCC7VCC
8
U14
EPC1
31
2
LK6
R53
1K
+5V
CHB_ENA
CHB_CKW
CHB_SC/D
CHB_D0
CHB_D1
CHB_D2
CHB_D3
CHB_D4
CHB_D5
CHB_D6
CHB_D7
CHB_SVS
LED5
EQ
RNdata
RPdata
Rclk
RefClk
RLos
PTB1
PTB0
Port
PTA0
PTA2
PTA5
PTA7
PTA6
PTA4
PTA3
PTA1
nReset
SCALE Sheet
DO NOT COPY NOR
DISCLOSE TO ANY
THIRD PARTY
WITHOUT WRITTEN
CONSENT
of
IRT Electronics Pty. Ltd.
Drawing No.
COPYRIGHT
ARTARMON NSW AUSTRALIA 2064
N.T.S.
804902
Revision:
Date:
1
1-Feb-2005
Title MMX-4230SIZE
A2
CHECKED
ENG.APR.
DRAWN
33
-V
4
+V
1
V+
8V-5
CONV1
PBBA-D
LD3
IND
LD4
IND
CB1
330u
6
1
4
3
DB1
DB106
6
1
4
3
DB2
DB106
R55
R
VCCIO
CB3
330u
VCCINT
VCCINT
VCCIO
CB2
330u
F1
1R
F3
1R
F4
1R
F2
1R
EMI2
FILTER
EMI4
FILTER
EMI3
FILTER
EMI1
FILTER
1A1B2A2B3A3B4A4B5A5B6A6B7A7B8A8B9A9B10A
10B
11A
11B
12A
12B
13A
13B
14A
14B
15A
15B
16A
16B
17A
17B
18A
18B
19A
19B
20A
20B
21A
21B
22A
22B
23A
23B
24A
24B
25A
25B
26A
26B
27A
27B
28A
28B
29A
29B
30A
30B
31A
31B
32A
32BM1M2
P1
DIN64M
1A1B2A2B3A3B4A4B5A5B6A6B7A7B8A8B9A
9B
10A
10B
11A
11B
12A
12B
13A
13B
14A
14B
15A
15B
16A
16B
17A
17B
18A
18B
19A
19B
20A
20B
21A
21B
22A
22B
23A
23B
24A
24B
25A
25B
26A
26B
27A
27B
28A
28B
29A
29B
30A
30B
31A
31B
32A
32B
M2
M1
J1
DIN64F
123
J3
AC
TP7
3.3V
TP5
2.5V
INPUT
1
COMMON
2
OUTPUT
3
U17
REG_LM3940
ADJUST
1
OUTPUT
2
INPUT
3
U16
LM317S
1
2
J5
RS422-TB
RS422-TA
L5
0.015uH
SK1
ASI
OUTPUT 1
L6
0.015uH
SK2
ASI
OUTPUT 2
L8
0.015uH
SK4
ASI
OUTPUT 4
L9
0.022uH
SK5
BNC
INPUT
Output3
Output4
G7039in
URGENT ALARM
R54
R
+5VB
URGENT RELAY
RL1
COIL
+5V
RL1
CONTACT
R43
4K7
32
1
Q1
BSS123
1
5
1A
4B
RS-422
R51
820R
LED6
PWR
+5V
3
8
LD2
CB5
470u
CB4
470u
LED1
LED1
LED3mmGreen
R45
270R
VCCIO
LED2
LED2
LED3mmGreen
R46
270R
VCCIO
LED3
LED3
LED3mmGreen
R47
270R
VCCIO
LED4
LED4
LED3mmGreen
R48
270R
VCCIO
LED5
LED5
LED3mmRED
R49
270R
VCCIO
R LOS
Channel 4 Present
Channel 3 Present
Channel 2 Present
Channel 1 Present
+5V
CB6
470u
LED7
LED7
DATA
R52
270R
VCCIO
L7
0.015uH
SK3
ASI
OUTPUT 3
Output1
Output2
TMC1
3
+5A
20
Rclk
14
RPData
15
RNData
16
RLos
7
TMC2
6
LPF2
4
LPF1
5
GND
1
+5D
11
Rin
2
+5C
12
LOS
19
EQ
18
GND10GND
9
EXClk
13
U10
T7295
+5VB+5VB
RClk
RPData
RNData
Rlos
RefClk
C4
100nF
C8
C
R27
75
6
1
3 4
2
5
T1
113B7
G703in
EQ
FOR 34.368Mb/s E3
REPLACE U12 WITH T 7295 1EIW
RX
S1
TX
S2
nRESET
S3
S4
GND
S5
+5V
S6
PTB1B1PTB0B2PTB3B3PTB2B4PTB5B5PTB4B6PTB7B7PTB6
B8
GNDB9GND
B10
GND
A10
GNDA9PTA1A8PTA0A7PTA3A6PTA2A5PTA4A4PTA5A3PTA6A2PTA7
A1 M1
SNMP
VCC
nReset
PTA6
PTA7
PTA5
PTA4
PTA2
PTA3
PTA0
PTA1
PTB1
PTB0
12345
P3
MTMM-PWR
123 4
5
6
P1
MTMM-103
P2
CB8
330u
CB7
330u
1 28-09-2004 ECR1707
Issue 1. C4 changed to 100nF from 100pF
Loading...
