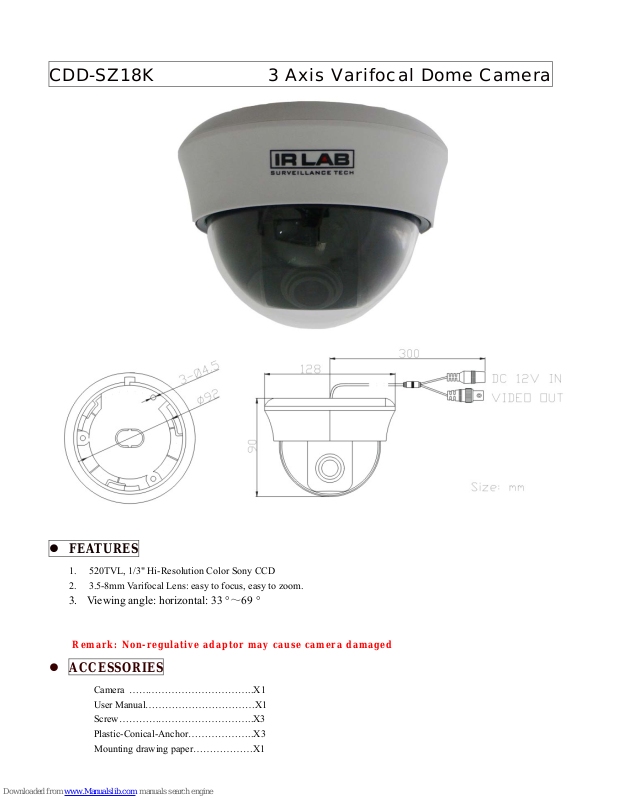

CDD-SZ18K 3 Axis Varifocal Dome Camera
z FEATURES
1. 520TVL, 1/3" Hi-Resolution Color Sony CCD
2. 3.5-8m
m Varifocal Lens: easy to focus, easy to zoom.
3. Viewing angle: horizontal: 33 °～69 °
Remark: Non-regulative adaptor may cause camera damaged
z ACCESSORIES
Camera ………………………………..X1
User Manual……………………………X1
Screw…………………………………..X3
Plastic-Conical-Anchor ………………..X3
Mounting drawing paper………………X1
z SPECIFICATION
Item CDD-SZ18K
IP rating
IP55
Filter
Double Layers Crystal with Blue Glass Filter
Image Sensor
1/3" Hi-Resolution Color Sony CCD
Pixels
NTSC:811(H)×508(V) PAL: 795(H)×596(V)
Horizontal Resolution
520TVL
Vertical frequency
NTSC:60Hz PAL:50Hz
Horizontal Frequency
NTSC:15.734KHz PAL:15.625KHz
Clock Frequency
NTSC:28.636MHz PAL:28.375MHz
Scanning System
2:1 Interlace
S / N Ratio
≥50dB
Electronic Shutter
NTSC:1/60-1/100,000s PAL:1/50-1/100,000s
White Balance
Auto Tracking
Back Light Compensation
ON
Auto Gain Control
ON
Gamma
0.45
Video Output
1V p-p,75Ω
Lens
3.5-8mm Varifocal IR Lens
Viewing Angle
Viewing angle: horizontal: 33 °～69 °
Power Supply
DC12V±10%
Current Consumption
75mA
Dimension
128X90mm
Weight
380g
Storage Temperature
-30～+60℃
(-22～+140℉)
Operating Temperature
-30～+40℃
(-22～+104℉)
z PACKAGE
Weight …………………………………380g
Dimension ………. …………………. 128X90mm
Quantity per carton ……………….……12PCs
Dimension of carton……………… ……
300X300X405mm
Weight of carton…………..………….…
7KGs
