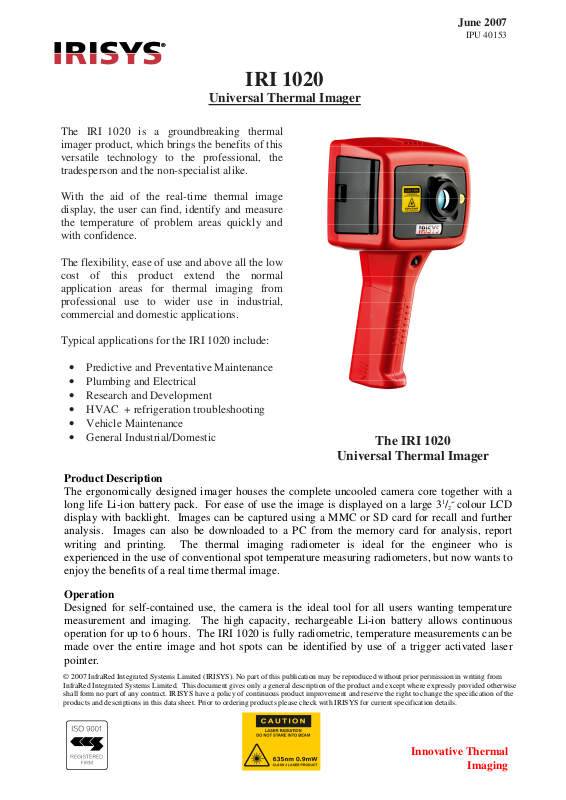

IRISYS IRI 1020 User Manual

June

2007



a

IPU 40153

IRI 1020

Universal Thermal Imager

The IRIx1020 is a groundbreaking thermal
imager product, which brings the benefits of this
versatile technology to the professional, the
tradesperson and the non-specialist alike.

With the aid of the real-time thermal image
display, the user can find, identify and measure
the temperature of problem areas quickly and
with confidence.

The flexibility, ease of use and above all the low
cost of this product extend the normal
application areas for thermal imaging from
professional use to wider use in industrial,
commercial and domestic applications.

Typical applications for the IRI 1020 include:

• Predictive and Preventative Maintenance

• Plumbing and Electrical

• Research and Development

• HVAC + refrigeration troubleshooting

• Vehicle Maintenance

• General Industrial/Domestic

The IRI 1020

Universal Thermal Imager

Product Description

The ergonomically designed imager houses the complete uncooled camera core together with a
long life Li-ion battery pack. For ease of use the image is displayed on a large 31/
display with backlight. Images can be captured using a MMC or SD card for recall and further
analysis. Images can also be downloaded to a PC from the memory card for analysis, report
writing and printing. The thermal imaging radiometer is ideal for the engineer who is
experienced in the use of conventional spot temperature measuring radiometers, but now wants to
enjoy the benefits of a real time thermal image.

Operation

Designed for self-contained use, the camera is the ideal tool for all users wanting temperature
measurement and imaging. The high capacity, rechargeable Li-ion battery allows continuous
operation for up to 6 hours. The IRI 1020 is fully radiometric, temperature measurements can be
made over the entire image and hot spots can be identified by use of a trigger activated laser
pointer.

© 2007 InfraRed Integrated Systems Limited (IRISYS). No part of this publication may be reproduced without prior permission in writing from
InfraRed Integrated Systems Limited. This document gives only a general description of the product and except where expressly provided otherwise
shall form no part of any contract. IRISYS have a policy of continuous product improvement and reserve the right to change the specification of the
products and descriptions in this data sheet. Prior to ordering products please check with IRISYS for current specification details.

Innovative Thermal

˝

colour LCD

2

Imaging

a

SPECIFICATION

PERFORMANCE

Temperature range: -10oC to +300oC
Field of view (FOV): 20o x 20
Spectral Response: 8 to 14 µm
Sensitivity: ~0.3oC @ 30oC
Displayed Image: 192 x 192 pixels
Detector: 16x16 pixel array
Frame rate: 8Hz
Focal Range: 0.7m to infinity

IMAGE STORAGE

Number: Up to 1000 images

Medium: MMC/SD card

DISPLAY

3½˝ colour LCD with LED Backlight. 3
colour palettes

LASER POINTER

A built in Class 2 laser is supplied to highlight
the reference pixel

IMAGER POWER SUPPLY

Battery: Lithium-ion field
rechargeable.
Operation time: Up to 6 hours continuous
operation
AC operation: AC adaptor supplied

MECHANICAL

Housing: Impact Resistant Plastic
Dimensions: 230x120x90mm
Weight: 0.70kg
Mounting: Handheld & Tripod
mounting ¼˝ BSW

ENVIRONMENT

Temp. operating range: -5°C to +50°C Humidity: 10% to 90% non condensing
Temp. storage range: -20°C to +70°C CE Mark (Europe)

Whilst IRISYS endeavor to ensure that all descriptions, weights, temperatures, dimensions and other statistics contained in this product information
are correct, they are intended to give a general idea of the product only and IRISYS do not warrant their accuracy or accept liability for any reliance on
them. IRISYS have a policy of continuous product improvement and reserve the right to change the specification of the products and descriptions in
this data sheet. Prior to ordering products please check with IRISYS for current specification details. This product is protected by patents EP 0 853 237
B1 and US 6,239,433 B1. Other patents pending.
All brands and product names are acknowledged and may be trademarks or registered trademarks of their respective holders.

:

on SD card supplied

o

InfraRed Integrated Systems Ltd,
Park Circle, Tithe Barn Way
Swan Valley, Northampton, NN4 9BG, UK
Telephone: [phone]
Fax: [phone]
e-mail: [e-mail]
web site: www.irisys.co.uk

IRI 1020

SETTINGS AND CONTROLS

FEATURES

IRI 1020 INCLUDES

IR Camera, Battery, AC Adaptor, User
manual, SD Card, Carrying Case

• On/Off soft power control

• User selectable span control

• User selectable level control

• Auto adjust span and level

• Display palettes: red-blue, green-blue

and greyscale

• Laser trigger switch

• Readout in °C, °F or K

• User selectable image integration

• User selectable emissivity values

• User selectable reflected temperature

• Two moveable temperature measurement

cursors

• Image capture, time and date

• Real-time image and temperature

measurement display

• Large bright 3 ½ inch display

• Simple operation

• Multiple temperature measurement

• Image browser

• Battery charge indicator

• Lightweight

• Laser pointer
