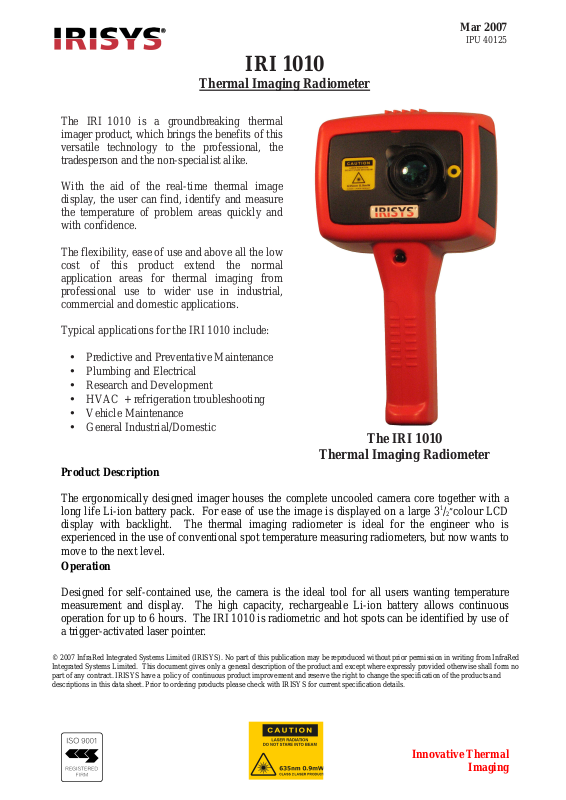

Page 1
Mar
2007
a
Innovative Thermal
The ergonomically designed imager houses the complete uncooled camera core together with a
colour LCD
rmal imaging radiometer is ideal for the engineer who is
experienced in the use of conventional spot temperature measuring radiometers, but now wants to
ll users wanting temperature
ion battery allows continuous
operation for up to 6 hours. The IRI 1010 is radiometric and hot spots can be identified by use of
IRI 1010
Thermal Imaging Radiometer
The IRIx1010 is a groundbreaking thermal
imager product, which brings the benefits of this
versatile technology to the professional, the
tradesperson and the non-specialist alike.
With the aid of the real-time thermal image
display, the user can find, identify and measure
the temperature of problem areas quickly and
with confidence.
The flexibility, ease of use and above all the low
cost of this product extend the normal
application areas for thermal imaging from
professional use to wider use in industrial,
commercial and domestic applications.
Typical applications for the IRI 1010 include:
• Predictive and Preventative Maintenance
• Plumbing and Electrical
• Research and Development
• HVAC + refrigeration troubleshooting
• Vehicle Maintenance
• General Industrial/Domestic
The IRI 1010
Thermal Imaging Radiometer
IPU 40125
Product Description
long life Li-ion battery pack. For ease of use the image is displayed on a large 31/
display with backlight. The the
move to the next level.
Operation
Designed for self-contained use, the camera is the ideal tool for a
measurement and display. The high capacity, rechargeable Li-
a trigger-activated laser pointer.
© 2007 InfraRed Integrated Systems Limited (IRISYS). No part of this publication may be reproduced without prior permission in writing from InfraRed
Integrated Systems Limited. This document gives only a general description of the product and except where expressly provided otherwise shall form no
part of any contract. IRISYS have a policy of continuous product improvement and reserve the right to change the specification of the products and
descriptions in this data sheet. Prior to ordering products please check with IRISYS for current specification details.
”
2
Imaging
Page 2
SPECIFICATION
Whilst IRISYS endeavor to ensure that all descriptions, weights, temperatures, dimensions and other statistics contained in this product information
ey are intended to give a general idea of the product only and IRISYS do not warrant their accuracy or accept liability for any reliance on
e products and descriptions in
this data sheet. Prior to ordering products please check with IRISYS for current specification details. This product is protected by patents EP 0 853 237
a
Innovative Thermal
IRI 1010
PERFORMANCE
Temperature range: -10oC to +300oC
Field of view (FOV): 20o x 20
Spectral Response: 8 to 14 µm
Sensitivity: ~0.3oC @ 30oC
Displayed Image: 192 x 192 pixels
Detector: 16x16 pixel array
Frame rate: 8Hz
Focal Range: 0.7m to infinity
LASER POINTER
A built in Class 2 laser is supplied to highlight
the reference pixel.
IMAGER POWER SUPPLY
Battery: Lithium-ion field
rechargeable.
Operation time: Up to 6 hours continuous
operation
AC operation: AC adaptor supplied
MECHANICAL
Housing: Impact Resistant Plastic
Dimensions: 230x120x90mm
Weight: 0.70kg
Mounting: Handheld & Tripod
mounting ¼” BSW
ENVIRONMENT
Temp. operating range: -5°C to +50°C Humidity: 10% to 90% non condensing
Temp. storage range: -20°C to +70°C CE Mark (Europe)
are correct, th
them. IRISYS have a policy of continuous product improvement and reserve the right to change the specification of th
B1 and US 6,239,433 B1. Other patents pending.
All brands and product names are acknowledged and may be trademarks or registered trademarks of their respective holders.
o
InfraRed Integrated Systems Ltd,
Park Circle, Tithe Barn Way
Swan Valley, Northampton, NN4 9BG, UK
Telephone: +44 (0) 1604 594200
Fax: +44 (0) 1604 594210
e-mail: sales@irisys.co.uk
web site: www.irisys.co.uk
SETTINGS AND CONTROLS
• On/Off soft power control
• User selectable span control
• User selectable level control
• Auto adjust span and level
• Display palettes: red-blue, green-blue
and greyscale
• Laser trigger switch
• Readout in °C, °F or K
• User selectable image integration
• User selectable emissivity values
• User selectable reflected temperature
FEATURES
• Real-time image and temperature
measurement display
• Large bright 3 ½ inch display
• Simple operation
• Battery Charge indicator
• Lightweight
• Laser Pointer
IRI 1010 INCLUDES
IR Camera, Battery, AC Adaptor, User
manual, Carrying Case.
