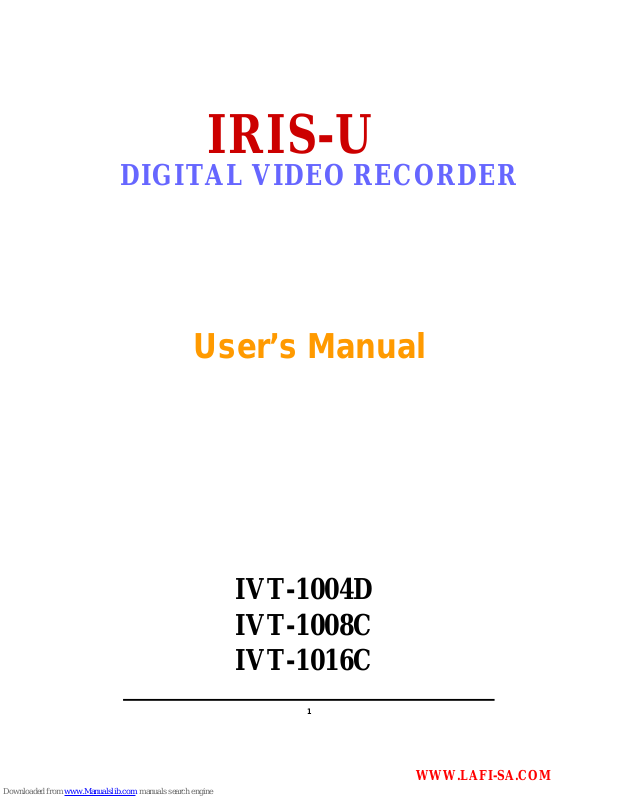

Iris-U IVT-1008C, IVT-1016C, IVT-1004D User Manual

Digital Video Recorder

User’s Manual

PRESTIGE 04/08/16

PRESTIGE-X 04/08/16

IRIS-U

DIGITAL VIDEO RECORDER

IVT-1004D IVT-1008C IVT-1016C

WWW.LAFI-SA.COM

Thank you for using our product.

1. This is user's manual for H.264 4CH, 8CH and 16CH DVR (Digital Video Recorder).

2. This manual contains product specification and introduction, installation guide, operating guide and other necessary matters for easy understanding. Users should read this user's manual carefully for proper use.

3. Contents in this manual may be changed according to the specification change and feature improvement without any notification.

4. This user's manual shall never be copied without prior agreement and violating this may be a reason for legal punishment on piracy.

5. If there is any incorrect or insufficient content in this user's manual, notify it to Customer Support Center.

Contents

CH 1. Product Introduction

1-1. Product Contents 5 1-2. Specifications 6 1-3. Product Characteristics 7 1-4. Name of Each Part 9

CH 2. Installation Guide and Cautions

2-1. Cautions 11 2-2. Product Installation 14

2-2-1. Power Connection 14 2-2-2. Connecting External Device 14

CH 3. How to Use

3-1. General Usage Information 20 3-2. Live Mode 21

3-2-1. Live mode control 21 3-2-2. Live mode feature 23

3-3. Search Mode 28

3-3-1. Search selection type 28 3-3-2. Play mode 30

3-4. Setup Mode 31

3-4-1. Display 31 3-4-2. Record 33 3-4-3. Device 38 3-4-4. Network 42 3-4-5. System 45

CONTENTS

Contents

CH 4. Client Program 48

4-1. Installing Client Program 48 4-2. How to use Client Program 53

4-2-1. Initial Screen 54 4-2-2. Connecting the DVR 58 4-2-3. Initial Screen after connection 59 4-2-4 WATCH-live viewing 60 4-2-5. Favorite – multiple DVR connection 61 4-2-6. SEARCH-playback 64

4-2-7. SETUP-remote setup of DVR 68 4-3. Firmware Upgrade 69 4-4. Web browser Monitoring and Playback 71

Trouble Shooting 72 Warranty 73

Appendix A How to Connect Receiver

(PRESTIGE-X Only)

CONTENTS

1-1. Product Contents

After removing packing materials of this product, check whether all following contents are included.

Main Body (DVR):

This converts the analog video and audio signal to the digital signal and saves on HDD.

Adapter:

This 12V adapter supplies power to the product.

Power Cable:

This connect the adapter and the power source.

Program CD:

This contains the User’s manual and Client Program for DVR.

Remote Controller:

This is an IR remote controller for convenience.

Battery:

These are 2(two) battery for the remote controller.

Receiver and Adapter

This is placed on your desk for remote control and monitoring. The adapter spec is 12V 1.5A. (PRESTIGE –X Only)

CH1. Product Introduction

CH 1 Product Introduction

1-2. Specifications

Image Input/Output : NTSC / PAL Recording Speed :

NTSC - 1~120fps(4ch/D1), 1~240(8ch/Half D1), 1~480fps(16ch/CIF)

PAL - 1~100fps(4ch/D1), 1~200(8ch/Half D1), 1~400fps(16ch/CIF)

Compression Method : H.264 Technology Power : DC12V, 4.0A (DC adapter) Power Consumption : 34W External Terminal : Video Input - BNC 4CH/BNC 8CH/BNC 16CH

Video Output - BNC 1CH, VGA 1CH, HDMI 1CH Audio Input - RCA 4CH Audio Output - RCA 1CH Sensor Input - Terminal Block 4CH (Contact, TTL) Sensor Output - Terminal Block 1CH (Dry Contact) LAN Communication - RJ45 Port Serial Communication - Terminal Block(RS485)

2xUSB 2.0 Type A

Video and control Transmission - RJ45 Port

(PRESTIGE-X Only)

Temperature : 5~40℃(30~110 F) Humidity : 20%~80%(Non-condensing) Size : 340 (W) × 250 (D) × 60 (H) mm Weight : 3Kg(Supplements and Packing Materials Excluded) Supplements : Adapter 1

Power Cable 1 Program CD 1 Remote Controller 1 Battery 2

Receiver 1(PRESTIGE-X Only) Adapter 11(PRESTIGE-X Only)

CH 1 Product Introduction

1-3. Product Characteristics

1) High quality picture

This enables recording and playing high quality digital image based on H.264 compression method.

2) High reliability

With Embedded hardware and software design, this mainta ins h igher product reliability compared to common PC ty pe products.

3) Simple usage

This allows users to use it conveniently by placing control buttons similar to existing

ones on VCR, and users can easily learn the usage.

4) Triplex System

Triplex System allows recording, backup, networking and playback simultaneously.

5) Selectable recording setup

For recording methods, users can select the frame rate, resolution and video quality individually in order to be appropriate for user's environment.

6) Remote monitoring

With using exclusive line or Internet network, you can search or monitor recorded images remotely by installing exclusive client program on PC.

7) Backup

You can backup with USB or external ODD.

8) Audio recording

You can record four sound inputs simultaneously. Moreover, you can listen to the sound in search and live monitoring and play mode.

9) Various recording methods

This provides convenient use with manual recording, recording by dates and days, hourly schedule recording, sensor and motion detection event recording and others to enable unmanned monitoring.

10) Various total monitoring features

You can use overall and economical security system through various sensor inputs and contact output control.

11) Display information in easy-to-understand information method

This enhanced convenience of user by displaying information (date, time, recording method, recording frame number, HDD capacity and others) in monitoring, reco rd in g and playing mode in easy-to-understand way.

CH 1 Product Introduction

12) P/T/Z control

By built in RS485, various P/T/Z cameras can be used.

13) Individual resolution setting

You can record in each channel by choosing 360X240, 720X240 and 720X480 individually.

14) Dual CODEC for video transmission

DVR can send 120 fps (based on CIF) regardless of the local recording and viewing setup regardless with recording setup.

15) Web browser support

You can monitor and playback the video and control the PTZ camera by internet explorer.

16) Built in S.M.A.R.T.

You can automatically check the health of the hard disk drives.

17) Language pack

Basically DVR has multiple language set, furthermore you can choose the language set if you want.

18) Mirroring

If you install more than two HDDs, you can use the second HDD for backup for maximum fault tolerance.

CH 1 Product Introduction

1.FAN

2.VIDEO IN

3. LAN

4.VIDEO OUT

5. VGA

12.HDMI

6. POWER

11.AUDIO OUT

8.RELAY

7.RS485

10. AUDIO IN

9.SENSOR IN

1.FAN

2.VIDEO IN

3. LAN

4.VIDEO OUT

5. VGA

12.HDMI

6. POWER

11.AUDIO OUT

8.RELAY

7.RS485

10. AUDIO IN

9.SENSOR IN

1-4. Name of Each Part

[Front Panel]

1. IR Window : the window for remote controller

2. USB ports : These USB ports are for mouse and USB devices. You should connect correctly the USB devices and mouse as picture directed.

3. Status lamps

POWER : Blue color back light. Power indicat or. RECORD : Red. Indicate the recording. NETWORK : Green. Lit on connecting the network

CH 1 Product Introduction

[Rear Panel]

[4ch]

[8ch]

1. IR WINDOW

2. USB

3. STATUS RAMPS

1. Cooling Fan

2. Video In: This receives images from cameras and sends them to monitors.

3. LAN Port: This is LAN cable connection terminal.

4. Video Out : For CRT monitor.

5. VGA port: video output for VGA display

6. DC Power : DC12V 4.0A

7. RS485 port : For control the pan and tile cameras. Make sure that the polarity.

8. Relay out : This terminal blocks connect external electric devices to the product

( Warning Lamp and others).

9. Sensor In : This terminals can be connected to external sensors.

10. Audio In: RCA audio in terminals. You can record four channels at the same

time.

11. Audio Out: RCA audio out terminal.

12. HDMI : HDMI output for high resolution monitor

※

For more details, refer to [CH 2. Installation Method and Cautions].

CH 1 Product Introduction

[16ch]

1.FAN

2.VIDEO IN

3. LAN

4.VIDEO OUT

5. VGA

12.HDMI

6. POWER

11.AUDIO OUT

8.RELAY

7.RS485

10. AUDIO IN

9.SENSOR IN

2-1. Cautions

- Avoid installing the product where there are direct rays or it is hot by locating near from heat generator. (May cause fire)

- Do not put vase, flowerpot, cup, cosmetics, drug, and anything the contain water on product. (May cause fire or electric shock, and it may injure people by falling)

- Do not insert or drop any metal object (coin, hair pin) or flammable object (match, paper) into air hole. (May cause fire or electric shock)

- Do not put any heavy object on it. (May injure people by being fell or destroyed.)

- Put po wer plug surely not to be moved. (If not, this may cause fire.)

- Unplug power plug and antenna when there are thunders and lightening. (May cause fire.)

- For cleaning the product, wipe surface with dry towel. Using chemical agent or cleaner may change the color and unpeel paint. Do not put several plugs at same time. (May cause electric shock.) If there is smoke or strange smell, stop operation. In this case, turn the power off and unplug it, and then contact our service center. (If you keep using it, this may cause fire or electric shock.)

- Do not unplug by pulling cord. (If cord is damaged, it may cause fire or electric shock.)

- Do not plug or unplug with wet hands. (May cause electric shock.)

CH2. Installation Method and Cautions

CH 2 Installation Method and Cautions

WARNING

Risk of electric shock.

Do not open the cover of the product.

Servicing of this product by unauthoriz ed personnel is

prohibited and will result in a void of warranty.

In order to ensure the most stable

conditions for power, the use of a UPS (Uninterrupted

Power Supply) is recommended.

- Keep the power cord untwisted. (May cause fire or electric shock.)

- Use proper adapter. (Using too much electric power may cause fire or electric shock.)

- Do not install it at where exposed to rain and wind and water drop. (May cause fire, electric shock and transformation.)

- Keep away from fire. (May cause fire.)

-Do not disassemble or remodel on your own. (May cause malfunction or electric shock.)

- Do not put next to flammable materials like flammable spray. (May cause fire.)

- Do not install it at a place with too much dirt. (May cause fire.)

- Do not install it on unstable places like shaking table and inclined place or shaking place. (May injure users by falling down or being upside down.)

- Do not put an heavy object on power cord or avoid it from being pressed by the device. (May cause fire or electric shock.)

- In case of using extension cord, do not use several devices at same time. (May cause fire with abnormal heating of extension.)

- When there are dirt on power plug pin or power outlet, clean it nicely. (May cause fire.)

-Do not damage on power cord or plug, and bend or twist or pull too much, and put it between other objects or heat. If power outlet insertion part is not tight, do not use it. (May cause fire or electric shock.)

-Do not drop or give a shock to the product. (May injure people or cause malfunction.)

- Do not touch power adaptor or signal controller. (May cause electric shock.)

- Do not put any object too close to block cooling fan. (May cause fire.)

- In case of exchanging batteries with improper type, there might be danger of explosion.

- For used batteries, throw away separately from other garbage.

- When you take out batteries, avoid children from eating them by mistake. Keep them away from children. (If a child ate them, contact a doctor right away.)

CH 2 Installation Method and Cautions

Note :

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This device complies with the part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.

FCC Warning :

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

CE Warning : This is a Class A product. In a domestic environment this may cause radio interference in which case the user may be required to take adequate measures.

This product has obtained EMI registration.

2-2 Product Installation

This product may be composed of camera and monitor in default, and additionally the sensor, microphone, speaker and PC for network can be connected if necessary.

2-2-1. Power Connection

1) Connect adapter cable to power connection terminal at rear side.

2) Input AC power to the adapter. (free voltage from 100V to 240V, 50/60Hz)

※ You must operate it at the rated voltage instructed on the user's manual. In case power higher than the rated voltage is supplied, it may cause damages on product.

2-2-2. Connecting External Device ( 4CH)

※ Connect it when power of the product is off. ※ Read through user's manual for the device you are connecting carefully.

1) How to Connect External Video/Audio Device

Connect cameras to VIDEO IN by channels. Connect microphone (AMP) to AUDIO IN by channels. Connect VIDEO OUT to VIDEO IN of monitor. Connect HDMI to HD Monitor. Connect AUDIO OUT to AUDIO IN of monitor (or speaker).

2) How to connect external sensor

Sensor terminals are composed of 4 input channels and 1 output channel. Sensor out terminal is relay output with 1A, 24V or 0.5A,125V.

CH 2 Installation Method and Cautions

CAMERA

MIC

SIREN

POWER

SENSOR

Sensor In : Connect the sensors. The sensor are composed of both signal and ground terminals, with a voltage difference of 5V. In the case that the sensor used for input is of the N/O (Normal Open) type, when the voltage difference between the signal and ground falls to 0V (short), the DVR can use this as a trigger to start alarm/sensor based recording. Sensor Out : Connecting external electrical devices The 1 output sensor terminal does not provide power, and functions only on an ON/OFF basis via a relay. Normally, the signal and ground should be on an OPEN basis, and the DVR will complete the relay connection.

3) Connecting with PC using LAN cable

If you want to connect DVR to PC directly, use LAN cable, and if you want to use HUB, connect cable via hub.

*Hub : This is a device connecting one office to devices located near with using

cable when you organize LAN

*Cable : This is standard UTP cable used for communication among

devices through Hub and others when you organize LAN

CH 2 Installation Method and Cautions

HUB

4) Connection Using PTZ camera

In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as shown at following figure.

CH 2 Installation Method and Cautions

5) Installing Hard disk drive

In case of installing the hard disk drive, open the upper case and install the hard disk drive on the hard bracket. Remember that the main power should be off to install the hard disk drive. If you have any trouble, please contact the technical support.

RS485 CABLE

VIDEO CABLE

SPEED

DOME

Connecting External Device(8 and 16 CH)

※ Connect it when power of the product is off. ※ Read through user's manual for the device you are connecting carefully.

1) How to Connect External Video/Audio Device

2) How to connect external sensor

Sensor terminal is composed of 1 input channel and 1 output channel. Sensor out terminal is relay output with 1A, 24V or 0.5A,125V.

CH 2 Installation Method and Cautions

CAMERA

SIREN

POWER

SENSOR

MIC

3) Connecting with PC using LAN cable

If you want to connect DVR to PC directly, use LAN cable, and if you want to use HUB, connect cable via hub.

*Hub : This is a device connecting one office to devices located near with using

cable when you organize LAN

*Cable : This is standard UTP cable used for communication among

devices through Hub and others when you organize LAN

CH 2 Installation Method and Cautions

HUB

4) Connection Using PTZ camera

In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as shown at following figure.

CH 2 Installation Method and Cautions

5) Installing Hard disk drive

In case of installing the hard disk drive, open the upper case and install the hard disk drive on the hard bracket. If you use the one hard disk drive, it should be set the IDE1 with master setting. If you use the 2 hard disk drives, it also should be set the IDE1 with 1 master and 1 slave setting. Remember that the main power should be off to install the hard disk drive. If you have any trouble, please contact the technical support.

RS485 CABLE

VIDEO CABLE

SPEED

DOME

3-1. General Usage Information

The PRESTIGE series DVR can be operated with a mouse or remote controller under the four main modes listed below:

Live Mode – This is the “main or default” mode. From this mode you can view in real time all currently operating cameras, information regarding camera status, and have access to Pan/Tilt camera controls. In addition, system status information will be shown during live mode, and other modes can be entered from Live mode.

Setup Mode – The user will be able to customize settings for Live viewing, Recording, Backup, and Camera related devices under the Setup Mode.

Search Mode – In Search Mode, the user will be able to review all recorded footage in the case that an event must be reviewed using a calendar or event based search.

Backup Mode – In Backup Mode, the user will be able to archive the desired data to the preferred supported media of their choice (ex. CD, DVD, USB Backup, Remote Client Software, etc.)

Password Protection – The DVR system will utilize a user ID and password system to prevent unauthorized usage of this product. Control of the syst em will only be possible after entering a proper ID and password as illustrated below. (Factory Default settings are blank for these fields).

IDs and passwords should be managed by a system administrator, as different users may be given different levels of access to the DVR.

CH3. How to Use

CH 3 How to Use

3-2. LIVE Mode

In this section you will know how to split the video mode into 1, 4, 6, 8, 9, 12, 16, as well as auto sequencing, PTZ Control, Mouse control, Setup configurations, Backup

CH 3 How to Use

3-2-1. LIVE Mode Control

Sensor activation indicator

Motion detection indicator

Event recording indicator

Recording indicator

1) Live View Status

You may use the Live Menu Bar located at the bottom for quick shortcuts and view status of certain items.

2) Live Menu Bar

You may use the Live Menu Bar located at the bottom for quick shortcuts and view status of certain items.

CH 3 How to Use

Mute indicator

Audio out channel indicator

Scheduler activation indicator

Lock/ Unlock indicator

Hard drive usage

Sequence activation

Screen Split mode change

Time

Date

3) Live Popup Menu

By Right-Clicking anywhere on Live Screen, you may view the Live Popup Menu. By using the Live Popup Menu, you can quickly jump to the necessary configuration and settings.

CH 3 How to Use

3-2-2. LIVE Mode Feature

1) Split

Change video split mode for Live View.

4ch : 1/4 Split Mode 8ch : 1/4/6/8/9 Split Mode 16ch : 1/4/6/8/9/13/16 Split Mode

3) Instant Replay

This is very convenient function to catch the abrupt accident. During live viewing, you can go directly to the playback screen.

If you choose the ‘Instant Replay’ , the DVR goes to the ‘PLAY’ with the present time screen. And you can use the functions related playback.

2) Audio Out

You can choose the audio out from this menu.

+ 52 hidden pages

Iris-U IVT-1008C, IVT-1016C, IVT-1004D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
