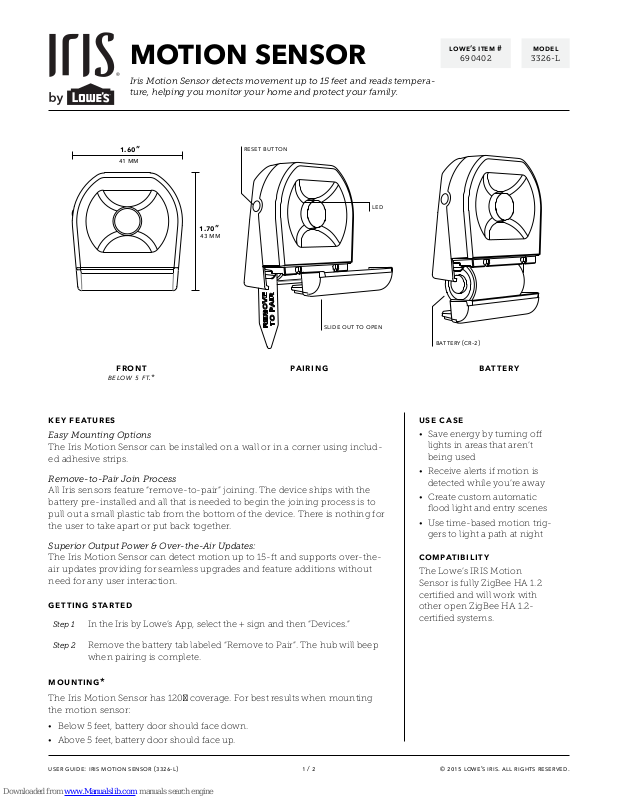

MOTION SENSOR
Iris Motion Sensor detects movement up to 15 feet and reads temperature, helping you monitor your home and protect your family.
lowe’s item #
690402
model
3326-L
1.60”
41 mm
front
below 5 ft.*
1.70”
43 mm
reset button
led
slide ou t to open
pairing battery
key features
Easy Mounting Options
The Iris Motion Sensor can be installed on a wall or in a corner using included adhesive strips.
Remove-to-Pair Join Process
All Iris sensors feature “remove-to-pair” joining. The device ships with the
battery pre-installed and all that is needed to begin the joining process is to
pull out a small plastic tab from the bottom of the device. There is nothing for
the user to take apart or put back together.
Superior Output Power & Over-the-Air Updates:
The Iris Motion Sensor can detect motion up to 15-ft and supports over-theair updates providing for seamless upgrades and feature additions without
need for any user interaction.
getting started
Step 1
In the Iris by Lowe’s App, select the + sign and then “Devices.”
battery (cr-2)
use case
• Save energy by turning o
lights in areas that aren’t
being used
• Receive alerts if motion is
detected while you’re away
• Create custom automatic
flood light and entry scenes
• Use time-based motion triggers to light a path at night
compatibility
The Lowe’s IRIS Motion
Sensor is fully ZigBee HA 1.2
certified and will work with
other open ZigBee HA 1.2certified systems.
Step 2
Remove the battery tab labeled “Remove to Pair”. The hub will beep
when pairing is complete.
mounting*
The Iris Motion Sensor has 120◦ coverage. For best results when mounting
the motion sensor:
• Below 5 feet, battery door should face down.
• Above 5 feet, battery door should face up.
user guide: iris motion sensor (3326-l) © 2015 lowe’s iris. all rights reserved.1 / 2
MOTION SENSOR
lowe’s item #
690402
model
3326-L
approvals (english)
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Conforms to FCC Part 15B
Contains FCC ID: T3L-SS011
IC: 12192A-SS011
Industry Canada licence-exempt RSS Standards. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including interference that may cause undesired operation.
Under Industry Canada regulations, this radio trans mitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
This equipment complies with FCC and IC radiation exposure limits set forth
for an uncontrolled environment. This equipment is in direct contact with
the body of the user under normal operating conditions. This transmitter
must not be co-located or operating in conjunction with any other antenna
or transmitter.
Changes or modifications not expressly approved by Lowes, Inc. could void
the user’s authority to operate the equipment.
For more information, visit IrisByLowes.com.
approvals (franÇais)
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Conformément à la réglementation d’Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d’un type et d’un gain maximal
(ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance
isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à
l’établissement d’une communication satisfaisante.
troubleshooting
Step 1
Slide o the battery cover on the
bottom of the device. Remove
battery and replace with a new
CR-2 battery. Reassemble and
test operation.
Step 2
Remove battery. While holding
down the reset button on the side
of the device, reinsert battery to
factory reset the device. Repeat
the “Getting Started” steps to rejoin the ZigBee network.
for additional help
Check out support.IrisByLowes.
com or call 1-855-469-IRIS (4747).
technical specifications
Power
Rated: 3V
Battery: CR-2 (1x)
Battery Life: Up to 2 years
Environmental
Operating Temperature: 0° to 40°C
Shipping/Storage
Temperature: -20° to 50°C
Humidity Range: 0 to 90% RH.
(non-condensing)
Approvals
Wireless RF Protocol
Protocol: ZigBee HA 1.2
TX Strength: +3 dBm
RF Channels: 16
Range: 130 ft. (40m) LOS
Pour plus d’informations, visitez IrisByLowes.com.
user guide: iris motion sensor (3326-l) 2015 lowe’s iris. all rights reserved.2 / 2
