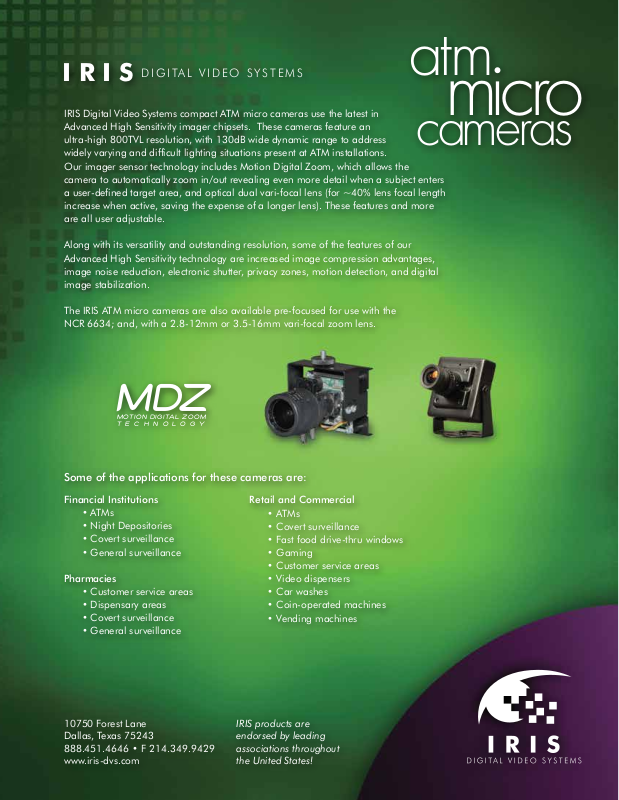

IRIS
DIGITAL VIDEO SYSTEMS
atm
IRIS Digital Video Systems compact ATM micro cameras use the latest in
Advanced High Sensitivity imager chipsets. These cameras feature an
ultra-high 800TVL resolution, with 130dB wide dynamic range to address
widely varying and difficult lighting situations present at ATM installations.
Our imager sensor technology includes Motion Digital Zoom, which allows the
camera to automatically zoom in/out revealing even more detail when a subject enters
a user-defined target area, and optical dual vari-focal lens (for ~40% lens focal length
increase when active, saving the expense of a longer lens). These features and more
are all user adjustable.
Along with its versatility and outstanding resolution, some of the features of our
Advanced High Sensitivity technology are increased image compression advantages,
image noise reduction, electronic shutter, privacy zones, motion detection, and digital
image stabilization.
The IRIS ATM micro cameras are also available pre-focused for use with the
NCR 6634; and, with a 2.8-12mm or 3.5-16mm vari-focal zoom lens.
cameras
micro
MDZ
MOTION DIGITAL ZOOM
TECHNOLOGY
Some of the applications for these cameras are:
Financial Institutions
• ATMs
• Night Depositories
• Covert surveillance
• General surveillance
Pharmacies
• Customer service areas
• Dispensary areas
• Covert surveillance
• General surveillance
Retail and Commercial
• ATMs
• Covert surveillance
• Fast food drive-thru windows
• Gaming
• Customer service areas
• Video dispensers
• Car washes
• Coin-operated machines
• Vending machines
10750 Forest Lane
Dallas, Texas 75243
888.451.4646 • F 214.349.9429
www.iris-dvs.com
IRIS products are
endorsed by leading
associations throughout
the United States!
Specifications and Ordering Information
Item Type Micro ATM Micro ATM NCR Micro Camera
Part Number
Image Sensor
Signal System
Resolution
Effective Pixels
Lens
Motion Digital Zoom
Optical Dual Vari-Focal
S/N Ratio
Minimum Illumination
Dynamic Range
Viewing Adjustments
Power Requirement
Power Consumption
Size - Width
Size - Depth
Size - Height
Operating Temperature
Operating Humidity
Mounting Bracket
Standard Finish
AC Converter Option
Optional Installation Kit
1ATMC 1ATMC-NCR
1.3 Mega Pixel Sensor
PAL / NTSC
Ultra High 800 TVL
1305 x 1049 pixels
3.0mm
Yes, auto-zoom based on user-defined target area movement
Yes, when activated can increase focal length by 40%
1 1
Yes, includes multiple lengths
P/N 1ATM-INST, includes extended video/power cables, ATM housing circular lens, tie-down cables
Cameras are programmable via optional Controller (P/N 1CAM-CTRL)
3.0mm, pre-focused
for NCR6634
52dB
0.01 Lux
130dB Max.
Physical and Electronic PTZ
12VDC ±10%
~ 3.0W Max.
1 3/8”1 3/8”
1 3/8”1 3/8”
1 3/8”1 3/8”
-10˚C ~ 50˚C
< 90% non-condensing
Black
Amend P/N with "-KIT"
1ATMC-VF2812
1ATMC-VF3516
2.8-12mm
3.5-16mm
1 13/16”
1 11/16”
1 13/16”
2
Yes
Notes: 1. Includes lens barrel, camera body only 3/8" deep. 2. Depth varies depending on lens configuration.
IRIS also sells COAX, standard and network wiring, connectors, and tools for installation. Ask for more information and pricing.
SCAN THE CODE TO
VISIT US ON THE GO!
Law enforcement agencies will appreciate
the up-close and high-detail images
captured by the IRIS cameras.
Five-year product depot warranty provided by IRIS. Products are RoHS compliant.
© February 2015 – IRIS Digital Video Systems, Dallas, Texas. All rights reserved. IRIS is a registered trademark of The Security Center, Inc.
Any other trademarks presented remain the property of their respective owners. IRIS products, including software and hardware,
are protected by one or more of the following U.S. Patents: #D524,834; and others pending. In the interest of
constant product improvement, features and options may change without notice.
ATM-AHS 04015-2.5K
