iRig Micro Amp User Manual

15W battery-powered guitar amplier with iOS/

USB interface.

USER MANUAL

Contents

Table of Contents

Contents 2

English 3

Safety information 3
iRig Micro Amp 3
Register your iRig Micro Amp 4
1 Installation and setup 4

1.1 Stand-alone 4

1.2 Device connected 8

2 USB LED 10

2.1 Audio input meter and gain 10

2.2 Low battery 10

3 Specifications 11
Warranty 12
Support and more info 12

Regulatory 13

2

English

Safety information

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS.

iRig Micro Amp can ONLY be used with:

• Consumer grade non-rechargeable CARBON-ZINC batteries

• ALKALINE batteries

• Consumer grade Ni-MH rechargeable batteries

iRig Micro Amp

Thank you for purchasing iRig Micro Amp.

Your package contains:

• iRig Micro Amp

• Lightning Cable

• USB cable

• 3/8” to 5/8” screw adapter

• 6xAA batteries

• Quick Start Guide

• Registration Card

1x

1x

1x

6x

1x

iRig Micro Amp is a compact 15W 1x4” analogue amplifier with built-in MFi audio interface that allows you to
record into iOS or Mac/PC devices.

iRig Micro Amp is one of the most compact combo amplifier on the market. This makes of Micro Amp the
perfect travel companion.

The compact design is achieved, also, thanks to a quality full-range 4” driver capable of 15W power.

Micro Amp can be powered either via external PSU or via 6AA batteries: this make of Micro Amp the perfect
weapon for every on-the-go guitarist. The built-in Mfi audio interface, also, allows you to record your instrument
directly on the connect device (iOS or Mac/PC), with a resolution up to 24bit/96kHz. Micro Amp sports 3
channels: Clean, Drive and Lead. Each channel has a set of tune controls: bass, mid and treble. Also, although
it’s very compact, the 15-watt Micro Amp packs a mighty punch with huge tone.

3

English

Register your iRig Micro Amp

By registering, you can access technical support, activate your warranty and receive free JamPoints™ which will
be added to your account. JamPoints™ allow you to obtain discounts on future IK purchases! Registering also
keeps you informed of all the latest software updates and IK products.

Register at: www.ikmultimedia.com/registration

1 Installation and setup

iRig Micro Amp can work as a stand-alone practice amp, or connected via USB to an iOS device or a MAC/
PC computer. The required power supply is guaranteed by 6xAA batteries or with the (optional) PSU. When the
iRig Micro Amp is battery powered, it is capable of 7.5W RMS; when powered with the PSU its capable of 15W
RMS.

1.1 Stand-alone

1. Insert the AA batteries in the battery compartment or connect the (optional) PSU.

*

DC 9V - 15V

4

English

2. Turn ON the unit.

POWER

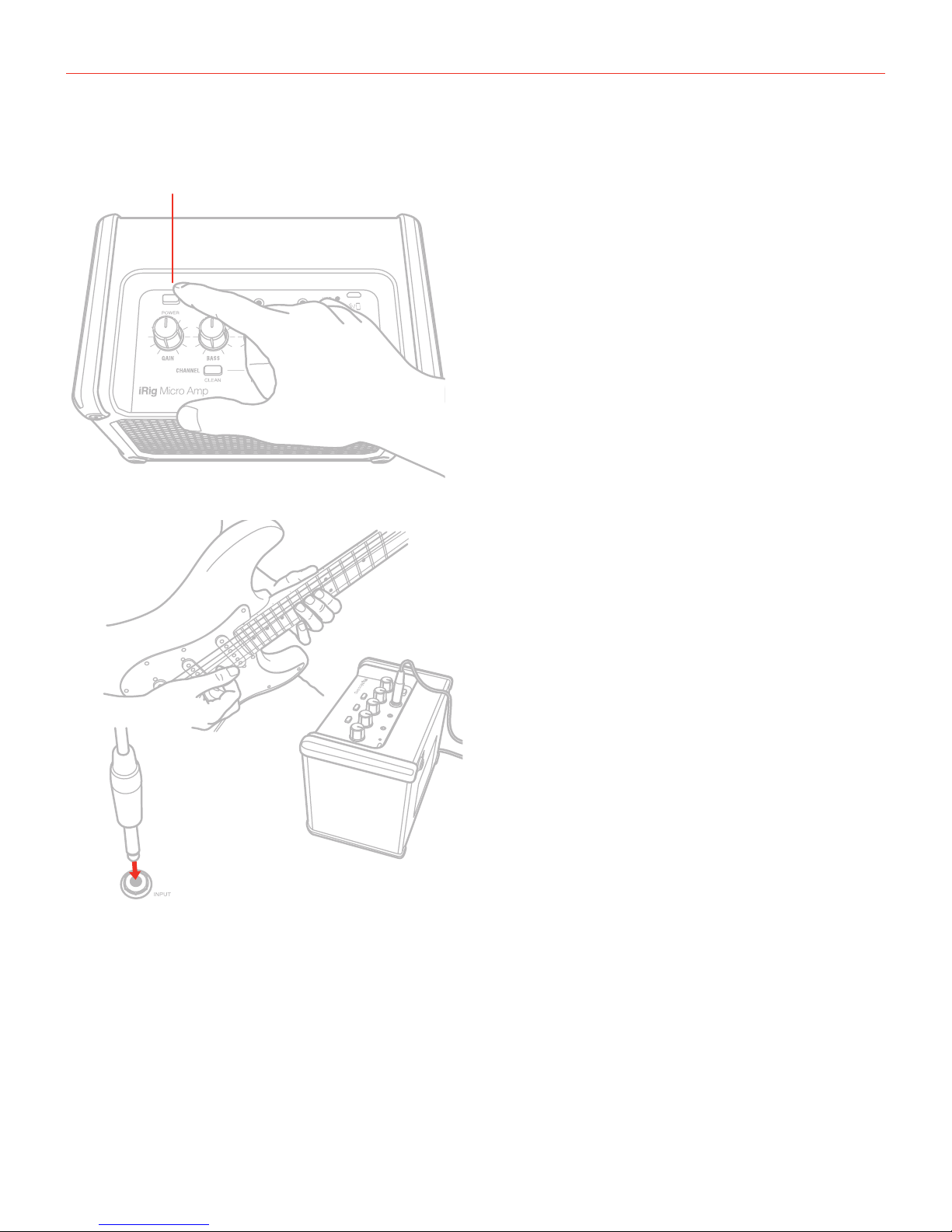

3. Connect your guitar to the instrument input of iRig Micro Amp.

2

1

1/4"

5

English

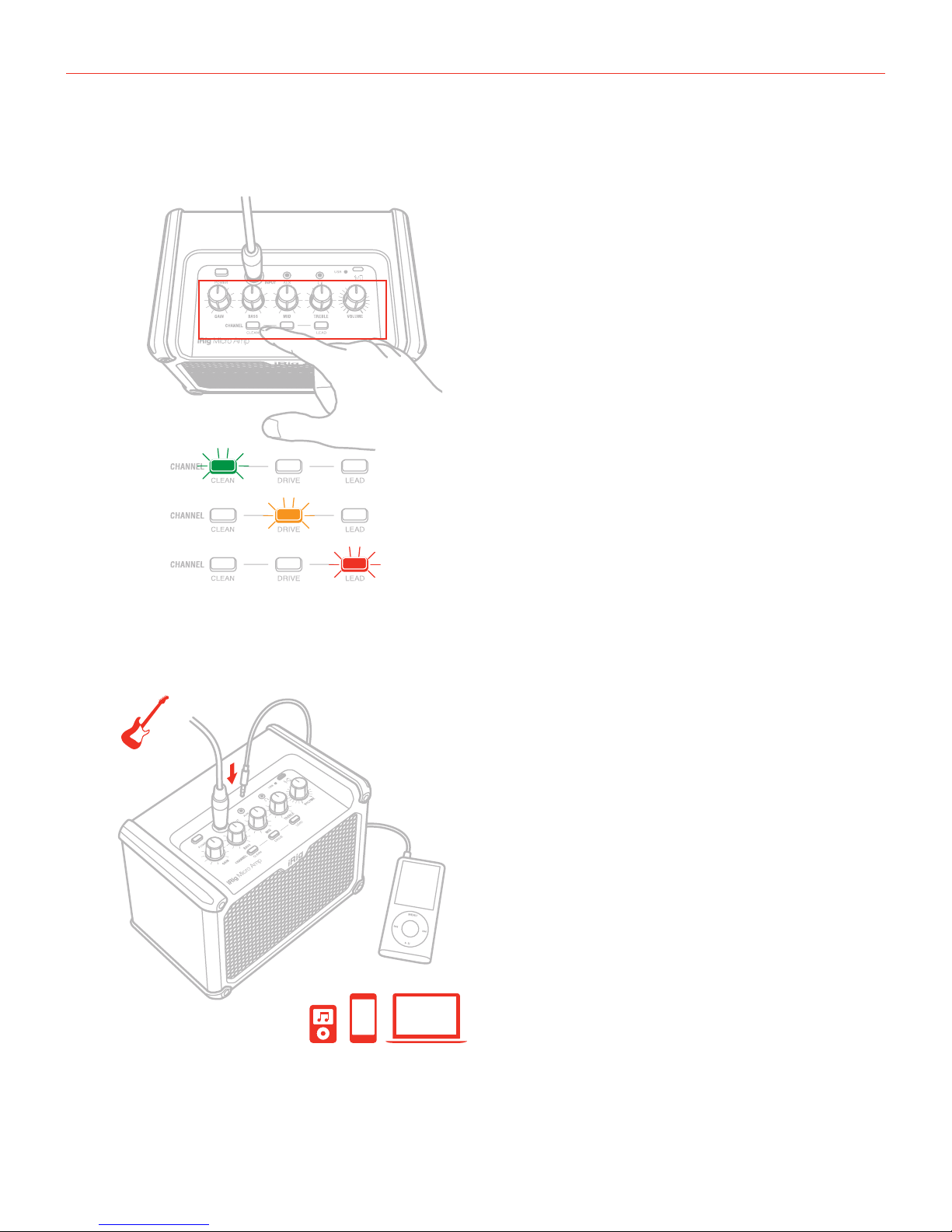

4. It is now possible to adjust your sound with the on-board tune controls for each channel. The volume
potentiometer controls the speakers output volume.

5. It is possible to connect an external sound source thru the 1/8” AUX IN, that allows you to play along your
favourite songs.

1/8"

AUX IN

6

English

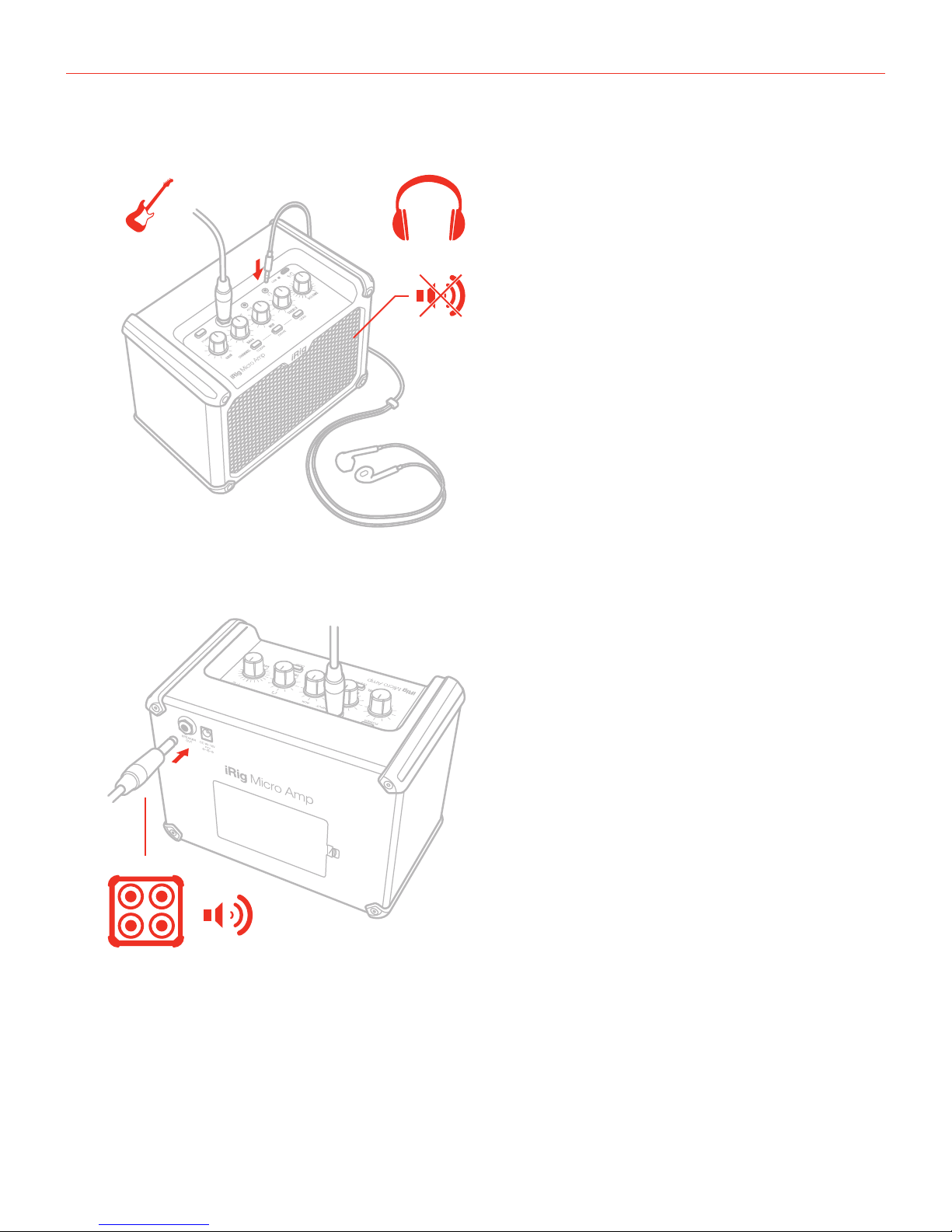

6. Connect your headphones to the headphone output. This will mute the internal speaker of iRig Micro Amp.

1/8"

HEADPHONES OUT

7. Connect an external speaker to the speaker output on the back of iRig Micro Amp. This will mute the
internal speaker of iRig Micro Amp.

1/4"

SPEAKER OUT

7

English

1.2 Device connected

1. Insert the AA batteries in the battery compartment or connect the (optional) PSU and turn on the unit.

2. Connect your guitar to the instrument input of iRig Micro Amp.

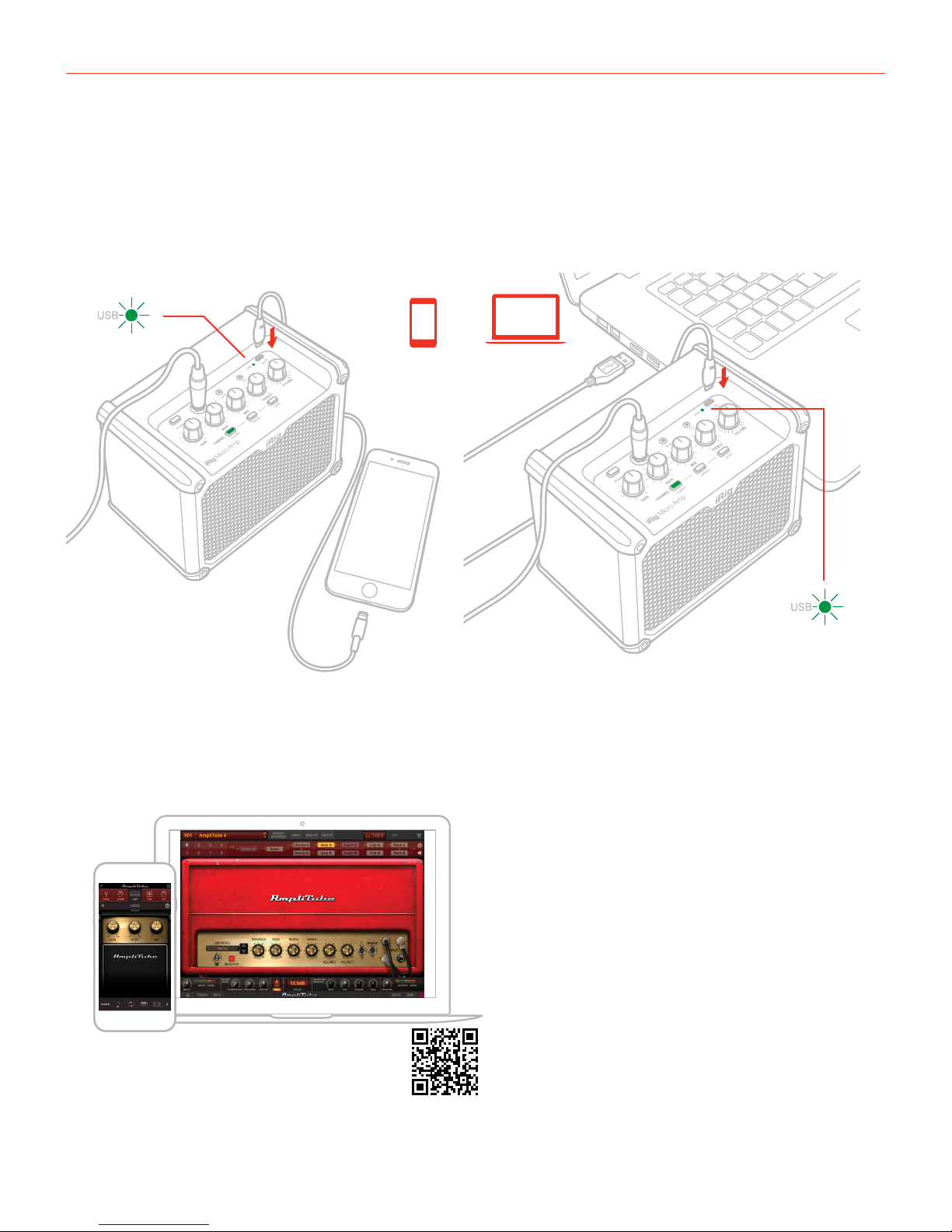

3. Connect the iRig Micro Amp to an iOS device or MAC/PC via the micro-USB connector. The USB LED will
light up green to indicate that the USB is connected.

4. Download and launch the App.

AmpliTube 4 iOS/Mac/PC

FREE DOWNLOAD

ikdownloads.com/irigmicroamp

8

English

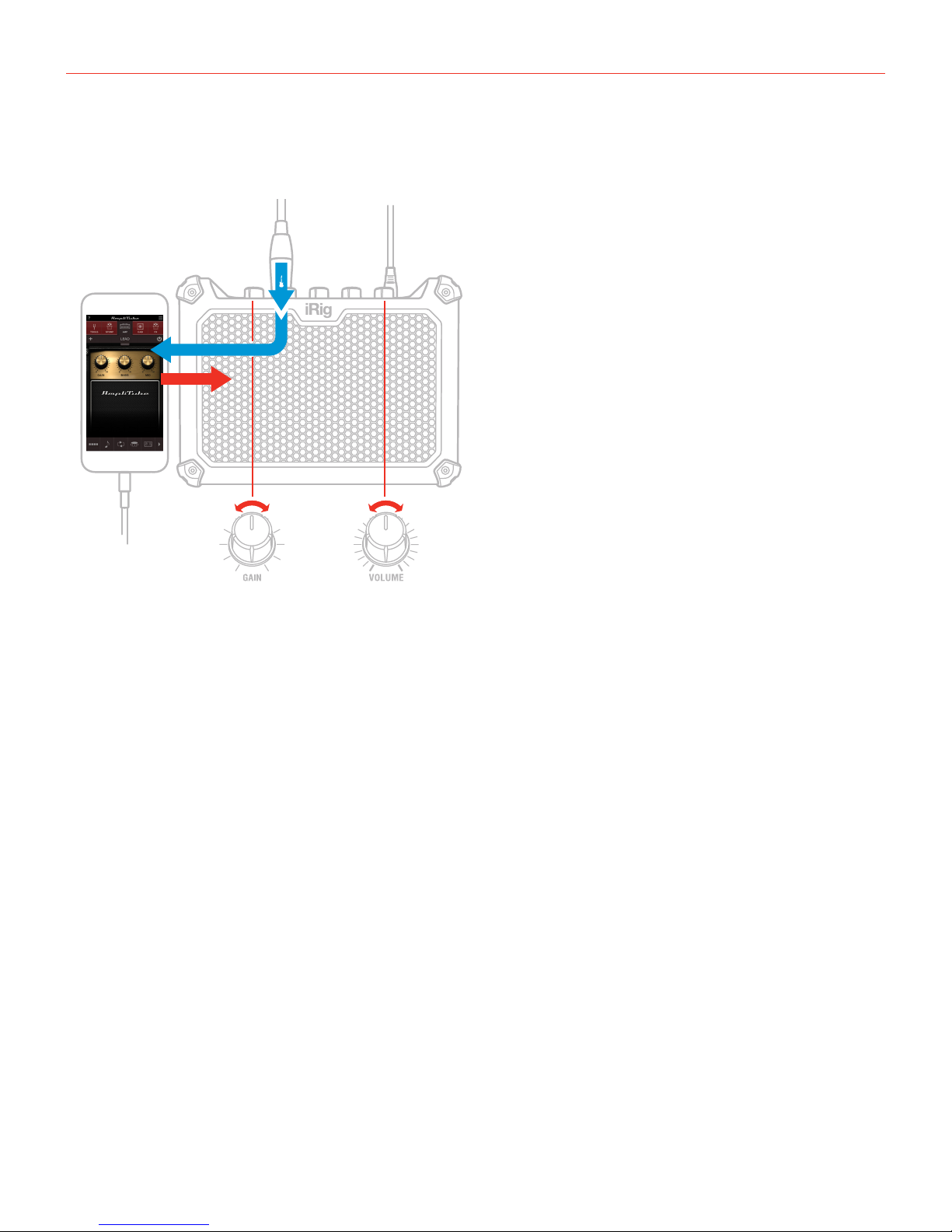

5. The input signal is now routed into the app, where the signal is processed, and from the app it will return
to the iRig Micro Amp speaker. It is still possible to control the GAIN and VOLUME potentiometers on the
control panel of iRig Micro Amp.

6. It is possible to connect an external sound source thru the 1/8” AUX IN, that allows you to play along your
favourite songs.

7. Connect your headphones to the headphone output. This will mute the internal speaker of iRig Micro Amp.

8. Connect an external speaker to the speaker output on the back of iRig Micro Amp. This will mute the
internal speaker of iRig Micro Amp.

9

English

2 USB LED

2.1 Audio input meter and gain

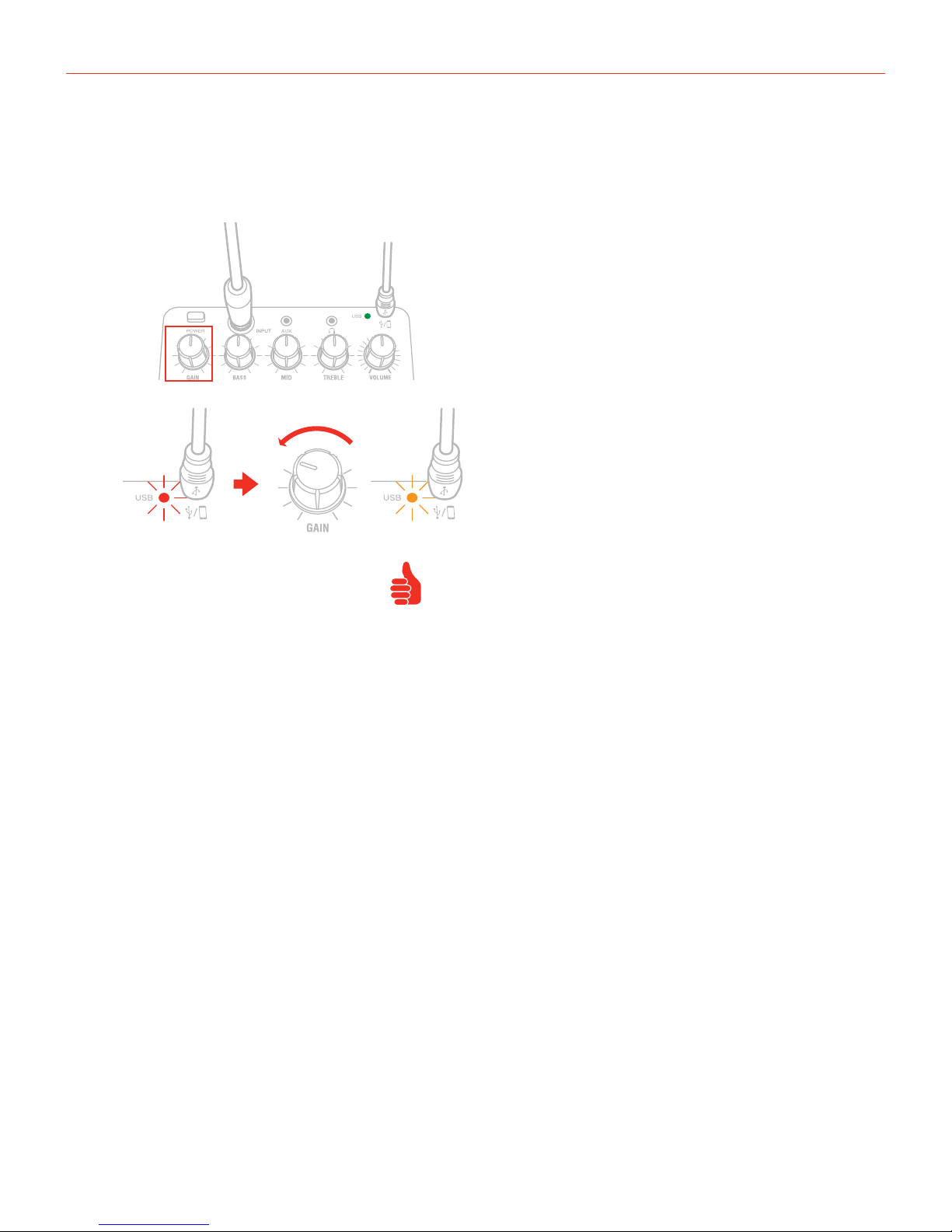

RED

The USB LED will light up (GREEN) to indicate that a device is connected to the micro-USB port of iRig Micro
Amp and acts as an audio input meter:

LED GREEN: USB connected

LED ORANGE: signal is present

LED RED: clipping

GREEN / ORANGE

2.2 Low battery

The USB LED act also as battery indicator: when the batteries level is low, the LED starts blinking orange and
batteries need to be replaced as soon as possible. When the battery level is very low the LED starts blinking red.

10

English

3 Specifications

Common

Speaker: 1x4” full range (4 Ohms)

Output power: 15W (DC IN powered) or 7.5W (battery powered)

Power supply

Power: AA batteries (included) or DC IN (not included)

Battery duration: approx. 15h with 6xAA alakline

DC IN: 9V-15V DC negative inside

USB Interface

Conversion: 24-bit A/D, 24-bit D/A

Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz

Device Connection: micro-USB

Instrument Input

Connector: unbalanced, Hi-Z, TS 1/4” Jack. Tip: signal / Shield: ground

Instrument Input Level: from 30mVpp to 6.9Vpp

Instrument Input Impedance: 1MOhms

Frequency response: 20 Hz – 20kHz +/-1.5dB

Stereo Headphone Output

Connector: 1/8” TRS Jack. Tip: right / Ring: left / Shield: ground

Dimensions and weight

Dimensions: 210mm x 125mm x 155mm

Weight: 1.26kg

11

English

Warranty

Please visit:

www.ikmultimedia.com/warranty

for the complete warranty policy.

Support and more info

www.ikmultimedia.com/support

www.irigmicroamp.com

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

12

Regulatory

FCC statement

This device complies with Part 15.107 and 15.109 Class B of the FCC Rules CFR47:
October 2010.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may
cause undesired operation.

Changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specically to iPod, iPhone, or iPad, respectively, and has been certied by
the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this
accessory with iPod, iPhone, or iPad may affect wireless performance.
iRig® Micro Amp, AmpliTube™ and SampleTank® are trademarks property of IK Multimedia Production Srl. All other product names and images, trademarks and artists names are the property of their
respective owners, which are in no way associated or afliated with IK Multimedia. iPad, iPhone, iPod touch Mac and Mac logo are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries. Lightning is a trademark of Apple Inc. App Store is a service mark of Apple Inc.
