Introduction
Thank you for purchasing Iridium Edge™.
This User Manual contains the procedures for the safe installation of Iridium Edge
7
Related Documents
The following Iridium product documentation is available to help you:
• Iridium Edge Fact Sheet
• Iridium Edge Quick Installation Guide
8
Table of Contents
LEGAL NOTICES ...................................................................................................................... 2
RELATED DOCUMENTS .............................................................................................................. 7
IMPORTANT SAFETY INFORMATION ....................................................................................12
1 REGULATORY AND STANDARDS COMPLIANCE .......................................................14
1.1 RADIO FREQUENCY RADIATION SAFETY NOTICE AND OTHER INFORMATION
REQUIRED BY THE U.S. FEDERAL COMMUNICATIONS COMMISSION AND OTHER
GOVERNMENTS ...................................................................................................................15
1.2 USE ABOARD AIRCRAFT .................................................................................................16
1.3 INDUSTRY CANADA (INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT CANADA) NOTICE
STATEMENTS ..........................................................................................................................16
1.4 REACH (EUROPEAN UNION) ..........................................................................................16
1.5 DEVICE DISPOSAL ..........................................................................................................17
1.6 FRENCH NOTICES ..........................................................................................................17
1.6.1 Importantes consignes de sécurité.........................................................................17
1.6.2 Conformité aux normes ..........................................................................................19
1.6.3 Avis obligatoires de la FCC ....................................................................................20
1.6.4 RÉGLEMENTATION — AÉRONEFS .....................................................................21
1.6.5 Industrie Canada ...................................................................................................21
1.6.6 REACH ..................................................................................................................21
1.6.7 Élimination des appareils .......................................................................................22
2 PRODUCT OVERVIEW ..................................................................................................23
2.1 KEY BENEFITS ................................ ............................................................................... 25
2.2 SCOPE ..........................................................................................................................25
2.3 REFERENCE DOCUMENTATION ........................................................................................25
2.4 PHYSICAL SPECIFICATION ...............................................................................................26
2.5 ACCESSORIES ...............................................................................................................27
2.6 TEMPERATURE ..............................................................................................................27
2.7 ENVIRONMENTAL ...........................................................................................................27
2.8 CONNECTOR ..................................................................................................................28
9
2.8.1 Connector Part Numbers .......................................................................................29
2.8.2 Connector Pin-outs ................................................................ ................................29
2.9 ENCLOSURE ..................................................................................................................30
2.9.1 Enclosure Dimensions ...........................................................................................31
2.9.2 Mount Holes ..........................................................................................................31
2.9.3 Plugs .....................................................................................................................32
2.9.4 Enclosure Specifications ........................................................................................33
2.10 PIGTAIL CABLE ..............................................................................................................33
2.10.1 Pigtail Drawings .....................................................................................................33
2.10.2 Mechanical Specifications ......................................................................................34
2.11 MASS ............................................................................................................................35
3 ELECTRICAL AND RF SPECIFICATIONS .....................................................................35
3.1 POWER INTERFACE ........................................................................................................35
3.1.1 Input Specification .................................................................................................35
3.1.2 Current Limiting .....................................................................................................35
3.1.3 Mating Cable Guidelines ........................................................................................36
3.1.4 Load Dump Protection ...........................................................................................36
3.1.5 Internal Fuse ..........................................................................................................37
3.1.6 Startup Times ........................................................................................................37
3.1.7 Brown Out ..............................................................................................................38
3.1.8 Operating Power Consumption ..............................................................................38
3.2 SERIAL RS232 INTERFACE .............................................................................................38
3.2.1 Baud Rate ..............................................................................................................39
3.2.2 Flow Control ..........................................................................................................39
3.2.3 DTR Settings .........................................................................................................40
3.3 ON/OFF CONTROL INPUT ................................................................................................40
3.3.1 Recommended Operation ......................................................................................41
3.3.2 Power Down Consumption ....................................................................................42
3.4 NETWORK AVAILABLE INDICATOR ....................................................................................42
3.5 POWER DETECT INDICATOR ................................................................ ............................43
3.6 RF SPECIFICATIONS .......................................................................................................44
10
4 MATING CABLE GUIDELINES ......................................................................................44
4.1 MOLDED BACK-SHELL ....................................................................................................45
4.2 MATING CABLE GAUGE ..................................................................................................45
4.3 CABLE JACKET PROPERTIES ...........................................................................................46
4.4 SHIELDING ................................................................ ..................................................... 46
4.5 RS232 GROUND WIRING ................................................................................................46
5 INSTALLATION GUIDELINES .......................................................................................47
5.1 INSTALLER QUALIFICATIONS ...........................................................................................47
5.2 HANDLING .....................................................................................................................47
5.3 IMEI RECORDING ..........................................................................................................47
5.4 RESTRICTED INSTALLATIONS ..........................................................................................48
5.5 SELECT A MOUNTING LOCATION .....................................................................................48
5.6 MOUNTING THE IRIDIUM EDGE ........................................................................................49
5.6.1 Screw Mount ..........................................................................................................49
5.6.2 Bottom Mount ........................................................................................................51
5.6.3 Tape Mount ...........................................................................................................54
5.7 MATING CABLE INSTALLATION ......................................................................................... 55
5.8 OPERATIONAL PRACTICES ..............................................................................................56
5.8.1 Blasting Areas .......................................................................................................56
5.8.2 Hazardous Locations .............................................................................................57
5.8.3 Pacemakers ...........................................................................................................57
5.8.4 Disconnecting Mating Connector ...........................................................................58
5.8.5 Painting .................................................................................................................58
5.8.6 Cleaning ................................................................................................................58
6 APPENDIX A: BLUNT CUT CABLE ...............................................................................59
11
12
Important Safety Information
Prior to using Iridium Edge™, read and understand this User Manual including the safety
warnings and information. Failure to do so could result in serious injury or death.
Installation
WARNING Always secure power cables. Failure to secure cables could
result in fraying or failure of the power cable, resulting in fire and or failure
of the device. These hazards could cause serious injury or death
CAUTION Install the Iridium Edge safely and securely. Failure to do so
could result in dislodging of the Iridium Edge especially when operating in
areas of high winds or when mounted on moving vehicles, which could
result in injury or damage.
Grounding
WARNING Properly ground the Iridium Edge. Failure to properly ground
the Iridium Edge could cause unexpected currents, which could cause
serious injury or death.
13
Power cables
Use proper cables that have been supplied by a Service Provider. Use of improper cables can result in
damages to equipment, property or persons.
WARNING Use power and ground conductors of proper gauge. Use of
improper gauge power cables could result in exposing cables to excessive
heat which could cause fire, resulting in serious injury or death.
CAUTION Use only molded back shell IP67 connector with Iridium Edge.
Failure to do so could create an improper seal, allowing moisture and water
vapor to enter the Iridium Edge's pigtail which in turn could lead to corrosion
and damage to the device, resulting in injury or damage.
Explosive Atmosphere / Blasting areas
WARNING Power down or turn off the Iridium Edge when in a “blasting
area” or in areas posted “Turn off two-way radio.” Obey all signs and
instructions. Failure to do so could result in serious injury or death.
WARNING Turn your device OFF in any area with a potentially explosive
atmosphere. Obey all signs and instructions. Sparks from your device in such
areas could cause an explosion or fire resulting in serious injury or death.
Pacemakers
WARNING Persons with Pacemakers:
• Should ALWAYS keep Iridium Edge more than eight inches from their
pacemaker when it is turned ON.
• Should turn Iridium Edge OFF immediately if there is any reason to suspect
that interference is taking place.
• Failure to heed this warning could result in serious injury or death.
14
Mating Cables
CAUTION Use only qualified cables with a IP67 connector provided by your
Service Provider with the Iridium Edge connectors. Failure to do so would
create an improper seal, allowing moisture and water vapor to enter the
device which in turn could lead to corrosion and damage to the device. This
could cause the device to fail, and could result in injury or damage.
External fuse
NOTICE The Iridium Edge must be powered through a fuse or currentlimited power supply. Failure to do so could cause large current drawings if
unexpected or inadvertent shorts occur in either Iridium Edge device or its
mating cable. Any large sustained current could result in damage to
equipment.
1 Regulatory and Standards Compliance
Iridium Edge is certified as Model #9680. It is designed to comply with the standards for the United
States, Canada, European Union, and Australia/New Zealand as per the table below.
Table 1-1 Regulatory and Technical Certifications.
Regulatory
Approvals
Test Specification
EMC Tests
ETSI EN 301 489-20 V1.2.1 (2002-11)
ETSI EN 301 489-1 V2.1.1 (2017-02)
15
EN 550022 :2010/AC :2011
EN61000-4-2 : 2009 ( Electrostatic Discharge)
EN61000-4-3 : 2010 ( Radiated RF Immunity)
EN61000-4-4 : 2012 ( Electrical Fast Transient)
EN61000-4-6 : 2014 ( Conducted RF Immunity)
EN61000-4-8 : 2010 (Magnetic Immunity)
EN55022:2010/AC :2011
Safety
EN60950-1:2006/A2:2013
EN623311:2008
RoHS
RoHS 2:2011/65/EU
FCC
FCC 47 CFR Part 25 (Contains a modular approved device: FCC ID Q639603N)
FCC 47 CFR Part 15, Subpart B
Industry
Canada
(ISED
Canada)
ISED RSS 170. (Contains Modular approved device: IC 4629A-09603N)
ICES-003, Issue 5 : 2012
Australia/NZ
AS/NZS CISPR 22 (2009) + A1:2010
ACMA HES Standard (2014)
.
1.1 RADIO FREQUENCY RADIATION SAFETY NOTICE AND OTHER
INFORMATION REQUIRED BY THE U.S. FEDERAL COMMUNICATIONS
COMMISSION AND OTHER GOVERNMENTS
Certifications in most regions, including the United States, require that the Iridium Edge must be installed
such that it is at least 20 cm (7.87 inches) away from persons. Users are advised that this device must not
be collocated with or operated in conjunction with any other antenna or transmitter than the one contained
in this device, unless so permitted by the equipment authorization procedures of the U.S. Federal
Communications Commission (FCC).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause
undesired operation.
16
Any unauthorized modifications or attachments could damage the Iridium Edge and may violate FCC
regulations and void your authority to operate the device.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
1.2 Use Aboard Aircraft
The Iridium Edge has not been qualified or tested for operation in aircraft. In the United States,
use of the device is subject to regulation including 47 C.F.R. 25.285(a), governing use of the device only
by the pilot or with pilot consent. Learn about all of the rules, regulations and laws governing your use of
the device before attempting to use on an aircraft.
1.3 Industry Canada (Innovation, Science and Economic Development
Canada) Notice Statements
This device complies with Industry Canada (ISED Canada) license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
1.4 REACH (European Union)
The Iridium Edge complies with the REACH directives in the table below
REACH
REACH 1907/2006
17
1.5 Device Disposal
Proper device disposal is not only important for safety but also benefits the environment. Consumers
should recycle used devices in accordance with applicable national, state and or local laws and
regulations.
For EU users, Iridium Edge falls under the EU’s WEEE directive which requires that all electrical and
electronic products must be taken to separate collection points at the end of their working life and must
not be disposed of as unsorted municipal waste.
1.6 French Notices
1.6.1 Importantes consignes de sécurité
Assurez-vous de bien lire et comprendre ce mode d’emploi, y compris les avertissements et
les consignes de sécurité, avant d’utiliser Iridium Edge™. Le non-respect de ces consignes
pourrait entraîner des blessures graves, voire la mort.
Installation
AVERTISSEMENT Protégez toujours les câbles d’alimentation. Manquer
de protéger les câbles risque d’entraîner l’effilochage ou la défaillance de
ces derniers, et donner lieu à un incendie et/ou la défaillance de l’appareil.
Ces dangers sont susceptibles d’entraîner des blessures graves voire la
mort.
MISE EN GARDE - Installez l’Iridium Edge solidement et en toute sécurité.
Faute de quoi, l’Iridium Edge est susceptible de se déplacer,
particulièrement en cas de fonctionnement dans des zones de grand vent
ou lorsque l’appareil est installé sur des véhicules en déplacement. Cette
situation pourrait donner lieu à des blessures ou à des dommages.
18
MISE À LA TERRE
AVERTISSEMENT - Assurez-vous de mettre l’Iridium Edge correctement à
la terre. Manquer de mettre l’Iridium Edge à la terre peut donner lieu à des
courants inattendus susceptibles d’entraîner des blessures graves, voire la
mort.
CÂBLES D’ALIMENTATION
Utilisez des câbles appropriés fournis par un prestataire de services. L’utilisation de câbles non adaptés
peut entraîner des dommages à l’équipement, à la propriété ou aux personnes.
.
AVERTISSEMENT - Utilisez des câbles d’alimentation et de mise à la terre
du bon calibre. L’utilisation de cables d’alimentation de mauvais calibre peut
entraîner l’exposition de ceux-ci à des chaleurs excessives entraînant un
incendie susceptible de causer des blessures graves, voire la mort.
MISE EN GARDE - Utilisez uniquement un connecteur étanche IP67 à gaine
moulée avec l’Iridium Edge. Une étanchéité imparfaite pourrait entraîner la
pénétration d’humidité et de vapeur d’eau dans la queue de cochon de
l’Iridium Edge. Cela provoquerait à son tour la corrosion et ’endommagement
de l’appareil et pourrait donner lieu à des blessures ou à des dommages
matériels.
ATMOSPHÈRE EXPLOSIVE/ZONES DE DYNAMITAGE
AVERTISSEMENT - Mettez l’Iridium Edge hors tension dans les « zones de
dynamitage » ou dans celles indiquées comme suit : « Éteindre les radios
bidirectionnelles ». Obéissez à tous les panneaux et consignes. Le nonrespect de ceux-ci pourrait entraîner des blessures graves, voire la mort.
AVERTISSEMENT - Éteignez votre appareil lorsque vous vous trouvez dans
une zone dont l’atmosphère est potentiellement explosive. Obéissez à tous
les panneaux et consignes. Des étincelles provenant de votre appareil
pourraient provoquer une explosion ou un incendie et donner lieu à des
blessures graves, voire la mort.
19
SIMULATEURS CARDIAQUES
LES PERSONNES AVEC UN SIMULATEUR CARDIAQUE :
• Doivent TOUJOURS maintenir l’appareil Iridium Edge à plus de 20 cm
(8 pouces) de leur simulateur cardiaque lorsque l’appareil est SOUS
TENSION.
• Doivent immédiatement mettre l’appareil Iridium Edge HORS
TENSION si elles soupçonnent une interférence quelconque.
• Le non-respect de ces consignes pourrait entraîner des blessures
graves, voire la mort.
CÂBLES CORRESPONDANTS
MISE EN GARDE Utilisez uniquement des câbles appropriés avec un
connecteur IP67 fourni par votre prestataire de services pour les connecteurs
de l’Iridium Edge. Une étanchéité imparfaite pourrait entraîner la pénétration
d’humidité et de vapeur d'eau dans l’appareil, ce qui à son tour entraînerait la
corrosion et l’endommagement de ce dernier. Cela pourrait provoquer la
défaillance de l'appareil et entraîner des blessures ou des dommages.
FUSIBLE EXTERNE
AVIS - L’Iridium Edge doit être alimenté par l’intermédiaire d’un fusible ou
d’une alimentation électrique avec limitation de courant. Faute de quoi,
d’importants débits de courant pourraient se produire en cas de court-circuit
inattendu dans l’Iridium Edge ou son câble correspondant. Tout courant
soutenu de forte intensité est susceptible d’endommager l’équipement ou
de blesser des personnes.
1.6.2 Conformité aux normes
L’Iridium Edge est conçu pour se conformer aux normes des États-Unis, du Canada, de l’Europe et de
l’Australie, comme indiqué dans le tableau ci-dessous.
20
Tableau 1-2 Certifications réglementaires et techniques.
Approbations
réglementaires
Spécification des essais
CE
Essais EMC
ETSI EN 301 489-1 V2.1.1 (2017-02)
EN 550022 :2010/AC :2011
EN61000-4-2 : 2009
EN61000-4-3 : 2010
EN61000-4-4 : 2012
EN61000-4-6 : 2014
EN61000-4-8 : 2010
EN55022:2010/AC :2011
Sécurité
EN60950-1:2006/A2:2013
EN623311:2008
RoHS
RoHS 2:2011/65/EU
FCC
FCC CFR47 chapitre 25 (contient un appareil avec approbation modulaire : FCC ID
Q639603N)
FCC CFR47 Partie 15B (2013)
Industrie
Canada
Industrie Canada CNR-170. (contient un appareil avec approbation modulaire : IC
4629A-09603N)
NMB-003, 5e édition : 2012
Australie
RCM Mark
1.6.3 Avis obligatoires de la FCC
Pour votre sécurité personnelle, placez l’appareil à au moins 20 cm (7,87 pouces) de votre corps lorsque
vous vous en servez. Il est par ailleurs conseillé aux utilisateurs de ne pas placer cet appareil à proximité
de toute autre antenne ou émetteur que ce qui est contenu dans cet appareil et de ne pas le faire
fonctionner en même temps que ceux-ci, à moins d’en avoir reçu l’autorisation en vertu des procédures
d’autorisation des équipements de la Commission fédérale des communications des États-Unis.
Cet appareil est conforme au chapitre 15 du règlement FCC. Son utilisation obéit aux deux conditions
suivantes :
1) Cet appareil ne doit pas provoquer d’interférences nuisibles, et
2) Cet appareil doit accepter toute interférence reçue, y compris les interférences risquant
de provoquer des effets non souhaités lors de son fonctionnement.
21
Toute modification ou accessoire non autorisé est susceptible d’endommager l’Iridium Edge et de
contrevenir au règlement FCC, annulant votre autorisation à faire fonctionner l’appareil.
Cet équipement a été testé et avéré conforme aux limites définies pour un appareil numérique de classe
B, en vertu du chapitre 15 du règlement FCC. Ces limites sont conçues pour assurer une protection
raisonnable contre les interférences nuisibles lorsque l’équipement est utilisé dans un environnement
résidentiel. Cet équipement génère, utilise et peut émettre une énergie radiofréquence et, s’il n’est pas
installé et utilisé conformément aux instructions, peut créer des interférences nuisibles perturbant les
communications radio. Toutefois, rien ne permet de garantir l’absence totale d’interférence dans une
installation donnée. Si l’équipement perturbe la réception de radios ou de télévisions, ce qui peut être
vérifié en éteignant et en rallumant l’équipement, l’utilisateur est invité à tenter de faire disparaître ces
interférences en recourant à l’une des mesures suivantes :
Réorienter ou déplacer l’antenne de réception.
Augmenter l’écart entre l’équipement et le récepteur.
Brancher l’équipement sur une prise située sur un circuit autre que celui auquel est raccordé le
récepteur.
Consulter le revendeur ou un technicien expérimenté pour obtenir de l’aide.
1.6.4 RÉGLEMENTATION — AÉRONEFS
L’Iridium Edge n’a pas été testé ou certifié pour fonctionner à bord d’un aéronef. L’utilisation de l’appareil
aux États-Unis est soumise à des réglementations, notamment 47 C.F.R. 25 285(a), qui régissent
l’utilisation de l’appareil uniquement par le pilote ou avec le consentement du pilote. Renseignez-vous sur
toutes les règles, réglementations et lois régissant votre utilisation de l’appareil avant de tenter son
utilisation à bord d’un aéronef.
1.6.5 Industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
1.6.6 REACH
REACH
REACH 1907/2006
22
1.6.7 Élimination des appareils
La bonne élimination des appareils est importante tant pour des raisons de sécurité que pour la
protection de l’environnement. Les consommateurs doivent recycler les équipements usagés
conformément aux lois et réglementations locales, provinciales ou nationales. En vertu des lois de l’UE,
tous les équipements électriques et électroniques (EEE) en fin de vie utile doivent être recyclés dans un
point de collecte pour déchets d’équipements électriques et électroniques (DEEE) et ne doivent pas être
éliminés avec les autres déchets ménagers.
23
2 Product Overview
The Iridium Edge is a finished satellite device with a power supply and antenna in an environmentally
sealed enclosure. It contains an Iridium Short Burst Data (SBD) modem which allows remote devices to
send and receive satellite messages from anywhere in the world. Iridium SBD service has two message
size classes. The larger message class supports message sizes up to 1960 and 1890 bytes for Mobile
Originated and Mobile Terminated messages respectively. The Iridium Edge uses the smaller size
message class which supports satellite messages of size 340 bytes for a Mobile Originated message and
270 bytes for a Mobile Terminated message. As per the figure below, all satellite messages are routed
through Iridium’s Gateway which provides a secure internet connection to an Application Host server,
which is typically designed for a specific application or vertical market.
Figure 2-1 Iridium Edge Overview
24
Like Iridium’s SBD transceivers, the Iridium Edge is sold to Iridium distribution partners for integration in a
solution for a specific application or vertical market. Using an SBD transceiver, Iridium’s partners can
design and manufacture their own customized hardware. However, with the Iridium Edge, Iridium
provides its partners a generic finished device such that they do not need to design, build and in many
cases certify to add satellite capabilities to their existing terrestrial solutions.
The Iridium Edge is not a stand-alone satellite device. It must be integrated into an application or solution
on the remote side to the Iridium Edge and the backend Application to the Iridium gateway. Remote host
devices can control and monitor the Iridium Edge uses through AT commands over a RS232 interface.
The AT commands are the same AT commands supported by the SBD transceivers. On the gateway
side, the Application uses an Iridium’s Direct IP connection to send and receive messages. More details
on the SBD service and how applications can integrate the Iridium Edge can be found in Section 2.3
Reference Documentation.
Figure 2-2 Iridium Edge Integration in an Application
25
2.1 Key Benefits
The key benefits of the Iridium Edge are
Iridium network certified
Environmentally sealed device with IP67 rating
Built in robust power supply
Single part number for all installations
Regulatory approvals in key regions
Built in Iridium satellite antenna
2.2 Scope
The Iridium Edge User’s Guide provides specifications for the Iridium Edge hardware along with
installation guidelines. It does not provide developer information for software of the Iridium Edge and the
Gateway services.
2.3 Reference Documentation
Development documentation is available from Iridium for qualified partners.
Iridium Developers are recommended to reference the following documents when building applications
with Iridium Edge.
1) “Iridium Short Burst Data Developer Guide”, MAN0025, Release 3.1
2) “ISU AT Command Reference” ,MAN0009, Version 5
26
2.4 Physical Specification
The following two figures show the Iridium Edge views from the top and bottom.

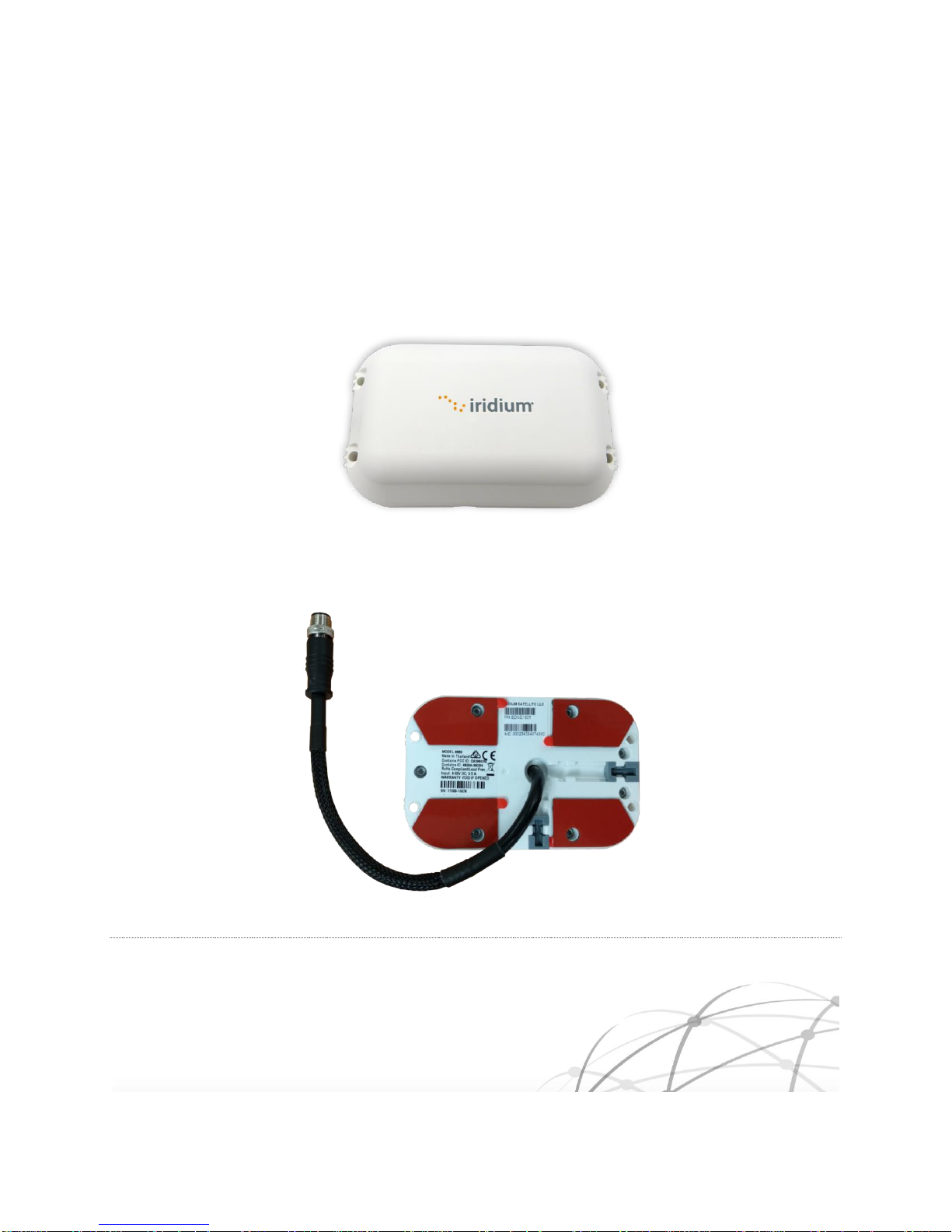

Figure 2-3 Iridium Edge Top View
Figure 2-4 Iridium Edge Bottom View
27
2.5 Accessories
The Iridium Edge ships with an Accessory Bag with parts for use when the Iridium Edge is installed with a
bottom mount screw. More details on this installation is described in Section 5.6 Mounting the Iridium
Edge.
The Accessory Bag contains the following items as illustrated in the figure below:

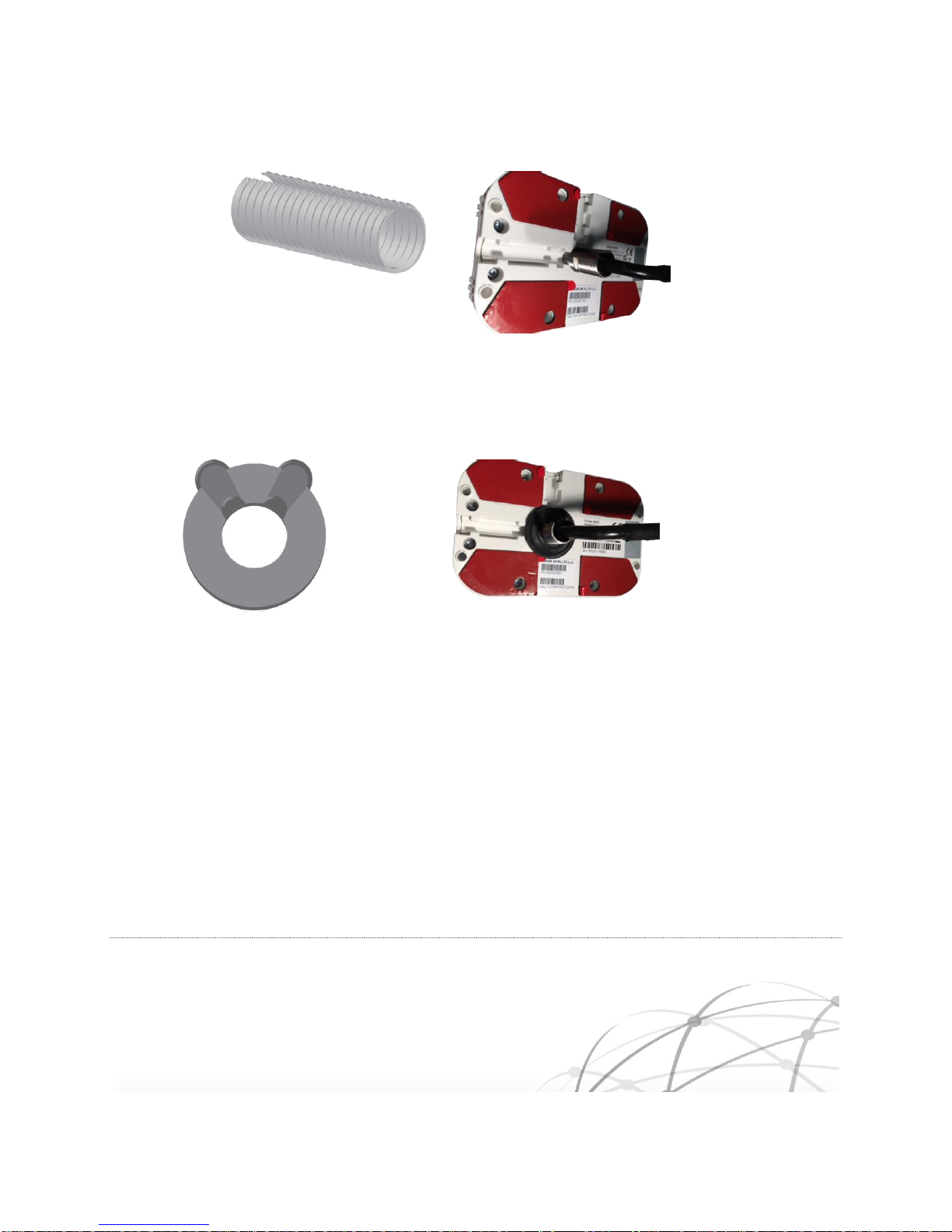

Figure 2-5 Accessory Bag Contents
1. 2. 3. 4.
1- Slotted Nut 2 - Rubber Grommet 3- Slotted Screw 4- Spiral Sheath
2.6 Temperature
The Iridium Edge’s temperature specifications are summarized in Table 2-1 below.
Table 2-1 Temperature Specifications
Parameter
Value
Operating Temperature Range
-40ºC to + 85ºC
Storage Temperature Range
-40ºC to + 85ºC
2.7 Environmental
The environmental specifications of the Iridium Edge are summarized in the table below. All Iridium Edge
testing has been performed with a mated IP67 connector connected to its pigtail.
28
Table 2-2 Environmental Specifications
Test Name
Test Reference
Test Description
Vibration Testing
SAE J1555, Section 4.10
5 hours on each axis as per figures 6,7 and 8 in SAE J1455
Shock
SAE J1455
Drop 1m onto concrete in 3 perpendicular orientations (3 drops)
Immersion Testing
SAE J1455, Section 4.3.3.2
3 dunks
Cable mated when dunked
Fungus Testing
SAE J1455, Section 4.6.3
Duration of 30 days
Humidity
SAE J1455, Section 4.2
Temperature Range : -40 to 85C
Relative Humidity : 90%
Number Cycles : 30
Duration of Cycle : 8 hours
Chemical Splash
Resistance
SAE J1455, Section 4.4.3.2
Brush method
Salt Spray Resistance
SAE J1455, Section 4.3.3.1
Duration of 96 hours
Dust and Steam Cleaning
SAE J1455, Section 4.5.3
At level 4
Low Pressure Storage
SAE J1455, Section 4.9.3
At -40C for 48 hours
2.8 Connector
The Iridium Edge connector terminates with a pig tail cable that allows for side and bottom cable exits.
29
Figure 2-6 Connector
2.8.1 Connector Part Numbers
The Iridium Edge uses an eight (8) pin male M12 connector. Connector and recommended mating
connector part numbers are provided in the table below.
Table 2-3 Connector Specifications
Parameter
Value
Connector Type
M12 – 8 Pin Male
Mating Connector Type
M12 -8 Pin Female with IP67 rating
Recommended Mating Connector
Digikey part# A122384-ND
2.8.2 Connector Pin-outs
Connector pin positions and the corresponding pin-out descriptions are given in the figure and table
below.
30
Figure 2-7 Connector Pin Positions
Table 2-4 Iridium Edge Pin-outs
Pin
No.
Signal Name
Signal direction
( with respect to Iridium
Edge )
Description
1
Spare
Unused
2
Ground
Input
for both signal ground
reference and power return
3
RS232_RX
Input
RS232 Input
4
RS232_TX
Output
RS232 output
5
Power
Input
9 -32V
6
On/Off
Input
Optional control line to
power down Edge
7
Network Available
Output
Data port, serial data output
8
Power Detect
Output
Active High when Edge
powered
2.9 Enclosure
Dimensioned drawings for the side and top view of the Iridium Edge are shown below:
31
Figure 2-8 Enclosure Top View
Figure 2-9 Enclosure Side View
2.9.1 Enclosure Dimensions
Table 2-5 Enclosure Specifications
Parameter
Value
Length
123.2 mm
Width
78.4 mm
Height
30.3 mm

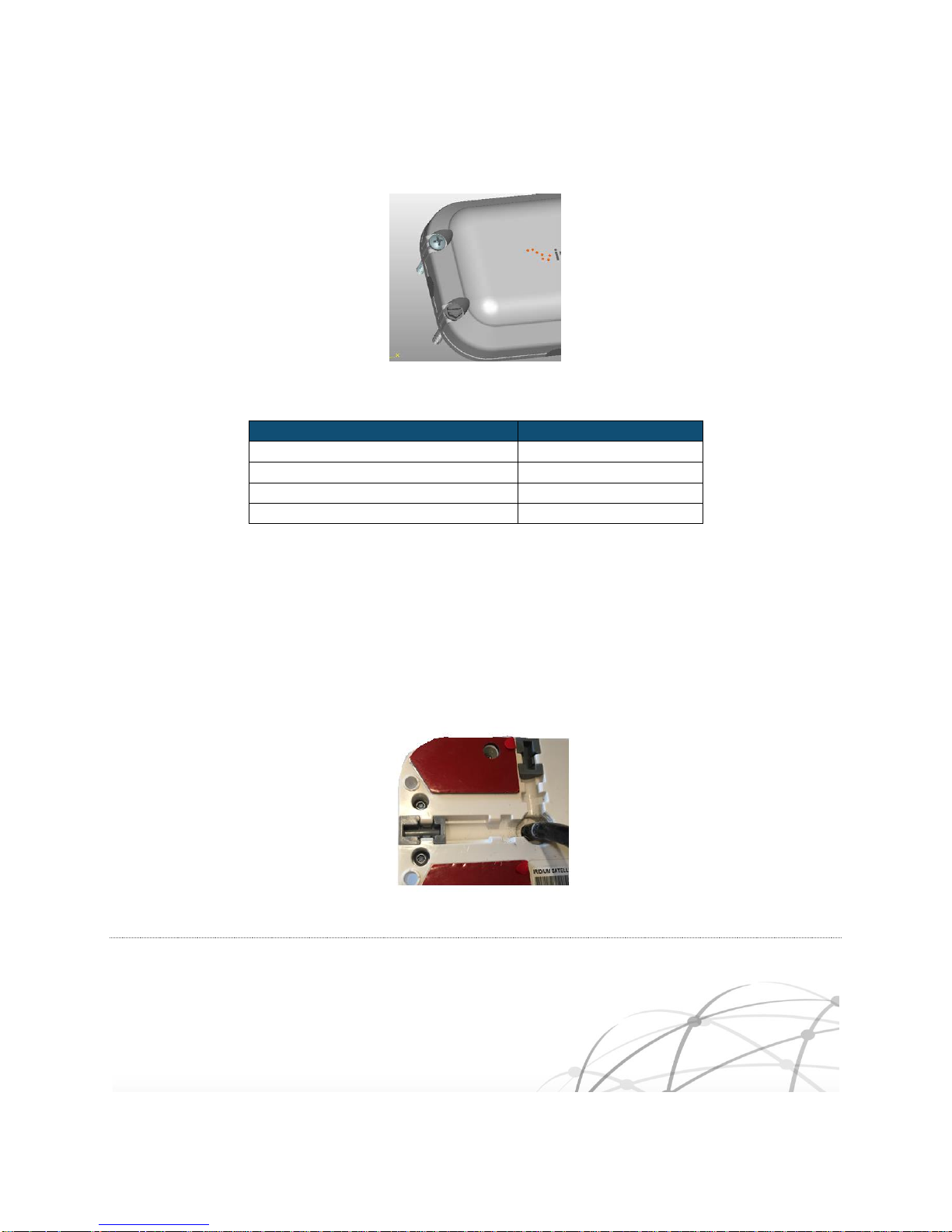

2.9.2 Mount Holes
As per figure below, the Iridium Edge has two screw holes on each of its ends to mount the terminal. It is
important to use screws with low profile heads so that satellite antenna performance is not affected.
32
Figure 2-10 Mount Holes Showing Two Screw Types
Table 2-6 Mounting Hole Specifications
Parameter
Value
Screw Hole Diameter
4.5 mm
Screw Head Clearance Diameter
10 mm
Screw Hole Length
14.5 mm
Recommended Mounting Screw
M4
2.9.3 Plugs
The Iridium Edge come factory installed with two grey plugs in each of the side channels. If a side exit
cable installation is used the plug needs to be removed. As the plugs are for included purely for aesthetic
purposes both can optionally be removed. They can be removed by gently prying them out with a sharp
flat head screw driver.
Figure 2-11 Side Channel Plugs
33
2.9.4 Enclosure Specifications
The table below outlines the specifications for the enclosure
Table 2-7 Enclosure Specifications
Parameter
Value
Material
Lexan EXL 9330
Weathering Rating
Y1
Grey Plug material
Formosacon FM090
2.10 Pigtail Cable

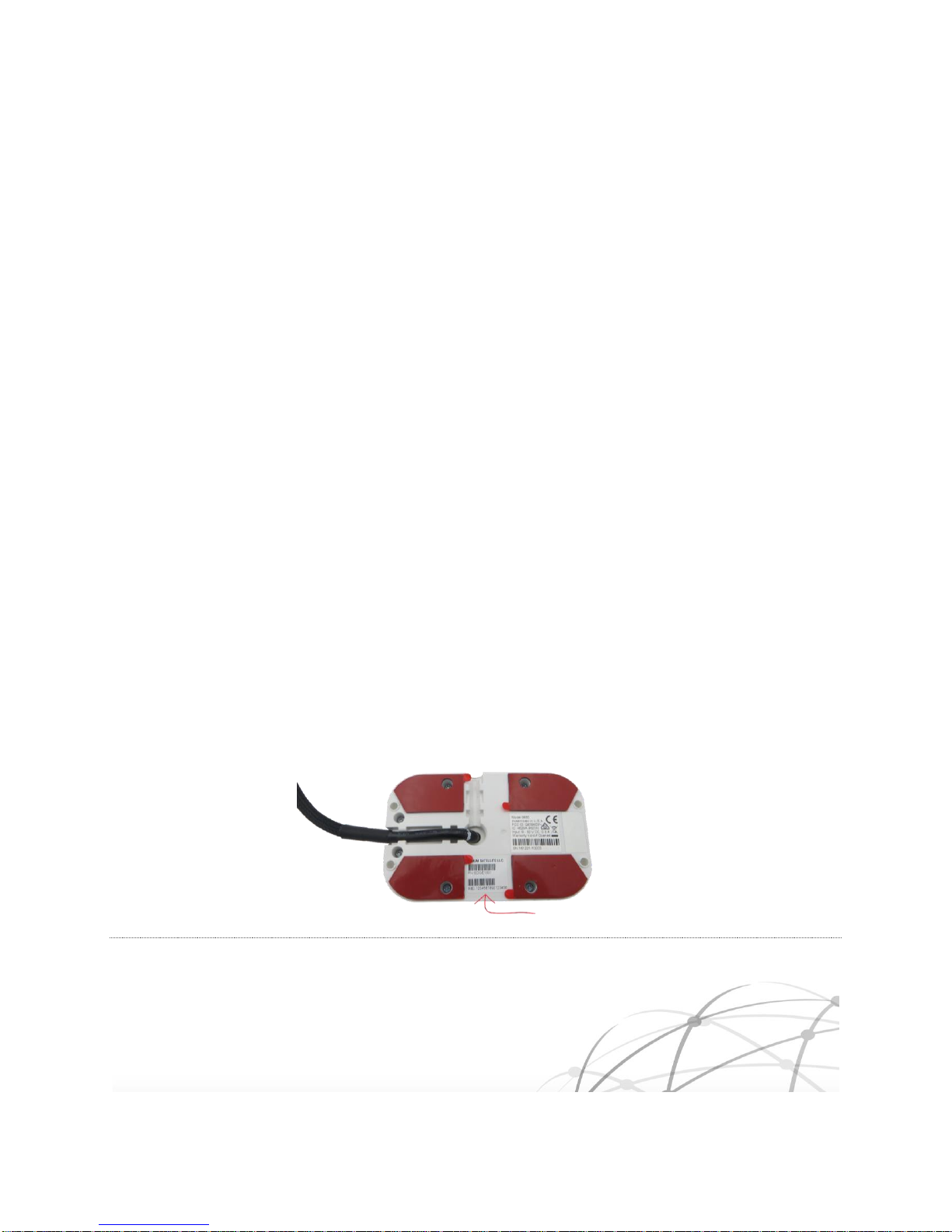

As shown in the figure below, the Iridium Edge has a pigtail cable that terminates with the Iridium Edge’s
connector.
Figure 2-12 Pigtail Cable
The pigtail cable allows the Iridium Edge to be mounted in two configurations from the Iridium Edge
Cable coming out the side from underneath (from either the short or long side)
Cable coming out the bottom
Each of the two side channel exits pinches the cable to provide strain relief.
2.10.1 Pigtail Drawings
The following figure provides the mechanical dimensions for the Iridium Edge’s pigtail cable
34
Figure 2-13 Pigtail Cable Drawings
2.10.2 Mechanical Specifications
The following table lists the specifications for the Iridium Edge’s pigtail cable
Table 2-8 Pigtail Cable Mechanical Specifications
Parameter
Value
Cable Length
27 cm
Cable material
Half MATT PVC
Conductor (X8) Gauge
24 AWG
Braided Sleeve Material
Hellermann Tyton
(PN#170-030429)
Cable Flammability Rating
VW-1
Bend Radius
65mm
(on Outer Diameter )
Maximum Pull Strength
100 N
Connector Metal Material
Hpb59-1 (Leaded brass )
Connector Diameter
14.5 mm
The pigtail cable has a IP67 rating only when properly mated with a recommended mating connector. If a
IP67 mating cable is not connected to the Iridium Edge, it must not be stored outdoors or in locations that
are subject to water and condensing humidity.
35
2.11 Mass
The table below provides the mass specification for the Iridium Edge
Table 2-9 Mass Specification
Parameter
Value
Mass
205 (+/- 10 g)
3 Electrical and RF Specifications
The following subsections contain interface information for the electrical interfaces of the Iridium Edge.
3.1 Power Interface
3.1.1 Input Specification
The table below provides the voltage input specification for the Iridium Edge. The power and ground
inputs are reverse polarity protected.
Table 3-1 Input Power Specification
Parameter
Value
Input Range
9 – 32V DC
Reverse Polarity Protection
32 VDC
3.1.2 Current Limiting
The Iridium Edge restricts the input current draw to minimize the voltage difference between the Iridium
Edge’s internal ground reference and the external power supply. The maximum current specification is
provided in the table below.
36
Table 3-2 Current Limit Specification
Parameter
Value
Power On – Maximum Current
0.5A
Operational – Maximum Current
0.3A
3.1.3 Mating Cable Guidelines
The mating cable connects the Iridium Edge to external power and external controller with RS232 and
optional control inputs. The below lists the conductor gauge recommendations based on the external
cable length.
Table 3-3 Mating Cable Gauge Specification
Parameter
Value
Minimum Gauge Cable Length <20m)
24 AWG
Minimum Gauge (Cable Length < 30m)
22 AWG
CAUTION Use only qualified cables with a IP67 connector provided by
your Service Provider with the Iridium Edge connectors. Failure to do so
would create an improper seal, allowing moisture and water vapor to enter
the device which in turn could lead to corrosion and damage to the device.
This could cause the device to fail, and could result in injury or damage.
3.1.4 Load Dump Protection
The Iridium Edge is designed to operate through voltage transients as per SAE J1455 and survive input
large load voltages. The Iridium Edge survives large load dumps by internally disconnecting the input
voltage when large voltages are detected. Once the input voltage is restored to a valid operational input,
the Iridium Edge resets the SBD modem and resumes operation.
37
Table 3-4 Load Dump Specification
Parameter
Value
Load Dump Disconnect voltage
40V
Load Dump Disconnect time
400 ms
3.1.5 Internal Fuse
The Iridium Edge contains an internal, non-serviceable internal surface mount fuse to limit the current in
the event of an internal short.
Table 3-5 Internal Fuse Specifications
Parameter
Value
Fuse Rating
3 A
3.1.6 Startup Times
The Iridium Edge uses an internal super capacitor to limit the current which in turn minimizes the voltage
drops on the power and ground return. Before the Iridium Edge can reliably start operation, its internal
super capacitor must be at least partially charged. The internal super capacitor is charged when a valid
voltage is present and when the Iridium Edge is not powered down with the On/Off control line.
The table below outlines the specifications for the startup times for the Iridium Edge to startup its internal
SBD modem.
Table 3-6 Startup Times
Parameter
Value
Cold Startup
(if not powered on in last 24 hours)
< 12s
Warm Startup Duration
( if powered on in last 24 hours after fully
charged)
<8s
Fully Charged Duration
< 20s
38
3.1.7 Brown Out
The Iridium Edge monitors the input voltage. If the input voltage drops too low for reliable operation after
a valid input voltage is applied, the internal SBD modem’s is turned off and remains turned off until a valid
input voltage is restored.
Table 3-7 Brown out Specifications
Parameter
Value
Minimum Reset Voltage
6 V
3.1.8 Operating Power Consumption
The Iridium Edge power consumption can vary for a number of reasons:
View of the sky which determines the quality of the signal received by the Iridium Edge
The rate Host Controller system activates/deactivates the Iridium Edge on the SBD network
Manufacturing and component tolerances variations
3.2 Serial RS232 Interface
The Iridium Edge uses a 3-wire RS232 interface which supports an AT command interface.
Table 3-8 Serial Interface Specifications
Parameter
Value
RS232 Rx & TX
(Absolute Maximum Voltage)
32 VDC
ESD Protection
15 kV human body model
Short to Ground Protection
Yes
Tx Low Maximum
-3.7 V
Tx High High Minimum
3.7 V
Rx Input Low Threshold
0.6V
Rx Input High Threshold
2.4 V
39
3.2.1 Baud Rate
Host equipment connecting to the Iridium Edge should be configured to the baud rate settings in the table
below. Auto baud is not supported.
Table 3-9 Baud Rate Settings
Parameter
Value
Baud rate
19200 b/s
Data Bits
8
Parity
None
Stop Bits
1
The baud rate can be set via the AT+IPR command. However, users are strongly advised to not change
the baud rate so the Iridium Edge uses a reliable, fixed baud rate. If the baud rate is changed with the
appropriated AT command, be advised that the SBD’s default is restored whenever factory defaults are
loaded.
3.2.2 Flow Control
It is strongly recommended to use the Iridium Edge with SBD’s flow control disabled.
The SBD’s flow control setting can be set by AT commands. For Iridium Edge units, the internal SBD’s
flow control setting has been updated and saved to flash to disable flow control. However, if the SBD’s
factory default configuration is reloaded, flow control is re-enabled. To restore flow control to the Iridium
Edge’s shipped defaults, issue the AT&K0 and AT&W0 as per the table below.
Table 3-10 Flow Control Parameters
Parameter
Value
Disable Flow Control
No Flow Control (AT&K0)
Save Configuration in Non-volatile
AT&W0
SBD Factory Flow Control Default
( Do not use this setting)
Flow Control (&K3)
40
3.2.3 DTR Settings
The SBD’s DTR setting can be set by AT commands. For Iridium Edge units, the internal SBD’s DTR
setting has been updated and saved to flash although the SBD’s internal DTR signal is grounded
internally on the Iridium Edge and comes out externally on the Iridium Edge connector. In the event the
SBD’s factory default configuration is reloaded, the default DTR setting will be re-enabled. To restore the
SDB’s DTR setting to the Iridium Edge’s shipped defaults, issue the AT&D0 and AT&W0 as per the table
below.
Table 3-11 Internal SBD DTR Settings
Parameter
Value
Disable Flow Control
No Flow Control (AT&D0)
Save Configuration in Non-volatile
AT&W0
SBD Factory Flow Control Default
( Do not use this setting)
Flow Control (&D2)
3.3 On/Off Control Input
The Iridium Edge can be powered down using its On/Off input. When the Iridium Edge is powered down,
its internal SBD modem is turned off and the Iridium Edge cannot send or receive satellite messages. As
well, the RS232 drivers are not powered, which disables the AT interface communications with a Host
Controller.
The On/Off control line inputs are described in the table below. If the On/Off input is left floating, or if it is
high, the Iridium Edge is powered on. When the On/Off control input is grounded or a negative voltage,
the Iridium Edge is powered off.
41
Table 3-12 On/Off Control Specifications
Parameter
Value
Absolute Minimum Voltage
-12V
Absolute Maximum Voltage
32V
Power Off Level
< 1.5 V
Power On Level
Floating or
> 1.5 V
ESD Protection
15 kV Human Body Model
3.3.1 Recommended Operation
It is recommended that the On/Off control line, if used, is switched to ground to power down the Iridium
Edge. A switch to ground circuit, rather than a switch to power circuit, is recommended as this circuit
avoids exposing the On/Off input to power supply transients. Although the On/Off accepts the maximum
input supply voltage, the On/Off input does not have load dump and transient protection like the supply
input. In no case should the On/Off input exceed the absolute maximum voltage ratings.
Figure 3-1 On/Off Control Using Switch to Ground
42
Alternatively, the On/Off control line can be driven directly by a RS232 signal level such as DTR.
Figure 3-2 On/Off Using DTR
Prior to turning off the Iridium Edge, a “flush memory” (AT*F) command should be issued to ensure all
internal SBD modem’s flash memory write activity is completed.
3.3.2 Power Down Consumption
The table below shows typical average current draw when the Iridium Edge is powered down.
Table 3-13 Power Down Specifications
Parameter
Value
Power Down Current (typical)
200 uA
3.4 Network Available Indicator
The Iridium Edge’s Network Available (pin #7) indicator is driven directly by the internal SBD modem.
When active, the Network status indicates if the Iridium Edge has visibility to an Iridium satellite. As an
alternative to using the Network Available hardware output, a host can use AT commands to poll the
43
Iridium Edge’s network status. If the Network Indicator function is not required, this pin should be left
disconnected.
Network Available is not a guarantee that a message can be successfully sent; instead it reports if it can
see an Iridium satellite by measuring the level of the incoming satellite channel. The Network Available
state is evaluated every time the satellite channel is received or missed. If the satellite channel is visible,
then the update interval is typically every 4 seconds. If the satellite is not currently visible, then the
update period can be as long as 2 minutes, depending on how long the lack of satellite visibility existed.
The duration increases during lack of satellite visibility as the SBD modem backs off its attempts to
conserve power by increasing the satellite channel search interval. Every time a satellite search fails, the
time to wait is increased and eventually limits at 120 seconds.
The specifications for the Network Indicator are listed in the table below. The Network Indicator is an
output and should not be driven by an external source.
Table 3-14 Network Available Output Specifications
Parameter
Value
Active (Satellite in view)
> 2.4 V
Inactive ( No Satellites in view)
<0.5 V
ESD Protection
15 kV
Complete details on the Network Indicator behavior can be found in the documents listed in Section 2.3
Reference Documentation
3.5 Power Detect Indicator
The Iridium Edge’s Power Detect (pin #8) indicator is RS232 compliant signal. The output specifications
for the Power Detect indicator are given in the table below.
Table 3-15 Power Detect Specifications
Parameter
Value
Maximum Output Level
( when powered and ready)
6V +/- 0.5V
Minimum Output level
( when powered but not ready)
-6V +/- 0.5V
ESD Discharge
15 kV
44
The Power Detect indicator could potentially be used in applications when the host wants to detect if an
Iridium Edge Cable has been tampered. It could also be used during installation to provide feedback if the
Iridium Edge has power applied.
3.6 RF Specifications
The RF specifications for the Iridium Edge are listed in the table below. These specifications are not
required to use the Iridium Edge, but may be required for some local regulatory equipment approvals
Table 3-16 RF Specifications
Parameter
Value
Frequency Range
1616 MHz to 1626.5 MHz
Duplexing Method
TDD (Time Domain Duplex)
Polarization
RHCP
Multiplexing Method
TDMA/FDMA
Multiplexing Method
TDMA/FDMA
Average Power during Transmit Slot (maximum)
1.6 W
4 Mating Cable Guidelines
Iridium’s Service Providers are responsible to provide the end users with quality mating cables that meet
the required specifications for a particular installation type. These specifications will vary depending on
geography, industry requirements, local regulations, environment and specific end user needs.
Service Providers not equipped to fabricate mating cables should contact a qualified cable assembly
house. For those Service Provides qualified to make cables, Iridium offers a general purpose Blunt Cut
cable to accelerated prototypes and early production deployments. It is important that the Service
Provider ensures that the Blunt Cut cable’s specifications meets the installation requirements before
45
incorporating it in a final cable assembly. The specifications for Iridium’s Blunt Cut cable are in the
appendix.
The following general guidelines should be followed to when building mating cables for the Iridium Edge
4.1 Molded Back-shell
The mating cable must have a molded back-shell and use IP67 rated cable connectors.
CAUTION Use only molded back shell IP67 connector with Iridium Edge.
Failure to do so could create an improper seal, allowing moisture and water
vapor to enter the Iridium Edge's pigtail which in turn could lead to corrosion
and damage to the device, resulting in injury or damage.
4.2 Mating Cable Gauge
The cable must be designed to minimize voltage drop across the. The table below lists recommended
gauges for all conductors based on the cable length. For operation with cable lengths longer than 30m,
contact Iridium support.
Table 4-1 Mating Cable Specifications
Cable Length
Minimum Wire Gauge
<20 m
24 AWG
20m to 30 m
22 AWG
46
WARNING Use power and ground conductors of proper gauge. Use of improper gauge
power cables could result in exposing cables to excessive heat which could cause fire,
resulting in serious injury or death.
4.3 Cable Jacket Properties
Select a cable jacket that meets all installation requirements such as temperature, vibration. flammability
and chemical resistance. Any cable that is exposed to sun light, should have adequate UV protection.
4.4 Shielding
A shield cable is recommended to minimize any EMI/EMC that could affect operation of the cable. The
cable’s braid should be connected to a single point ground either near the power supply or at the Iridium
Edge connector depending on application requirements.
4.5 RS232 Ground Wiring
The serial RS2323 is a 3 wire interface. In addition to RS232 Rx and Tx, the RS232’s signal ground
(distinct from the RS232 frame ground) must be connected to the Iridium Edge’s ground.
A “Y” connection for the ground connection in the mating cable is recommended to minimize voltage
differences between the Iridium Edge, the power source and the host controller.
WARNING Properly ground the Iridium Edge. Failure to properly ground the Iridium Edge
could cause unexpected currents, which could cause serious injury or death.
47
5 Installation Guidelines
The following section contains installation guidelines to install the Iridium Edge.
5.1 Installer Qualifications
All installations must be done by an appropriated qualified installer. Do not install the Iridium Edge without
adequate training. If there are any questions or concerns regarding any installation instructions, contact
your Service Provider before installing the Iridium Edge.
5.2 Handling
The Iridium Edge should be carried by its enclosure.
Never carry Iridium Edge by its pigtail connector.
5.3 IMEI Recording
Before an installation, the Iridium Edge’s IMEI number must be recorded along with the installation
location. The Iridium Edge’s IMEI number is the network address for the Iridium Edge and it is used for
provisioning, billing and to send or receive messages to and from the device.
The IMEI number is located on the bottom of the Iridium Edge as per the picture below.
Figure 5-1 IMEI Location
48
The Iridium Edge includes four additional IMEI labels. These labels are located on the bottom of the
Iridium Edge shipping box as per the figure below. If the Iridium Edge is mounted in a difficult to reach
place or if its IMEI label is covered, the spare IMEI label can be optionally affixed to an accessible
location such that the IMEI can be easily read.
Figure 5-2 Additional In-Box IMEI Labels
5.4 Restricted Installations
The Iridium Edge has not been qualified or tested for operation in aircraft. In the United States, use of the
device is subject to regulation including 47 C.F.R. 25.285(a) governing use of the device only by the pilot
or with pilot consent. Learn about all of the rules, regulations and laws governing your use of the device
before attempting to use on an aircraft.
5.5 Select a Mounting Location
The mounting location is critical to ensure a safe installation and reliable operation. For reliable operation
and optimal satellite performance, the installer should consider the following guidelines
The location must provide a safe and secure installation
49
CAUTION Install the Iridium Edge safely and securely. Failure to do so could result
in dislodging of the Iridium Edge especially when operating in areas of high winds or
when mounted on moving vehicles, which could result in injury or damage.
The Iridium Edge is not intended to be operated near a person. Always ensure that the Iridium
Edge is mounted more than 20 cm from persons for compliance with RF exposure limits.
Select a flat, horizontal mounting location for optimal uniform satellite performance.
Make sure that the mounting location provides a clear unobstructed 360 degrees’ view of the sky
in all directions. Typically, this means selecting a mounting location that is on top of an asset.
Do not install the Iridium Edge inside a building or under metal surfaces.
Make certain that the mounting location will not heat up the Iridium Edge causing its temperature
to exceed the maximum operating temperature. If the surface can get hot, especially in the direct
sun, an insulating material should be used between the mounting surface and the Iridium Edge.
Never mount the Iridium Edge close to any other communication equipment or antennas.
Never install the Iridium Edge in a location where water can collect.
Never install the Iridium Edge near an exhaust which can deposit fumes and carbon and which
can affect satellite operation.
5.6 Mounting the Iridium Edge
The Iridium Edge can be mounted in three methods, depending on the installation requirements: screw
mount, bottom mount and side/tape mount.
The red tape should be left on the Iridium Edge unless the Iridium Edge is double-side mounted with tape.
5.6.1 Screw Mount
The Iridium Edge has 4 mounting holes designed to accommodate M4 screws.
Do not remove the red plastic over the double side tape. Removing the red tape, exposes the
50
double sided tape which may cause the tape to inadvertently adhere the Iridium Edge to the
mounting surface.
The installer needs to provide all mounting hardware for the Screw Mounting installation. Screw
selection is installation specific depending on the mounting surface thickness and its material
type.
The Accessory Bag contents are not required for the Side Mount installation. These can be set
aside.
Use Iridium Edge to carefully mark the mounting holes.
Drill four (4mm) holes in the mounting surface and/or the bracket that secures the Iridium Edge.
Select a side channel for the cable to exit, depending on cable routing and installation restrictions.
Remove the grey plug from the selected channel by gently prying it out with a sharp flat head
screwdriver. If the plug needs to be re-inserted, ensure the plug is flat to the baseplate before
pressing in with your thumb. Do not use any instruments to re-insert. Optionally remove the
second grey plug as it is provided for aesthetic purposes only.
Firmly press the pigtail cable into the selected channel, making sure that the cable is flush with
the baseplate. Do not use any sharp instruments.
In the event that the pigtail cable must be removed from the side channels, always keep a thumb
over the center of the Iridium Edge where the pigtail connector exits. It is very important to be
careful with the pigtail cable when it is not secured in the side channel.
If the supplied aesthetic grey plug is not used, optionally fill the unused channel with silicon
sealant to prevent the insertion of sharp tools under Iridium Edge.
Insert mounting screws and tighten the screws and nuts. Do not exceed torque over 40 N-m.
51
Figure 5-3 Screw Mount Installation
Secure all mounting nuts with an appropriate thread locker that meets the installation
requirements for factors such as vibration and temperature
5.6.2 Bottom Mount
In the bottom mount configuration, the Iridium Edge is held in place with a single screw. The items in the
Accessory Bag are required for this type of installation.
Do not remove the red plastic over the double side tape. Removing the red tape exposes the
double sided tape which may cause the tape to inadvertently adhere the Iridium Edge to the
mounting surface.
Drill a single 15mm hole at the desired location for the Iridium Edge. Ensure that the surface is
flat to avoid water ingress under the Iridium Edge.
Insert the Slotted Screw into Iridium Edge baseplate and screw until finger tight.
52
Figure 5-4 Slotted Screw Installation
Carefully press the Rubber Grommet into the baseplate until it is flush with the Iridium Edge.
Figure 5-5 Grommet Installation
Optionally, fill the two side channels with silicon sealant, taking care that it does not unseat the
rubber grommet. The two grey plugs shipped with the Iridium Edge can be optionally retained.
Mount the Iridium Edge and drop the pigtail connector through the drilled hole.
Place the Slotted Nut over the top of the pigtail cable above the heat shrink such that the wide
side of the tapered Slotted Nut goes over the cable first.
53
Figure 5-6 Slotted Nut installation
Tighten the Slotted Nut into the screw. The Slotted Nut should be tightened sufficiently to
compress the Rubber Grommet and to prevent water from getting under the Iridium Edge and
then down inside of the installation. Do not exceed a 5N-m when tightening the nut.
The Spiral Sheath protects the pigtail from chaffing. Unwrap the sheath and wrap it around the
pigtail just above the heat shrink.
Figure 5-7 Spiral Sheath
Firmly press the sheath so that it makes contact with the Iridium Edge’s baseplate and goes
inside the Slotted Screw.
54
Connect and screw the mating cable to the Iridium Edge’s pigtail connector. Tighten until finger
tight. Do not use any wrenches or tools to tighten the cable connectors.
Ensure that the Iridium Edge pigtail cable is strain relieved. It is very important that the
hanging cable is properly strain relieved and not left hanging such that the cable’s weight and
vibration pulls on the Iridium Edge’s pigtail connector.
5.6.3 Tape Mount
The tape mount is for a permanent installation only. Iridium Edge devices that are installed with tape
cannot be removed without damaging or removing the double sided tape.
The Accessory Bag contents are not required for the Side Mount installation. These items can be
set aside.
Do not use the tape mount for testing or prototyping. When the tape is applied properly to
a smooth clean surface, the Iridium Edge is very difficult to remove.
Do not tape the Iridium Edge to the mounting surface until the mating cable is
successfully installed and the Iridium Edge is operating correctly.
Ensure that the mounting location is clean and smooth, without any surface abrasion.
Skip to the Mating Cable installation instructions to install the cables and test the installation.
When the installation is verified, continue with the instructions below.
Verify that the Iridium Edge pigtail cable is securely pressed into the baseplate.
Mark the location and corners for the desired location of the Iridium Edge.
Clean the mounting surface with rubbing alcohol.
Remove the red plastic tabs covering the Iridium Edge’s double side.
Carefully press the Iridium Edge on the marked location.
55
If the Iridium Edge needs to be removed, do not pry it off the asset. Prying can damage both Iridium
Edge or the mounting surface. It is recommended to remove Iridium Edge using a thin wire that is sawed
back and forth under Iridium Edge to cut the double sided tape.
5.7 Mating Cable Installation
Once a mounting location is determined, use the guidelines below when installing the cable:
Verify and follow all local electrical codes
Identify a DC power source that complies with the input voltage and maximum current
specification of the Iridium Edge listed on the label. Never connect the Iridium Edge to an AC
power source.
Only use cables provided from an Iridium Service Provider that meet cable the specifications
listed in Section 4 Mating Cable Guidelines on page 44 .
CAUTION Use power and ground conductors of proper gauge. Use of improper
gauge power cables could result in exposing cables to excessive heat which could
cause fire, resulting in serious injury or death.
Ensure that the device is not routed near exhaust pipes or other hot surfaces.
Do not bend the cable excessively around sharp corners so as to violate its bend radius
specification provided by the Service Provider.
Route or protect the cable to avoid damages against persons walking or tripping.
The cable must be securely connected to the power supply return ground, close to the power
source. The ground connection must be connected prior to connecting power to the device.
56
WARNING Properly ground the Iridium Edge. Failure to properly ground the Iridium Edge
could cause unexpected currents, which could cause serious injury or death.
Ensure that the Iridium Edge is connected to the power source through a quick tripping fuse. The
fuse should be located close to the power source.
Secure all cables including the Iridium Edge’s pigtail cable.
WARNING Always secure power cables. Failure to secure cables could result in fraying or
failure of the power cable, resulting in fire and or failure of the device. These hazards could
cause serious injury or death.
Screw the mating cable onto the Iridium Edge so that it is finger tight. Do not use a wrench to
tighten the mating cable to the Iridium Edge.
5.8 Operational Practices
The following guidelines must be followed when using the Iridium Edge.
5.8.1 Blasting Areas
The Iridium Edge contains a transmitter and it must be considered as a two-way radio in blasting areas.
57
WARNING Power down or turn off the Iridium Edge when in a “blasting area” or in areas
posted “Turn off two-way radio.” Obey all signs and instructions. Failure to do so could result in
serious injury or death.
5.8.2 Hazardous Locations
The Iridium Edge is not approved for operation in hazardous locations with potentially explosive
atmospheres.
WARNING Turn your device OFF in any area with a potentially explosive atmosphere. Obey
all signs and instructions. Sparks from your device in such areas could cause an explosion or
fire resulting in serious injury or death.
5.8.3 Pacemakers
The Iridium Edge is designed to and certified for operation such that it is normally more than 20cm (8
inches) from humans.
People with pacemakers:
• Should ALWAYS keep Iridium Edge more than eight inches from their pacemaker
when the device is turned ON.
• Should turn Iridium Edge OFF immediately if there is any reason to suspect that
interference is taking place.
• Failure to heed this warning could result in serious injury
58
5.8.4 Disconnecting Mating Connector
The Iridium Edge must not be disconnected from its mating connector and left outdoors or in other
environments where water can get inside the Iridium Edge’s pigtail connector and potentially corrode
contacts, and void the warranty.
5.8.5 Painting
Never paint the Iridium Edge. Paint could negatively affect the Iridium Edge’s satellite performance.
Further, painting voids all warranties.
5.8.6 Cleaning
Only use mild soaps or detergents to clean the Iridium Edge.
59
6 Appendix A: Blunt Cut Cable
A Blunt Cut cable accessory is available from Iridium for its distribution partners. It can be ordered using
the part number in the table below
Part Number
Description
EDGE10MBC1601
10m cable with Iridium Edge mating connector
It is recommended that partners cut the cable to the required length to ensure a simple clean installation.
The cable drawings including color codes for the optional Blunt cables are shown below. As per notes in
the Pin Out Configuration drawing below, the shielded drain wire is connected to the ground pin. The
braid wire at the blunt cut side, should be left unterminated to ensure that there is a single point ground
for the cable shielding.
Figure 7-1 Blunt Cut Cable
60
Figure 7-2 Pin Out Configuration
Figure 7-3 Connector
