Iridium 9601 Product Developer Manual

Download

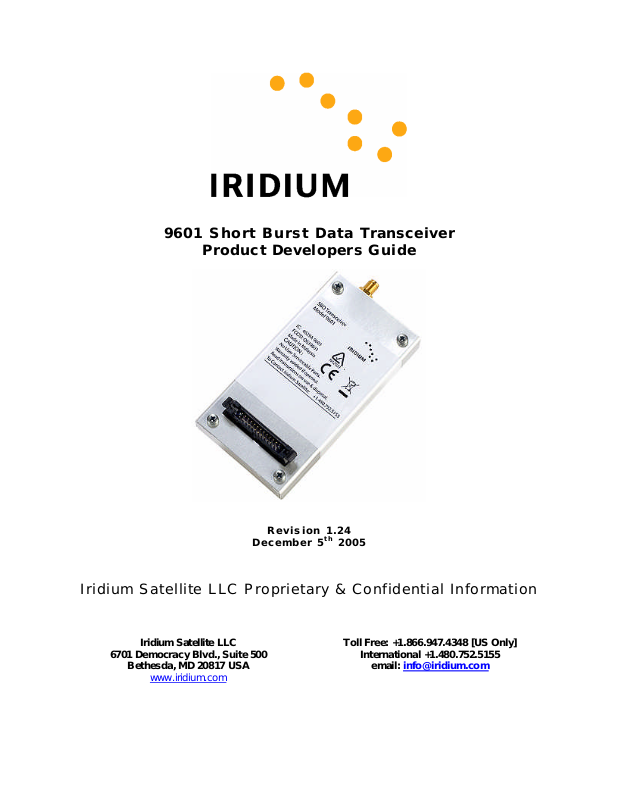

9601 Short Burst Data Transceiver

Product Developers Guide

Revision 1. 24

Decembe r 5

t h

20 05

Iridium Satellite LLC Proprietary & Confidential Information

Iridium Satellite LLC

6701 Democracy Blvd., Suite 500

Bethesda, MD 20817 USA

www.iridium.com

Toll Free: +1.866.947.4348 [US Only]

International +1.480.752.5155

email: info@iridium.com

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

LEGAL DISCLAIMER

This document contains information for the Iridium 9601 Short Burst Data Transceiver. The purpose of providing such information is to enable Value Added Resellers and Value Added Manufacturers to understand the product and how to integrate it into a wireless data solution. Reasonable effort has been made to make the information in this document reliable and consistent with specifications, test measurements and other information. However, Iridium Satellite LLC makes no guarantee or warranty of, and does not assume liability with respect to, the accuracy or the completeness of such information, or as to the results of use of the transceiver in any specific instance, and hereby expressly disclaims any implied warranties of merchantability or fitness for a particular purpose, or any other warranties or representations whatsoever, express or implied. The application developer assumes the full risk of using this specification and any other information provided. In no event shall Iridium Satellite LLC be liable for any actual, direct, indirect, punitive, or consequential damages arising from such use, even if advised of the possibility of such damages.

Iridium Satellite LLC does not warrant that this document is accurate or complete and reserves the right in its sole discretion to change product specifications and materials without notice to you at any time.

Export Compliance Information

This product is controlled by the export laws and regulations of the United States of America. The U.S. Government may restrict the export or re-export of this product to certain individuals and/or destinations. For further information, contact the U.S. Department of Commerce, Bureau of Industry and Security or visit www.bis.doc.gov.

Revision History

Revision Date Comment

1.0 May 02 2005 First revision Second revision incorporating major updates. Key updates are: Product name change to “9601 SBD Transceiver”

1.2 Aug 28 2005

1.21 Sep 29 2005

1.22 Nov 04 2005

1.23 Nov 23 2005

1.24 Dec 05 2005

Physical packaging Connector types updated AT Commands added and updated Mechanical dimensions drawings re-imported to enable them to be read correctly. No changes to any specifications.

1.2 Note on regulatory status of 9601-P3 and 9601-PP added.

2.1 Weight of transceiver card and final enclosure added

2.2 Updates to current consumption

2.3 & 1.2 Typographical errors corrected in list of standards

3.1 VSWR automatic trip removed from specification.

3.1.2 Power cable length restriction added

4.3 Uplink margin added

3.2.2 Added typical power consumption profile information

Change of nomenclature from “Ring Alert” to “Automatic Notification”

DCD is driven OFF at all times. Added photograph instead of renderings

1.3 Added

3.5 Added additional detail to the “Network Available” function description

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

Contents

Revision History............................................................................................................................................ 2

List of Abbreviations ..................................................................................................................................... 4

1.0 Product Overview .................................................................................................................. 5

1.1 Key Features ......................................................................................................................... 5

1.2 Transceiver Packaging and Regulatory Certification............................................................6

1.3 Software Revision.................................................................................................................. 6

2.0 Physical Specifications..........................................................................................................7

2.1 Dimensions............................................................................................................................ 7

2.2 Mechanical Dimensions –Mounting...................................................................................... 9

2.2.1 Mounting - Stackable Design............................................................................................... 10

2.2.2 Mounting to a Panel/Surface –For use with cable connections ......................................... 12

2.3 Environmental...................................................................................................................... 14

2.4 Interface Connectors ........................................................................................................... 14

3.0 Electrical Interfaces ............................................................................................................. 15

3.1 Multi-Interface Connector .................................................................................................... 15

3.1.1 Connector Type...................................................................................................................15

3.1.2 Connector Pin Allocation ..................................................................................................... 16

3.2 DC Power Interface ............................................................................................................. 18

3.2.1 Power On/Off Control .......................................................................................................... 18

3.2.2 Typical Power Profile........................................................................................................... 19

3.3 Serial Data Interface............................................................................................................ 21

3.3.1 9-Wire and 3-Wire Operation............................................................................................... 22

3.3.2 Configuration Settings ......................................................................................................... 23

3.3.3 Modes of Operation............................................................................................................. 24

3.4 Hardware Failure Reporting ................................................................................................ 24

3.5 Network Available Output.................................................................................................... 24

3.6 DC Power Output ................................................................................................................ 25

4.0 RF Interface......................................................................................................................... 26

4.1 Antenna Connector.............................................................................................................. 26

4.1.1 Antenna Connector Type..................................................................................................... 26

4.2 RF Interface Specifications ........................................................................................ 27

4.3 Radio Characteristics ..................................................................................................... 27

Appendix A –AT Command Set for 9601 SBD Transceiver...................................................................... 28

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

List of Abbreviations

Abbreviation Description

CE Conformité Européene

DC Direct Current DTE Data Terminal Equipment ESS ETC SBD Subsystem ETC Earth Terminal Controller

FA Field Application FCC Federal Communications Commission GND Ground

IC Industry Canada

LBT L-Band Transceiver

MOMSN Mobile Originated Message Sequence Number

MTMSN Mobile Terminated Message Sequence Number

RHCP Right Hand Circular Polarization

SBD Short Burst Data SMS Short Message Service

TBA To Be Advised VAM Value Added Manufacturer VAR Value Added Reseller

VSWR Voltage Standing Wave Ratio

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

1.0 Product Overview

The Iridium 9601 Short Burst Data Only Transceiver (9601) is designed to be integrated into a wireless data application with other hardware and software to produce a full solution designed for a specific application or vertical market. Examples of these solutions include tracking a maritime vessel or automatic vehicle location.

The 9601 only supports Iridium’s Short Burst Data (SBD) capability. It does not support voice, circuit switched data, or short message service (SMS). This is a new product and has no functional predecessor.

The 9601 will be designed to meet the regulatory requirements for approval for FCC, Canada, and CE assuming an antenna with a gain of ~3 dBi and adequate shielding. This allows the 9601 to be integrated into a variety of wireless data applications or retrofitted into existing SBD only applications that utilize SBD with the current Iridium 9522A or 9522 L-Band Transceiver-based product. (Note that additional development work will be required.) Such finished products, when integrated together, require regulatory testing to be conducted by the integrator.

The 9601 is designed as a single board transceiver and is essentially provided as a ‘black box’ transceiver with all device interfaces provided by a single multi-pin interface connector in addition to the antenna connector. The product only provides the core transceiver. All other end user application functions such as GPS, microprocessor based logic control, digital and analog inputs, digital and analog outputs power supply and antenna must be provided by the solution developer. The device interface consists of the serial interface,power input, network available output and power on/off control line.

The 9601 does not incorporate nor require a Subscriber Identity Module (also know as a SIM Card) to be inserted into the transceiver. The 9601 will be designed to comply with the standards for Radio Emissions Compliance, Electromagnetic Compatibility, and AC Safety in the United States, European Union and Canada.

The 9601 is described within this document as “9601”, “9601 SBD Transceiver”and “9601 SBD Transceiver”all of these terms refer to the same product.

1.1 Key Features

 Single board transceiver  Small form factor  No SIM card  Designed to be incorporated into an OEM solution  Maximum mobile originated message size 205 bytes  Maximum mobile terminated message size 135 bytes  Automatic Notification to the transceiver that a mobile terminated message is queued at the

Gateway

 Uses small omni-directional antenna  Global operating capability

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

November 6, 1999

08)

11)

EN55022:1998/A1:2000/A2:2003

9601 SBD Transceiver Product Developers Guide

V1.24 120505

1.2 Transceiver Packaging and Regulatory Certification

The 9601 SBD Transceiver is a regulatory approved transceiver that is provided in an enclosure and with appropriate connectors that permit the full transceiver to be regulatory tested by Iridium and sold as a Regulatory Certified product that meets CE, FCC and IC requirements.

The 9601 is tested to the regulatory and technical certifications shown in Table 1.

Table 1: Regulatory and Technical Certifications.

Electrical /

Regulatory

Approvals

Radio Tests EMC Tests

Mechanical /

Operational

Safety Tests

FCC

Industry

ETSI EN 301 441 V1.1.1 (2000-05)

FCC CFR47 parts 2, 15, and 25

ETSI EN 301 489-1 V1.4.1 (2002ETSI EN 301 489-20 V1.2.1(2002EN61000-4-2 : 1995/A2 : 2001 Part 4.2

EN60950-1:2001 Part 1

UL60950-1 Part 1

Canada

Industry Canada

EN61000-4-3 : 2002 Part 4.3

RSS170 Issue 1, Rev 1,

EN61000-4-4 : 1995/A1 : 2001/A2 : 2001 Part 4.4

EN61000-4-6 : 1996/A1 : 2001 Part 4.6

Note: The initial 9601 units [shipped as 9601-P3 and 9601-PP] are different from the commercially produced 9601 SBD Transceivers from a regulatory and certification perspective. Those initial units cannot and should not be used for any regulatory certification purposes or compliance. Only the commercial 9601 units conform to the

regulatory approved design and the regulatory and technical certifications listed in Table 1.

1.3 Software Revision

Developers should read this document in conjunction with the “Software Release Notes” relevant to the

revision of the software that is loaded into their 9601 SBD Transceiver.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

2.0 Physical Specifications

For illustrative purposes a rendering of the 9601 ISU is shown in Figure 1 with a ribbon cable connector inserted. (Note that the ribbon cable and connector is to be provided by the developer and is not supplied as part of the commercial product.)

Figure 1: The 9601 SBD Transceiver.

2.1 Dimensions

The overall dimensions of the 9601 and its weight are summarized in Table 2 and represented graphically in third angle projection in Figure 2

Table 2: 9601 Mechanical Dimensions

Parameter Value

Length 106 mm

Width 56.2 mm Depth 13 mm

Weight (approximate) 117g

Note that these dimensions are for the enclosure and do not take into account the connectors or mounting hardware. Additionally developersshould plan for additionalspace for the reciprocal connectorsfor the antennaand user connector.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

Figure 2 (Part 1 of 2): Dimensions of the 9601 SBD Transceiver.

(Not to scale, dimensions in millimeters)

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

Figure 2 (Part 2 of 2): Dimensions of the 9601 SBD Transceiver.

(Not to scale, dimensions in millimeters)

2.2 Mechanical Dimensions –Mounting

The 9601 SBD Transceiver is provided with four mounting holes, one at each corner. During manufacture four screws are inserted for shipping purposes. These screws need to be removed for mounting. There are two basic options for mounting –stackable and mounting to a surface such as a mounting plate or enclosure wall. The following sections provide further information.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

2.2.1 Mounting - Stackable Design

An example stackable design is shown in Figure 3.

Figure 3: 9601 SBD Transceiver mounted to a unpopulated PCB.

The figures and tables below provides mechanical information design information for a suitable ‘stackable’ 9601 to developer PCB configuration

Figure 4: Assembly Item Number Identification.

Item Numbers in Figure 4 are described in Table 3. Not to scale. Dimensions in millimeters.

Table 3: Item Number Description for Figure 4

Item Type Description Quantity

1 Assembly 9601 SBD Transceiver 1 2 Part M3 Shake-proof washer, zinc plated steel [4 supplied with item 1] 8 3 Part M3 x 20 Pan head screw, pozidrive, zinc plated steel [4 supplied with item 1] 4 4 Part M3 Threaded standoff, 6.0 A/F HEX x 12.00 mm 4 5 Part M3 x 8 Pan head screw, pozidrive, zinc plated steel 4

6 Assembly

Solution developer PCB fitted with Samtec connector ESQT-113-02-L-D-425.

[This item is the same item as Item 1 in Figure 5.]

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

Figure 5: Mechanical mounting foot print for use when stacking the 9601 with a developer

provided PCB. (Dimensions in milli-meters, not to scale)

Notes for Figure 5:

1. Item 1 is a generic, developer provided PCB design and shown for illustrative purposes. This item is the same as Item 6 in Figure 4.

2. Item 2 is available from Samtec in a variety of heights. This example shows a 0.425" version. The part number for this connector is ESQT-113-02-L-D-425

3. Compatible heights of stand-offs and variants on Item 2 are as follows:

a. 0.425" height (shown) fits with 12mm high spacers b. 0.327" height is minimum that can be used. Fits with 9.50mm spacers. c. 0.800" height is the maximum height available fits with 21.50mm spacers. d. Anything else in-between should work if 'Samtec height' = 'Spacer height' minus 1.20mm.

4. Suggested examples of spacer types and compatible fasteners:

a. M3 threaded thru' hole 6.0 A/F Hex x 12mm, re-use M3 x 20 shipping screws and

washers, add M3 x 8 screws and washers.

b. Plain thru' hole diameter 3.2-3.5, diameter 6.0 x 9.50mm, replace M3 x 20 shipping

screws with M3 x 30 screws (same nuts and washers.)

c. Plain thru' hole diameter 3.2-3.5, diameter 6.0 x 21.50mm, replace M3 x 20 shipping

screws with M3 x 35 screws (same nuts and washers.)

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

2.2.2 Mounting to a Panel/Surface –For use with cable connections

An example of mounting to a panel or other surface design is shown in Figure 6.

Figure 6: 9601 SBD Transceiver mounted to a plate or surface.

The figures and tables below provide mechanical information design information for a mounting a 9601 to a plate or surface configuration

Figure 7: Assembly Item Number Identification.

Item Numbers in Figure 7 are described in Table 4. (Not to scale. Dimensions in millimeters.)

Notes for Figure 7:

1. Item 1 includes 4 off M3 x 20 shipping screws, shake-proof washers and nuts

2. Shipping screws can be used to attach Transceiver to panel of 2.00 mm maximum thickness

3. Panels thicker than 2.00mm require longer screws to be e.g. M3 x 25mm

4. See Figure 8 for mounting hole dimensions

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

Table 4: Item Number Description for Figure 7

Item Type Description Quantity

1 Assembly 9601 SBD Transceiver 1 2 Part Mounting Plate or Surface (developer provided) 1

Figure 8: Mechanical mounting foot print for use when panel mounting 9601.

(Dimensions in milli-meters, not to scale)

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

2.3 Environmental

The environmentalspecifications of the 9601 are summarized in Table 5 below.

Table 5: Environmental Specifications

Parameter Value

Operating Temperature Range -30ºC to + 60ºC

Operating Humidity Range ≤75% RH

Storage Temperature Range -40ºC to + 85ºC

Storage Humidity Range ≤ 93% RH

The 9601 has been testedto the specifications listed in Table 6.

Table 6: Environmental Tests

Test Name Test Reference Test Description

Change of Temperature,

Thermal Shock EN60068-2-14:2000

Humidity IEC60068-2-2:1996

Shock

EN60068-2-27:1993

(NF c20-727)

Shock J1455 Society of Automotive Engineers

Vibration EN 60068-2-36:1996

Vibration IEC 60068-2-36:1996 Vibration J1455 Society of Automotive Engineers

0.96 m2/s3 from 5Hz to 20Hz

-25C to +70C,

5 cycles of 1 hour each Damp heat steady state 40C 93% RH for 4 days

Sinusoidal Vibration Sinusoidal Vibration

21Hz to 500Hz

-3dB per octave

2.4 Interface Connectors

The 9601 SBD Transceiver incorporates two connectors:

 A multi-interface connector  An antenna connector

These interfaces are described in more detail in Sections 3 and 4 respectively.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

3.0 Electrical Interfaces

The subsections to follow containinformation for the electrical interfaces of the 9601 SBD Transceiver.

3.1 Multi-Interface Connector

The multi-interface connector includes five interfaces:

 DC power supply input  Power on/off control  RS-232 Serial data  Network available output  DC power output

3.1.1 Connector Type

The connector on the 9601 is a Samtec EHT series. This connector provides the ability for both a cable connector as well as a stackable board to board connection. For cable connected applications use the Samtec TCSD series. For PCB stacking use the Samtec ESQT series.

Data sheets on these connectors can be found at: EHT Series: http://www.samtec.com/technical_specifications/overview.asp?series=EHT

TCSD Series: http://www.samtec.com/technical_specifications/overview.asp?series=tcsd ESQT Series: http://www.samtec.com/technical_specifications/overview.asp?series=esqt

A suitable connector is the EHT-113-01-SM-D-SM.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

3.1.2 Connector Pin Allocation

The user connector is a 2 row 26-way latching header. Individual pin assignments are shown in Table 7. Multiple supply grounds are provided and all supply and supply grounds (pins 1-6) are required to be connected to the power supply in order to limit the current on any one pin. The three Supply Returns (pins 4, 5 & 6) are tied together at the connector as well as the three Supply pins (pins 1, 2 & 3.) Note that any cable used to supply power to the transceiver can be no longer than 152mm (6 inches) from the power source to the connector. Multiple signal grounds are provided to reduce cross-talk. The signal grounds on pins 10,13, 20 & 23 are all tied together at the connector and can be joined with any of the signal wires e.g. RS232, Network Available etc. However each signal requires its own signal ground in order to limit current on any one pin.

Table 7: Multi Interface Connector Pin Allocation

No.

Signal Name

Signal

direction

(WRT 9601)

Signal function Signal level

1 EXT_PWR Input Supply +5 V +/- 0.5 V 2 EXT_PWR Input Supply +5 V +/- 0.5 V 3 EXT_PWR Input Supply +5 V +/- 0.5 V 4 EXT_GND Supply return 0 V 5 EXT_GND Supply return 0 V 6 EXT_GND Supply return 0 V

On: 2.0V to Vsupply

7 ON/OFF Input On/Off control input

Off: 0V to 0.5V

I = 120 μA max 8 Reserved 9 Reserved

10 SIG_GND Signal ground 0V 11 DF_S_TX Input Data port, serial data into 9601 RS-232 12 DF_S_RX Output Data port, serial data from 9601 RS-232 13 SIG_GND Signal ground 0V 14 DF_ DCD Output Data port, Data Carrier Detect RS-232 15 DF_ DSR Output Data port, Data Set Ready RS-232 16 DF_ CTS Output Data port, Clear-to-Send RS-232 17 DF_RI Output Data port, Ring Indicator RS-232 18 DF_ RTS Input Data port, Request-to-Send RS-232 19 DF_ DTR Input Data port, Data Terminal Ready RS-232 20 SIG_GND Signal ground 0V 21 Reserved 22 Reserved 23 SIG_GND Signal ground 0V

NETWORK_

AVAILABLE

Output Set to logic 1 when network is visible 2.9 V CMOS 25 Spare 26 +2V9 Output Supply output

+2.9 V ± 0.15 V, 50mA maximum

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

is on this

9601 SBD Transceiver Product Developers Guide

V1.24 120505

Figure 9 provides a reference for the pin designation. Note that this designation is when looking into the multi-interface connector from above. It is not to scale and not representative of the actual connector mechanical layout.

01 03

Connector notch

Figure 9: Multi-Interface Connector Pin Number Designation

Notes:

1. View looking into connector from above

2. Numbers indicate pin designations

3. Not to scale, for illustrative purposes only

4. Note location of connector notch

5. Connector notch faces towards opposite end to the antenna connector as shown in Figure 10

6. On the physical connector Pin 1 is indicated by an arrow mark

2501 03

Notch on

connector

side

Figure 10: Multi Interface Connector Notch Location

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

3.2 DC Power Interface

The DC power interface is comprised of the DC power inputs and a control signals as summarized in Table 7. The three +5V Inputs and three 0V supply returns are used to supply DC power to the 9601 and ensure that enough current can be drawn across the connector without the 9601 malfunctioning during transmit due to lack of current supply. Note that all six pins should be connected.

The DC power supply requirements for the 9601 are summarized in Table 8 below. Note that these requirements apply to DC power measured at the 9601 multi-interface connector input and not at the output of the power supply. Long power supply cables can cause a voltage drop sufficient to cause the voltage to be out of specification at the physical power supply input to the 9601.

Table 8: DC Power Input Specifications

Parameter Value

Main Input Voltage Range +4.5 VDC to +5.5 VDC Main Input Voltage Nominal 5.0VDC Main Input Voltage –Ripple 40 mV pp

Consumption at +5.0 VDC Value

Input Standby Current (average) 66mA

Peak Transient Current –Transmit 1.5 A

Current Average* –when SBD message transfer in process <= 350 mA

Average Power consumption –when SBD message transfer in process <= 1.75 W

* Note: The average power consumption depends on the view of the satellite constellation from the antenna.

The external power supply needs to guarantee the following:

 The supply voltage droop over an 8.3mS burst should not be more than 0.2 Volts.  The power supply should limit the in-rush current to 4 Amps maximum  The supply noise should be less than that in the following profile (linear interpolation between these

points):

 100 mV pk-pk 0Hz to 50 kHz  5 mV pk-pk in 50 kHz bandwidth at 1 MHz  10 mV pk-pk in 1 MHz bandwidth at 1 MHz  5 mV pk-pk in 1 MHz bandwidth above 5 MHz.

Note that any cable used to supply power to the transceiver can be no longer than 152mm (6 inches) from the power source to the connector.

3.2.1 Power On/Off Control

An external on/off input is provided on a pin of the multi-interface connector. The 9601 starts up when power is applied and the power on/off input is high. As long as the input voltage is applied, logic high on this line turns the transceiver on and a logic low turns it off. If this line is not required then it must be connected directly to the +5 V supply. The input logic high threshold is 2.0 V and the logic low threshold is

0.5 V. Note that this on/off control is not the same as the 9522 or 9522A.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

3.2.2 Typical Power Profile

This section is designed to give the application developer some insight to the electrical power profile that the 9601 uses. It does not describe every situation and permutation possible. It should be used as a starting point for the application developer to continue their own development design. The actual usage profile can vary for a number of reasons:

1) View of the sky –if in poor visibility of the sky where a clear line of sight is not available between the transceiver and the satellite.

2) The higher the VSWR the higher the current consumed

3) Application programming

4) Possible manufacturing variation from transceiver to transceiver. [I.e. the transceiver still meets specification, but over a large sample size some may operate better than average.]

The application designer should be sure not to use best case numbers for average, expected or worse case scenarios. Figure 11 provides a graphical representation of the typical supply current profile of a 9601 SBD Transceiver sending and receiving SBD messages.

1.6

1.5

1.4

1.3

1.2

1.1

1.0

0.9

0.8

0.7

Supply Current (A)

0.6

Transmit burst

0.5

0.4

0.3

0.2

0.1

preparation

-10 0 10 20 30 40 50 60

Figure 11 –Typical Supply Current Profile

Transmitter data burst (The amplitude of this

pulse is determined by

PA efficiency but mostly

by antenna matching.

The amplitude can

reach 2A )

Background

operating

current

Time (mS)

Receiver data burst.

(This has constant amplitude,

however it gets longer when

the data module is initially

searching for the network.)

Description: (A) Transmit burst preparation: As the 9601 gets ready to send the data burst, it turns on various parts

of the transmitter chain and transfers the message into the DSP to be formatted for transmission. This first part of the pulse is nominally 170mA and lasts for 4mS.

(B) Transmitter data burst: The final part of the preparation stage is to power up the power amplifier (PA). Once power is available, and synchronized to the system framing, the formatted burst is clocked into the DAC, which causes the PA to draw the high current pulse. This pulse is 9mS long, but the amplitude is variable upon the RF matching into the antenna. Generally a high VSWR will use more current. For example, into an open circuit antenna port, the 9601 can use between 1.4A and 2A,

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

dependant upon the phase of the mismatch. For power critical applications a good antenna and cable will be required.

(D) Receiver data burst: The receive data burst current pulse is 14mS long, and is initially 200mA, rising to 247mA for the last 5mS, as the 9601 turns on various parts of the receiver, to capture the data burst from the satellite.

Figure 12 shows an oscilloscope plot of a single frame:

Figure 12 Single Frame Current Profile for the 9601

The scales for the above plot are: Time base 10mS / cm

Current (Yellow trace) 0.5A / cm Voltage (Red trace) 1V / cm

Both traces are zero referenced on the first graticule line from the bottom of the plot. The upper trace is the 5V supply rail measured at the Test Interface Connector (TIC) box. The power supply was set for 5.5V and configured for remote sensing, which gives rise to the voltage overshoot at the end of the transmit burst.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

Figure 13 shows an oscilloscope plot of five transmit and receive frames:

Figure 13 Current Profile for Five Frames for the 9601

The scales for the above plot are: Time base 50mS / cm

Current (Yellow trace) 0.5A / cm Voltage (Red trace) 1V / cm

Both traces are 0 referenced on the first graticule line from the bottom of the plot. The upper trace is the 5V supply rail measured at the tick box. The power supply was set for 5.5V and configured for remote sensing, which gives rise to the voltage overshoot at the end of the transmit burst.

3.3 Serial Data Interface

The Serial data interface is used to both command the 9601 and transfer user data to and from the Transceiver. The 9601 presents a 9-wire data port to the FA (Field Application), where the interface is at RS232 levels. With respect to this interface, the 9601 behaves as a DCE (Data Communication Equipment), and the FA behaves as a DTE (Data Terminal Equipment).

The terms “FA” and “DTE” are used interchangeably throughout this document; similarly for the terms “9601” and “DCE”.

Autobaud is not supported in 9601 SBD Transceiver. The baud rate can be set via the AT+IPR command. The default rate is 19200 bps.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

3.3.1 9-Wire and 3-Wire Operation

By default, the serial interface operates as a 9-wire connection. Table 9 describes each of the signals, where “input” means an input to the 9601, and “output” means an output from the 9601 SBD Transceiver.

Table 9 –Serial Interface Signals

Signal Description

RX Active high data input TX Active high data output

GND 0V

RTS Active low flow control input

Active low flow control output

CTS

DTR

DSR

DCD

RTS and CTS are used together to implement hardware flow control when enabled with AT&K3 Active low handshaking input

AT&Dn controls how the 9601 uses DTR:

 If set to AT&D0, DTR is always ignored.  Otherwise DTR set to OFF places the data port into UART test mode after 10

seconds, or immediately on boot-up. A subsequent transition of DTR to ON returns the data port to DCE mode and resets it to its power-on state.

 The UART test mode is provided for factory testing of the data port UART. An FA

should never activate test mode; if it does, the 9601 will stop responding to AT commands until the data port is returned to DCE mode.

Active low handshaking output The 9601 drives DSR ON when the data port is in DCE mode, and OFF when the data

port is in test mode. The DTE may use this signal as an indication that the 9601 is powered up and ready to

receive AT commands. Active low ring indicator output

The 9601 drives RI ON when it receives a Automatic Notification from the network that a Mobile Terminated SBD Message is queued at the Gateway, and drives RI OFF after 5 seconds or when the DTE initiates an SBD session, whichever occurs first. Active low handshaking output

DCD is driven OFF at all times.

Note that the Ring Indicator (RI) pin is used by the 9601 SBD Transceiver to indicate that a Mobile Terminated SBD (MT-SBD) message is queued at the Gateway. The Field Application will need to monitor this pin and use appropriate AT Commands to command the Transceiver to retrieve the MT-SBD message.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

The serial interface may be operated with a 3-wire connection, where only transmit, receive and ground signals are used. However the 9 wire interface offers better control and is the recommended implementation. Iridium is only able to provide limited 3-wire interface support. When operating with a 3wire connection, the following rules apply:

 AT&Dn must be set to AT&D0 to ignore the DTR input  AT&Kn must be set to AT&K0 to disable RTS/CTS flow control  The other output signals may be connected, and operate as follows:

 CTS driven ON (low)  DSR operates as normal  RI operates as normal  DCD driven ON (low)

Note: RTS/CTS flow control, when enabled, is only used when the data port is in SBD data mode. In AT command mode, RTS is ignored and CTS is driven ON (low).

3.3.2 Configuration Settings

The 9601 allows the DTE to configure the data port communication parameters. The three configuration types are active, factory default, and stored. The active configuration is the set of parameters currently in use. They can be changed by the DTE individually via specific AT commands. The factory default configuration is stored in permanent memory. This configuration can be recalled at any time through use of the AT&Fn command.

Two groups of settings, or “profiles”, can be stored as user-defined configurations. The DTE first creates desired active configurations and then writes them to memory using the AT&Wn command. These profiles can be designated to be loaded as the active configuration upon 9601 power-up through use of the AT&Yn command. The 9601 can be reset without loss of power to these profiles through use of the ATZn command.

The configuration settings are stored in “S-register” locations.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

3.3.3 Modes of Operation

The serial interface is always in one of three modes: command mode, SBD data mode or SBD session mode. When the data port is in command mode, AT commands can be entered to control the 9601. In command mode, flow control has no effect, with the RTS input ignored and the CTS output driven ON (low). When in SBD data mode, the 9601 is transferring binary or text SBD message data to or from the DTE.

In SBD data mode:

 All characters from the DTE not forming part of the message data are ignored (i.e. no AT commands may be entered)

 No unsolicited result codes are issued.  RTS/CTS flow control, if enabled, is active. When RTS is OFF (high), the 9601 suspends transfer

of data to the DTE; when CTS is OFF (high), the 9601 expects the DTE to suspend transfer of data to the 9601.

When in SBD session mode, the 9601 is attempting to conduct an SBD session with the network. In SBD session mode:

 The DTE must wait for the +SBDI session result code.  All characters from the DTE are ignored.  Unsolicited result codes are issued where those codes have been enabled.

Transitions between the modes of operation are performed automatically by the 9601 in response to the SBD AT Commands; the DTE has no other control over the mode.

3.4 Hardware Failure Reporting

If the 9601 detects a hardware problem during initialisation, the 9601 may be unable to function correctly. The 9601 notifies the DTE of this situation by issuing an unsolicited result code at the end of initialisation:

HARDWARE FAILURE: <subsys>,<error>

where <subsys> identifies the software subsystem that detected the error, and <error> is the subsystem-specific error code.

Any AT commands that cannot be handled in the failure condition will terminate with result code 4

(“ERROR”).

3.5 Network Available Output

This is a digital output that can be used by an application to know when the Transceiver has visibility to the satellite network. This is useful in applications where the Transceiver may move around terrain that reduces the amount of time that clear line of sight to the satellite constellation is available. The application developer can use this output to preserve battery life by reducing the number of attempted transmissions by including this logic output in the application decision logic.

Network Available means only that the 9601 can successfully receive the Ring Channel, or, put more simply, it can see a satellite. Network Available is not a guarantee that a message can be successfully sent. The Network Available state is evaluated every time the Ring Channel is received or missed. If the Ring Channel is visible, then that is typically every 4 seconds. If the Ring Channel is not currently visible, then the update period can be as long as 2 minutes, depending on how long the lack of satellite visibility existed. This is because the 9601 attempts to conserve power by increasing the ring search interval while

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

the satellites are not visible. Every time a ring search fails, the time to wait is increased by 96 frames up to a maximum of 1344 frames, or 121 seconds.

If Network Available is currently off, the Field Application may still attempt an SBDI session. This will force the 9601 Transceiver to look for the Ring Channel immediately, and on finding it, to attempt to send the message. In this case Network Available will not come on immediately. The Network Available does not turn on while in a +SBDI session. It will however turn on 4 seconds later assuming that the Ring Channel is present. After the SBD session completes, the 9601 performs a new Ring Channel search sequence, at the end of which Network Available gets turned on. That can take between 4 and 12 seconds.

The wait time between search windows is reset to 4 seconds every time a search succeeds. Otherwise it continues to increase. So if the +SBDI attempt fails to find the ring channel, the search window does not reset to 4 seconds.

Note that the behavior of +CIEV:1 is identical in to that of the Network Available output.

3.6 DC Power Output

A limited power output can be provided by the 9601 which could be used for driving an LED to provide a visible indication that the transceiver is on, or the output could be used in application logic to determine if the transceiver is on.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

4.0 RF Interface

This section describes the physical connector and RF specifications of the RF Interface.

4.1 Antenna Connector

The 9601 will have the following antenna connector characteristics as described in Table 10.

Table 10: Antenna Characteristics

Parameter Value

Impedance 50 Ohms nominal

Gain 3dBi

Polarization RHCP

VSWR (maximum operational) 1.5 : 1

Note:

 Existing qualified Iridium antennas may be used. (i.e. antennas designed for the 9522 and 9522A)  Existing antennas will require different RF connector types to those for the 9522 and 9522A

4.1.1 Antenna Connector Type

The antenna connector on the 9601 is a female SMA type. The connector is manufactured by Johnson Components and has a part number: 142-0701-871. Additional information can be found at:

http://www.johnsoncomponents.com/webapp/wcs/stores/servlet/ENPProductDetailView?itemid=20525&st oreId=10010&catalogId=10010&langId=-1

A data sheet may be downloaded from:

http://www.johnsoncomponents.com/webapp/wcs/stores/Johnson/pdfs/1420701871.pdf

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

4.2 RF Interface Specifications

The RF interface requirements for the 9601 are summarized in Table 11 below.

Table 11: General RF Parameters

Parameter Value

Frequency Range 1616 MHz to 1626.5 MHz Duplexing Method TDD (Time Domain Duplex) Oscillator Stability ± 1.5 ppm

Input/Output Impedance 50Ω

Multiplexing Method TDMA/FDMA

4.3 Radio Characteristics

The tables within this section contain radio characteristics of the 9601 SBD Transceiver.

Table 12: In-Band Characteristics

Parameter Value

Average Power during a transmit slot (max) 1.6 W

Table 13: Link Margin

Configuration Cable Loss Link Margin

9601 SBD Transceiver antennas (Note 1) 2dB (Note 2)

13 dB (Note 3) downlink

7 dB (Note 3) uplink

Note that the total implementation loss for an antenna, connectors, cable, lightening arrestor and any other RF component between the transceiver and the antenna shall not exceed 3dB. Implementation loss higher than this will affect link performance and quality of service.

Note 1: This Transceiver has a different antenna connector to other Iridium transceivers Note 2: Cable losses should be minimized. Note 3: Link Margin given for free space.

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC

9601 SBD Transceiver Product Developers Guide

V1.24 120505

Appendix A –AT Command Set for 9601 SBD Transceiver

Iridium Satellite LLC Proprietary & Confidential Information

Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Appendix A

9601 Transceiver - AT Command Set

Table of Contents

Glossary 31

1 Introduction 32

2 AT Commands 32

2.1 AT –ATtention Code 32

2.2 A/ - Repeat Last Command 32

2.3 En –Echo 32

2.4 In –Identification 32

2.5 Qn –Quiet Mode 33

2.6 Vn –Verbose Mode 33

2.7 Zn –Soft Reset 33

2.8 &Dn –DTR Option (modified) 33

2.9 &Fn –Restore Factory Settings 33

2.10 &Kn –Flow Control (modified) 33

2.11 &V –View Active and Stored Configuration 34

2.12 &Wn –Store Active Configuration 34

2.13 &Yn –Designate Default Reset Profile 34

2.14 %R –Display Registers 34

2.15 *F –Flush to Eeprom (new) 34

2.16 *Rn –Radio Activity (new) 35

2.17 +CGMI –Manufacturer Identification 35

2.18 +CGMM –Model Identification 35

2.19 +CGMR –Revision 35

2.20 +CGSN –Serial Number 35

2.21 +CIER –Indicator Event Reporting (new) 36

2.22 +CSQ –Signal Quality 38

2.23 +CULK –Unlock (new) 38

2.24 +GMI –Manufacturer Identification 39

2.25 +GMM –Model Identification 39

2.26 +GMR –Revision 39

2.27 +GSN –Serial Number 39

2.28 +IPR –Fixed DTE Rate 40

2.29 +SBDWB –Short Burst Data: Write Binary Data to the Module 41

2.30 +SBDRB –Short Burst Data: Read Binary Data from the Module 42

2.31 +SBDWT –Short Burst Data: Write a Text Message to the Module 43

2.32 +SBDRT –Short Burst Data: Read a Text Message from the Module 44

2.33 +SBDI –Short Burst Data: Initiate an SBD Session 45

2.34 +SBDDET –Short Burst Data: Detach (new) 47

2.35 +SBDDSC –Short Burst Data: Delivery Short Code 48

2.36 +SBDIX –Short Burst Data: Initiate an SBD Session Extended (new) 49

2.37 +SBDMTA –Short Burst Data: Mobile-Terminated Alert (new) 51

2.38 +SBDREG –Short Burst Data: Network Registration (new) 52

2.39 +SBDAREG –Short Burst Data: Automatic Registration (new) 54

2.40 +SBDD –Short Burst Data: Clear SBD Message Buffer(s) 56

2.41 +SBDC –Short Burst Data: Clear SBD MOMSN 56

2.42 +SBDS –Short Burst Data: Status 57

2.43 +SBDTC –Short Burst Data: Transfer MO Buffer to MT Buffer 57

2.44 -MSSTM –Request System Time 58

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

3 S-Register Definitions 59

3.1 S-Register Commands 59

3.1.1 Sr –Direct S-Register Reference 59

3.1.2 Sr? –Direct S-Register Read 59

3.1.3 Sr=n –Direct S-Register Write 59

3.1.4 ? –Referenced S-Register Read 59

3.1.5 =n –Referenced S-Register Write 59

3.2 S-Registers 60

4 Summary of Result Codes 66

5 Informative Examples 67

5.1 Setting the Default Configuration 67

5.2 Power-on to Sending a Message 68

5.3 Automatic Notification Registration 69

5.4 Automatic Notification Message Reception 70

5.5 Automatic Notification Automatic Registration 71

5.6 Sending a Message with Minimal Radio Activity 72

5.7 Powering Down 73

6 Table of AT Command Changes 74

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Glossary

CTS (V.24 signal) Clear To Send. This signal is used to control the flow

of data to the 9601 DCD (V.24 signal) Data Carrier Detect DCE Data Communications Equipment. In this product, DCE refers to

the 9601 DSR (V.24 signal) Data Set Ready. This signal, from the 9601, indicates

readiness to accept communication over the data port DTE Data Terminal Equipment. In this product, DTE refers to the FA DTR (V.24 signal) Data Terminal Ready. This signal, from the FA,

requests the 9601 to accept communication over the data port ESS ETC SBD Subsystem (synonymous with GSS) ETC Earth Terminal Controller, part of the Iridium Gateway FA Field Application, the “host” of the 9601 GSS Gateway SBD Subsystem (synonymous with ESS) IMEI International Mobile Equipment Identity MO Mobile Originated MOMSN Mobile Originated Message Sequence Number MT Mobile Terminated MTMSN Mobile Terminated Message Sequence Number RI (V.24 signal) Ring Indicate. This signal, from the 9601, indicates

that an MT message is present at the ESS RTS (V.24 signal) Request To Send. This signal is used to control the

flow of data from the 9601. SBD Short Burst Data UART Universal Asynchronous Receiver Transmitter

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

1 Introduction

This document specifies the AT Commands supported by the 9601 Transceiver. Informative examples are presented in Section 3.

2 AT Commands

The 9601 is configured and operated through the use of AT commands. Only AT Commands that are relevant to the 9601 are included. AT Commands related to functionality of the 9522 and 9522A LBTs are not included. Note that Commands may be modified, removed or added and that you should not rely on this document as a definitive statement of the functionality of the commercial 9601 Transceiver.

2.1 AT –ATtention Code

This is the prefix for all commands except A/. When entered on its own, the 9601 will respond OK.

2.2 A/ - Repeat Last Command

Repeat the last command issued to the 9601 unless the power was interrupted or the unit is reset. A/ is not followed by <CR>.

2.3 En –Echo

Echo command characters.

0 Characters are not echoed to the DTE. 1 Characters are echoed to the DTE (default).

2.4 In –Identification

Requests the 9601 to display information about itself.

0 “2400” (for compatibility only) 1 “0000” (forcompatibility only) 2 “OK” (for compatibility only) 3 “XXXXXXXX” (Software revision level) 4 “IRIDIUM 9601” (Product description) 5 “8816” (for compatibility only) 6 “XXX” (Factory identity) 7 “XXXXXXXX” (Hardware specification)

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.5 Qn –Quiet Mode

Control 9601 responses.

0 9601 responses are sent to the DTE (default). 1 9601 responses are NOT sent to the DTE.

2.6 Vn –Verbose Mode

Set the response format of the 9601, which may be either numeric or textual.

0 Numeric responses. 1 Textual responses (default).

2.7 Zn –Soft Reset

Reset the 9601’s data port to a user-stored configuration that has been previously stored using &Wn.

0 Restores user configuration 0. 1 Restores user configuration 1.

2.8 &Dn –DTR Option (modified)

Set the 9601 reaction to the DTR signal.

0 DTR is ignored. A DTR signal input is not needed when set to &D0. 1-3 DTR must be ON. If DTR transitions from ON to OFF, the data port will be

locked after approximately 10 seconds to enter the UART test mode. The data port will resume when DTR is restored to ON.

There is no distinction between settings 1-3. (default is 2)

2.9 &Fn –Restore Factory Settings

Recall factory default configuration without resetting the data port.

0 Recall factory default 0.

2.10 &Kn –Flow Control (modified)

Select the flow control method between the 9601 and DTE. Flow control is only applied to the transfer of SBD message data; it does not apply to AT commands and their responses.

0 Disables flow control. 3 Enables RTS/CTS flow control (default).

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.11 &V –View Active and Stored Configuration

View the current active configuration and stored profiles.

2.12 &Wn –Store Active Configuration

Store the active profile in non-volatile memory. This is used to store user configurations for later use.

0 Store current (active) configuration as profile 0. 1 Store current (active) configuration as profile 1.

2.13 &Yn –Designate Default Reset Profile

Select profile for use after power-up.

0 Select profile 0 (default). 1 Select profile 1.

2.14 %R –Display Registers

Display all the S-registers in the system.

2.15 *F –Flush to Eeprom (new)

Flush all pending writes to Eeprom, shut down the radio, and prepare the 9601 to be powered down. The command returns OK upon completion, at which point it is safe to remove the power without losing non-volatile data.

Note: This command stops the 9601 from responding to any more commands, but does not actually power it down. The only way to power down the 9601 is for the FA to remove the power or to de-assert the on/off control line.

Note: After an SBD session, the new SBD MOMSN is always flushed to Eeprom before the +SBDI result is issued.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.16 *Rn –Radio Activity (new)

Control radio activity.

0 Disable radio activity. 1 Enable radio activity (default).

While the radio is disabled:

 SBD sessions can not be initiated; they will fail immediately.  No SBDAutomatic Notifications will be issued for automatic-MT messages.  No registration, i.e. location updates will be performed.  The baseband circuitry is still active and the 9601 still accepts AT commands.

This command allows the FA to reduce detectable emissions from the RF circuitry during the idle periods between SBD sessions, and also provides a degree of power saving in cases where it may be inconvenient for the FA to power down the 9601.

2.17 +CGMI –Manufacturer Identification

Exec Command: +CGMI

Query the 9601 manufacturer.

2.18 +CGMM –Model Identification

Exec Command: +CGMM

Query the 9601 model.

2.19 +CGMR –Revision

Exec Command: +CGMR

Query the 9601 revision.

2.20 +CGSN –Serial Number

Exec Command: +CGSN

Query the 9601 IMEI.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.21 +CIER –Indicator Event Reporting (new) Set Command: +CIER=[<mode>[,<sigind>[,<svcind>[,<antind>]]]]

The set command enables or disables sending of the +CIEV unsolicited result code from the 9601 to the DTE in case of indicator state changes. <mode> controls the processing of the +CIEV unsolicited result codes.

<mode>:

0 Disable indicator event reporting; do not send +CIEV unsolicited result

codes to the DTE; buffer the most recent indicator event for each indicator in the 9601 (default).

1 Enable indicator event reporting; buffer the most recent +CIEV unsolicited

result code for each indicator when the data port is reserved (e.g. in SBD data mode) and flush them to the DTE after reservation; otherwise forward them directly to the DTE.

<sigind>:

Control reporting of "signal quality" indicator changes:

0 No "signal quality" indicator reporting. 1 Enable "signal quality" indicator reporting using result code

+CIEV:0,<rssi>

where <rssi> is:

0 Equivalent to 0 bars on the signal strength indicator 1 Equivalent to 1 bars on the signal strength indicator 2 Equivalent to 2 bars on the signal strength indicator 3 Equivalent to 3 bars on the signal strength indicator 4 Equivalent to 4 bars on the signal strength indicator 5 Equivalent to 5 bars on the signal strength indicator

The reported signal strength is the same value that would be returned by the +CSQ command.

When enabled, the signal quality indicator is reported only when the signal strength changes.

<svcind>:

Control reporting of "service availability" indicator changes:

0 No "service availability" indicator reporting. 1 Enable "service availability" indicator reporting using result code

+CIEV:1,<value>

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

where <value> is:

0 Network service is currently unavailable. 1 Network service is available.

Network service availability is equivalent to a signal strength greater than 0. The service availability indicator provides a way for the FA to wait until the 9601 can start an SBD session without receiving continual notifications of changes in signal strength.

<antind>:

Control reporting of "antenna fault" indicator changes:

0 No "antenna fault" indicator reporting. 1 Enable "antenna fault" indicator reporting using result code

+CIEV:2,<value>

where <value> is:

0 No antenna fault detected, or antenna fault cleared. 1 Antenna fault detected, further transmission impossible.

An antenna fault indicates that the antenna is not correctly attached, and in order to protect the transmitter no more transmissions are permitted. On seeing an antenna fault, the user should check the antenna connection; the fault will be automatically cleared once the 9601 detects network service availability again.

Read Command: +CIER?

Query the current indicator event reporting settings. The response is of the form:

+CIER:<mode>,<sigind>,<svcind>,<antind>

Test Command: +CIER=?

List the supported settings. The response is in the form:

+CIER:(supported <mode>s),(supported <sigind>s),(supported <svcind>s) ,(supported

<antind>s)

Note: In <mode> 1, the DTE may miss some indicator state changes if they occur while the data port is reserved. However, the buffering mechanism ensures that the most recent change for each indicator during reservation will be flushed to the DTE after reservation; thus the DTE is always made aware of the latest state of each indicator.

Note: The DTE may initiate an SBD session even if service is unavailable; in this case, the 9601 makes an immediate search for the network and, if successful, starts the SBD session, otherwise the SBD session fails.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.22 +CSQ –Signal Quality

Exec Command: +CSQ

Execution command returns the received signal strength indication <rssi> from the

9601. Response is in the form:

+CSQ:<rssi>

where:

<rssi>:

0 Equivalent to 0 bars displayed on the signal strength indicator. 1 Equivalent to 1 bar displayed on the signal strength indicator. 2 Equivalent to 2 bars displayed on the signal strength indicator. 3 Equivalent to 3 bars displayed on the signal strength indicator. 4 Equivalent to 4 bars displayed on the signal strength indicator. 5 Equivalent to 5 bars displayed on the signal strength indicator.

Test Command: +CSQ=?

List the supported signal strength indications. The response is in the form:

+CSQ:(supported <rssi>s)

Note: A signal strength response may not be immediately available, but will usually be received within two seconds of issuing the command. If the 9601 is in the process of acquiring the system, a delay in response of up to 10 seconds may be experienced.

2.23 +CULK –Unlock (new) Exec Command: +CULK=<unlock key>

Unlock the Transceiver after it has been locked by the Gateway. The unlock key must

be obtained by contacting Iridium’s customer support.

<unlock key>:

0000000000000000 .. FFFFFFFFFFFFFFFF

A string of 16 hexadecimal digits.

While the Transceiver is locked, it is unable to perform any SBD sessions. Any attempts to start a session will return an error code indicating that the Transceiver is locked.

Command Response:

+CULK:<status>

where:

<status> indicates the lock status of the Transceiver following the unlock attempt:

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

0 Unlocked –Transceiver is not locked and is permitted to perform SBD

sessions.

1 Locked –Transceiver is locked and unable to perform SBD sessions. It

must be unlocked by supplying the correct unlock key to the +CULK command.

2 Permanently locked –Transceiver is locked and unable to perform SBD

sessions. It cannot be unlocked and must be returned to the supplier.

Read Command: +CULK?

Query the current lock status of the Transceiver. The response is of the form:

+CULK:<status>

<status>:

0 Unlocked 1 Locked 2 Permanently locked

2.24 +GMI –Manufacturer Identification

Exec Command: +CGMI

Query the 9601 manufacturer.

2.25 +GMM –Model Identification

Exec Command: +CGMM

Query the 9601 model.

2.26 +GMR –Revision

Exec Command: +CGMR

Query the 9601 revision.

2.27 +GSN –Serial Number

Exec Command: +CGSN

Query the 9601 IMEI.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.28 +IPR –Fixed DTE Rate

Set Command: +IPR=<rate>

Set the data rate at which the 9601 will accept commands. The change in data rate takes into effect after the result code (e.g., OK) is received by the DTE.

where:

<rate>:

1 600 bps 2 1200 bps 3 2400 bps 4 4800 bps 5 9600 bps 6 19200 bps (default) 7 38400 bps 8 57600 bps 9 115200 bps

Read Command: +IPR?

Query the current data rate. The response is in the form:

+IPR:<rate>

Test Command: +IPR=?

List the supported data rates. The response is in the form:

+IPR:(supported <rate> settings)

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.29 +SBDWB –Short Burst Data: Write Binary Data to the Module

Exec Command: +SBDWB=<SBD message length>

This command is used to transfer a binary SBD message from the DTE to the single mobile originated buffer in the 9601. The mobile originated buffer can contain only one message at any one time.

 Once the command is entered, and the message length is acceptable, the 9601 will

indicate to the DTE that it is prepared to receive the message by sending the ASCII

encoded string “READY<CR><LF>” (hex 52 45 41 44 59 0D 0A) to the DTE.

 The <SBD message length> parameter represents the length, in bytes, of the SBD

message not including the mandatory two-byte checksum.

 The maximum mobile originated SBD message length is specified at 205 bytes (and

may be increased following actual performance testing). The minimum mobile originated SBD message length is 1 byte. If the <SBD message length> parameter is out of range, the 9601 issues response 3 (see below).

 Once the DTE receives the READY indication from the 9601, the SBD message must

be sent from the DTE formatted as follows:

{binary SBD message} + {2-byte checksum}

 The checksum is the least significant 2-bytes of the summation of the entire SBD

message. The high order byte must be sent first. For example if the DTE were to send the word “hello” encoded in ASCII to the 9601 the binary stream would be hex 68 65 6c 6c 6f 02 14.

 The mobile originated buffer will be empty upon power-up.  If any data is currently in the mobile originated buffer, it will be overwritten.

Command Response:

0 SBD message successfully written to the 9601. 1 SBD message write timeout. An insufficient number of bytes were

transferred to 9601 during the transfer period of 60 seconds.

2 SBD message checksum sent from DTE does not match the checksum

calculated at the 9601.

3 SBD message size is not correct. The maximum mobile originated SBD

message length is 205 bytes. The minimum mobile originated SBD message length is 1 byte.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.30 +SBDRB –Short Burst Data: Read Binary Data from the Module

Exec Command: +SBDRB

This command is used to transfer a binary SBD message from the single mobile terminated buffer in the 9601 to the DTE. The mobile terminated buffer can contain only one message at any one time.

 The SBD message is transferred formatted as follows:

{2-byte message length} + {binary SBD message} + {2-byte checksum}

 The {2-byte message length} field represents the length, in bytes, of the SBD

message not including the length field or the mandatory two-byte checksum. The high order byte will be sent first.

 The maximum mobile terminated SBD message length is length is specified at

135 bytes (and may be increased following actual performance testing).

 The checksum is the least significant 2-bytes of the summation of the entire SBD

message. The high order byte will be sent first. For example if the 9601 were to

send the word “hello” encoded in ASCII to the DTE the binary stream would be

hex 00 05 68 65 6c 6c 6f 02 14.

 If there is no mobile terminated SBD message waiting to be retrieved from the

9601, the message length and checksum fields will be zero.

 The mobile terminated message buffer will be empty upon power-up.

Command Response:

There are no response codes generated by the 9601 for this command.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.31 +SBDWT –Short Burst Data: Write a Text Message to the Module

Exec Command: +SBDWT[=<text message>]

This command is used to transfer a text SBD message from the DTE to the single mobile originated buffer in the 9601.

The text message may be entered on the command line:

 For example, “AT+SBDWT=hello”.  The length of <text message> is limited to 120 characters. This is due to the length limit

on the AT command line interface.  The message is terminated when a carriage return is entered. Alternatively, the text message may be entered separately:

 Upon entering the command “AT+SBDWT”, the 9601 will indicate to the DTE that it is

prepared to receive the message by sending the string “READY<CR><LF>” (hex 52 45

41 44 59 0D 0A) to the DTE.  Once the DTE receives the READY indication, the text message must be sent,

terminated by a carriage return.  The length of the text message entered in this way is limited only by maximum

mobile-originated SBD message length of 205 bytes.

 The mobile originated buffer will be empty upon power-up.  If any data is currently in the mobile originated buffer, it will be overwritten.

Command Response:

For the “AT+SBDWT” form:

0 SBD message successfully written to the 9601. 1 SBD message write timeout. An insufficient number of bytes were

transferred to 9601 during the transfer period of 60 seconds.

For the “AT+SBDWT=<text message>” form:

OK: SBD message successfully stored in mobile originated buffer. ERROR: An error occurred storing SBD message in mobile originated buffer.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.32 +SBDRT –Short Burst Data: Read a Text Message from the Module

Exec Command: +SBDRT

This command is used to transfer a text SBD message from the single mobile terminated buffer in the 9601 to the DTE. This command is similar to +SBDRB but does not provide a length indicator or checksum. The intent of this command is to provide a human friendly interface to SBD for demonstrations and application development. It is expected that most usage of SBD will be with binary messages.

 Once the command is entered, the SBD message in the mobile terminated buffer is

sent out of the port.

 This command is similar to +SBDRB except no length or checksum will be provided.  The maximum mobile terminated SBD message length is 135 bytes.  The mobile terminated message buffer will be empty upon power-up.

Command Response:

+SBDRT:<CR> {mobile terminated buffer}

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.33 +SBDI –Short Burst Data: Initiate an SBD Session

Note: The +SBDI command is provided for backwards compatibility with existing FAs which do not use SBD Automatic Notification functionality. For SBD calls invoked with this command:

 The SBD Session Type is fixed at type 0 –MO call.  The SBD Delivery Short Code will be the value specified by the +SBDDSC command.  The Detach/Attach flag is fixed at the Detach setting.  The Location Update flag is fixed at the No Update setting.

FAs requiring SBD Automatic Notification functionality should use the extended +SBDIX command.

Exec Command: +SBDI

This command initiates an SBD session between the 9601 and the GSS. If there is a message in the mobile originated buffer it will be transferred to the GSS. Similarly if there is one or more messages queued at the GSS the oldest will be transferred to the 9601 and placed into the mobile terminated buffer.

 The message, if any, in the mobile originated buffer will be sent from the 9601 to the

GSS.  If there is a message queued at the GSS it will be transferred to the 9601 and placed

into the mobile terminated buffer.

Command Response:

+SBDI:<MO status>,<MOMSN>,<MT status>,<MTMSN>,<MT length>,<MT queued>

where:

<MO status>:

MO session status provides an indication of the disposition of the mobile originated transaction. The field can take on the following values:

0 No SBD message to send from the 9601. 1 SBD message successfully sent from the 9601 to the GSS. 2 An error occurred while attempting to send SBD message from 9601 to

GSS.

<MOMSN>:

The Mobile Originated Message Sequence Number (MOMSN) is a value assigned by the 9601 when sending a mobile-originated message to the GSS. This value is incremented each time an SBD session is successfully completed between the 9601 to the GSS. This wrap around counter can range from 0 to 65535.

<MT status>:

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

The MT status provides an indication of the disposition of the mobile terminated transaction. The field can take on the following values:

0 No SBD message to receive from the GSS. 1 SBD message successfully received from the GSS. 2 An error occurred while attempting to perform a mailbox check or receive a

message from the GSS.

<MTMSN>:

The Mobile Terminated Message Sequence Number (MTMSN) is assigned by the GSS when forwarding a message to the 9601. This value is indeterminate if the field <MT

status> is zero. This wrap around counter can range from 0 to 65535. <MT length>:

The MT length is the length in bytes of the mobile terminated SBD message received from the GSS. If no message was received, this field will be zero.

<MT queued>:

MT queued is a count of mobile terminated SBD messages waiting at the GSS to be transferred to the 9601.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.34 +SBDDET –Short Burst Data: Detach (new) Exec Command: +SBDDET

Initiates an SBD session to detach the Transceiver from the Gateway.

Command Response:

+SBDDET:<status>,<error>

where:

<status>:

0 Detach successfully performed 1 An error occurred while attempting the detach

<error>:

Gateway-reported values

0 No error.

1..4 Reserved, but indicate success if used.

5..14 Reserved, but indicate failure if used. 15 Access is denied.

Transceiver-reported values

16 Transceiver has been locked and may not make SBD calls (see +CULK

command).

17 Gateway not responding (local session timeout). 18 Connection lost (RF drop).

19..31 Reserved, but indicate failure if used. 32 No network service, unable to initiate call. 33 Antenna fault, unable to initiate call. 34 Radio is disabled, unable to initiate call (see *Rn command). 35 Transceiver is busy, unable to initiate call (typically performing auto-

registration).

36.. Reserved, but indicate failure if used.

This instructs the Gateway to disable (detach) SBD automatic notifications for the calling Transceiver. Successful completion of the detach command implies that the Gateway has performed the requested detach action and the Transceiver is no longer registered. This session does not transfer any MO or MT messages.

Note: A user can send an MO-SBD message and request a detach at the same time by using the +SBDI command. The +SBDI command always requests a detach.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.35 +SBDDSC –Short Burst Data: Delivery Short Code

Set Command: +SBDDSC=<dsc>

Set the Delivery Short Code (DSC), which provides dynamic routing information for uploaded messages. This is an 8-bit value providing the ability to set individual fields. Value 0x80 (hexadecimal) sets the most significant bit. Value 0x01 sets the least significant bit. Flag values can be added together to achieve a combination of settings. Some fields may be “locked” when the Transceiver is in a special mode (e.g. Autoregistration locks the flag values 0x80 and 0x40).

<dsc>:

0..255 DSC to be used for subsequent uploaded messages (0 default) 0x80 Hold MT message delivery 0x40 Leave MT message in queue after delivery 0x20 Destination in MO payload

Read Command: +SBDDSC?

Query the current Delivery Short Code. The response is of the form:

+SBDDSC:<dsc>

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.36 +SBDIX –Short Burst Data: Initiate an SBD Session Extended (new) Note: The +SBDIX command must be used in place of the +SBDI command for FAs

wishing to make use of SBD Automatic Notification functionality.

Exec Command: +SBDIX[A][=<location>]

This command initiates an SBD session between the 9601 and the GSS, setting the SBD Session Type according to the type of command +SBDIX or +SBDIXA, Delivery Short Code according to the value specified by the +SBDDSC command, and the type of location according to whether the optional location value is provided. If there is a message in the mobile originated buffer it will be transferred to the GSS. Similarly if there is one or more messages queued at the GSS the oldest will be transferred to the 9601 and placed into the mobile terminated buffer.

 The message, if any, in the mobile originated buffer will be sent from the 9601 to the

GSS.  If there is a message queued at the GSS it will be transferred to the 9601 and placed

into the mobile terminated buffer.  This command will always attempt an SBD registration, consisting of attach and

location update, during the SBD session in order to support SBD Automatic

Notification. If this is not desired, the +SBDI command should be used.

 The FA should append an ‘A’ to the command, i.e. +SBDIXA, when the SBD session

is in response to a automatic notification.

<location> has format:

[+|-]DDMM.MMM,[+|-]dddmm.mmm

where:

DD Degrees latitude (00-89) MM Minutes latitude (00-59) MMM Thousandths of minutes latitude (000-999) ddd Degrees longitude (000-179) mm Minutes longitude (00-59) mmm Thousandths of minutes longitude (000-999)

The optional sign indicators specify latitude North (+) or South (-), and longitude East (+) or West (-). If omitted, the default is +.

For example,

AT+SBDIX=5212.483,-00007.350

corresponds to 52 degrees 12.483 minutes North, 0 degrees 7.35 minutes West.

Command Response:

+SBDIX:<MO status>,<MOMSN>,<MT status>,<MTMSN>,<MT length>,<MT queued>

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

where:

<MO status>:

MO session status provides an indication of the disposition of the mobile originated transaction. The field can take on the following values:

Gateway-reported values

0 MO message, if any, transferred successfully. 1 MO message, if any, transferred successfully, but the MT message in the

queue was too big to be transferred.

2 MO message, if any, transferred successfully, but the requested Location

Update was not accepted.

3..4 Reserved, but indicate MO session success if used.

5..8 Reserved, but indicate MO session failure if used. 10 Gateway reported that the call did not complete in the allowed time. 11 MO message queue at the Gateway is full. 12 MO message has too many segments. 13 Gateway reported that the session did not complete. 14 Invalid segment size. 15 Access is denied.

Transceiver-reported values

16 Transceiver has been locked and may not make SBD calls (see +CULK

command).

17 Gateway not responding (local session timeout). 18 Connection lost (RF drop).

19..31 Reserved, but indicate MO session failure if used. 32 No network service, unable to initiate call. 33 Antenna fault, unable to initiate call. 34 Radio is disabled, unable to initiate call (see *Rn command). 35 Transceiver is busy, unable to initiate call (typically performing auto-

registration).

36.. Reserved, but indicate failure if used.

<MOMSN>:

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

<MT status>:

The MT status provides an indication of the disposition of the mobile terminated transaction. The field can take on the following values:

0 No MT SBD message to receive from the Gateway. 1 MT SBD message successfully received from the Gateway. 2 An error occurred while attempting to perform a mailbox check or receive a

message from the Gateway.

<MTMSN>:

The Mobile Terminated Message Sequence Number (MTMSN) is assigned by the GSS when forwarding a message to the 9601. This value is indeterminate if the field <MT

status> is zero. This wrap around counter can range from 0 to 65535. <MT length>:

The MT length is the length in bytes of the mobile terminated SBD message received from the GSS. If no message was received, this field will be zero.

<MT queued>:

MT queued is a count of mobile terminated SBD messages waiting at the GSS to be transferred to the 9601.

2.37 +SBDMTA –Short Burst Data: Mobile-Terminated Alert (new) Set Command: +SBDMTA=<mode>

Enable or disable ring indications for SBD Automatic Notifications.

<mode>:

0 Disable ring indication 1 Enable ring indication (default)

When ring indication is enabled, the 9601 asserts the RI line and issues the unsolicited result code SBDRING when an SBD automatic notification is received.

Read Command: +SBDMTA?

Query the current ring indication mode. The response is of the form:

+SBDMTA:<mode>

Test Command: +SBDMTA=?

List the supported mode settings. The response is of the form:

+SBDMTA:(supported <mode> settings)

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.38 +SBDREG –Short Burst Data: Network Registration (new) Exec Command: +SBDREG[=<location>]

Triggers an SBD session to perform a manual SBD registration. This command initiates an SBD session to perform a manual SBD registration,

consisting of an attach and location update. The session type will be set to 2 – registration. This session does not transfer any MO or MT messages.

Note: The Transceiver restricts the number of manual and automatic registrations to one every 3 minutes. Successive attempts within 3 minutes will return an error code indicating that the FA should try later (see error 36 below).

Note: A user can send an MO SBD message and register at the same time by using the +SBDIX command. The +SBDIX command always performs a registration attempt and should be used for an application requiring SBD Automatic Notification. The +SBDI command never includes an SBD registration and should be used for an application that does not require SBD Automatic Notification.

<location> has format:

[+|-]DDMM.MMM,[+|-]dddmm.mmm

where:

The optional sign indicators specify latitude North (+) or South (-), and longitude East (+) or West (-). If omitted, the default is +.

For example,

AT+SBDIX=5212.483,-00007.350

corresponds to 52 degrees 12.483 minutes North, 0 degrees 7.35 minutes West.

Command Response:

+SBDREG:<status>,<reg err>

where:

<status> indicates the resulting registration status of the Transceiver:

0 Detached –Transceiver is detached as a result of a successful +SBDDET

or +SBDI command.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

1 Not registered –Transceiver is attached but has not provided a good

location since it was last detached.

2 Registered –Transceiver is attached with a good location. Note that this

may be the case even when the most recent attempt did not provide a good location.

3 Registration denied –The gateway is denying service to the Transceiver.

<reg err>:

Gateway-reported values

0 No error. 2 Session completed but the requested Location Update was not accepted.

3..14 Reserved, but indicate Location Update failure if used. 15 Access is denied.

Transceiver-reported values

16 Transceiver has been locked and may not make SBD calls (see +CULK

command).

17 Gateway not responding (local session timeout). 18 Connection lost (RF drop).

registration).

36 Try later, must wait 3 minutes since last registration.

37.. Reserved, but indicate failure if used.

Read Command: +SBDREG?

Query the current SBD registration status of the Transceiver. The response is of the form:

+SBDREG:<status>

<status>:

0 Detached 1 Not registered 2 Registered 3 Registration denied

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

4 Unknown

The registration status is stored in Transceiver non-volatile memory, and can therefore be queried by the FA after powering up.

2.39 +SBDAREG –Short Burst Data: Automatic Registration (new) Set Command: +SBDAREG=<mode>

Set the Transceiver’s Auto-registration mode.

<mode>:

0 Disable automatic registration (default) 1 Set the Auto-registration mode to “Automatic” 2 Set the Auto-registration mode to “Ask”

When auto-registration is enabled, mode 1 or 2, the Transceiver monitors its current location and triggers an auto-registration when it determines that the Transceiver has moved sufficiently far away from its last registered location. Note that auto-registration runs only while the Transceiver is attached to the gateway, i.e. the registration status is

“Not registered” or “Registered”.

Auto-registration may only be used with system-provided location. If the FA is providing its own location (e.g. GPS), the FA should use the manual registration command,

+SBDREG.

Upon triggering in mode 1, “Automatic”, the Transceiver autonomously initiates an SBD session in order to perform a registration with the updated location of the Transceiver, with the session type set to 3 –auto-registration. This session does not transfer any MO or MT messages.

Upon triggering in mode 2, “Ask”, the Transceiver reports to the FA that it should register with the system because the Transceiver location has changed (see <event> below); it is then the responsibility of the FA to register via +SBDREG or +SBDIX. +SBDIX allows the FA to register while including an MO message and/or retrieving an MT message that is pending at the Gateway.

When auto-registration is enabled, mode 1 or 2, the Transceiver reports relevant events to the FA by issuing an unsolicited result code +AREG:<event>,<reg error>.

<event>:

0 Suggest FA makes a registration attempt (mode 2 only) 1 Auto-registration has been performed successfully (mode 1 only) 2 Auto-registration has failed and will be retried after a delay (mode 1 only)

<reg error>:

Gateway-reported values

0 No error.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2 Session completed but the requested Location Update was not accepted.

3..14 Reserved, but indicate Location Update failure if used. 15 Access is denied.

Transceiver-reported values

16 Transceiver has been locked and may not make SBD calls (see +CULK

command).

17 Gateway not responding (local session timeout). 18 Connection lost (RF drop).

registration).

36 Try later, must wait 3 minutes since last registration.

37.. Reserved, but indicate failure if used.

Read Command: +SBDAREG?

Query the current automatic MT registration mode. The response is of the form:

+SBDAREG:<mode>

Test Command: +SBDAREG=?

List the supported mode settings. The response is of the form:

+SBDAREG:(supported <mode> settings)

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.40 +SBDD –Short Burst Data: Clear SBD Message Buffer(s)

Exec Command: +SBDD<Delete type>

This command is used to clear the mobile originated buffer, mobile terminated buffer or both.

 The <Delete type> parameter identifies which buffers are cleared.

0 Clear the mobile originated buffer. 1 Clear the mobile terminated buffer. 2 Clear both the mobile originated and mobile terminated buffers.

 Using this command or power cycling the 9601 are the only means by which both

buffers are cleared.

 The mobile terminated buffer will be cleared when an SBD session is initiated.  Sending a message from the 9601 to the ESS does not clear the mobile originated

buffer.  Reading a message from the 9601 does not clear the mobile terminated buffer.

Command Response:

0 Buffer(s) cleared successfully. 1 An error occurred while clearing the buffer(s).

2.41 +SBDC –Short Burst Data: Clear SBD MOMSN

Exec Command: +SBDC

This command will clear (set to 0) the mobile originated message sequence number (MOMSN) stored in the 9601.

 The MOMSN is maintained even after power cycle.

Command Response:

0 The MOMSN was cleared successfully. 1 An error occurred while clearing the MOMSN.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.42 +SBDS –Short Burst Data: Status

Exec Command: +SBDS

This command returns current state of the mobile originated and mobile terminated buffers.

Command Response:

+SBDS:<MO flag>,<MOMSN>,<MT flag>,<MTMSN>

where:

<MO flag>:

The MO flag indicates the existence of a message in the mobile originated buffer. The response from the 9601 is one of the following numeric codes:

0 No message in mobile originated buffer 1 Message in mobile originated buffer

<MOMSN>:

The MOMSN identifies the sequence number that will be used during the next mobile originated SBD session.

<MT Flag>:

The MT flag indicates the existence of a message in the mobile terminated buffer. The response from the 9601 is one of the following numeric codes:

0 No message in mobile terminated buffer 1 Message in mobile terminated buffer

<MTMSN>:

The MTMSN identifies the sequence number that was used in the most recent mobile terminated SBD session. This value will be –1 if there is nothing in the mobile terminated buffer.

2.43 +SBDTC –Short Burst Data: Transfer MO Buffer to MT Buffer

Exec Command: +SBDTC

This command will transfer the contents of the mobile originated buffer to the mobile terminated buffer. Developers of DTE can use this command to test reading and writing to the 9601 without actually initiating SBD sessions with the ESS.

Command Response:

The command produces a response of the form “SBDTC: Outbound SBD copied to Inbound

SBD: size = <size>” followed by “OK”, where: <size>:

The length of the message in bytes.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

2.44 -MSSTM –Request System Time

Exec Command: -MSSTM

Query the latest system time received from the network. The response is the form:

-MSSTM:<system_time>

<system_time> can take one of the following forms:

no network service The 9601 has not yet received system time from the network. XXXXXXX Where XXXXXXXX is the current Iridium system time available

from the network. The system time as received through the Iridium Air Interface, is a 32 bit integer count of the number of 90 millisecond intervals that have elapsed since the epoch. The return value is formatted as an ASCII hexadecimal number. The counter will rollover approximately every 12 years.

Iridium system time epoch: June 1, 1996, 00:00:13 (GMT):

Iridium system time source: The system time is available and valid only after the 9601 has registered with the network and has received the Iridium system time from the network. Once the time is received, the 9601 uses its internal clock to increment the counter. In addition, at least every 8 hours, or on location update or other event that requires re-registration, the 9601 will obtain a new system time from the network.

Time localization: None. The system time value is always expressed in GMT time. Resolution and accuracy: The resolution of the system time is one Iridium frame tick, or

90 ms. Accuracy as measured by the difference between the time reported and the actual time it is sent out the 9601 serial port should not exceed 4 frame ticks (.36 seconds) and in most cases will be one frame tick (.09 seconds) or less.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

3 S-Register Definitions

S-registers allow control over specific 9601 operations. Some S-registers contain a single numeric value, other S-registers are bit-mapped where individual bits, or set of bits, control specific functions.

Table 1 defines the S-registers used for 9601 Transceiver. Many of the 9522A Transceiver S-registers are obsolete for 9601 Transceiver, and 9601 Transceiver requires some new S-registers. To prevent reallocation of obsolete S-registers, they are reserved and shaded out in the table, and the new S-registers are registers that are unused in 9522A Transceiver and are marked as “new for 9601 Transceiver”.

All S-registers, from S0 to S127, are readable. All write permissions remain unchanged from 9522A Transceiver, even where a writable register is not used in 9601 Transceiver. Writable registers are highlighted in the “Sr=n writable?” column. An FA could use the unused writable S-registers to store application-specific data.

The final column in the table indicates which S-registers are stored in non-volatile memory as part of a user profile; the 9601 can be reset to a stored profile using the Zn command.

3.1 S-Register Commands

Commands allow S-registers to be read, written, or simply referenced (i.e. set a pointer to designate the current, referenced S-register). S-register commands are described in the following subsections.

3.1.1 Sr –Direct S-Register Reference

Set a pointer to reference S-register r.

3.1.2 Sr? –Direct S-Register Read

Read the value of S-register r.

3.1.3 Sr=n –Direct S-Register Write

Set the value of S-register r to n, where n is a decimal value in the range 0 to 255.

3.1.4 ? –Referenced S-Register Read

Read the value of the current referenced S-register. The current referenced S-register is that which was last acted upon by a direct reference (ATSr), read (ATSr?), or write (ATSr=n) command.

3.1.5 =n –Referenced S-Register Write

Set the value of the current referenced S-register to n. The current referenced S-register is that which was last acted upon by a direct reference (ATSr), read (ATSr?), or write (ATSr=n) command.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC

writable?

Setting?

9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

3.2 S-Registers Table 1: 9601 Transceiver S-Registers

Description

Range

Default

Sr=n

Profile

S0 0-255 0 Autoanswer. Assigning a value from 1 to

255 in register S0 tells the ISU to automatically answer incoming calls. The factory setting of 0 turns off the

automatic answer feature. S1 0-255 0 Ring count S2 0-255 43 Escape code character S3 0-127 13 Carriage return character S4 0-127 10 Line feed character S5 0-32 8 Backspace character S6 0-255 4 Wait for dial-tone. S7 0-255 50 Communication standard used by ISU S8 0-255 4 Pause time for comma. S9 0-255 6 Carrier detect response time. S10 0-255 14 Carrier loss time. S11 0-255 0 DTMF tone duration.

 



 



 



S12 0-255 50 Escape guard time. Time, in 50ths of a

 

second, until OK displayed after

entering command mode by escape

sequence S13 0-255 49 Bitmap register:



bits 0-1: DCE data bits

bits 2-3: DCE stop bits

bits 4-6: DCE parity setting S14 0-255 170 Bitmap register:

 

bit 1: En setting (echo)

bit 2: Qn setting (quiet)

bit 3: Vn setting (verbose)

bit 5: Pulse/tone dial mode

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC

writable?

Setting?

9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Description

Range

Default

Sr=n

Profile

S21 0-255 48 Bitmap register:

bit 0: Telephone jack control

bit 2: RTS/CTS on/off

bits 3-4: &Dn setting (DTR operation)

bit 5: &Cn setting

bit 6: Disconnecting long space S22 0-255 246 Bitmap register:

bits 0-1: speaker volume setting

bits 2-3: speaker on/off setting

bits 4-6: Xn setting S23 0-255 61 Bitmap register:

bits 1-4: +IPR setting (DTE baud rate)

bits 6-7: guard tone S25 0-255 5 Sets length of time in hundredths of a

second that a change in the DTR status

has to persist for before it is recognized. S27 0-255 9 Bitmap register:

bits 0-2: &Qn setting

bit 3: leased line operation setting

bits 4-5: synchronous clock setting



 



S28 0-255 0 Bitmap register:

bits 3-4: &Pn setting (pulse dial

make/break ratio) S30 0-255 0 Disconnect activity timer. Timer used to

determine how long the call connection

been inactive, in increments of

1/10000ms. A value of 0 disables this

function. S31 0-255 0 Bitmap register:

bit 1: line modulation method setting

bits 2-3: Wn setting

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

 



Iridium Satellite LLC

writable?

Setting?

9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Description

Range

Default

Sr=n

Profile

S34 0-255 0 Bitmap register:

bits 0-1: data compression type (PT)

bit 6: +DS compression negotiation

setting

bit 7: +DR setting S35 0-255 7 Bearer service capabilities S36 0-255 0 Bitmap register:

bits 0-2: link type setting S37 0-255 0 Bitmap register:

bits 0-4: Fn setting (line modulation

standard) S39 0-255 3 Bitmap register:

bits 0-2: &Kn setting (flow control) S40 0-255 104 Bitmap register:

bits 2-4: \K setting

bits 3-5: \Kn setting

bits 6-7: \An setting S41 0-255 0 Bitmap registers:

bits 2, 6: enable retrain on bad signal

quality setting

bit 4: xon/xoff usage setting

bit 5: DTE auto rate adjustment setting



 



S42 0-255 16 GSM Call clearing code as returned by



the network. Refer to GSM 04.08 Table

10.86 Cause Information Element

Values. S43 0-255 32 Bitmap register:



bit 0: +CMGF setting

bit 1: +CBST parameter <name> setting

bit 2: +CMEE setting

bit 3: +CMEE setting

bit 5: +CBST parameter <ce> setting

bit 6: +CRC setting

bit 7: +CR setting

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC

writable?

Setting?

9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Description

Range

Default

Sr=n

S44 0-255 4 Bitmap register:

bits 0-2: +CPBS setting

bits 5-6: +CREG setting

bit 7: reserved S45 0-255 0 Bitmap register:

bits 0-1: +CNMI parameter <mode>

setting

bits 2-3: +CNMI parameter <mt> setting

bits 4-5: +CNMI parameter <bm> setting

bits 6-7: +CNMI parameter <ds> setting

Profile

S47 0-255 0 Bitmap register:

bits 4-6: TON settings for dial string S49 0-255 1 Bitmap register:

bits 0-3: NPI settings for dial string S51 0-255 2 V.42bis maximum codewords (P1), high

byte S52 0-255 0 V.42bis maximum codewords (P1), low

byte S54 0-255 6 V.42bis maximum string size (P2) S58 0-255 3 V.42 bis compression direction (P0) S95 0-255 0 Bitmap register for extended result

codes (overrides Wn setting):

bit 0: CONNECT shows DCE speed

bit 2: Enable CARRIER XXXX

bit 3: Enable PROTOCOL: XXXX

bit 5: Enable COMPRESSION: XXXX S96 0-255 0 IRLP version number (N0) parameter S98 1-105 105 IRLP k iwf->isu parameter

 



 



S99 1-105 105 IRLP k isu->iwf parameter S1001-15 15 IRLP N2 parameter

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice



Iridium Satellite LLC

writable?

Setting?

9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Description

Range

Default

Sr=n

Profile

S10226-255 30 IRLP T1 parameter

S10310-255 10 IRLP T2 parameter

S1044-255 25 IRLP T4 parameter

S1061-10 10 IRLP riwf->isu parameter

S1071-10 10 IRLP risu->iwf parameter

S1100-1 0 SBM max segment size (40-310) (high

byte) S1110-255 135 SBM max segment size (40-310) (low

byte) S1120-255 0 SBD upload message sequence number

(high byte) S1130-255 0 SBD upload message sequence number

(low byte)



S1210-15 1 New for 9601 Transceiver

Bitmap register:

bit 0: +SBDMTA setting (ring indication)

bit 1-2: +SBDAREG setting (automatic

registration) S1220-31 1 New for 9601 Transceiver

Bitmap register:

bit 0: *R setting (radio activity)

bits 1-4: +CIER setting (indicator event

reporting)

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice



Iridium Satellite LLC

writable?

Setting?

9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Description

Range

Default

Sr=n

S1230-255 8 Bitmap register:

bit 1: +WTM

bit 2: +WDLDM<dldm>

bit 3: +WIRLP<mode>

bits 4-5: +WFRNG

Profile

S1240-255 15 Dynamic link measurement interval

(+WDLM <mi> setting). Value in 1000 ms

unit S1251-100 10 Dynamic link delay measurement delay

tolerance (+WDLM<dtl> setting). Value in

% unit S1260-255 2 Bitmap register:

bit 0: Ignore &Dn command specified

reaction to DTR ON to OFF transitions.

Disconnect as reaction to Hn command.

OK response given

bit 1: Ignore &Dn command specified

reaction to DTR ON to OFF transitions.

Ignore Hn command. OK response given

bit 2: Comply with &Dn command

specified reaction to DTR ON to OFF

transitions. Disconnect as reaction to Hn

command. S1270-255 0 Bitmap Register containing copies of

MSVTR/MSVLS parameters:

Bit 0: -MSVTR: 0 = Disabled (default) 1 =

Enabled

Bit 1: -MSVLS: 0 = No Mute (default) 1 =

Mute Enabled



Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

4 Summary of Result Codes

Table 2: Result codes Numeric (V0) Verbose (V1) Description

0 ‘OK’ Acknowledges execution of command 2 ‘SBDRING’ MT messages present at gateway

(unsolicited if enabled). See section

2.34 4 ‘ERROR’ Command not accepted 127 ‘HARDWARE FAILURE:

<subsys>,<error>’

Issued at initialisation in case of a hardware failure.

as verbose ‘READY’ Ready to receive binary message data

from DTE

as verbose ‘+AREG: <event>,<reg

error>’

Auto-registration event report. See section 2.39

as verbose ‘+CIEV: <sig>,<value>’ Indicator event report (unsolicited if

enabled). See section 2.21

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

5 Informative Examples

5.1 Setting the Default Configuration

The FA sets the Transceiver’s default configuration to no handshaking, no flow control, radio enabled, SBD automatic notifications enabled.

To Transceiver (from FA)

AT&K0

AT*R1

AT+SBDMTA=1

AT&W0

AT&Y0

To FA (from Transceiver) Description

Disable RTS/CTS flow control

Enable the radio

Enable SBD ring indications

Store the configuration as profile 0

Select profile 0 as the power-up default

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

5.2 Power-on to Sending a Message

The FA will power up the Transceiver, wait for the Transceiver to acquire the network, and send a 70-byte message.

To Transceiver (from FA)

AT+CIER=1,0,1,0

AT+SBDWB=70

AT+SBDIX

AT+SBDD0

To FA (from Transceiver) Description

Apply power to the 9601 Wait for DSR to become asserted Enable service indication reporting (note

that this can be stored in the default

configuration)

+CIEV: 1,1 Wait for the 9601 to acquire the network

Transfer message to 9601

READY

Perform SBD session

+SBDIX: 0,23,0,-1,0,0

Clear the MO message buffer

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

5.3 Automatic Notification Registration

The FA verifies its registration state, performs a registration in order to be able to receive automatic notifications, and enables automatic notification indications.

To Transceiver

To FA (from Transceiver) Description

(from FA)

AT+SBDREG? Query the Transceiver registration status

+SBDREG:0 Transceiver is detached, i.e. un-registered

AT+SBDREG Tell the Transceiver to register for

automatic notifications

+SBDREG:2,0 Transceiver is now registered

AT+SBDREG? Query the Transceiver registration status

+SBDREG:2 Transceiver is registered

AT+SBDMTA=1

Enable SBD ring indications from Transceiver to FA

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

5.4 Automatic Notification Message Reception

The FA verifies its registration state. Upon receiving a automatic notification the FA initiates an SBD session to receive an MT message.

To Transceiver

To FA (from Transceiver) Description

(from FA)

AT+SBDREG? Query the Transceiver registration status

+SBDREG:2 Transceiver is registered … Vendor application sends an MT message

to the GSS

+SBDRING Transceiver indicates an incoming

message. The RI line also toggles.

AT+SBDIXA FA initiates an SBD session in answer to

the automatic notification

+SBDIXA:0,23,1,237,90,2 Transceiver informs FA that a 90-byte

message was successfully received with MTMSN 237, and that two further MT messages are queued at the GSS

AT+SBDRB

FA retrieves the received message from the Transceiver

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

5.5 Automatic Notification Automatic Registration

The FA verifies its registration state and enables automatic registration using the “Ask”

mode.

To Transceiver

To FA (from Transceiver) Description

(from FA)

AT+SBDREG? Query the Transceiver registration status

+SBDREG:2 Transceiver is registered

AT+SBDAREG=2

FA sets the automatic registration to “Ask”

mode

OK … Transceiver is moved +AREG:0,0 Transceiver notifies FA that it needs to

AT+SBDREG FA instructs the Transceiver to register

+SBDREG:2,0 Registration is successful

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

5.6 Sending a Message with Minimal Radio Activity

Assuming that service indication events have been turned on with AT+CIER=1,0,1, and the radio has been disabled with AT*R0.

To Transceiver (from FA)

AT+SBDWB=70

AT*R1

AT+SBDI

AT*R0

AT+SBDD0

To FA (from Transceiver) Description

Transfer message to 9601

READY

Activate the radio and wait for the Transceiver to acquire the network

OK +CIEV:1,1 Transceiver has acquired the network

Perform SBD session

+SBDI: 0,23,0,-1,0,0

Deactivate the radio

Clear the MO message buffer

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

5.7 Powering Down

The FA flushes any pending Eeprom writes before powering down the Transceiver.

To Transceiver

To FA (from Transceiver) Description

(from FA)

AT*F

FA tells Transceiver to flush pending writes to Eeprom and waits for completion

<binary transfer> FA may now safely disconnect the

Transceiver power supply.

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

6 Table of AT Command Changes

Table 3 shows which 9522A Transceiver AT commands are modified or removed, and which AT commands are new for 9601 Transceiver. Removed commands are shaded.

Table 3: Changes to AT commands

Command Description

New

Modified

AT A/ +++ A Bn Cn D En Fn Hn In Ln Mn Nn On

Attention code Repeat last command Escape sequence Answer Communication standards Carrier control Dial Echo Line modulation Hangup Identification Loudspeaker volume Speaker control Automode enable Online

P Qn T Vn Wn Xn Yn Zn

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Pulse dial Quiet mode Tone dial Verbose mode Error correction message control Extended result codes Long space disconnect Soft reset

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Command Description

Modified

New

&Cn &Dn &Fn &Gn &Jn &Kn &Ln &Mn &Pn &Qn &Rn &Sn &V &Wn &Xn

DCD option DTR option Restore factory settings Guard tone Jack control Flow control Leased line operation Asynchronous/synchronous mode Pulse dial make/break ratio Sync/async mode RTS/CTS option DSR override View active and stored configuration Store active configuration Select asynchronous clock



&Yn \An \Bn \Gn \Jn \Kn \Nn %Cn %En %R *F *Pn *Rn

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Designate default reset profile MNP block size Transmit break XON/XOFF flow control DTE auto rate Control break Link type Compression control Auto retrain Display registers Flush to eeprom Power phone Radio activity



Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Command Description

Modified

New

+CBC +CBST +CCFC +CCLK +CEER +CGMI +CGMM +CGMR +CGSN +CHUP +CIER +CLCC +CLCK +CLVL +CMEE

Battery charge Select bearer service type Call forward service Real-time clock Extended error report Manufacturer identification Model identification Revision Serial number Hangup call Indicator event reporting Request current call status Facility lock Loudspeaker volume level control Report mobile equipment error



+CMGD +CMGF +CMGL +CMGR +CMGS +CMGW +CMOD +CMUT +CNMI +CNUM +COPS +CPAS +CPBF

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Delete SMS message SMS message format List SMS messages Read SMS message Send SMS message Write SMS message to memory Call mode Mute control New SMS message indications to DTE Read MSISDN numbers Operator select Phone activity status Find phonebook entries

Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Command Description

Modified

New

+CPBR +CPBS +CPBW +CPIN +CPMS +CPWD +CR +CRC +CREG +CSCA +CSCB +CSCS +CSMS +CSQ +CSTA

Read phonebook entries Select phonebook storage Write phonebook entry Enter PIN Select preferred SMS message storage Change password Service reporting control Cellular result codes Network registration SMS service center address Select cell broadcast message types Select TE character set Select SMS message service Signal quality Select type of address

+CULK +CVHU +DR +DS +GCAP +GMI +GMM +GMR +GSN +IPR +SBDAREG +SBDC +SBDD

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

Unlock Voice hangup control Data compression report level Set data compression function General capabilities Manufacture identification Model identification Revision Serial number Fixed DTE rate Short burst data: Automatic registration Short burst data: Clear SBD MOMSN Short burst data: Clear SBD message buffers



Iridium Satellite LLC 9601 SBD Transceiver Preliminary Product Developers Guide Appendix A –AT Command Reference

V1.24 120505

Command Description

Modified

New

+SBDDET +SBDDSC +SBDI +SBDIX

+SBDIXA

+SBDMTA +SBDRB +SBDREG +SBDRT

+SBDS +SBDTC +SBDWB +SBDWT

Short burst data: Detach Short burst data: Delivery short code Short burst data: Initiate an SBD session Short burst data: Initiate an SBD session

extended Short burst data: Initiate an SBD session

extended Short burst data: Mobile-terminated alert Short burst data: Read binary data from ISU Short burst data: Automatic registration Short burst data: Read a text message from the

ISU Short burst data: Status Short burst data: Transfer MO buffer to MT buffer Short burst data: Write binary data to the ISU Short burst data: Write a text message to the ISU



+SBDZ +WDAV

Short burst data: Segment size Register or deregister an RS232 DAV data

peripheral

+WDLDM +WFRNG +WIRLP +WTM

-MSGEO

-MSSTM

-MSVLS

-MSVTR

-MSVTS

Iridium Satellite LLC Proprietary & Confidential Information Information contained herein is subject to change without further notice

IRLP dynamic link delay measurement Force IRLP renegotiation Iridium radio link protocol IRLP test mode Request geolocation Request system time Local DTMF feedback selection DTMF received in voice call DTMF generation in voice call

Iridium 9601 Product Developer Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
