Iridium 9505 User Manual

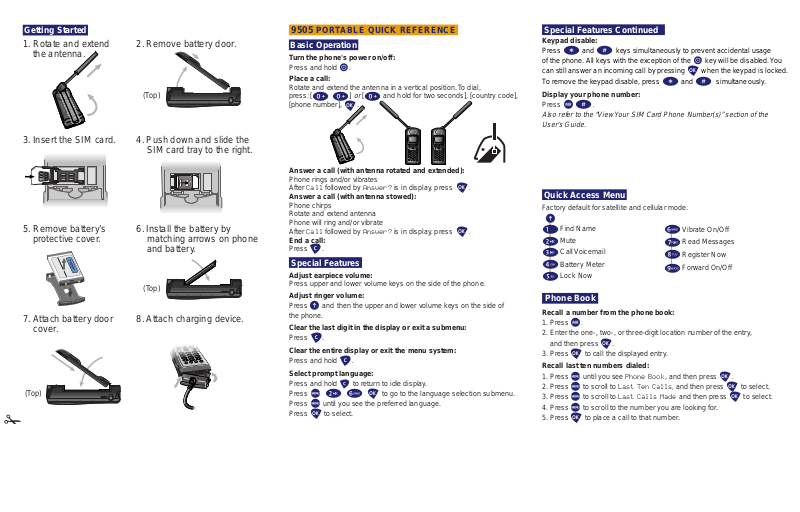

Getting Started
1. Rotate and extend the antenna.
3. Insert the SIM card.
5. Remove battery’s protective cover.
7. Attach battery door cover.
(Top)
2. Remove battery door.
(Top)
4. Push down and slide the SIM card tray to the right.
6. Install the battery by matching arrows on phone and battery.
(Top)
8. Attach charging device.
9505 PORTABLE QUICK REFERENCE
Basic Operation
Turn the phone's power on/off:
Press and hold
Place a call:
Rotate and extend the antenna in a vertical position. To dial, press: [ [phone number], O.
Answer a call (with antenna rotated and extended):
Phone rings and/or vibrates After Call followed by Answer? is in display, press O.
Answer a call (with antenna stowed):
Phone chirps Rotate and extend antenna Phone will ring and/or vibrate After Call followed by Answer? is in display, press O.
End a call:
Press
S.
] or [0 and hold for two seconds], [country code],
0 0
C.
Special Features
Adjust earpiece volume:
Press upper and lower volume keys on the side of the phone.
Adjust ringer volume:
E and then the upper and lower volume keys on the side of
Press the phone.
Clear the last digit in the display or exit a submenu:
Press
C.
Clear the entire display or exit the menu system:
Press and hold C.
Select prompt language:
Press and hold Press M 2 6 O to go to the language selection submenu. Press M until you see the preferred language. Press O to select.
C to return to idle display.
Special Features Continued
Keypad disable:
Press * and # keys simultaneously to prevent accidental usage of the phone. All keys with the exception of the S key will be disabled. You can still answer an incoming call by pressing To remove the keypad disable, press * and # simultaneously.
Display your phone number:
Press Q #.
Also refer to the “View Your SIM Card Phone Number(s)” section of the User’s Guide.
O when the keypad is locked.
Quick Access Menu
Factory default for satellite and cellular mode.
E
1 2
3 4 5
Find Name Mute Call Voicemail Battery Meter Lock Now
Vibrate On/Off
6
Read Messages
7
Register Now
8
Forward On/Off
9
Phone Book
Recall a number from the phone book:
1. Press Q.
2. Enter the one-, two-, or three-digit location number of the entry,
and then press O.
3. Press O to call the displayed entry.
Recall last ten numbers dialed:
1. Press M until you see Phone Book, and then press O.
2. Press M to scroll to Last Ten Calls, and then press O to select.
3. Press M to scroll to Last Calls Made and then press O to select.
4. Press M to scroll to the number you are looking for.
5. Press O to place a call to that number.
