9501 P ager User’s Guide
Your pager will incorrectly indicate
missed messages when it receives a
retransmitted message if your ne west
message has a sequence number that is
8, or more, numbers greater than the
original sequence number of the
retransmitted message.
For e xample , if y our new est message is
sequence number 16 and you receiv e a
retransmitted message with a sequence
number of 4, your pager will indicate
missed messages.
See page 25 for more information about
missed messages.
6881031B15-O PMR831B15-O1
Table of Contents
Introduction ................................................................... 1
About This User’s Guide ..............................................1
Satellite Messaging Overview ...................................... 2
Exciting Satellite Receiver Technology ........................2
Receiving Satellite Signals ..........................................2
Wearing Your Pager ....................................................5
Message Delivery Areas (MDAs) .................................5
Motorola Satellite Series Products ...............................6
OPTIMAX™ EL Display ................................................. 6
Control Buttons ............................................................. 7
Turning Your Pager On ..................................................7
Main Menu ..................................................................... 8
Reading Messages ........................................................ 9
News and Information Messages ..............................10
Reading Information Messages ................................. 11
Deleting Messages ...................................................... 11
Setting the Time and Date .......................................... 12
Setting the Alert Mode ................................................13
Setting Alarms ............................................................. 15
Setting Quiet Time ....................................................... 16
Turning Your Pager Off ............................................... 18
Your Folder .................................................................. 18
Moving Messages to Your Folder .............................. 19
Reading Messages in Your Folder ............................19
Deleting Messages from Your Folder ........................19
Your PhoneBook ......................................................... 20
Permanent PhoneBook Entries .................................20
Moving Messages to Your PhoneBook ......................20
Viewing Messages in your PhoneBook .....................21
Deleting PhoneBook Messages .................................21
PhoneBook Lookup ...................................................22
Downloading an Address Book ..................................22
i
More Features ..............................................................24
Automatic Alert Reset .................................................24
Automatic Message Deletion ......................................24
Errored Message Indicator .........................................24
Missed Message Segment .........................................25
Missed Message Indicator ..........................................25
Truncated Message Indicator .....................................25
Satellite Features .........................................................26
Checking Satellite Strength (Instant) ..........................26
Satellite Strength Indicator (Average) ........................27
Registration Reminder ................................................28
Battery Information .....................................................28
Battery Gauge ............................................................28
Replacing the Battery .................................................29
Care and Maintenance ................................................31
Cleaning Y our Pager ....................................................31
Functionality and Use of Your Pager .........................31
Patent Information .......................................................31
Warranty Information ..................................................32
ii
Intr
oduction
Congratulations on your purchase of a Motorola
Satellite Series 9501 Pager, for e xclusive use on
the Iridium
™
satellite communication system. You
are among a select group of discerning users who
demand global connectivity that is av ailable only
with the latest in communication technology. The
9501 pager integrates adv anced messaging
features y ou’v e come to e xpect from Motorola into
the world’ s first global personal message receiv er .
In your world, timely inf ormation can be too
important to wait. With a Motorola Satellite Series
9501 pager , y ou ne v er hav e to be out of touch.
About This User’s Guide
This User’ s Guide provides an explanation of ho w to
operate each function of your pager and pro vides
helpful suggestions for first-time (as well as for
experienced) pager users.
For y our con venience , a quic k ref erence card ma y
be detached from the back cov er and carried in your
wallet.
Please carefully revie w the User’s Guide to
understand how ne w features, specificall y
designed for reception of direct satellite signals,
can help you to effectivel y benefit fr om this
unique device.
Introduction
1
Satellite Messa
ging Overview
Exciting Satellite Receiver Technology
The Iridium satellite system is a revolution in
wireless communication technology. Satellites that
circle the earth keep you in constant
communication. Together with Iridium W orldP age
service, Motorola’s 9501 pager off ers the first true
global roaming capability in a small belt-worn
personal message receiver. While it offers the best
in paging features , the 9501 does not operate lik e a
typical pager .
INTRODUCTION
Receiving Satellite Signals
Most pagers receive messages transmitted from
towers on the ground. The 9501 pager receiv es
SM
messages transmitted directly from satellite. This
can be more difficult, in some instances, due to the
distance the signal must trav el from space .
With most satellite-based communication, such as
satellite TV or the Global P ositioning System (GPS),
a satellite dish or hand-held unit must be positioned
outside of buildings to receiv e information. Howe ver ,
with Motorola’ s Satellite Series 9501 Pager , you can
now receive messages inside b uildings .
Note:
In some environments, the message signal
may be effectively blocked, preventing
reception. The ability to receive messages
in the interior of large urban buildings will be
particularly limited.
2
Satellite Messaging Overview
4
Satellite Messaging Overview
SATELLITE RECEPTION
Wearing Y our Pager
Your 9501 pager comes with a multi-functional
holster that orients the pager for the best possible
performance. It is recommended that you place the
pager in the holster (display side f acing in) and wear
it on your belt. The holster can also be used
effectiv ely off the body as a stand f or your pager. To
ensure optimum reception, extend the belt clip,
stand it up on a desk or table, and point it to ward the
nearest window.
Note:
Improper positioning of the 9501 pager will
impair message reception.
Proper Orientation of Pager
in Holster
Extended Belt Clip
(For standing on table
or desk)
Message Delivery Areas (MDAs)
Because your pager is a receiv e-only de vice and
cannot tell the Iridium system its location, you must
choose one or more message delivery areas to
register for co v erage. Message delivery areas
(MDAs) are Iridium-defined geogr aphic areas
representing local, regional, and national
boundaries designated by telephone Country
Codes (with optional suffix). For your con venience, a
complete list of Country Codes is permanently
Satellite Messaging Overview
5
stored in the PhoneBook of your 9501 pager.
Consult with your Iridium Service Provider for
various methods of MD A registration.
Motorola Satellite Series Products
Using this pager together with Motorola’ s Satellite
Series 9500 Portable Phone eliminates the need to
register message delivery areas and provides
additional benefits, such as “f ollow me” paging
services and the convenience of a global portable
phone. Ask your local authorized Motorola satellite
products dealer about the complete line of Motorola
Satellite Series products to determine which ones
best meet your demanding communication needs .
OPTIMAX™ EL Displa
y
To bring you superior clarity and easy readability,
the Motorola OPTIMAX hologram is included in your
pager’ s displa y. The hologram provides exceptional
contrast between the backg round of the displa y and
the pager’ s message. In addition, the 9501 pager
uses an electro-luminescent backlighting
technology for impro v ed readability in low-light
environments. The bac klight is automatically
activated whene v er a b utton is pressed.
6
OPTIMAX™ EL Display
Contr
Scroll/
Move Up
Move Left
ol Buttons
Escape
Select
Scroll/
Move Down
Turning Your Pager On
Note:
If you are turning the pager on for the first
time, a displays for up to 8 seconds while
the pager loads information from its internal
memory.
a
Loading Memory
1. Press
Move Right
Z
pager on.
to turn your
Start-Up Screen
b
2. The pager’ s Start-Up
screen displays the
Iridium logo along with
a welcome message.
3. Wait f or the main menu
to be display ed.
Control Buttons
7
Main Men
u
The main menu provides access to many features
via a series of icons and prompts. When the pager
is on, press
[
to display the main menu. When
the main menu is first display ed, the
messages) icon is blinking.
Use
X
or Y to move within the main men u for access
to the various features on y our pager.
News and
Information
WEARING YOUR PAGER
Personal
Messages
?
(personal
PhoneBook
Time, Alert
Setting
Folder
8
Main Menu
Reading Messa
ges
Your pager can have more than one unread
message. The flashing
on the main menu
?
displays a number inside the en v elope to tell y ou
how many unread messages are in y our pager.
Note:
The 9501’s One-Button feature allows you
to read the entire message by repeatedly
pressing Z.
[
to display
. Your pager
Z
W
or
V
to
? F E I H
4 9:00 23/09/98
Main Menu
\03:Customer Needs
02:Looking forward
01:Hi there )
1. Press
the main menu.
2. Press
displays the message
previe w screen.
3. Press
move to the message
that you want to read.
3 D 9 > 8
Z
4. Press
highlighted message.
Message Preview
to display the
Note:
A check mark is displayed to the left of
messages that have been read.
03: Hello my friend
Looking forward
to your arrival!
Made dinner plans.)
Read Message
5. Press
move within the
message or press
to page through the
message.
A t
stamp is displayed at
the end of the
message.
W
and date
ime
or
V
to
Z
Reading Messages
9
Looking forward
to your arrival!
Made dinner plans.)
4 9:00 23/09/98
3 9 > 8 *
Continued Message
6. When finished viewing
the message, y ou ma y
X
use
one of the message
options:
or Y to mov e to
(delete),
9
>(add to folder), 8
(add to phonebook), or
* (next message).
7. Press
selected option or
press
the main menu.
If your pager has been programmed with reminder
GETTING STARTED
alerts, your pager alerts y ou at predetermined
intervals and displays a flashing 1 in the lower left
corner of the Standby screen when there is at least
one unread message in your pager.
ws and Information Messages
Ne
When a message is received from an Inf ormation
Services provider, y our pager automatically stores it
in the Information Services folder . When a message
is placed in the Information Services folder , y our
Z to accept the
[ to return to
pager displays a flashing
and J on the main menu to alert you there is a
message in your f older.
Note:
This feature may not be activated on your
pager. Please check with your Iridium
Service Provider to determine if Information
Services are available in your area.
on the Standby screen
1
10
News and Information Messages
Reading Information Messages
1. Press [ to display
? J E I H
the main menu.
4 9:00 23/09/98
Main Menu
02:Financial News
01:World News
)
3 D 9 >
Message Preview
2. Press
to
information). The Icon
blinks when it is
selected. If y ou ha v e
an unread message,
the news and
information icon (
has a burst around the
top.
3. Press Z. Your pager
displays the
information message
previe w screen
4. Follo w instructions
starting at Step 3.,
“Reading Messages”
on page 9.
Xor Yto mo v e
F (news and
J)
Deleting Messages
You can delete a selected message or you can
choose to delete all of your messages at one time
via the message previe w screen.
\03:Customer Needs
02:Looking forward
01:Hi there )
1. Press W or Vto
move to the message
you want to delete .
3 D 9 > 8
Xor Y to mo v e
9 (delete
Z . The pager
Message Preview
2. Press
to
message).
3. Press
displays the delete
message option
screen.
Deleting Messages
11
Delete Message
Yes No All
Delete Options
Note: If you selected Yes to delete a message,
your pager displays an animation of your
message being deleted.
READING MESSAGES
Setting the Time and Date
4. Press Xor Y to mo v e
to one of the options
(Yes, No, All).
5. Press
selected option or
press
the main menu.
Z to accept the
[ to return to
Your pager offers two real-time clocks , one f or
“home” time and one for “trav el” time . The cloc k that
you select is displa y ed and used f or all time-related
functions of your pager , including message time and
date stamping and alarms.
Select either home time to refer to the time where
you liv e, or use tra v el time to indicate the time in the
location you are currently visiting. The time
display ed is based on the mode (home or trav el) last
selected.
1. Press [to displa y
? F E I H
4 9:00 23/09/98
Main Menu
the main menu.
2. Press
to
icon blinks when it is
selected.
Xor Y to move
H (settings). The
12
Setting the Time and Date
3. Press
displays the settings
menu.
4. Press
either
Z. Your pager
Xor Yto move to
4 (home) or
5 (travel).
Set Home Time
3 2 & 4 5 . , 1
4 9:00 23/09/98
Settings Menu
Set Home Time
4 16:38< 23/09/98
Ω
Set Time and Date
5. A word prompt at the
top of the screen
identifies each option
(e.g., Set Home Time).
6. Press
option. Your pager
displays the Set
(Home, Travel) Time
screen with the hour
blinking.
7. Press W or V to set
the hour .
8. Press
other display ed fields
(minute, am/pm/24hr,
day, month, year) that
you want to modify.
Zto select an
Xor Yto move to
9. Press
each field.
10. Press
time and date changes
or , to e xit without
saving the changes ,
press
W or V to set
Zto sav e the
[.
Setting the Alert Mode
The alert can be set as either audible, vibrate or
silent. Diff erent alerts can be set for Personal and
Information messages.
1. Press [to displa y
? F E I H
4 9:00 23/09/98
Main Menu
the main menu.
2. Press
to
icon blinks when it is
selected.
Xor Y to move
H (settings). The
3. Press
displays the settings
menu.
Z. Your pager
Setting the Alert Mode
13
Set Audible Alerts
3 2 & 4 5 . , 1
Settings Menu
4. Press Xor Y to move
to either
vibrate) or
audible alerts). F rom
audible, y ou can set
(silent).
5. Press Zto select 2
(set to vibrate) or
(set audible alerts).
2 (set to
& (set
%
&
Set Audible Alerts
G F
READING MESSAGES
Message Type
Audible
% 1 2 3 4 5 6 7
Alert Selection
6. Press Xor Y to move
to
message or
(information message).
You can set a different
alert for personal and
information messages.
7. Press
displays the alert
selection screen.
8. Press Xor Y to mo v e
to an alert option. The
pager produces a
sample alert as you
move to each option.
9. Press
alert. Your pager
displays the settings
menu.
G (personal
F
Z. Your pager
Z to select an
14
Setting the Alert Mode
10. Press
main menu.
Zto return to the
Setting Alarms
Your pager alarm can be set f or a specific time and
date, or can be used as a daily alarm. The alarm is
based on the currently selected time display ed on
your pager,
At the designated alarm time, your pager emits an
alert (audible or vibrate) ev en if the pager is in
“silent” mode . If the alarm e xpires without being
acknowledged, the
pressed. When an alarm is set,
right corner of the standby and pager off screens,
and main menu.
? F E I H
4 9:00 23/09/98
S
Main Menu
4 (home) or 5 (trav el).
. flashes until any button is
. is display ed in the
1. Press [to display
the main menu.
2. Press
H(settings). The
to
icon blinks when it is
selected.
Xor Y to mo v e
Return
3 2 & 4 5 . , 1
6C O
Settings Menu
3. Press Zand use Xor
Y to mov e to . (set
alarm).
4. Press
“settings” mode.
5. Press
choose either
Daily, Enabled One-
Time, or Disabled.
Zto enter
W or V to
Enabled
Setting Alarms
15
Enabled One-Time
/ 16:38< 23/09/98
Ω
6. Press Xor Yto move to
the hour digit and
press
the hour that you w ant
for the alarm.
W or V to set
Set Alarm
7. Press
each entry selection
(minute, AM/PM, da y,
month, year) and press
Xor Yto move to
W or V to set each
field.
8. Press
changes. To exit
without saving
changes, press
Z to sav e y our
NEWS AND INFORMATION
Setting Quiet Time
Quiet Time mode allows y ou to select a time period
during which the pager receives messages and
performs all functions, but without an y audib le or
vibrate notification. If messages are receiv ed during
[.
quiet time, the pager alerts when the quiet time
period has expired. This f eature can be particularly
useful if you tra vel to different time z ones and expect
to receive messages during sleep hours.
After quiet time is set and turned on, it remains set
on a daily basis (with a
Rdisplay ed in the low er left
corner of the standby screen and main menu) until
you turn the quiet time function off.
Note: If you have set and turned on an alarm and
have also set quiet time, your alarm
overrides quiet time and alerts you at the
designated time.
16
Setting Quiet Time
? F E I H
4 9:00 23/09/98
Main Menu
1. Press [ from any
screen until the main
menu is displa yed.
2. Press
to
icon blinks when it is
selected.
Xor Y to mo v e
H (settings). The
Return
3 2 & 4 5 . , 1
6C O
Settings Menu
Enabled
, 23:30< 06:00<
Ω
Set Quiet Time
3. Press Zand use Xor
Yto mov e to ,(quiet
time).
4. Press
SETTINGS mode.
5. Press
choose either
Enabled or Disabled.
6. Press Xor Yto mo v e
to the hour digit and
press
the start and end time
(set hour , then min ute)
that you want for quiet
time.
7. Press
changes. To exit
without saving
changes, press
Zto enter
W or V to
W or V to set
Z to sav e your
[.
Setting Quiet Time
17
Turning Your Pager Off
1. Press [ to displa y
? F E I H
the main menu.
4 9:00 23/09/98
Main Menu
Turn Pager Off
2. Press
3. Press Z and use Xor
3 2 & 4 5 . , 1
6C O
Settings Menu
DELETING MESSAGES
Note: If you have set an alarm, . (alarm enabled)
is display ed in the right bottom corner of the
screen.
Xor Yto mo v e
the cursor to
(settings). The Icon
blinks when it is
selected.
H
Y to mov e to 1 (turn
pager off). Then press
Z
to turn the pager
off. The pager shuts
off and displays a b lank
screen.
Your Folder
Your pager has one folder that you can use to store
personal and information service messages. You
can store up to 99 messages in your f older. Once
you place a message in your folder, you cannot
move it bac k to its origination point (personal or
information folder). It is “protected” and cannot be
automatically replaced with newly receiv ed
messages.
18
Turning Your Pager Off
Moving Messages to Your Folder
1. Press Z (positioned
G for personal
? F E I H
4 9:00 23/09/98
Main Menu
\03:Customer Needs
02:Looking forward
01:Hi there )
3 D 9 > 8
at
messages or at
information
messages). Your
pager displays the
message previe w
screen.
2. Press
move to the message
you want to mo v e to
your f older.
W or Vto
F for
Message Preview
3. Use
Xor Y to mo v e to
>(add to folder).
4. Press
As your pager moves the message, it displays a
simulation of the message moving to your folder.
5. Press Z to return to
the main menu.
Reading Messages in Your Folder
F rom the main menu, use Xor Y to move to E ,
press
Z, then refer to “Reading Messages” on
Z.
page 9. You can read messages in your folder in the
same manner you read messages in your personal
or information message folders .
Deleting Messages from Your Folder
F rom the main menu, use Xor Y to move to E ,
press
page 11. You can delete messages from your f older
in the same manner you delete messages from your
personal or information message folders .
Z, then refer to “Deleting Messages” on
Your Folder
19
Your PhoneBook
Your pager provides a phonebook that can be used
to store up to 99 personal messages. Some models
may also support the download of an address book
from a PC via infrared port.
Your phonebook is a good place to store important
names and numbers, creating a handy contact list
for use when on the go.
Permanent PhoneBook Entries
Your 9501 pager comes with permanent entries in
the phonebook. Included is a listing of Country
Codes, a handy ref erence for business tra velers and
TIME AND DATE
especially useful for help in MDA registration.
Moving Messages to Your PhoneBook
1. Press Z (positioned
? F E I H
4 9:00 23/09/98
Main Menu
\03:Customer Needs
02:Looking forward
01:Hi there )
3 D 9 > 8
Message Preview
at ?
messages or at
information
messages). Your
pager displays the
message previe w
screen.
2. Press
move to the message
you want to mo v e to
your phonebook.
3. Use
f or personal
W or Vto
Xor Y to mo v e to
8 (add to phonebook).
F for
As your pager moves the message, it displays a
simulation of the message moving to your folder.
20
Your PhoneBook
4. Press
5. Press Z to return to
the main menu.
Z.
Viewing Messages in your PhoneBook
? F E I H
4 9:00 23/09/98
Main Menu
02:Fernandez,Jose pa
01:Chen, Li Mei pho
3 D 9 =
Message Preview
1. Press Xor Yto mo v e
the cursor to
I
(PhoneBook). The
icon blinks when it is
selected.
2. Press
Z. Y our pager
displays the
information message
previe w screen.
3. Press W or V to
move to the message
that you want to vie w.
4. Press
Z to display the
highlighted message.
5. Follo w the instructions
starting at Step 3.,
“Reading Messages”
on page 9.
Deleting PhoneBook Messages
F rom the main menu, use Xor Y to move to 8 ,
press
page 11. You can delete messages from your
PhoneBook in the same manner you delete
messages from your personal or inf ormation
message folders .
Z, then refer to “Deleting Messages” on
Your PhoneBook
21
PhoneBook Lookup
When your pager receiv es a numeric message, it
searches the phonebook for a match. When a
match has been found in the phonebook, y our pager
displays
screen and attaches the phonebook entry to the
message.
This feature helps y ou identify the person who is
trying to contact you. You may also create custom
ALERTS
“canned messages” that display detailed
information when a pre-determined set of numbers
are sent from a telephone.
8 next to the message on the pre vie w
Downloading an Address Book
Note: This feature is not av ailable in all languages.
Please visit our web site, www .motor ola.com, to
check on the current av ailability of softw are f or this
feature .
If your 9501 pager supports this feature, y ou can
download phone records to your pager via an
infrared (IR) interface . Up to 99 messages can be
transferred to the phonebook. To cancel a data
exchange in progress , press an y of the pager’ s
buttons.
? F E I H
4 9:00 23/09/98
Main Menu
1. Press Xor Yto mo v e
the cursor to I
(PhoneBook). The
icon blinks when it is
selected.
2. Press
displays the message
previe w screen.
Z. Y our pager
22
Your PhoneBook
02:Fernandez,Jose pa
01:Chen, Li Mei pho
3 D 9 =
Message Preview
Receive PhoneBook
Yes No
3. Press Xor Yto mo v e
the cursor to
=
(Receive PhoneBook).
The icon blinks when it
is selected.
4. Press
Z. Y our pager
displays the receiv e
option screen.
5. Press Xor Y to move
to one of the options
presented (Yes, No).
6. Press
Z to accept the
selected option or
Receive Option
press
[ to return to
the main menu.
Note: Place the pager on the table or desk
(display side up) with the IR port facing the
IR serial adapter that is connected to the
PC. Leave a distance of about one foot
between the pager’s IR port and the IR
serial adapter.
Yes
If
displays an animation of
the transmission (top). If
the transmission fails, the
pager indicates a failed
transmission (center). If
the transmission is
successful, the pager
confirms (bottom).
is selected, the pager
If No is selected, your pager
returns to the message
preview screen.
Your PhoneBook
23
More Features
Your Satellite Series 9501 pager may be equipped
with additional features .
Automatic Alert Reset
Pager alerts can last up to 12 seconds (depending
on the alert selected). The pager alert stops
automatically, ev en if you do not press an y of the
pager’ s b uttons.
Automatic Message Deletion
ALARMS
Your pager displays MEMORY FULL on the message
previe w screen when there is no more memory
av ailable f or message stor age. When y our
P ersonal and/or Inf ormation Services folder is full,
your pager automatically deletes the oldest
message to make room f or a ne w message being
received. Your pager does not delete messages that
reside in your message f older, or messages that y ou
are currently viewing.
Errored Message Indicator
If you hav e an errored message , y our pager alerts
you and displa ys the errored message that has been
constructed.
Your pager displays
errored characters in
rev erse-video on the read
message screen and
displays empty bo x es on
the message previe w
screen.
03:Custumeu Needs
02:MISSED MESSAGE 2
01:Hi there )
3 D 9 > 8
Message Preview
Looking forward
to your atrival!
Made dinner plans.)
4 16:48 23/09/98
3 9 > 8 *
24
More Features
Read Message
Missed Message Segment
If part of a message is
received, y our pager
displays a missed
message segment
indicator at the point
where part of the
Looking <...>
to your arrival!
Made dinner plans.)
4 16:48 23/09/98
3 9 > 8 *
Read Message
message is missing.
Missed Message Indicator
Each message transmitted by the Iridium system
is numbered sequentially.
If set by your service provider, your 9501 pager
displays the system sequence number at the end of
each received message.
to your arrival!
Made dinner plans.)
[3]
4 16:48 23/09/98
3 9 > 8 *
If you receiv e a message
that is out of sequential
order , y our pager
indicates the missed
\03:Customer Needs
MISSED MESSAGE 2
01:Hi there )
3 D 9 > 8
message(s) in the
message previe w screen.
Message Preview
Missed messages can be retrieved from the Iridium
system by ref erencing the indicated sequence
number(s).
Note: Consult with your service provider for the
best way to retrieve missed messages.
Truncated Message Indicator
If the end of a message is
not received,
] appears
at the end of the text that
was received.
Looking forward
to your arrival!
Made ] )
4 9:00 23/09/98
3 9 > 8 *
More Features
25
Satellite Features
Your 9501 pager includes features designed
specifically to enhance the pager’ s operation on the
Iridium satellite communication system.
Note: The availability of the satellite features
described herein may vary, depending on
the region of the world that you are located
in and the type of service provided.
Checking Satellite Strength (Instant)
It is possible that you may have difficulty receiving
messages in the interior of large urban buildings.
When you arrive in an unf amiliar office , hotel room,
or meeting room, you ma y want to check the pager’ s
ability to receive messages in that location. To
determine the likelihood of receiving messages in a
given en vironment, perf orm the following steps:
1. P osition the pager correctly (ref er to “W earing
Your Pager” on page 5).
2. Press and hold
[for 2 seconds. The LED
blinks yello w while the pager is looking f or the
nearest satellite.
To cancel the test, press any
button.
3. It can take up to 26 seconds to locate the
nearest satellite. Upon completion, your pager
alerts with a single chirp. The LED will be either
green (in range) or red (out of range).
If you
press any button during the test, the test will be
canceled.
26
Satellite Features
4. When complete, remo v e the pager from the
holster to view the displa y.
Note: If your signal strength indicator shows you
are out-of-range (antenna with no strength
bars), or weak (antenna with 1 or 2 strength
bars), move to an outer part of the building
or room with a window, where you may
obtain better reception results.
In Range Check
6C 32142
In Range
In Range Check
6
Out of Range
Satellite Strength Indicator (Average)
A satellite signal strength indicator is display ed on
the settings screen. This will give you an accurate
indication of received signal strength when y ou have
been in one location for more than 15 minutes with
the pager correctly oriented (in holster with display
side facing in). This measurement is an a v erage
compiled over 15 min utes and is updated
approximately e v ery three minutes.
Return
3 2 & 4 5 . , 1
6C O
In Range Out of Range
If your signal strength indicator shows y ou are
out-of-range (no strength bars), or weak (1 or 2
strength bars), move to an outer part of the building
or room with a window , where y ou may obtain better
reception results. Use the “instant” satellite strength
indicator feature to v erify improv ed perf ormance.
Return
3 2 & 4 5 . , 1
6 O
Satellite Features
27
Registration Reminder
If you hav e tr av eled a consider able distance , y ou
may ha v e to re-register your message deliv ery
areas in order to receive messages in y our new
location. Your 9501 pager may remind y ou to check
your current registration while y ou are tra v elling b y
alerting and displaying the message,
MDA
.
Note: This message does not indicate you are
outside your registered coverage area, but
serves as a reminder to check your
registration when you are travelling.
Register
Battery Information
Your Satellite Series 9501 pager operates with one
AA-size alkaline battery.
Battery Gauge
A battery gauge appears on the settings menu
screen to indicate the current energy lev el of y our
pager’ s battery. When the battery is empty , an empty
battery gauge is displayed on the main menu.
Battery gauge indicators are as follows:
O
N
M
L
Battery Full
Battery 2/3 Full
Battery 1/3 Full
Battery Empty
28
Battery Information
Replacing the Battery
Your 9501 pager will retain all stored information for
up to 5 minutes with the battery removed.

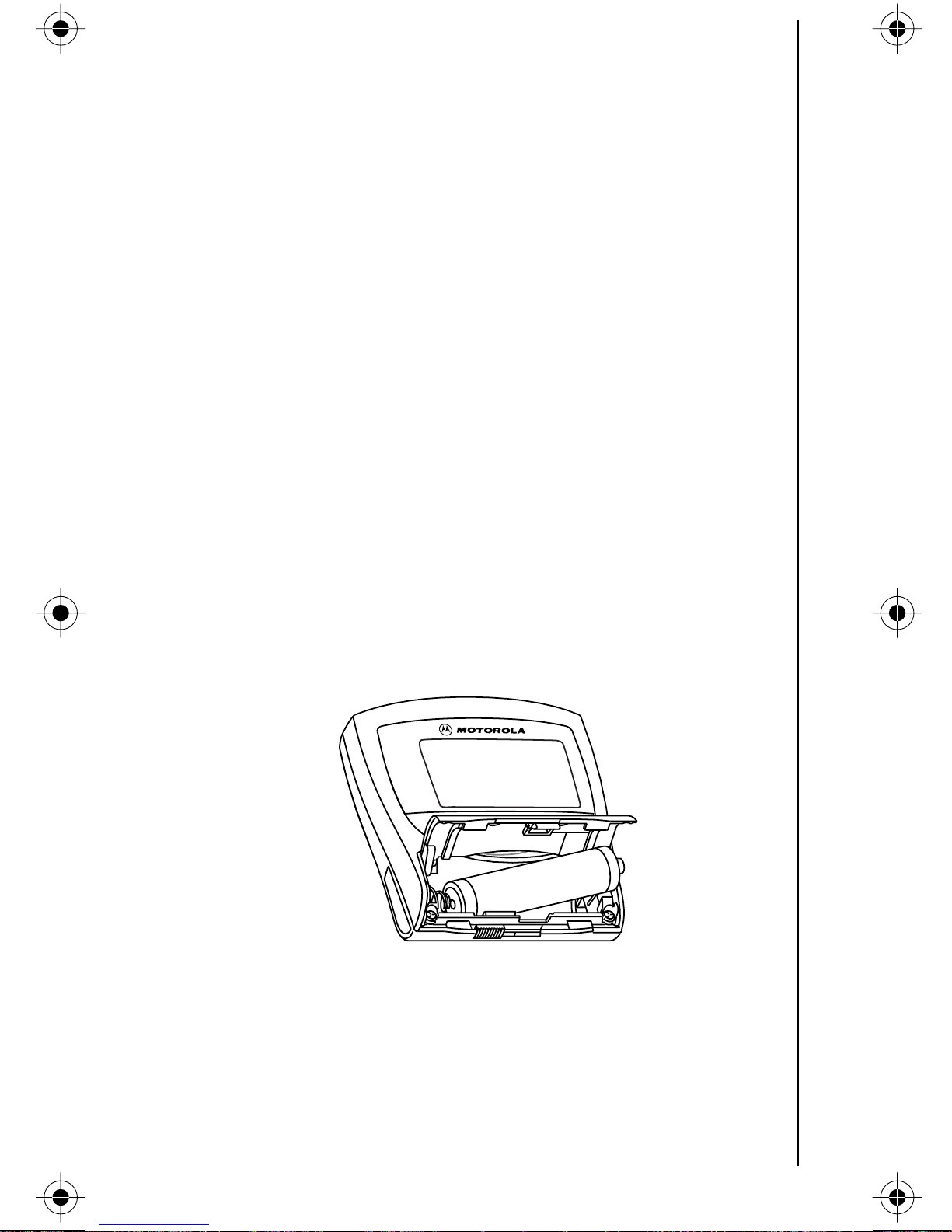

1. Turn the pager off and place the pager with the
display side f acing upw ard.
2. Slide the battery door latch to the left to unlock
it.
3. Slide the battery door down, then lift up.
4. Lift the battery out of the battery compartment,
noting the positive (+) and negativ e (-) markings
on both the battery and the pager housing.
5. Insert a new battery. Make sure you match the
positive and negativ e markings on the battery
with those on the pager housing.
Note: Installing the battery incorrectly could result
in resetting the alert mode and time to their
default settings, and all messages could be
deleted.
Battery Replacement
6. If you hav e remo ved the battery door , complete
steps 7 and 8. Otherwise , go to step 8.
Battery Information
29
7. Insert the left pin of battery door into the battery
compartment insert, then maneuver the right
pin into the compartment insert.
Right Pin
Compartment
Insert
Battery Door Replacement
8. Drop the battery door down, align the groov es on
the door with the groov es on the pager housing,
slide the battery door up to the closed position and
slide the battery door latch to the right to lock it.
Upon replacement of the battery, your pager
starts the power-up process.
30
Battery Information
Care and Maintenance
The 9501 pager is durable , reliable, and can provide
years of dependable service; ho we v er, it is a
precision electronic product. Water and moisture,
excessiv e heat, and e xtreme shoc k ma y damage
the pager components and impair the fine optical
quality of the display. Do not e xpose y our pager to
these conditions.
If repair is required, the Motorola Service
Organization, staffed with specially trained
technicians, off ers repair and maintenance f acilities
throughout the world. Contact y our service provider
or Iridium Global Customer Care for the location of
the nearest service facility.
Cleaning Your Pager
To clean smudges and grime from the exterior of
your pager , use a soft non-abrasiv e cloth moistened
in a mild soap and water solution. Use a second
cloth moistened in clean water to wipe the surf ace
clean. Do not immerse in water. Do not use alcohol
or other cleaning solutions.
Functionality and Use of Your Pager
For questions pertaining to the functions and use of
your Motorola pager, please visit our web site at
www .motorola.com
your paging service, contact your Iridium Service
Provider .
. F or questions pertaining to
Patent Information
This product is manufactured under one or more
Motorola U.S . patents. A partial listing of these
patents is provided on the inside surf ace of the
battery door. Other patents covering this product
are pending.
Care and Maintenance
31
Warranty Information
MOTOROLA LIMITED W ARRANTY FOR SATELLITE
PAGERS FOR THE IRIDIUM SYSTEM
I.W ARRANTY STATEMENT
Motorola warrants the pager against def ects in material
and workmanship under normal use and service for the
period of time specified below . This e xpress warr anty is
extended b y Motorola, 1500 Gatew a y Blvd., Bo ynton
Beach, Florida USA 33426 to the original end user
purchaser only and is not assignable or transf erable to an y
other party .
II.GENERAL PRO VISIONS
This warranty sets f orth the full extent of Motorola’ s
responsibilities regarding the Product. Repair,
replacement, or refund of the purchase price, at Motorola’ s
option, is the exclusiv e remedy. THIS W ARRANTY IS
GIVEN IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED , INCLUDING WITHOUT
LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL
MOT OROLA BE LIABLE FOR D AMA GES IN EXCESS OF
THE PURCHASE PRICE OF THE MO T OR OLA
PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS, LOST
PROFITS OR SAVINGS OR OTHER INCIDENTAL,
SPECIAL OR CONSEQUENTIAL D AMA GES ARISING
OUT OF THE USE OR INABILITY TO USE SUCH
PRODUCT, T O THE FULL EXTENT SUCH MAY BE
DISCLAIMED BY LA W.
III.ONE (1) YEAR STANDARD LIMITED W ARRANTY
INFORMATION
Motorola pagers are shipped from the factory with a
standard limited warranty of one (1) year on parts and
labor from date of purchase by the original end user
purchaser , based on proof of purchase. In the event of a
defect, malfunction, or f ailure to conf orm to specifications
during the warranty period, Motorola, at its option, will
either repair , replace or refund the purchase price of the
pager .
32
Warranty Information
MOTOROLA LIMITED W ARRANTY FOR SATELLITE
PAGERS FOR THE IRIDIUM SYSTEM (continued)
Repair , at Motorola's option, ma y include the replacement
of parts or boards with functionally equivalent
reconditioned or new parts or boards. Replaced parts and
boards are warranted f or the balance of the original
warranty period. All parts and boards removed in the
replacement process shall become the property of
Motorola. This warranty does not cover def ects,
malfunctions, performance f ailures or damages to the unit
resulting from use in other than its normal and customary
manner , misuse, accident or neglect, the use of nonconforming parts, or improper alterations or repairs. This
warranty does not cov er w ear and tear on cov ers or
housings, nor the cov erage or range o ver which the pager
will receive signals.
IV.HOW TO RECEIVE WARRANTY SERVICE
For inf ormation on how to receiv e service on Motorola
pagers, contact your service provider or the IRIDIUM
Global Customer Care Center . In U.S. call 1-800-548-
9954. RETAIN THE ORIGINAL D ATED SALES RECEIPT.
Send a copy of y our Proof of Purchase along with the
pager .
V.VOIDING OF WARRANTY
Pager w arranty will be VOID if any of the f ollowing
conditions occur:
• Pagers that are incomplete such as ones in which the
boards or components are missing and/or incompatible.
• Pagers whose serial numbers do not match on the
boards, or pagers in which the board serial numbers don’t
match the housing serial number.
• Pagers that ha ve been opened by or had work perf ormed
by any one other than a Motorola authorized pager service
center .
• Pagers receiv ed with non-conf orming or non-Motorola
housings or parts.
Flat rate repair fees apply to pagers and accessories not
covered under w arranty.
Warranty Information
33
MOTOROLA LIMITED W ARRANTY FOR SATELLITE
PAGERS FOR THE IRIDIUM SYSTEM (continued)
VI. STATE AND LOCAL LAW RIGHTS
SOME STATES AND OTHER LEGAL JURISDICTIONS
DO NOT ALLO W THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL D AMA GES, OR
LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS, THEREFORE THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY N OT APPLY. This warranty giv es you
specific legal rights and you may also ha v e other rights
which may v ary according to local law.
Motorola Inc., reserves the right to add, change, or delete
any or all of the features described herein.
t, Motorola, the SATELLITE SERIES logo,
and OPTIMAX are trademarks or
registered trademarks
of Motorola, Inc.
Iridium, the Iridium logo, and WorldPage
are trademarks or registered trademarks
and/or service marks of Iridium IP LLC.
© 1998 by Motorola, Inc.
All Rights Reserved.
Boynton Beach, FL 33426-8292
34
Warranty Information
Paging Products Group
1500 Gateway Blvd.,
Printed in U.S.A. 8/98
Federal Communications Commission (FCC) Compliance
This device complies with part 15 of the FCC Rules. Oper ation
is subject to the following tw o conditions: (1) This device ma y
not cause harmful interference, and (2) this de vice must accept
any interference receiv ed, including interf erence that ma y
cause undesired operation.
Note: This equipment has been tested and f ound to comply
with the limits for a Class B digital de vice, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio comm unications. Howev er, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference b y one or more of the f ollowing
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help .
CNIRIDBook Page 1 Friday, September 4, 1998 9:31
Reading Messages
When you receive a ne w message,
use the 9501’s One-Button f eature to
read the entire message by
repeatedly pressing Z.
Setting the Pager Alarm
1.F rom the main menu, press X or Y
to move to H(settings).
2.Press Z and use X or Yto move to
.
(set alarm).
3.Press Zto enter “Settings” mode .
4.Press W or V to choose either
“Enabled Daily”, “Enab led Onetime”, or “Disabled”.
5.Press Xor Yto mo v e to the hour
digit and press W or V to set
the hour you want f or the alarm.
6.Press Xor Yto mo v e to each entry
selection (minute, AM/PM, day,
month, year) and press W or V
to set each field.
7.Press Zto sav e y our settings.
t, Motorola are registered trademarks of Motorola, Inc.
© 1998 by Motorola, Inc. All Rights Reserved
Satellite Series 9501 Pager
Quick Reference Card
Main Menu Icons
G Message Envelope
? Message Envelope (5 unread)
F Information Folder
J Information Folder (unread)
E Personal F older
I PhoneBook
H Time Alert Settings
1 P o wer On/Off
R Quiet Time Enabled
T Audible Alert Enabled
S Alarm Enabled
4 Home Time
5 T ra vel Time
Control Buttons
XY Move Left/Right
Z Select
WV Move Up/Down
[ Escape
CNIRIDBook Page 2 Friday, September 4, 1998 9:31
Pager Icons
/ Alarm Enabled
0 Alarm Disabled
, Quiet Time
- Quiet Time Disabled
D View Message
3 Return to Previous Screen
> Add to Folder
8 Add to PhoneBook
= Receive PhoneBook
O Battery Full Indicator
N Battery 2/3 Full Indicator
M Battery 1/3 Full Indicator
L Battery Low Indicator
6C Signal Strength Strong
6B Signal Strength Moder ate
6A Signal Strength Lo w
6 No Signal, Out of Range
2 Set to Vibrate
& Set Audib le Alerts
. Set Alarm
% Set Alert to Silent
* View Ne xt Message
9 Delete Message
\ Message Read
() Scroll Up and Down
] Truncated Message
Wearing Your Pager
Your 9501 pager comes with a multifunctional holster that orients the
pager for the best possible
performance. It is recommended
that you place the pager in the
holster (display side facing in) and
wear it on your belt. The holster can
also be used effectively off the body
as a stand for your pager. To ensure
optimum reception, extend the belt
clip, stand it up on a desk or table ,
and point it toward the nearest
window .
Note:
9501 pager will impair message
reception.
Checking Satellite Strength
Note:
feature described herein may v ary,
depending on the region of the world
that you are in and the type of
service provided.
It is possible that you ma y ha ve
difficulty receiving messages in the
interior of large urban buildings.
When you arrive in an unfamiliar
office, hotel room, or meeting room,
Improper positioning of the
Av ailability of the satellite
you may w ant to check the pager’s
ability to receive messages in that
location.To determine the likelihood
of receiving messages in a given
environment, perform the follo wing
steps:
1.P osition the pager correctly.
2.Press and hold [for 2 seconds .
The LED blinks yellow while the
pager is looking for the nearest
satellite.
3.It can take up to 26 seconds to
locate the nearest satellite. Upon
completion your pager alerts with a
single chirp. The LED will be either
green (in range), or red (out of
range).
during the test, the test will be
cancelled.
4.When complete, remo ve the pager
from the holster to view the display.
5.If your signal strength indicator
shows you are out-of-range
(antenna with no strength bars), or
weak (antenna with 1 or 2 strength
bars), move to an outer part of the
building or room with a window,
where you may obtain better
reception results.
If you press any button
Loading...
