Instruction Manual
for
IKR1224DAB
Safety Precautions
To achieve the utmost in enjoyment and performance, and in order to become familiar with its
features, please read this manual carefully before attempting to operate the unit, this will
assure you years of faithful, trouble free performance and listening pleasure.
Important Notes
• This safety and operating instruction should be retained for future reference.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on apparatus.
• Avoid installing the unit in locations described below:
o Places exposed to direct sunlight or close to heat radiating appliances such
as electric heaters.
o On top of other stereo equipment that radiate too much heat.
o Places blocking ventilation or dusty places.
o Places subject to constant vibration.
o Humid or moist places.
• No naked flame sources such as lighted candles should be placed on or near the
unit;
• The use of apparatus in moderate climates.
• Operate turning controls and switches as instructed in the manual.
• Before turning on the power for the first time, make sure the power cord is properly
installed.
For safety reasons, do not remove any covers or attempt to gain access to the inside of the
product. Refer any servicing to qualified personnel.
Do not attempt to remove any screws, or open the casing of the unit; there are no user
serviceable parts inside, refer all servicing to qualified service personnel.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK), NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO
QUALIFIED SERVICE PERSONN EL.
DANGEROUS VOLTAGE
Dangerous Voltages, that may be of sufficient magnitude to constitute a risk of
electric shock to persons is present within this product’s enc losur e.
ATTENTION
The owner’s manual contains important operating and maintenance
instructions, for your safety, it is necessary to refer to the manual.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO DRIPPING OR SPLASHING.
Note: This unit will become warm when used for a long period of time. This is normal and
does not indicate a problem with the unit.
Safety Information
Some Do’s and Don’ts on the safe use of equipment
This equipment has been designed and manufactured to meet international safety standards
but, like any electrical equipment, care must be taken if you are to obtain the best results and
safety is to be assured.
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and inter-
connections between the pieces of equipment) are properly made and in accordance with the
manufacturer’s instructions. Switch off and withdraw the mains plug before making or
changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of
your equipment.
DON’T remove any fixed cover as this may expose dangerous voltages.
Overheating will cause damage and shorten the life of the equipment.
DON’T allow electrical equipment to be exposed to dripping or splashing, or objects filled with
liquids, such as vases, to be placed on the equipment.
DON’T place hot objects or naked flame sources such as lighted candles or nightlights on, or
close to equipment. High temperatures can melt plastic and lead to fires.
DON’T use equipment such as personal stereos or radios so that you are distracted from the
requirements of traffic safety.
DON’T listen to headphones at high volume, as such use can permanently damage your
hearing.
DON’T leave equipment switched on when it is unattended unless it is specifically stated that
it is designed for unattended operation. Switch off using the switch on the equipment and
make sure that your family knows how to do this. Special arrangements may need to be made
for infirm or handicapped people.
DON’T continue to operate the equipment if you are in any doubt about if it’s working normally
or if it’s damaged in any way. Switch it off and withdraw the mains plug and consult your
dealer.
ESD Remark: In case of malfunction due to electrostatic discharge just reset the product
(reconnection of power source may be required) to resume normal operation.
NOTE: In the unlikely event of a problem with your product please return to the store where
your purchase was made.
Table of Contents
Safety Precautions ................................................................................................. 2
Package Content .................................................................................................... 5
Front Overview ............................................................................................................ 6
Right Side Overview ..................................................................................................... 7
DAB MODE ............................................................................................................. 8
Change to another DAB/DAB+ Station .......................................................................... 8
Update Stations List ..................................................................................................... 8
View Station Information ............................................................................................. 8
To Show the Signal Strength ......................................................................................... 9
The way to Prune ......................................................................................................... 9
DAB/DAB+ Menu Tree................................................................................................ 10
FM MODE ..............................................................................................................11
Tune in FM Mode ....................................................................................................... 11
Scan setting ............................................................................................................... 11
Audio Settings ........................................................................................................... 11
View Station Information ........................................................................................... 12
FM Menu Tree ........................................................................................................... 12
GENERAL OPERATION............................................................................................13
Set Station Presets ..................................................................................................... 13
Play a Preset Station .................................................................................................. 13
AUX IN MODE .......................................................................................................13
System setup .........................................................................................................14
The way to enter System Setup .................................................................................. 14
Set Sleep.................................................................................................................... 14
Set Time .................................................................................................................... 14
Set Alarm ................................................................................................................... 15
SW Version ................................................................................................................ 15
Set Equaliser .............................................................................................................. 16
Set Backlight .............................................................................................................. 16
Set Language ............................................................................................................. 16
Factory Reset ............................................................................................................. 16
Specification ..........................................................................................................17

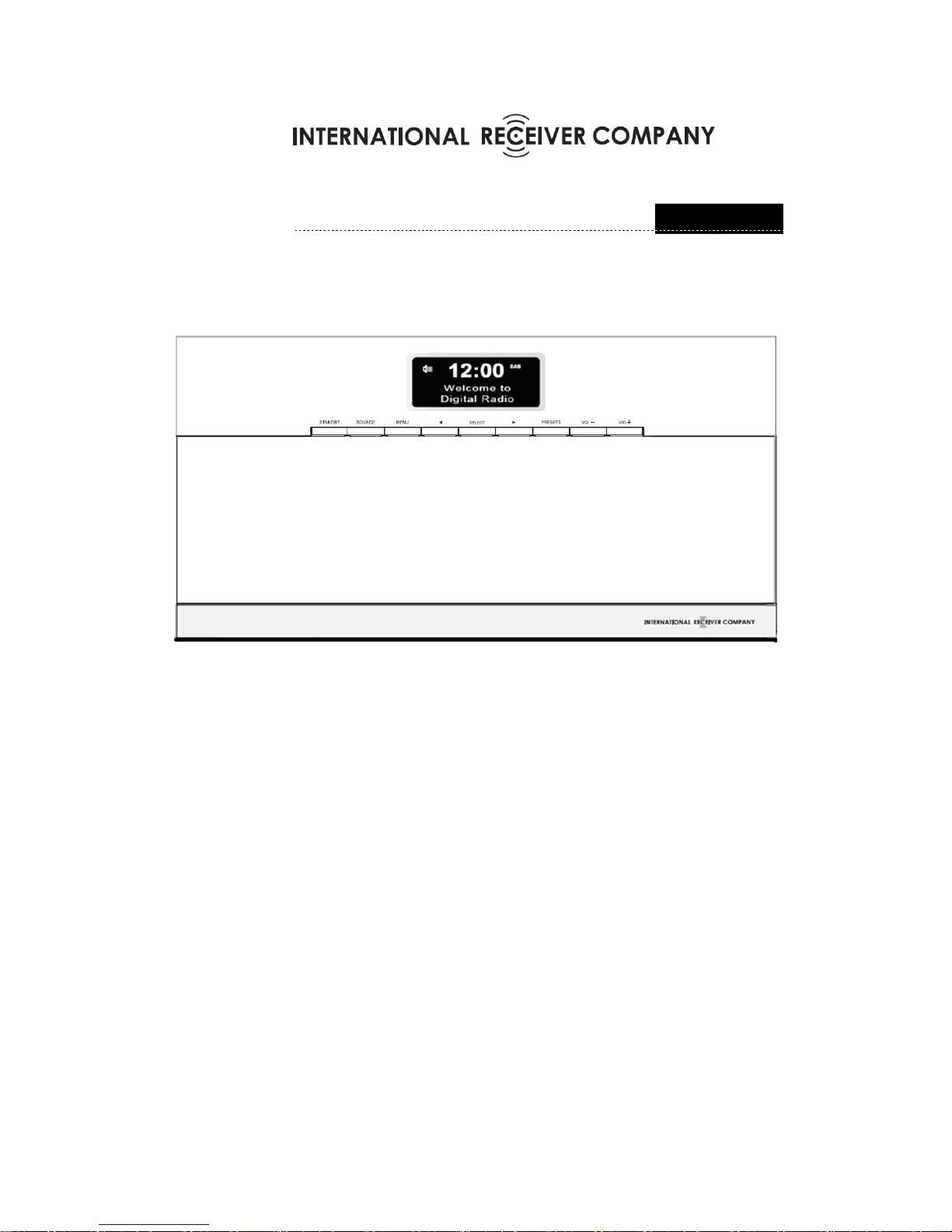

Package Content
Main Unit
Adapter
Instruction
booklet
6
Front Overview

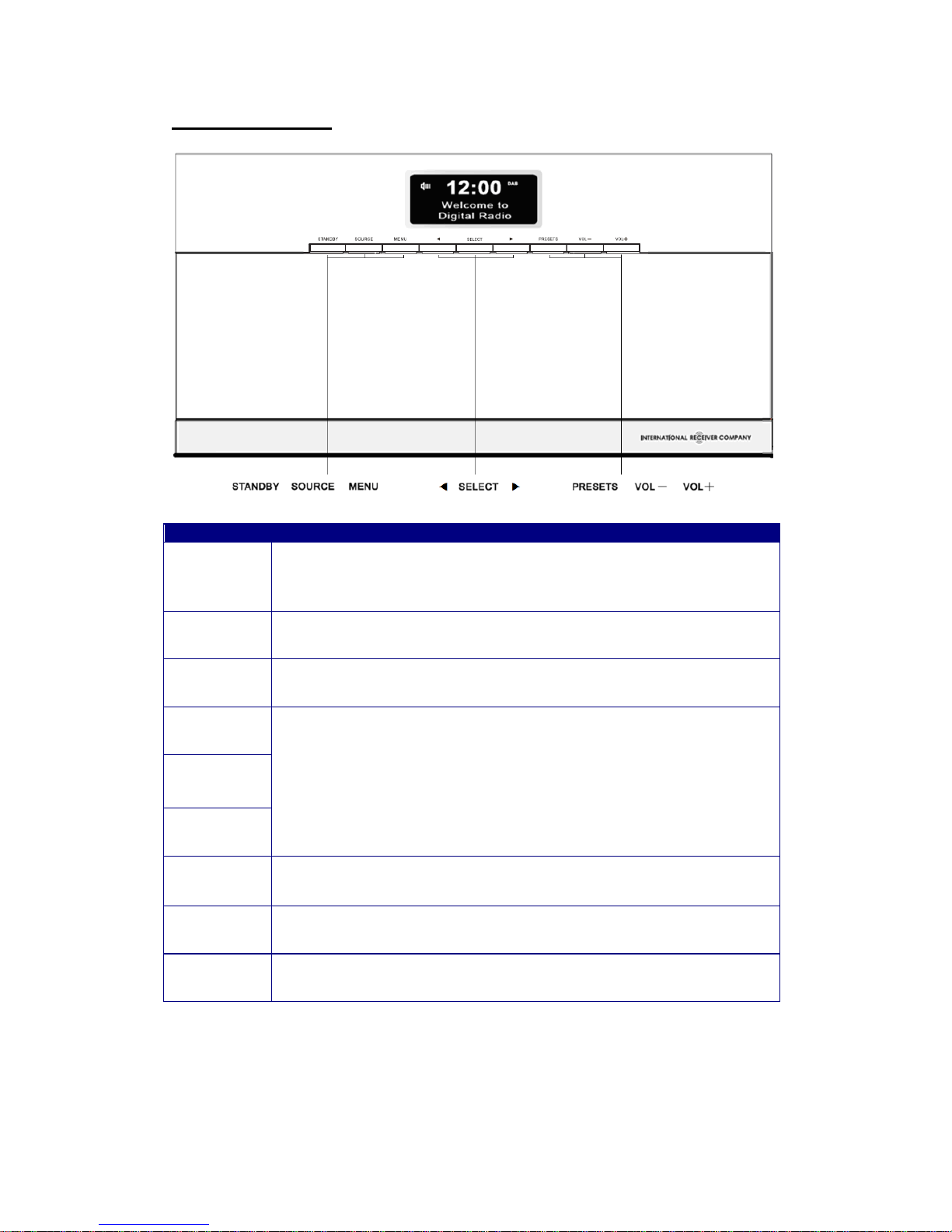

Control
All mode
STANDBY
a. Press to turn on/off Radio
b. When alarm is coming, press to turn alarm off
SOURCE
Press to shift to another mode
MENU
Press to Main menu and system settings
a. Press or to cycle through options.
b. Press SELECT confirm
c. FM mode: while frequency is showing up, press SELECT to auto-
searching
d. When alarm is sounding, press SELECT to postpone the alarm
SELECT
PRESETS
Press and hold to store presets options, press to recall
VOL -
Press to decrease volume
VOL +
Press to increase volume
Right Side Overview
Note: upgrade socket is for radio technician handle only.

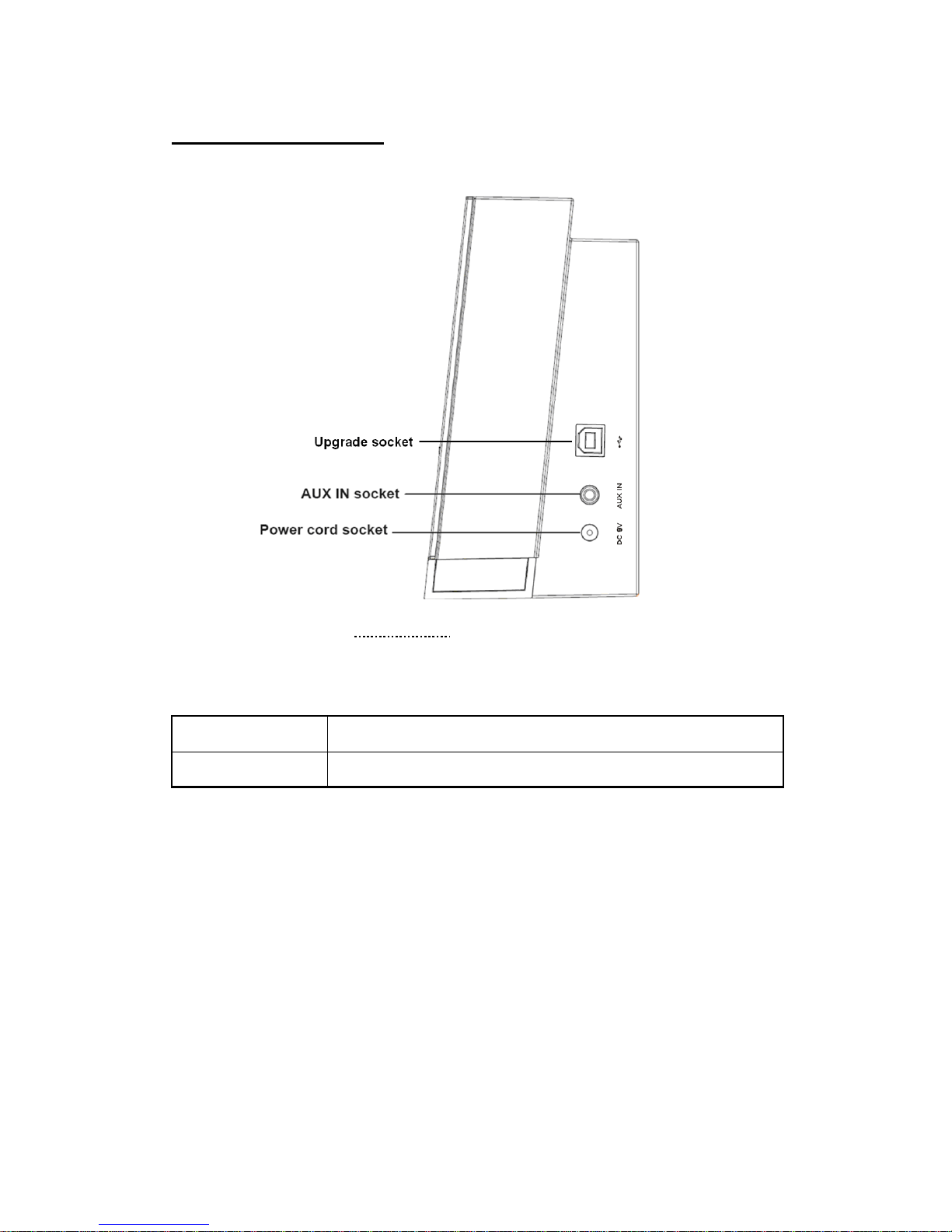

UNIT BACK VIEW
AUX IN socket:
For connection of the external audio device
Power cor d socket:
For connection of power adaptor
8
DAB MODE
Turn on
1. Extend the antenna found on the back of radio, press STANDBY to switch on radio.
2. For initial use, radio will make a full scan and store all detected stations into memory.
Once the scanning is compl eted, the DAB/DAB+ stations will be displayed in
alphanumeric order. The first station in the list would be selected.
Note: if no DAB/DAB+ signal is found in your area, it may be necessary for you to relocate your
radio.
Change to another DAB/DAB+ Station
While a program is playing, press or to cycle through available stations, press
SELECT to confirm and then your radio will connect the station you currently appointed.
Update Stations List
Note: to do this order, placing your radio to stronger signal position is highly recommending!
1. Press MENU, and then press to ‘Full scan’, press SELECT to confirm.
After a while, the radio is scanning all the DAB/DAB+ channels and add any new
available stations to the station list.
View Station Information
Note: It is possible to view t more information that is displayed on the second line of the display.
1. Press MENU, and it will show ‘Display’, press SELECT to confirm.
2. Press or to check through the options: ‘Scrolling text’, ‘Signal strength’, ‘Program
Type’, ‘Ensemble’, ‘Frequency’, ‘Bit rate and code’, ‘Format’, and ‘Date’.
3. Press SELECT to confirm your target option.
To Show the Signal Strength

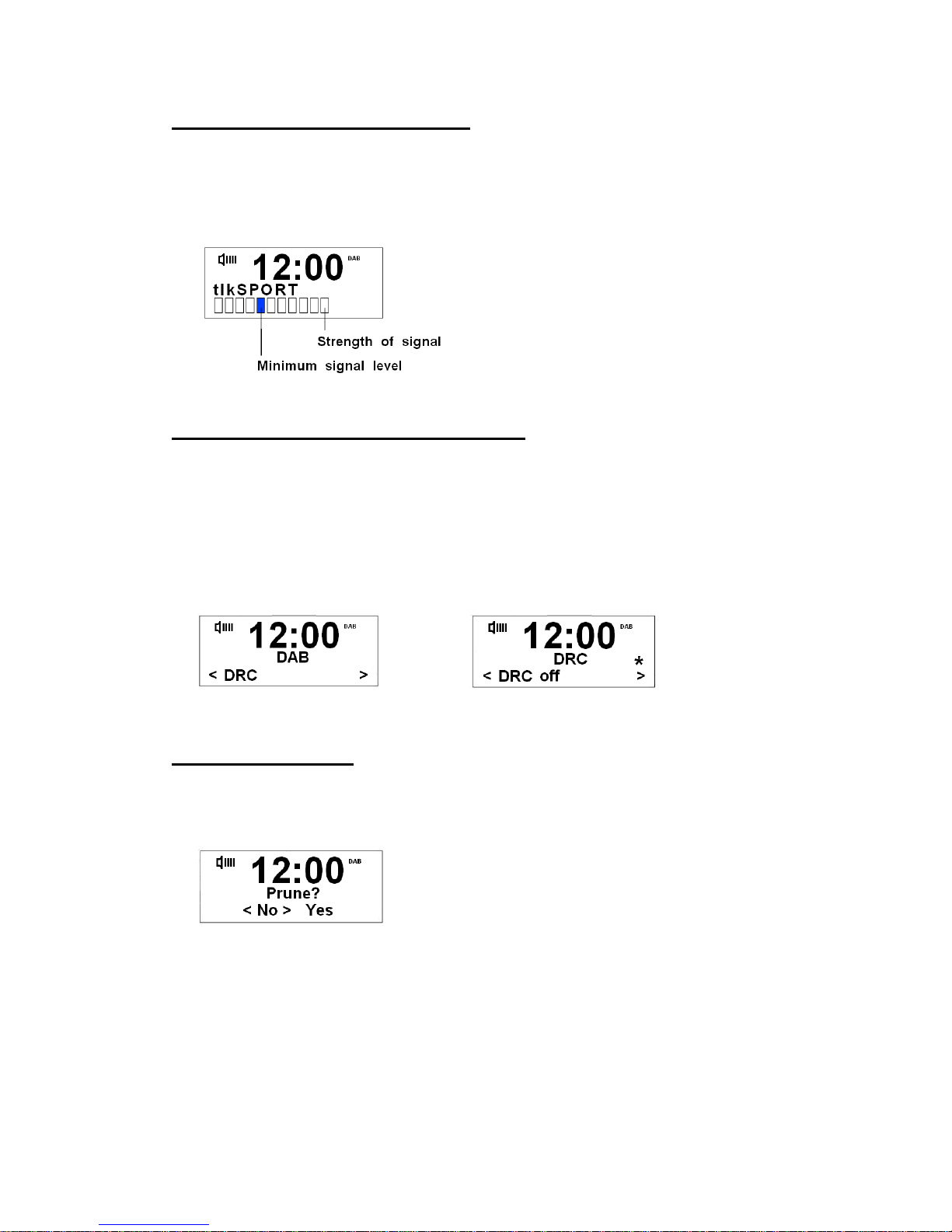

During play a DAB/DAB+ program, the path for showing current station’s signal strength is
pressing MENU Display Signal strength, press SELECT to confirm. The LCD screen
display will show a signal bar with the strength of the current station.
The indicator on the signal bar shows the
minimum acceptable signal level.
Note: Stations with signal strength below the
minimum signal level will not provide a
steady stream of audio.
DRC (Dynamic Range Control ) value
You can set the level of the compression stations to eliminate the differences in dynamic
range or sound level between radio stations.
Note: Set DRC to off indicates no compression,
set DRC to low indicates little compression,
set DRC to high shows maximu m co mp r ession.
1. Press MENU, and then press or to < DRC >, press SELECT to confirm.
2. Press or to your expected option, press SELECT to confirm.
The way to Prune
Note: doi ng t his can have only active broadcasting stations available.
1. Press MENU, press or to < Prune >, press SELECT to confirm.
2. Press or to ‘Yes’, press SELECT to confirm.
10
DAB/DAB+ Menu Tree
FM MODE
Tune in FM Mode
1. Press SOURCE to switch your radio from DAB mode to F M mode.
2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz).
Otherwise, the last listened FM station should be selected.
3. To manually change FM fr equency, while frequency is showing up, press or to
change it 0.05MHz per step.
4. To automatically scan FM available stations, while frequency is showing up, simply press
SELECT.
The unit will display the frequency changing until it stops at the next station.
Scan setting
By default, FM scans stop at any available station. This may result in a poor signal-to-
noise ratio (hiss) from weak stations.
To change the scan settings to stop only at stations with good signal strength, 2 steps:
1. Press MENU, and then press to ‘Scan Setting’, press SELECT to confirm.
2. Press or to ‘Strong stations only’, press SELECT to confirm.
Audio Settings
By default, all stereo stations are reproduced in stereo. For weak stations, this may result
in a poor signal-to-noise ratio (hiss).
To play weak stations in mono, 2 steps:
1. Press MENU, press or to ‘Audio setting’, press SELECT to confirm.
2. Press or to ‘Forced mono’, press SELECT to confirm.
12
View Station Information
Note: It is possible to view more information that is displayed on the second line of the display.
1. Press MENU, and it will show ‘Display’, press SELECT to confirm.
2. Press or to check through the options: ‘Ra dio text’, ‘Program Type’, ‘PS’ (currently
program name), ‘Audio info’ and ‘Date’.
3. While your target option is showing up, press SELECT to confirm.
FM Menu Tree
GENERAL OPERATION
Set Station Presets
Note: this function is for DAB/DAB+ and FM mode use only.
1. While playing your favourite station, press and hold PRESETS, and then press or to
cycle through the preset stations store numbers1-10.
2. Then select your preferred preset station number and press SELECT to confirm.
Play a Preset Station
Note: this function is for DAB/DAB+ and FM mode use only.
To select a stored station:
1. Press SOURCE to select the mode you wish to play, press PRESETS to enter ‘Preset
Recall’ setting.
2. Press or to select your preset number and then pr ess SELECT to confirm.
AUX IN MODE
Note: AUX IN allows for quick and easy connection of an MP3 player or other external sound
sources.
1. Switch Radio on and press SOURCE repeatedly until < Auxiliary Input Mode > is
appeared.
2. Through a 3.5mm cable connection, a high quality digital audio source can be
automatically output through the radio.
3. Connect one end of the cable lead to the headphone (or auxiliary out) socket of your
source device, the other end connect to AUX IN socket at the backside of your radio.
4. To gain optimal volume levels, adjusting the output volume level on both the source
device is recommended.
14
System setup
The way to enter System Setup
1. Press MENU, and then press or to < System >, press SELECT to confirm.
2. Press or to cycle through the System Menu options: ‘Sleep’, ‘Alarms’, ‘Time’,
‘Equaliser’, ‘Backlight’, ‘Language’, ‘Factory Reset’ and ‘SW Version’.
Set Sleep
Note: y o u m ight want your radio turn itself off after a certain time, follow below steps, it can be
easily achieved.
1. Refer to above steps1-2, while cursor point to ‘Sleep’, press SELECT to confirm, it will
show: ‘Set sleep time ------- sleep off’.
2. Press or to define the sleep period: off/15/30/45/60/90 minutes.
3. Press SELECT to confirm your expecting period, meanwhile s leep icon hop on
5. Want check how long the sleeping time can be reached? Select < Sleep > option again
and then press SELECT.
6. Radio will automatically switch to standby mode after the set time has elapsed.
7. To continue enjoying your program, press STANDBY.
Set Time
It can be activated from ‘System’ ‘Time’, press SELECT to confirm.
A range of time settings are available, which include the functionality to set:
Set 12/24 hour: Set 24 hour’ and ‘Set 12 hour
Set Time/Date: manually setting
Auto update: ‘Update from DAB’ and ‘No update’
Set date format: ‘DD-MM-YYYY’ and ‘MM-DD-YYYY’
Set Alarm
Note: Setting Alarm, make sure Clock time is set at first.
1. It can be activated from ‘System’ ‘Alarms’, press SELECT to confirm.
2. Press or to your target alarm: ‘alarm 1’ or ‘alarm 2’.
3. Let’s take set alarm 1 as example, while ‘alarm 1’ is showing up, press SELECT to
confirm.
4. While it shows: “Alarm 1 Setup”, press SELECT to confirm.
5. Now, follow your radio instruction, configure the following parameters:
∗ Alarm states: On or Off, press or
to ‘On’, press SELECT.
∗ On Time: 00:00 (alarm so und time )
∗ Duration Time : 1 5/30/45/60/90mintues
Note: The alarm will sound until the selected duration time is finished.
∗ Source: DAB, FM or Buzzer
∗ Set Days: Daily, Once, Weekends or Weekdays
∗ Volume level: remember don’t set your radio volume level to zero (Mute), otherwise,
when alarm is coming, it won’t be heard.
• Postpone Alarm Off:
When alarm is coming, press SELECT to postpone alarm, repeatedly press SELECT to
postpone alarm 5, 10 minutes in turn. Radio will perform counting backward and sound
again after it reaches this setting.
• Turn off Alarm off:
When alarm is sound, press STANDBY to turn alarm off.
• To cancel the Alarm:
Refer to above steps1-5, set ‘Alarm states’ to ‘Off’, and then follow your radio’s
instructions, until it shows ‘Alarm saved’.
SW Version
Note: The helpdesk may ask you for the software version of your product.
It can be activated from < System > < SW version >. Press SELECT to confirm.
16
Set Equaliser
Note: Equaliser is a user-defined setting through Bass and Treble:
Treble : +3,+2,+1,0,-1,-2,-3 level.
Bass : +3,+2,+1,0,-1,-2,-3 level.
1. It can be activated from < System > < Equaliser >. Press SELECT to confirm.
2. Press or to your preferred option: Treble or Bass, press SELECT to confirm. .
3. Press or to the level you favor, press SELECT to confirm, and it is done!

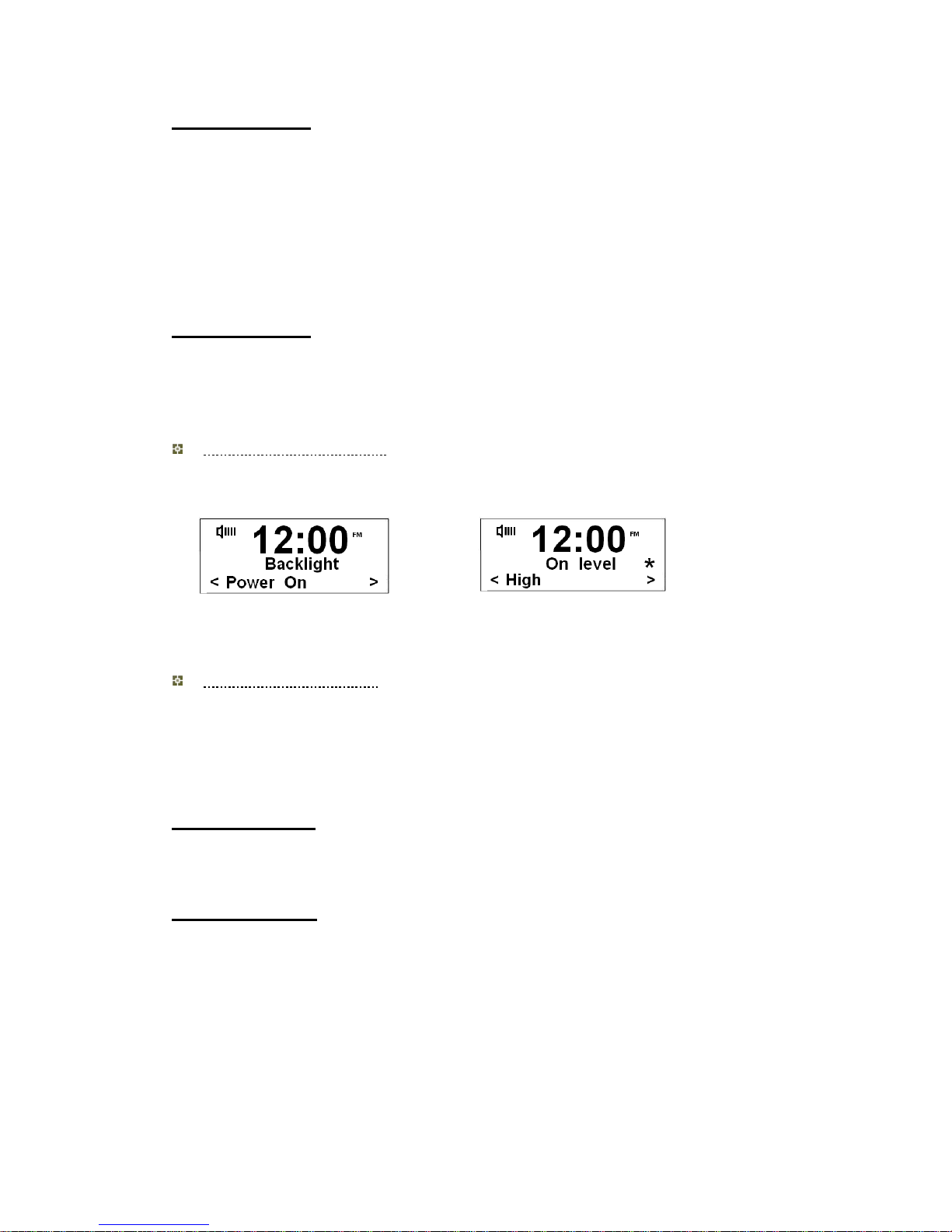

Set Backlight
Note: You c an adjust the backlight level to ‘High’, ‘Medium’ and ‘Low’. High backlight will make the
backlight bright and easy to view. Low backlight will dim the brightness by using less power and
making it less distracting at night.
Under Power on Condition
1. It can be activated from < System > < Backlight >. Press SELECT to confirm.
2. While cursor point to ‘Power On’, press SELECT to confirm.
3. Press or to browse: ‘High’, ‘Medium’ and ‘Low’. Generally, we set ‘high’ for ‘Power
On’ mode.
4. Press SELECT to confirm.
Under Standby Condition
1. Refer to above steps 1-2, then press or to ‘Standby’, press SELECT to confirm.
2. Press or to browse: ‘High’, ‘Medium’ and ‘Low’. Generally, we set ‘low’ for
‘Standby’ mode.
3. Press SELECT to confirm.
Set Language
1. It can be activated from < System > < Language >. Press SELECT to confirm.
2. Press or to your selecting language type, and then press SELECT to confirm.
Factory Reset
Note: Doing t his will delete all the preset stations, alarms and time settings, and return the radio to
its original factory set ti n g s.
1. It can be activated from < System > < Factory Reset >. Press SELECT to confirm.
2. Press or to ‘Yes’, and then press SELECT to confirm.
Specification
ITEMS
DESCRIPTION
Specifications:
DAB/DAB+ and FM Di g i tal Radio
Audio Output:
5Wrms x 2
Frequency Ra nges:
FM: 87.5-108MHz
DAB/DAB+: 174 – 240MHz
LCD Display:
High resolution display
Power Supp ly:
AC Power Input: 100-240VAC, 50/60Hz
Output: 9VDC, 1A
(please use our provided adapter)
Dimension:
328mm x 38mm x 214mm
This symbol on the product or in the instructions means that your electrical and electronic equipment
should be disposed at the end of its life separately from your household waste. There are separate
collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the
product.
International Receiver Company
+45 7026 2446 www.ircgo.com
Loading...
