Page 1
You have just purchased a TABLELITE.
This bulb uses Mesh technology, enabling you to adapt the intensity,
color and schedule of your smart bulb using a number of personalized
scenarios. Combine your SMART AND GREEN lights using the
application and create a Mesh network: your products will communicate
with each other.
CONNECTED LIGHT MODULE
5H
Model: TableLite
Input: 5V 0.3A
Max: 0.5W, IPX4
FCC ID: 2ANRU-TABLELITE
Made in PRC
- Eteindre la lampe avant la mise en charge
En cas de problème de connexion, appuyez pendant 10 secondes sur le bouton pressoir pour
réinitialiser votre TABLELITE.
- Alimentation : 5V 0.3A
- Etanchéité : IP X4
Please read this user manual carefully before using your product, and
conserve it for future reference. Only use this product in accordance
with the precautions of use. Misuse of the product will void your
guarantee.
- Do not connect the light to another device
- Do not expose to fire or other heat sources
- Do not attempt to recharge it with a different charger
- Do not attempt to dismantle the bulb
- Take care when handling, or the product may become scratched
- Switch off the light before recharging
Download the SMART AND GREEN application onto your
Smartphone.
The bulb must be charged before its first use, and regularly
afterwards (otherwise the battery may deteriorate).
Set up your TABLELITE using the SMART AND GREEN
application. Refer to the user guide for further instructions:
www.smartandgreen.eu
In the event of a connection problem, press and hold the
button for 10 seconds to reset the TABLELITE.
- SmartMesh Technology
- Designed in France, manufactured in China
- Manufacturer guarantee: 1 year
- Lithium-ion battery: 850mAh 3.7 V
- Power supply : 5V 0.3A
- Water-resistance: IP X4
- Radio frequency: 2.4GHz
- LED power: 0.5W
- Battery life: 8 hours (white light, maximum intensity)
- Temperature: 0-40
- Transmission/Control: Bluetooth controlled version 4.0
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

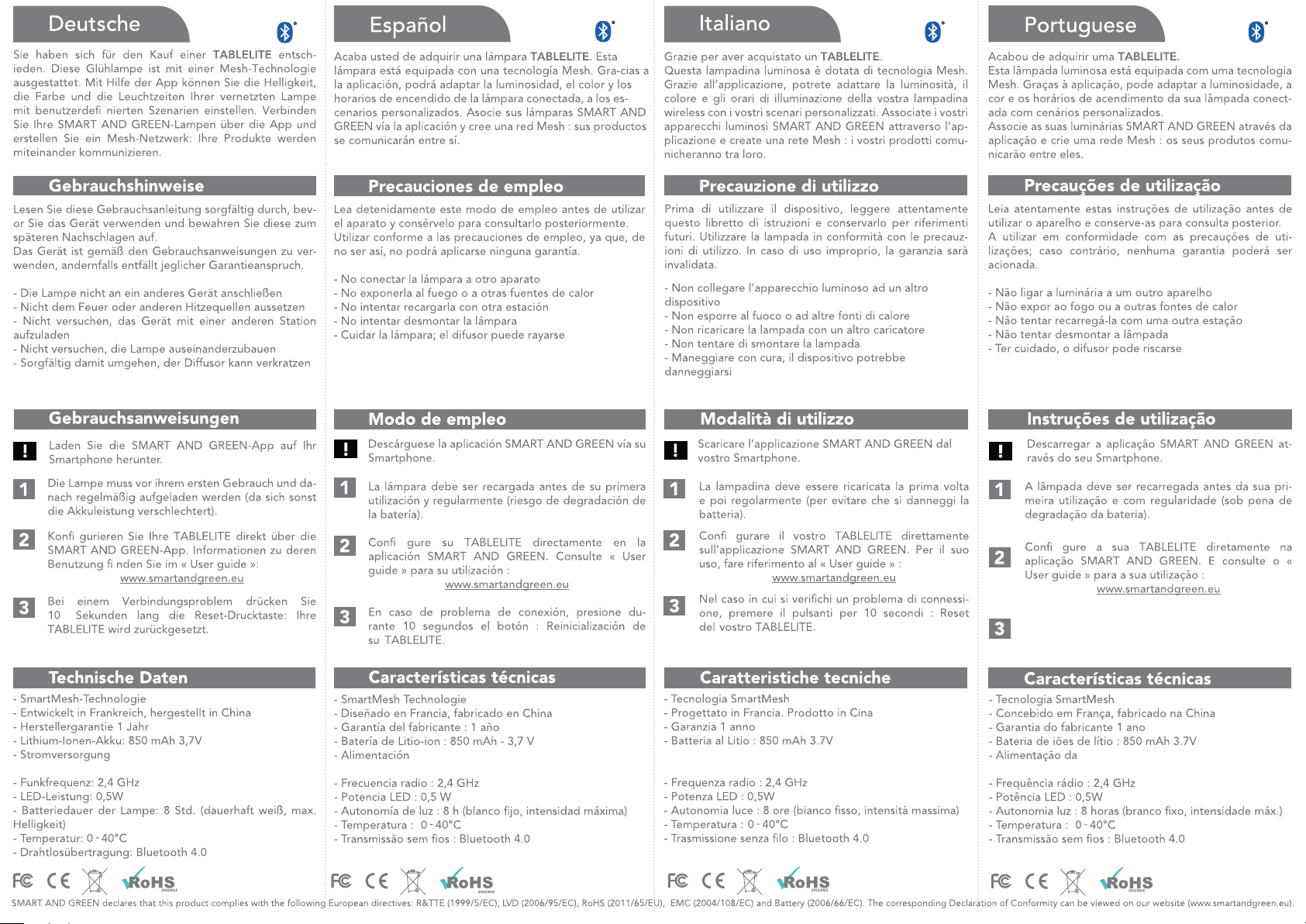

Page 2
- Schalten Sie das Licht vor dem Laden aus
- Apague la luz antes de cargar
- Desligue a luz antes de carregar
- Spegni la luce prima di caricare
Em caso de problema de ligação, carregue durante
10 segundos no botão : Reinicializaçâo da sua
TABLELITE.
- Dichtigkeit: IP X4
: 5V 0.3A
- Estanqueidad : IP X4
: 5 V 0.3A
- Alimentazione : 5V 0.3A
- Impermeabile : IP X4
- Estanquidade : IP X4
: 5V 0.3A
