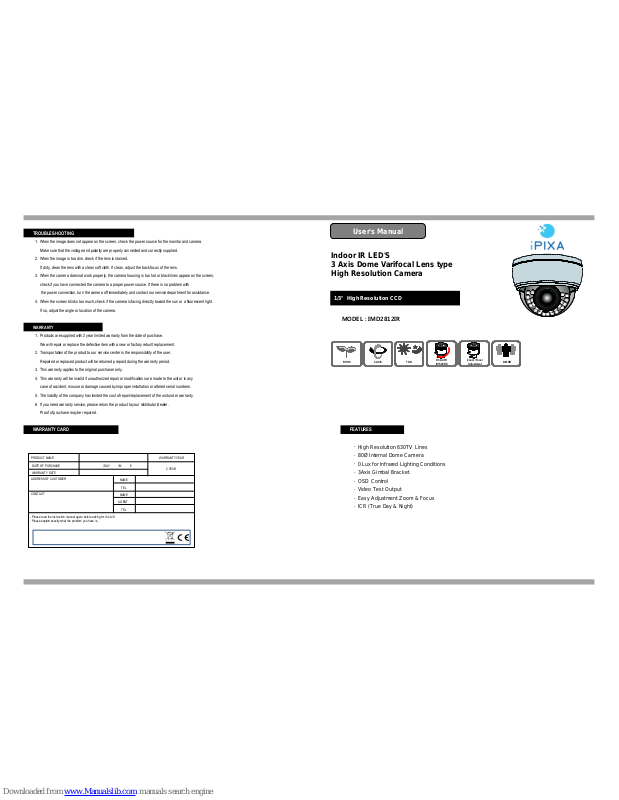

iPixa IMD2812IR User Manual
TROUBLESHOOTING
1. When the image does not appear on the screen, check the power source for the monitor and camera.
Make sure that the voltage and polarity are properly connected and correctly supplied.
2. When the image is too dim, check if the lens is stained.
If dirty, clean the lens with a clean soft cloth. If clean, adjust the back focus of the lens.
3. When the camera does not work properly, the camera housing is too hot or black lines appear on the screen,
check if you have connected the camera to a proper power source. If there is no problem with
the power connection, turn the camera off immediately and contact our service department for assistance.
4. When the screen blinks too much, check if the camera is facing directly toward the sun or a fluorescent light.
If so, adjust the angle or location of the camera.
MODEL : IMD2812IR
WARRANTY
1. Products are supplied with 2 year limited warranty from the date of purchase.
We will repair or replace the defective item with a new or factory rebuilt replacement.
2. Transportation of the product to our service center is the responsibility of the user.
Repaired or replaced product will be returned prepaid during the warranty period.
3. This warranty applies to the original purchaser only.
4. This warranty will be invalid if unauthorized repair or modifications are made to the unit or in any
case of accident, misuse or damage caused by improper installation or altered serial numbers.
5. The liability of the company has limited the cost of repair/replacement of the unit under warranty.
6. If you need warranty service, please return the product to your distributor/dealer.
Proof of pruchase may be required.
WARRANTY CARD
FEATURES
-
High Resolution 630TV Lines
-
80Ø Internal Dome Camera
-
0 Lux for Infrared Lighting Conditions
-
3Axis Gimbal Bracket
-
OSD Control
-
Video Test Output
-
Easy Adjustment Zoom & Focus
-
ICR (True Day & Night)
Indoor IR LED'S
3 Axis Dome Varifocal Lens type
High Resolution Camera
1/3" High Resolution CCD
User's Manual
ROHS
3-AXIS TDN
DC AUTO
IRIS LENS
Zoom / Focal
Adjustment
D-WDR
PRODUCT NAME
DATE OF PURCHASE
WARRANTY DATE
ADDRESS OF CUSTOMER
CONTACT
- Please read the instruction manual again before asking for the A/S
- Please explain exacity what the problem you have is,
NAME
TEL
NAME
AGENT
TEL
WARRANTY YEAR
/ DAY /M /Y
2 YEAR
①
DC Auto Iris Lens
②
Infrared LED
③
Focal & Zoom Adjustment Lever
④
Gimbal Bracket
ITEM NTSC PAL
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Sensor 1/3" High Resolution CCD
Scanning System 2:1 Interlace
Frequency
Horizontal :15.734KHzVertical : 59.94Hz
Horizontal :15.625KHzVertical : 50.00Hz
Resolution More than 630 TV Lines
Video Output 1.0Vp-p Composite Signal ( 75ohm )
AGC
S/N (Y signal)
Min.Illumination
White Balance
Electronic shutter speed 1/60s - 1/100,000s 1/50s - 1/100,000s
3D-DNR OFF / ON Selectable(LOW / MIDDLE / HIGH / CNR)
Sens-Up OFF / AUTO( x2 ~ x1024)
D&N Selection AUTO / COLOR / BW / EXT
BLC ON / OFF Selectable
D-WDR ON / OFF Selectable
HLM ON / OFF Selectable
IR SMART ON / OFF Selectable
Motion Detection OFF / ON(AREA 1~4)
Privacy Masking OFF / ON(MASK 1~8)
MIRROR ON / OFF Selectable
SHARPNESS ON / OFF (Level Adjustable 1~50)
Multi Language Available
O.S.D Available
IR Range 24IR
Lens Mount 2.8~12mm DC Auto Iris
Operating temperature/Humidity
-10℃~+50℃ / 0~80% RH
Power Supply DC12V 110mA (CDS ON : 350mA Max)
Dimensions 112(W)mm X 87(D)mm
Weight Appx. 200g
Defect Pixel Compensation
E
L
E
C
T
R
I
C
A
L
OFF / LOW / MIDDLE / HIGH
52dB or more (AGC OFF)
0 Lux for Infrared Lighting Conditions
ATW / AWC / MANUAL / PUSH
Built In OSD
Screws for Fixing
Base
Cover
Functions
▶User's Manual
SPECIFICATIONS
SETTING & INSTALLATION
When you install the camera,
please glue up the end of
cable to keep it stable in order
to protect the camera from
the humidity problems.
!
①
②
Adjustable Angle
(Tilt : 10~90˚ / Manual)
Adjustable Angle
(Pan : 0~355˚ / Manual)
CONNECTOR ACCESSORIES
< DIMENSION >
③
④
▶Video Test Cable
▶Screw for fixing
< FUNCTIONS >
▶ Video Test Output
▶ OSD Control
1. Dome Base Mounting
- Open the dome cover.
- Mount the base of camera to a sturdy surface using screws with
accessories supplied through premade holes on the base
of the dome.
2. Power Connection & Monitor Impedance
- To avoid fire or shock hazard, always use a CE listed power supply.
- Check Monitor impedance switch if the image is blurred.
3. Camera Adjustment
- Adjust camera angel by moving the gymbal bracket.
- Adjust Zoom and Focus by lever attached to lens if it is varifocal lens.
- Use the OSD control to select the different c amera functions if it is
OSD model.
4. Dome Cover Mounting
- Put the dome cover back and make sure it is properly fixed. Z
