Ipevo WS-01 User Manual

Wireless Station for USB Document Cam

WS-01

User Manual

Package Contents

Your package should contain the following:

• Wireless Station and attached USB cord

• 1.5m USB extension cable and AC power adapter

• User Manual (this document)

Congratulations on your purchase of the WS-01 Wireless Station for USB Document
Cameras. This User Manual will help you get WS-01 set up right away.

Note: This document will refer to the WS-01 Wireless Station for USB Document Cam as simply WS-01.

Note: The WS-01 is intended to be used with one of IPEVO's
USB document cameras — the Point 2 View, Ziggi or
Ziggi HD — which are sold separately.

1. Getting Started

Wireless Station x 1

Extension cable &
power adapter x 1

User Manual x 1

1

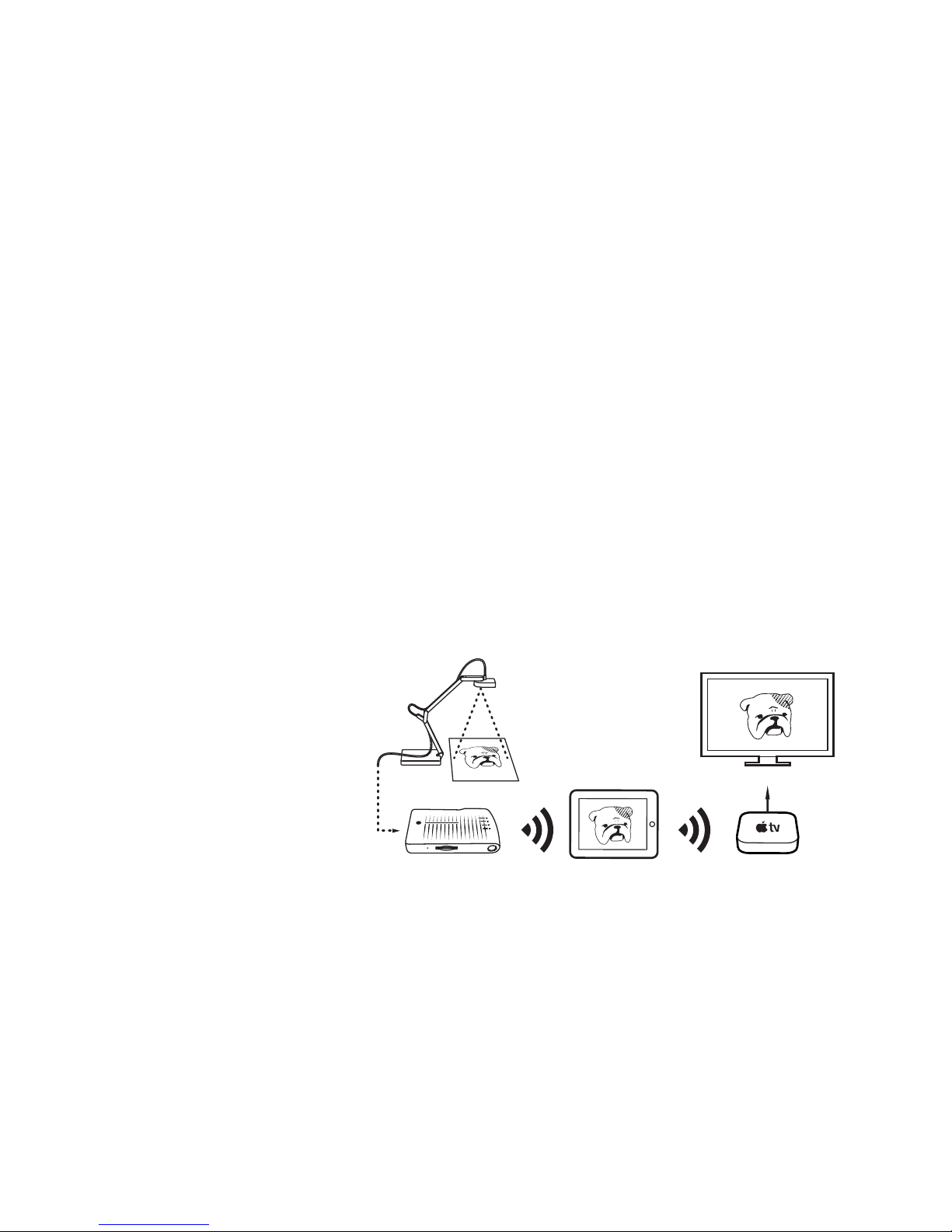

• Stream live images from Ziggi or P2V to iPad, PC or Mac via Wi-Fi

• Upgrade your Ziggi or P2V to a Wi-Fi enabled wireless document camera

• Take advantage of the free Whiteboard App to further enhance your doc cam's use on the iPad

• Use the station as a USB drive or USB card reader with the built-in SD card slot. You can
wirelessly share files on the WS-01 via Wi-Fi

The WS-01 Wireless Station for USB Document Cam lets your IPEVO document camera
—the Point 2 View, Ziggi or Ziggi HD — communicate wirelessly so you can do even more:

Ziggi or P2V

PC or Mac

iPad

2. The Basics

2

WS-01

3. Getting to know your WS-01

USB Charging Connector

Power Button

LED Indicators

SD Card Slot

Reset Button

USB Port

LAN Port

3

LED Indicators: Lights indicate activity in four areas: Battery/Power, LAN, SD Card, and Wi-Fi.

USB Port: Connect your Ziggi or P2V for live streaming, or connect a USB drive for file sharing.

LAN Port: Plug in an Ethernet cable (not included) to connect to your existing internet network.

(Note: when connecting in this manner, please set the WS-01's wireless connection to “Off
(Ethernet Cable)” in the “Internet Connection” setting. See Page 20 for instructions.)

USB Charging Connector : This built-in cord can be used in two ways:

• Plug in to the included AC adapter to charge WS-01's battery

• Plug in to a computer’s USB port to use WS-01 as an SD card reader

Reset Button: Press the button with a pin or paper clip to reset the device. After pressing the reset button,
WS-01 will reboot in 3-5 seconds. The Wi-Fi LED indicator will start blinking red and blue,
and will take about 100 seconds for WS-01 to complete the booting process.

SD Card Slot: Insert SD Cards and use WS-01 as a wireless file sharing device.

Power Button: Press and hold for 2 seconds then release to turn on WS-01, or press briefly to shut down WS-01.

4

4. Understanding the LED indicators

The color (red or blue) and frequency (solid or blinking) of the WS-01's LED indicators will
tell you more about the device's status.

Indicator

Battery/Power

LAN

SD Card

WIFI

• Blue: Battery is normal with sufficient charge, or charging is complete

• Red: Battery is charging

• Blinking Red: Low battery. Please plug in the power adapter

• Blue: Ethernet cable is connected

• Blinking Blue: Data is transferring

• LED Off: Ethernet cable is unplugged

• Blue: SD Card is inserted and ready

• Blinking Blue: SD Card data is transferring

• LED Off: SD Card slot is empty

Color and Frequency

• Red and Blinking Red: System is booting up

• Blue: Wi-Fi is on / System is on

• Blinking Blue: Data is being transferred via Wi-Fi

• Blinking Red and Blue: System is shutting down

5

Charge WS-01’s built-in battery prior to powering up the device for the first time.
This ensures the battery will have sufficient power.

5. Charging Your WS-01

1. Connect the built-in USB connector to the included

power adapter, then connect the power adapter
to an outlet.

2. The battery/power LED indicator will stay red
while charging. When the battery is fully
charged, this indicator will turn blue.

3. The battery may also be charged by plugging the
built-in USB connector directly into a computer's
USB port. However, this method will take longer
than using the power adapter.

6

Connect Adapter
to WS-01

Plug-In

Note: Wi-Fi will be disabled when plugged into a
computer’s USB port.

Battery Tips:

Important Caution!

• Charging to full will take approximately 6 hours, or more if you are using the WS-01 while charging.

• The WS-01's 3300mAh battery will power the device for about 4 hours before requiring a charge.

• A blinking red battery/power LED means your battery is low. Please recharge your device if so.

Please do not attempt to use any power adapter other than the one included with your package.
Using a different adapter may damage the WS-01 and will void the manufacturer warranty.

7

WS-01 is compatible with iPad, PC and Mac, and can be installed following these steps:

6. Setting Up Your WS-01

SD CARD

LAN

/POWER

Connect USB Cable

8

Turn on

WIFI

1. Press the power button and hold for 2 seconds.
The Wi-Fi indicator will flash from red to blue.

2. Connect your Ziggi or P2V Document Camera to
the USB port on WS-01.

2

1

7. Installing your WS-01

IPEVO WS-01_3524

SSID:

MAC Address:

0123456789ab

25123B01234

On iPad:

1. Go to the Apple App Store on your iPad.

On App Store, search for and install the free
“IPEVO Whiteboard” app.

9

3. Launch IPEVO Whiteboard and follow the

onscreen guide to access WS-01’s features.

2. Hit “Settings” on your iPad and enter “Wi-Fi
Settings.” Browse the available connections
and connect to WS-01's SSID (SSID can be found on
the label located on the bottom of the device).

Bottom of WS-01

4. a) Tap the Wireless Station icon and b) Select WS-01 under available wireless stations.
The menu bar next to Wireless Station should then expand once WS-01 is selected.

a

10

b
