Ipevo VZ-R Quick Start Manual

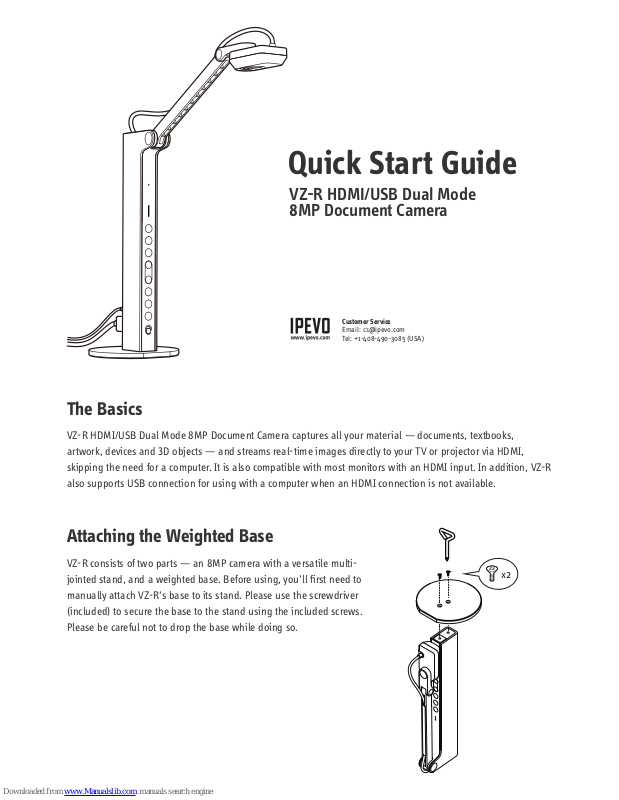

Quick Start Guide

The Basics

VZ-R HDMI/USB Dual Mode 8MP Document Camera captures all your material — documents, textbooks,
artwork, devices and 3D objects — and streams real-time images directly to your TV or projector via HDMI,
skipping the need for a computer. It is also compatible with most monitors with an HDMI input. In addition, VZ-R
also supports USB connection for using with a computer when an HDMI connection is not available.

Attaching the Weighted Base

VZ-R consists of two parts — an 8MP camera with a versatile multi­jointed stand, and a weighted base. Before using, you’ll first need to
manually attach VZ-R’s base to its stand. Please use the screwdriver
(included) to secure the base to the stand using the included screws.
Please be careful not to drop the base while doing so.

Customer Service

Email: [e-mail]
Tel: [phone] (USA)

VZ-R HDMI/USB Dual Mode
8MP Document Camera

filter

rotate

power

zoom

light

focus

exp

exp

Getting to Know Your VZ-R

Camera

8 megapixel camera.
Camera head can be
swiveled for customizing
orientation.

Multi-jointed Stand

Gives you the freedom to quickly
and easily position the camera
at different heights, angles, and
various orientations for capturing
material.

Weighted Base

Provides a stable base
for your VZ-R.

Power Switch

Turn VZ-R on/off.

Light

Turn the built-in LED light on/off.

Filter

Apply video filter to the live image.

Rotate

Rotate the live image.

Zoom In

Zoom in on the live image.

Zoom Out

Zoom out on the live image.

Microphone

The microphone is only functional when VZ-R is used
in the USB mode. This is useful for video conferencing,
recording lessons and more.

LED Indicator

Two colors — Green and White. Green indicates that
VZ-R is powered on. White indicates that VZ-R is in use
and providing an image.

Increase Exposure

Increase the exposure if the subject is too dark.

Decrease Exposure

Decrease the exposure if the subject is too bright.

Focus Button

Focuses the live image or changes the focus mode.

- Focus mode is set to AutoFocus-Continuous (AF-C) by
default

- Press once to focus

- Press for 2s to change the focus mode to AutoFocus­Single (AF-S)

- Press again to change the focus mode back to AF-C

On

Off

60Hz50Hz HDMIUSB / POWER

Model: CDVH-01IP

Made in Taiwan

Rating: 5V 500mA

HDMI Document Camera

RoHS

Compliant

Frequency Switch

Change the frequency to 50 Hz or 60 Hz.

Micro-USB Port

Plug in the included Micro-USB cable here
to provide power for VZ-R (HDMI mode) or to
connect it to a computer (USB mode).

HDMI Port

Connect your HDMI cable
(not included) here.

Connecting to Your HDMI Displays

Please follow the steps below to connect your VZ-R directly to a TV, projector or monitor via HDMI:

1. Connect an HDMI cable (not included) to the HDMI port of VZ-R. Then, connect the other end of the cable to
the HDMI port of a TV, projector or monitor.

2. Connect the included Micro-USB cable to the Micro-USB port of VZ-R. Then, connect the other end of the
cable to the USB port of your TV, projector or computer to provide power for VZ-R. Or, you can also power
VZ-R on by connecting the cable to a 5V/1A USB power adapter (not included) and then to an outlet.

3. Turn on VZ-R using the Power Switch. A live image from VZ-R should appear on your TV, projector or monitor.
VZ-R is now ready to use.

Using VZ-R in the USB Mode

Use VZ-R in its USB mode with a computer via USB when an HDMI connection is not available. You can then
project live images to a large screen through a projector connected to your computer. When in USB mode, VZ-R
is compatible with a variety of software, allowing you to use it in different ways. You may wish to use it with our
IPEVO Visualizer software. You may download it at: http://support.ipevo.com/vzr.

Copyright© 2017 IPEVO Corp. All rights reserved
