Ipevo VX-1 User Manual

1

User Manual
Benutzerhandbuch

說明書

说明书

VX-1 Internet Conference Station

Languages

English User Manual...................................................................................................... 1

Deutsch Benutzerhandbuch.......................................................................................... 15

繁體中文說明書........................................................................................................ 29

简体中文说明书........................................................................................................... 43

1

Table of Contents

The Basics.......................................................................................................................2

Get to Know VX-1............................................................................................................ 3

Get to Know VX-1: Mics................................................................................................... 5

Two Ways to Use VX-1 ................................................................................................... 6

Installing VX-1: USB Mode............................................................................................... 7

Installing VX-1: iDevice Mode.......................................................................................... 9

FAQ.............................................................................................................................. 12

Troubleshooting............................................................................................................ 13

Specifications................................................................................................................ 14

2

The Basics

The IPEVO VX-1 Internet Conference Station provides a high-quality, fuss-free teleconferencing
experience. Hear and be heard clearly without the hassle of installing drivers and extra software.
Simply plug in your computer or iDevice (iPhone, iPad, or iPod Touch) and launch your preferred
conferencing software.

VX-1 has been designed and engineered specifically to receive and transmit human voices.
When in action, VX-1 utilizes built-in noise reduction, echo cancellation technology and audio
enhancement to clarify and smooth voices.

VX-1 is equipped with a total of five high-definition microphones: one Omnidirectional Mic (Omni
Mic) and four Unidirectional Mics. You can choose to capture the whole conversation using the
Omni Mic or choose just a few people by selecting a specific Unidirectional Mic.

3

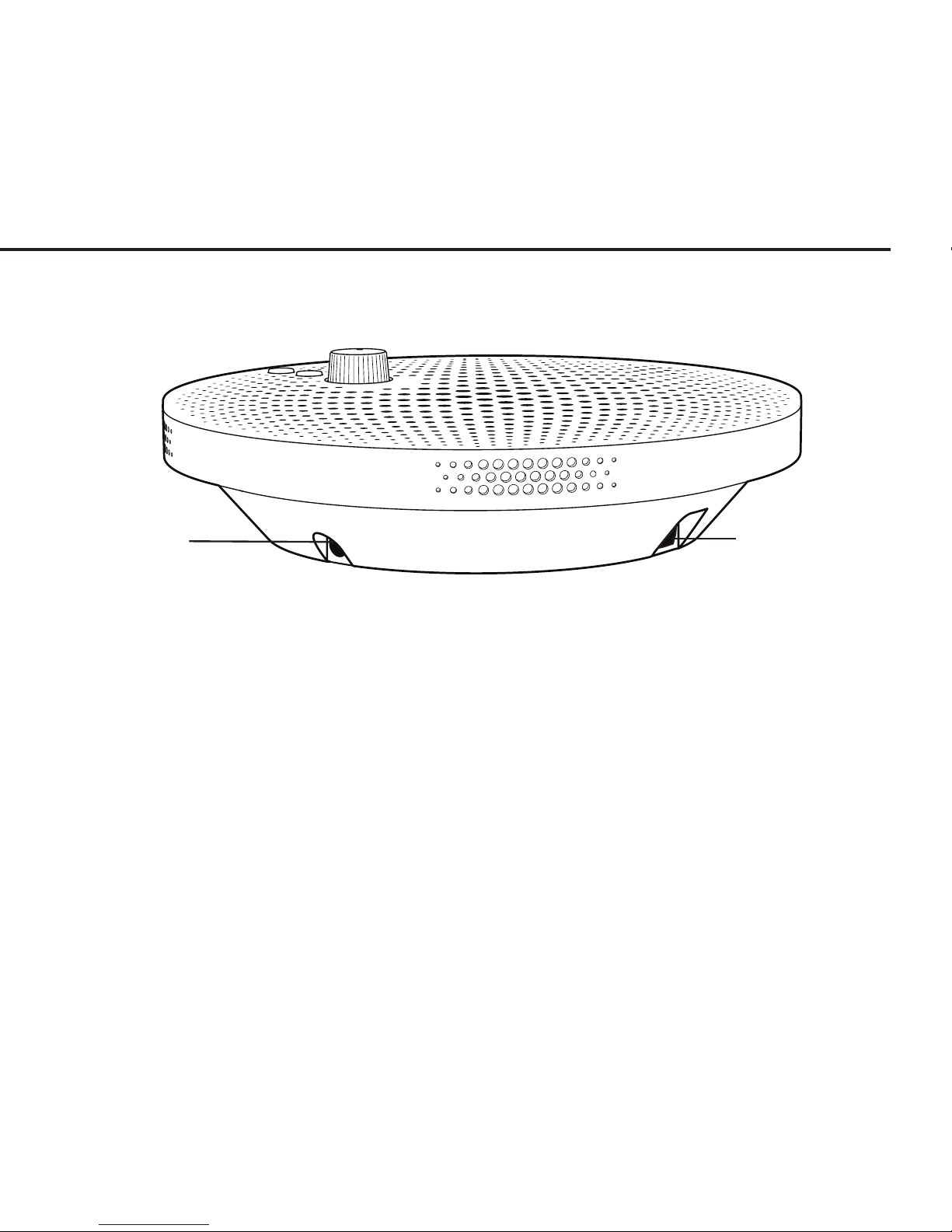

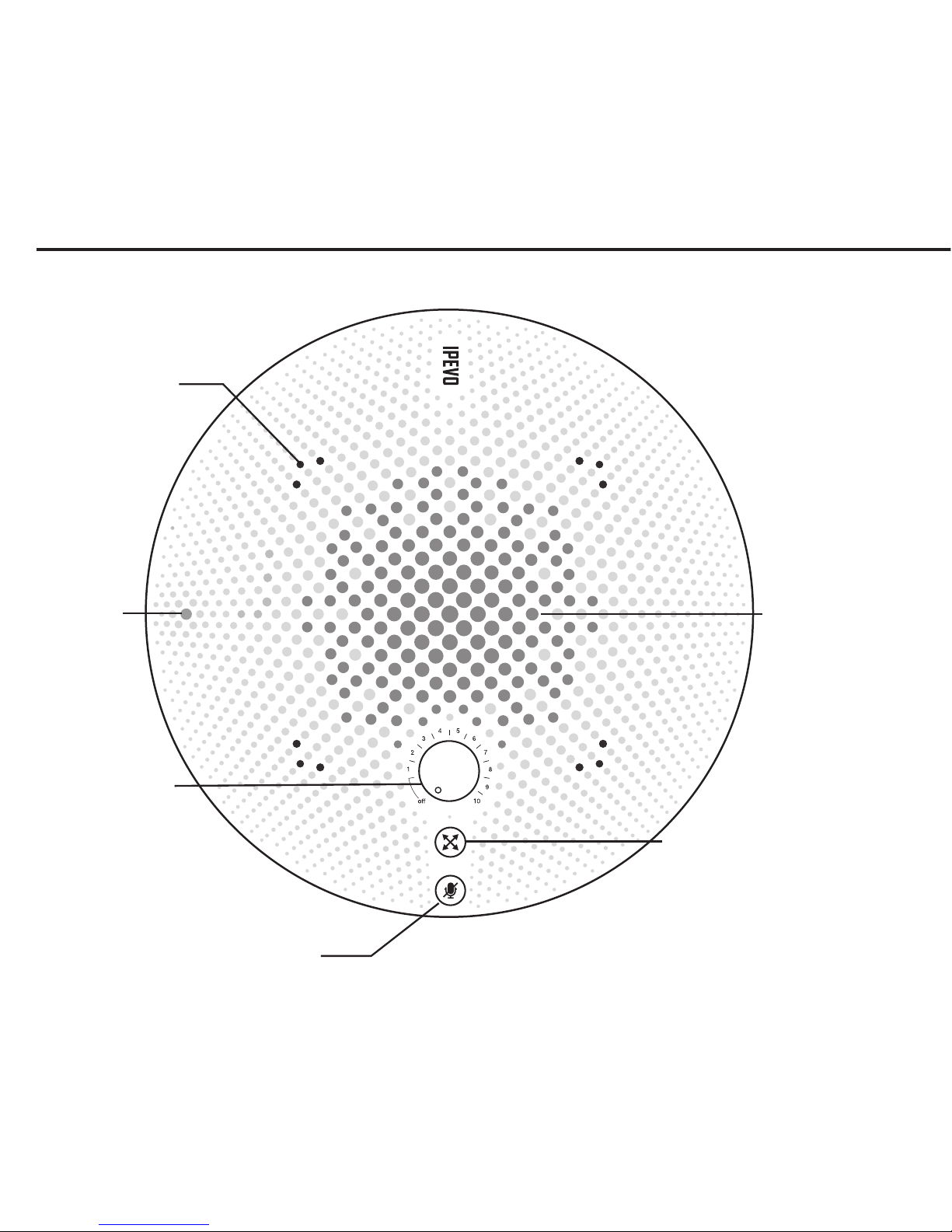

Get to Know VX-1

Zone Enhancement

Power Switch
& Volume Knob

Omni Mic

Speaker

LED Indicators
& Unidirectional Mic

Powers on VX-1 and controls
volume. Turn clockwise to
turn on. Continue turning to
increase volume.

Switches from Default Mode (Omni
Mic) to Zone Enhancement Mode
(Unidirectional Mic).

Press to select a different
Unidirectional Mic/Zone.
Selection progresses clockwise
from left of Power Switch.

Mutes all Mics.
Press once to mute.
Press again to unmute.

Mute

LEDs point toward the
direction of each
Unidirectional mic.

4

LED Behavior

PC/AC Adapter PortAudio Jack/

iDevice Port

VX-1 has four Unidirectional mics that can be selected individually. The LEDs point toward the
direction of each Unidirectional microphone. LEDs also indicate the current status of VX-1.

All Green: Omni Mic on.
Single Green: One Unidirectional Mic active.
All Red: All Mics are muted.
Flashing: VX-1 is processing and thinking. Wait till LEDs stop flashing to continue use.

Connect the USB cable
to this port.

Use this port to connect
your iDevice to VX-1.

5

The Omni Mic has a an optimal pick-up range of

6.5 feet. The maximum pick-up range is 13 feet.

Each Unidirectional Mic has an optimal pick-up range
of 10 feet. The maximum pick-up range is 16 feet.

Maximum 13 ft.

Optimal 6.5 ft.

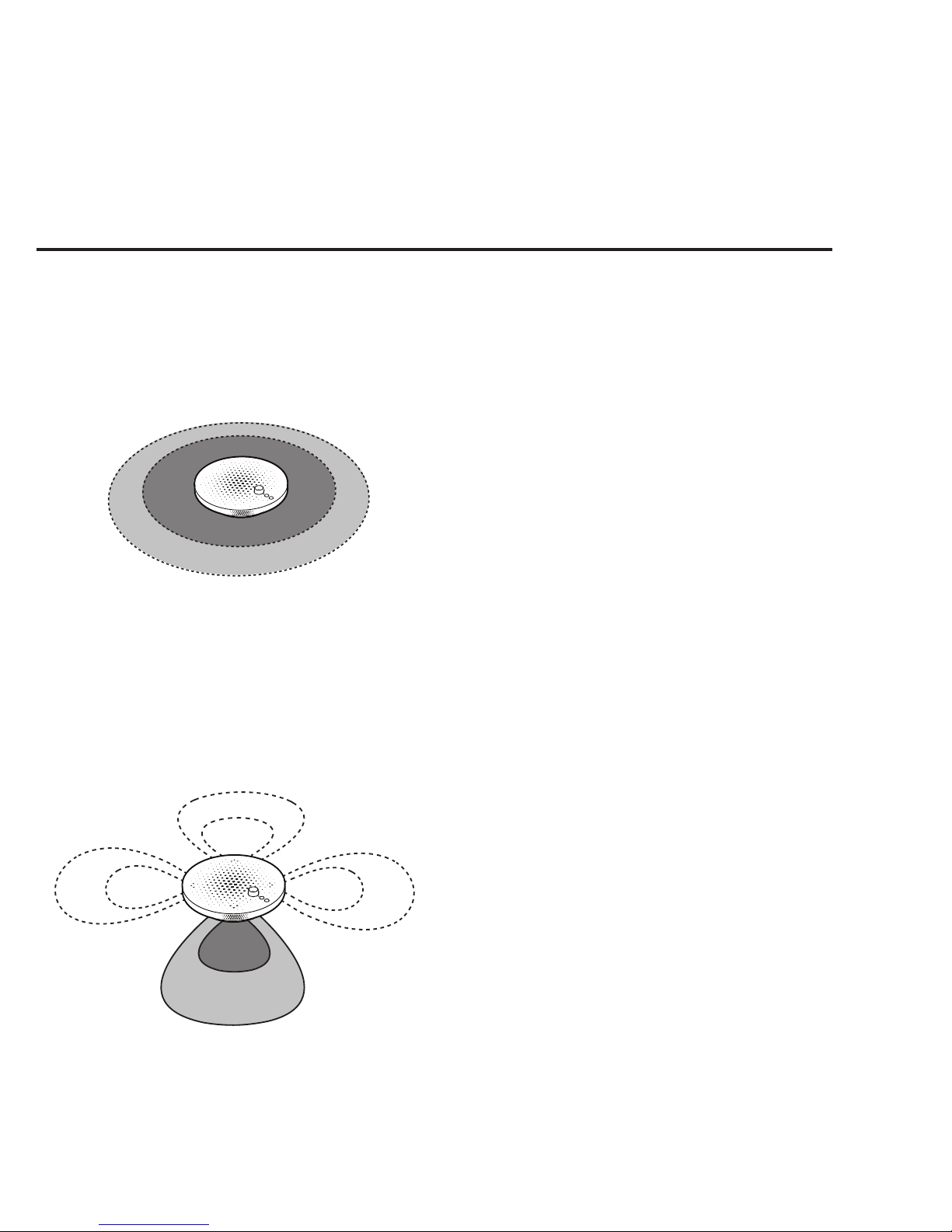

Get to Know VX-1: Mics

Default Mode: Omni Mic

Zone Enhancement Mode: Unidirectional Mics

The Omni Mic is the only mic active in VX-1’s Default Mode. The Omni Mic receives sound evenly in
a 360-degree range, making it best suited for capturing the voices of all participants in a conference.

In Enhanced Mode a single Unidirectional Mic (Uni Mic) is active. You can select a Uni Mic by
pressing the Mic Zone Select button. Uni Mics primarily receive sound in a specific direction and
are tuned so that they minimize sounds that do not come from that direction. Uni Mics also have a
higher sensitivity and longer range than the Omni Mic.

Maximum 16 ft.

Optimal

10 ft.

6

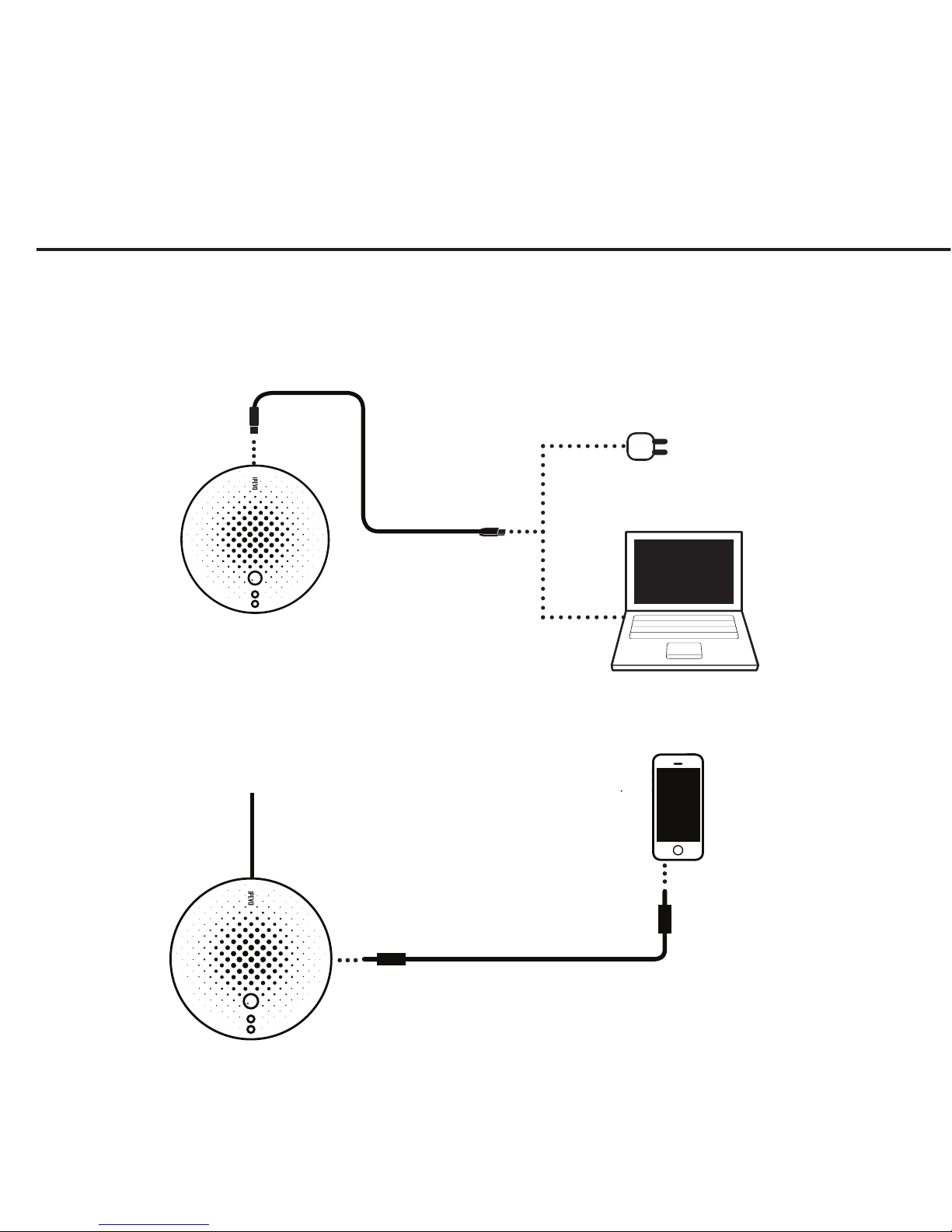

Two Ways to Use VX-1

There are two ways to operate your VX-1.

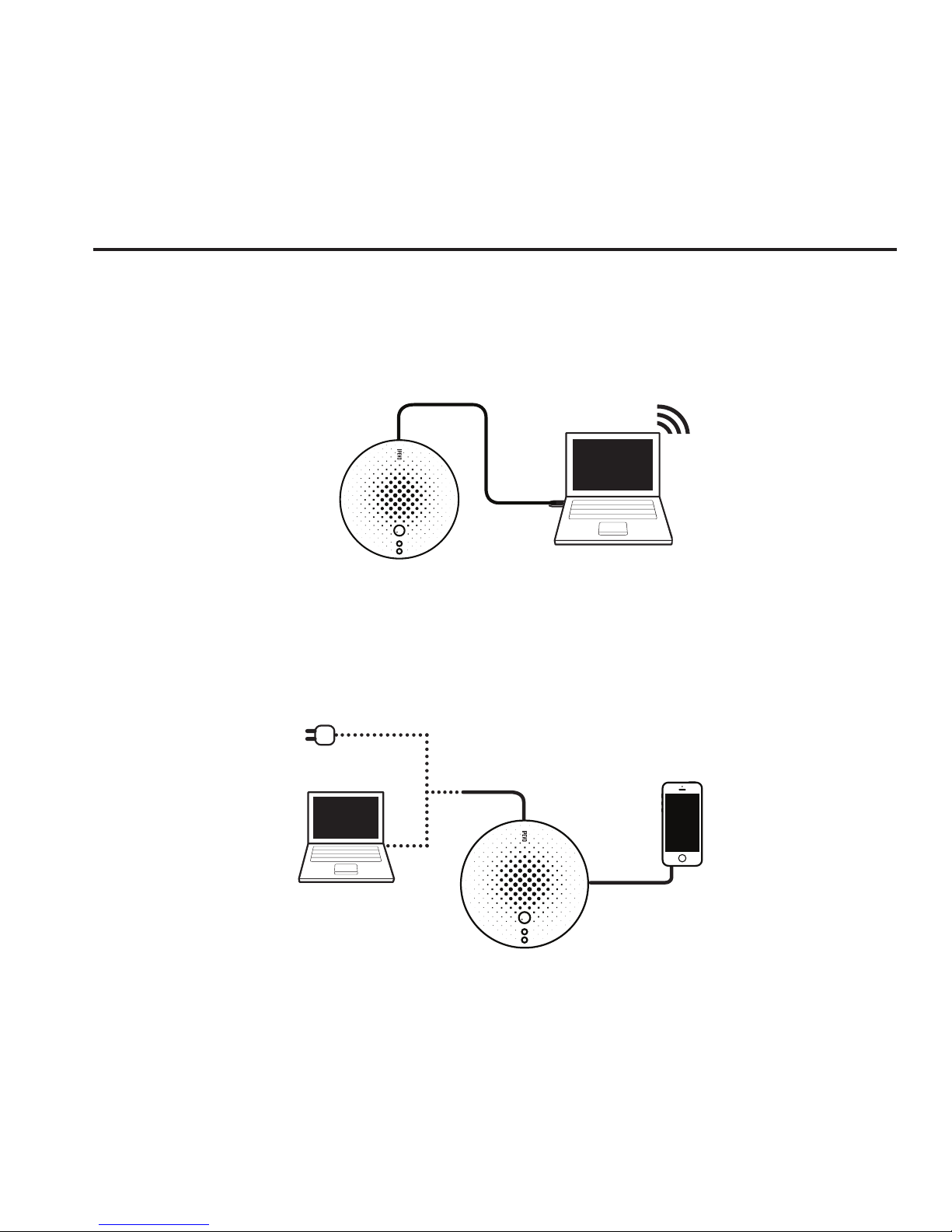

Mode 1: USB Mode (PC/Mac)

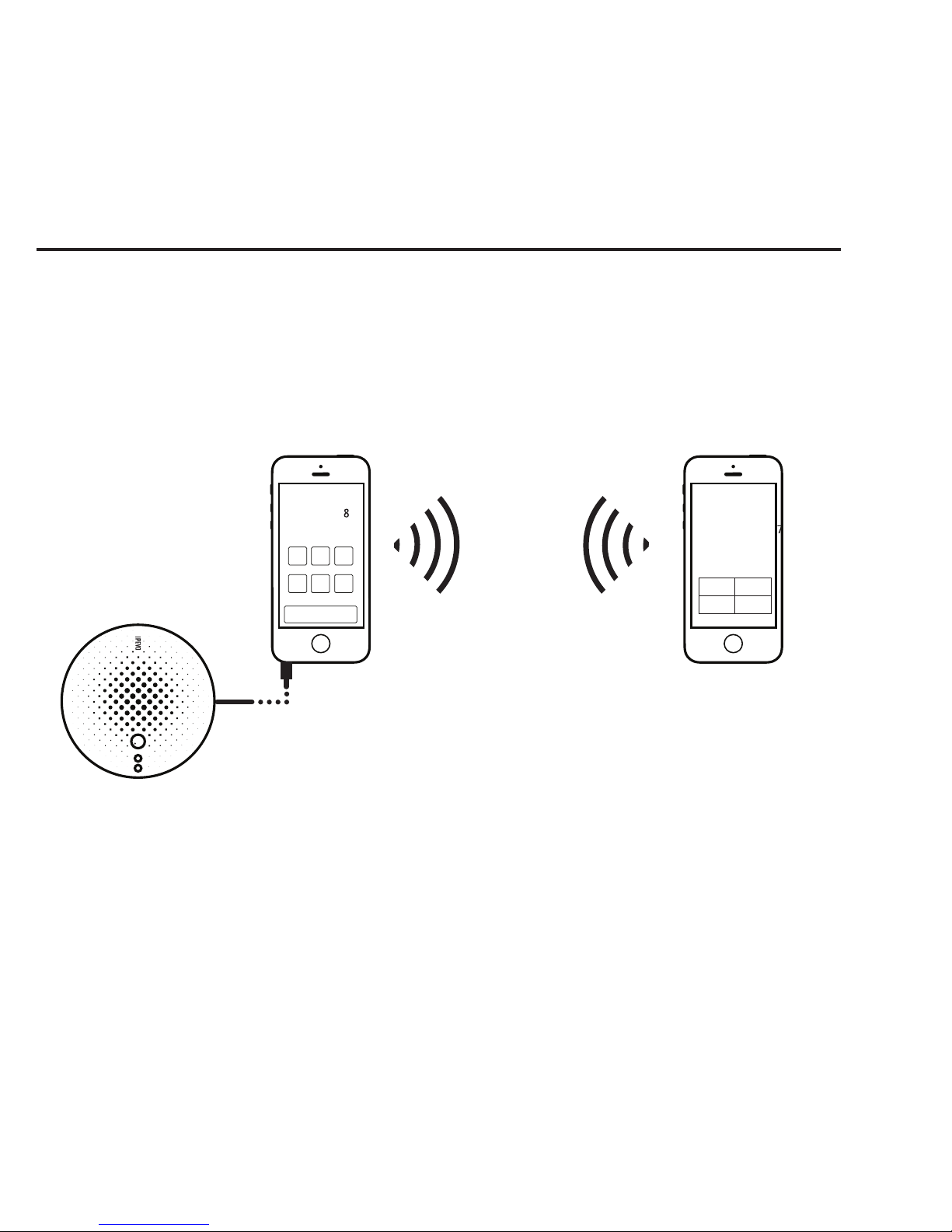

Mode 2: iDevice Mode (External Audio in/out)

Power Source

VX-1

VX-1

Choice 1:
USB AC Adapter
(not included)

*Note: If your Computer and your iDevice are both connected to VX-1, only your iDevice can
make calls. To use your Computer to make calls, unplug the 3.5mm audio cable from VX-1.

Choice 2:
Computer (USB)

iDevice

External Audio
in/out

Your iDevice (iPhone, iPad, and iPod Touch) works with VX-1, but VX-1 requires a separate
power source. You can use an AC adapter or your Computer as a USB power source. When your
iDevice is plugged into VX-1, VX-1 automatically becomes your default microphone and speaker.

Connect VX-1 directly to your Computer’s USB port. No external power required.

WiFi or
Internet
Connection

Computer

7

Installing VX-1: USB Mode

If you plan to use VX-1 with your Computer, follow these instructions:

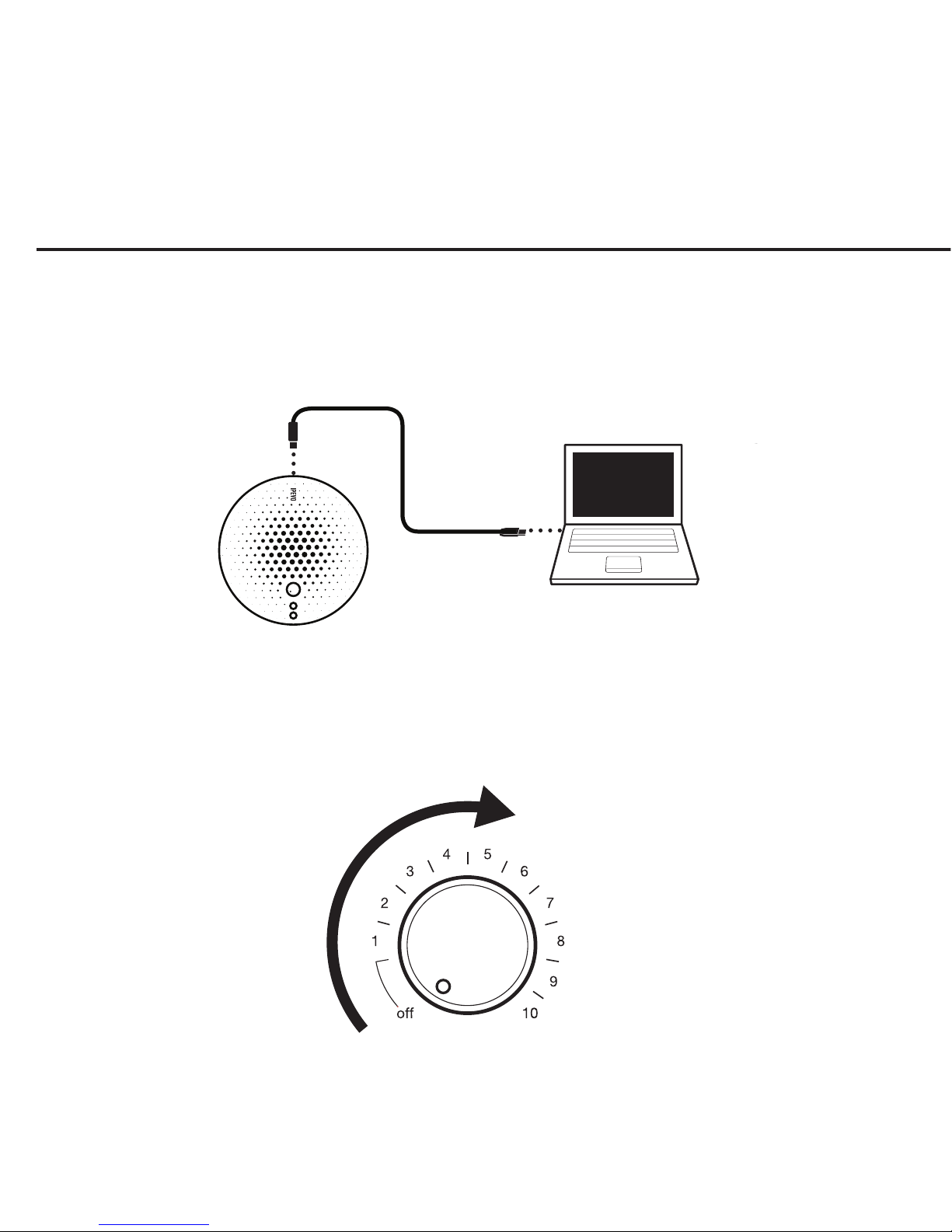

Step 1: Connect the USB cable to your Computer. You do not need to install any software or drivers.

Step 2: Turn the Power Switch clockwise till you hear a “Click” sound.

The LEDs will light up and flash a few times when VX-1 has been turned on successfully. The Power Switch
also controls the volume. Keep turning the knob clockwise to increase the volume (1= Quietest, 10= Loudest).

USB B-Type to

A-Type Cable

VX-1

Computer
