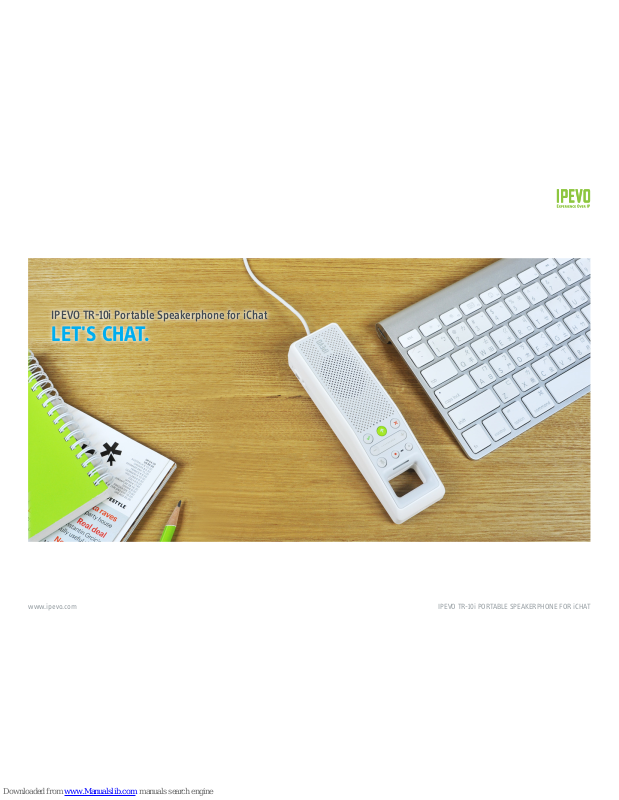

www.ipevo.com IPEVO TR-10i PORTABLE SPEAKERPHONE FOR iCHAT
IPEVO TR-10i Portable Speakerphone for iChat
LET'S CHAT.
www.ipevo.com IPEVO TR-10i PORTABLE SPEAKERPHONE FOR iCHAT
• Portable sp eakerphone, handset, and recording de vice, all
in one!
• DSP chip technolo gy for superi or sound and echo
cancellation.
• Seamless inte gration with iChat; star t iChat, chat, end
chat, all with the TR-10i.
• Place TR-10i anyw here, either horizontally or vertically,
for maximum freedom during chats.
• Free REC sof tware provides one-touch recording for
conversations, memos, podcasts , or iGarage music.
FEATURES
VOLUME CONTROL
SHORTCUT
MUTE
ANSWER / DIAL
LAUNCH iChat
RECORD / PAUSE
CANCEL /
HANG UP
SPEAKER
43mm
(1.7in)
37mm (1.5in)
151mm (6in)
STOP
RECORDING
SPEAKER/HANDSET SWITCH RECEIVER MICROPHONE
CABLE STABLERCALL STAUS INDICATOR
www.ipevo.com IPEVO TR-10i PORTABLE SPEAKERPHONE FOR iCHAT
INSTALLATION CD
TR-10i PORTABLE SPEAKERPHONE FOR iChat
PACKAGE CONTENTS
QUICK START GUIDE
SYSTEM REQUIREMENT
EXTENDED USB CORD
· Broadband internet connection
· Available USB port
· CD-Rom drive
· Mac OSX 10.5 or higher
· G3 600MHz CPU or higher
· 15.3MB of hard disk space available
· iChat software v4.02 or higher
www.ipevo.com IPEVO TR-10i PORTABLE SPEAKERPHONE FOR iCHAT
SPECIFICATION
MODEL NO. CDCU-03IP-WHT
SPEAKERPHONE/HANDSET
Interface
Audio Enhancement
Buttons
iChat/Skype Window Launch
Dial / Answer
Cancel / Hang Up
MIC mute
Volume Conrol
Record / Pause
Stop Record
Mode Switch
LED Indicators
Speaker (For Speakerphone Mode)
USB 1.1, compatible with USB 2.0
Voice sampling rate: 8KHz
Communication: Full Duplex
Echo cancellatio n: up to 60dB
Support AGC (auto gain control) function
Green Act ive LED : incoming call, outgoing call, call in p rogress
Red Acti ve LED: microph one mute
Green Power: p ower on/off
Red Record LED: record on/off/paus e
Green Switch LED: speaker / hands et mode
4Ω 2W speaker
Coil Resistance: 4 +/- 0.6 Ohm
Information and specication are subject to change without prior notice. Skype is registered trademarks of Skype. IPEVO is trademarks of IPEVO inc. ©2009 IPEVO Inc. All rights reserved.
Receiver (For Handset Mode)
Microphone
Operate Voltage
Power
Dimension
Weight
Color
ENVIRONMENTAL
Dimension
Weight
Certification
Warranty
Sound Pressure Level: 80 dBSPL@0.5m
Sensitivi ty: 90 dBA
Frequency re sponse: 180-7Hz
Omni directional
Sensitivi ty: -36 +/- 3 dB
4.5V ~ 5.5V
USB Powered
37mm x 42mm x 151mm (1.45in x 1.69in x 5.9in)
140g (0.31lbs)
White
51mm x 144mm x 199mm (2in x 5.67in x 7.8 3 in)
330g (0.75 lbs)
CE, FCC, RoHs
1 Year
