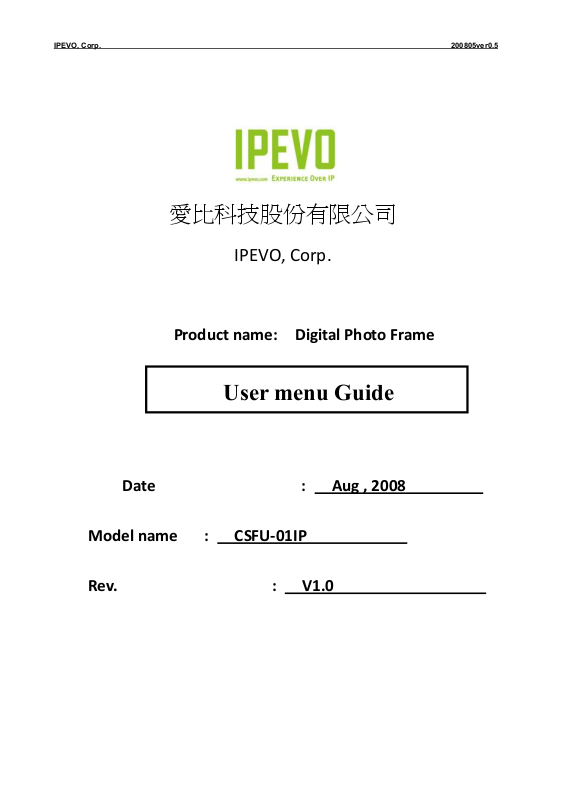

Ipevo CSFU-01IP User Manual

IPEVO, Corp. 200805ver0.5

愛比科技股份有限公司

IPEVO, Corp.

Product name: Digital Photo Frame

User menu Guide

Date : Aug , 2008

Model name : CSFU-01IP

Rev. : V1.0

IPEVO, Corp. 200808ver1.0

uch Pad & Remote Control

CONTENTS

Date : Aug , 2008 ....................................1

I.Product Features .....................................4

II.Dimensions/ Weight ..................................5

III.Buttons& ID Look .................6

IV.Buttons on To

8

V.General Specifications ......................10

VI.LED Indicators .................................10

VII.Package Contents ................................10

VIII.LCD Panel ...........................................11

IX.Memory Card Compatibility ......................11

X.Picture Display Features ....................................11

XI.Certifications / Regulatory Compliance 11

- 2 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

Product Features

I.

• Your “2nd Window”--unique “Internet photo frame” which real-time displays online photos

• Keep yourself update with latest photos/news feed/weather…without having to turn on

your computer

• High Resolution (800*480) 7” TFT color LCD w/backlight

• WiFi link to PC

• A 90 degree rotating hinge allows both landscape and portrait view

• Auto rotate sensor lets your photos always fit well with your screen display

• See what you want to see: easy content management with computer based SW Monaco

• Wide range subscriptions and play for your wished online contents:

• RSS

• Photo sites: Flickr, Google Picasa , PChome

album…

• Useful info: weather, Google calendar…

• More extensibilities…

• Touchpad key control to replace tangible buttons

enhances user experience

• Remote control included

• Anytime to easily switch between online mode

ßàstandalone mode

• Simple and easy to use & share

- 3 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

sions/ Weight

II. Dimen

• Size :

• Landscape: 200*75*172 (mm) (7.87*2.95*6.77 (inch))

• Portrait: 200*75*238 (mm) (7.87*2.95*9.37 (inch))

• Weight : around 1080g (2.38lbs)

- 4 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

Power jack

Mini USB (device)

A type USB (Host)

III. Buttons& ID Look

1. Front

Remote control

receiver

2. Back

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

- 5 –

IPEVO, Corp. 200808ver1.0

Power switch

3. Other angles

SD(HC)/MMC

/MS slot

4. Screen Rotate to Portrait (Front)

5. Screen Rotate to Portrait (Back)

- 6 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

trol

IV. Buttons on Touch Pad & Remote Con

n Touch pad(No “Repeat” ,”GOTO”, “Rotate”, “Refresh”, Three “quick keys” )

n Remote controller(full functions)

Button When photo playing When menu selection
Menu/back
CH+/▼
CH-/▲

Show on-screen menu One step back in the menu
Go to next channel Selection bar moving down
Go to previous channel Selection bar moving up

- 7 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

Mode/OK

PLAY
PREV
NEXT
GOTO

Repeat
STANDBY
ROTATE
Refresh
CH1
CH2
CH3

Show channel name/album
name
Play or pause Play

Previous picture Selection bar moving right
Next picture Selection bar moving left
Open browser to go to web

album
Repeat all/repeat one channel ---

Turn to standby mode Turn to standby mode
Right rotate 90 degree° --­Refresh the channel contents --­Quick key to preset channel --­Quick key to preset channel --­Quick key to preset channel ---

Activates a highlighted menu item
/confirm OK

---

- 8 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

General Specifications

LED Indicators

LCD Panel

V.

Supported Formats
Built-in Memory
Network
USB

Power
Power Supply
Others

JPEG
512MB
Wi-Fi 802.11b/g 2.4GHz 54Mbps
USB 2.0

· One up stream (host)

· One down stream (slave)

· (External Memory Reader is not supported)

External Power Adapter ( 12V/ 1 A/ 12W)
AC 100 ~ 240 V. 60/50 Hz

1.Rating:12V .1A.

2.Temperature: 50 ˚C.

3.Wireless frequency: 2.4GHZ.

4.Output power:TX consumption: 290mA (Max) at 5V

RX consumption:

240mA (Max) at 5V

Standby consumption:

77mA(Max) at 5V

5.Antenna type:Chip antenna.

VI.

• Green Power LED

• Power on/off

• Orange Status LED to indicate:

• Standby mode

VII. Package Contents

• Provence Internet Photo Frame

• AC Power adaptor (100-240V 50-60Hz)

• USB Cable

• Remote Control

• CD-ROM, including:

• Monaco software

• User Manual

• Quick User Guide

VIII.

Display Type
Display Size
Resolution

TFT LCD
7 inch
800 x 480

- 9 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

Memory Card Compatibility

Certifications / Regulatory Compliance

Analog and Digital
4:3 or 16:9
Backlight
Brightness (Cd/m2)
Contrast Ratio

Digital
16:9
LED
350
400:1

IX.

• SD / SDHC

• MMC

• MS

X. Picture Display Features

Supported image Format JPEG
Rotate Right rotate 90° / 180° / 270° / 0°
Auto Rotate Detect EXIF info to enhance auto rotate
Multiple Languages English/ Traditional Chinese/Japanese/

(multi-languages-customized)

XI.

• Safety (Taiwan/USA)

• BSMI

• FCC

• (CE)

• (VCCI)

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

- 10 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

- 11 –

IPEVO,Corp

3F, No.53, Bo-Ai Rd., Taipei 100, Taiwan

Tel:[phone] Fax:[phone]

http://www.ipevo.com

IPEVO, Corp. 200808ver1.0

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20 cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
