iPECS UCP
(Unified Communications Platform)
Hardware Description & Installation Manual
Please read this manual carefully before operating system.
Retain it for future reference.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
Regulatory Information
Before connecting the iPECS UCP to the telephone network, you may be required to notify your local
serving telephone company of your intention to use "customer pr ov ided equipment". You may further be
required to prov ide any or all of the following information:
PSTN line Telephone numbers to be connected to the system
Model name iPECS UCP
Local regulatory agency registration number consult local Ericsson-LG Enterpri se representative
Ringer equivalence 0.6B
Registered jack RJ-45 & RJ-11
This equipment complies with the following regulatory standards, that is, the safety r equir em ents of
EN60950-1, and the EMC requir em ent s of EN55022 and EN55024.
If the telephone company determines that customer provided equipment is faulty and may possibly cause
harm or interruption in service to the telephone network, it should be disconnect ed until repair can be
affected. If t his i s not done, t he telephone company may temporarily disconnect service.
The local telephone company may make changes in its communications f acili ties or procedures. If these
changes could reasonably be expected to affect the use of the iPECS UCP or compatibility with the
network, the telephone company is required to give advanced writt en notice to the user, allowing the user
to take appropriat e steps to m aintain telephone service.
The iPECS UCP complies with r ules regarding radiation and radio frequency em ission as defined by
local regulatory agencies. In accordance with t hese agencies, you may be required to provide information
such as the following to the end user.
European Union Declarations of Conformity
Ericsson-LG Enterprise Co., Ltd. declar es that t he equipment specified in this document bearing the “CE”
mark conforms to the Eur opean Union Radio and Telecommunications Terminal Equipment
Directive( R&TTE 1999/5/EC), including the Elect r om agnetic Compatibility Directive (2004/108/EC) and
Low Voltage Directive (2006/95/EC). Copies of these Declarations of Conformity (DoCs) can be obt ained
by contacting your local sal es representative.
FCC/CSA Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digit al dev ice , pursuant
to part 15 of the FCC Rules. These limi ts are designed to provide reasonable protection against harmful
interfer ence when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate r adio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interf erence t o radi o communications. Operation of t his
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at their expense.
This device complies with part 15 /RSS-GEN of the FCC/IC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference; and (2) This devi ce must accept any interference
received, including interference that may cause undesired operation.
This Cla ss A digital apparatus compli es with Canadian ICES-003.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
Cet appareil numérique de la classe A est conforme à la norm e NMB-003 du Canada.
The use of this device in a system operating either partially or com pletely outdoors may require the user
to obtain a license for the system according to the Canadian regulati ons. For further information, contact
your Local Industry Canada of fice.
CAUTION
Any changes or modifica tions in construction of this device that are not expressly approved by the party
responsible for compliance could void the user's authori ty to operate the equipment.
WARNING
This is a class A product. In a residential environment, this product m ay cause radi o interference in which
case the user may be required t o take adequate measures.
WARNING
This equipment generat es and uses R.F . energy, and if not installed and used in accordance with the
Instructi on Manual , it may cause interference to radio comm unica tions. It has been tested and found to
comply with the appropr iate limits for a telecommunication devi ce . T he limi ts are designed to provide
reasonable protection against such interference, when operated in a commercial envi r onm ent. Operation
of this equipment in a resident ial area could cause interf er ence , in which ca se the user, at their expense,
will be required to t ake whatev er m easures m ay be r equir ed to correct the interference.
Disposal of Old Appliance
When the displayed sym bol ( crossed-out wheeled bin) is adhered to a product, it designates the product
is covered by the European Di r ective 2012/19/EC.
All electric and el ectr onic products should be disposed of only i n
special coll ection facilities appointed by government or local/munici pal
authorities.
The correct disposal of yo ur old appliance will help prevent potenti al
negativ e consequences for the environment and human health.
For detailed information about disposal of your old appliance s, please
contact your city off ice , waste disposal service or the place of product
purchase.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
Revision History
The contents of thi s document are subject to revision without not ice, due to continued progress in
methodology, desi gn, and manufacturing. Ericsson-LG Ent er pr ise shall have no liabilit y for any error or
damage of any kind resulti ng from the use of this document.
Copyright© 2014 Ericsson-LG Enterprise Co., Ltd. All Rights Reserved
This material is copyrighted by Ericsson-LG Enterprise Co., Ltd. (Ericsson-LG Enterprise). Any
unauthorized repr oductions, use or disclosure of this material, or any part thereof, is strictly prohibited
and is a violation of Copyright Laws. If you are not the intended recipient, you should destroy or return
this material to Ericsson-LG Enterprise.
iPECS is trademark of Ericsson-LG Enterprise Co., Ltd.
All other brand and product nam es are t r adem ar ks or regi ster ed trademarks of their respective
companies.
SW version
Issue
Date
DESCRIPTION OF CHANGES
1.0 Mar, 2014 Fir st Rel ease
1.1.x
1.1
June, 2014
Updated the minor content
1.2.x 1.2 Updated the capacity of UCP100 port.
Added Checking power cord.
Added LIP-9000 series.
2.0.x 1.3 Jan., 201 6 Added VCIM gateway.
Added GDC-480H, LDP-9200 series, and LIP -9071.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
i
Table of Contents
1. Introduction .........................................................................1
1.1 Important Safety Instructions ...................................................... 1
1.1.1 Safety Requirements .................................................................................. 1
1.1.2 Precaution ................................................................................................... 2
1.2 About This Manual ........................................................................ 3
2. System Overview .................................................................4
2.1 iPECS UCP Introduction ................................................................. 4

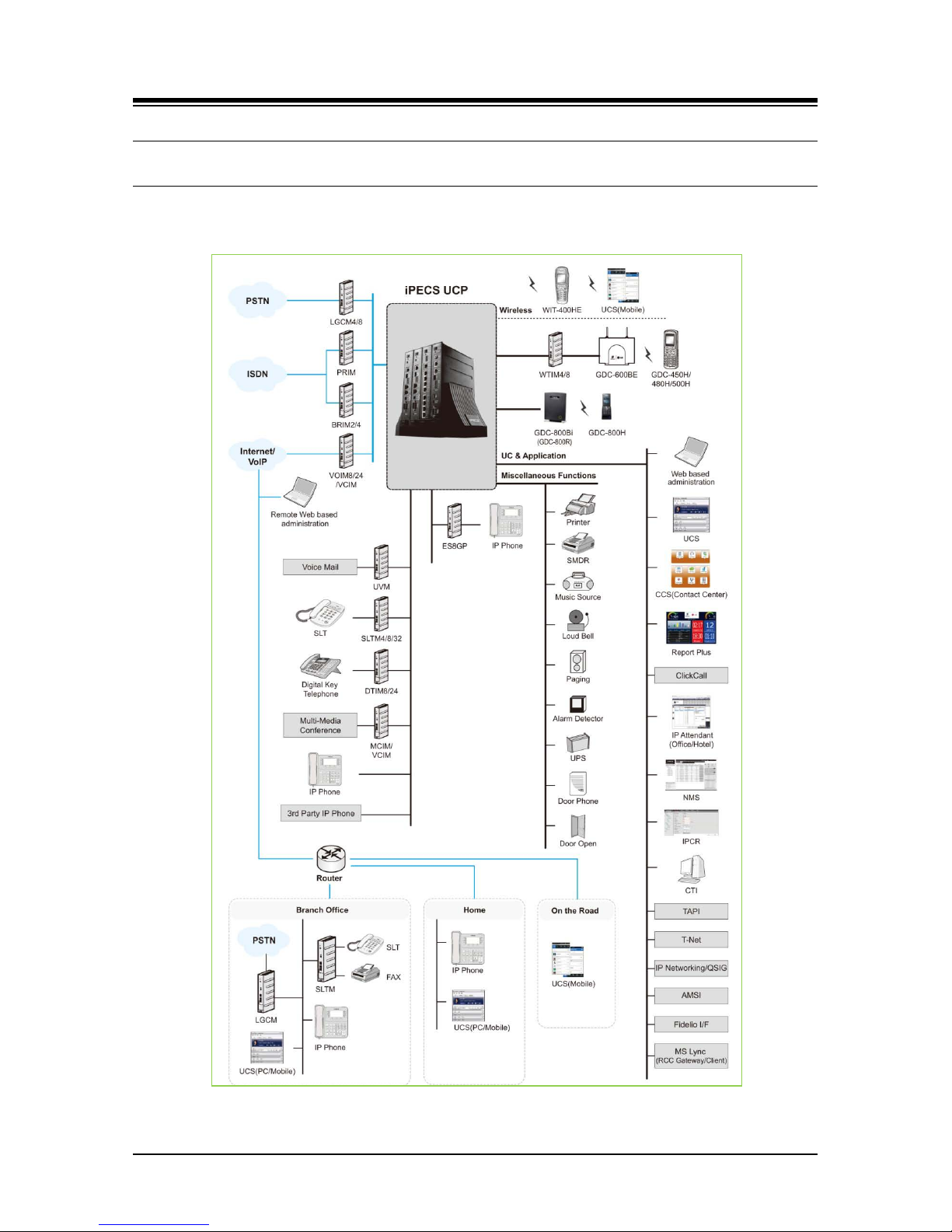

2.2 iPECS UCP Network Connection ................................................... 6
2.3 Hardware Components Chart ........................................................ 7
2.4 System Specifications .................................................................... 8
2.4.1 System Capacity .......................................................................................... 8
2.4.2 Dimension and Weight ............................................................................... 10
2.4.3 Environment specification ........................................................................... 11
2.4.4 Electr ica l spec if ic atio n ................................................................................ 11
2.4.4.1 System Electrical specification ...................................................................... 11
2.4.4.2 Module & Phone Power Requirements ......................................................... 12
2.4.5 Max im um Station Wir ing ............................................................................. 14
2.4.6 An a l og CO Lo op specificati on .................................................................... 14
3. iPECS UCP Hardware Des criptio n .................................... 15
3.1 iPECS Modules .............................................................................. 15

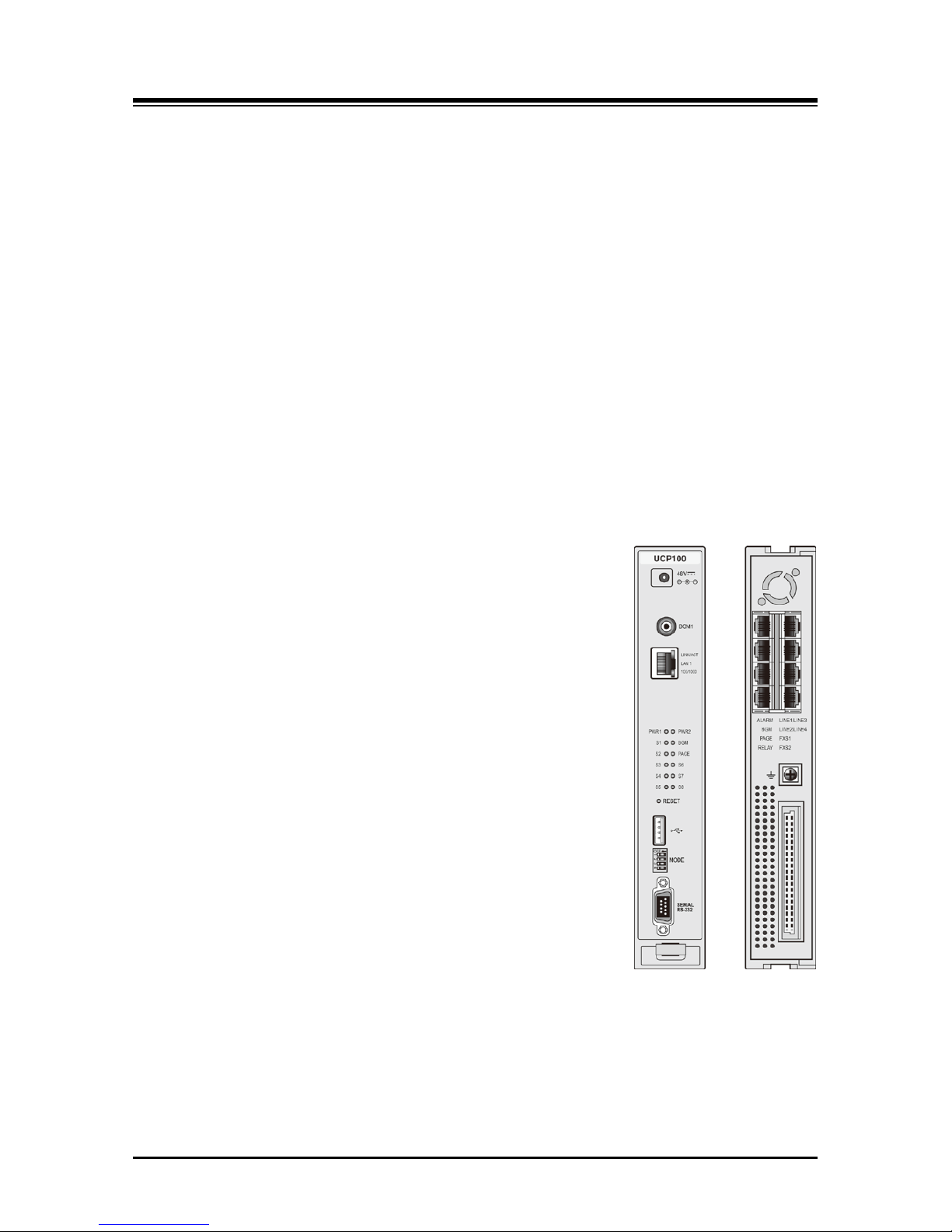

3.1.1 UCP Server Module (UCP100/600/2400) ................................................... 15

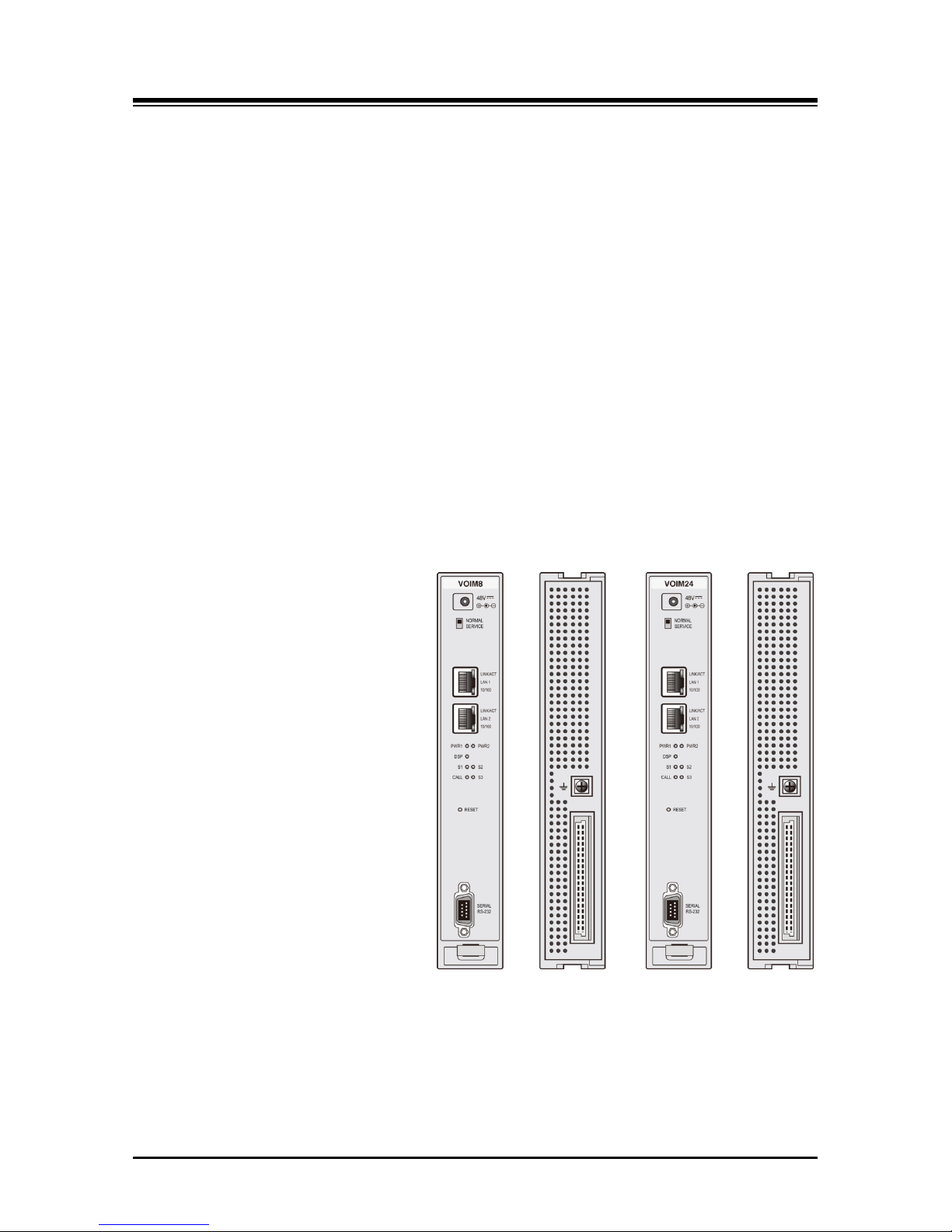

3.1.2 VO I M 8 & 24 (V o ic e O v er IP ga t ew ay Module s) .......................................... 18

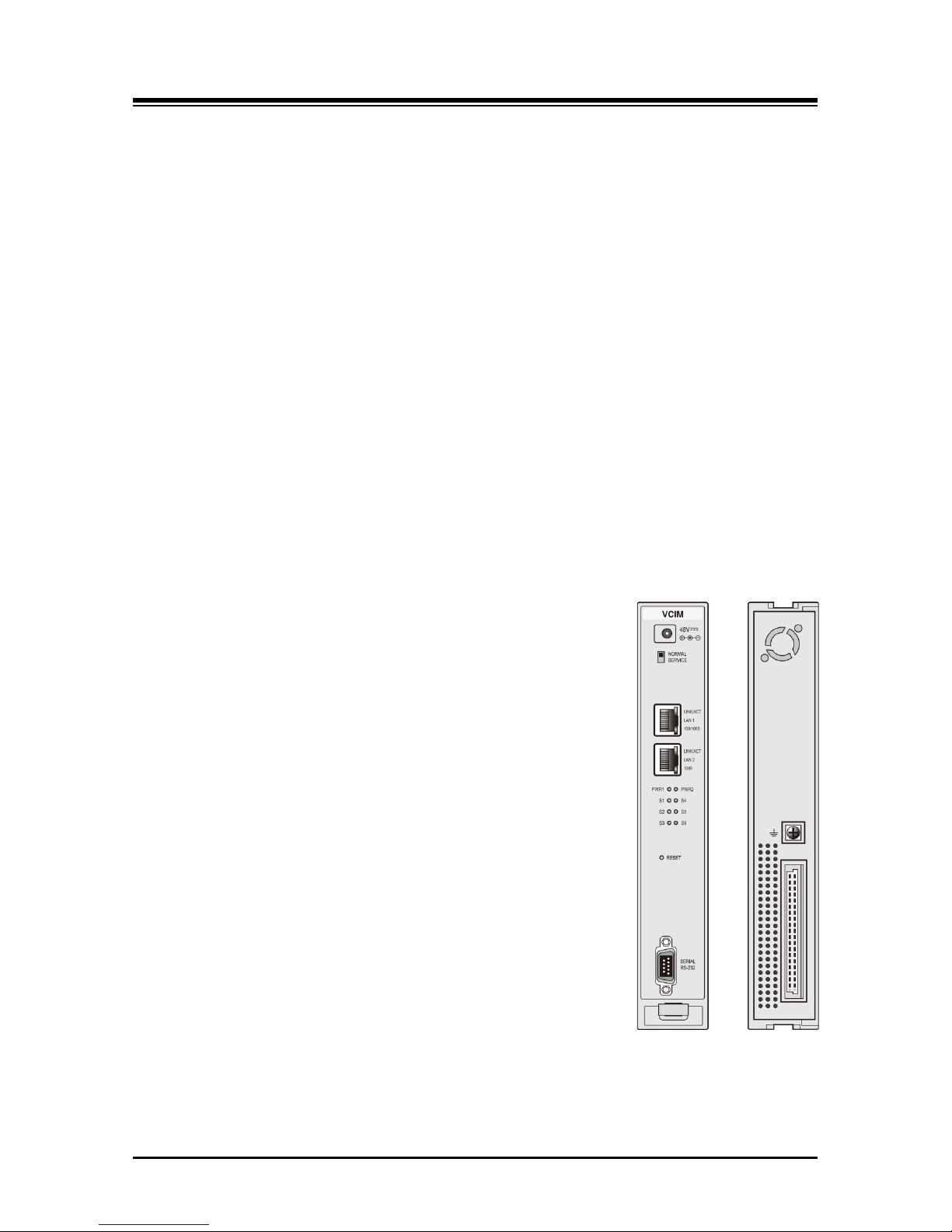

3.1.3 VCIM (VoIP and Conference Interface gate way Module) ............................ 19

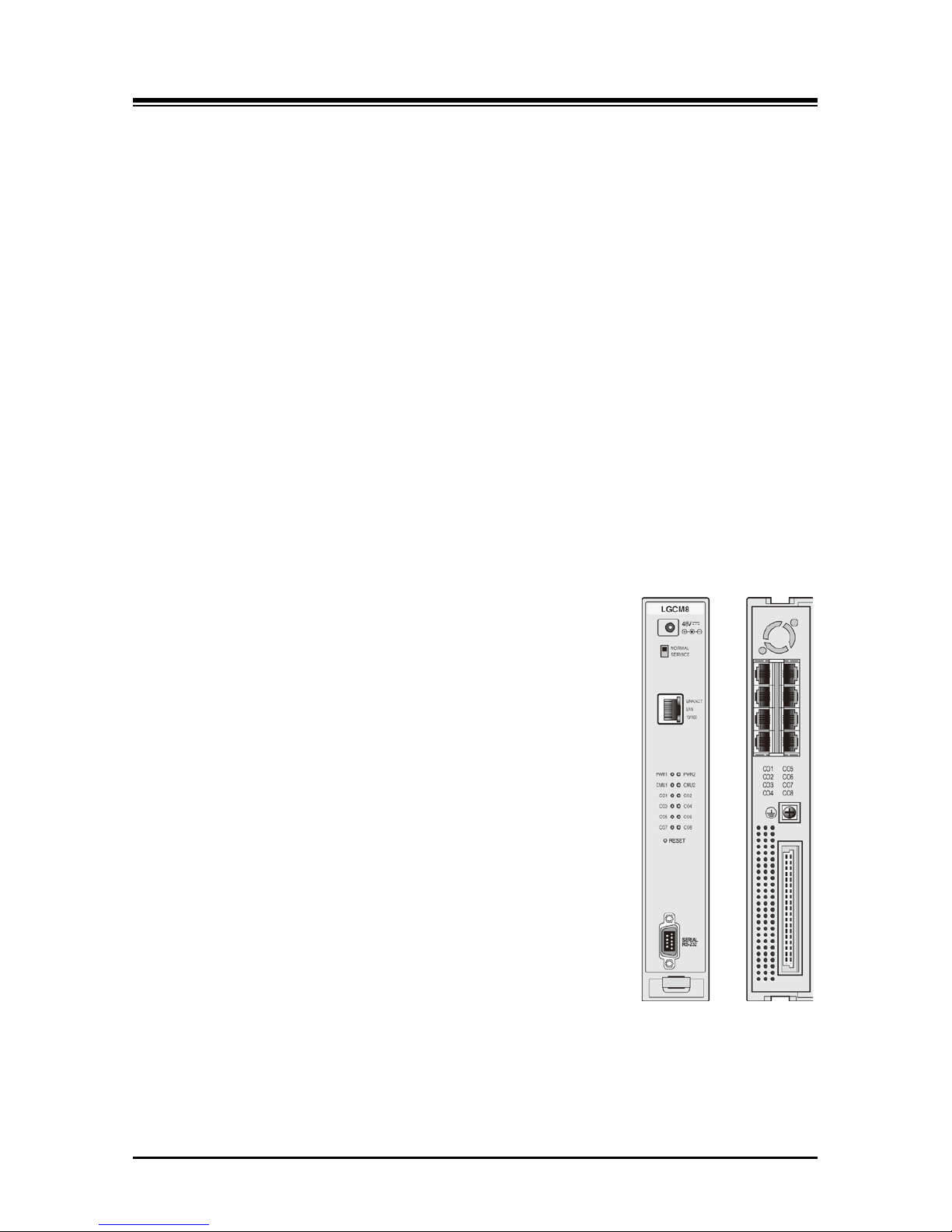

3.1.4 LGCMs (Loop Start CO gateway Module) .................................................. 20

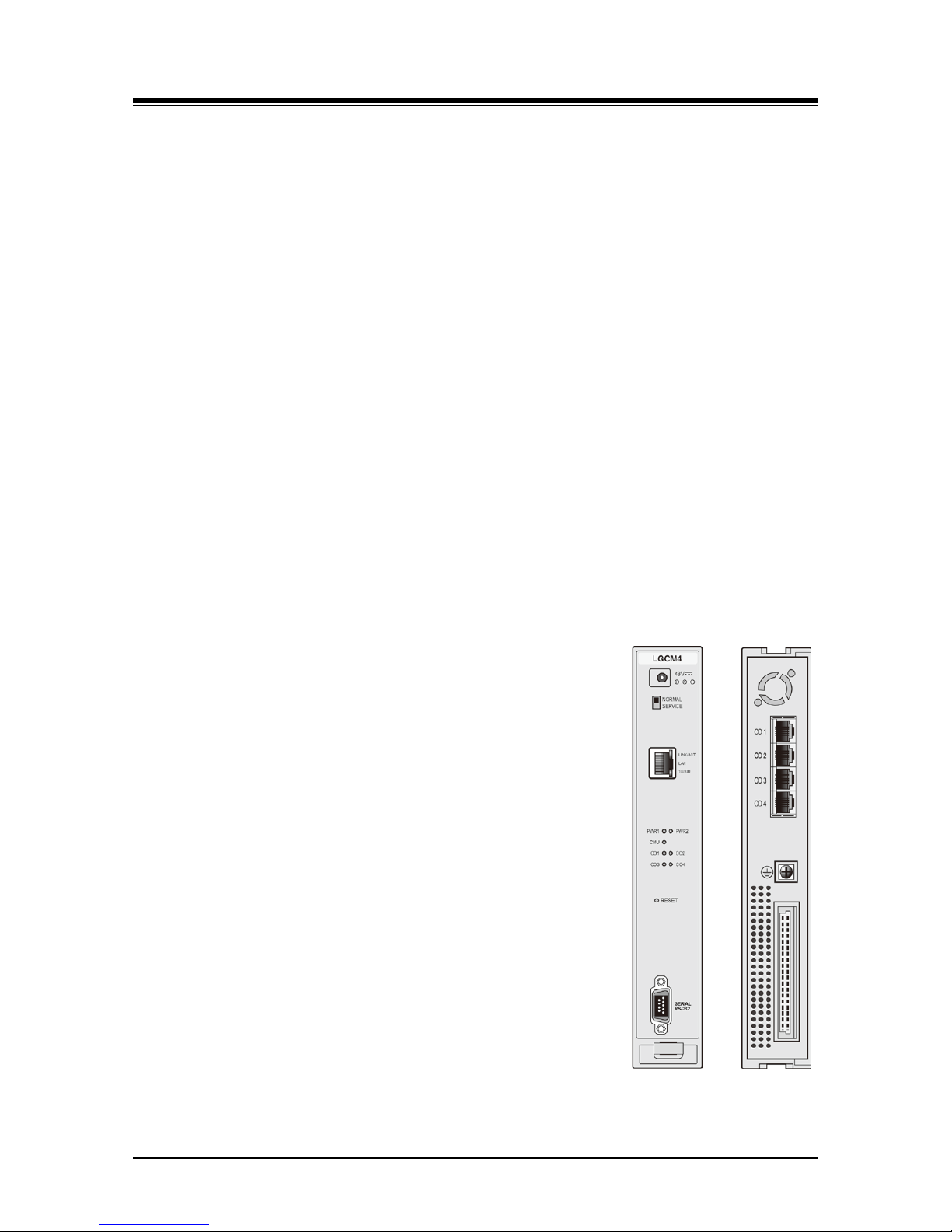

3.1.4.1 LGCM4 ........................................................................................................ 20
3.1.4.2 LGCM8 ........................................................................................................ 21
3.1.5 BR IMs (BRI gateway Mo du l e ) .................................................................... 22

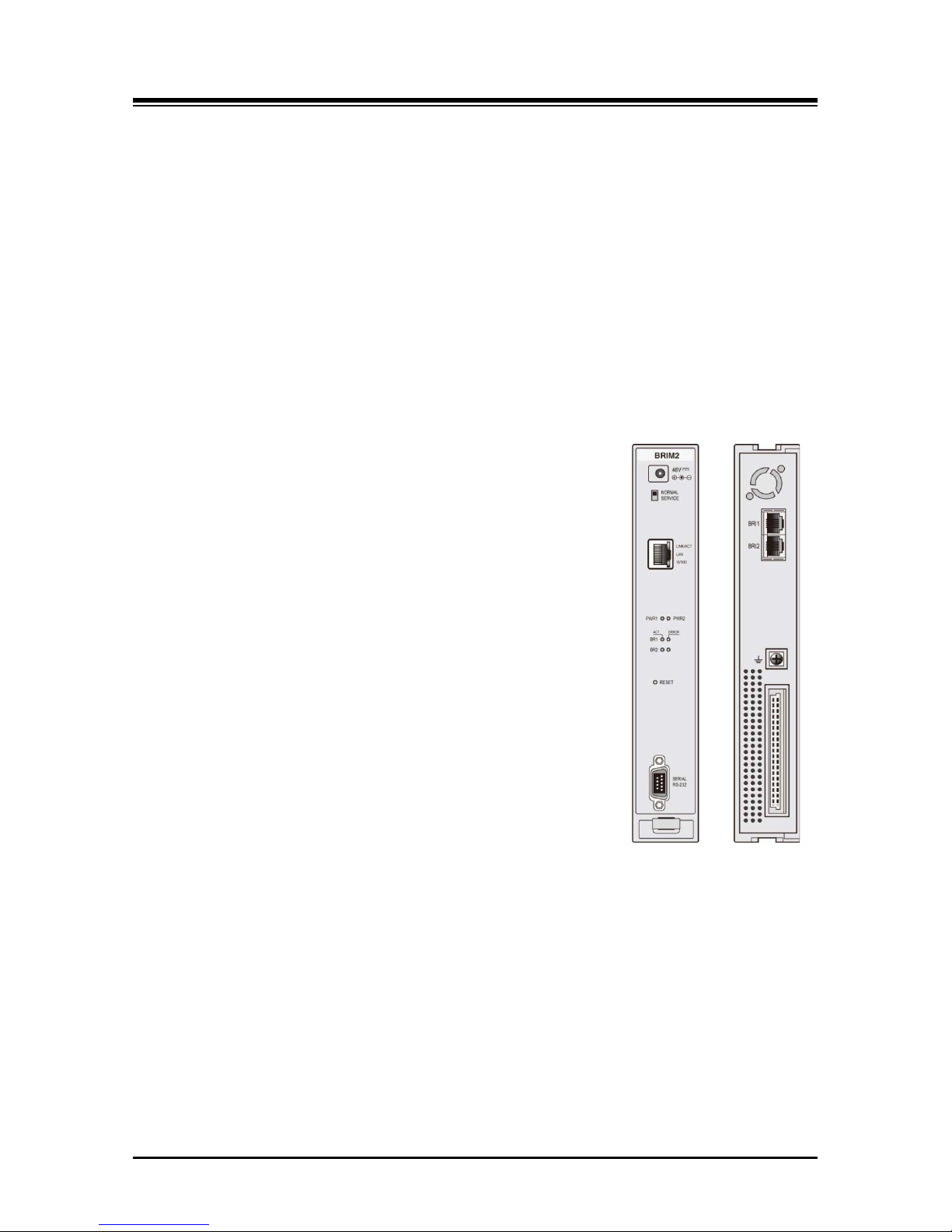

3.1.5.1 BRIM2 .......................................................................................................... 22

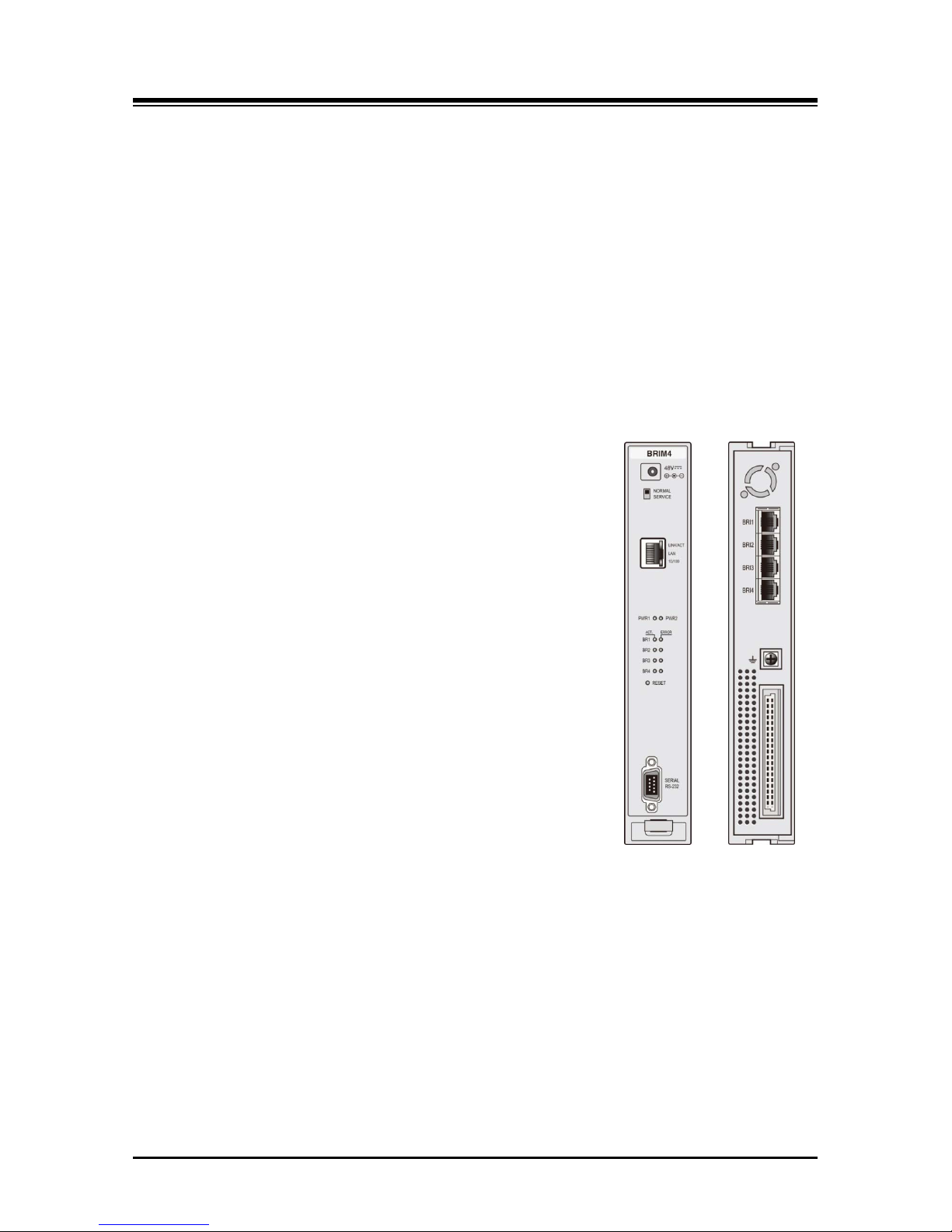

3.1.5.2 BRIM4 .......................................................................................................... 23

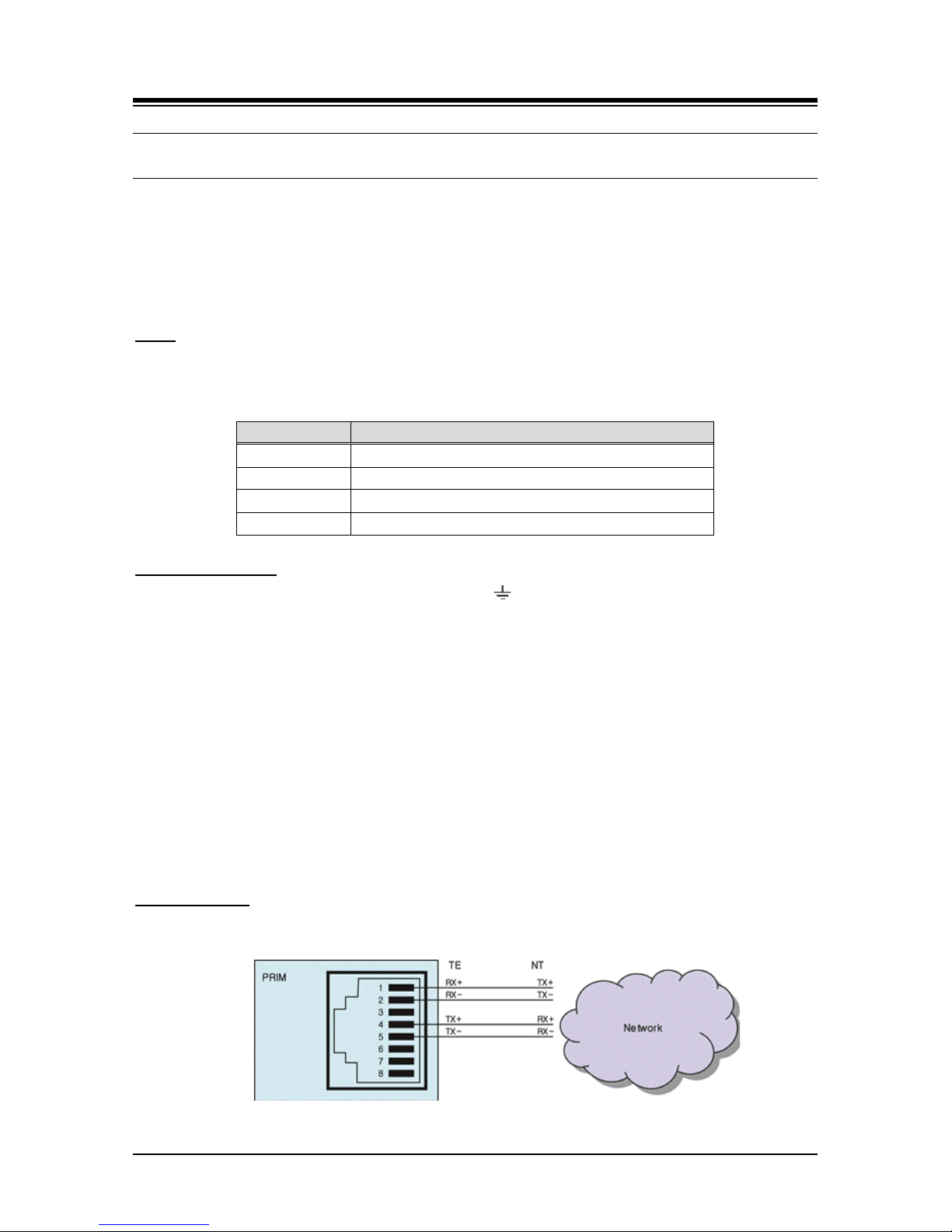

3.1.6 PRIM (PRI gateway Module) ...................................................................... 24
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
ii
3.1.7 DTIMs (Digital Terminal Interface gateway Module).................................... 25

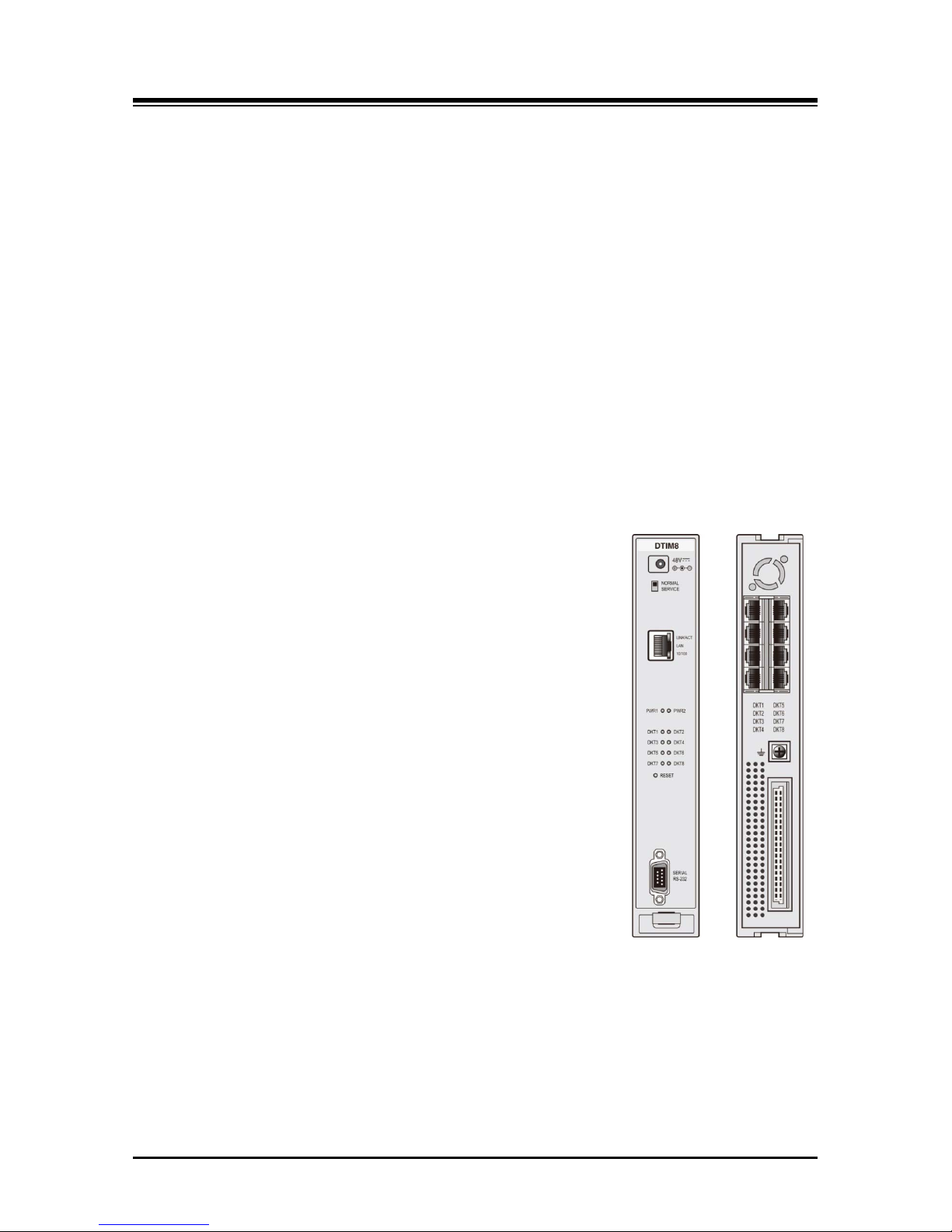

3.1.7.1 DTIM8 .......................................................................................................... 25
3.1.7.2 DTIM24 ........................................................................................................ 26
3.1.8 SLTMs (Single Line Telephone gateway Module) ....................................... 27

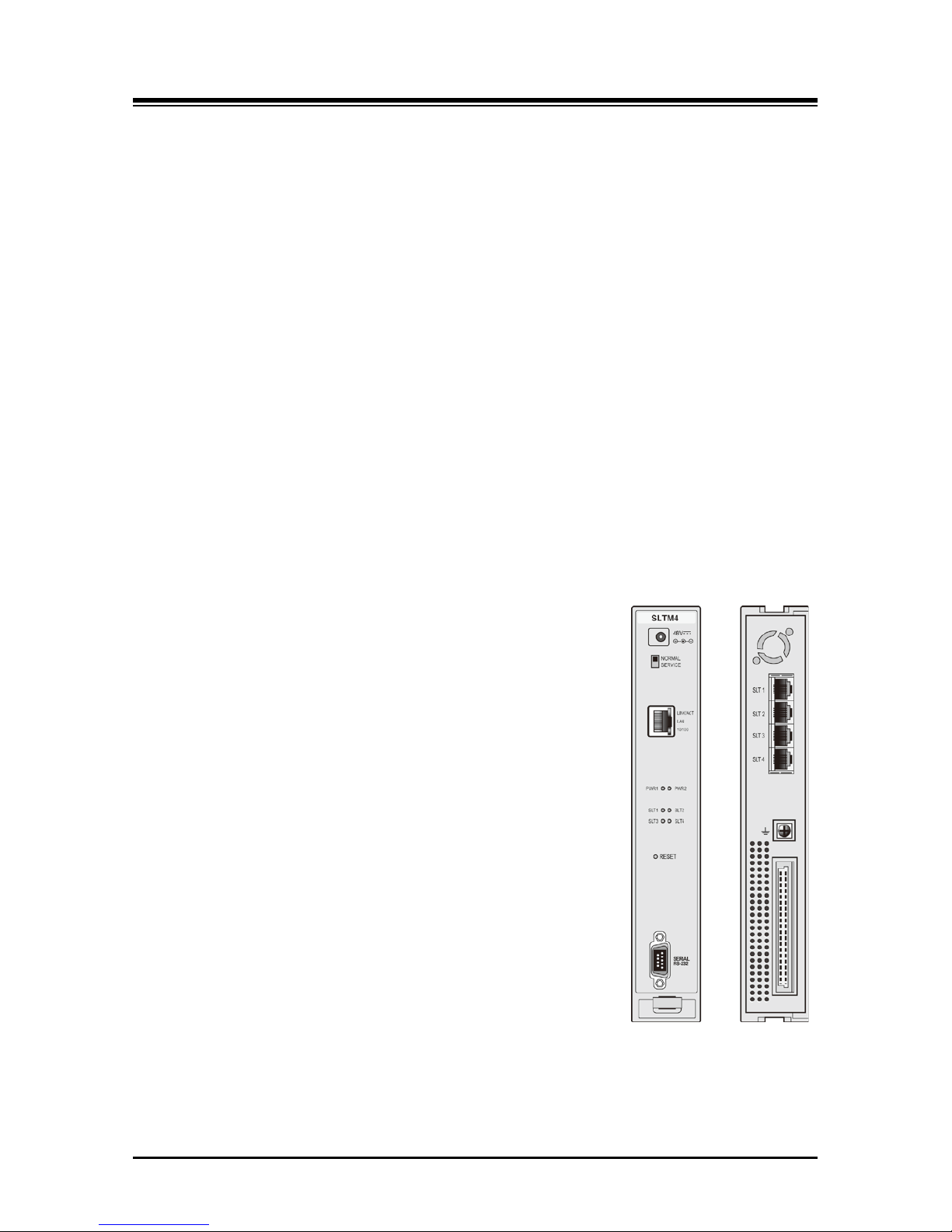

3.1.8.1 SLTM4 ......................................................................................................... 27
3.1.8.2 SLTM8 ......................................................................................................... 28
3.1.8.3 SLTM32 ....................................................................................................... 29

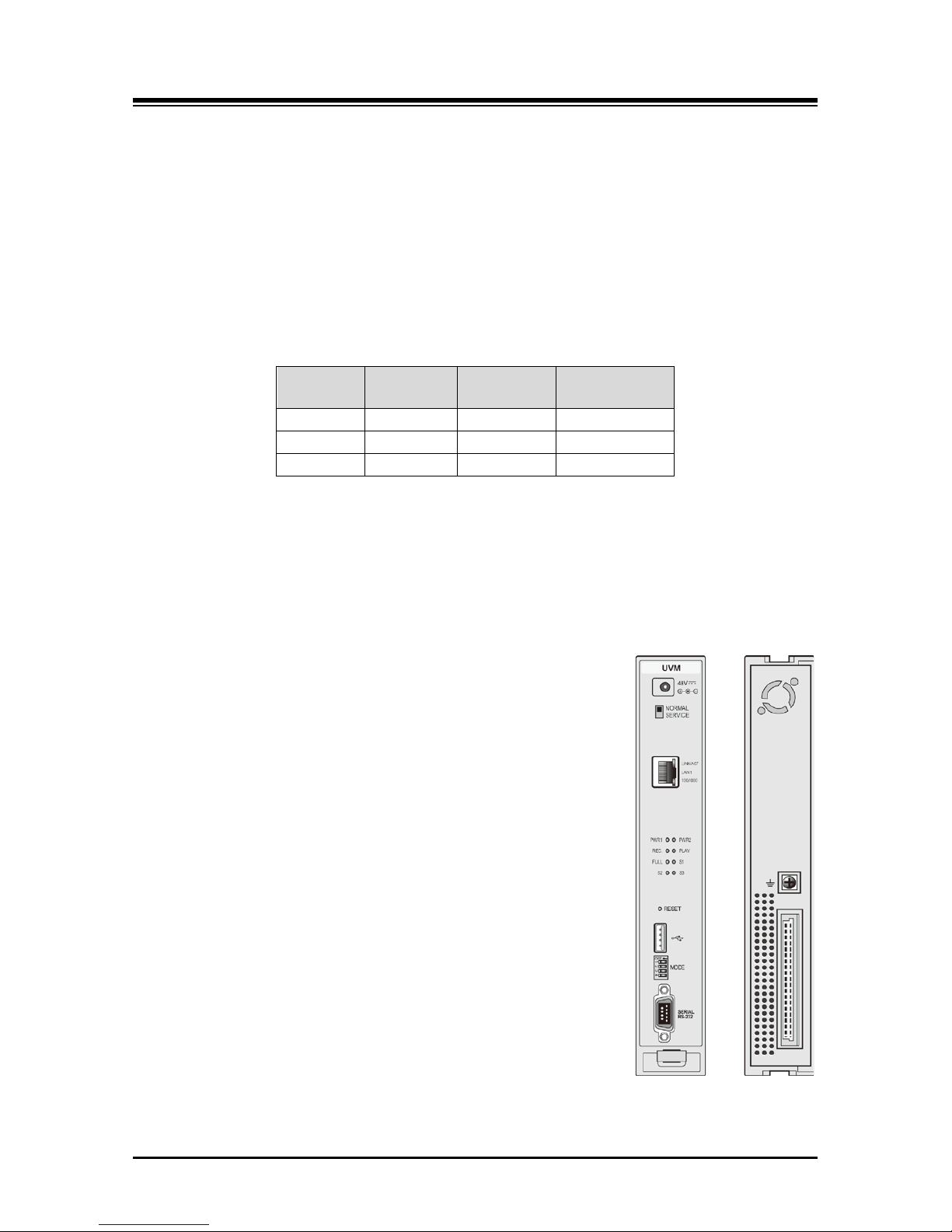

3.1.9 UVM (Unified Voice Mail Interface gateway Module) .................................. 30

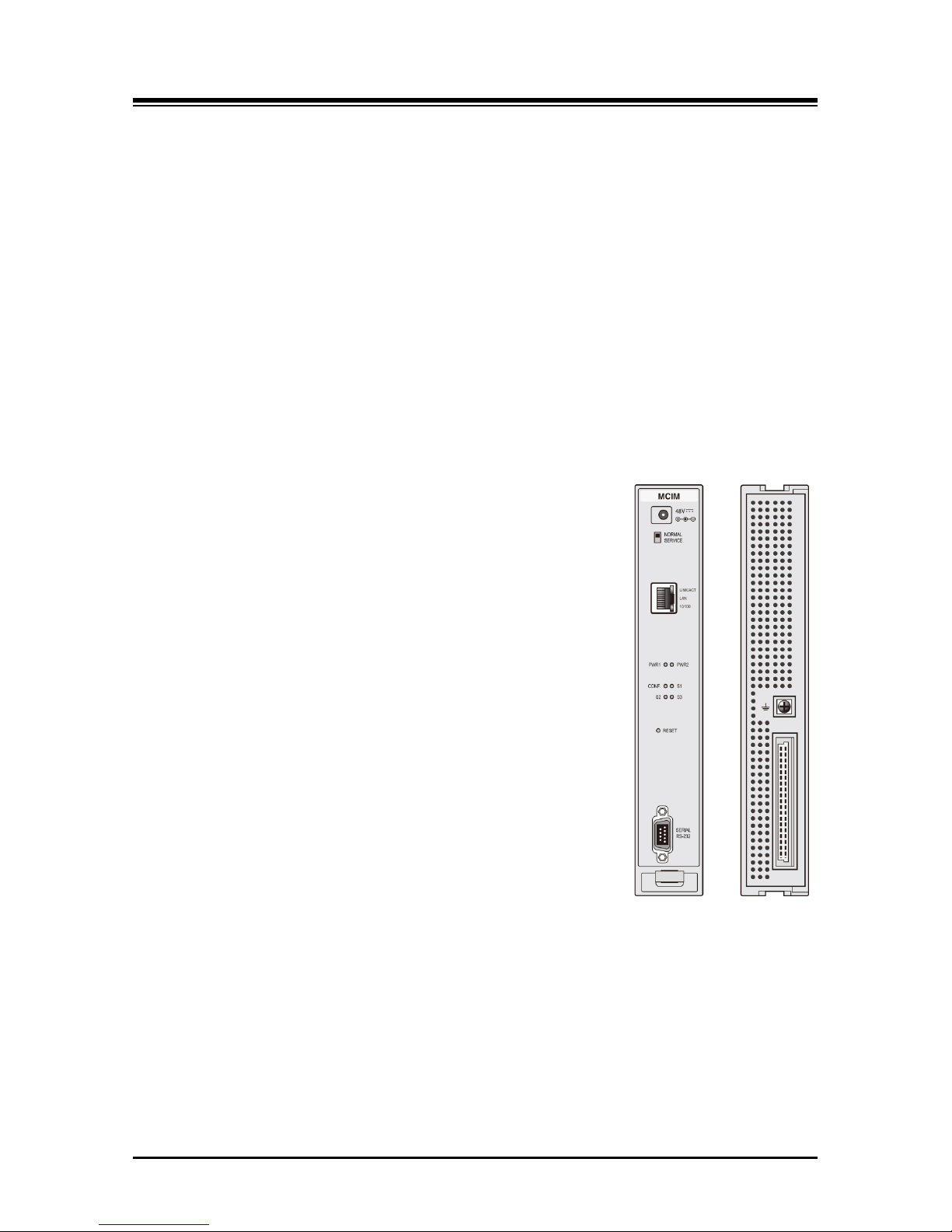

3.1.10 MCIM (Multi-Media Conference Interface gateway Module) ...................... 31

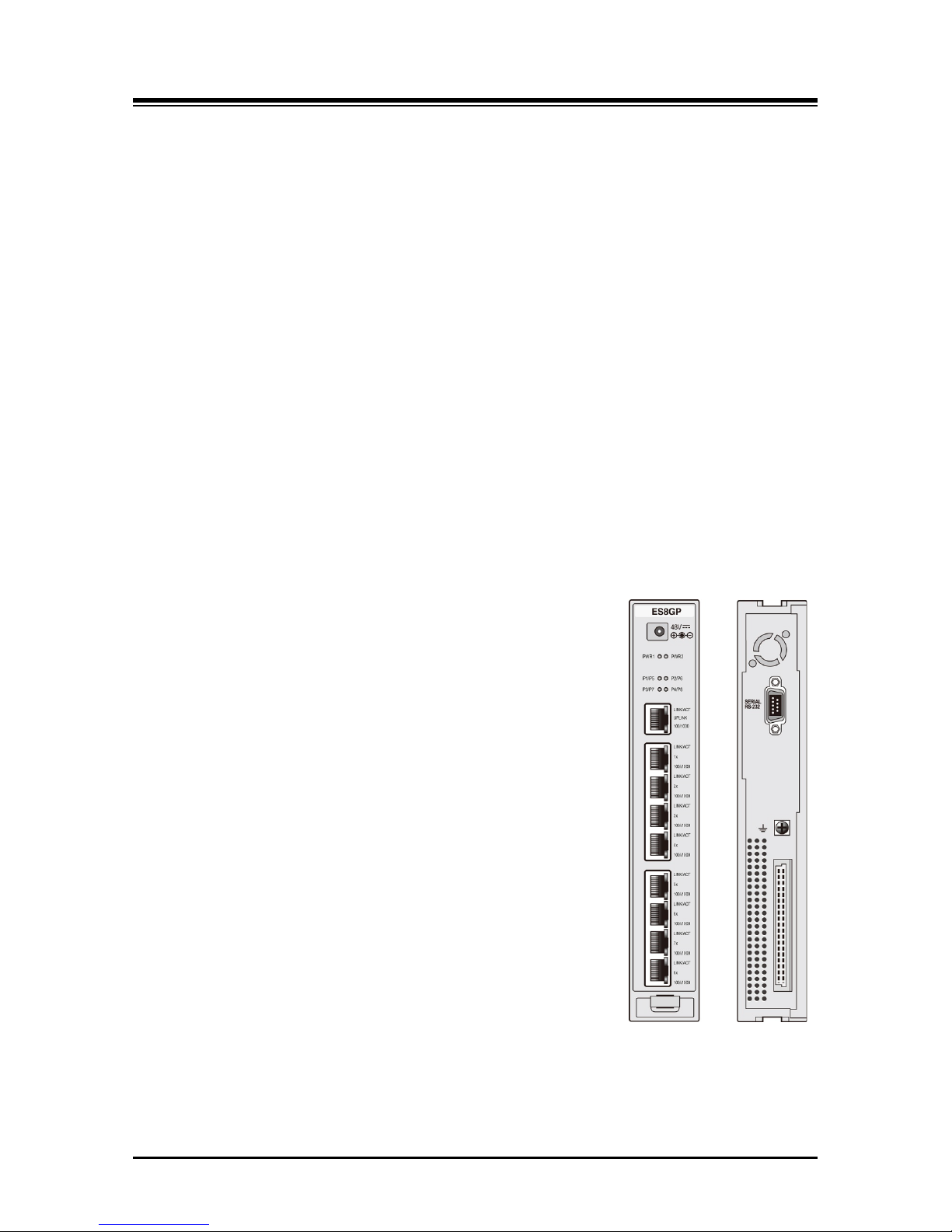

3.1.1 1 ES 8GP (Eth er n et Sw it c h, 8-Port Gigabit PoE) .......................................... 32

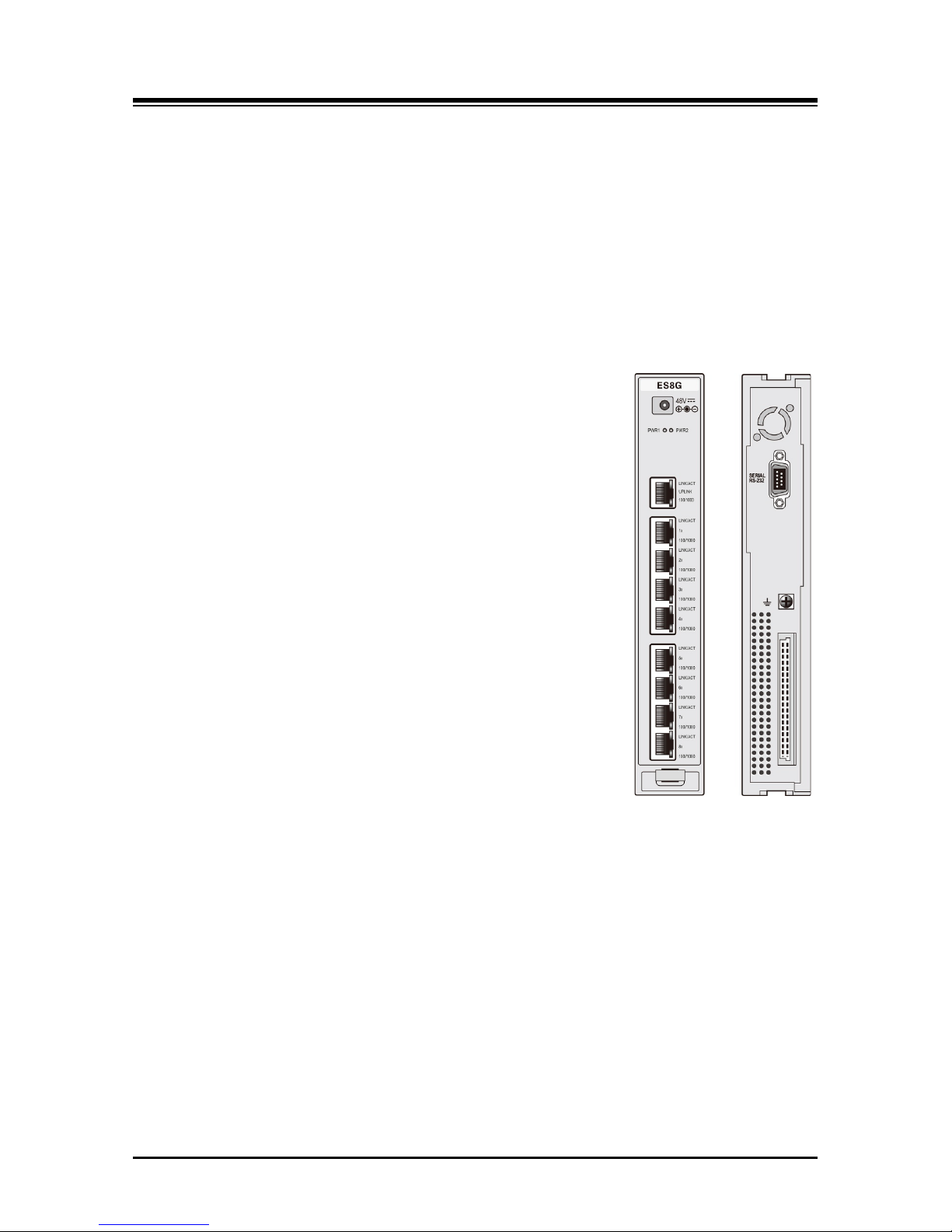

3.1.12 ES8G (Ethernet Switch, 8-Port Gigabit) .................................................... 33

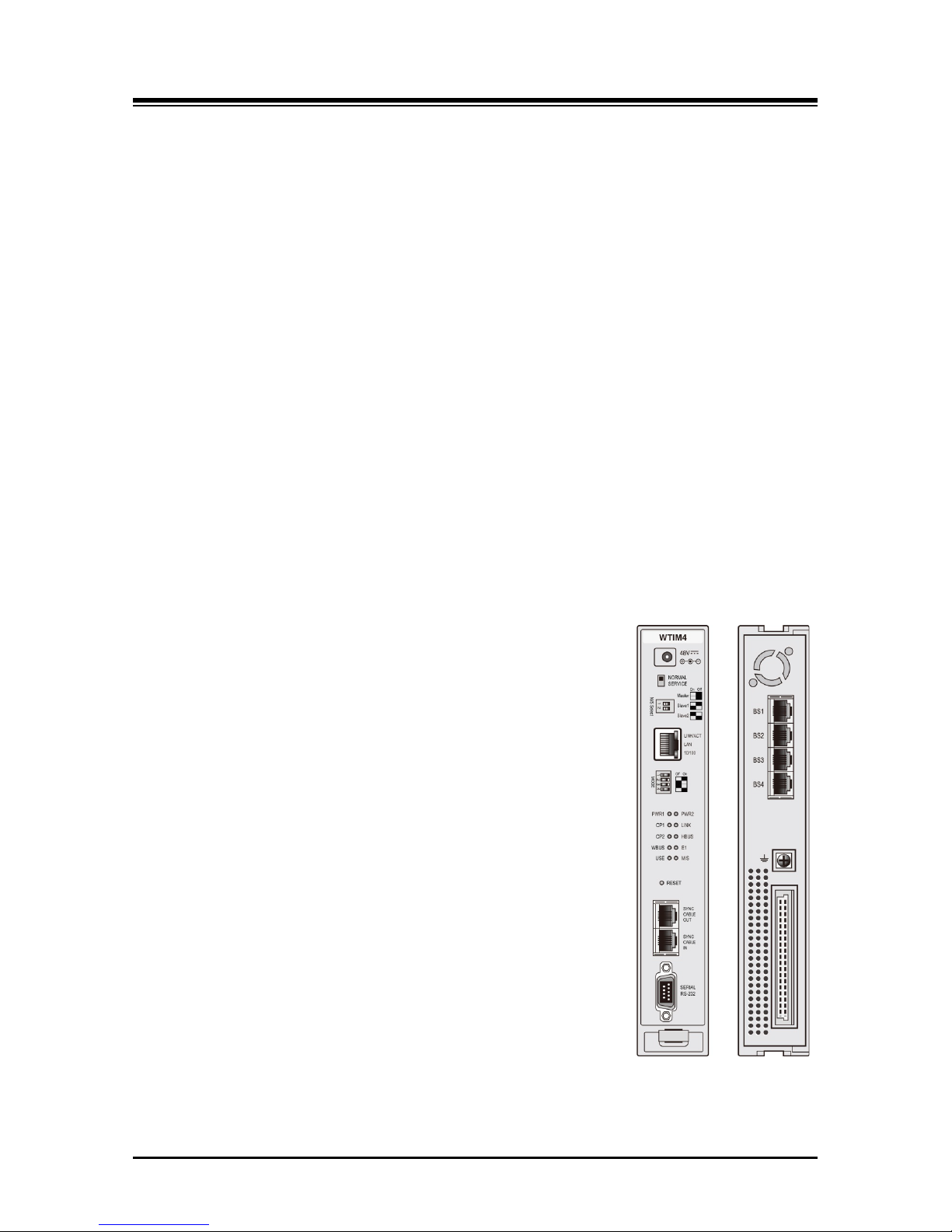

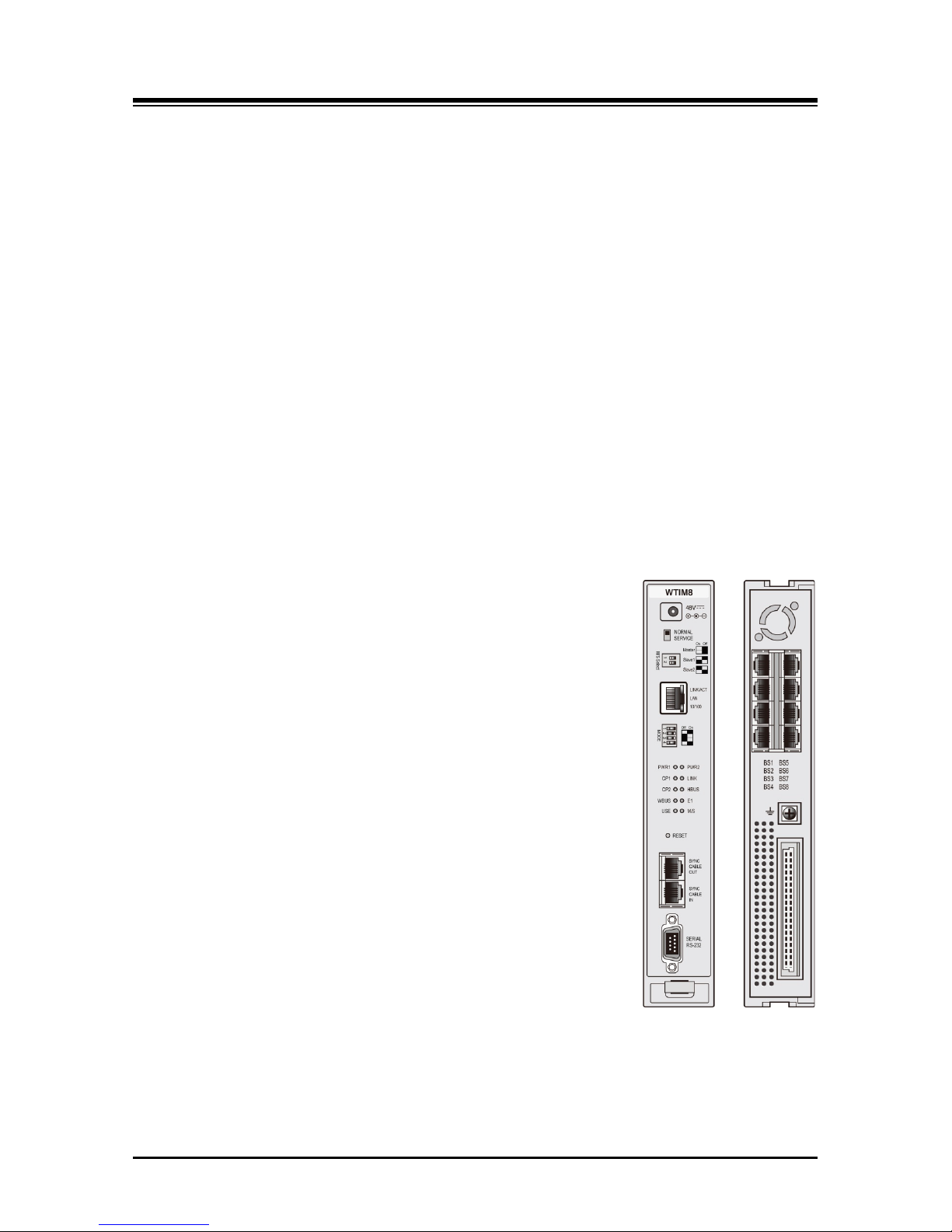

3.1.13 WTIM (Wireless Telephone Interface Module) .......................................... 34
3.1.13.1 WTIM4 ....................................................................................................... 34
3.1.13.2 WTIM8 ....................................................................................................... 35

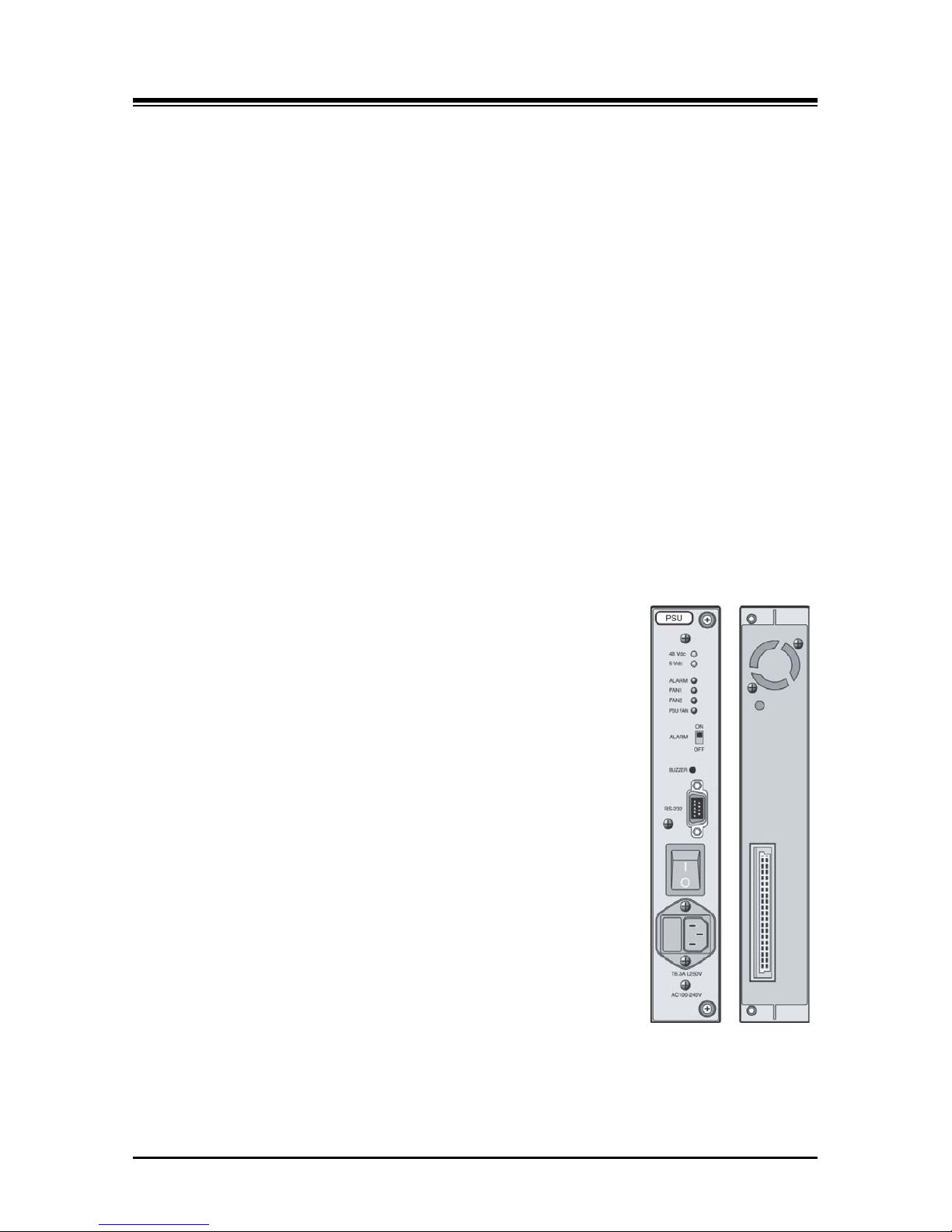

3.1.1 4 PSU (P ow e r Supply Unit) ......................................................................... 36

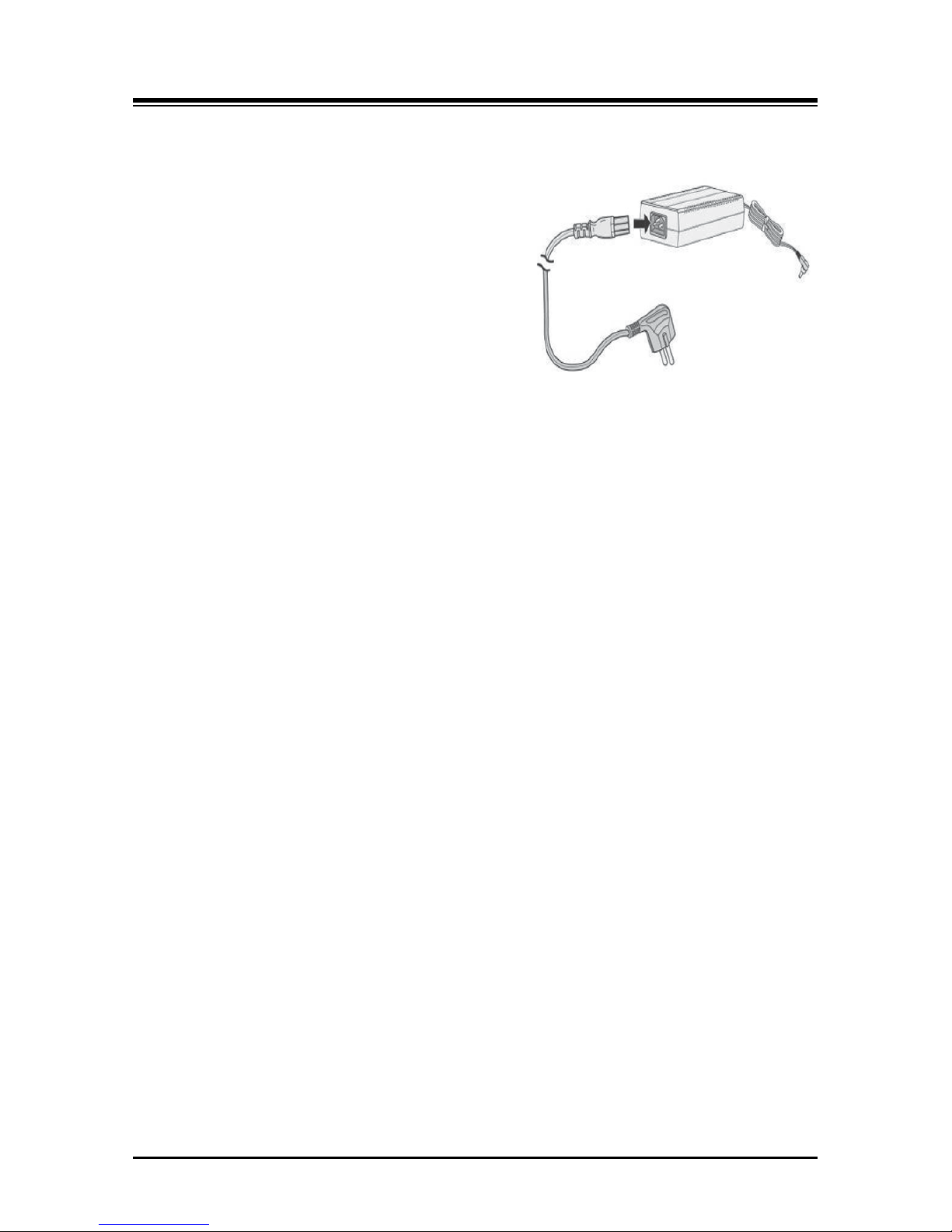

3.1.15 AD/D C ad a pter –G ................................................................................... 37
3.2 Module Mounting Hardware ......................................................... 38

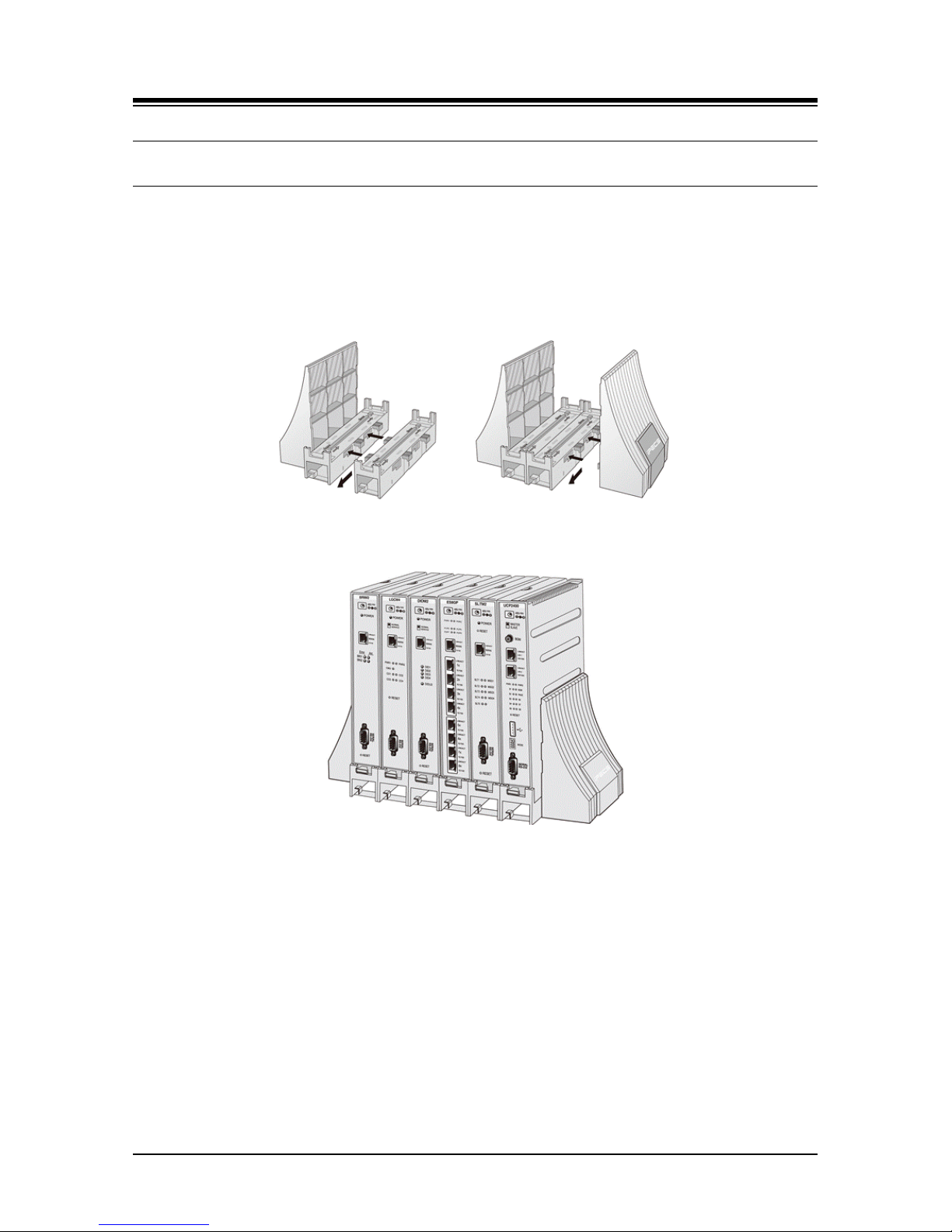

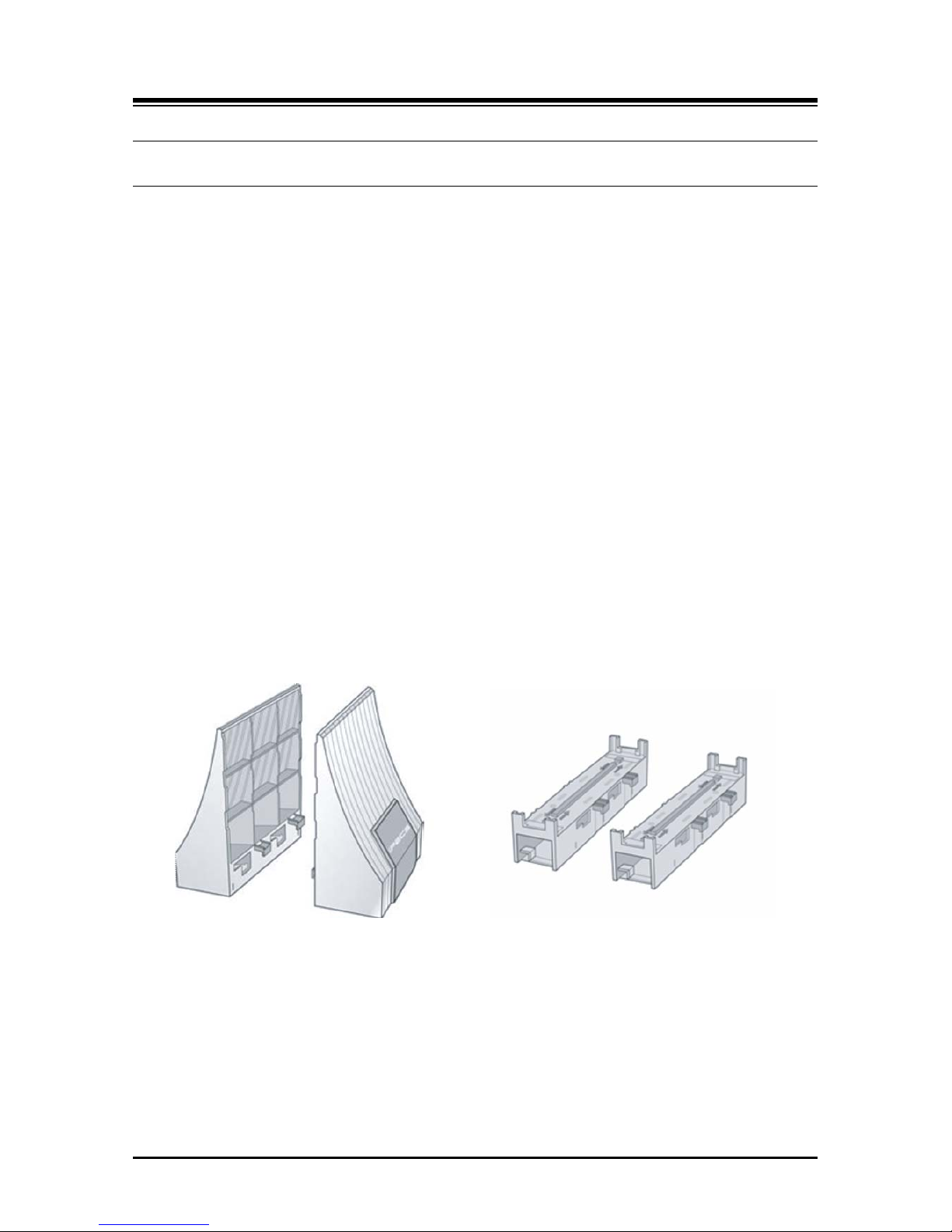

3.2.1 DHLD (Desk Mount Holder) / DHE (Desk Mount Holder Extender) ............. 38

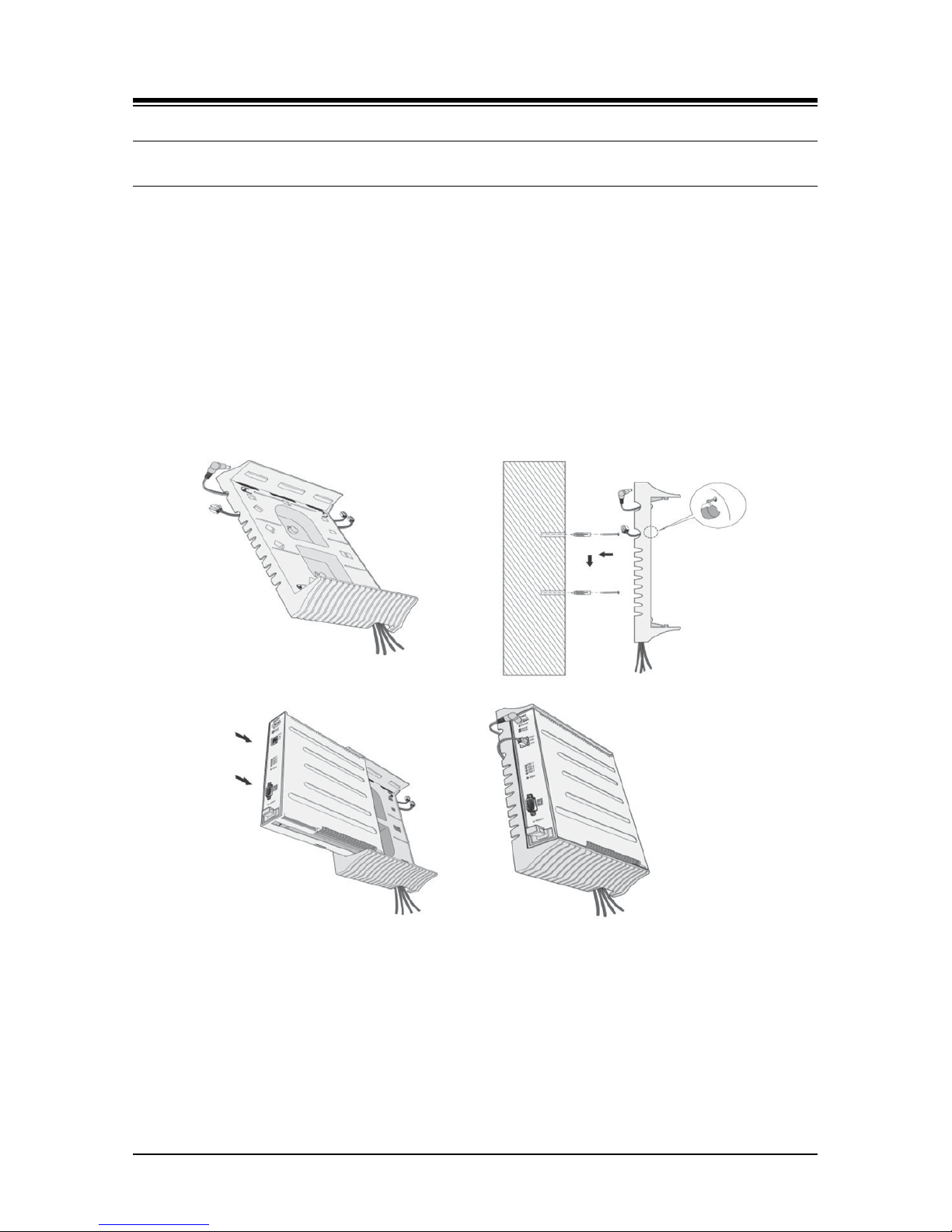

3.2.2 WHLD (Wall Mount Holder) ........................................................................ 39

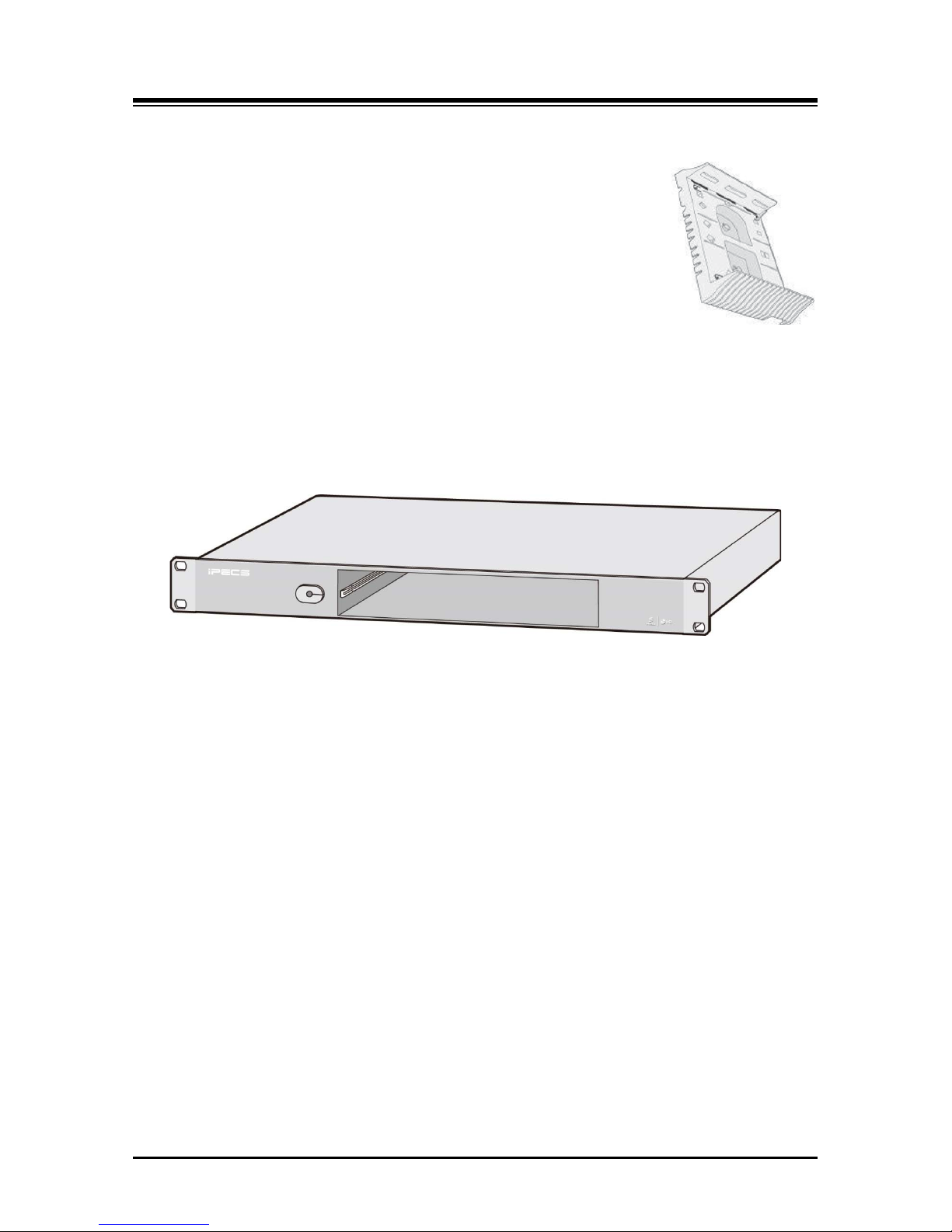

3.2.3 1U -RMB (1U Rack Mount Bracket) ............................................................. 39
3.2.4 MCKTE (Main Cabinet Kit Enhanced) ........................................................ 39
3.3 LIP Phones & Terminals ............................................................... 42

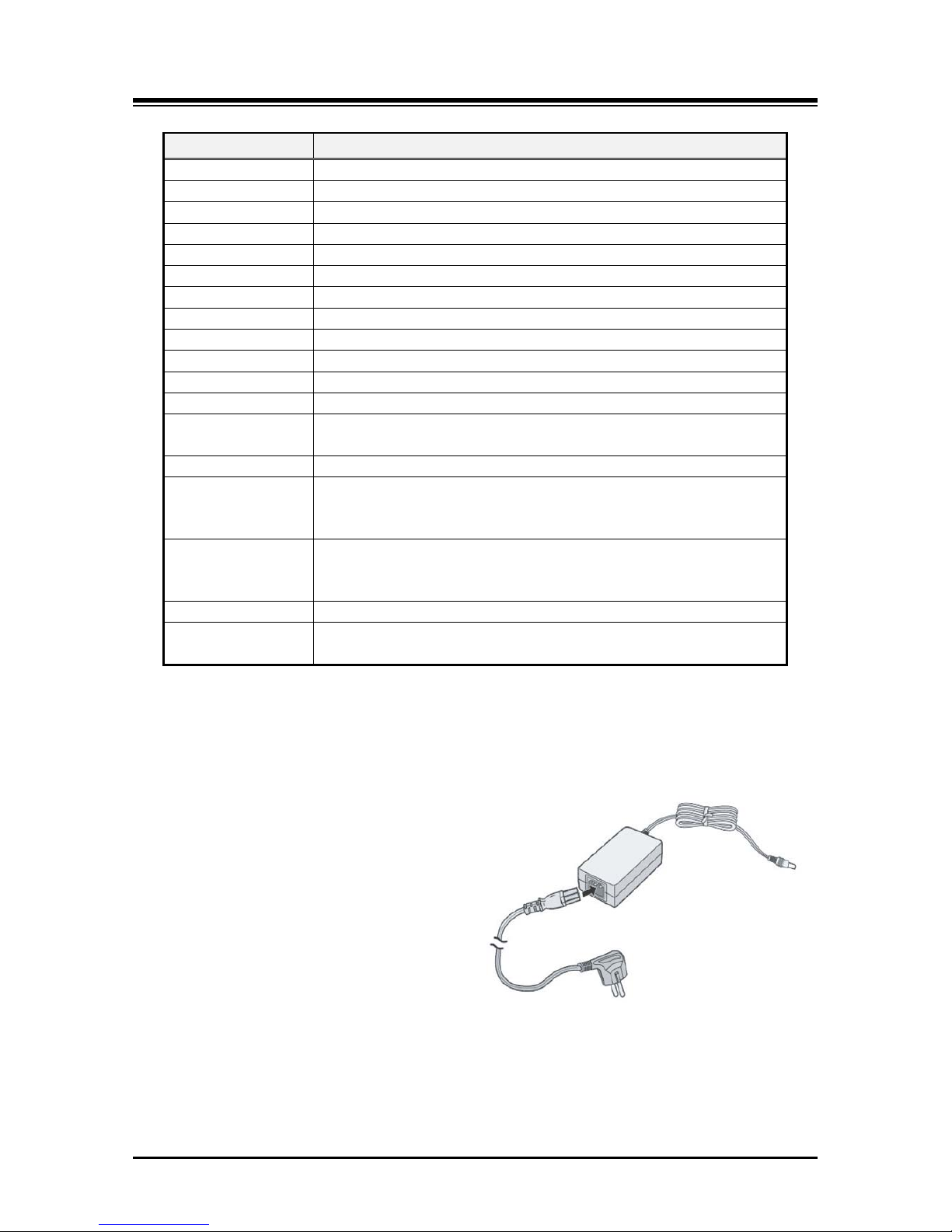

3.3.1 AC / DC A d ap ter –K- for LIP-Phones & Console .......................................... 43
3.4 Software Components .................................................................. 44
4. Installation overview ......................................................... 45
4.1 Pre-Installation Guidelines ......................................................... 45
4.1.1 Safety Installation Instructions .................................................................. 45
4.1.2 Installation precautions ............................................................................. 45
4.1.3 Wiring Precautions .................................................................................... 45
4.1.4 Checking Power cord ................................................................................. 46
4.2 Installation Overview ................................................................... 47
4.3 Site Preparation ............................................................................. 47
4.3.1 G en e ra l Site Considerations ....................................................................... 47
4.3.2 Verify Equipment On-site ............................................................................ 48
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
iii
5. Module Mounting Hardware Installation ........................... 49
5.1 Enhanced Main Cabinet Installation ............................................ 49

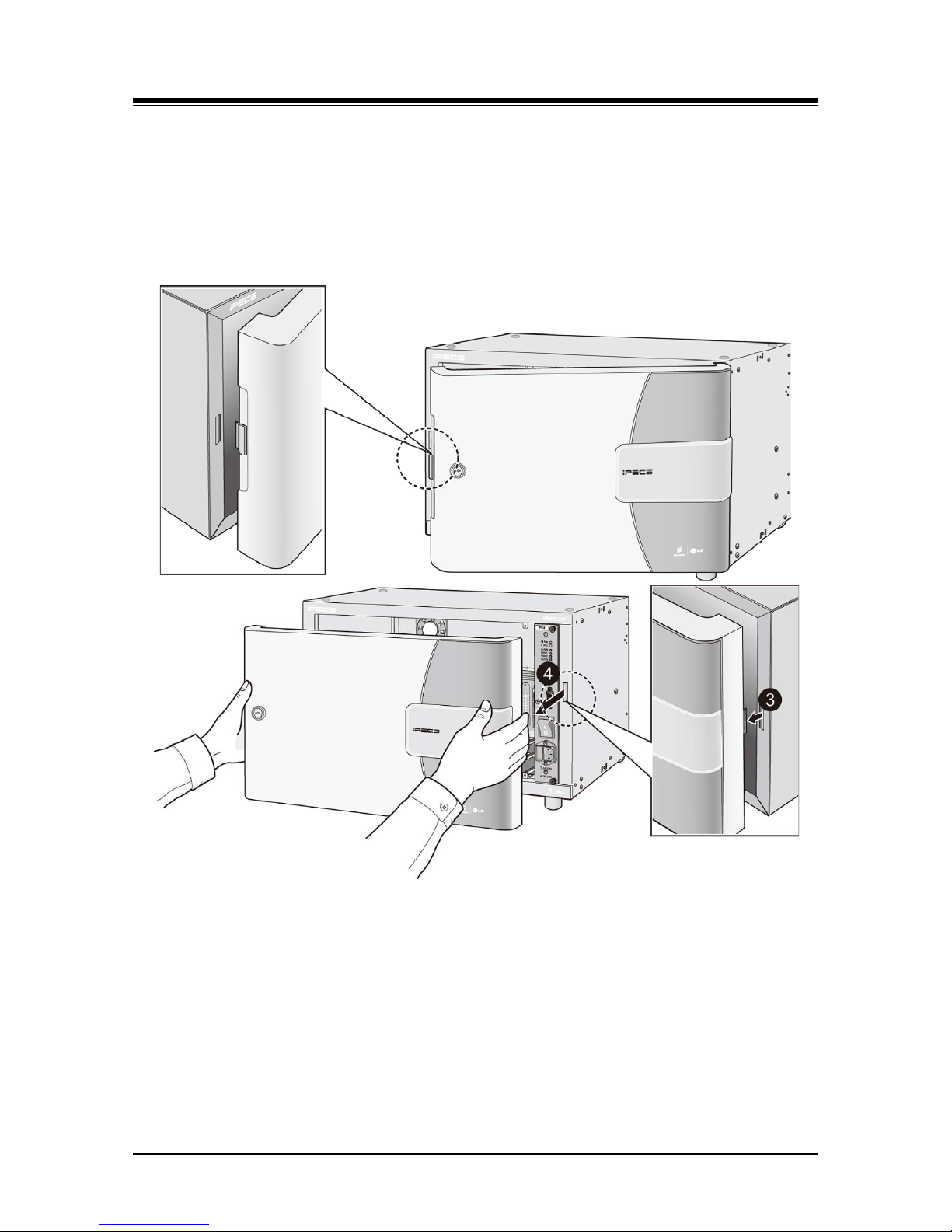

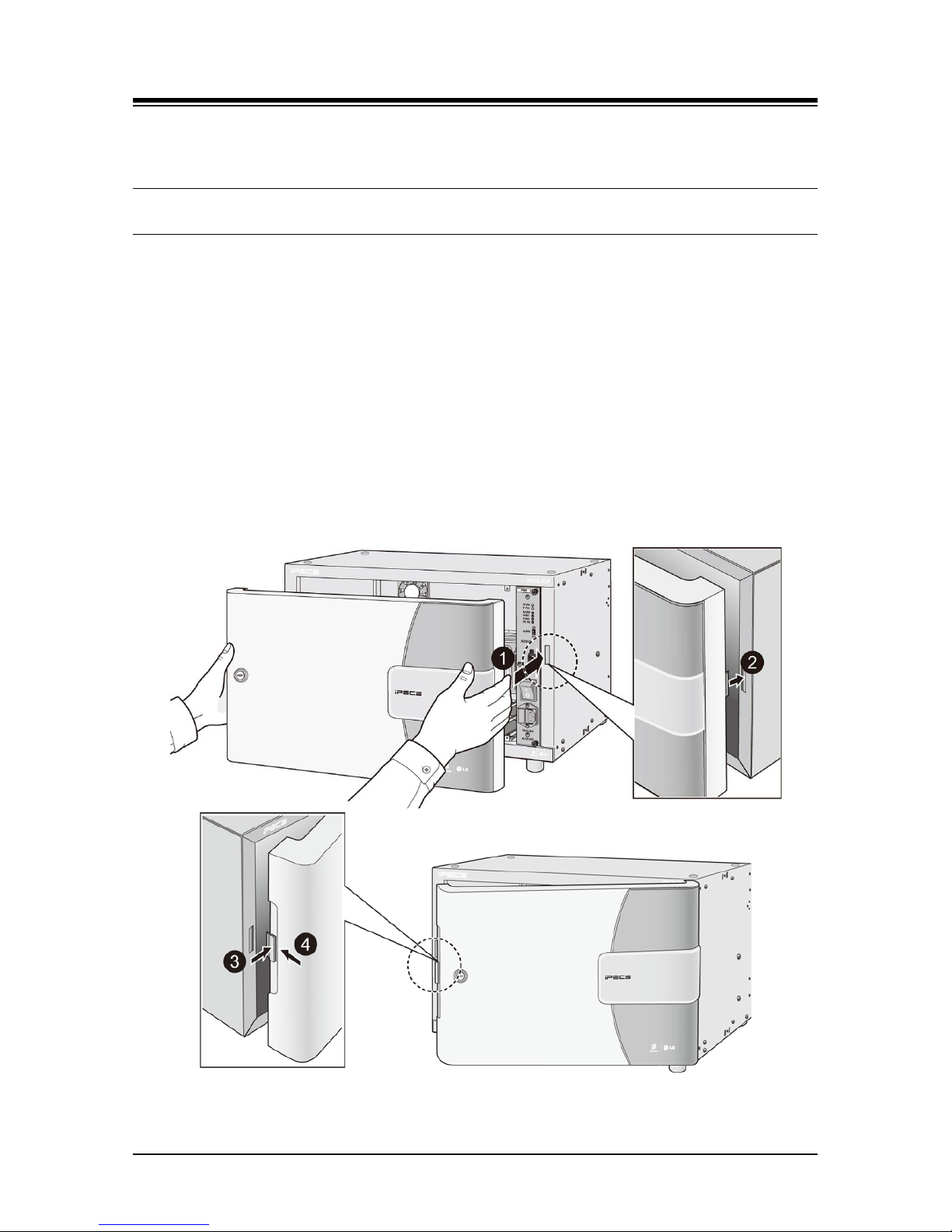

5.1.1 Co ve r C los e/Open ...................................................................................... 49

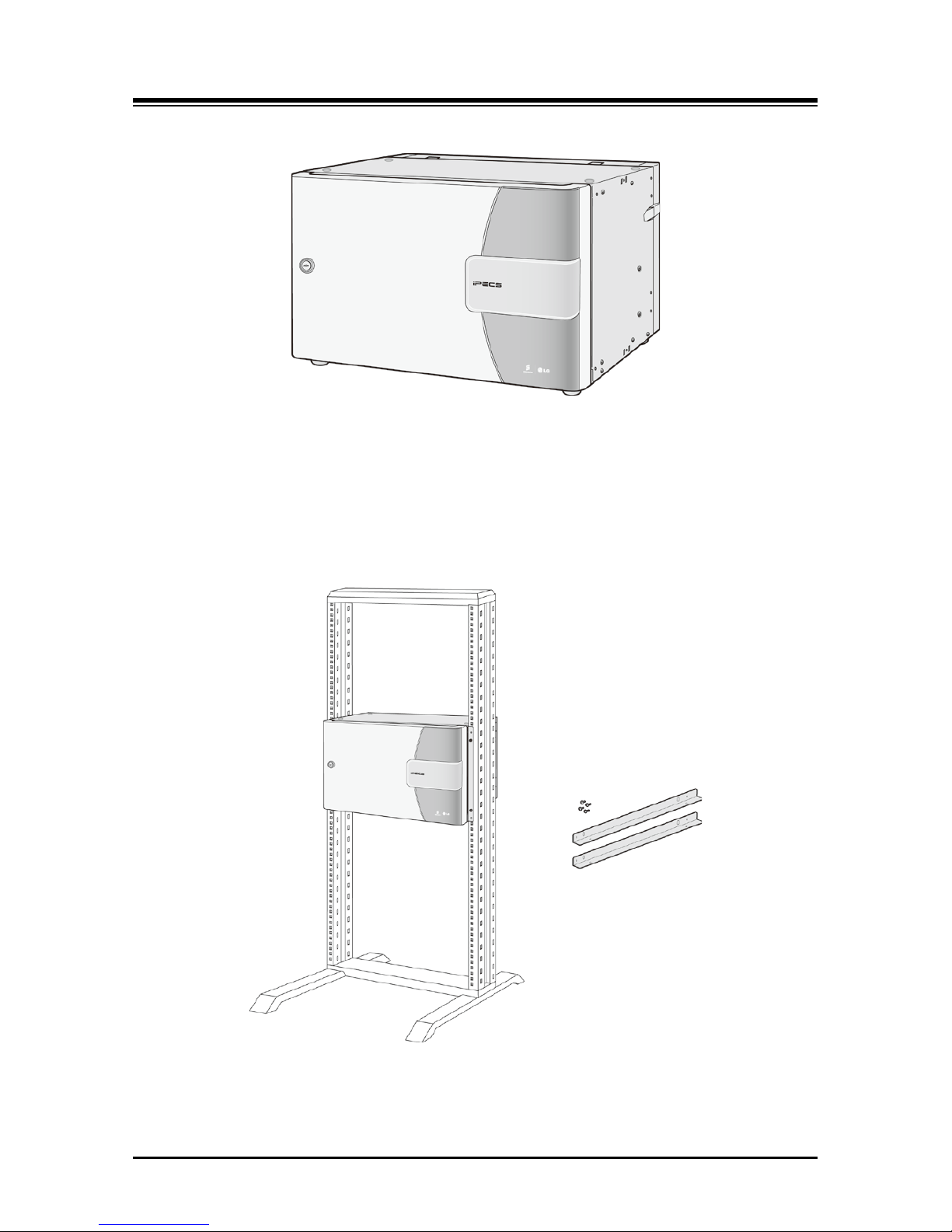

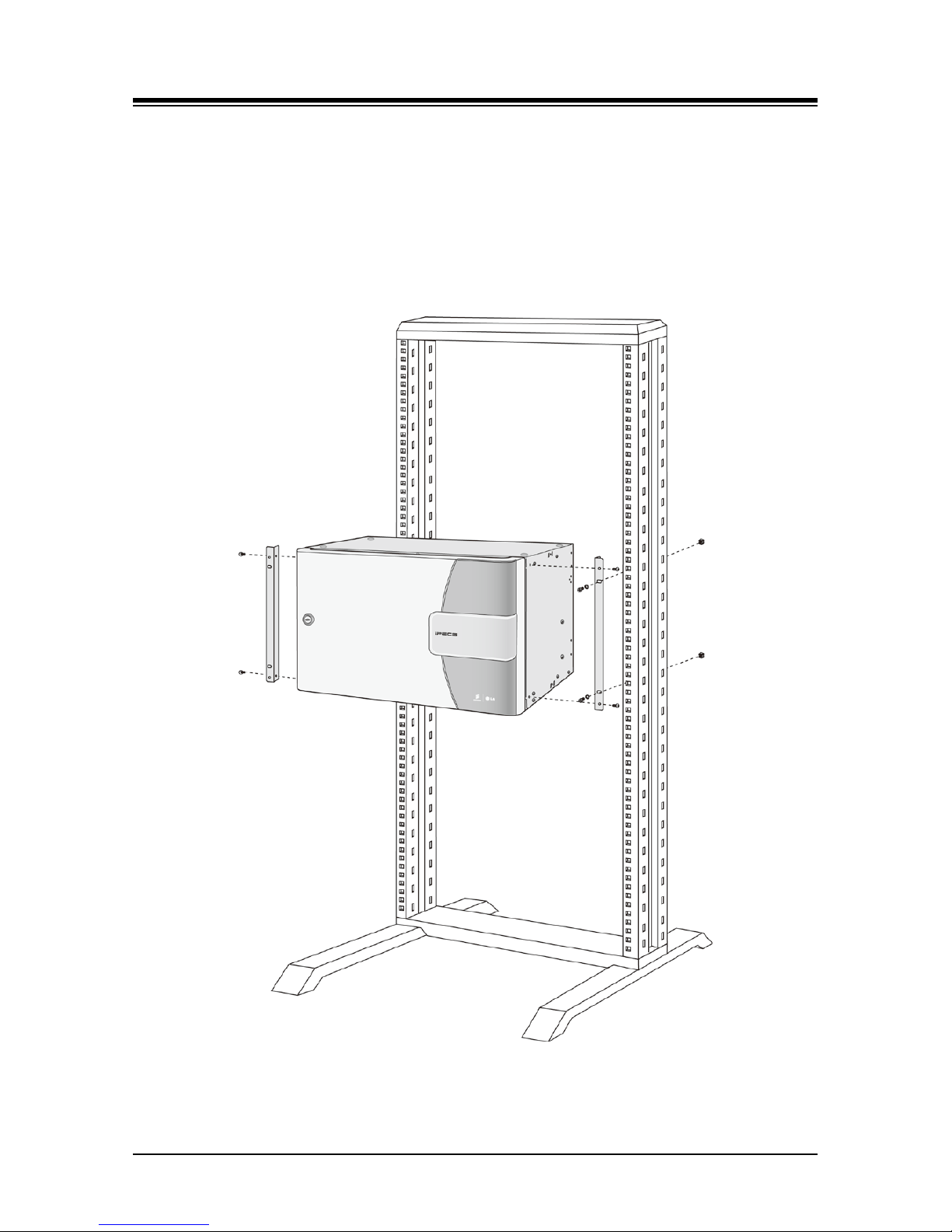

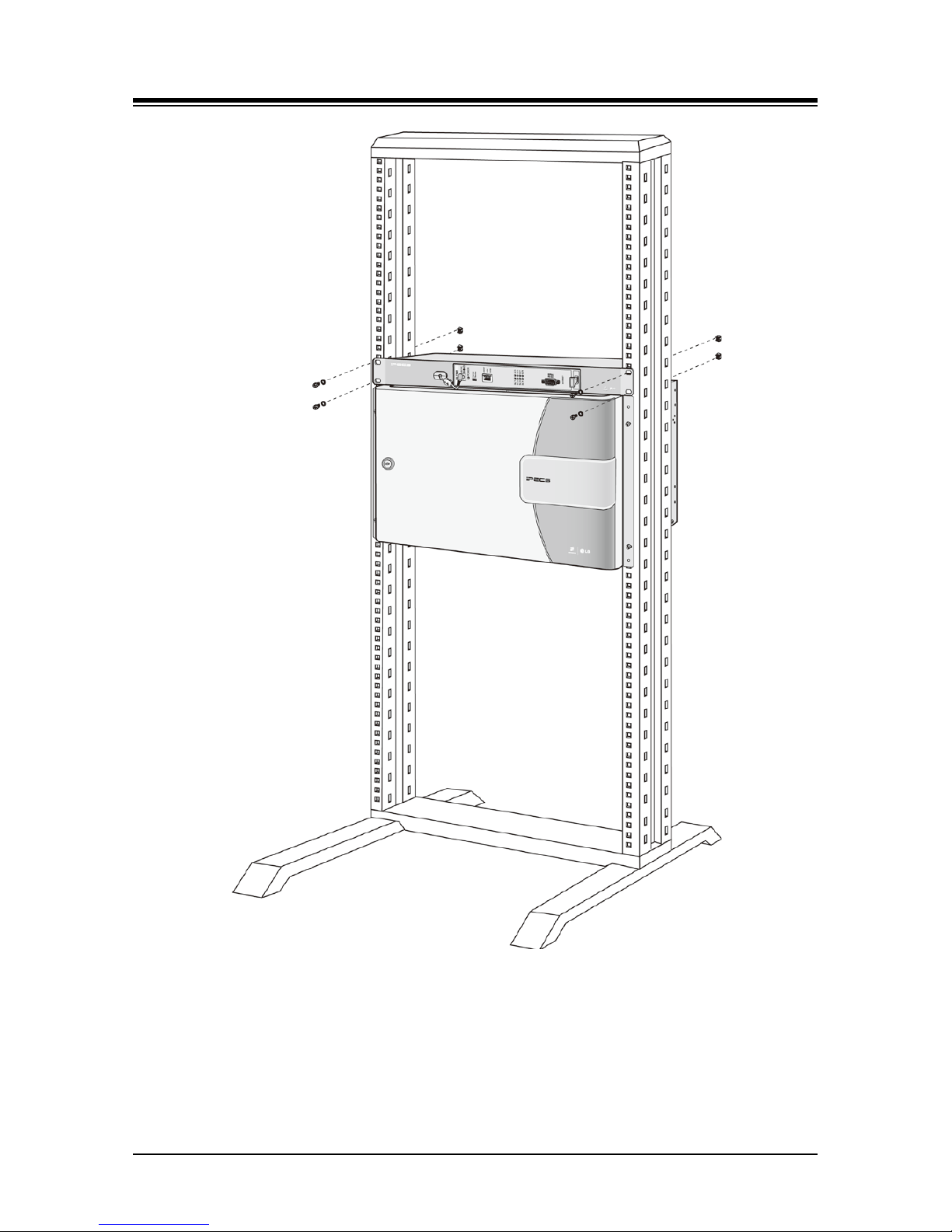

5.1.2 Cabinet 19” Rack Installation ...................................................................... 51

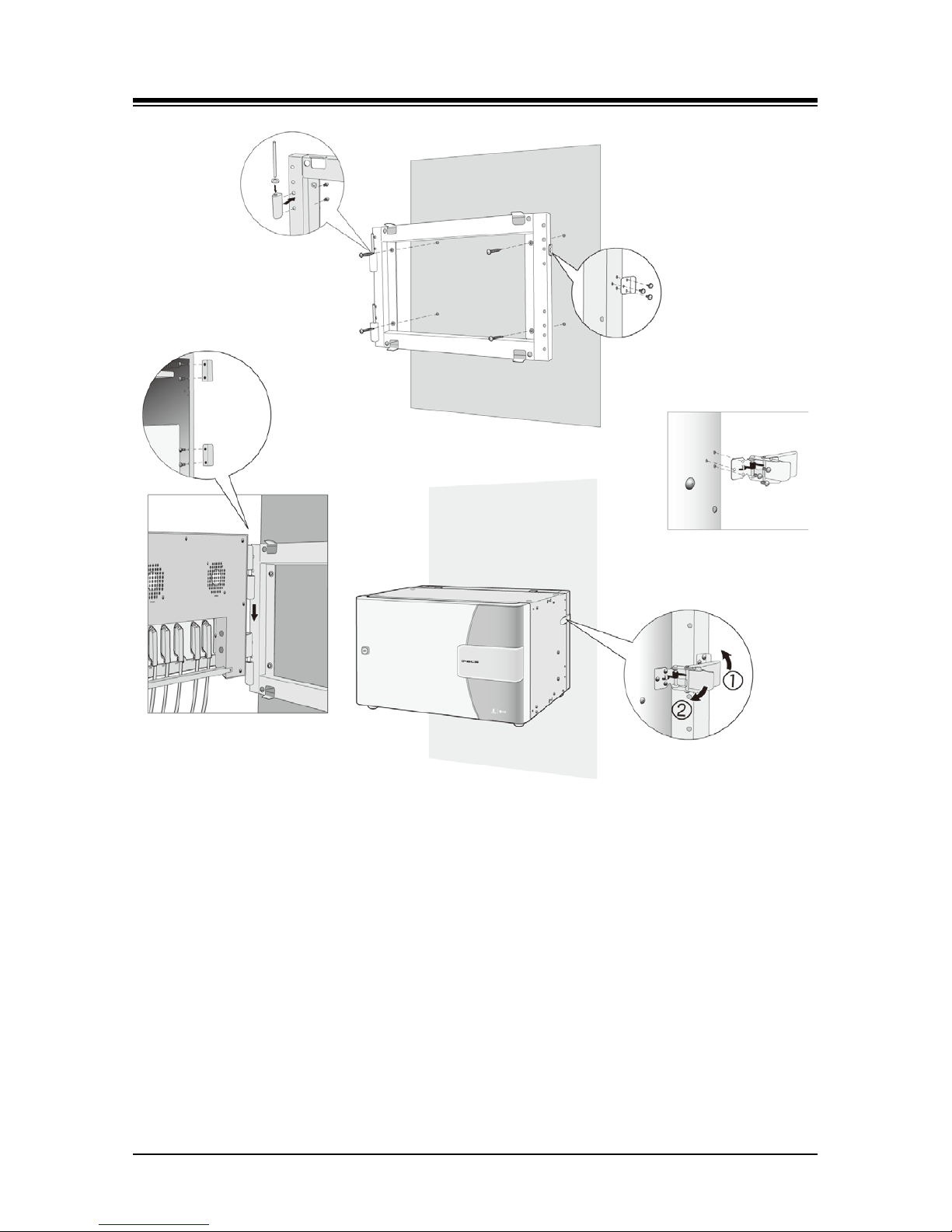

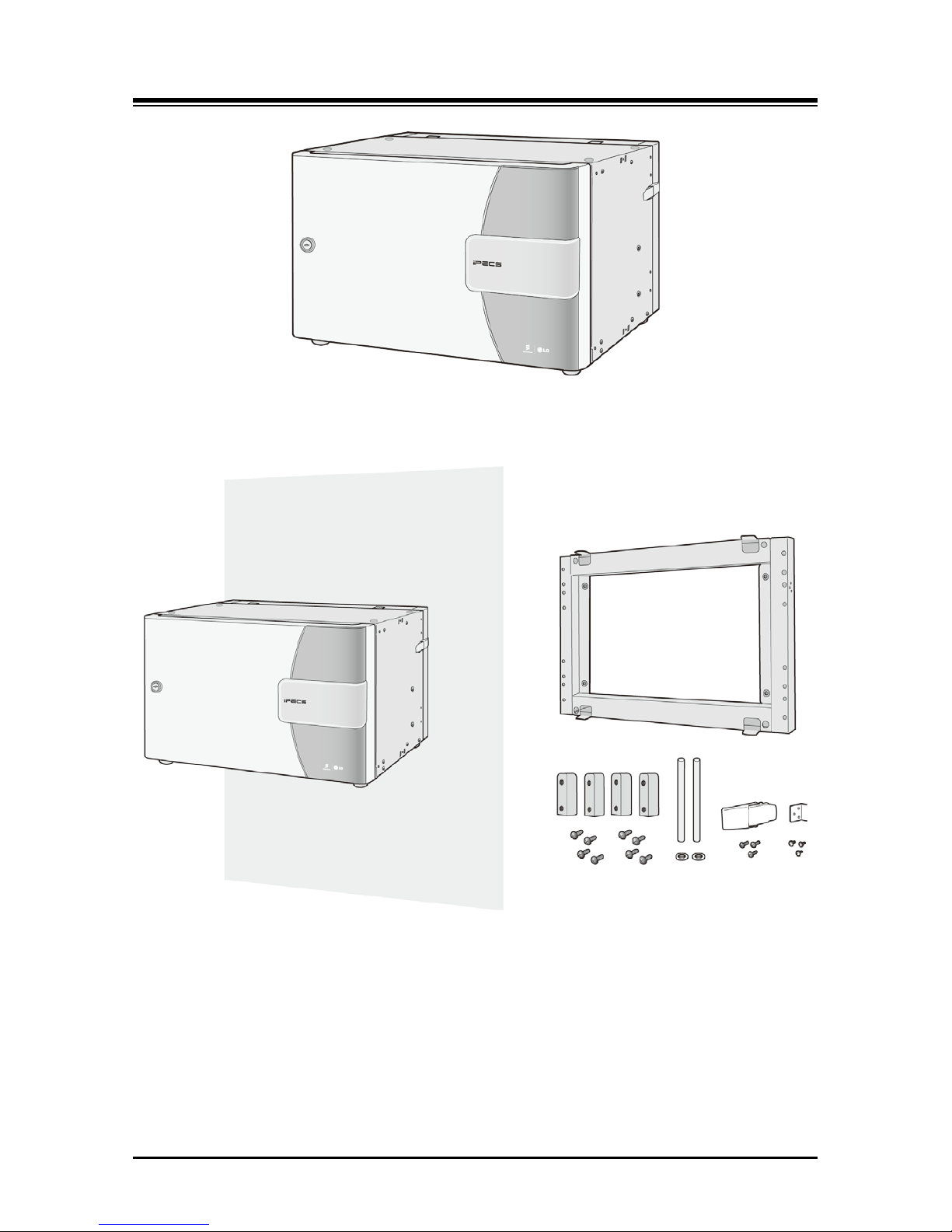

5.1.3 Cabinet Wall Mount Kit Install ation ............................................................. 52

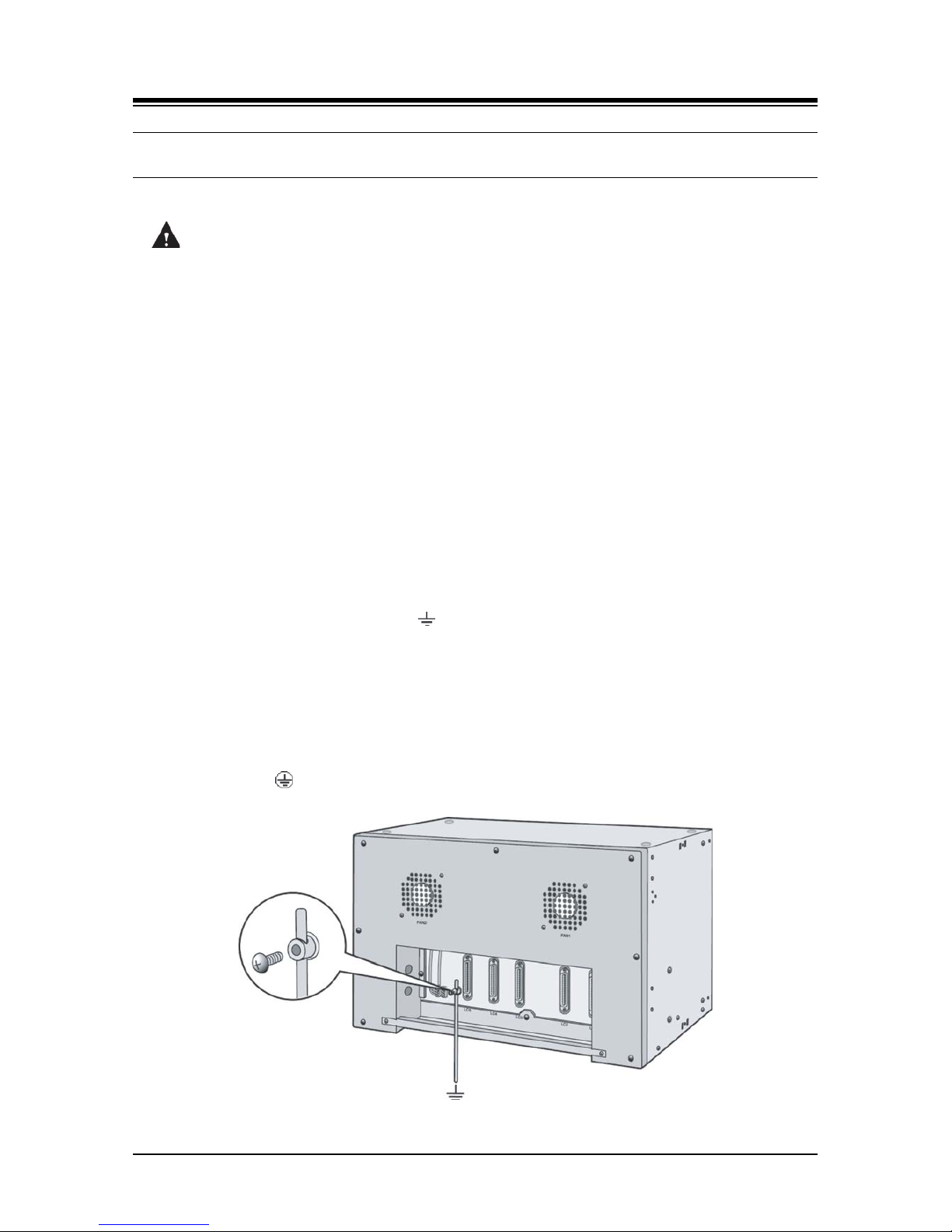

5.2 Main Cabinet Grounding .............................................................. 54

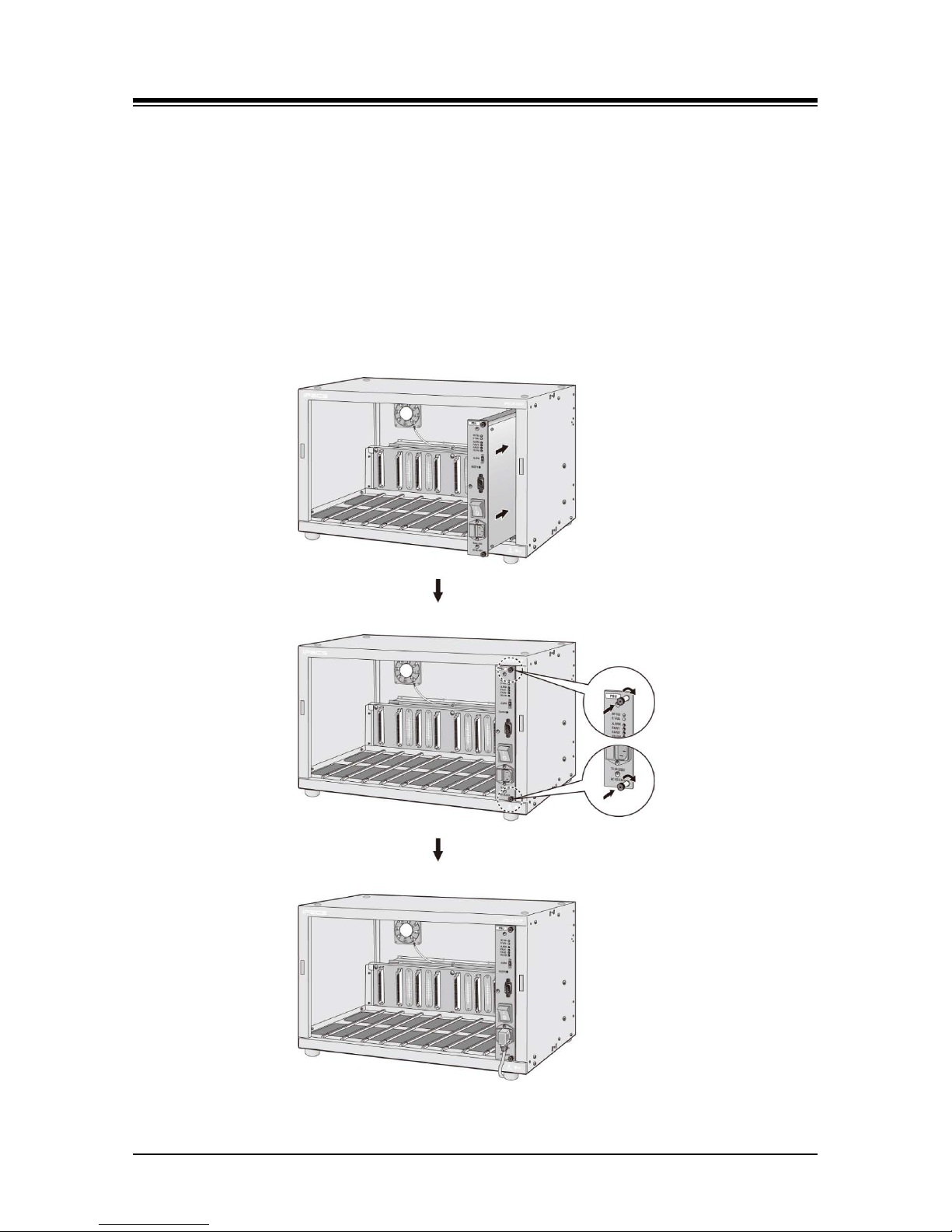

5.3 Main Cabinet PSU Installation ..................................................... 55
5.4 Module Desk Mount Holder Kit .................................................... 59
5.5 Module Wall Mount Holder Kit ..................................................... 60

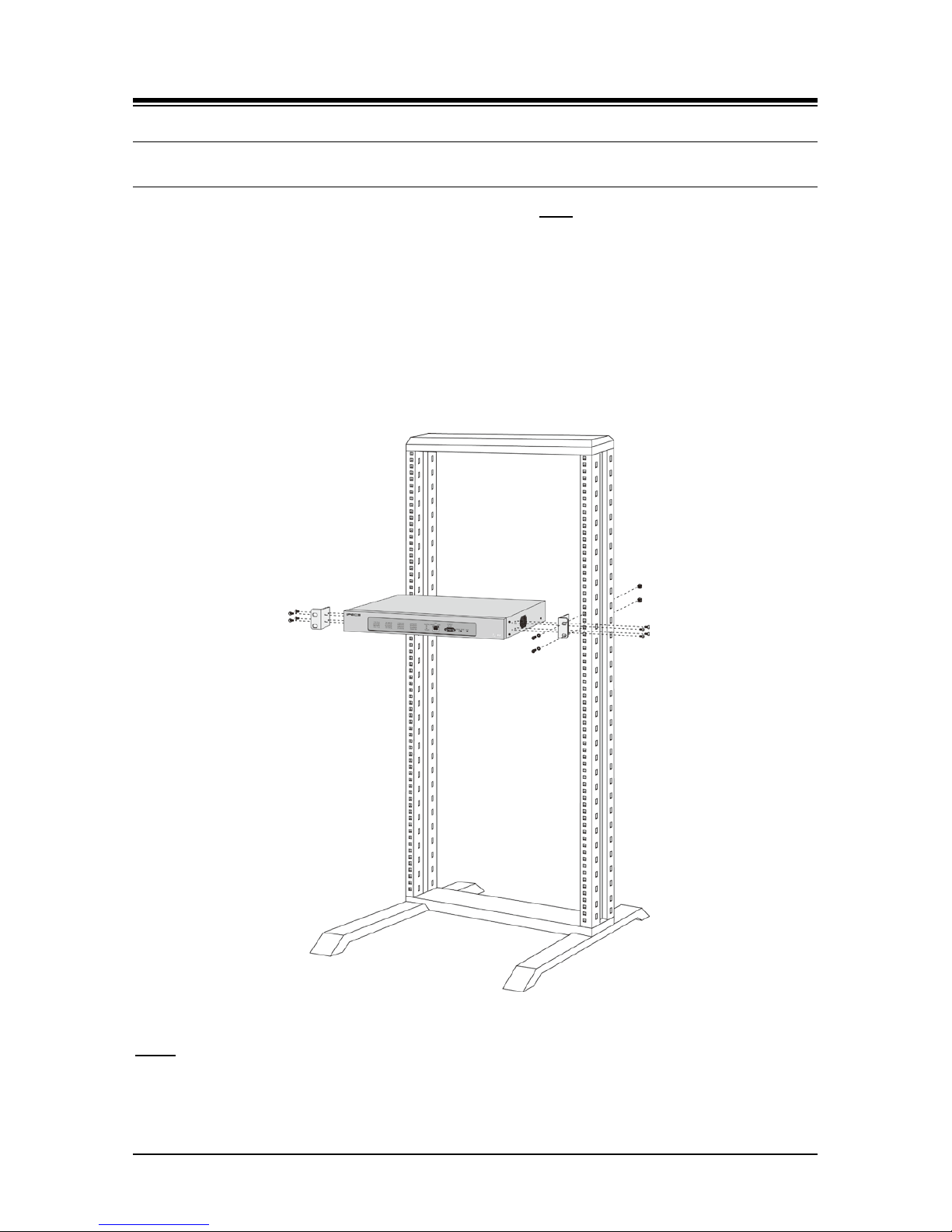

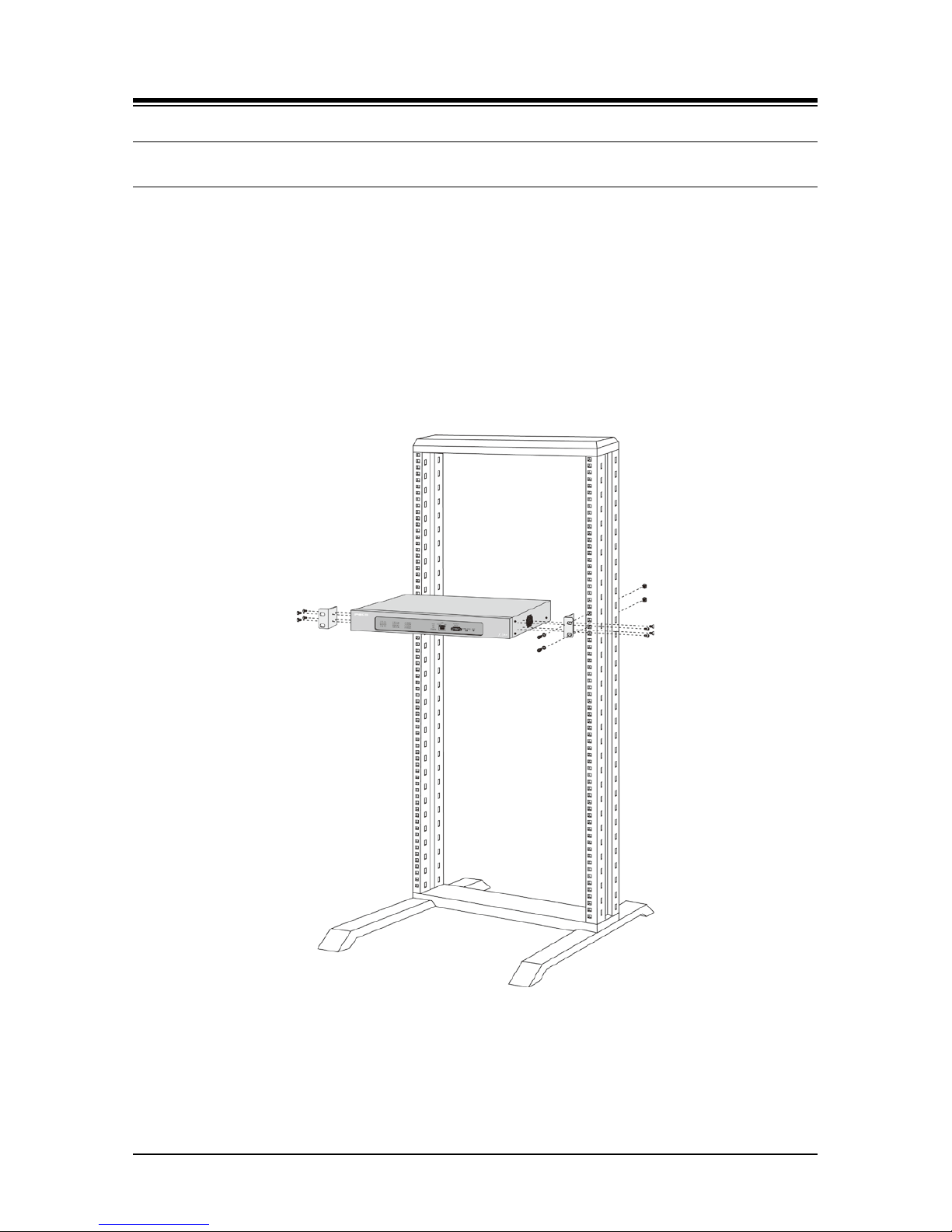

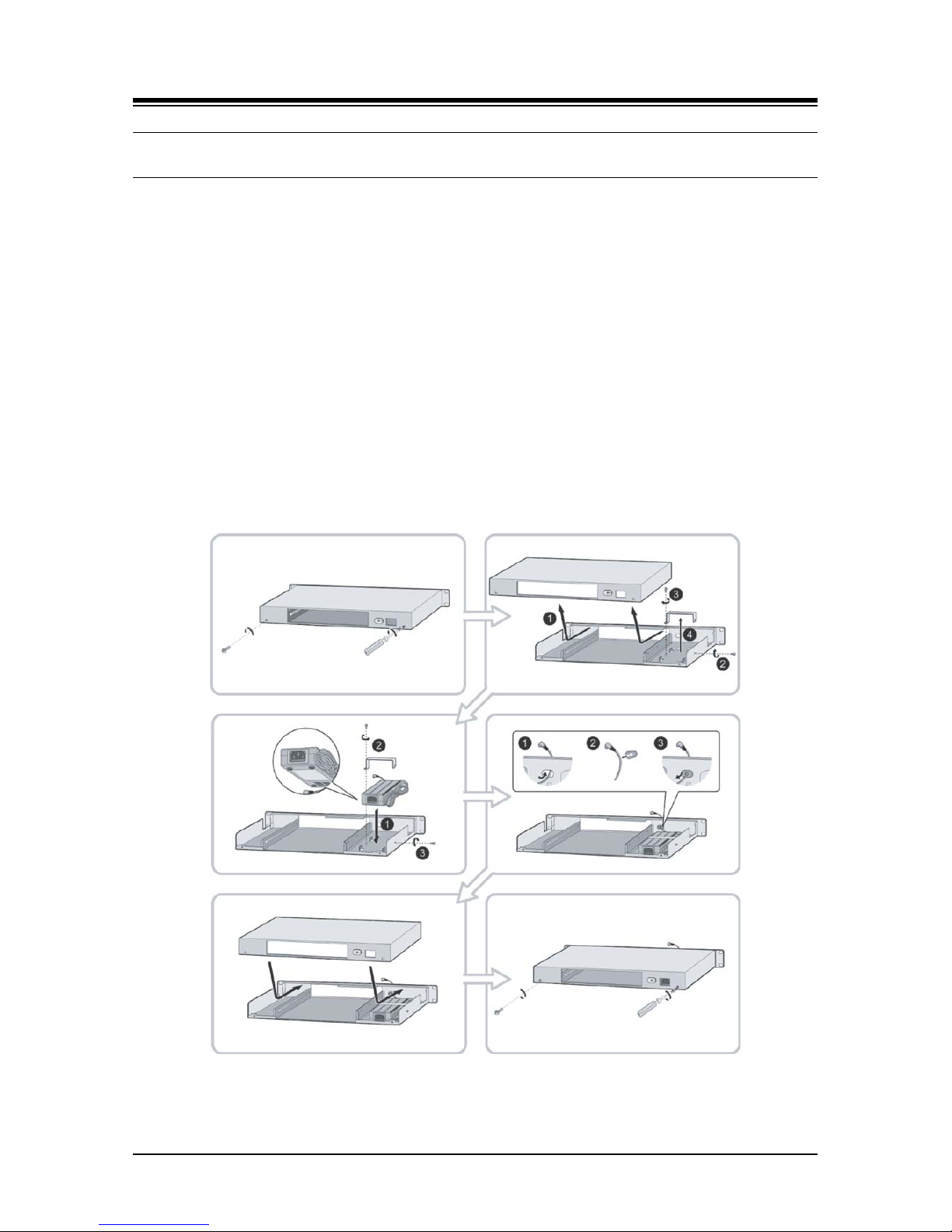

5.6 1U-Rack Mount Bracket Installation ............................................ 61
6. Module Installation and Wiring ......................................... 64

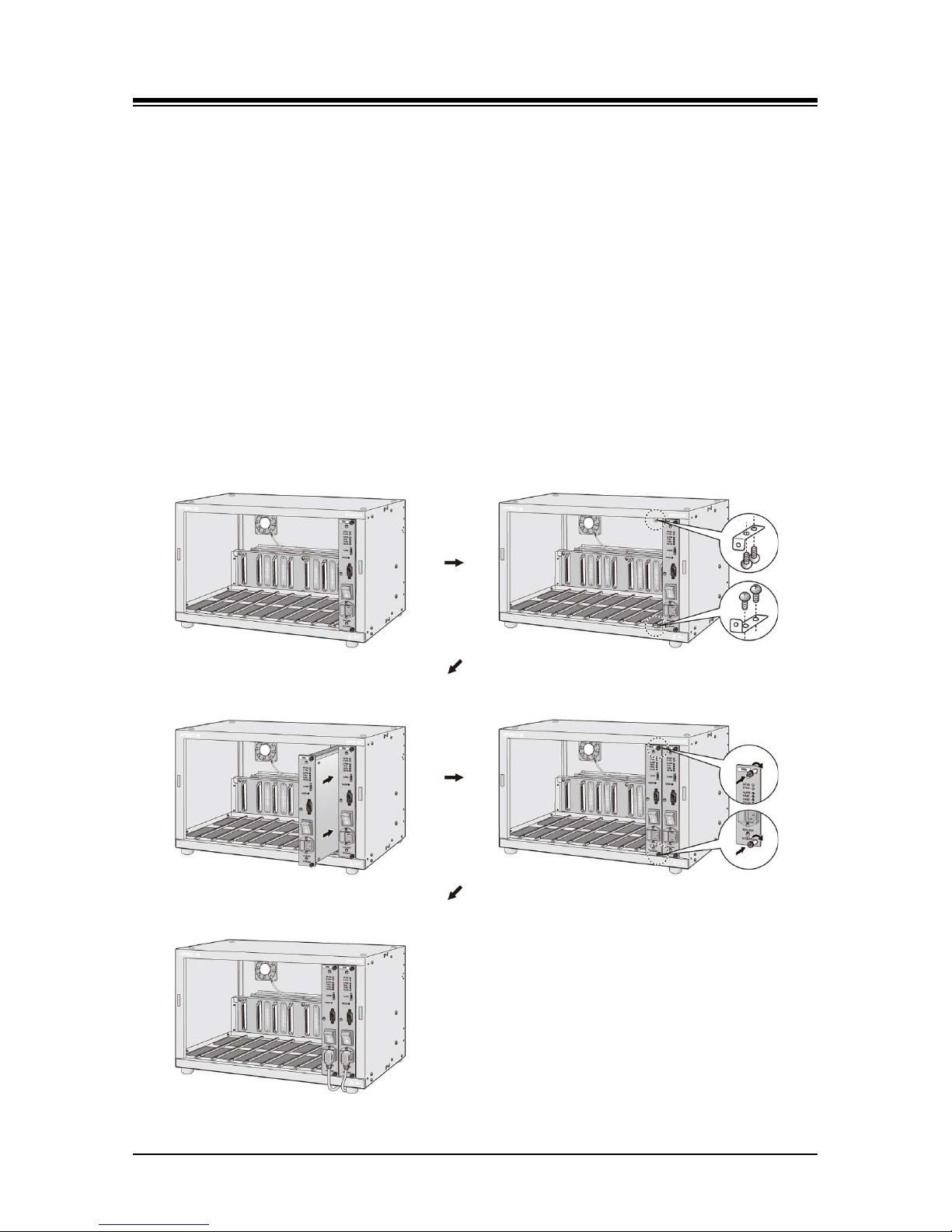

6.1 Module Handling and General Installation.................................. 64
6.1.1 Module Installation Sequence ..................................................................... 64
6.1.2 M od u le I nsertion/Rem oval .......................................................................... 65
6.1.3 Common Module Switches ......................................................................... 65

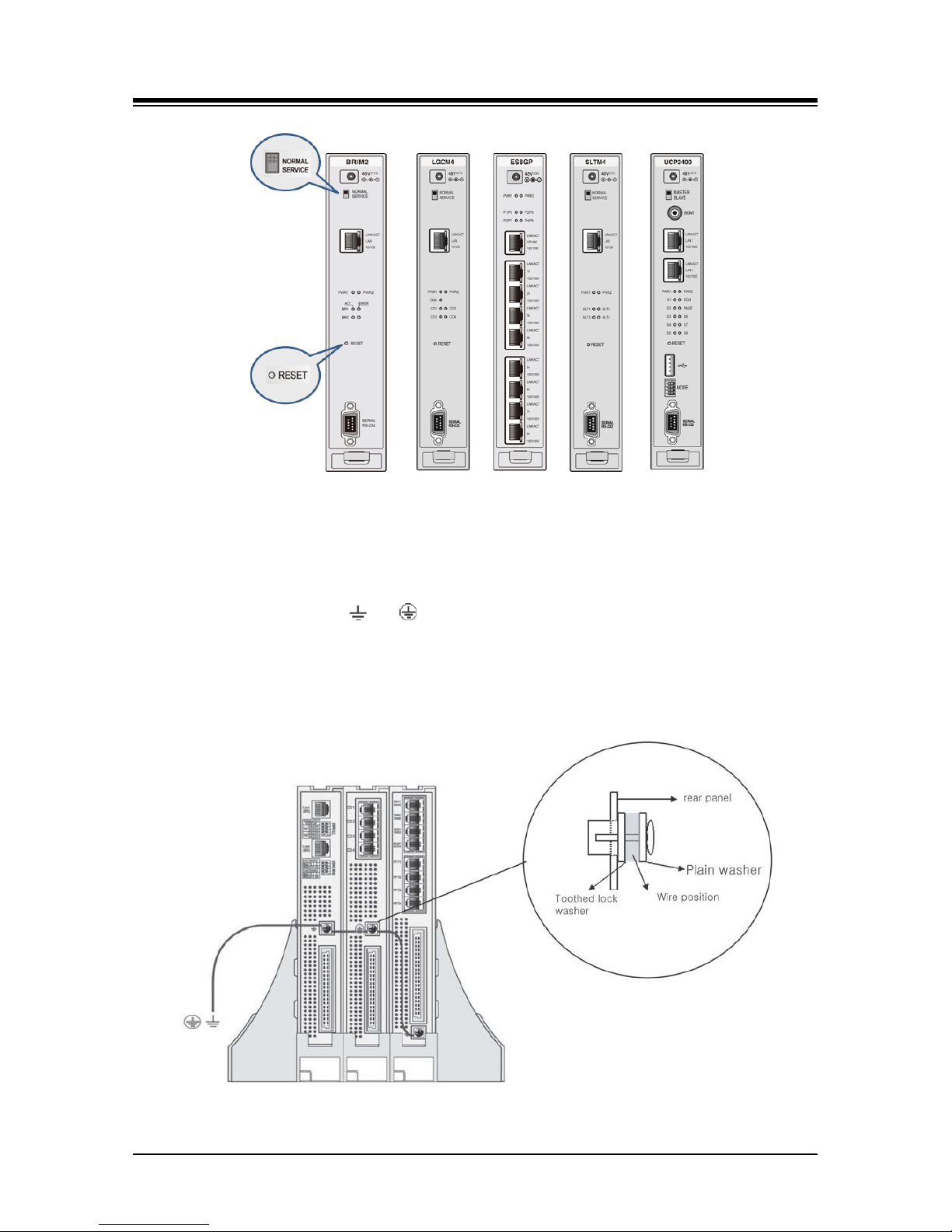

6.1.4 Module Grounding ...................................................................................... 66

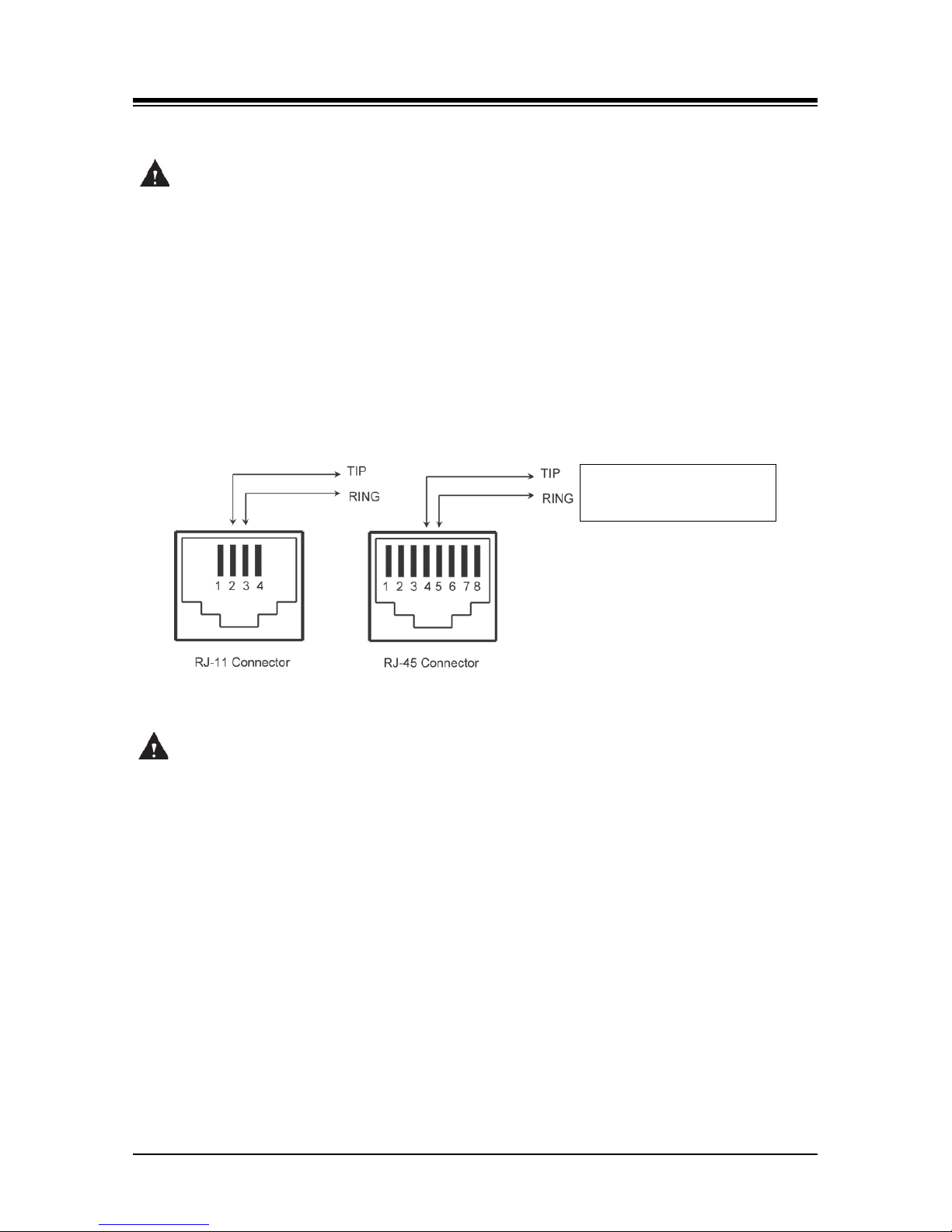

6.1.5 Telephon y C o nn ec t i o ns .............................................................................. 67

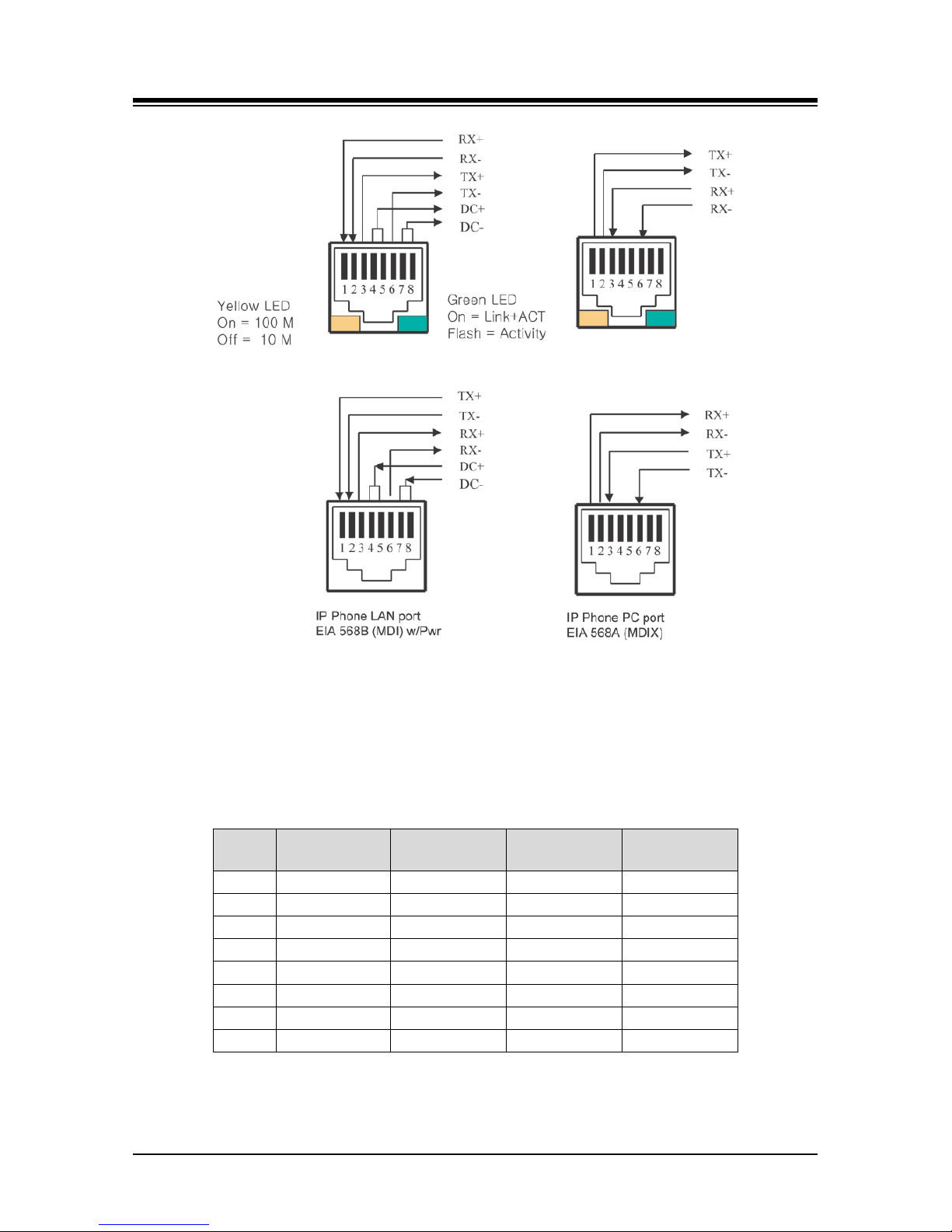

6.1.6 LAN Conn ec t ions ....................................................................................... 67
6.1.7 LAN Wirin g Struct u res ................................................................................ 69

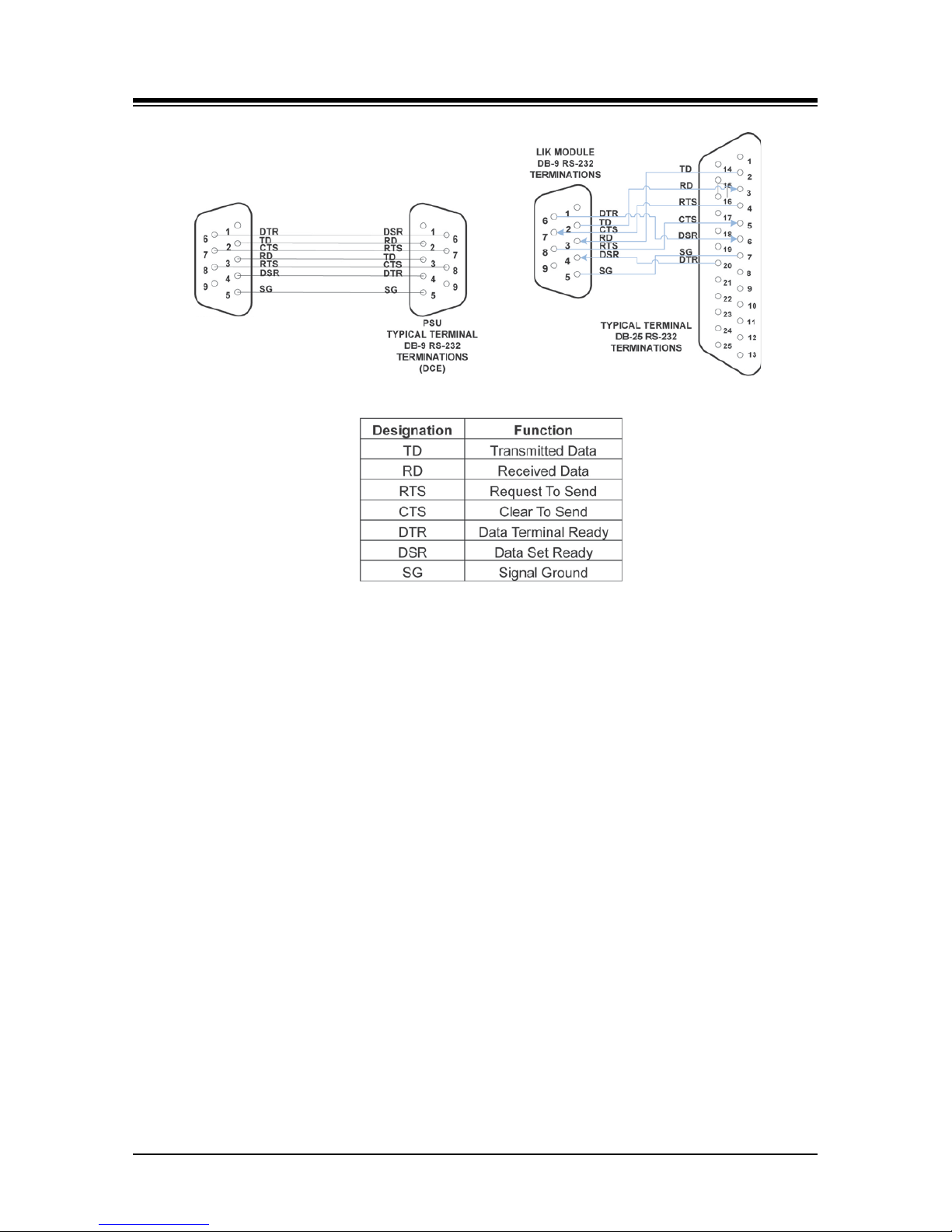

6.1.8 RS -232 Connections .................................................................................. 71
6.1.9 Module Power Adapter ............................................................................... 72
6.2 UCP server Module Installation ................................................... 73

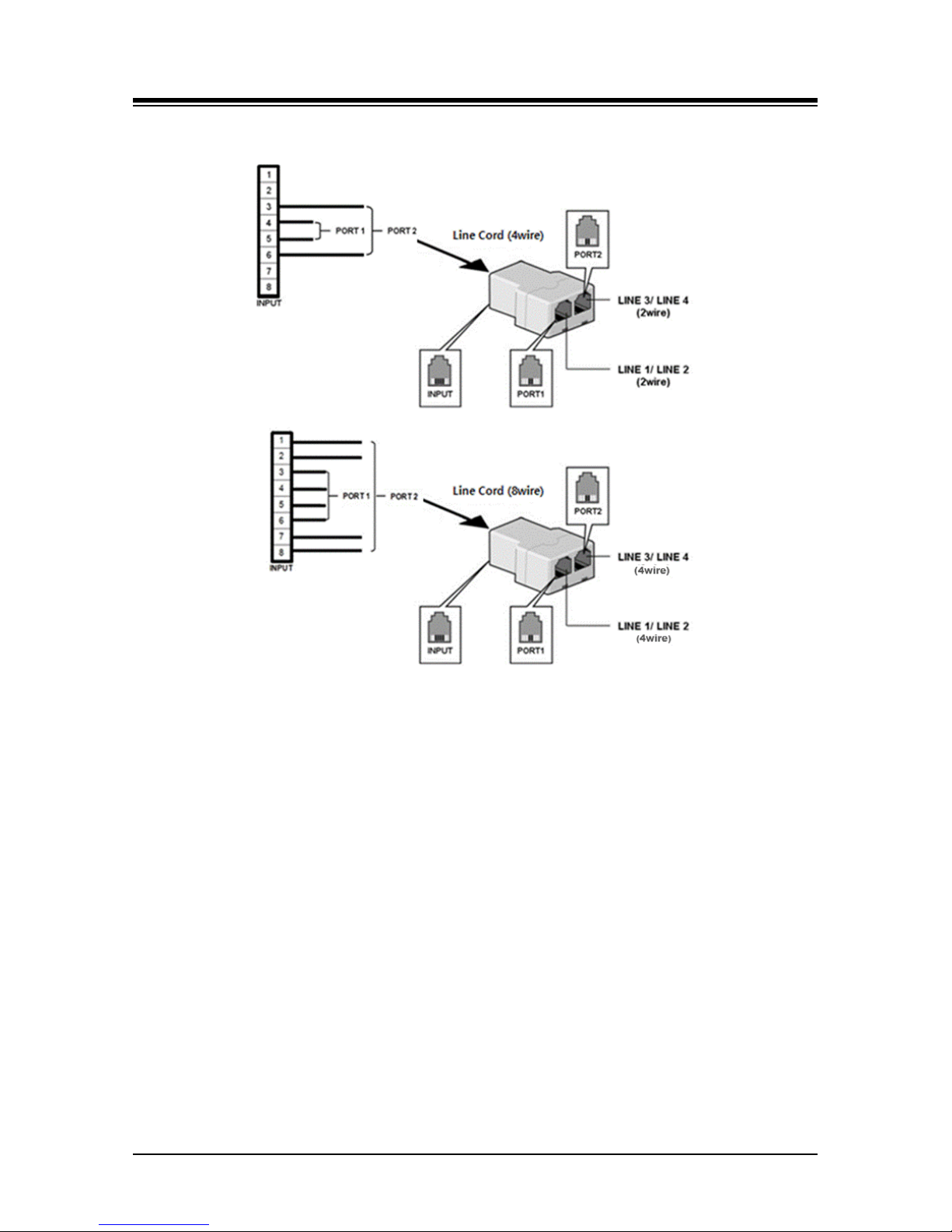

6.2.1 Using Jack splitters .................................................................................... 76

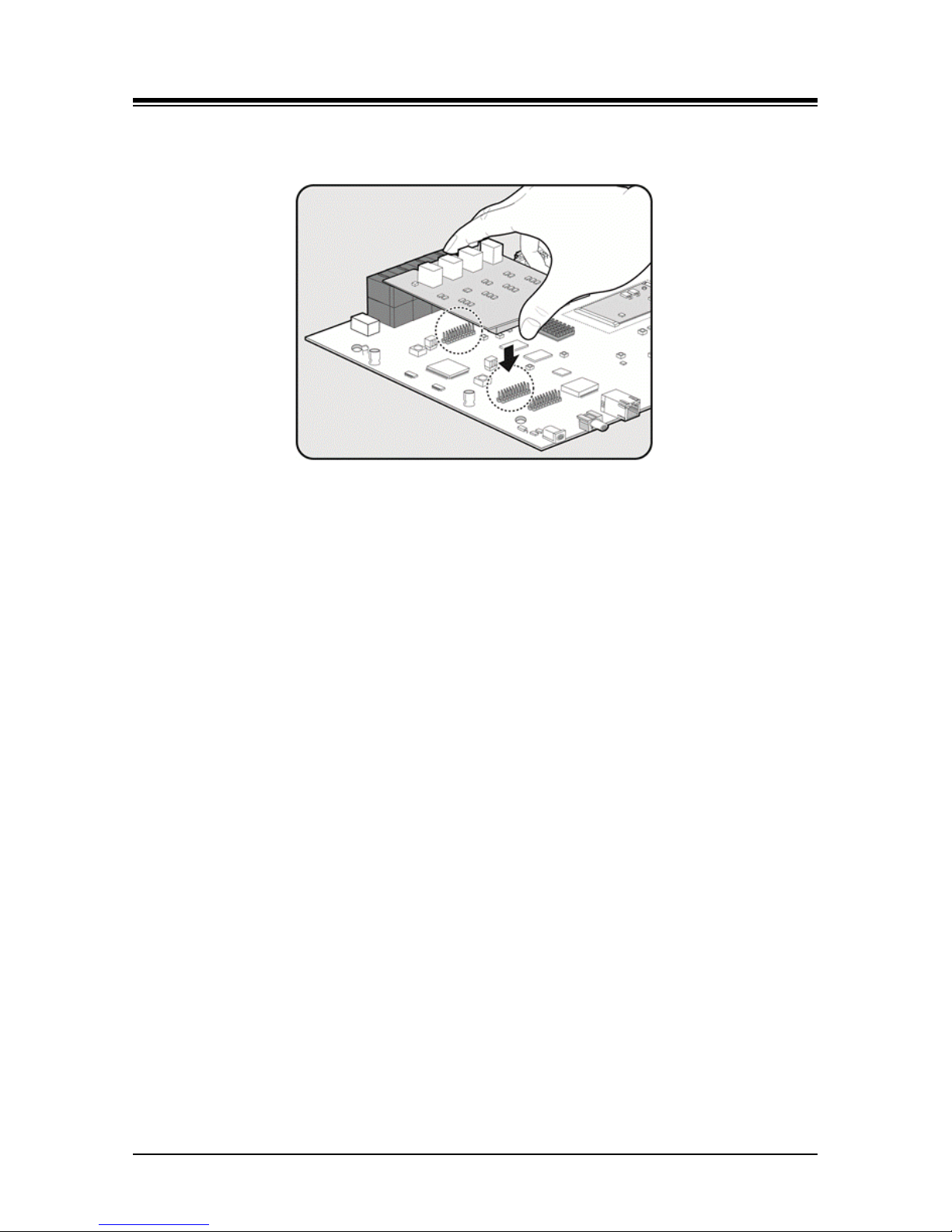

6.2.2 Installation of Optional PSTN Unit .............................................................. 77
6.3 VOIM8/24 Installation .................................................................... 79
6.4 VCIM Installation ........................................................................... 80
6.5 LGCM4 & LGCM8 Installation ...................................................... 81
6.5.1 CMU (Call Metering Unit) Installation .......................................................... 81

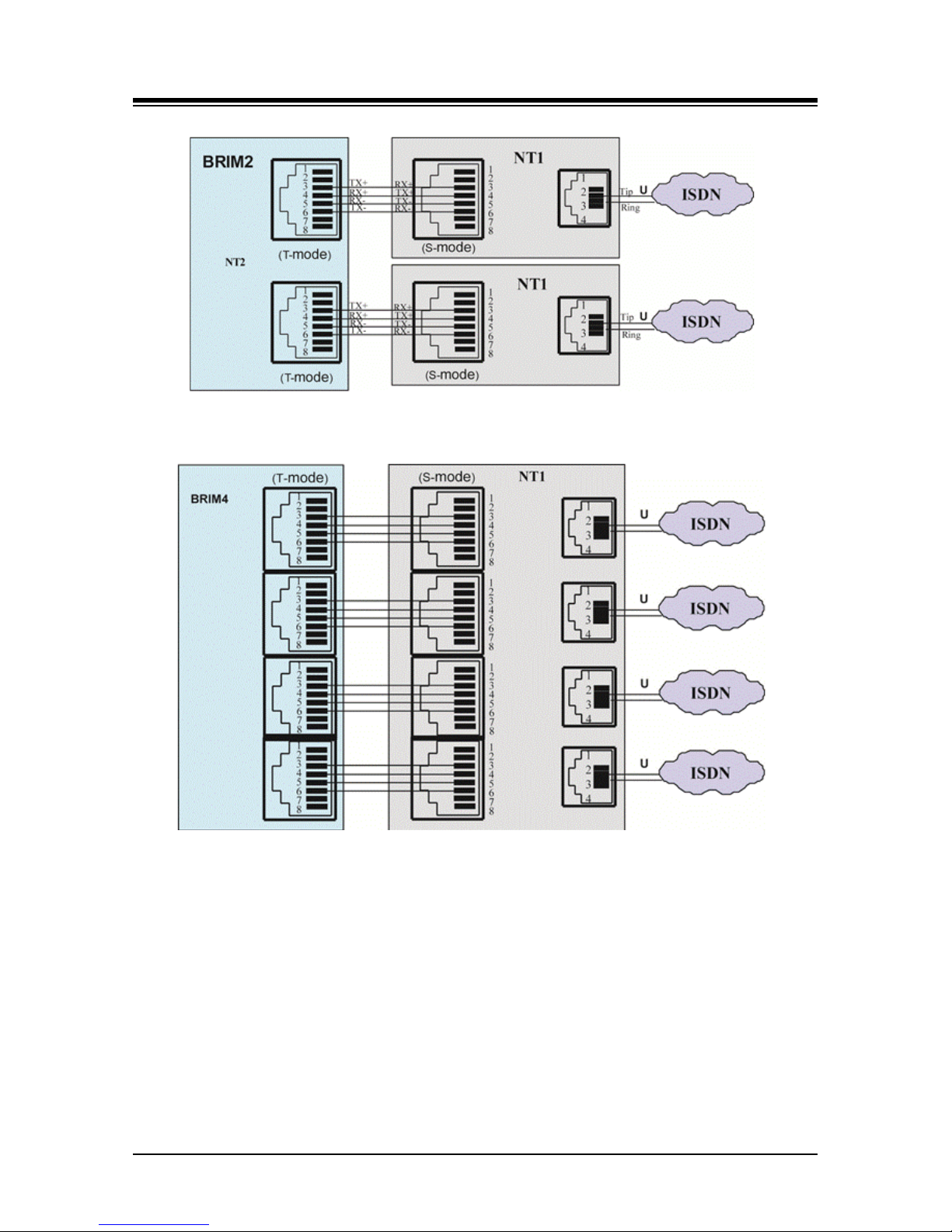

6.6 BRIM2 Installation ......................................................................... 83
6.7 PRIM Installation ........................................................................... 85
6.8 DTIM8 Installation ......................................................................... 86
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
iv
6.9 DTIM24 Installation ....................................................................... 87

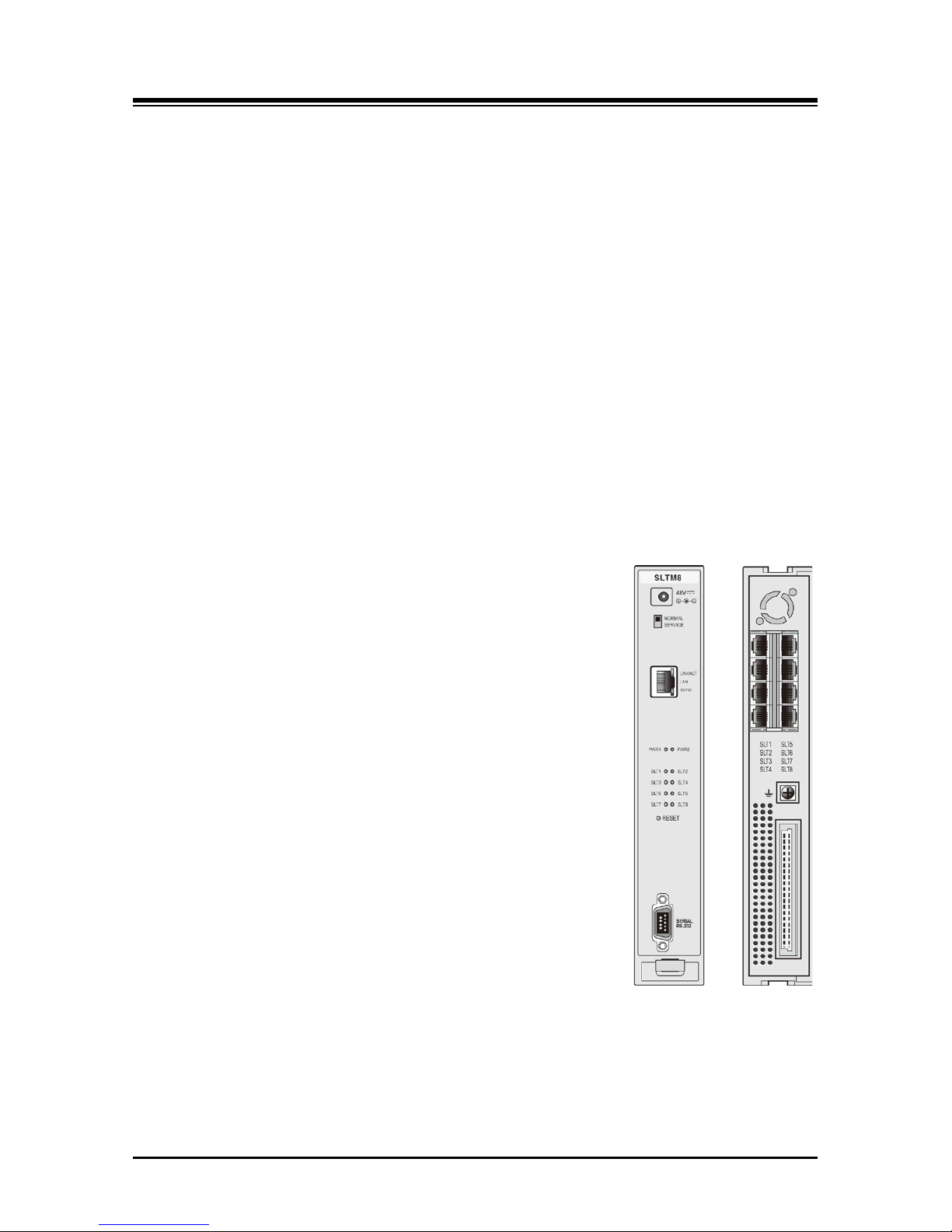

6.10 SLTM4 & SLTM8 Installation ...................................................... 90
6.11 SLTM32 Installation .................................................................... 91
6.12 UVM Installation .......................................................................... 93
6.13 MCIM Installation ......................................................................... 94

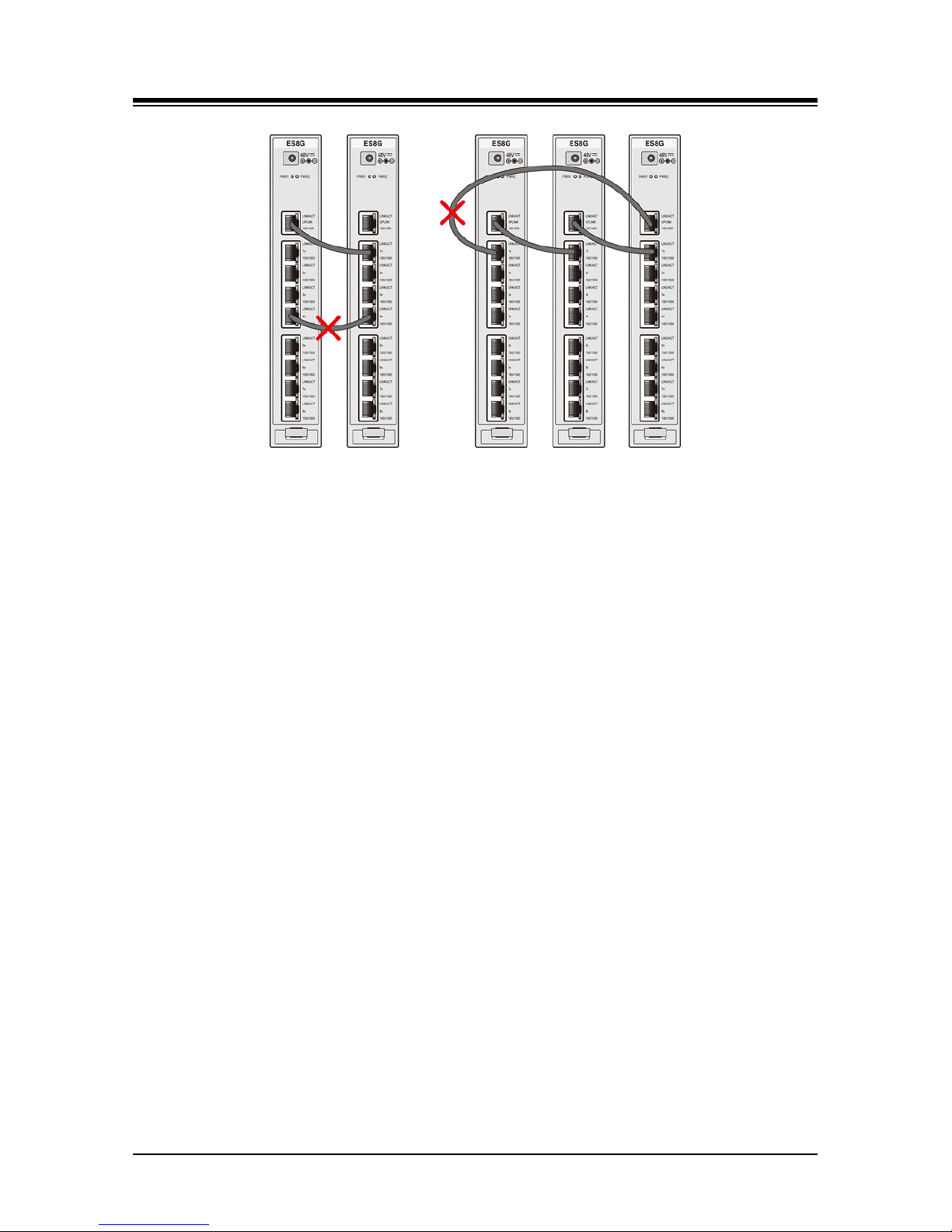

6.14 ES8GP Installation ...................................................................... 95
6.15 ES8G Installation ......................................................................... 96
6.16 WTIM4/8 Installation .................................................................... 97

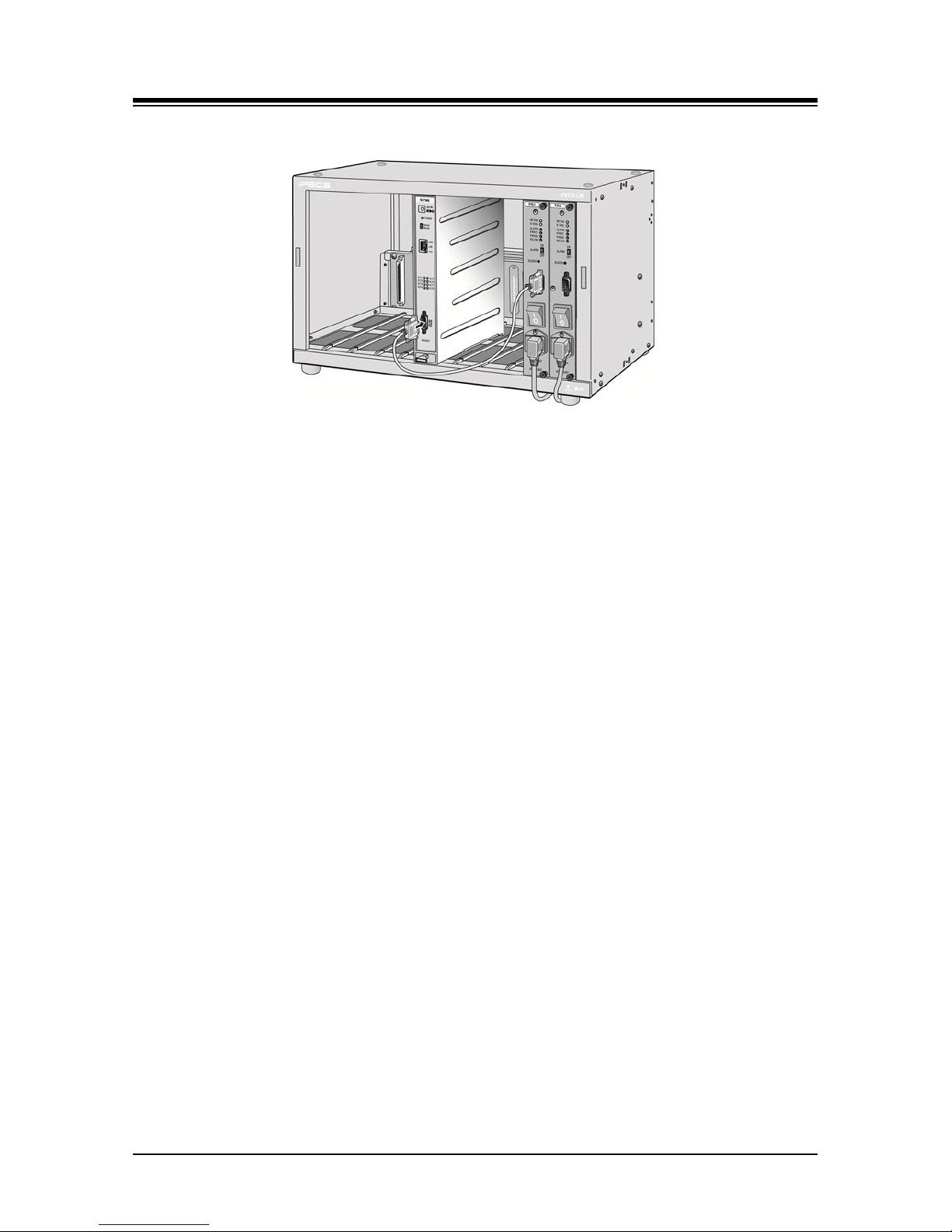

6.17 Main Cabinet Wiring .................................................................. 100
7. Termi nal Installation and Wiring ..................................... 102
7.1 IP Phone & DSS Installation ....................................................... 102
7.1.1 L IP P ho n e Wiring ..................................................................................... 102
7.1.2 L IP-8000 Serial Console Installation and Wiring ....................................... 104
7.1.3 LIP-8000/8000E Wall Mount ..................................................................... 106
7.1.4 L IP-9000 Console Installation ................................................................... 106
7.1.5 L IP-9000 Wall Mount ................................................................................ 110
7.2 Digital Key Telephone and DSS Installation ............................. 111
7.2.1 DKTU Wiring ............................................................................................ 111
7.2.2 LDP-7000/LDP-9000/LDP-9200 series Wall Mount .................................. 111
7.3 SLT Installation ........................................................................... 112
7.3.1 SLT Wiring ............................................................................................... 112
8. Open Source Software Notice ......................................... 113
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
1
1. Introduction
1.1 Important Safety Instructions
1.1.1 Safety Requirements
When using your telephone equipment, basic safety precautions should always be
followed to reduce the ri sk of fire, electric shock and other personal injury, including the
following:
Please read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outl et before cleaning. A slightly damp cloth should be
used for cleaning; do not use li quid or aerosol cleaners.
Do not use this product near water, such as bathtub, washbowl, kitchen sink or laundry tub,
a wet basement, or near a swimming pool.
Do not place this product on an unstable stand or table. The product may fall, causing
serious damage to the pr oduct or serious injury.
Slots and openings in the Cabinet or Module and the back or bottom are provided for
ventilation, to protect it from overheating, t hese openi ngs must not be blocked or covered.
The openings should never be blocked by placing the product on a bed, sofa, or other
similar surface. This product should never be placed near or over a radi ator or other heat
source. This product should not be placed in a built-in installati on without proper ventilation.
This product should be operated only from the type of power source indicated on the
product label. If you are not sure of the type of power supply to your location, consul t your
dealer or local power com pany.
Do not allow anything to rest on the power cord. Do not locate this product where the cord
could be abused by people walking on it.
Do not overload wall outlets and ext ensi on co r ds as this can result in the risk of fire or
electric shock.
Never push objects of any kind into t his product through Cabinet or Module slots or
connectors as they may touch danger ous voltage points or short out parts that could result
in a risk of fire, electric shock or product failure. Nev er spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product. I nstead, take it to a
qualified per son when serv ice or repair work is required. Opening or r em ov ing covers may
expose you to dangerous voltages or other risk. Incorrect r eassemble can cause electric
shock when the appliance is subsequently used.
Unplug this product from the wall outl et and refer servicing to qualif ied service personnel
under the following co nditions:
1. When the power supply cord or plug is damaged or frayed.
2. If liqui d has been spilled into the product.
3. If the product has been exposed to rain or water.
4. If the product does not oper ate normally by following the operating instructions.
Adjust only those contr ols that are covered by the operating instructions because
improper adj ustm ent of other co ntrols may result in damage and will often require
extensive work by a qualified technician to restore the product t o normal operation.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
2
5. If the product has been dropped or the Cabinet or Module has been damaged.
6. If the product ex hibits a distinct change in perform ance.
Avoid using a telephone duri ng an electr ical storm. There is a remote risk of electric shock
from lightning.
In the event of a gas leak, do not use the telephone near the leak.
1.1.2 Precaution
Keep the system away from heating appliances and electrical noise generating devices
such as florescent lamps, motors and televisions. These noi se source s can interfere with
the performance of t he iP E CS UCP System.
This system should be kept free of dust, m oistur e, high temperature (more than 40
degrees) and vibration, and should not be exposed to direct sunlight.
Never attempt to insert wires, pins, etc. into the system. If the system does not operate
properly, the equipment should be repaired by an authorized Ericsson-LG Enter pr ise
service center.
Do not use benzene, paint thinner, or an abr asive powder to clean the Cabinet or Module.
Wipe it with a soft cloth only.
This system should only be installed and serviced by qualified service per sonnel .
When a failure occurs which exposes any internal parts, disconnect the power supply cord
immediately and r eturn this system to your dealer.
To prevent the risk of fire, elect ri c shock or f ailure of the system, do not expose this
product to rain or any typ e of moisture.
To protect the internal com ponents from static electricity, discharge body static before
touching connectors and/or components by touching ground or wearing a ground str ap.
To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA
Certified Telecommunication Line Cord.
The Power supply cord is used as the main disconnect device. Ensure that the socket-
outlet is located, installed near the equipment and is easily accessible.
A supplementary equipment-earthing conductor is to be installed between the product or
system and earth, that is, in addition to the equipment-earthing conductor in the power
supply cord.
Disconnect the Telecom connect ion before disconnecting the power connection prior to
relocating t he equipm ent, and reconnect the power first.
This system is equipped with an eart hing co ntact plug. For safety reasons this plug m ust
only be connected to an earthing contact socket that has been install ed acco r ding to
regulations.
WARNING
Replace batteries only with the same or equivalent type recommended by the manufacturer.
There i s a risk of explosion if batteries are replaced with an incorrect type. Dispose of used
batteries according to the manufacturer’s instructions and local disposal requirements.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
3
1.2 About This Manual
This document provides general information covering the description and installation of the
iPECS UCP System hardware. While every effort has been taken to ensure the accuracy of this
information, Ericsson-LG Enterprise makes no warranty of acc uracy or interpr etations thereof.
The document is divided into eight (8) sections as described in the following.
Section 1 Introduction
This section introduces important safety information and the manual.
Section 2 System Overview
This section provides general information on the iPECS UCP System, including the system
specific at i o ns and capacity
Section 3 iPECS UCP Hardware Descripti o n
This section describes the hardware components of the iPECS UCP.
Section 4 Installation overview
This section gives detailed instructions for planning the installation site and procedures to
install the iPECS UCP Syste m.
Section 5 Module Mounting Hardware Installation
This section describes installation of the Module mounting hardware with step-by-step
instructions.
Section 6 Module Installation and Wiring
This section provides instructions on wiring the individual Modules, installing Module option
boards, and wiring for the Main Cabinet, as well as Miscellaneous connections, Earth
Groundin g and Battery Backup.
Section 7 Terminal Installation and Wiring
This section describes the various terminals, maximum wiring distance, and other device
connection information for the terminals.
Section 8 Open Source Software Notice
This section provides information on open source software
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
4
2. System Overview
2.1 iPECS UC P Introd uc t ion
iPECS UCP is Ericsson-LG Enterprise’s Internet Prot ocol (IP) Enterpr ise Comm u nications
Solution Unified Communication Platform designed to meet the telecommunication needs of the
small to medium sized business. iPECS UCP uses advanced packet voice and IP switching
technology, which is combined with a rich feature content, to set a new standard in Voice over IP
(VoIP) systems.
iPECS UCP consists of a family of intelligent modules, which are interconnected over an Ethernet
LAN, easing the installation process and eliminating the need for an expensive back plane. A
variety of modules are available including analog and digital network access gateways, which
connect to the Public Switched Telephone Network (PSTN), ISDN or public and private VoIP
networks. iPECS Ethernet switches (ES8G/ES8GP) provide the LAN connections for other
iPECS UCP modules in the same form factor as the standard iPECS UCP modules for a clean
consistent in-cabinet installation. The ES8GP incorporates Power over Ethernet (PoE) to support
“power-feed” to connected LIP Phones. LIP Phones provide the user simple access to the many
features and functions of the iPECS UCP.
The modules, which make up the iPECS, can be installed in a Main Cabinet. The cabinet can be
desk, 19” rack, or wall mounted, as best fits the user needs and equipment room. Each of the
system’s modules is powered from a PSU, which converts 100-240 VAC to 48 VDC. In lieu of the
cabinet installation, the modules can be shelf (bookend) mounted, in which case, each module is
separately powered from an AC/DC adapter, which converts 100-240 VAC to 48 DC for use by
the module.
iPECS supports a variety of iPECS LIP Phones Ericsson-LG Enterprise digital terminals, standard
VoIP phones (SIP and H.323 V3) and analog single line devices. With the LIP and LDP digit al
Phones, comm o nly used fe atur es are activ ated by selection of a single button. Additionally, most
functions can be accessed from any telephone by dialing specific codes. For LIP and LDP digital
Phone users, these “dial codes” may be assigned to Flexible buttons for easy access. In addition
to the LIP Phones, optional LIP DSS Consoles are available to expand the number of Flexible
buttons available to the user.
iPECS UCP provides an environment rich in features beyond today’s traditional circuit switched
telephone systems. In addition to a fully feature d voic e intercom , the iP E CS UCP incorporates
enhanced messaging, basic Auto Attendant/Voice Mail, Least Cost Routing, and Automatic Call
Distribution, as well as Web based Admin, and VoIP network interface. iPECS UCP incorporates
an interface to the iPECS Applications Service Provider, a TAPI 3.1 TSP/MSP. The Application
Service Provider links the iPECS UCP to advanced Computer-Telephony iPECS and third party
applications. In addition to the iPECS Auto Attendant/Voice Mail and iPECS Unified Messaging
applications developed by Ericsson-LG Enterprise, third party TAPI 3.1 application support is
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
5
provided. Standard Unified Communications Services (UCS) are supported through the UCS
Client providing enhanced communications, presence and collaborative services. Premium UC
services are supported through the installation of the optional UC server. An optional Network
Management Server (NMS) software package is available allowing monitoring and management
of environments encompassing multiple iPECS installations.
By employing packet voice and IP switching, the iPECS infrastructure can be employed for or can
share the enterprise data network. Further, since all modules and terminals have a unique IP
address, they can be moved anywhere with access to a broadband network that can connect to
iPECS and function without the need for “re-programming”. The use of the single common
infrastructure and ability to easily install or relocate modules and telephones results in significant
savings at installation and over the life of the system.
The reliability, extensive feature content, the ability to support present and future iPECS
applications and the capability to use an array of modules and instruments, permit the iPECS to
be tailored to meet the short and long-term needs of the most demanding customer requirements.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
6
2.2 iPECS UCP Networ k Conn ec tion
Figure 2.2-1 below is a diagram of the various modules and terminals available for integration into
an iPECS UCP controlled network.
Figure 2.2-1 iPECS UCP Network diagram
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
7
2.3 Hardware Components Chart
Table 2.3-1 provides a description of the hardware components that make-up iPECS UCP. All of
the Modules are connected over standard Ethernet LANs. M ultiple options permit module
installation in a cabinet, bookshelf mount, or individual mounting.
Table 2.3-1 iPECS Modules
ITEM
DESCRIPTION
1
UCP100 Unified Communications Platform Server 100, Basic 50, Up to 199 ports
UCP600 Unified Communications Platform Server 600, Bas ic 100, Up to 600 ports
UCP2400
Unified Communications Platform Server 2400, Bas ic 600, Up to 2400 por ts
UCP-COIU4 4 ports Central O ffice In ter fa ce Unit daughter board for UCP 100
UCP-BRIU2
2-port B asic Rate Interface U nit daughter board for UCP100
UCP-BRIU4 4-port Basic Rate Interface Unit daughter board for UCP100
2
VOIM8
Voice Over IP Gateway Module, 8 channels
3
VOIM24 Voice Over IP Gateway Module, 24 channels
4
VCIM
VoIP and Conference Interface Gateway Module, Basic 64 DSP channels,
Up to 128 DSP channels with software license.
(Default 31 VoIP or 62 Conference, Maximum 63 VoIP or 126 Conference)
5
LGCM4 Loop Start CO gateway Module, 4 ports
6
LGCM8 Loop Start CO gateway Module, 8 ports

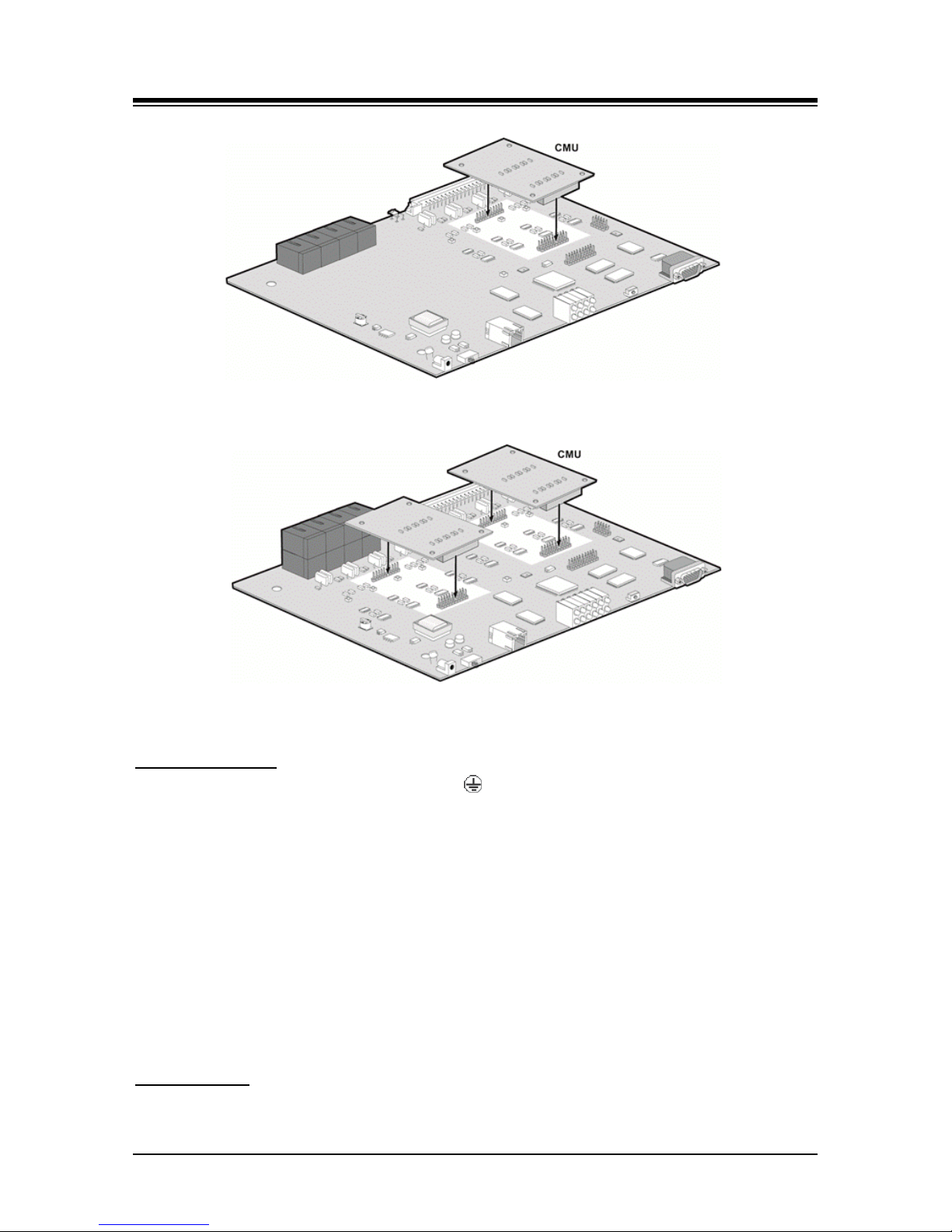

CMU1216 4-channel Call Metering Unit for LGCM, 12 or 16KHz, Polarity Re versal
CMU50PR 4-channel Call Metering Unit for LGCM, 50Hz, Polarity Reversal
7
BRIM2 BRI g ateway M odule, 2 port ISDN “T” Interface (2B+ D)
8
BRIM4
BRI g ateway M odule, 4 port ISDN “T” Interface (2B+ D)
9
PRIM PRI g ateway M odule, 1 port, 24 ( 23+1) o r 32 (30+2) channels
10
DTIM8
Digital Terminal Interface gateway Module, 8 ports
11
DTIM24 Digital Terminal Interface gateway Module, 24 ports
12
SLTM4
Single Line Telephone gateway M odul e, 4 port s
13
SLTM8 Single Line Telephone gateway M odul e, 8 port s
14
SLTM32 Single Line Telephone gateway Module, 32 ports
15
UVM Unified Voice Ma il In ter face Mo dule, Up to 16 Channels /200 Hours
16
MCIM Multi-Media Conference Module (up to 32-party voice)
17
WTIM4 Wireless Terminal Interface gateway Module, 4 ports
18
WTIM8 Wireless Terminal Interface gateway Module, 8 ports
19
ES8G 8 +1 Port switch, 10/100/1000 Base-T Ethernet interface
20
ES8GP
PoE Switch, 8 +1 Ports, 10/100/1000 Base-T Ethernet interface
21
AC/DC Adapter –G- AC/DC Adapter for standard iPECS gateways & modules, (48VDC, 0.8A)
22
DHLD
Desk mount Holde r for modu le
23
DHE Desk mount Holder Extender, one (1 ) required for each Module
24
WHLD
Wall mount Holder for modu le
25
MCKTE Main Cabinet Kit Enhanced
26
WBRKE Wall mount Bracket Kit for Enhanced Main Cabinet
27
1U-RMB 1U Rack mount Bracke t for ga tew ay Modu les
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
8
2.4 System Specifications
2.4.1 System Capacity
Table 2.4.1-1 System Capacities
ITEM
UCP100
UCP600
UCP2400
Remark
Main Cabinet
10 Slots 1 slot used by the PSU
System channels , bas ic
maximum
50 100 600
199 600 2400 w/License
Stations
199 600 2400
Total stations and Lines
cannot exceed the
available System channels
CO/IP Lines (external network
channels incl. Vo IP)
199 600 998
UCS Standard C lients
Registrations
Simultaneous
UCS Premium C lients
Registrations
100
100
199
200
200
600
400
400
2400
Server Redundancy
No Yes Yes
Supports local and remote
redundancy
Cabinet Power Redundancy
Yes
Integrated Telephony ports*1
None None
Two FXS ports are
equipped as standard in
the UCP100 module; an
optional CO/BRI line unit
may be equipped or
installed.
standard
2 FXS (SLT)
optional
4 CO, or 2 BRI
or 4 B RI Lin es
WTIM4/8 modules (Max.)
132
Max DECT phones
100 255 255
VoIP Switch channels,
*2&3
Built-in basic
Built-in maximum
System Maximum
8
16
100
8
24
600
0
0
998
w/License
w/VOIM and VCIM
VoIP DSP channels ,
Built-in max
6
6
0
VoIP DSP channels can be
assigned to the MCIU, 2
VoIP = 4 Conf channels.
For UCP100 see Note 1.
Multi-party Conference Unit
(MCIU) channe ls
6/10/14/18 6/18 0
Maximu m M CIMs
30
Max SIP channels
100 600 1200
VSF*4
8-Ch./4 Hrs. 8-Ch./6Hrs. NA
14 Hours 16 Hours NA w/License
UVM capacity, basic
maximum
8 Channels at 50 hours
16 Channels at 200 hours
w/License
UVM per syst em
30
Attendants
50
Serial Port (RS-232C)
1
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
9
Table 2.4.1-1 System Capacities
ITEM
UCP100
UCP600
UCP2400
Remark
USB Host port
1
Alarm/Doorbe ll inpu t
1 2
External Contro l Relays
1 4
Music Source Inpu ts (Ext)
1 2
Power Fail Circu it
1 4
External Page zones
1 2
Internal Page Zones
100
System Speed Dial
12,000
System Speed Dial Zones
(Groups)
50
Station Speed Dial, per Station
100
Total Station Speed Dial
24,000
Call park
200
Last Number Redial
10 (23 digits)
Save Number Redial
1 (23 digi t s)
Standard DSS Consoles/Station
9
Serial DSS - System
500
Serial DSS - Station (LIP-8000)
4
Serial DSS – Station (LIP-9000)
1
SMDR buffer
30,000
CO Line Groups
200
Station & Hunt Groups
200
Station & Hunt Group Members
200
Pickup Groups
200
Pickup Group Member
2,4000
Personal Groups
1200
Conference Group - System
160
Conference Group - Station
100
Executive/Secretary pairs
100
Authorization Codes
5200 (Station:2400/System:2800)
Transparent Netw or k ing Table
100
CLI Msg Wait (Misse d calls)
4,000
Redundancy
N/A Yes
Flex DID Table
10,000
MSN table
2,400
DID Digits Analysis
4
Tenancy (ICM) Groups
100
ICLID table
500
NOTE
1. The iPECS UCP100 is equipped with two (2) FXS ports, and one of several built-in CO
Line units may be factory or field installed.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
10
4 analog CO Lines (UCP-COIU4), uses two (2) VoIP DSP channels
2 BRI Lines, 2B+D each, (UC P-BRIU2) , uses two (2) VoIP DSP channels
4 BRI Lines, each 2B+D, (UCP-BRIU4) , uses four (4) VoIP DSP channels
Note the built-in PSTN interfaces require dedicated DSP resources. These DSP
resources reduce the maximum VoIP DSP resources available shown in the above chart.
2. The eight (8) built-in VoIP Switching channels implement agent and packet relay
functions. Remote device and network interfaces send IP traffic and signaling to the VoIP
channel, which forwards traffic to the appropriate local iPECS device. The VoIP
Switching channel also forwards multi-cast packets to the remote end-points and local
non-iPECS devices. Only g.711 codec is allowed unless the re is an available VoIP DSP
channel.
3. The number of VoIP Switching channels can be increased to the maximum with license
installation.
4. Approximately 35 minutes (16 Mbytes) of the VSF and UVM memories are used to
provide basic system prompts, the remaining memory can be used for announcements
and voice message storage. Note the built-in VSF supports the g.711 Codec only; the
UVM supports g.711, g.729, g.723, and g.722 Codecs.
5. With PFT enable within the equipment the system will route to the assigned SLT port
allowing for emergency access if not provisioned the equipment will be inoperable when
mains power fails.
2.4.2 Dimension and Weight
Table 2.4.2-1 Dimensions and Weight
ITEM
HEIGHT
(mm/in)
WIDTH
(mm/in)
DEPTH
(mm/in)
WEIGHT
(Kg/lbs.)
Standard Gateway Module
230/9.1 38.8/1.5 194.5/7.7 1.5/3.3
19” Rack Mount modu les
(SLTM32, DTIM24)
53/2.1 436.6/17.2 318/12.5
4.32/9.5
4.02/8.9
Main Cabinet, Enhanced
(MCKTE)
265.6/10.5 440/17.3 318.2/12.5 7.78/17.2
w/PSU module
9.32/20.3
1U RMB
38.3/1.5 482.6/19 183.27.2 2/4.4
DHLD *1
146/5.7 111.5/4.4*1 128/5 0.4/0.9
WHLD
280/11.0 60/2.4 188.3/7.4 0.2/0.4
NOTE
1. The width of the Desk Holder bookend mount does not include approximately
40mm (3.2 inches) for each installed module.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
11
2.4.3 Environment specification
Table 2.4.3-1 Environm en tal Specifica ti ons
ITEM
TEMPERATURE
Operation Temperature
0~40 0C 32~104 0F
Optimum Opera tion T e mper atur e
20~26 0C 68~78 0F
Storage Temperature
-20~60 0C -4~140 0F
Rel ative H umidit y
0~80% non-condensing
2.4.4 Electrical specification
2.4.4.1 System Electrical specification
Table 2.4.4.1-1 System Electrical Specifications
ITEM
SPECIFICATIONS
Module AC/DC Adapter
AC Voltage Input
100-240 VAC, +/-10% @ 50/60 Hz
AC Current Input
1.0 amps
DC Output
48 VDC at 0. 8 amps
Keyset AC/DC Adapter
AC Voltage Input
100-240 VAC, +/-10% @ 50/60 Hz
AC Current Input
0.2 amps
DC Output
48 VDC at 0. 3 amps
PSU
AC Voltage Input
100-240 VAC, +/-10% @ 50/60 Hz
Fuse
T6.3, AC250V
DC Output
48VDC, 5.3 amps
5VDC at 1 amp s
SLTM32 PSU
AC Voltage Input
187~265 VAC @ 47~63 Hz
Fuse
T1, AC250V
DC Output
30VDC at 1.2 amps
5VDC at 2.5 amps
5VDC at 0.1 amps
External Relay Contac t
2 amp @ 30 VDC
Music Source Inpu t
0 dBm @ 600 ohm
External Paging Port
0 dBm @ 600 ohm
LAN Power Feed
0.3 amps max
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
12
2.4.4.2 Module & Phone Power Requirements
Table 2.4.4.2-1 Module Powe r Requi r ements
Module Maximum
Current (mA)
Maximum
Power (Watts)
UCP100/ 600/ 2400
150 7.2
VOIM8/24
100 4.8
UVM
100 4.8
VCIM
100 4.8
MCIM
100 4.8
SLTM4
280 13.4
SLTM8
440 21.1
LGCM4/8
100 4.8
BRIM2/4
100 4.8
PRIM
100 4.8
WTIM4
440 20.7
WTIM8
740 34.9
DTIM8
640 30.7
ES8G/ES8GP w/o connecting
a Powered De vice (PD)
100 4.8
NOTE
1. Table 2.4.4.2-1 above provides the maximum power required by each module with
the exception of the ES8GP. The ES8GP power values shown are fo r the switch
itself, and do not include the current draw of any connected devices. The Table
may be used to assure the PSU can supply power to the modules in a cabinet.
2. To determine the power needs of a cabinet, add the maximum current for each
module including the current for any Powered Device attached to an ES8GP
switch. Use Table 2.4.4.2-2 below to determine the current requirements of LIP
Phones attached to the ES8GP. The resulting current must be less than the PSU
capability, 5.3 amps.
3. When using an ES8GP, assure the power needs of the ES8GP and all connected
Powered Devices does not exceed the rating of the power source. The AC/DC
adaptor is capable of providing 0.8 Amps. When the ES8GP is powered by a PSU,
use Note 2 above to assure the PSU ratings are not exceeded. The maximum
current and classification signature of each LIP-8000E series phone is shown in
the following Table 2.4.4.2-2. The maximum current for the older 8000 series LIP
phones is provided in the lower Table 2.4.4.2-3 for sites that may have been
previousl y insta lled.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
13
Table 2.4.4.2-2 LIP 8000E Phone Powe r Requi r e m ents
Model
Current
(mA)
IEEE 802.3af
Class
LIP-9070
250 3
LIP-8050E
125 3
LIP-8040E
89 2
LIP-8024E
87 2
LIP-8012E
84 2
LIP-8008E
40 2
LIP-8002E
39 1
LIP-8050E with 1 LSS
134 3
LIP-8050E with 2 LSS
143 3
LIP-8040E with 1 LSS
98 2
LIP-8040E with 2 LSS
107 2
LIP-8024E with 1 LSS
96 2
LIP-8024E with 2 LSS
105 2
LIP-8012E with 1 LSS
93 2
LIP-8012E with 2 LSS
102 2
Table 2.4.4.2-3 LIP 8000 Phone Power Requirements
Model
Current
(mA)
IEEE 802.3af
Class
LIP-8050
127 3
LIP-8040
105 2
LIP-8024
103 2
LIP-8012
96 2
LIP-8008
90 2
LIP-8002
91 1
LIP-8050 with 1 LSS
136 3
LIP-8050 with 2 LSS
145 3
LIP-8040 with 1 LSS
114 2
LIP-8040 with 2 LSS
123 2
LIP-8024 with 1 LSS
112 2
LIP-8024 with 2 LSS
121 2
LIP-8012 with 1 LSS
105 2
LIP-8012 with 2 LSS
114 2
NOTE
1. LIP-8012DSS and LIP-8012LSS Serial Consoles are powered from LIP-8050E,
LIP-8040E, LIP-8024E, or LIP-8012E Phones. The chart shows the power
consumption when an LIP-8012LSS is attached. These power consumption
values should also be used when connecting an LIP-8012DSS.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
14
Table 2.4.4.2-4 LIP 9000 Phone Power Requirements
Model
Current
(mA)
IEEE 802.3af
Class
LIP-9040
98 2
LIP-9030
98 2
LIP-9020
96 2
LIP-9010
84 1
LIP-9002
39 1
LIP-9040 with 9024ButtonKit
112 2
LIP-9030 with 9024ButtonKit
112 2
LIP-9020 with 9024ButtonKit
106 2
2.4.5 Maximum Station Wiring
Table 2.4.5-1 Maximum Station Wiring Distance
ITEM
DISTANCE (M/KFt)
22 AWG
24 AWG
LIP Phone to switch p ort
100/0.328 100/0.328
SIP or H.323 V oIP phon e
100/0.328 100/0.328
Digital Termina l to DT IM
500/1.64 300/1
Single Line Telephone to SLTM
6,000/20 4,000/13
2.4.6 Analog CO Loo p speci fi c at io n
Table 2.4.6-1 CO Loop Speci fications
ITEM
SPECIFICATION
Ring Detect Sensitivity
40 Vrms @ 16~30 Hz
30 Vrms @ 30~37 Hz
DTMF Dialing
Frequency Deviation
Less than +/-1.8%
Signal Rise Time
Max. 5ms
Tone Dur ation, ON time
Min. 50ms
Inter-digit Time
Min. 30ms
Pulse Dial ing
Pulse Rate
10 pps
Break/Make Ratio
60/40% or 67/33%
NOTE
1. Ring sensitivity on analog CO Lines will vary from one regulatory region to another.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
15
3. iPECS UCP Hardware Description
3.1 iPECS Modules
3.1.1 UCP Server Module (UCP100/600/2400)
The Unified Communications Platform server modules (UCP100, UCP600 and UCP2400), which
are the “call server” for iPECS UCP, extend telephony resources and call processing to the
iPECS modules and terminals. The UCP server modules incorporate miscellaneous interfaces for
Music-On-Hold (MOH), Background Music (BGM), contact monitors for Alarm and Doorbell inputs,
and external control contacts. Also, these modules include battery back-up circuitry using a longlife Lithium battery to m aintain th e real-time clock during power fail.
Each iPECS UCP server module has a 10/100/1000 Base-T Ethernet interface, the “LAN1” RJ-45
connector, which is the interface to the iPECS UCP call server features and functions. The
UCP600 and UCP2400 have a second 10/100/1000 Base-T Ethernet interface “LAN2” RJ-45
connector. The “LAN2” port is employed for redundant processor operation. For redundant
processor operation, the LAN2 ports of the main and back-up UCP are interconnected using a
standard RJ-45 cable directly or connect to a LAN port to support remote redundant servers. The
Ethernet ports incorporate auto MDI, MDIX switching, therefore, both straight and cross cables
can be used.
The UCP100 and UCP600 server modules include a VSF (Voice Store and Forward) unit for the
built-in Auto Attendant, Voice Mail and general System Announcements. The basic VSF in the
UCP100 has eight (8) channels and four (4) hours of audio storage. The UCP600 VSF has eight
(8) channels and six (6) hours of storage. Both can be increased by license installation, the
UCP100 can be expanded to 14 hours of storage, and the UCP600 can be expanded to support
16 hours of storage. Note the VSF will only support the g.711 Codec.
The UCP100 and UCP600 server modules also include VoIP Switch and DSP, and Multi-party
Conference (MCIU) channels as shown in the capacity Table 2.4.1-1. The VoIP Switch channels
act as an agent for iPECS devices handling signaling and media packets, and convert multi-cast
packets to unicast for remote and non-iPECS devices. The VoIP DSP channels are employed for
transcoding between major codecs (g.711, g.722, g.729a, and g.723.1).
The MCIU channels mix audio from several different sources for conferencing, supporting multiparty Conference, Conference Room and Conference Group features of the iPECS UCP. The
MCIU has six (6) channels to support conferences up to six (6) p ar ties . VoI P DSP channels can
be allocated to expand the MCIU channels available as shown in Table 2.4.1-1 to a maximum of
18 channels supporting conferences up to 18 parties. The MCIU will support multiple conferences
not exceeding the available channels (parties). For additional conference capabilities, MCIMs
may be added to the system.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
16
In addition, the UCP100 server module i ncorporates two built-in FXS ports. An outside Line
option unit with four (4) analog CO Lines, two (2) BRI Lines, or four (4) BRI Lines may be i nstall e d.
The BRI lines support the ETSI standards for ISDN. Note the option unit will reduce the number
of available VoIP DSP channels. The 4-CO Line and 2-BRI Line option unit reduce the available
VoIP DSP channels by two and the 4-BRI Line option unit reduces the VoIP channels by four.
The UCP100 automatically connects the first CO Line to the first SLT port should power to the
system fail. The UCP 600 and 2400 include four (4) Power Fail Transfer circuits that can be
wired to desired CO Lines and SLT ports for connection should system power fail.
As shown in Figure 3.1.1-1, the UCP100 front panel includes:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
RCA jack for one music (audio) source -BGM1-
One (1) “LAN1” RJ-45 Female LAN connector with Speed and Link/Activity LEDs
Two (2) green power status LEDs
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Ten (10) blue LEDs display the operating status
Reset Switch
One (1) USB 3.0 host, SIO/USB Memory port,
Four (4)-position DIP-switch for mode selections
One (1) DB-9 RS-232 connector
On the rear panel, each UCP100 has:
Eight (8) RJ-45 female connectors for:
One (1) Alarm contact input
One (1) BGM/MOH external source input
One (1) External Page output
One (1) Control Relay contact output
Four (4) optional analog CO Line ports or 2 or 4 BRI (2B+D)
Lines
Two (2) FXS, one used as a Power Fail Transfer circuit
Ground Lug
Fifty (50 )-pin back plane connector
Figure 3.1.1-1 UCP100 Front & Rear Pa nel
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
17

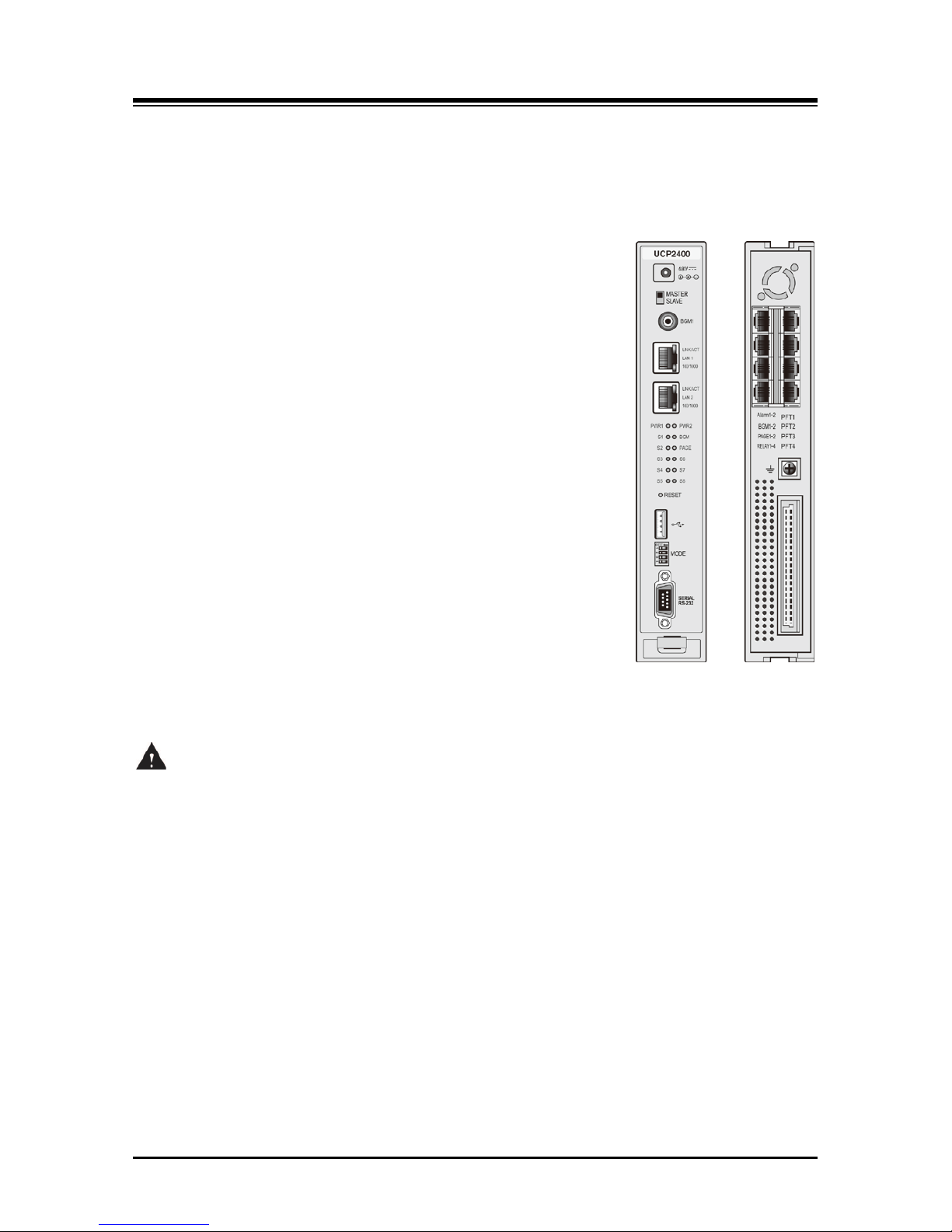

The UCP600 and UCP2400 module front panels are shown in Figure 3.1.1-2, and include;
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Master/Slave switch
RCA jack for one music (audio) source -BGM1-
Two (2) “LAN1” & “LAN2” RJ-45 Female LAN connectors with
Speed and Link/Activity LEDs
Two (2) green power status LEDs
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Ten (10) blue LEDs display the operating status
Reset Switch
One (1) USB 3.0 host, SIO/USB memory port
Four (4)-position DIP-switch for mode selections
One (1) DB-9 RS-232 connector
On the rear panel, each UCP100 has:
Eight (8) RJ-45 female connectors; for Alarm, BGM and
Control Relay inputs, External Page outputs and Power Fail
Transfer circuits
Ground Lug
Fifty (50 )-pin back plane connector
Figure 3.1.1-2 UCP600/2400 Front & Rear Panel
CAUTION
The USB port of the UCP module is designed for SIO and USB memory; the USB port does not
provide power to connected devices.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
18
3.1.2 VOIM8 & 24 (Voice Over IP gateway Modules)
The eight (8) and twenty-four (24) channel Voice over IP gateway Module (VOIM8 and VOIM24)
perform protocol translation between standard H.323 or SIP protocol and the iPECS proprietary
protocol. The VOIM8 contains a single processor to support eight (8) VoIP calls. The VOIM24
contains two (2) processors to support maximum twenty-four (24) VoIP calls. The main processor
manages packet switching and signaling for all VoIP calls. DSPs are employed to support in-band
DTMF detection and transcoding between various codec types for each IP channel. The
transcoding feature enables users to communicate with each other, when the codec between
iPECS and other terminal is different.
Each VOIM8 and VOIM24 includes a 10/100 Base-T Ethernet interface using an RJ-45 type
connector. Both Ethernet ports incorporate auto MDI and MDIX switching feature allowing use of
either straight cable and cross cable.
As shown in
Figure 3.1.3-1, the front panels of the VOIM8 and 24 have:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LEDs
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Normal/Service switch
Two (2) RJ-45 Female LAN
connector for master processor
with Speed and Link/Act LEDs
Five (5) status LED s
One (1) DB-9 RS-232 connector
Reset Switch
On the rear panel, the VOIM8 and 24
have:
Ground Lug
Fifty (50)-pin back plane
connector
Figure 3.1.2-1 VOIM 8 & 2 4 F ront & Rear P anels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
19
3.1.3 VCIM (VoIP and Conference Interface gateway Module)
The VoIP and Conference Interface gateway Module (VCIM) perform protocol translation
between standard H.323 or SIP protocol and the iPECS proprietary protocol or multi-party voice
conferences. The basic VCIM support sixty-four (64) simultaneous DSP channels for VoIP or
conference function. The VCIM contains two (2) processors to support maximum one hundred
twenty eight (128) DSP channels with software license. The main processor manages packet
switching and signaling for all DSP channels. DSPs are employed to support in-band DTMF
detection and transcoding between various codec types for each IP channel. The transcoding
feature enables users to communicate with each other, when the codec between iPECS and
other terminal is different.
The VCIM has two Ethernet interface using an RJ-45 type connector. The first Ethernet port
support a 10/100/1000 Base-T interface port and incorporate auto MDI and MDIX switching
feature allowing use of either straight cable and cross cable. The second Ethernet port supports a
1000 Base-T only.
As shown in Figure 3.1.3-1, the front panels of the VCIM have:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Normal/Service switch
Two (2) RJ-45 Female LAN connector for master processor
with Speed and Link/Act LEDs
Two (2) Power status LED
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Six (6) Status LEDs
One (1) DB-9 RS-232 connector
Reset Switch
On the rear panel, the VCIM have:
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.3-1 VCIM Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
20
3.1.4 LGCMs (Loop Start CO gateway Module)
3.1.4.1 LGCM4
The Loop/Ground Start CO gateway Module (LGCM4) provides four (4) CO/PBX Loop/Ground
Start Line interfaces. These interfaces support pulse or DTMF dial signals. Each Interface
contains ring and loop current detection circuits, speech codec and compression functions, and
loop signaling circuits. The circuitry and software support tone detect ion. An optional Call
Metering Unit (CMU ) may be factory or field equipped to support the call metering function. Each
CMU supports four (4) ports and is av a i lable in three versions for different regions as shown
below.
CMU1216 (12kHz mode, Polarity Reversal) – Australia, Denmark, Italy, Spain, Sweden
CMU1216 (16kHz mode, Polarity Reversal) – Bel gium, India, Isr ael, N or way, Sout h A f r ica
CMU50PR (50Hz, Polarity Reversal – Australia, India, South Africa, South Korea, United
Kingdom
The LGCM4 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.4.1-1, the front panel of the LGCM4 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Two (2) green power status LEDs
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
One (1) LED to indicate if a CMU is installed
Four (4) LEDs, one for status of each CO line
Reset Switch
One (1) DB-9 RS-232 connector
On the rear panel, the LGCM4 has:
Four (4) RJ-45 female connectors
Ground Lug
Fifty (50 )-pin back plane connector
Figure 3.1.4.1-1 LGCM4 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
21
3.1.4.2 LGCM8
The Loop/Ground Start CO gateway Module (LGCM8) provides eight (8) CO/PBX Loop/Ground
Start Line interfaces. These interfaces support pulse or DTMF dial signals. Each Interface
contains ring and loop current detection circuits, speech codec and compression functions, and
loop signaling circuits. The circuitry and software support tone detection. Optional Call Metering
Units (CMUs) may be factory or field equipped to support the call metering function. Each CMU
supports four (4) ports and is availab le in three versions for different regions as shown below.
CMU1216 (12kHz mode, Polarity Reversal) – Australia, Denmark, Italy, Spain, Sweden
CMU1216 (16kHz mode, Polarity Reversal) – Belgium , India, Isr ael, N or way, Sout h A f r ica
CMU50PR (50Hz, Polarity Reversal – Australia, India, South Africa, South Korea, United
Kingdom
The LGCM8 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.4.2-1, the front panel of the LGCM8 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Two (2) green power s t atus LED
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Two (2) LEDs, one to indicate installation of each CMU
Eight (8) LEDs, one for status of each CO line
Reset Switch
DB-9 RS-232 connector
On the rear panel, the LGCM8 has:
Eight (8) RJ-45 female connectors
Ground Lug
Fifty (50 )-pin back plane connector
Figure 3.1.4.2-1 LGCM8 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
22
3.1.5 BRIMs (BRI gateway Module)
3.1.5.1 BRIM2
The Basic Rate Interface gateway Module (BRIM2) has two (2) ISDN Basic Rate Interface ports
(2B+D). This Module supports the “T” interface as described by ETSI 300.012 based on the ITUT Recommendations I.430, and can be installed in the TE (Terminal Equipment) mode.
The BRIM2 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.5.1-1, the front panel of the BRIM2 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LEDs
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
Four (4) status LEDs -two (2) for each BRI Line
DB-9 RS-232 connector
Reset Switch
On the rear panel, the BRIM2 has:
Two (2) RJ-45 female connectors, one for each BRI Line
Ground Lug
Fifty (50) pin-back plane connector
Figure 3.1.5.1-1 BRIM2 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
23
3.1.5.2 BRIM4
The Basic Rate Interface gateway Module (BRIM4) has four (4) ISDN Basic Rate Interface ports
(2B+D). The BRIM4 supports the “T” interface as described by ETSI 300.012 based on the ITU-T
Recommendations I.430, and can be installed in the TE (Terminal Equipment) mode. The BRIM4
includes DSP circuitry for transcoding between various audio codecs.
The BRIM4 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.5.2-1, the front panel of the BRIM4 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LEDs
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
One (1) RJ-45 Female LAN connector with Speed and
Link/Activity LEDs
Eight (8) LEDs, two (2) for each BRI Line
DB-9 RS-232 connector
Reset Switch
On the rear panel, the BRIM4 has:
Four (4) RJ-45 female connectors, one for each BRI Line
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.5.2-1 BRIM4 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
24
3.1.6 PRIM (PRI gateway Module)
The PRIM module provides one (1) PRI interface. Modules are available to support either the
ETSI standard 30 PCM bearer and 2-signaling channels, or the NA standard 23 PCM bearer and
1 signaling channel format for ISDN Primary Rate Interfaces.
The PRIM includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.6-1, the front panel of the PRIM has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LEDs
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Normal/Service switch – In Service mode, circuits in use are
busy as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Four (4) LEDs
DB-9 RS-232 connector
Reset Switch
On the rear panel, the PRIM has:
One (1) RJ-45 female connector
Ground Lug
Fifty (50)-pin back plane connector

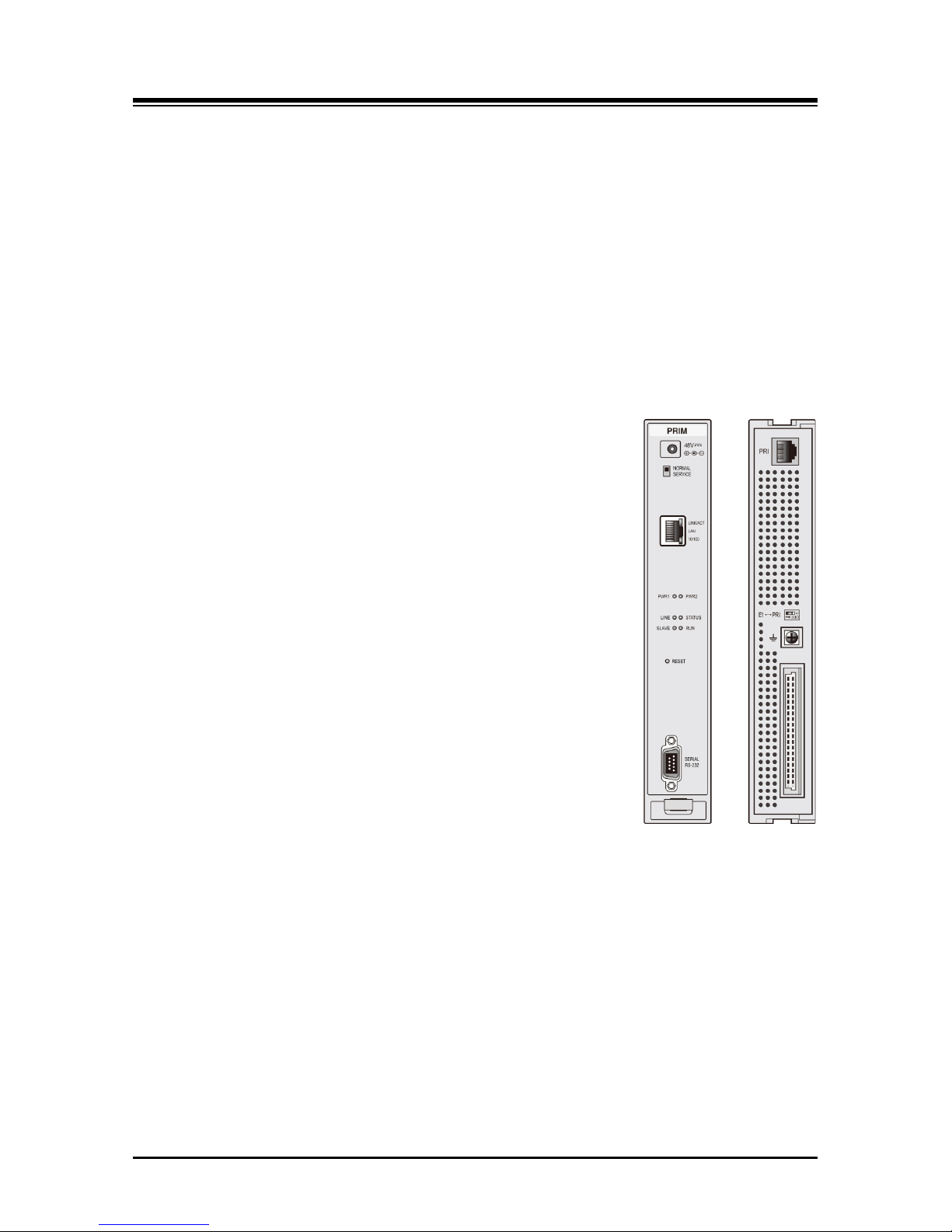

Figure 3.1.6-1 PRIM Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
25
3.1.7 DTIM s (Di git al Ter m in al In ter f ace gat eway Module)
3.1.7.1 DTIM8
The DTIM8 (Digital Terminal Interface gateway Module) supports eight (8) digital keysets (LKD
and LDP models). The multi-button Keysets have access to all the resources of the iPECS as
well as keyset functionality and simple one-button feature access. The DTIM8 contains a
processor for IP to TDM and signaling conversion as well as DSP circuitry to provide transcoding
for each channel.
Digital keysets can be connected up to 300 meters from the DTIM8 gateway using 24 AWG
twisted pair cabling.
The DTIM8 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.7.1-1, the front panel of the DTIM8 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LEDs
PWR1 - + 3.3 VDC
PWR2 - + 30 VDC
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Eight (8) DKTU status LEDs, one for status of each DTIM
channel
DB-9 RS-232 connector
Reset Switch
On the rear panel, the DTIM8 has:
Eight (8) RJ-45 female connectors
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.7.1-1 DTIM8 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
26
3.1.7.2 DTIM24
The DTIM24 (Digital Terminal Interface gateway Module) supports 24 digital keysets (LKD and
LDP models). Keysets have access to all the resources of the iPECS as well as keyset
functionality and simple one-button feature access. The DTIM24 contains a processor for IP to
TDM and signaling conversion as well as DSP circuitry to provide transcoding for each channel.
Digital keysets can be connected up to 300 meters from the DTIM24 gateway using 24 AWG
twisted pair cabling.
The DTIM24 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.7.2-1 below, the front panel of the DTIM24 has:
Twelve (12) LEDs, one for status of each DKT
Run & Power status LED
PWR1 - + 5 VDC
PWR2 - + 30 VDC
RJ-45 Female LAN connector with Speed and Link/Activity LEDs
DB-9 RS-232 connector
Normal/Service switch – In Service mode, circuits in use are busied as they return to idle
Reset Switch
On the rear panel, the DTIM24 has:
AC input connector
Ground Lug

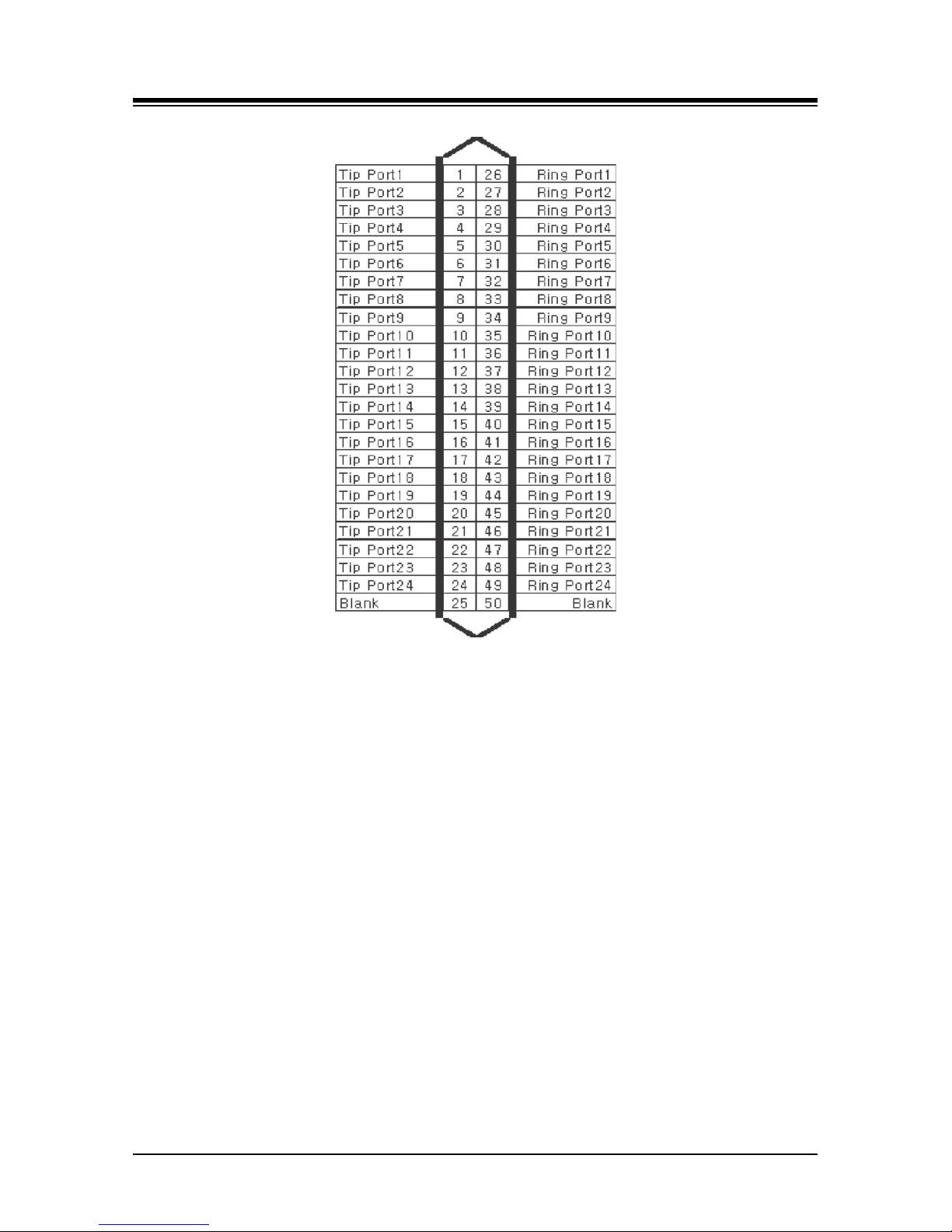

One (1) 25-pair RJ-21x connectors

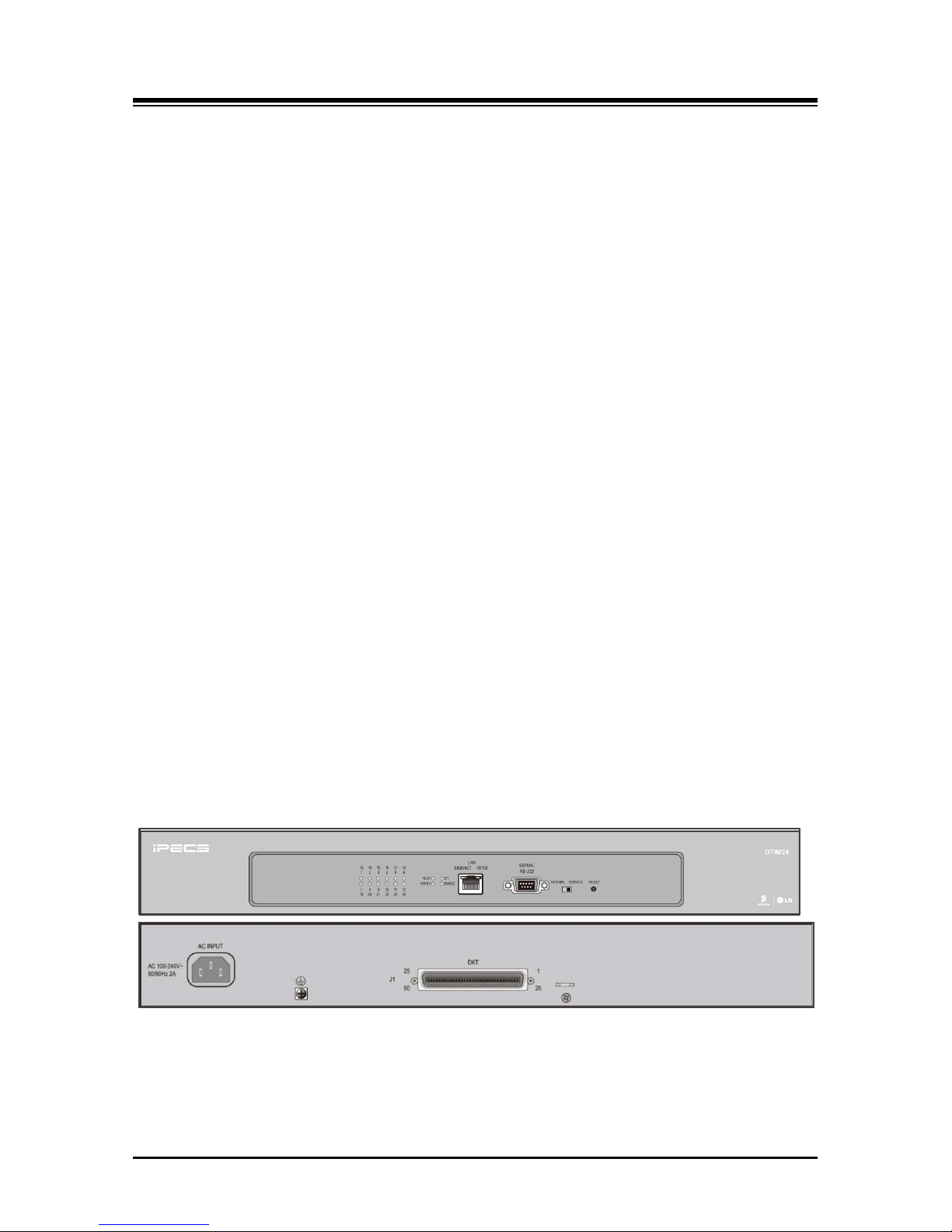

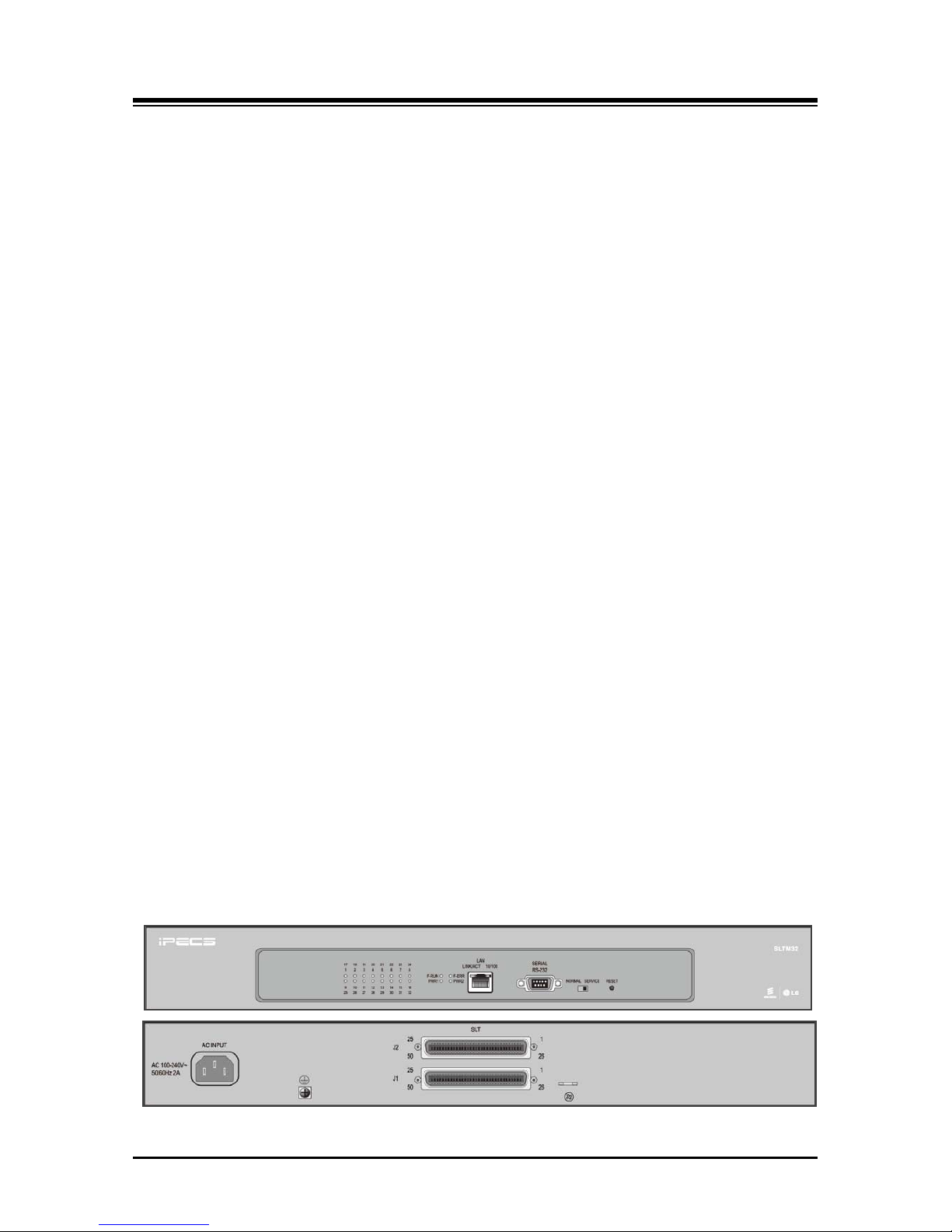

Figure 3.1.7.2-1 DTIM24 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
27
3.1.8 SLTM s (S i ngl e Lin e Telephone gateway Module)
3.1.8.1 SLTM4
The SLTM4 (Single L ine Telephone Module) allows standard analog Single Line Telephone (SLT)
devices access to CO Lines, other stations, and most features of the system using “dial codes”.
The SLTM4 provides interface circuitry for four (4) SLTs. Each interface is equipped with
appropriate speech codec and compression functions, -40 volt DC feed circuit, pulse and DTMF
dial signal detection. A ring generator and message wait source are integrated in the SLTM4. The
SLTM4 supports T.38 protocol f o r Fax ov er IP.
The SLTM4 allows Single Line Telephones to be connected up to 4 Kilometers (13,000 feet) from
the gateway using 24 AWG wire.
The SLTM4 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.8.1-1, the front panel of the SLTM4 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Two (2) green power status LED
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Four (4) SLT LEDs, one for status of each SLT
Reset Switch
DB-9 RS-232 connector,
On the rear panel, the SLTM4 has:
Four (4) RJ-45 female c on nector
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.8.1-1 SLTM4 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
28
3.1.8.2 SLTM8
The SLTM8 (Single L ine Telephone Module) allows standard analog Single Line Telephone (SLT)
devices access to CO Lines, other stations, and most features of the system through the use of
“dial codes”. The SLTM8 provides interface circuitry for eight (8) SLTs. Each interface is equipped
with appropriate speech codec and compression functions, -40 volt DC feed circuit, pulse and
DTMF dial signal detection. A ring generator and message wait source are integrated in the
SLTM8. The SLTM8 supports T.38 protocol for Fax over IP.
The SLTM8 allows Single Line Telephones to be connected up to 4 Kil ometers (13,000 feet) from
the gateway using 24 AWG wire.
The SLTM8 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.8.2-1, the front panel of the SLTM8 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Two (2) green power status LED
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Eight (8) SLT LEDs, one for status of each SLT
Reset Switch
DB-9 RS-232 connector
On the rear panel, the SLTM8 has:
Eight (8) RJ-45 female connectors
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.8.2-1 SLTM8 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
29
3.1.8.3 SLTM32
The SLTM32 ( Single Line Telephone Module) allows standard analog Single Line Telephone
(SLT) devices access to CO Lines, other stations, and most features of the system through the
use of “dial codes”. The SLTM32 provides interface circuitry for thirty-two (32) SLTs. Each
interface supports appropriate speech codec and compression functions, -48 volt DC feed circuit;
pulse and DTMF dial signal detection. A ring generator and message wait circuitry are integrated
in the SLTM32. The SLTM32 supports T.38 protocol for Fax over IP.
The SLTM32 allows Single Line Telephones to be connected up to 4 Kilometers (13,000 feet)
from the gateway using 24 AWG wire.
The SLTM32 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.8.3-1, the front panel of the SLTM32 has:
Sixteen (16) Dua l c olor LEDs, one for status of two SLT ports
(Blu e : P ort 1 ~ 16, Y el low: Port 1 7 ~ 32)
Two (2) green power status LED
PWR1 - + 5 VDC
PWR1 - + 30 VDC
Two (2) Fan status LED
RJ-45 Female LAN connector with Speed and Link/Activity LEDs
DB-9 RS-232 connector
Normal/Service switch – In Service mode, circuits in use are busied as they return to idle
Reset Switch
On the rear panel, the SLTM32 has:
AC input connector
Ground Lug
Two (2) 25-pair RJ-21x connectors
Figure 3.1.8.3-1 SLTM32 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
30
3.1.9 UVM (Unified Voice Mail Interface gateway Module)
The UVM (Unified Voice Mail Interface Module) provides mid-range Auto Attendant/Voice Mail
services for the iPECS UCP, primarily intended to support the UCP2400 but can be employed
with any iPECS UCP server. The UVM contains a processor, DSP and memory circuitry for the
Auto Attendant and Voice Mail functions, and various System announcements. The basic UVM
supports eight (8) simultaneous channels and 50 hours of voice storage capacity. The iPECS
UCP servers can support multiple UVM modules for additional channel and storage capacity as
shown in the chart below. Note the UCP100 and UCP600 include additional built-in VSF channels
as discussed in 3.1.1.
UCP Server Maximum
UVM
Total UVM
Channels
Total UVM
Storage (hours)
UCP100
2 32 400
UCP600
6 96 1200
UCP2400
30 480 6000
The UVM has a 10/100/1000 Base-T Ethernet interface and packet voice processing functions.
The Ethernet port incorporates auto MDI, MDIX switching allowing both straight and cross cables.
As shown in Figure 3.1.9-1, the front panel of the UVM has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Normal/Service switch – In Service mode, circuits in use are
busy as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Two (2) green power status LED
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Six (6) Status LEDs
Reset Switch
One (1) USB 3.0 Host port connector
Four (4)-position DIP-switch for mode selections
DB-9 RS-232 connector
On the rear panel, the UVM has:
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.9-1 UVM Front & Rea r Pa nels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
31
3.1.10 MCIM (Multi-Media Conference Interface gateway Module)
The Multi-Media Conference Interface gateway Module (MCIM) permits users to establish multiparty voice conferences with up to 32 simultaneous parties using the g.711 or g.729 codec and
24 parties with the g.723 codec. The MCIM contains a control processor as well as DSP circuitry
to support conferences.
The MCIM includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.10-1, the front panel of the MCIM has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LEDs
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Normal/Service switch – In Service mode, circuits in use are
busy as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Four (4) status LEDs
DB-9 RS-232 connector
Reset Switch
On the rear panel, the MCIM has:
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.10-1 MCIM Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
32
3.1.11 ES8GP (Ethernet Switch, 8-Port Gigabit PoE)
The ES8GP is a nine (9) port Ethernet switch, which switches packets between two specified
ports. The Power over Ethernet Switching Module (ES8GP) has eight (8) LAN ports and an
UPLINK LAN port. All ports support Auto-sense 10/100/1000Mbps, half/full duplex mode and auto
MDI/MDIX function, the latter permits use of both straight-through and crossed cables.
The eight (8) LAN ports of the ES8GP are equipped with circuitry to provide power (48 VDC) to
LIP Phones through the LAN cable. The ES8GP supplies power automatically to terminals in
accordance with the IEEE 802.3af PD (Powered Device) specification. When powered by the
Main Cabinet PSU, the ES8GP can support eight (8) Class 3 devices. When powered by the
AC/DC Adapter, the ES8GP supports four (4) Class 2 or two (2) Class 3 devices. LEDs are
provided on the front panel to display the power feed status of each port. Note the UPLINK LAN
port is not equipped with the power feed circuitry.
In case of connecting the port of ES8GP to another PoE LAN Switch, the port of another PoE
LAN Switch must connect to UPLINK LAN Port of ES8GP.
As shown in Figure 3.1.11-1, the front panel of the ES8GP has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LED
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
Eight (8)-port PoE dual color status LEDs
One (1) RJ-45 Female “UPLINK” LAN connector with Speed
and Link/Activity LEDs
Eight (8) RJ-45 Female LAN connectors with Speed and
Link/Activity LEDs, one per port
On the rear panel, the ES8GP has:
DB-9 RS-232 Serial port connector
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.11-1 ES8GP Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
33
3.1.12 ES8G (Ethernet Switch, 8-Port Gigabit)
The ES8G is a nine (9) port Ethernet switch, which switches packets between two specified ports.
The Switching Module (ES8G) has eight (8) LAN ports and an UPLINK LAN port, all of which
employ Ethernet switching. All ports support Auto-sense 10/100/1000Mbps, half/full duplex mode
and auto MDI/MDIX function. The later permits the use of both straight-through and crossed
cables.
As shown in Figure 3.1.12-1, the front panel of the ES8G has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LED
PWR1 - + 5 VDC
PWR2 - + 3.3 VDC
One (1) RJ-45 Female “UPLINK” LAN connector with Speed
and Link/Activity LEDs
Eight (8) RJ-45 Female LAN connectors with Speed and
Link/Activity LEDs, one per port
On the rear panel, the ES8G has:
DB-9 RS-232 Serial port connector
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.12-1 ES8G Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
34
3.1.13 WTIM (Wireless Telephone Interface Module)
3.1.13.1 WTIM4
The WTIM4 (Wireless Terminal Interface gateway Module) provides connections for four (4)
Ericsson-LG En terprise multi-channel DECT Base stations. The DECT Base station acts as the
Remote Fixed Part (RFP) defined in the DECT specifications. The GDC-400B, GDC-600B and
GDC600BE DECT Base Stations are supported.
DECT handsets can be used if the Base station is connected to a WTIM4 and the proper
Attendant programming is completed. The WTIM4 contains a processor for IP to TDM voice and
signaling conversion and DSP circuitry to provide transcoding for each channel. The Base station
can be connected to the WTIM4 up to 600 meters from the gateway using 24 AWG twisted pair
cabling.
The WTIM4 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.13.1-1, the front panel of the WTIM4 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LEDs
PWR1 - + 3.3 VDC
PWR2 - + 30 VDC
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Four position Mode switch
Eight (8) WTIM4 status LEDs
Two RJ-45 Sync connectors to link WTIMs
2-position control switch
DB-9 RS-232 connector
Reset Switch
On the rear panel, the WTIM4 has:
Four (4) RJ-45 female connectors
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.13.1-1 WTIM4 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
35
3.1.13.2 WTIM8
The Wireless Terminal Interface gateway Module (WTIM8) provides connections for eight (8)
Ericsson-LG En terprise multi-channel DECT Base stations. The DECT Base station acts as the
Remote Fixed Part (RFP) defined in the DECT specifications. The GDC-400B, GDC-600B and
GDC600BE DECT Base Stations are supported.
DECT handsets can be used if the Base station is connected to the WTIM8 and the proper
Attendant programming is completed. The WTIM8 contains a processor for IP to TDM and
signaling conversion and DSP circuitry to provide transcoding for each channel. The Base station
can be connected to the WTIM8 up to 600 meters from the gateway using 24 AWG twisted pair
cabling.
The WTIM8 includes a 10/100 Base-T Ethernet interface as well as packet voice processing
functions. The Ethernet port incorporates auto MDI, MDIX switching, therefore, both straight and
cross cables can be used.
As shown in Figure 3.1.13.2-1, the front panel of the WTIM8 has:
Power jack for the AC/DC adapter; see 3.1.15 AD/DC adapter –G-
Two (2) green power status LEDs
PWR1 - + 3.3 VDC
PWR2 - + 30 VDC
Normal/Service switch – In Service mode, circuits in use are
busied as they return to idle
RJ-45 Female LAN connector with Speed and Link/Activity
LEDs
Four position Mode switch
Eight (8) WTIM8 status LEDs
Two RJ-45 Sync connectors to link WTIMs
2-position control switch
DB-9 RS-232 connector
Reset Switch
On the rear panel, the WTIM8 has:
Eight (8) RJ-45 female connectors
Ground Lug
Fifty (50)-pin back plane connector
Figure 3.1.13.2-1 WTIM8 Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
36
3.1.14 PSU (Power Supply Unit)
The Power Supply Unit (PSU) converts 100-240 VAC @ 50/60 Hz to -48V and 5V DC. The DC
voltages are connected to the back plane for distribution to modules installed in the Enhanced
Main Cabinet. Power is connected via the back plane connector on the PSU and individual
modules.
In most configurations, the PSU is capable of supplying 48 VDC power to a full cabinet of nine (9)
modules. The current draw for the different modules varies greatly; PSTN, ISDN other modules
require about 5 watts each while an ES8GP powering eight (8) phones may require over 50 watts.
Designing a PSU to deliver power to nine ES8GP modules would create a cost penalty for most
configurations. A simple rule of thumb is to limit the number of DTIM4, DTIM8, WTIM4, WTIM8
and ES8G/ES8GP modules to five (5) per cabinet. To calculate the precise current draw of any
cabinet configuration, use the Power draw chart in Table 2.4.4.2-1. The total current required
must be less than the PSU capacity, 5.3 amps. If more than the PSU capacity, reconfigure the
cabinet modules or install some of the modules in a second cabinet with a separate PSU.
The PSU includes a DB9 connector for RS-232 communication with gateway modules for alarm
notifications.
As shown in Figure 3.1.14-1, the front panel of the PSU has:
Six (6) Status LEDs
Alarm Switch – to activate local audio alarm via the buzzer
Buzzer for local audio indication of alarm condition
DB-9 RS-232 connector
Power Switch
AC Power Input
Fuse
On the rear panel, the PSU has:
Thirty-two (32)-pin back plane connector
Figure 3.1.14-1 PSU Front & Rear Panels
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
37
3.1.15 AD/DC adapter –G
An optional AC/DC adapter is available to power a
module when the PSU is not employed. The adapter is
supplied with a two (2) meter, six (6) foot, AC cord
terminated with the nationally relevant AC blade type.
The adapter supports AC input power systems with
rated voltage range of 100-240 VAC @ 50/60 Hz. The
adapter provides 48 VDC, 0.8 amps. The DC output
connector is cabled to the adapter with a two (2 ) mete r,
six (6) foot, cable.
Figure 3.1.15-1 A D/DC adap ter –G
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
38
3.2 Module Mounting Hardware
Basic iPECS modules can be installed in several different manners:
Desk mounted using the Desk Mount Holder,
Wall mounted individually using the Wall Mount Holder,
19” rack mounted individually using the 1U-Rack Mount Bracket,
Cabinet installed using the Enhanced Main Cabinet, which can be 19” rack,
Desk or Wall mounted, or
The SLTM32 and DTIM24 are both mounted only in a 19” rack and the PSU module may only be
installed in the Main Cabinet.
The following paragraphs describe the mounting hardware for the modules and Main Cabinet
mounting options.
3.2.1 DHLD (Desk Mount Holder) / DHE (Desk Mount Holder Extender)
The DHLD (Module Desk Mount Holder) consists of a pair of “bookends” and DHE (Desk Mount
Holder Extender). One Extender is installed between the bookends for each module, and the
modules mounted between the bookends. The DHLD and DHE are shown in Figure 3.2.1-1.
Figure 3.2.1-1 DHLD & DHE
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
39
3.2.2 WHLD (Wall Mount Holder)
iPECS modules can be individually wall mounted in the W HLD ( Module
Wall Mount Holder), shown in Figure 3.2.2-1. The WHLD provides wall
mounting for a single module.
Figure 3.2.2-1 Module Wall Mount Holder

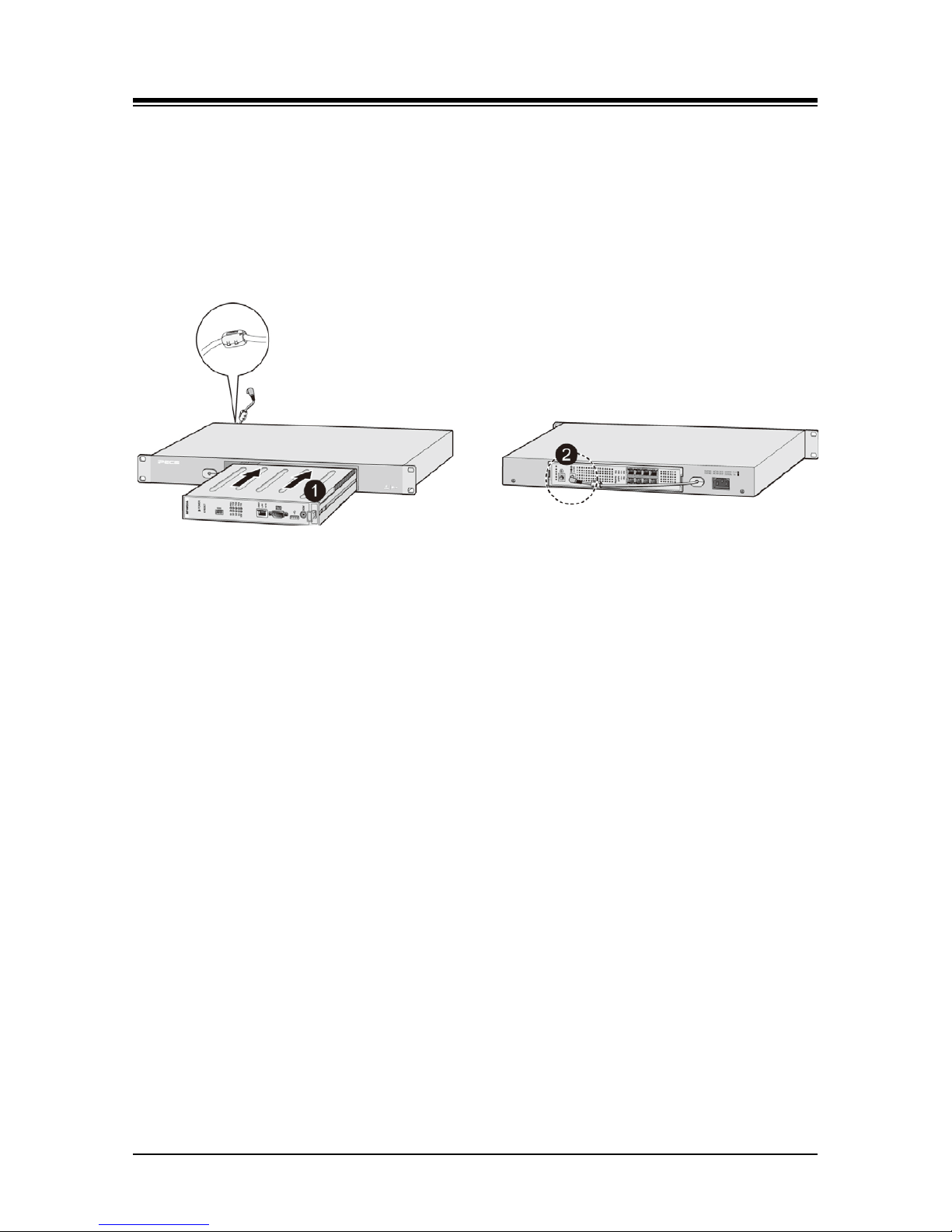

3.2.3 1U-RMB (1U Rack Mount Bracket)
iPECS UCP modules can be individually 19” rack mounted in the 1U-RMB (Rack Mount Bracket),
shown in Figure 3.2.3-1. The 1U-RMB provides 19” rack mounting for a single module.
Figure 3.2.3-1 1U RMB
3.2.4 MCKTE (Main Cabinet Kit Enhanced)
The Enhanced Main Cabinet Kit shown in Figure 3.2.4-1 has 10 slots for iPECS modules and the
PSU. Slot 10 is only for the PSU; slot 9 is for iPECS modules or a second PSU when redundant
power is required. The remaining slots may be used for any combination of iPECS modules. On
the left side, the front cover of the cabinet has a push button for installing and removing the cover
and incorporates a key lock, which can be locked to minimize unauthorized access.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
40
Figure 3.2.4-1 Main Cabine t
Available mounting hardware allows the cabinet to be 19” rack mounted, desk mounted, or wall
mounted. The 19” Rack, Desk and Wall Mount hardware are shown in Figure 3.2.4-2, Figure
3.2.4-3, and Figure 3.2.4-4 below, respectively. Note that 19” Rack and Desk mount hardware
are included with the cabinet, the Wall Mount hardware must be ordered separately.
Figure 3.2.4-2 19” Rack Mount Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
41
Figure 3.2.4-3 Desk Mount Installation
Figure 3.2.4-4 Wall Mount Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
42
3.3 LIP Phones & Terminals
iPECS UCP is compatible with the latest Ericsson-LG Enterprise LIP phone series (LIP-8000,
LIP-8000E, and LIP-9000). Ericsson-LG Enterprise digital phones including the LDP-7000, LDP9000, LDP-9200 series and older LKD series phones are also compatible with iPECS UCP. In
addition, a number of standard telephone types including SLTs and SIP phones can be employed
with iPECS UCP.
For more detailed information about Phone installation, DSS connection, and Wall mount, etc.
refer to User guide or Quick Guide (Quick Installation Guide) of the terminal model. In this chapter,
the brief information is described.
Table 3.3-1 Terminal Models
Model Description
LDP-7004N
4 Flexible Button No display
LDP-7004D 4 Flexible Button w/Display
LDP-7008D
8 Flexible Button w/Di splay
LDP-7016D
16 Flexible Button w/Display
LDP-7024D
24 Flexible Button w/Display
LDP-7024LD
24 Flexible Button w/Large Display
LDP-7048DSS
48 Button DSS/DLS Console
LDP-DPB
Door Phone Box
LDP-9008D
8 Flexible Button w/ Di splay
LDP-9030D 30 Flexible Button w/Display
LDP-9048DSS
48 Button DSS Console
LDP-9208D 8 Flexible Button Displ ay
LDP-9224D
24 Flexible Button Display
LDP-9224DF 24 Flexible Button, Full duplex
LDP-9240D
24(12*2 page) Flexible Button, Ful l duplex
LDP-9248DSS
48 Flexible Button DSS Console
LIP-7008D
8 Flexible Button w/Di splay
LIP-7016D
16 Flexible Button w/Display
LIP-7024D
24 Flexible Button w/Display
LIP-7024LD
24 Flexible Button w/Large Display
LIP-8002
4 Feature Button w/Display
LIP-8004D 4 Flexible Button w/Display
LIP-8008D
8Flexible Button w/Di splay
LIP-8012D 12 Flexible Button w/Display
LIP-8024D
24 Flexible Button w/Display
LIP-8040L 10 Flexible Button w/Large Display
LIP-8012DSS
12 Button DSS Console / Power suppl y
LIP-8012LSS
12 Button LSS Console / via keyset up to 2
LIP-8048DSS
48 Button DSS Console / via ext er nal up to 4
LIP-8040LSS
48 Button DSS Console w/Display via external or PoE up to 9
LIP-8002E/2AE
4 Feature Button w/Display
LIP-8008E
8 Flexible Button w/ Di splay
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
43
Model
Description
LIP-8012E
12 Flexible Button w/Display
LIP-8024E
24 Flexible Button w/Display
LIP-8040E
10 Flexible Button w/Large Display
LIP-8050V
5 Flexible Button, w/ Col or Di splay & Video Camer a
LIP-8050E
4.3 inch wide color Graphic screen, 5 button,
LIP-9002
4-flexible buttons w/Display
LIP-9010
3-line 320 by 48 dot graphic LCD and 5 flexible buttons.
LIP-9020
4-line 320 by 80 dot graphic LCD, 10 flexi ble buttons and 3 soft keys.
LIP-9030
6-line 320 by 112 dot graphic LCD, 8 flexible butt ons and 3 soft keys.
LIP-9040 8-line 320 by 144 dot graphic LCD, 12 flexible buttons and 3 soft keys.
LIP-9012DSS
12 flexible buttons with tri-color LED
LIP-9024DSS
24 flexible buttons with tri-color LED
LIP-9024LSS
12 flexible buttons wi t h tr i -color LED/ two flexible button pages to represent 24
total flexible buttons
LIP-9048DSS 48 flexible buttons with tri-color LED
LIP-9070
Premium Touch Screen IP Phone, 7 Inch TFT color LCD,
Android OS, WVGA resolution, Video communications,
Soft flexible buttons(48 for SIP/ 30 for iPECS protocol)
LIP-9071
Premium Touch Screen IP Phone, 7 Inch TFT color LCD,
Android OS, WVGA resolution, Video communications,
Soft flexible buttons(48 for SIP/ 30 for iPECS protocol)
WIT-400HE
iPECS WLAN Phone
GDC-
450H/480H/500H/800H
Business DECT, Full color LCD
3.3.1 AC/DC Adapter –K- for LIP-Phones & Console
When LIP-8000/8000E/9000 series terminals, including the Consoles, are to be powered from
local AC (not provided power over the LAN), a
separate AC/DC adapter must be used for
power. The adapter is supplied with a two (2)
meter, six (6) foot, AC cord terminated with the
nationally relevant AC blade type. The adapter
supports AC input power systems with rated
voltage range of 100-240 VAC @ 50/60 Hz. The
adapter provides 48 VDC at 0.3 amps. The DC
output connector is cabled to the adapter with a
two (2) meter, si x (6) foo t, cab l e.
Figure 3.3.1-1 AC/DC Ada pter –K
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
44
3.4 Software Components
iPECS software comes pre-loaded in the various system modules. In addition, application and
services software have been developed to expand and enhance iPECS functionality.
Applications and Services offered include:
iPECS At t en da nt - Office
iPECS At t en da nt - Hotel
iPECS UCS Server
iPECS UCS Clients (Windows desktop and Mobile Android/iOS/Windows)
iPECS IPCR
iPECS CCS (Call Center Solution)
iPECS NMS (Network Management Services)
IP Networking/Qsig Networking
ClickCall
Report Plus
MS Lync (RCC Gateway/Client)
AMP (ACD Manager Protocol)
AMSI (need IOT)
T-Net
TAPI (1
ST
Party)
TAPI (3
RD
Party)
Fidelio I/F
SIP Extension
iPECS UCP Hotel
iPECS AIM (Advanced Integration Messaging)
These software packages are documented in other manuals. Contact your local Ericsson-LG
Enterprise representative for a list of other documents available for iPECS UCP.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
45
4. Installat ion overview
4.1 Pre-Installation Guidelines
Prior to installation, please read the following guidelines concerning installation and wiring. Be
sure to comply with applicable local regulations.
4.1.1 Safety Installation Instructions
When installing the telephone wiring, basic safety precautions, including those below, should
always be followed to reduce the risk of fire, electric shock and personal injury:
Never install the telephone wiring during a lightning storm.
Nev er install t he telephone jack in wet locations unless the jack is specifically designed for
wet locations.
Never touch non-insulated telephone wires or terminals unless the telephone line has
been disconnected at the network interface.
Use caution when installing or modifying telephone lines.
Anti-static precautions should be taken during installation.
4.1.2 Installation precautions
The iPECS UCP mounting hardware options permit desktop, wall or a freestanding 19” rack
mounting. Avoid installing in the following places:
In dir ect sunlight and hot, cold, or humid places, Temperature range = 0oC to 40oC.
Places where shocks or vibrations are frequent or strong,
Dusty places or places where water or oil may come into contact with the hardware or
wiring,
Near strong RF generating devices such as sewing machines or electric welders,
On or near computers, fax machines, or other office equipment, as well as microwave
ovens or air conditioners, and
Do not obstruct the openings in cabinets or modules of the iPECS UCP.
4.1.3 Wiring Precautions
Be sure to follow these precautions when wiring:
Do not wire the telephone cable in parallel with an AC power source to a computer, fax
machine, etc. If the cables are run near such wires, shield the cables with metal tubing or
use shielded cables and ground the shields.
If the cables are run on the floor, use protectors to prevent the wires from being stepped
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
46
on. Do not place wiring under carpets.
Avoid using the same power supply outlet for computers, fax machine, and other office
equipment to avoid induction of electrical noise into the system resulting in poor audio
quality or static.
The power and battery switches must be OFF during wiring. Further, while wiring, power
must not be connected to the cabinet or modules. After wiring is completed, the power
can be connected and the power switch may be turned ON.
Incorrect wiring may cause the iPECS UCP System to operate improperly.
If an extension does not operate properly, disconnect the telephone from the extension
line and then re-connect, or turn the System power OFF and then ON again.
4.1.4 Checking Power cord
Checking the power cord at least once a year to prevent fire hazard or electric shock.
Be sure to disconnect the power cord from the wall outlet and System’s inlet for the following
symptoms:
1. Burn marks on the plug.
2. The prongs on the plug are deformed.
3. The power cord’s inner wires are exposed, broken, etc.
4. The power cord’s coating has a crack.
5. The power cord is overheating.
6. The power cord is damaged.
If the above symptoms find, do not use the power cord and c o nsult your d ealer or servi c e
representative.
The following is the simple guide to avoid the hazard or disaster:
1. Make sure Power cord is properly rated for their intended use, indoor or outdoor,
and meet or exceed the power needs of the system being use d.
2. Inspect cords for damage before use. Check for cracked or frayed sockets, loose or
bare wires, and loose connections.
3. Never use a cord that feels hot or is damaged in any way.
4. Insert plugs fully so that no part of the prongs is exposed when the power cord is in
use.
Make sure that the power cord is connected to the system firmly, and then connect the plug to the
wall outlet.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
47
4.2 Installation Overview
As with any sophisticated communications device, installation of iPECS requires the care and
forethought of a co mpetent technician. Recommended installation proceeds in six (6) major steps:
Site Pr eparation , sect i o n 4.3
Equipment verification, section 4.3
Module Mounting Hardware Installation, section 5
Module Installation and Wiring, section 6
Ter minal Install atio n and Wiring, section 7
System Programming and Verification
By utilizing the instructions that follow, the installation is quick and efficient. Directions for system
programming and verification are given in the iPECS UCP Admin & Programming Manual.
4.3 Site Preparation
4.3.1 General Site Considerations
The first step is to locate an acceptable site for the Module mounting hardware (Desk Mount
Holder, Wall Mount Holder or Main Cabinet). When locating the mounting site, the following
points must be considered:
The Main Cabinet can be Desk, 19” Rack or Wall mounted. When desk mounting, assure
that the desk has ample strength to support the Main Cabinet and other hardware to be
installed.
When wall mounting is desired, the cabinet MUST NOT be mounted directly to a masonry
or pl aster b o ard wall. A ½ -inch plywood backboard should be firmly attached to the wall,
and the cabinet and the MDFs should be mounted to the backboard.
The location must have access to an appropriate 100~240 VAC @ 50-60 Hz power
source with a circuit breaker or fuse rated at 10 amps and must be surge protected. An
appropriate grounded outlet should be within approximately 2 meters (6 feet) of the
equipment location. When employing the Module Desk Mount Holder, an outlet will be
required for each Module; a multi-outlet extension cord can be used.
The location must have access to a good protective earth ground, such as a metallic cold
water pipe with no non-metallic joints. The ground source should be located as close as
possible to the equipment.
The system should be located in a well-ventilated area with a temperature of around 20°C
(68°F) and a relative humidity of 0-80% (non-condensing).
The equipment should be located within 8 meters (25 feet) of the telephone company's
termination point. If the system is to share the LAN with data devices or be connected to
an external VoIP network, the system must be within 100 meters (330 feet) of the WAN
connection. Also, the location should be within the prescribed station loop lengths for all
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
48
phones and terminals. If existing cabling is employed, the location of existing cabling and
conduits should be considered.
The location should have adequate accessibility, space and lighting for future servicing
and should consider the need for future expansion.
The site should be away from radio transmitting equipment, arc-welding devices, copy
machines, and other electrical equipment capable of generating high levels of electrical
interference. The system should be protected from flooding and heavy machinery as well
as excessive dust and vibration.
Also, if installing DECT, locate the best-estimated position for the Base Stations. The
permanent location of the Base Station will be determined using the GDC-600BTE CSR
Tool to perform a RF coverage survey.
4.3.2 Verify Equipment On-site
Once the equipment installation site has been identified and a dedicated AC outlet, protective
earth ground, lighting and ventilation are available, verify that all equipment and tools required are
on-site and the equipment has not been damaged during shipment. Assure there is no shipping
damage. Check that the type and quantity of Modules and terminals received are correct. Also,
assure any optional equipment and a Power Line Surge Protector are on-site. The individual
Modules and terminals need not be unpacked at this time.
If any equipment appears damaged or missing, notify appropriate personnel to correct the
situation.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
49
5. Module Mounting Hardware Installation
5.1 Enhanced Main Cabinet Installation
The Enhanced Main Cabinet can be desk, 19” rack or wall mounted. The following paragraphs
provide directions for each of the mounting options as well as installation and removal of the front
cover.
5.1.1 Cover Close/Open
The front cover is provided as standard equipment with the Main Cabinet. The cover hooks and
snaps on to the cabinet as follows:
1. Align the notched tab on the right side of the cover with the slot in the right side of the
cabinet as shown in Figure 5.1.1-1 below.
2. Push the tab into the corresponding slot in the cabinet.
3. Slide the cover to the right to engage the notched tabs.
4. Swing the left side of the cover closed over the cabinet engaging the cover latch.
Figure 5.1.1-1Cover installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
50
To remove:
1. Push the button on the left side of cover to disengage the latch. Refer to Figure 5.1.1-2.
2. Swing the left side of the cover open slightly.
3. Slide the cover to the left to disengage the notched tab.
4. Pull the cover aw a y from the cabinet.
Figure 5.1.1-2 C o ver removal
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
51
5.1.2 Cabinet 19” Rack Installation
Rack mount brackets are provided as standard equipment with the cabinet. These brackets
attach to the front sides of the cabinet. To rack mount the cabinet:
1. Bolt the Rack mount brackets securely to the sides of the cabinet with the four (4) M4 x 6
mm machine screws supplied. Refer to Figure 5.1.2-1.
2. Connect the brackets to a standard 19” rack securely with four (4) appropriate machine
screws, nuts and lock-washers.
Figure 5.1.2-1 Rack (19”) Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
52
5.1.3 Cabinet Wall Mount Kit Installation
If the cabinet is to be wall mounted, a wooden backboard MUST be installed when the location
has masonry or plasterboard walls. This backboard is recommended for all Wall Mount
installations. A ½-inch plywood material is sufficient for most installations. The backboard should
be mounted at a convenient height, about one (1) meter above the floor, and be bolted to wallstuds in a number of places to distribute the weight of the system.
Space should be available on the backboard for separate Telephone and LAN wiring distribution
frames (MDF) and for optional equipment such as music sources, etc.
The optional Cabinet Wall Mount kit mounts to the wall then the cabinet is attached to the Wall
Mount kit. The Wall Mount kit permits the cabinet to swing on hinges for access to the back plane
telephony cabling. The hinges may be placed on either side of the cabinet prior to installation.
Select the hinged side for maximum clearance and lighting. Also, to keep the cabinet from
swinging open, a latch is provided. Follow the steps below and Figure 5.1.3-1 for installation.
1. Disassemble the hinges by separating the hinge body and removing the hinge pin.
2. Mount the separated hinge bodies, two to the Wall Mount bracket and two to the cabinet
using the M6 x 8 mm machine screws; two (2) for each hinge body provided.
3. Use the Wall Mount kit to mark the location of four (4) mounting holes for the Wall Mount
kit as shown in Figure 5.1.3-1. Assure the Wall Mount holes are level and plum.
4. Drill four (4) 7 mm holes for the plastic wall anchors provided.
5. Fully Insert a wall anchor into the each of the four (4) holes, insert and tighten screws
leaving about 6 mm (¼-inch) exposed.
6. Place the Wall Mount kit on the four (4) screws and tighten the screws securely.
7. Insert the hinge pins and mount the cabinet to the Wall Mount kit by aligning the hinge
bodies with the hinge pins and lower into place.
8. Finally, mount the Cabinet Latch to the Wall Mount bracket and cabinet using the six M3
x 6 mm screws provided. The latch must be installed on the side opposite of the hinges.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
53
Figure 5.1.3-1 Cabinet Wall Mount Kit Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
54
5.2 Main Cabinet Grounding
CAUTION
Before connection to AC power, the cabinet must be connected to a protective earth ground in
conformance with the appropriate IEEE recommendations. A protective earth ground is
required for user safety and minimizes EMC interference.
To ensure proper system operation and for safety purposes, a good protective earth ground is
required. A metallic COLD water pipe usually provides a reliable ground. Carefully check that the
pipe does not contain insulated joints that could isolate the ground path. If insulated joints exist,
another protective earth ground source must be used or, if codes allowed, the joints may be
bridged.
A 12 AWG UL type 1015 or larger copper wire is recommended as the protective earth ground
wire. However, check the approp riate national and local codes for p rope r conductor type and size.
The wire should be kept as short as possible; it is recommended that the wire be no longer than 1
meter (about 3.3 feet).
The permanent protective earth ground “ “ must be connected to the backplane of the Cabinet
using #12 AWG or larger UL-1015 type copper wire. The protective earth ground terminal of the
cabinet is located on rear bottom left side of the cabinet as shown in Figure 5.2-1.
The permanent protective earth ground “60417-1-IEC-5019” must be connected to the
backplane of the cabinet using #12 AWG or larger UL-1015 type copper wire. The
protecti ve earth ground terminal of the cabinet is located on rear bottom left side of the
cabinet.
Loosen the “ ” terminal sufficiently to insert the Ground wire and re-tighten the terminal
securely.
Figure 5.2-1 M CKTE Grounding
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
55
5.3 Main Cabinet PSU Installation
The Power Supply Unit (PSU) is factory installed in slot 10 of the Enhanced Main Cabinet. A
back-up power supply may be installed in slot 9 to provide redundant power operation. When a
back-up PSU is installed, should the main PSU fail, the back-up P SU immedia tely provides p ower
to all of the Modules in the Main Cabinet.
Prior to turning the power switch ON, verify the PSU is capable of powering the cabinet, all
modules and any Powered Devices connected to any ES8GP switch in the cabinet. Refer to
2.4.4.2 for details.
LEDs
The PSU has six LEDs on the front panel to display the status of PSU and fans in the Main
Cabinet. The function of each LED is shown in Table 5.3-1.
Table 5.3-1 PSU Stat us LED Functions
LED
LED FUNCTION
48Vdc
ON when -48Vdc is OK
5Vdc ON when 5Vdc is OK
ALARM
ON when -48Vdc or 5Vdc fail
FAN1 ON when FAN1 fails.
FAN2
ON when FAN2 fails.
PSU FAN ON when PSU FAN fails.
Alarm Switch
The PSU has a slide switch on the front panel. This switch activates/deactivates the local audio
alarm indication from the buzzer. If a local audio alarm indication is desired, the switch should be
in the ON (up) position. If no local audio alarm indication is desired, the Alarm switch should be in
the OFF (down) position.
RS-232 Connector
The PSU outputs status and alarm information over the RS-232 DB9 connector. Use the serial
cable provided with the cabinet to interconnect the PSU and the monitoring gateway Module. The
monitoring gateway Module is defined in the Cabinet Attributes Web Admin page. When a backup PSU is installed, the serial cable should be connected to the back-up PSU and the monitoring
gateway Module; do not connect the serial cable to the main PSU in slot 10. Note that when
employing a WTIM as the notifying gateway Module, Dipswitch 3 of the WTIM, the Serial Mode
switch, must be set to OFF , the Main CPU Serial mode.
Power Switch and AC Power Input
The PSU has a fused AC Power Input and switch that turns AC power to the PSU ON and OFF.
The T6.3A L250V fuse is installed in the fuse holder below the AC input connector. Should the
fuse fail replace only with a T6.3 A L250V fuse.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
56
The main PSU is installed as described below and shown in Figure 5.3-1.
1. Slide the PSU into slot 10 of cabinet t to engage the back-panel connector fully.
2. Fasten the PSU by tightening the upper and lower thumbscrews on the front of PSU.
3. Plug the power cord into AC power input on the front of PSU.
4. To activate monitoring of the PSU and cabinet fans, connect the supplied serial cable
from the DB9 connector of the PSU to the gateway Module defined in the System Data
Cabinet Attributes. Refer to Figure 5.3-3. Note when a back-up PSU is installed, the
serial cable is connected to the back-up PSU only. Also, when employing a WTIM as the
notifying gateway Module, Dipswitch 3 of the WTIM, the Serial Mode switch, must be set
to OFF, the Main CPU Serial mode.
Figure 5.3-1 M ain PSU Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
57
The back-up PSU for power redundancy is installed as described below and shown in Figure 5.3-
2.
1. Complete installation of the Main PSU as described above.
2. Using the screws provided, install the upper and lower PSU thumbscrew brackets to the
right of the slot 9 slides as shown in Figure 5.3-2.
3. Slide the back-up PSU into slot 9 of cabinet fully engaging the back-panel connector.
4. Fasten the PSU by tightening the upper and lower thumbscrews on the front of PSU into
the installed brackets.
5. Plug the power cord into AC power input on the front of PSU.
6. To activate monitoring of the PSU and Main Cabinet fans, connect the supplied serial
cable from the DB9 connector of the PSU to the monitoring gateway Module defined in
the System Data Cabinet Attributes. Refer to Figure 5.3-3. When a back-up PSU is
installed, the serial cable is connected to the back-up PSU only. Note that when
employing a WTIM as the notifying gateway Module, Dipswitch 3 of the WTIM, the Serial
Mode switch, must be set to OFF.
Figure 5.3-2 Back-up PSUs Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
58
Figure 5.3-3 M o ni toring cable Install ation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
59
5.4 Module Desk Mount Holder Kit
To assemble the Desk Mount Holder, refer to the instructions below and Figure 5.4-1. Note a
Desk Holder Extender is required for each Module.
1. Place the keyhole slots on the side of the Extender over the keys on the side of the
bookend.
2. Slide the Extender and bookend in opposite directions to the locked position.
3. Repeat for additional Extenders and the other bookend.
Figure 5.4-1 Module Desk Mount Holder Kit
Once assembled, Modules are simply placed in the Desk Holder “slots”. The front of all Modules
should be placed in the same side of the Desk Holder.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
60
5.5 Module Wall Mount Holder Kit
The Module Wall Mount Holder will house a single Module. To install, refer to Figure 5.5-1 and
instructions below:
1. Place the Wall Mount Holder in position and mark two (2) holes over a wall stud.
2. Drill two (2) 7 mm holes for the plastic wall anchors provided.
3. Insert the two (2) anchors into the holes, then insert and tighten the screws leaving about
6 mm (¼ -i nch) exposed.
4. Arrange wiring in the back of the Wall Mount Holder.
5. Place (hang) the Wall Mount Holder on the screws and tighten securely.
6. Slide the Module into the Wall Mount Holder until it locks.
7. Connect all wiring to the Module as appropriate. Refer to section 6.
Figure 5.5-1 Module Wall Mount Holder Kit
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
61
5.6 1U-Rack Mount Bracket Installation
The Module 1U-Rack Mount Bracket will house a single Module and an AC/DC adapter to power
the Module. To install, refer to figures and instructions below:
1. Install the AC/DC adapter in the 1U-RMB. Refer to Figure 5.6-1.
a) Remove the two (2) screws on the rear of 1U-RMB to release the upper housing.
b)
Lift up and remove the upper housing.
c)
Remove the two (2) screws holding the adapter bracket.
d)
Lift up and remove the adapter bracket.
e)
Install an adapter, the label side of the adapter should be placed on the inner surface
of 1U-RMB), place the adapter bracket over the adapter and fasten the two 2) screws.
f)
Insert the adapter DC plug through the hole in the front of 1U-RMB. Note for the
RSGM, the DC cable should exit through the hole in the rear of the 1U-RMB.
g)
Insert the rubber grommet over the DC adapter cable and insert the grommet in the
hole in the front of the housing.
h)
Replace the upper housing and fasten the two (2) screws.
Figure 5.6-1 1U RMB Adapter Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
62
2. Install the gateway Module into the 1U-RMB and connect the adapter plug. Refer to
Figure 5.6-2.
a) Slide the Module into the 1U-RMB.
b) Place the Ferrite core over the DC cable and close the core over the cable. For the
RSGM, the DC cable must exit the rear of the 1U-RMB. For al l other mo d ules, the
DC cable must exit the front of the 1U-RMB.
c) Connect the adapter DC plug to the gateway Module.
Figure 5.6-2 1U-RMB Gateway Installation
3. Install the 1U-RMB in a standard 19” rack securely with four (4) appropriate machine
screws, nuts and lock-washers. Refer to Figure 5.6-3.
4. Wire the Module as described in section 6.
5.
Connect the AC cable to the adapter and wall outlet to power the Module.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
63
Figure 5.6-3 1U-RMB Rack-mount Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
64
6. Module Installation and Wiring
6.1 Module Handling and General Installation
The following paragraphs provide general and common installation, and wiring practices and
procedures for all Modules. Procedures such as LAN wiring are common for all Module LAN ports
and are discussed here. Prior to installation of any Module, it is recommended the installer be
thoroughly familiar with the information in this section.
CAUTION
Modules must be installed in a Wall Mount Holder, Bookshelf Holder or the Main C abinet for
proper ventilation. Do not stack Modules or limit airflow as this may cause over-heating, leading
to pre-mature failure and/or faulty operation of the equipment.
6.1.1 Module Installation Sequence
A SEQUENCE NUMBER is assigned to all gateway Modules based on the registration order with
the system, refer to the iPECS Admin & Programming Manual for further details. This
SEQUENCE NUMB ER determines the logical CO Line and Station numbers assigned in the
system database.
The system does not differentiate between the types of PSTN Module during initialization. Thus,
an LGCM4 installed first
is assigned SEQUE NCE NUMB ER 01 with CO Line ports 1~4 and a
VOIM8 installed second
is assigned CO Line ports 5~12.
Although the SE QUENC E NUMBER in the database can be changed, connecting the gateway
Modules to the iPECS in the desired sequence based on type of Module is recommended. The
Module SEQUENCE NUMBER can be easily established at installation by controlling the order of
connection of the Module’s LAN port to the system (LAN switch connected to the UCP’s LAN 1
port).
Station numbers are also assigned consecutively based on the order the LIP Phone or station
gateway registers with the system. Since the first phone installed is assigned as the Admin
Station (station number 100), it is recommended an LIP Phone be connected to the system prior
to installing any SLT gateway Module.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
65

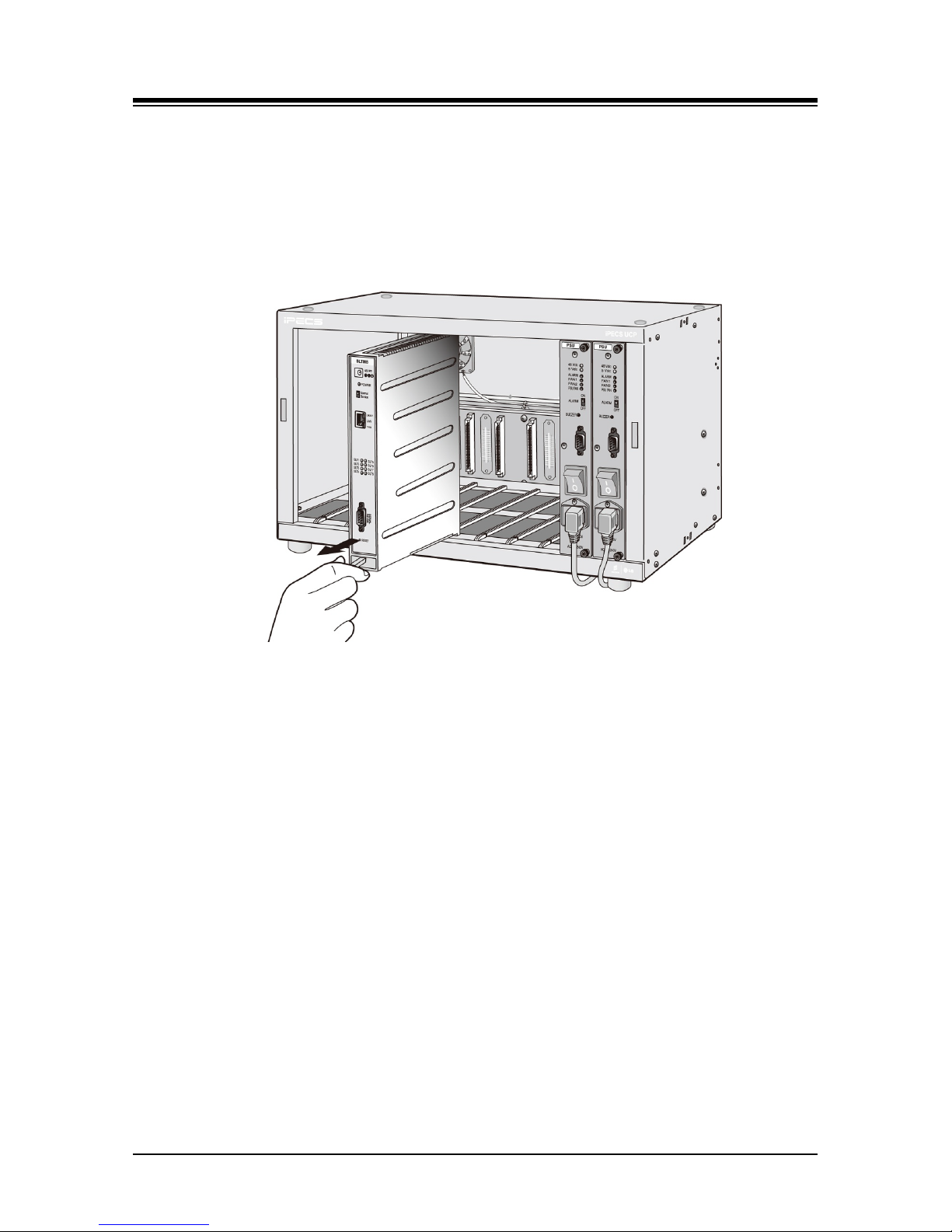

6.1.2 M odu le I n ser tion/Removal
Modules are easily inserted into the cabinet; place the Module with front panel forward in the
desired slot in the cabinet and slide the Module into the cabinet, engaging the connectors of the
back panel and Module.
To remove a Module from the cabinet, pull on the Release knob while sliding the Module out of
the cabinet. Refer to Figure 6.1.2-1.
Figure 6.1.2-1 Module Insertion/Removal
6.1.3 Common Module Switches
With the exception of the ES8G/ES8GP, all Modules have a recessed Reset and a
Normal/Service switch that is shown in Figure 6.1.3-1. These switches are employed for
maintenance purposes. The Reset switch will restart the Module software, resetting only the
scratch-pad memory. The Normal/Service switch activates a graceful shutdown of the Module, as
busy circuits go idle they are marked as out-of-service. When all circuits of a module are out-ofservice, the module can be removed without affecting operation of other modules in the system.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
66
Figure 6.1.3-1 Common Module Switches
6.1.4 M odu le G r o un di ng
As shown in Figure 6.1.4-1, a “ ” or “ ” screw is located on the rear panel of each Module. For
proper operation and code compliance, the grounding screw MUST be connected to a known
protective earth ground using a #12 AWG or larger UL-1015 type copper wire. The wire should be
located between the toothed lock washer and the plain washer. Note that when using the cabinet,
a separate ground connection to the individual Modules is not required.
Figure 6.1.4-1 M od ul e Grou ndi ng
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
67
CAUTION
When a module is installed in a Desk Mount Holder (DHLD) Wall Mount Holder (WHLD) or 1U-
Rack Mount Bracket (1U-RMB), the protective earth ground must be connected to the earth
ground terminal in rear of the module using #12 AWG or larger UL-1015 type copper wire.
6.1.5 Telephony Connections
In general, PSTN and SLT (telephony) connections are available on the rear of each Module,
while LAN, power and RS-232 connections are on the front of each Module. Except where noted,
telephony connections via RJ-11 or R J -45 type jacks are wired as in Figure 6.1.5-1. All telephone
wiring should use standard twisted pair 24 or 26 AWG wiring.
Figure 6.1.5-1 Telephony ( R J-11 or RJ-45) Conn e ctor Pi n A s s ignm ent
CAUTION
To reduce the risk of fire, use only 26 AWG or larger UL List or CSA Certified Telecommunication
Line Cord.
6.1.6 LAN Connections
LAN connections are made by way of RJ-45 connectors on the front panel of each Module.
These connectors are shown in Figure 6.1.6-1 and Figure 6.1.6-2. Each connector has a green
Link/Activity LED and a yellow LAN speed LED, ON for 1000 Base-T.
The ES8GP can pr ovide p ower over th e L A N with 4 8 VDC across pin pair s 1 & 2 (+) and 3 & 6 (-).
This configuration mates with the LIP Phone as shown in the figure.
All LAN wiring (exce p t UCPs, UVM, and Gigabit Switch) may use Category 5 Unshielded Twisted
Pair (CAT 5 UTP) cable. No single run of LAN cable should exceed 100 meters (about 330 feet).
To PSTN Tip/Ring,
Digital phone Tip/Ring, or
SLT Tip/Ring terminations
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
68
Figure 6.1.6-1 10/ 100 Base T LAN Connector (RJ-45) Pin Assignment
Gigabit LAN wiring should use Category 5e or 6 Unshielded Twisted Pair (CAT 5e or 6 UTP)
cable. No single run of LAN cable should exceed 100 meters (about 330 feet).
The pin assignment of RJ-45 connector is given in the chart below and shown in Figure 6.1.6-2.
Pin
10/100BASE-T
Mode A
10/100BASE-T
Mode B
1000BASE-T
Mode A
1000BASE-T
Mode B
1
RX+/ DC+
RX+
TX_ RX A+/ DC+
TX_RX A+
2 RX-/ DC+ RX- TX_RX A-/ DC+ TX_RX A3 TX+ / D C- TX+- TX_RX B+/ DC- TX_ RX B+
4 Unused DC+ TX_RX C+ TX_RX C+/DC+
5 Unused DC+ TX_RX C- TX_RX C-/DC+
6 TX-/ DC- TX- TX_RX B-/ DC- TX_RX B-
7
Unused
DC-
TX_RX D+
TX_ RX D+/DC -
8 Unused DC- TX_RX D- TX_RX D-/DC-
ES8G 1x~8x port
EIA 568 A (MDIX) w/Pwr
Gateway & ES8G Uplink
EIA 568B (MDI)
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
69

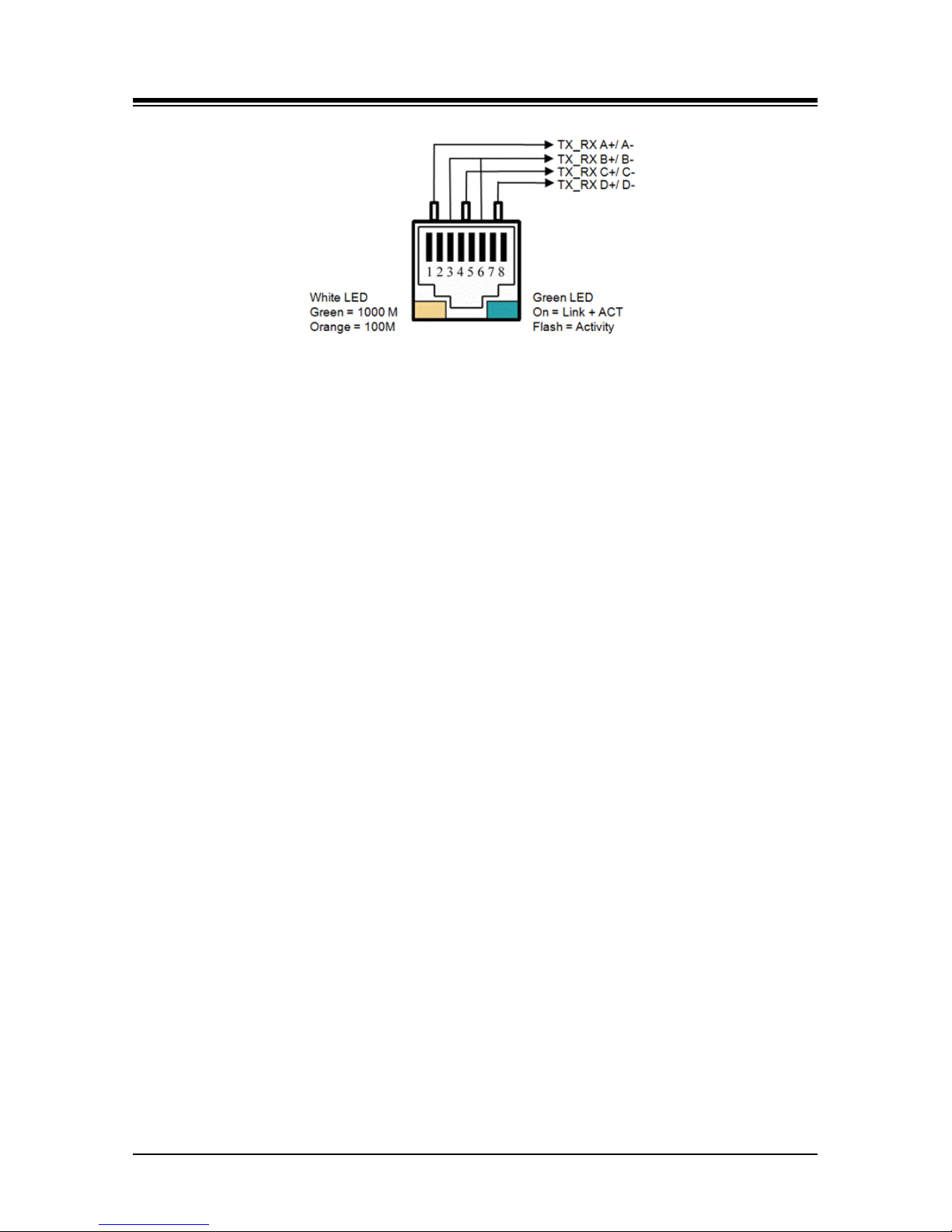

Figure 6.1.6-2 Gigabit LAN Connector (RJ-45) Pin Assignment

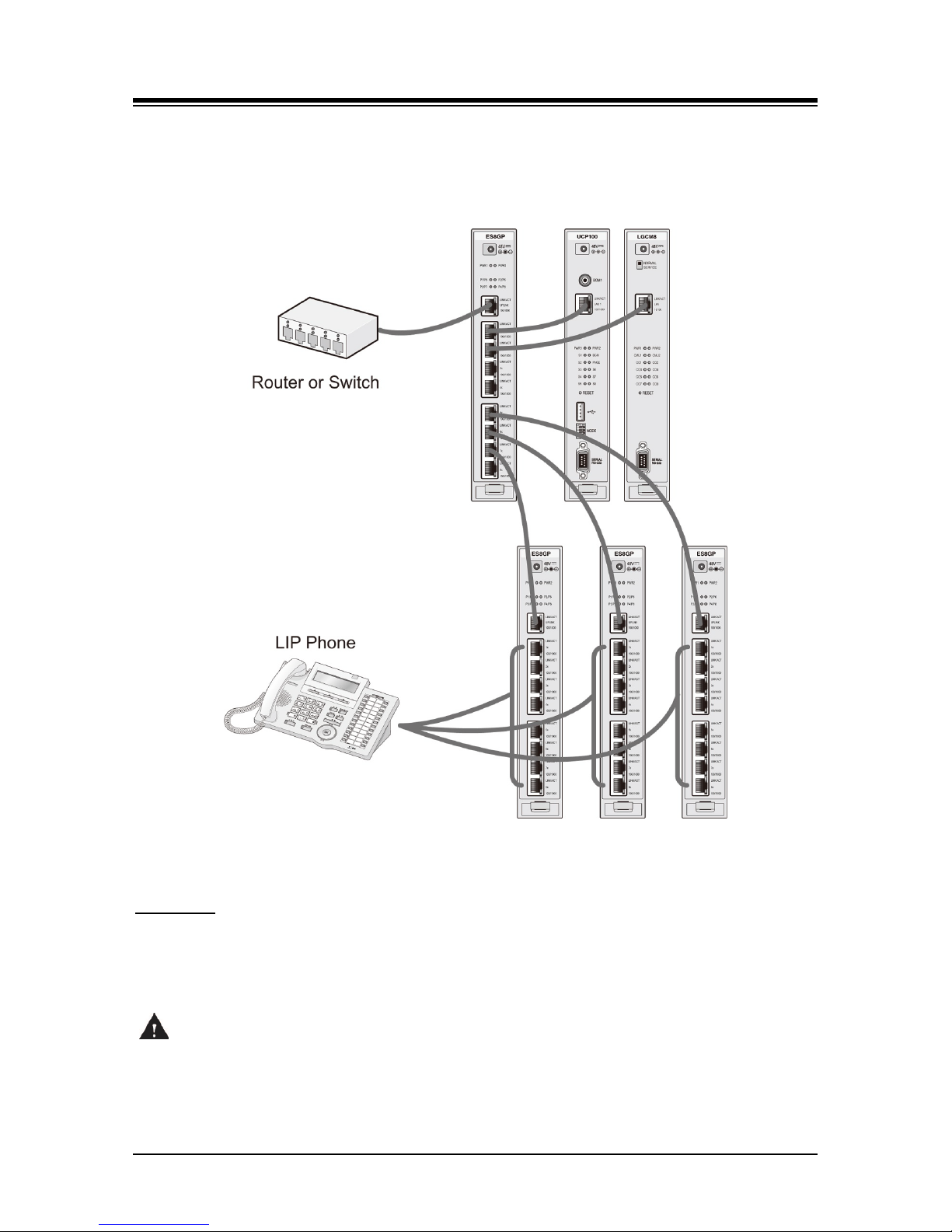

6.1.7 LAN Wiring Structures
The LAN wiring architecture used for connecting iPECS Modules to the LAN is dependent upon
several factors including:
Shared or iPECS only LAN infrastructure
External VoIP calling requirements
New or existing voice and/or data installation
Remote LAN power or local AC power for iPECS Phones
The “PC” LAN port of equipped LIP Phones can be connected to the user’s desktop using a
standard LAN cable terminated with RJ-45 LAN jacks. The LAN jack is wired to an Ethernet
switch, which has access to the iPECS UCP, other iPECS Modules and LIP Phones. This
connection can be through a connection to the same switch or by an indirect connection through
multiple switches.
For a new installation or, where LAN power to the LIP Phone is desired, the ES8GP can be
employed for the corporate LAN. For existing installations, it may be necessary to replace existing
switches in a shared environment in order to provide remote power to the LIP Phones.
In the shared environment, both data and voice will have access to the WAN, which also permits
external VoIP calling. In the non-shared LAN environments, the system must be connected to the
WAN to support external VoIP connections.
Due to the advantages of the shared environment, support for remote LAN power, and external
VoIP calling, the ES8GP, which is a standard Ethernet switch, should be employed. The
recommended structure, so called “hierarchal” wiring, employs all “straight” LAN cables (MD I to
MDIX) as shown in Figure 6.1.7-1. Additional ES8GP Modules are connected using the UPLINK
port to the switched ports of the primary ES8GP. A sufficient number of ES8GP modules are
connected to provide the total number of ports required. For exampl e, in case of an 8-CO Line
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
70
and 24-station configuration, the System would require 30 Ethernet switch port s (UCP = 1 port,
LGCM8 = 1 port, ES8GP = 3 ports, LIP Phones = 24 ports, and router = 1 port), and would be
structured as in the following Figure 6.1.7-1.
Figure 6.1.7-1 iPECS LAN Wiring
Cascading
When the station loop limit is beyond the 100-meter (330 feet) limit, switches may be cascaded to
extend the range. For the ES8G/ES8GP, simply connect the extension switches with their
UPLINK port to a LAN port of the previous ES8G/ES8GP in the cascade.
CAUTION
Do not create a loop when connecting these switches to each other or other network
components.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
71
Figure 6.1.7-2 Erroneous Loop Wiring
6.1.8 RS-232 Connections
The DB-9 connector located on the front panel of each gateway Module is an RS-232 serial port.
The connector is employed to provide system trace and diagnostic routines for the individual
Modules. The iPECS UCP server modules have one such port, which may be assigned for the
desired function (SMDR, ACD, etc.). Refer to the iPECS UCP Admin & Programming Manual.
The RS-232 ports of the Modules and PSU are set-up for 8-bits, no parity, and one (1) stop bit
running at 115,200 bps. To modify the speed and other settings, refer to the iPECS UCP Admin
& Programming Manual.
The RS-232 connectors for gateway Modules, ES8G/ES8GP and UCP modules are terminated in
a Data Communications Equipment (DCE) configuration as displayed in Figure 6.1.8-1. The RS232 connector in the PSU is terminated in a Data Terminal Equipment (DTE) configuration. Use a
cable pre-terminated with DB-9 connectors to connect an appropriate device (terminal, printer,
etc.) to the Module.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
72
Figure 6.1.8-1 RS-232 DB-9 Pin-outs
6.1.9 Module Power Adapter
Modules are shipped without AC/DC Adapters. Therefore, if an adapter is required, it must be
ordered separately. The AC/DC Adapter converts local AC to 48 VDC for Module power. One
side of the adapter has a 3-prong parallel blade male termination and mates with the power cord
supplied. The AC power cord supplied is plugged into the adapter and into the local AC power
source. See 5.4 for installing the module in a DHLD, 5.5 for WHLD or 5.6 for 1U-RMB.
The other end of the adapter is terminated in a DC power cord with a plug at the end. This DC
power plug is inserted into the power input jack on the upper front panel area of each Module.
Prior to making this power connection, assure the Module is properly grounded referring to
section 6.1.4. The Power LED on the Module front panel will illuminate when power is applied.
UCP Module
DB-9 RS-232
TERMINATIONS
(DTE)
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
73
6.2 UCP server Module Installation
There are several models of the UCPs, wh ich are all installed in the same manner. In this section,
the reference to UCPs encompasses the various models of UCPs. The UCPs may be instal led
anywhere except for slot 10 of the cabinet, or may be installed anywhere in the Desk Mount
Holder.
All UCPs contain a long life Lithium battery, which protects the real-time clock in the event of a
power failure. Minimum battery life is 10 years and the battery is not field-replaceable.
LEDs
In addition to the Power and LAN LEDs, UCPs have ten LEDs for status and diagnostic
information as in Table 6.2-1.
Table 6.2-1 UCP100/600/2400 Status LED Functions
LED
LED STATUS FUNCTION - ON -
S1 Serial/TCP debug active
S2 Call Processing active
S3 Active data communication with Modules and IP Phones
S4
LCD control active
S5 CPU active (100ms fl ashing)
BGM BGM or internal MOH active
PAGE Ext. Page1 or Ext. Page2 in us e
S6 Reserved
S7 Redundancy active (flashing during DB download)
S8 MISC Active (Flashing)
Mode Switch & Settings
UCP modules have a four (4) position DIP-switch identified as the “MODE” switch. The function of
each switch position is given in Table 6.2-2 below.
Table 6.2-2 UCP Mode Switch Fu nctions
SWITCH
FUNCTION
ON
OFF
1
Database write protect Protect, cannot modify Unprotect, can modify
2
Reserved - -
3
Registration
Allow registration
(Auto regist er new device)
Registration denied
(Manual register only)
4
Initialization Initialize DB on Reset Read stored DB on Reset
To enter data in the system’s database, the Write Protect switch must be in the OFF position. In
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
74
the ON position, the database cannot be modified. Thus, placing the switch in the ON position
eliminates the potential for remote database modification. If remote data entry is not desired, after
all installation and database entries are complete place the switch in the ON position.
When new gateway Modules and/or terminals are connected to a LAN, they will automatically
attempt to register with an iPECS UCP. With the Registration switch (switch position 3) in the ON
state, the system will recognize and respond to the registration request. With the switch in the
OFF position, the system will not respond to the request. During initial installation, the switch
should be placed in the ON position to permit the system to recognize and respond to registration
requests. If it is desired to deny future registrations, the switch should be placed in the OFF
position. This is useful when multiple systems may be connected to the same LAN. For details on
gateway Module and terminal registration, refer to the iPECS UCP Admin & Progr amming
Manual.
The system database is initialized based on switch position 4. In the ON position, the system will
load default values in the system database when power is applied to the UCP or the Reset button
is pressed. Note if the system looses power for any reason with the switch in the ON position, the
database will be initialized. Place the switch in the ON position then, after completing the system
wiring and prior to any database entries, place the switch in the OFF position. For a description of
the initialization process, refer to the iPECS UCP Admin & Programming Manual.
Wiring Connectors
Before wiring any of the Modules, first connect the “ ” screw on the back of the Module to a
known ground, refer to 6.1.4. If installed in a cabinet assure the cabinet is grounded.
On the front of the UCP are the “LAN 1” and, for the UCP600 and UCP2400, “LAN2” RJ-45 type
connectors. These connectors should be wired to the appropriate LAN points as discussed in
6.1.6 and 6.1.7.
Wire “LAN 1” to a 10/100/1000 Base-T switch, an ES8G/ES8GP can be used to connect
to the LAN.
For UCP 600 or UCP2400 redundant processor operation, wire “LAN 2” of main and
back-up UCP. When the iPECS UCP modules are local, the LAN2 connectors of the
modules can be directly connected. Note Admin is required to configure redundancy, refer
to the iPECS UCP Admin & Programming Manual.
Tag or number wiring for maintenance.
For the iPECS UCP100 module, the eight (8) RJ-45 connectors on the rear panel are terminated
for miscellaneous functions, and the CO/BRI option board and the two (2) FXS (SLT) ports. Wire
these connectors as depicted in the sketch of Figure 6.2-1. Table 6.2-3 provides the connector
terminations in tabular form. These CO/BRI connections are available from the Main Cabinet RJ21x connectors (6.17) using the wiring shown for the slot where the UCP100 is located. Note
Jack splitters are provided with the iPECS UCP100 CO/BRI option board to al low a more direc t
termination. To use the Jack splitters see 6.2.1.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
75
Table 6.2-3 Optional COIU4 & BRIU2/4 RJ-45 Pin assignment
RJ-45
Pin
CO Line
BRI Line
RJ-45 1
RJ-45 2
RJ-45 1
RJ-45 2
1
N.C. N.C. BRI3_TX+ BRI4_TX+
2
N.C. N.C. BRI3_RX+ BRI4_RX+
3
CO3_R CO4_R BRI1_TX+ BRI2_TX+
4
CO1_R CO2_R BRI1_RX+ BRI2_RX+
5
CO1_T CO2_T BRI1_RX- BRI2_RX-
6
CO3_T CO4_T BRI1_TX- BRI2_TX-
7
N.C. N.C. BRI3_RX- BRI4_RX-
8
N.C. N.C. BRI3_TX- BRI4_TX-

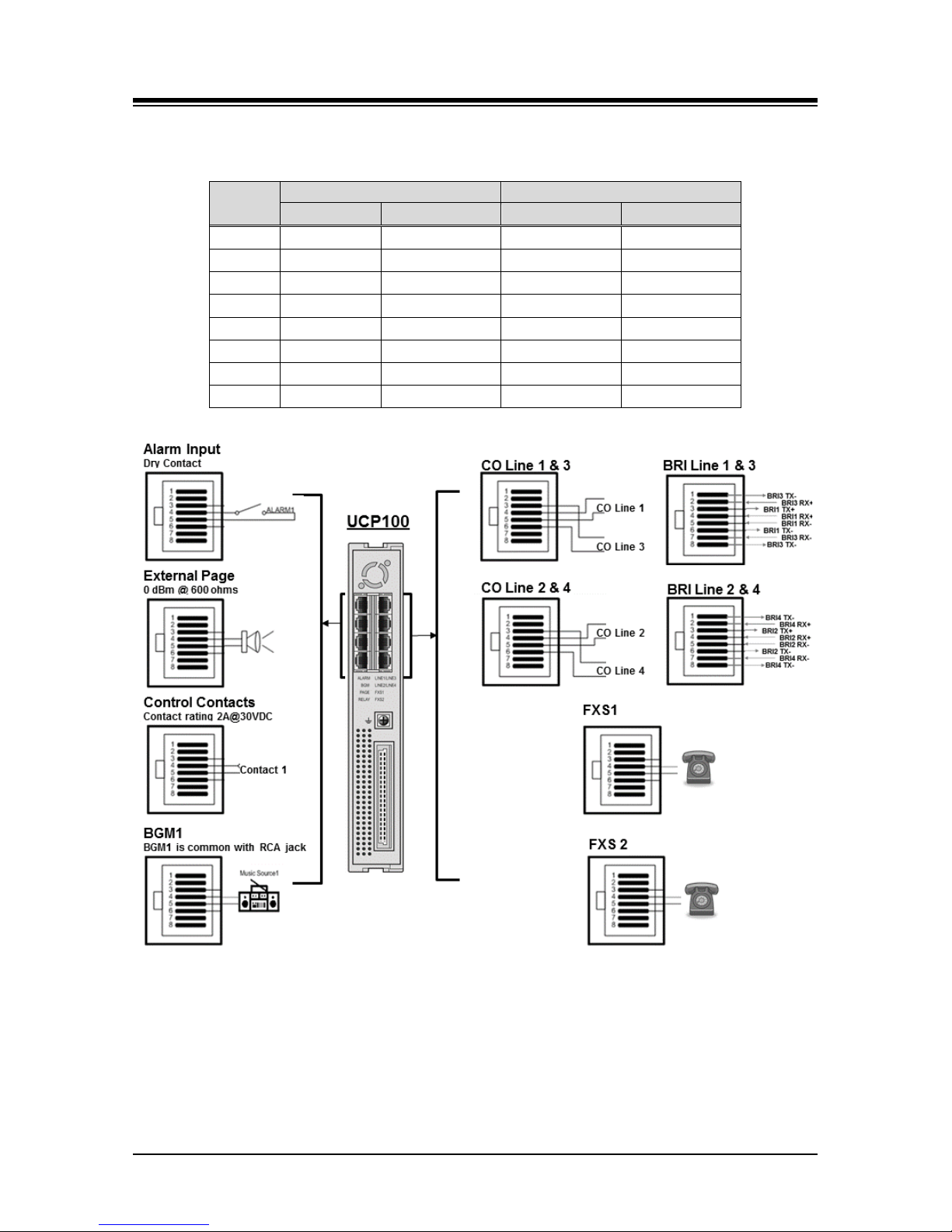

Figure 6.2-1 UCP100 Miscellaneous & Telephony Connections
For the iPECS UCP600 and UCP2400 modules, the eight (8) RJ-45 connectors on the rear panel
are terminated for miscellaneous functions and Power Fail functions. Wire these connectors as
depicted in the sketch of Figure 6.2-2.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
76

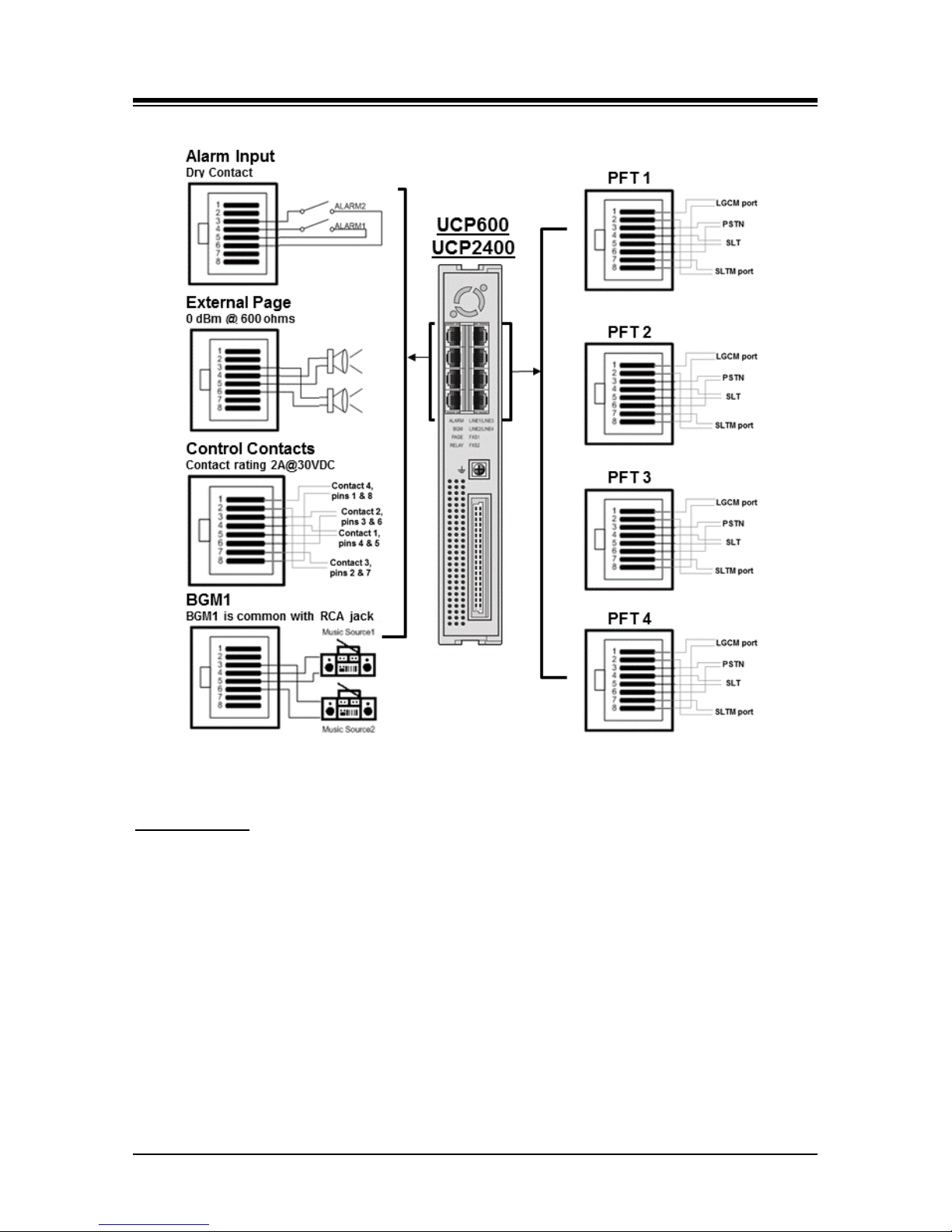

Figure 6.2-2 UCP600/2400 Miscellaneous & Power Fail Transfer Connections
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
UCPs Power jack.
6.2.1 Usin g Ja ck spl itt er s
Jack splitters are provided with the Line option units and the iPECS UCP100 when an option unit
is pre-installed, Figure 6.2.1-1. The Jack Splitter can be used to gain a more direct connection to
the CO/BRI line s. The splitter separates the two CO/BRI lines terminated in the RJ-45 jack so that
only one CO/BRI Line is terminated to the splitter jacks. To use the splitter, connect a standard 8wire RJ45 terminated line cord to the main jack in the splitter and the UCP CO/BRI Line
connector, then the separated CO/BRI Line ports appear in the splitter jacks as shown in the
figure below. Each CO/BRI line is terminated to a separate connector in the normal manner, on
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
77
the c enter p ai r(s) o f the Jack Spl i t ter RJ45 jacks.
Figure 6.2.1-1 Jack Splitter Application
6.2.2 Instal lat ion of Opti on al PSTN Unit
A PSTN option unit (COIU4, BRIU2 and BRIU4) can be mounted on iPECS UCP100 module
board.
To install PSTN option module, first remove all connections to the UCP module then perform the
following steps referring to Figure 6.2.2-1:
1. Remove the UCP100 board from the module
a. Remove screws holding the housing back plate
b. Remove the screws holding the board in place
c. Carefully remove the board from the module housing
2. Locate the connector pins for the option unit.
3. Align the connectors on the option unit with the connector pins on the board and push
gently to engage.
4. Carefully reinstall the board in the housing, and insert and tighten screws through the
board in to the housing.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
78
5. Replace the housing back plate, and insert and tighten screws.
Figure 6.2.2-1 Option module installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
79
6.3 VOIM8/24 Installation
The VOIM8/24 may be installed anywhere except for slot 10 of the cabinet, or may be installed
anywhere in the Desk Mount Holder. The VOIM8/24 is used to provide packet relay for remote
devices to communicate with the host and translation between the iPECS proprietary protocols
and other standard protocols (H323, SIP).
LEDs
The VOIM8 and VOIM24 have five (5) LEDs for status and diagnostic information as in Table
6.3-1.
Table 6.3-1 VOIM8 & VOIM24 Status LED Functions
LED
LED FUNCTION
S1
Trace Task active
S2
VOIM Task act ive
CALL
VoIP call active
S3
Registered t o UCP
DSP
Transcoding in use
Wiring Connectors
Before wiring any of the Modules, first connect the “ ” screw on the back of the Module to a
known ground, refer to 6.1.4. If installed in a cabinet assure the cabinet is grounded.
A “WAN” RJ45 type connector is located on the front of the VOIM8/24. This connector should be
wired to the appropriate LAN points as discussed in 6.1.6 and 6.1.7. In addition, the VOIM8/24
includes an unused “LAN” RJ-45 type connector. Currently this LAN port is not used and no
connection should be made to this port.
Wire the “WAN” connector to a 10/100 Base-T switch, an ES8G/ES8GP can be used to
connect to the LAN.
Tag or number wiring for maintenance.
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
Module Power j ack.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
80
6.4 VCIM Installation
The VCIM may be installed anywhere except for slot 10 of the cabinet, or may be installed
anywhere in the Desk Mount Holder. The VCIM is used to provide packet relay for remote
devices to communicate with the host and translation between the iPECS proprietary protocols
and other standard protocols (H323, SIP) or multi-party voice conferences.
LEDs
The VCIM have six (6) LEDs for status and diagnostic information as in Table 6.4-1.
Table 6.4-1 VCIM Status LED Functions
LED
LED FUNCTION
S1
Line Monitor
S2
VOIM Task act ive
S3
VoIP Channel in use
S4
Registered t o U C Ps
S5
Transcoding in use
S6
MCIM Task Flashing
(ON – Conf. channel in use, Flashing – Idle)
Wiring Connectors
Before wiring any of the Modules, first connect the “ ” screw on the back of the Module to a
known ground, refer to 6.1.4. If installed in a cabinet assure the cabinet is grounded.
A “LAN” RJ45 type connector is located on the front of the VCIM. This connector should be wired
to th e appropriate LAN points as disc ussed in 6.1.6 and 6.1.7. In addition, the VCIM includes an
unused “LAN” RJ-45 type connector. Currently this LAN port is not used and no connection
should be made to this port.
Wire “LAN” to a 10/100/1000 Base-T switch, an ES8G/ES8GP can be used to connect to
the LAN. (LAN1 – 10/100/1000 Base-T, LAN2 – 1000 Base-T only)
Tag or number wiring for maintenance.
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
Module Power j ack.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
81
6.5 LGCM4 & LGCM8 Installation
The LGCM4 and LGCM8 may be installed anywhere except for slot 10 of the cabinet, or may be
installed anywhere in the Desk Mount Holder. The LGCM4 and LGCM8 provide a gateway
between standard PSTN Loop Start Lines and other iPECS appliances. The LGCM4 can support
four (4) PSTN Lines and the LGCM8 can support eight (8) PSTN Lines.
LEDs
In addition to the Power and LAN LEDs, the LGCM4 has four (4) status LEDs. and one (1) status
LED. The four (4) LEDs indicate that the individual PSTN Lines are busy (LED ON), idle (LED
OFF) or ringing (LED flashing). One (1) LED indicates whether a CMU is installed. If installed, the
LED is ON.
In addition to the Power and LAN LEDs, the LGCM8 has eight (8) status LEDs and two (2) status
LEDs. The eight (8) LEDs indicate that the individual PSTN Lines are busy (LED ON), idle (LED
OFF) or ringing (LED flashing). The left and right LED indicate CMUs are installed for the 1
st~4th
and 5
th
~ 8th ports, respectively. If installed, the LED is ON.
6.5.1 CMU (Call Metering Unit) Installation
The LGCM4 and LGCM8 support call metering with the CMU installed at the factory. Three types
of regional specific modules are available CMU1216 and CMU50PR; see 3.1.4.
To install the CMU on an LGCM, first remove all connections to the LGCM module. Then, follow
the instructions below referring to Figure 6.5-1 and Figure 6.5-2.
1. Remove the LGCM board from the module
a. Remove screws holding the housing back plate
b. Remove the screws holding the board in place
c. Carefully remove the board from the module housing
2. Locate the connector pins for the CMU.
3. Align the connectors on the CMU with the connector pins on the board and push gently
to engage.
4. Repeat steps 2 and 3 to install the second CMU for a LGCM8, Figure 6.5-2
5. Carefully reinstall the board in the housing, and insert and tighten screws through the
board in to the housing.
6. Replace the housing back plate, and insert and tighten screws.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
82
Figure 6.5-1 installing a CMU module in LGCM4
Figure 6.5-2 Installing a CMU module with LGCM8
Wiring Connectors
Before wiring any of the Modules, connect the “ ” screw on the back of the Module to a known
protective earth ground, refer to 6.1.4. If installed in a cabinet assure the cabinet is grounded.
On the front of the LGCM4 and LGCM8 is the RJ-45 type “LAN” connector. This connector should
be wired to the appropriate LAN points as discussed in 6.1.6 and 6.1.7.
Wire “LAN” to a 10/100 Base-T switch, ES8G/ES8GP can be used to connect to the LAN.
Tag or number wiring for maintenance.
On the rear are four (4) or eight (8) RJ-45 connectors, terminated as described in 6.1.5. These
connectors should be cabled to the telephone company termination point.
Wire each RJ-45 to a CO Line at the PSTN termination point/MDF.
Tag or number wiring for maintenance.
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
Module Power j ack.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
83
6.6 BRIM2 Installation
The BRIM2 and BRIM4 may be installed anywhere except for slot 10 of the cabinet, or may be
installed anywhere in the Desk Mount Holder. The BRIM2 and BRIM4 provide a gateway
between ISDN Basic Rate Interface (BRI) lines and other iPECS appliances. The BRIM2 can
support two (2) BRI lines as a “T” interface and the BRIM4 can support four (4) BRI lines.
LEDs
In addition to the Power and LAN LEDs, there are four or eight LEDs, two for each BRI circuit,
which provide the status information as described in Table 6.6-1.
Table 6.6-1 BRIM2 Status LE D Function
LED
ON
OFF
ACT
In Use Idle
ERR
Line Error Normal
Wiring Connectors
Before wiring any of the Modules, first connect the “ ” screw on the back of the Module to a
known ground, refer to 6.1.4. If installed in a cabinet assure the cabinet is grounded.
On the front of the BRIM2 and BRIM4 is the RJ –45 type “LAN” connector. This connector should
be wired to the appropriate LAN points as discussed in 6.1.6 and 6.1.7.
Wire “LAN” to a 10/100 Base-T switch, an ES8G/ES8GP can be used to connect to the
LAN.
Tag or number wiring for maintenance.
On the rear are two (2) or four (4) RJ-45 connectors terminated to the BRI Line interface circuits.
These connectors should be wired to the telephone company termination point (“T” Mode). The
connector pin assignments for the RJ-45 type jacks on the BRIM2 and BRIM4 are shown i n
Figure 6.6-1 and Figure 6.6-2, respectively.
Wire each RJ-45 to a BRI line at the ISDN termination point/MDF.
Tag or number wiring for maintenance.
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
Module Power j ack.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
84
Figure 6.6-1 BRIM2 BRI Line Connector Configuration
Figure 6.6-2 BRIM4 BRI Line Connector Configuration
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
85
6.7 PRIM Ins ta llation
The PRIM Module may be installed anywhere except for slot 10 of the cabinet, or may be
installed anywhere in the Desk Mount Holder. The PRIM module provides a gateway for PRI line
connections to other iPECS appliances.
The PRIM module can support up to 30 PCM bearer channels for European ISDN Primary Rate
Interfaces or 23 PCM bearer channels for the North American Primary Rate Interface.
LEDs
In addition to the Power and LAN LEDs, the PRIM has four (4) LEDs for status and diagnostic
information as in Table 6.7-1.
Table 6.7-1 PRIM Status LED Functions
LED
LED FUNCTION
LINE Line Signal Dete cted
STATUS
Channels in-use
CLK SLAVE PRIM module clock is synchronized with PRI Line
RUN Flashing when runni ng
Wiring Connectors
Before wiring any of the Modules, first connect the “ ” screw on the back of the Module to a
known ground, refer to 6.1.4. If installed in a cabinet assure the cabinet is grounded.
On the front of the PRIM is the RJ 45 type “LAN” connector. This connector should be wired to
the appropriate LAN points as discussed in 6.1.6 and 6.1.7.
Wire “LAN” to a 10/100 Base-T switch, an ES8G/ES8GP can be used to connect to the
LAN.
Tag or number wiring for maintenance.
On the rear panel is a RJ-45 connector terminated to the PRI Line interface circuits. This
connector, refer to Figure 6.7-1, should be wired to the telephone company termination point.
Wire each RJ-45 to a PRI line at the ISDN termination point.
Tag or number wiring for maintenance.
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
Module Power j ack.
Figure 6.7-1 PRI Line Connector Configuration
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
86
6.8 DTIM8 Installation
The DTIM8 may be installed anywhere except for slot 10 of the cabinet, or may be installed
anywhere in the Desk Mount Holder. The DTIM8 provides a gateway between Ericsson-LG
Enterprise’s Digital terminals (LKD and LDP models) and other iPECS appliances. The DTIM8
can support eight (8) Digital terminals.
LEDs
In addition to the Power and LAN LEDs, the DTIM8 has eight (8) status LEDs. These LEDs
indicate that the individual Digital terminals are busy (LED ON), idle (LED OFF) or ringing (LED
flashing).
Wiring Connectors
Before wiring any of the Modules, connect the “ ” screw on the back of the Module to a known
protective earth ground, refer to 6.1.4. If installed in a cabinet assure the cabinet is grounded.
On the front of the DTIM8 is the RJ-45 type “LAN” connector. This connector should be wired to
the appropriate LAN points as discussed in 6.1.6 and 6.1.7.
Wire “LAN” to a 10/100 Base-T switch, an ES8G/ES8GP can be used to connect to the
LAN.
Tag or number wiring for maintenance.
On the rear are eight (8) RJ-45 connectors terminated as described in 6.1.5. These should be
wir e d t o the digital ter m inal termination poi nt.
Wire the RJ-45 connectors to a Digital terminal termination point/MDF.
Tag or number wiring for maintenance.
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
Module Power j ack.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
87
6.9 DTIM24 Installation
The DTIM24 is intended for installation in a 19” rack, it is NOT intended for installation in the
cabinet. The DTIM24 provides a gateway between Ericsson-LG Ent erprise’s Digi tal termi n als
(LKD and LDP models) and other iPECS appliances.
To mount the DTIM24 in a 19” rack,
1. Mount the left and right mounting brackets to the DTIM24 module using the eight (8)
machine screws provided as shown in Figure 6.9-1.
2. Mount the Module with the four (4) machine screws, nuts and washers as shown in
Figure 6.9-1.
3. Complete the installation using the instructions for wiring given below.
Figure 6.9-1 DTIM24 Rack Mounting Installation
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
88
LEDs
In addition to the Power and LAN LEDs, the DTIM24 has twelve (12) dual color LEDs, which
indicate that the individual Digital terminals are busy (LED ON), ringing (LED flashing) or idle
(LED OFF).
Wiring Connectors
Before wiring any of the Modules, first connect the “ ” screw on the back of the Module to a
known ground, refer to 6.1.4.
On the front of the DTIM24 is the RJ 45 type “LAN” connector. This connector should be wired to
the appropriate LAN points as discussed in 6.1.6 and 6.1.7.
Wire “LAN” to a 10/100 Base-T switch, an ES8G/ES8GP can be used to connect to the
LAN.
Tag or number wiring for maintenance.
On the rear is a 25-pair RJ-21x style connector terminated as shown in Figure 6.9-2. These
connectors should be wired to the Digital terminal termination point as shown in the figure.
Wire each RJ-21x to a Digital terminal termination point/MDF.
Tag or number wiring for maintenance.
AC Power Cord
Assure the AC power cord is plugged into the power input of the DTIM24 and a live AC outlet.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
89

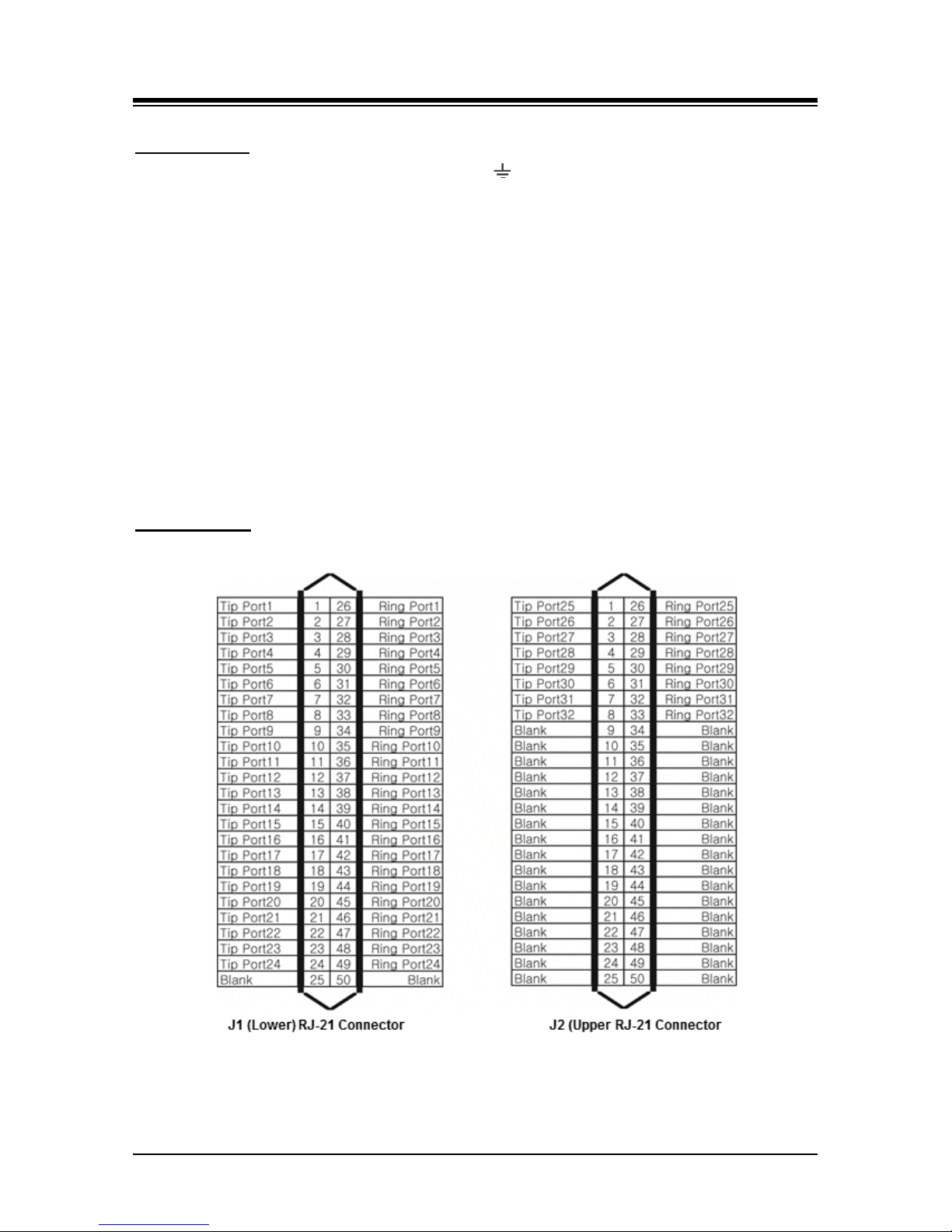

Figure 6.9-2 DTIM24 RJ-21X Connector Configuration
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
90
6.10 SLTM4 & SLTM8 Installation
The SLTM4 and SLTM8 may be installed anywhere except for slot 10 of the cabinet, or may be
installed anywhere in the Desk Mount Holder. The SLTM4 provides a gateway between four (4)
standard Single Line Telephone devices and other iPECS appliance and the SLTM8 provides
eight (8).
LEDs
In addition to the Power and LAN LEDs, the SLTM4 has four (4) status LEDs, one (1) for each
SLT port. The LEDs indicate the status of the associated SLT port in-use (LED ON), ringing (LED
flashing) or idle (LED OFF).
In addition to the Power and LAN LEDs, the SLTM8 has eight (8) status LEDs, one (1) for each
SLT port 1~8. The LEDs indicate the status of the associated SLT port in-use (LED ON), ringing
(LED flashing) or idle (LED OFF).
Wiring Connectors
Before wiring any of the Modules, first connect the “ ” screw on the back of the Module to a
known ground, refer to 6.1.4. If installed in a cabinet assure the cabinet is grounded.
On the front of the SLTM4 and SLTM8 is the RJ 45 type “LAN” connector. This connector should
be wired to the appropriate LAN points as discussed in 6.1.6 and 6.1.7.
Wire “LAN” to a 10/100 Base-T switch, an ES8G/ES8GP can be used to connect to the
LAN.
Tag or number wiring for maintenance.
On the rear are four (4) or eight (8) RJ-45 connectors terminated as described in 6.1.5, which
should be wired to the SLT termination points.
Wire each RJ-45 to an SLT device/MDF.
Tag or number wiring for maintenance.
AC/DC Adapter
If a PSU is not employed, assure the AC/DC Adapter is plugged into a live AC outlet and the
Module Power j ack.
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
91
6.11 SLTM32 Installation
The SLTM32 is intended for installation in a 19” rack, it is NOT intended for installation in the
cabinet. The SLTM32 provides a gateway between thirty-two (32) standard Single Line
Telephone devices and other iPECS appliances.
To mount the SLTM32 in a 19” rack,
1. Mount the left and right mounting brackets to the SLTM32 module using the eight (8)
machine screws provided as shown in Figure 6.11-1.
2. Mount the Module in the 19” rack with the four (4) machine screws, nuts and washers as
shown in Figure 6.11-1.
3. Complete the installation using the instructions for wiring given below.
Figure 6.11-1 SLTM32 Rack Mounting Installation
LEDs
In addition to the Power and LAN LEDs, the SLTM32 has Sixteen (16) dual color LEDs, which
indicate the status of the associated SLT port: in-use (LED ON), ringing (LED flashing) or idle
(LED OFF).
iPECS UCP
Hardware Description and Installation Manual Issue 1.3
92
AC/DC Adapter
Before wiring any of the Modules, first connect the “ ” screw on the back of the Module to a
known ground, refer to 6.1.4.
On the front of the SLTM32 is the RJ–45 type “LAN” connector. This connector should be wired
to th e appropriate LAN points as disc ussed in 6.1.6 and 6.1.7.
Wire “LAN” to a 10/100 Base-T switch, an ES8G/ES8GP can be used to connect to the
LAN.
Tag or number wiring for maintenance.
On the rear are two (2) 25-pai r R J-21x style connectors terminated as shown in Figure 6.11-2.
These connectors should be wired to the SLT termination point as shown in the figure.
Wire each RJ-21x to an SLT device/MDF.
Tag or number wiring for maintenance.
AC Power Cord
Assure the AC power cord is plugged into the power input of the SLTM32 and a live AC outlet.
Figure 6.11-2 SLTM32 RJ-21X Connector Configuration
