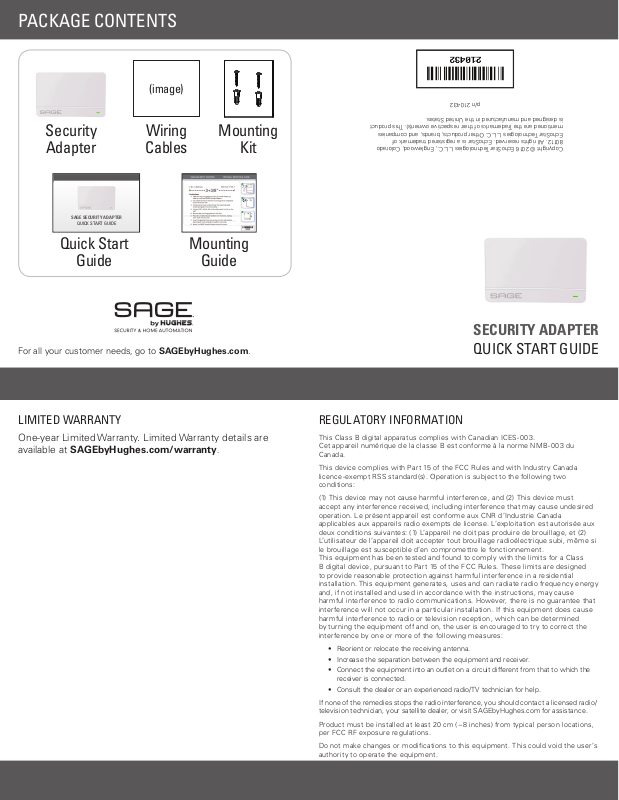

PACKAGE CONTENTS
(image)
Security
Adapter
SAGE SECURITY ADAPTER
QUICK START GUIDE
Wiring
Cables
Mounting
Kit
p/n 210432
is designed and manufactured in the United States.
mentioned are the Trademarks of their respective owner(s). This product
EchoStar Technologies L.L.C. Other products, brands, and companies
80112. All rights reserved. EchoStar is a registered trademark of
Copyright © 2016 EchoStar Technologies L.L.C., Englewood, Colorado
Quick Start
Guide
For all your customer needs, go to SAGEbyHughes.com.
Mounting
Guide
LIMITED WARRANTY
One-year Limited Warranty. Limited Warranty details are
available at SAGEbyHughes.com/warranty.
SECURITY ADAPTER
QUICK START GUIDE
REGULATORY INFORMATION
This Class B digital apparatus complies with Canadian ICES -003.
Cet appareil numérique de la classe B est conforme à la norme N MB- 003 du
Canada.
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence -exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired
operation. Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de license. L’exploitation est autorisée aux
deux conditions suivantes: (1) L’appareil ne doit pas produire de brouillage, et (2)
L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to tr y to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
If none of the remedies stops the radio interference, you should contact a licensed radio/
television technician, your satellite dealer, or visit SAGEbyHughes.com for assistance.
Product must be installed at least 20 cm (~8 inches) from typical person locations,
per FCC RF exposure regulations.
Do not make changes or modifi cations to this equipment. This could void the user’s
authority to operate the equipment.
SETUP AND INSTALLATION
The SAGE Security Adapter allows you to integrate SAGE by Hughes with your existing home security system. Follow the instructions below
to install your SAGE Security Adapter.
Using your SAGE remote, press HOME.
1
Select Settings.
2
Select Add Devices.
3
Select Sensors.
4
Select Security Adapter.
5
Follow the on-screen prompts to install and set up your
6
SAGE Security Adapter, pair it to the SAGE Hub, and establish
rules.
IMPORTANT SAFETY NOTICE: Do not begin installation of
your SAGE Security Adapter until you have carefully reviewed
the installation instructions for your SAGE Hub, which includes
important safety information. Installing the SAGE Security
Adapter without reviewing these instructions, turning off
the electric power to your existing home security panel and
disconnecting its battery, may damage the security panel, the
SAGE Security Adapter, and any attached devices.
INSTALLATION OVERVIEW
This page provides a general overview of how to integrate the SAGE Security Adapter into your existing home security system. For full
instructions, visit SAGEbyHughes.com and download and/or print the installation instructions that correspond to your home security system.
Step-by-step instructions will also be available on the TV connected to your SAGE Hub during installation.
Identify the brand and model of your existing home
1
security system.
Choose where you want to install your SAGE Security
2
Adapter: at your security system’s central panel or at an
individual keypad in your house.
If a company is monitoring your existing security system,
3
notify them that you’ll be temporarily shutting off the system
to install the SAGE Security Adapter.
Wire the SAGE Security Adapter to your existing home
4
security system.
Pair the SAGE Security Adapter to your SAGE Hub.
5
Mount the SAGE Security Adapter.
6
Set up security zones in your home.
7
