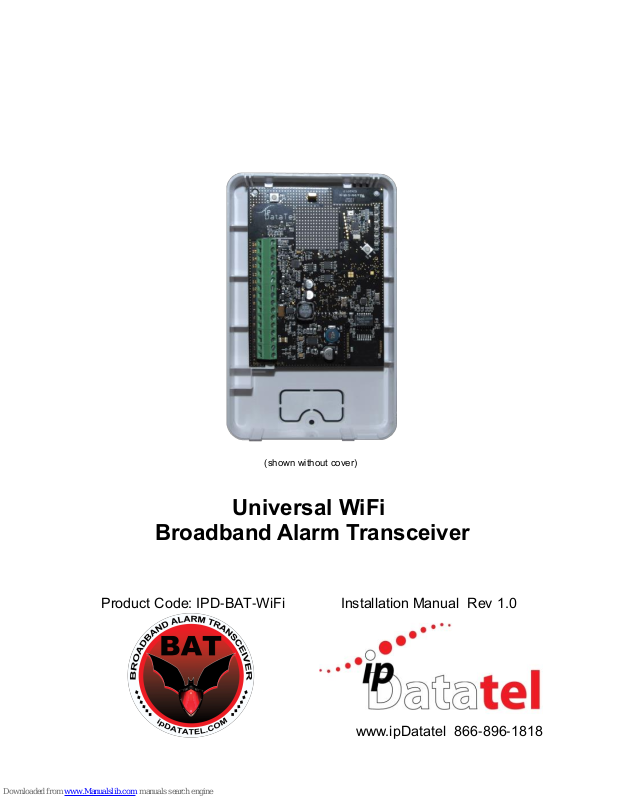

Universal WiFi
Broadband Alarm Transceiver
Product Code: IPD-BAT-WiFi Installation Manual Rev 1.0
www.ipDatatel 866-896-1818
Universal WiFi BAT Installation Guide (rev 1.0) 2
Technical Support Information
For Technical Support, call toll free: 866-896-1818
Email us at techsupport@ipdatatel.com
Visit www.ipdatatel.com
ipDatatel Technical Support
13110 Southwest Freeway
Sugar Land, TX 77478
Revision Notes
Revision
Notes
Date
1
Initial Release
8/8/2013
Universal WiFi BAT Installation Guide (rev 1.0) 3

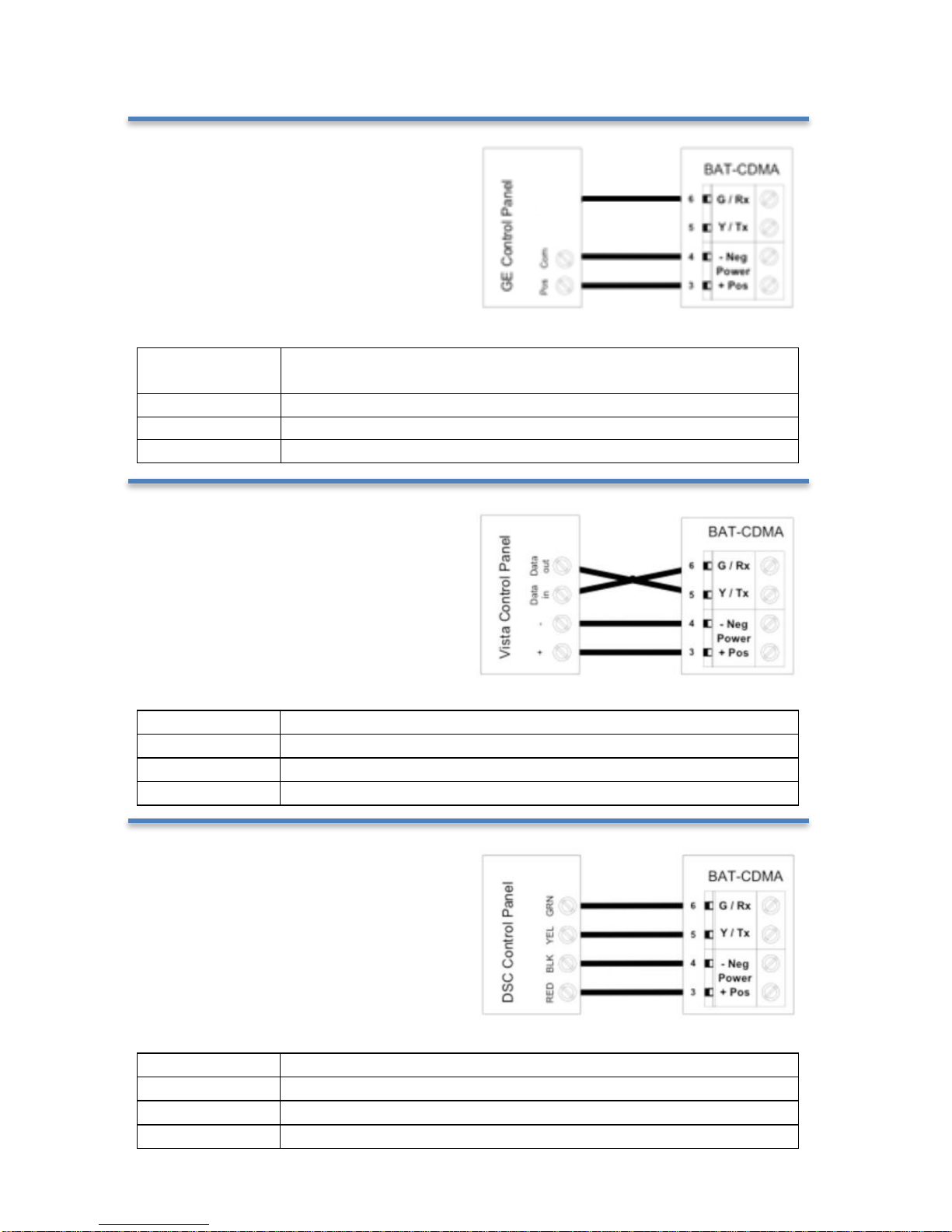

QUICK REFERENCE
See Supported Panels section page 25
GE:
See page 20
for details
Programming for TELCO use on GE NetworX:
Section
Device 0
Universal WiFi BAT as Sole Communicator
Location 0
Enter the Phone Number
Location 1
Enter Account Number
Location 2
Enter ‘13’ for Contact ID
Honeywell VISTA:
See page 17
for details
Programming for TELCO use on Vista:
Section
Universal WiFi BAT as Sole Communicator
41
Enter Phone Number
43
Enter Account Number
193
Enter 1, 0. Enable to turn on Address 20
DSC:
See page 13
for details
Programming for TELCO use on DSC:
Section
Universal WiFi BAT as Sole Communicator
301
Enter Phone Number
310
Enter Account Number
350
Enter ‘03’ for Contact ID
Universal WiFi BAT Installation Guide (rev 1.0) 4
Table of Contents
Revision Notes ............................................................................ 2
Introduction ................................................................................. 5
Key Features ................................................................................ 5
Broadband Internet Connectivity .......................................... 5
WIFI Internet Connectivity ..................................................... 6
Computerized Voice Alarm Notifications ............................. 7
Installation Guide ................................................................ ........ 8
General Considerations ......................................................... 8
AP Configuration Tool QuickStart Guide ............................. 8
Connecting to a Wireless Network (AP Configuration Tool)
................................................................................................. 8
SW1 Button [located on the top left of the board] ............... 9
Reset the Wireless Network (AP Configuration Tool) ......... 9
Pre-Installation........................................................................ 9
Locating and Installing the BAT-WIFI ..................................10
Telco - Digital Dialer ..............................................................10
Virtual Keypad Connection ...................................................10
Power Connection .................................................................11
Basic Programming ...............................................................11
Full Virtual Keypad Programming ........................................11
Troubleshooting Diagnostic Information ............................12
Validating the Installation .....................................................12
Wiring & Programming for Popular Panels .........................12
DSC Panel Wiring and Programming ...................................13
Vista Panel Wiring and Programming ..................................17
GE Panel Wiring and Programming .....................................20
Generic Alarm Panel Wiring and Programming ..................22
Generic Keyswitch Wiring and Programming .....................23
Supported Panels ..................................................................25
Warranty Information .................................................................27
Universal WiFi BAT Circuit Board Detail ..................................30
Specifications .............................................................................31
Universal WiFi BAT Installation Guide (rev 1.0) 5
Introduction
ipDatatel’s Universal WIFI Broadband Alarm Transceiver (BATWIFI) is a multi-path wireless and wired internet connected alarm
panel transceiver. The BAT-WIFI transmits alarms over
broadband Internet via hardwired RJ45 Ethernet connection or via
WIFI wireless networks.
The Bat-WIFI is compatible with any alarm control panel that
transmits Contact ID (CID) format from its digital dialer. The BATWIFI also connects to the Keypad Bus of compatible (Honeywell
and DSC) alarm control panels to provide additional interactive
services.
The end user has virtual keypad access via smartphone and the
web, as well as alarm monitoring notifications via push/text, email,
and computerized voice call.
ipDatatel’s proprietary uDownloader software enables remote
management of Honeywell and DSC alarm panels that are
connected to the BAT-WIFI.
Key Features
Broadband Internet Connectivity
The BAT-WIFI replaces outdated conventional phone lines to
provide high-speed IP alarm monitoring transmissions over the
Internet. By capturing the data transmission from the alarm
control’s digital dialer output, the BAT-WIFI emulates an alarm
receiver.
The BAT-WIFI also resolves the communication problems that
VOIP services create that chop up alarm signal transmissions.
IP Alarm transmissions are made using Contact ID format and can
be sent to your alarm receiver via landline, or can be transmitted
directly by IP to your central station.
Universal WiFi BAT Installation Guide (rev 1.0) 6
Alarm monitoring signals such as open/close, trouble, supervisory,
latch-key, and monitoring of special devices, can be routed directly
to your alarm monitoring station or to the customer. These
automated features of the BAT-WIFI give you control over what
signals are sent to the central station, helping save on monitoring
costs.
WIFI Internet Connectivity
ipDatatel’s BAT-WIFI is a multi-path solution, giving you two
connections to the Router. The alarm panel can be set up to have
hard wired Ethernet connectivity and wireless internet (WIFI)
connectivity. A customer may also wish to run their alarm
monitoring using connectivity (WIFI) exclusively. This provides an
Internet path when hard wiring is difficult or impossible.
Remote Universal Downloader
ipDatatel’s Universal Downloader software, uDownloader, installs
on a Windows Machine in the Service Tray, and enables remote
management of alarm panels that are connected to the BAT-WIFI
via the Internet (WIFI and/or hardwired). uDownloader currently
supports Honeywell Compass and DSC DLS 5. ipDatatel’s
uDownloader software is available for download at
www.alarmdealer.com in the Dealer Resources section.
Virtual Keypad Access
Your customers can operate their alarm system using ipDatatel’s
SecureSmart app via their smartphone or web browser. ipDatatel’s
SecureSmart gives the customer a virtual keypad to their alarm
panel, and provides a quick connection time. SecureSmart is very
useful for quick and convenient arming and disarming as well as
periodic alarm history checks. SecureSmart is compatible with
iPhone and Android platforms, and is free to download at the App
Store or the Google Play Store – Search for “SecureSmart”. The
virtual keypad is also available as a web application on
www.alarmdealer.com that runs from any Internet connected
browser that supports flash.
Alarm Notifications via Text and Email
The BAT-WIFI also provides notifications for alarm, supervisory,
trouble, and open/close signals. Notifications by text and email
identify the alarm system address, alarm signal and zone, and
description.
Universal WiFi BAT Installation Guide (rev 1.0) 7
Computerized Voice Alarm Notifications
ipDatatel also provides an exclusive feature of notifications via
computerized voice for customers who wish a phone call, where
they may not want text or email messages.
Universal WiFi BAT Installation Guide (rev 1.0) 8
Installation Guide
General Considerations
Before installation, your BAT-WIFI must also be setup using the
dealer Branded Portal www.alarmdealer.com.
The BAT-WIFI should be installed securely in the supplied plastic
housing, and be mounted beside your alarm control panel.
Where available, proximity to the hard-wired Ethernet Internet
connection should be taken into consideration when routing
wires.
Choose a location with good reception by monitoring the BAT-
WIFI signal strength LEDs with a pre-wire power up.
The BAT-WIFI must be completely powered down before starting
the wire up.
Programming is simple using the alarm control panel. Written
instructions are included in the “Wiring & Programming” section
of this manual starting on page 12.
AP Configuration Tool QuickStart Guide
An easy to use QuickStart Guide has been designed to make the
BAT WiFi easily join the customer’s WiFi Network. This guide can
be found at:
Connecting to a Wireless Network (AP Configuration Tool)
The BAT-WIFI has an AP Configuration Tool which is designed to
assist with ensuring the BAT-WIFI joins a wireless network easily.
The following steps should be followed:
1. Power up the BAT-WIFI at the alarm panel.
2. Open your smart phone or laptop and search for Wireless
Connections
a. In the list of WiFi connections you should see one
labeled: IPD-CFG-AP-XX-XX-XX. The last six digits
will match the MAC address of your Wifi device. If not,
try moving your BAT-WIFI to a different location for
better reception.
3. Connect to the WIFI Network: IPD CFG-AP-XX-XX-XX
4. After you are connected to your smart phone or laptop. Open a
web browser and type in the following IP Address.
a. 192.168.100.1
5. When you connect to the above IP Address it will launch the AP
Configuration Tool.
Universal WiFi BAT Installation Guide (rev 1.0) 9
6. Next you will click on “Scan for Wireless Networks”. It will
populate the list of all available wireless networks in your area.
7. Find the customers Wireless Network and click on it. If security
credentials are required you will be prompted to enter them.
8. You should now be connected to the customers WIFI Network!
Connecting Wifi to WPS
Press the SW1 button once, you will send the device into WPS
mode. LED 6 will continue to blink as long as it is in this mode.
Refer to your router manual to turn on it’s WPS feature, typically it
is simply pressing a button labeled ‘WPS’. Once the Wifi device
and the router see each other, LED 6 will go solid indicating it has
found a network. You can now press the SW1 twice to see the
signal strength of the unit.
SW1 Button [located on the top left of the board]
There are many uses of the SW1 button and your WiFi device.
You can tap on the button from 1 to 4 times depending on what the
situation is:
1 tap - WiFi will go into WPS mode and search for nearest WiFi in
the area.
2 taps - WiFi will update in signal strength [Device must be paired
to a WiFi]
3 taps - WiFi device will reset and lose connection to any WiFi it
was previously attached to.
4 taps - WiFi device will search for the latest upgrade.
Reset the Wireless Network (AP Configuration Tool)
Locate the button labeled SW1 located on the top left of the board.
When this button is pressed 3 times in a row, it causes the device
to perform a software reset and will allow you to perform the “AP
Configuration Tool” again.
Pre-Installation
Hardware Registration
Before installation of your BAT-WIFI, it must be registered at
www.alarmdealer.com.
Here are the steps needed to register your hardware:
Universal WiFi BAT Installation Guide (rev 1.0) 10
Log in to www.alarmdealer.com with the dealer login information
that was emailed to you.
Navigate to ‘Dealer Menu’->’Hardware Registration’
Enter the MAC address for the board you wish to register
Adding BAT to a Customer Account
After registering the hardware, the BAT-WIFI must be added to a
Customer Account by following these steps:
Log in to alarmdealer.com with the dealer login information that
was emailed to you.
Navigate to ‘Dealer Menu’->’User Accounts’, then click ‘Create
Account’
Fill in the customer information
Click ‘Add Hardware’
Find and select the BAT-WIFI you registered earlier. You can
search for it by MAC address.
Follow other registration steps and options as found on this
page, then click ‘Save’ to complete the registration.
Locating and Installing the BAT-WIFI
The BAT-WIFI connects to the alarm panel’s power connections,
Telco, virtual keypad bus (if available), and key switch connections
(optional).
The BAT-WIFI should be connected to the Internet via a hardwired (RJ45) internet connection located on the lower-right hand
side to the circuit board. If a hard-wired Internet connection is not
available then the (WIFI) connection will be used. The BAT-WIFI
automatically seeks an IP address. There is no need to program
routers or switches.
Telco - Digital Dialer
The BAT-WIFI’s signal collection expects Contact ID format from
the digital dialer on the alarm panel. Most control panels made in
the last decade are CID capable. Wire the Telco side of the alarm
control's Tip & Ring to the BAT-WIFI Tip & Ring.
Virtual Keypad Connection
The BAT-WIFI connects to most panels as a Virtual Keypad,
allowing the customer full virtual keypad access after they
authenticate using the customer username and password you
have assigned them in the pre-installation phase. This allows the
customer to use the SecureSmart mobile phone and web
interfaces. You will need to refer to the wiring diagram for your
Universal WiFi BAT Installation Guide (rev 1.0) 11
specific panel because the panel side the Virtual Keypad
connection has various labels (Data in-Data out, YEL-GRN, or just
Data). This connects to the G/RX, Y/TX connections on the BATWIFI.
Power Connection
The last step is to wire the alarm panel’s 12VDC auxiliary power
and ground to BAT-WIFI positive (pin 3) and negative (pin 4)
terminals. See Wiring Diagram on page 30.
Basic Programming
Because the BAT-WIFI simulates telephone service to the panel,
general programming for the control is limited to configuring the
signal format as Contact ID, as well as inputting a telephone
number to dial. In this case the actual telephone number does
NOT matter and is NOT used in the signal delivery process.
Full Virtual Keypad Programming
For panels that are “Interactive Ready” (See Supported Panels
section page 25) the following programming will give you full virtual
keypad access to where the customer can enter their 4 digit code
to arm & disarm the system, when using SecureSmart mobile and
web interfaces.
DSC Panels: No programming required to make the virtual keypad
operate.
Vista Panels: Enable *193 with (1,0) to turn on Address 20.
Universal WiFi BAT Installation Guide (rev 1.0) 12
Troubleshooting Diagnostic Information
Under normal operation the Activity light will periodically blink. A
power cycle is recommended if the Activity light is not periodically
blinking.
LED – 1 is used for DHCP & Network connection diagnostics:
Solid: Indicates a connection has been made to ipDatatel.
(The unit is Online)
3 Flashes: Indicates the device is not connected to the Internet
or is not pulling a DHCP from the router.
7 Flashes: Indicates the device is still working on “AP
Configuration”, therefore is not connected to a WIFI Network.
LED – 2 is used to indicate Key Bus Connectivity.
LED – 6
Flashing: Indicating it’s searching for a router in WPS Mode.
Solid: Indicates it found a router via WPS Mode.
LEDs – 3 to 6 are used for WIFI Signal Strength, which is updated
on Startup and once every 4 hours.
Validating the Installation
After the unit is properly connected to the Alarm Panel and
powered up, use the following steps to validate that the system is
functioning properly:
Ensure that virtual keypad functionality works through
www.alarmdealer.com, or the SecureSmart mobile app.
Ensure that alarm signals reach your central station.
Wiring & Programming for Popular Panels
The following pages are organized by Alarm Panel type. Wiring
and programming instructions are given for:
Digital Security Control (DSC) Alarm Panels
Honeywell Vista Alarm Panels
GE NetworX Alarm Panels
Universal WiFi BAT Installation Guide (rev 1.0) 13
DSC Panel Wiring and Programming
DSC Keybus & Tip/Ring Wiring
RING
TIP
RE D B
LK
YEL
GR
N
D S C Co
nt
rol
Panel
1
2
3
4 5 6 7 8
9
10
11
12
13
14
15
16
Tip
Ri n g
+ Pos
-N e g
Y /
Tx
G /
Rx
Tx
Rx
B
A
TX
D
RXD
Z1 out
Z2 out
RS-232
RS-485
PC-Link
Power
BAT-WiFi
Universal WiFi BAT Installation Guide (rev 1.0) 14

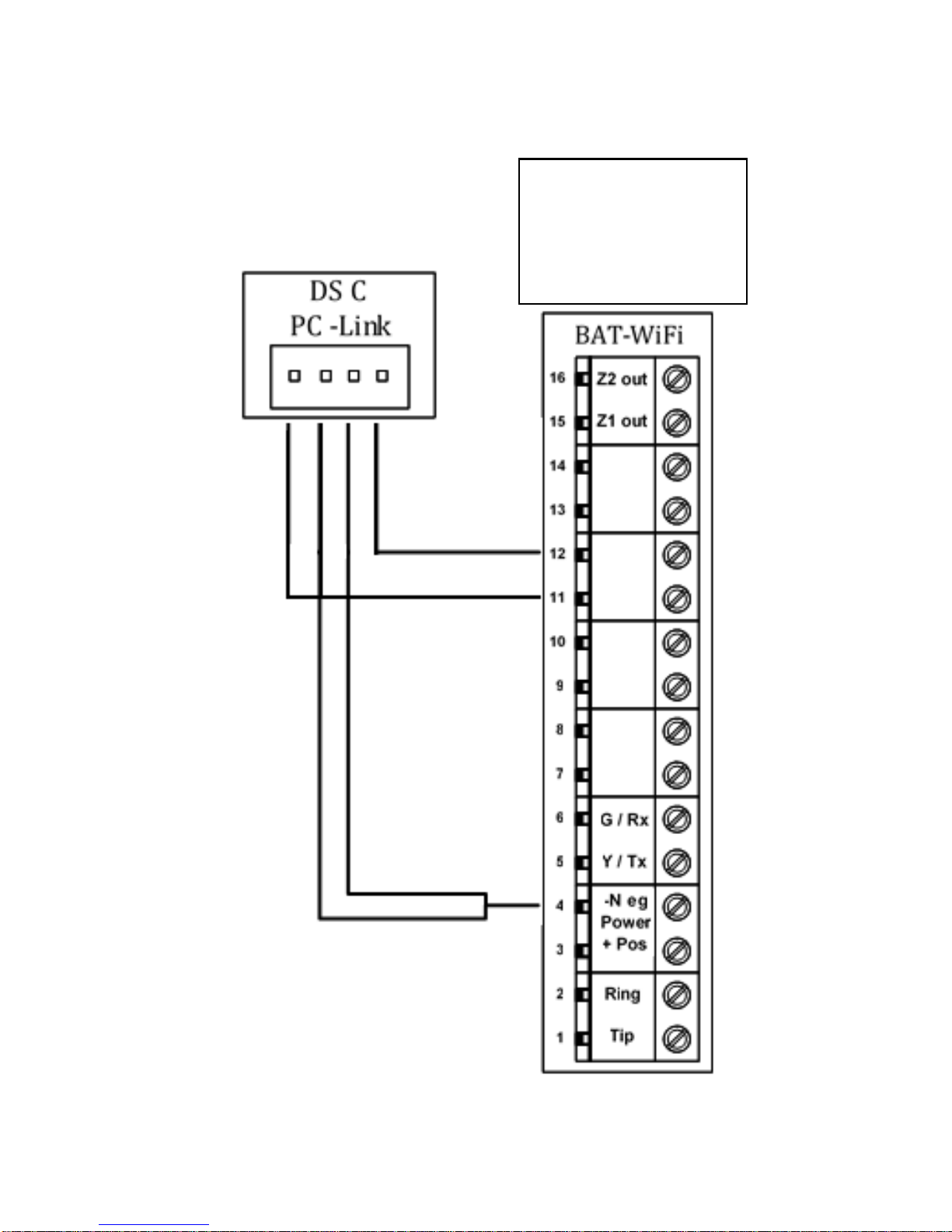

DSC PC-Link connection
This allows for remote downloader functionality with ipDatatel’s
Universal Downloader (uDownloader) software.
DSC PC-Link Wiring
R Wire = Terminal 11
B Wire = Terminal 12
G & W = Terminal 4
Universal WiFi BAT Installation Guide (rev 1.0) 15
DSC Panel Programming
See Supported Panels section on page 25. All Control Panels
must have a Phone Number in the Panel and an Account Number
in the Panel. As long as your Reporting Codes are in the Panel
and is transmitting in Contact ID it will send signals.
Programming when using TELCO (Recommended): General
Concept Programming on DSC (BAT WiFi as Sole
Communicator):
Section
BAT as Sole Communicator
Code Summarization
301
Enter a Receiver Number
310
Enter Account Number
350
Enter ‘03’ to send Contact ID
Panel default is ‘04’, SIA
Note: Ensure All Report Codes are in, and signals can be sent.
Programming ONLY when using PC-Link to send Signals
(Not Recommended): DSC Programming for Communications -
GSM Emulation:
If GSM is used, it must be in dialer capture mode
Secti
on
BAT as
Sole
Communicator
BAT as
Failover w/
Add'l
Communication Device
BAT as Dual
Reporting w/
Add'l
Communication Device
Code
Summarization
015
Disable
Option 7
If GSM, Disable
Option 7
If Phone Line,
Enable Option 7
If GSM, Disable
Option 7
If Phone Line,
Enable Option 7
Option 7 turns on/off
telephone line
supervision.
167
Set ‘060’
Seconds
Set ‘060’
Seconds
Set ‘060’
Seconds
Sets T-Link
acknowledgement
delay to 60 secs.
301
Set 'CAAF'
Set 'CAAF'
Set 'CAAF'
'CAAF' has to be set
for the panel to send
signals to the PCLink
302
N/A
N/A
Set 'Central
Station Receiver
#'
Second telephone
number goes here.
303
N/A
Set 'Central
Station Receiver
#'
Set 'Central
Station Receiver
#'
This section is the
telephone backup of
section 301.
350
Set ‘04’ /
‘04’
Set ‘04’ / ’03 for
Contact ID, 04
for SIA FSK’ **
Set ‘04’ / ’03 for
Contact ID, 04
for SIA FSK’ **
Format sent as
either contact ID
(03), or SIA FSK
(04). The PC-Link /
BAT can ONLY
receive signals via
SIA FSK (04).
Universal WiFi BAT Installation Guide (rev 1.0) 16
Programming ONLY when using PC-Link to send Signals
(Not Recommended):
f GSM is used, it must be in dialer capture mode
Section
BAT as
Sole
Communi
-cator
BAT as
Failover w/
Add'l
Communication
Device
BAT as
Dual
Reporting
w/ Add'l
Communication
Device
Code Summarization
351
Enable
Option 1
Enable
Option 1, 5
Enable
Option 1, 2,
5
Options to turn on/off
alarm/restore for telephone
1 (option 1), telephone 2
(option 2), and alternate
communications (option 5).
359
Enable
Option 1
Enable
Option 1, 5
Enable
Option 1, 2,
5
Options to turn on/off
tamper/restore for
telephone 1 (option 1),
telephone 2 (option 2), and
alternate communications
(option 5).
367
Enable
Option 1
Enable
Option 1, 5
Enable
Option 1, 2,
5
Options to turn on/off
opening/closing for
telephone 1 (option 1),
telephone 2 (option 2), and
alternate communications
(option 5).
375
Enable
Option 1
Enable
Option 1, 5
Enable
Option 1, 2,
5
Options to turn on/off
maintenance for telephone
1 (option 1), telephone 2
(option 2), and alternate
communications (option 5).
376
Enable
Option 1
Enable
Option 1, 5
Enable
Option 1, 2,
5
Options to turn on/off testing
for telephone 1 (option 1),
telephone 2 (option 2), and
alternate communications
(option 5).
380
Enable
Option 1
Enable
Option 1, 5
Enable
Option 1, 5
Option 1 turns on/off
communications. Option 5
turns on/off 3rd phone
number.
381
Disable
Option 3,
Enable
Option 5
Disable
Option 3,
Enable
Option 5, 6
Disable
Option 3,
Enable
Option 5, 6
Option 3 turns on/off code
reporting. Options 5 & 6
turns on/off communication
with phone lines 1/3 & 2
respectively.
382
Enable
Option 5
Enable
Option 5
Enable
Option 5
Option 5 enables/disables
T-Link/PC-Link.
389
Set ‘003’
Seconds
Set ‘003’
Seconds
Set ‘003’
Seconds
The time it will take to
periodically check for faults
on the T-Link/PC-Link.
Universal WiFi BAT Installation Guide (rev 1.0) 17
Vista Panel Wiring and Programming

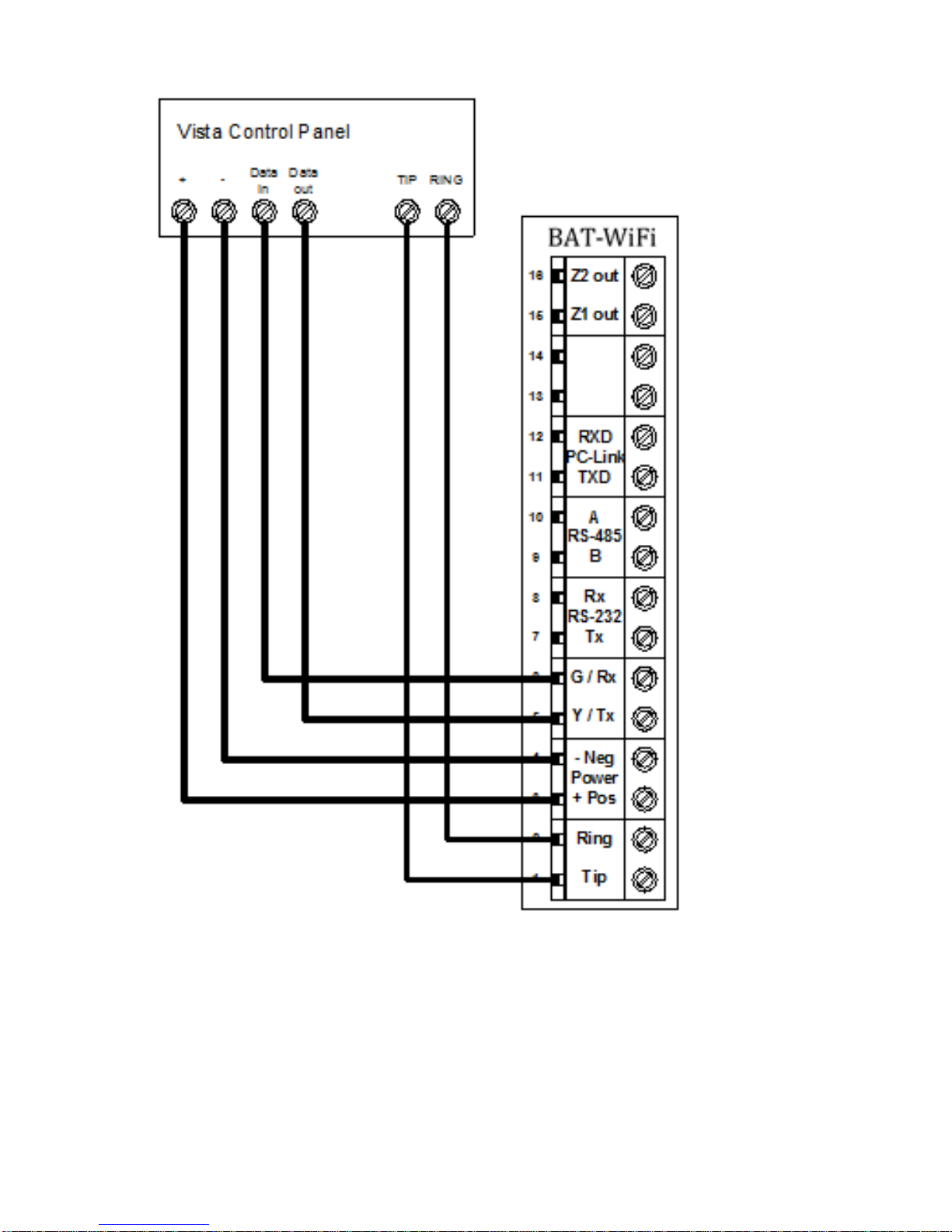

Vista Keybus & Tip/Ring Wiring
Universal WiFi BAT Installation Guide (rev 1.0) 18
Vista Panel Programming
See Supported Panels section on page 25. All Control Panels
must have a Phone Number in the Panel and an Account Number
in the Panel. As long as your Reporting Codes are in the Panel
and is transmitting in Contact ID it will send signals.
Programming when using TELCO (Recommended):
Programming on Vista (BAT WiFi as Sole Communicator):
Section
For BAT as Sole
Communicator
Code Summarization
41
Enter Phone
Number
43
Enter Account
Number
49
Enter 5
For All Communications
to BAT
54
Enter 0
No Delay Between
Communicators
55
Enter 0
Phone Line
Communicates First
65 & 66
Enter 1
If you want
Opening/Closing Reports
193
Enter 1, 0
Enable to turn on
Address 20
Universal WiFi BAT Installation Guide (rev 1.0) 19
Programming when ONLY using Keybus to send Signals
(Not Recommended): Vista Programming for Communications -
GSM Emulation:
See Supported Panels section on page 25 to verify your panel’s
revision number and GSM emulation programming.
Section
For BAT as
Sole
Communicat
or
For BAT in use
with another
Communication
Device for
Failover
For Dual
Reporting
Code
Summarization
*29
Enter 1
Enter 1
Enter 1
This enables GSM.
The BAT Emulates a
GSM.
*42
N/A
Enter Central
Station Receiver
Number
Enter Central
Station Receiver
Number
Secondary Phone
Number
*43
Enter
Account
Number
Enter Account
Number
Enter Account
Number
This is the central
station account
number
*49
Enter 5
Please refer to
panel manual for
your particular
application
requirements
Please refer to
panel manual for
your particular
application
requirements
Dual Reporting;
Setting to 5 sends all
reporting to both
primary and
secondary.
*54
Enter 0
Enter 2
Enter 0
The time it takes for
the communicator to
switch from primary
to secondary.
*55
Enter 1
Enter 1
Enter 1 (BAT is
Primary
Communicator)
Setting to 1 gives
signal priority to
GSM (BAT).
*65
Enter 1
Enter 1
Enter 1
Report Code for
Openings.
*66
Enter 1, 1
Enter 1, 1
Enter 1, 1
Report Code for
Arming in Away and
Stay.
*193
Enter 1, 0
Enter 1, 0
Enter 1, 0
1 turns on/off
keypad address. 0
sets sound to beep.
Universal WiFi BAT Installation Guide (rev 1.0) 20
GE Panel Wiring and Programming

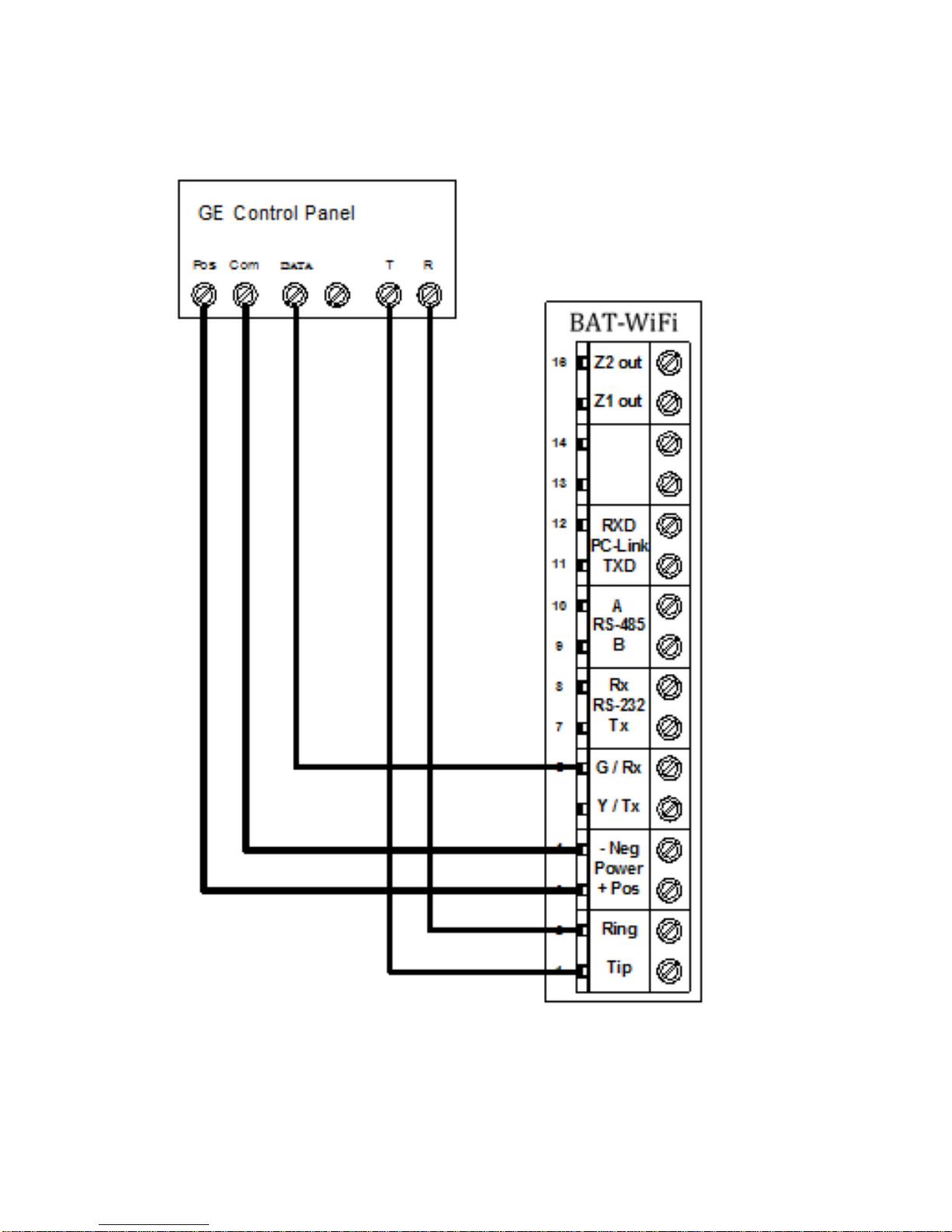

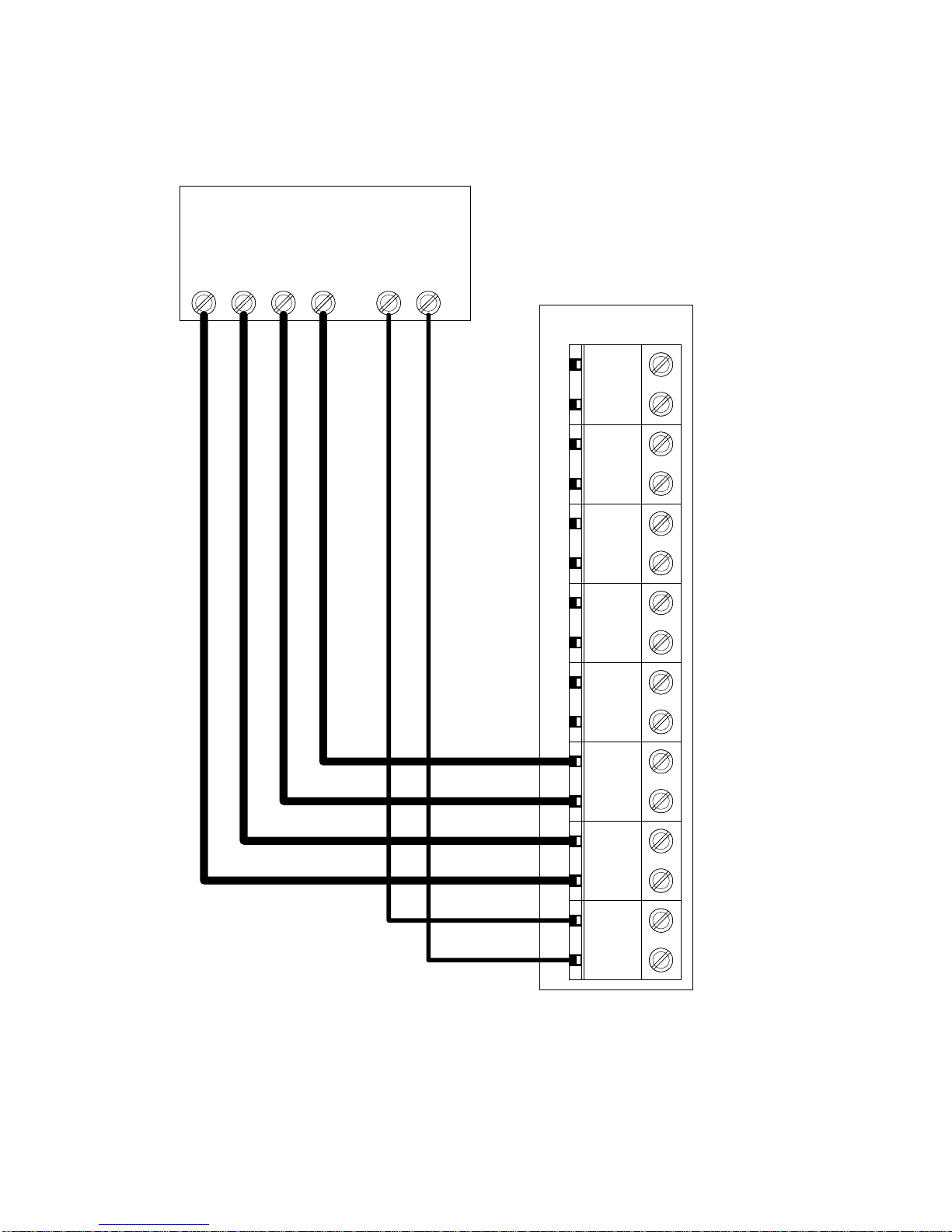

GE Keybus & Tip/Ring Wiring
Universal WiFi BAT Installation Guide (rev 1.0) 21
GE Panel Programming
See Supported Panels section on page 25.
Recommended: General Concept Programming on GE NetworX:
Section
BAT as Sole Communicator
Code Summarization
Device 0,
Location 0
Enter the Phone Number
Device 0,
Location 1
Enter Account Number
Device 0,
Location 2
Enter ‘13’ Recommended
value
Contact ID
Universal WiFi BAT Installation Guide (rev 1.0) 22

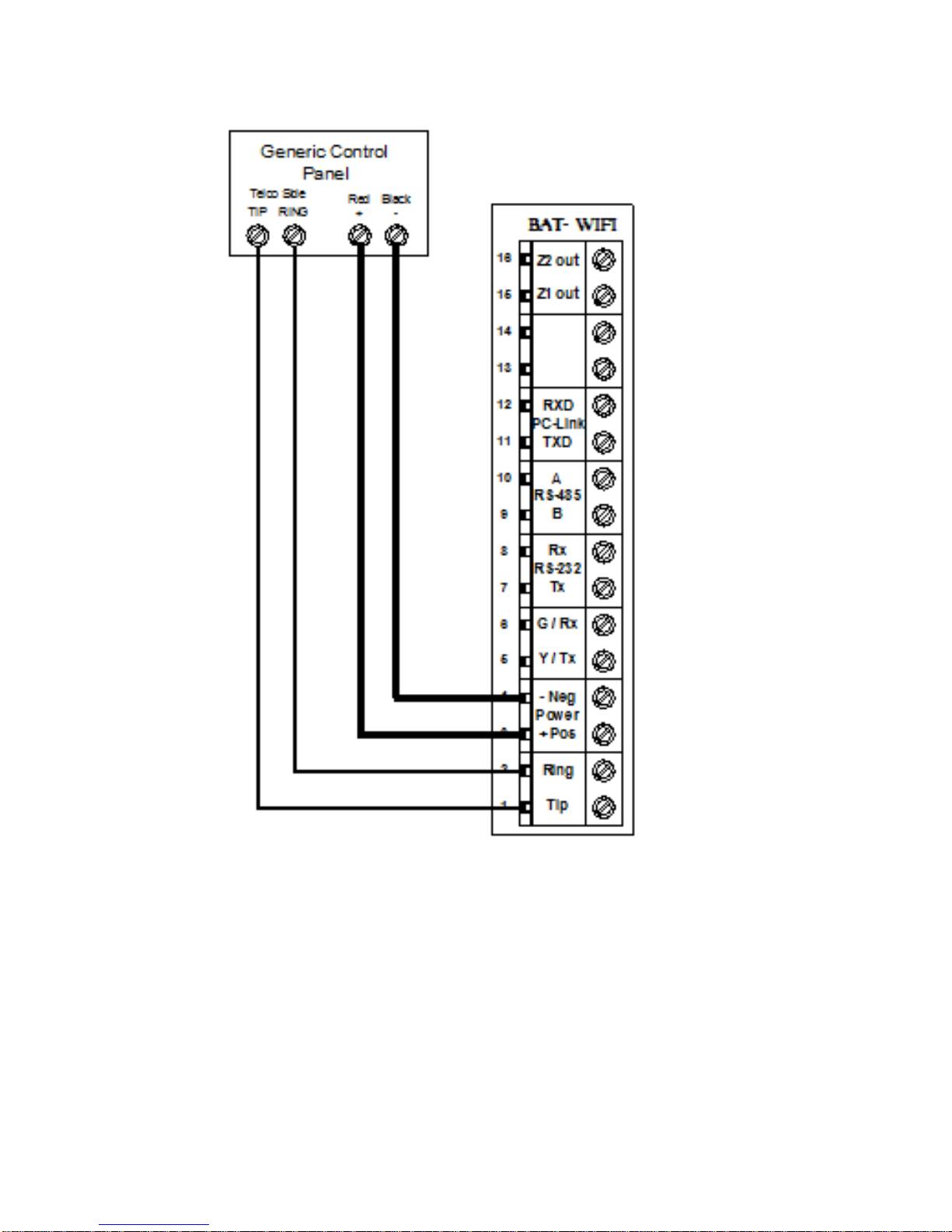

Generic Alarm Panel Wiring and Programming
Generic Keybus & Tip/Ring Wiring
Generic Alarm Panel Programming
Program the panel Phone Number into the panel
Program the Customers Account Number into the panel
Program Reporting codes into the panel
Program panel to transmit in Contact ID format
For interactive (Keyswitch) wiring and programming see the next
section.
Universal WiFi BAT Installation Guide (rev 1.0) 23
Generic Keyswitch Wiring and Programming

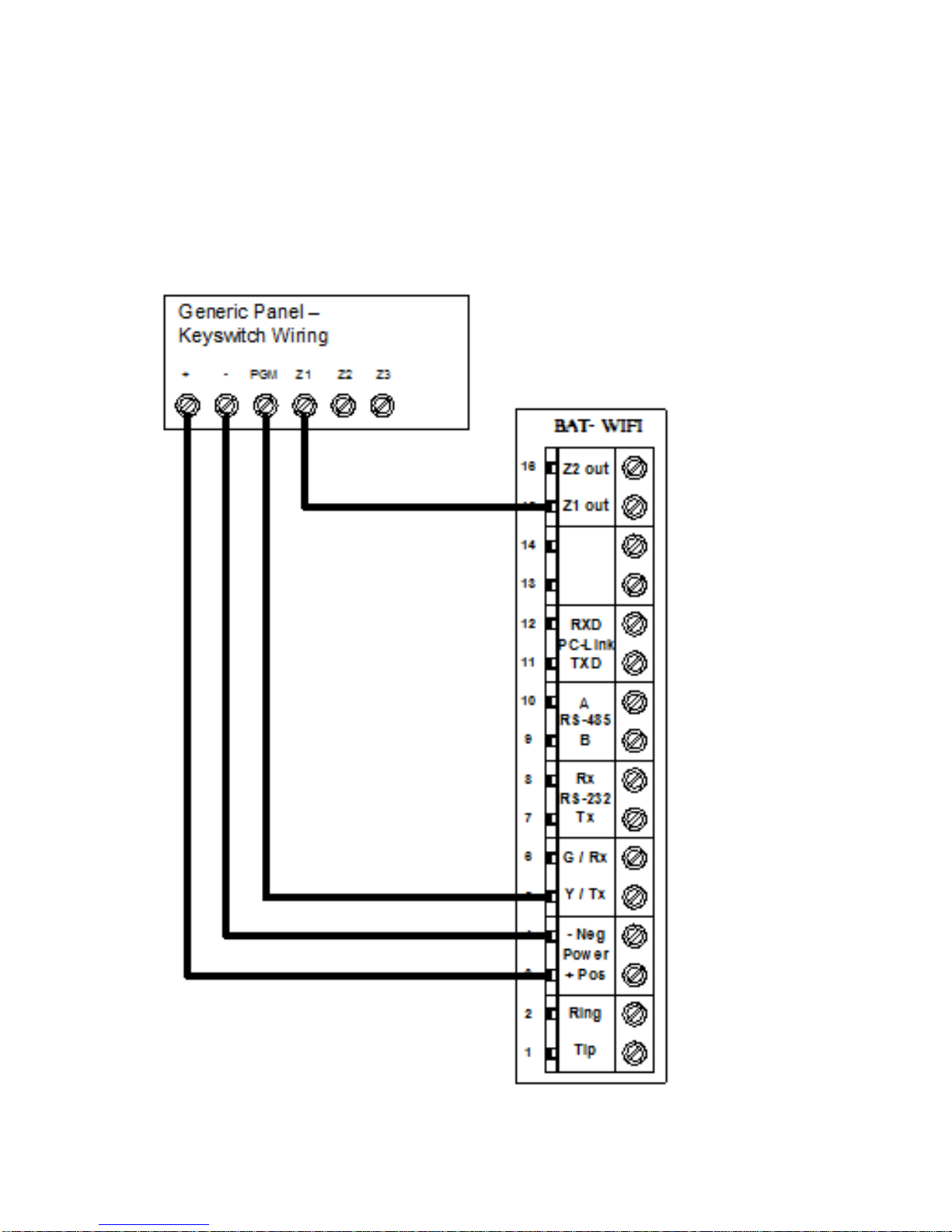

For basic keyswitch interactive services with the BAT WiFi, the
following alarm panel wiring is needed.
A programmable output on the alarm panel will be used to signal
to the BAT (Y/Tx terminal) that the panel has entered
Arm/Disarmed State.
The Z1 output on the BAT WiFi will be used as a key switch
connecting to a ‘zone’ terminal on the alarm panel.
Universal WiFi BAT Installation Guide (rev 1.0) 24
Generic Keyswitch Programming
Keyswitch state programming examples for Ademco, Digital
Security Controls, and GE NetworX for Keyswitch and panel state
program output operations are given below.
Most alarm panel manufacturers will have the capability to
configure a zone as a keyswitch and generally have at least one
on-board programmable output that can be configured to activate
on a number of different control state conditions. Reference the
alarm panel installation manual for details on your specific
installation.
Ademco (Typical)
56 program zone as type 77
80 Menu LED Outs
Program 17 and 18 zone type 78 and 79
DSC PowerSeries (Typical)
Section 001 - Zone must be programmed as a 22.
Section 009 - 05
DSC Alexor (Typical)
Wiring:
Y/Tx -> I/01
G/Rx -> I/02
6.2k ohms resistor from + -> Y/Tx
Programming:
Section 009 - '05'/'22'
Section 013 - Enable 2 & Disable 1
Section 134 - Enable 14 (Press 9, then 6) This makes it normally
closed.
Section 206 - Enable Option 2.
Section 501 - Enable 3
GE NetworX (Typical)
Device ‘0’ Location 25, press * until you reach desired zone
Program zone as '11'
LED Status
Device ‘0’
Location 47 Segment 1: 21
Location 47 Segment 2: 0
Universal WiFi BAT Installation Guide (rev 1.0) 25
Supported Panels
Honeywell
Panel
Revision
Digital
Dialer
Full
Interactive
GSM
Emulator
Vista-10P
2.6+
✓ ✓ ✓
Vista-10PSIA
4.0+
✓ ✓ ✓
Vista-128BP
3.0+
✓ ✓ ✓
Vista-128BPE
1.0+
✓ ✓ ✓
Vista-128FB
1.0+
✓ ✓ ✓
Vista-128FBP
2.0+
✓ ✓ ✓
Vista-128FBPE
1.0+
✓ ✓ ✓
Vista-128SIA
2008+
✓ ✓ ✓
Vista-15
2+
✓ ✓ ✓
Vista-15CN
2.6+
✓ ✓ ✓
Vista-15P
2.6+
✓ ✓ ✓
Vista-15PCN
2.6+
✓ ✓ ✓
Vista-15PSIA
4.0+
✓ ✓ ✓
Vista-20P
2.6+
✓ ✓ ✓
Vista-20PCN
2.6+
✓ ✓ ✓
Vista-20PI
5+
✓ ✓ ✓
Vista-20PS
2.6+
✓ ✓ ✓
Vista-20PSIA
4.0+
✓ ✓ ✓
Vista-21IP
1.0+
✓ ✓ ✓
Vista-21IPSIA
1.0+
✓ ✓ ✓
Vista-32FB
1.0+
✓ ✓ ✓
First Alert FA130
2.6+
✓ ✓ ✓
First Alert FA148
2.6+
✓ ✓ ✓
First Alert FA168
2.6+
✓ ✓ ✓
ADT Safewatch
Pro 3000/3000EN
2.6+
✓ ✓ ✓
Universal WiFi BAT Installation Guide (rev 1.0) 26
DSC (Digital Security Control)
Panel
Revision
Digital
Dialer
Full
Interactive
GSM
Emulator
PC5010
Any
✓
✓* ✗ PC1616
4.13+
✓ ✓ ✓
PC1832
4.13+
✓ ✓ ✓
PC1864
4.13+
✓ ✓ ✓
Alexor
ALL
✓
✗
✗
*Not ALL virtual keypad features may work. Arm/Disarm/System
Status do work.
GE NetworX
Panel
Revision
Digital
Dialer
Full
Interactive
GSM
Emulator
NX-4V2
V2+
✓
✗ ✗ NX-6V2
V2+
✓
✗
✗
NX-8V2
V2+
✓
✗
✗
Note: Any Panel not on the supported lists above should function
properly as long as it transmits Contact ID through Tip & Ring. If
the panel has the ability to use a Dedicated Open Zone that acts
as a Keyswitch you can Arm/Disarm from the Website or Mobile
Phone.
For non-supported panels: Bridge 12 VDC to "Y/TX" Terminal
with any type of radial resistor with a value of 2.7k to 10k as a
weak "pull up".
Universal WiFi BAT Installation Guide (rev 1.0) 27
Warranty Information
LIMITED WARRANTY
ipDatatel, LLC (hereinafter referred to as “Seller”), Located at
13110 Southwest Freeway, Sugar Land Texas 77478, warrants its
product to be in conformance with the product specification, and to
be free from defects in materials and workmanship under normal
use and service for a period of twelve (12) months from the date of
original purchase. Seller’s sole obligation shall be limited to
repairing or replacing, at its option, free of charge for materials or
labor, any product which is proved not to be within Seller’s
specifications of the Product, or proves defective in materials or
workmanship under normal use and service.
Any device purchased which is enclosed within a plastic case must
remain in the plastic case for installation and regular use after
installation. At no point should the device be removed and
mounted without the plastic case, in doing so you may void the
device warranty.
LIMITED LIABILITY
Seller shall have no liability or obligation under this Limited
Warranty or otherwise for merchantability or fitness for any
particular use; nor shall it extend its Limited Warranty, if the
product is altered, or improperly installed, repaired, or serviced.
There are no warranties, express or implied, that extend beyond
those contained within this document. In no case shall Seller be
liable to person or entity for any consequential, or any other basis
of law or liability whatsoever, whether or not such loss or damage
is caused by Seller’s own negligence or fault.
Seller does not represent that the Product may be compromised or
circumvented, or that it will provide the service intended; or that
the Product will prevent any personal injury or property loss by
burglary, robbery, or otherwise; or that the Product in all cases will
provide adequate warning or detection.
Customer understands that a properly installed and maintained
alarm system may only reduce the risk of burglary, robbery, or
other such events occurring without providing an alarm, but is not
insurance or guarantee that such will not occur or that there will be
no personal injury or property loss as a result.
Universal WiFi BAT Installation Guide (rev 1.0) 28
Consequently, Seller shall have no liability for any personal injury,
property damage or any other loss based on a claim that the
Product or services there from, failed to give warning. However, if
seller is held liable, directly or indirectly, for any loss or damage
arising under this Limited Warranty or otherwise regardless of
cause or origin, Seller maximum liability shall not in any case
exceed the purchase price of the Product, which shall be the
complete and exclusive remedy against Seller.
This Limited Warranty replaces any previous warranty, and is the
only warranty made by Seller for this Product. No increase or
alteration, written or verbal.
FCC and Industry Canada Regulatory
Compliance
FCC Warning / IC Statement
This device complies with Part 15 of the FCC Rules and with
ICES-003, Issue 4 of Industry Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Universal WiFi BAT Installation Guide (rev 1.0) 29
Canada Avertissement de la FCC / IC Déclaration
Cet appareil est conforme à la Partie 15 des règlements de la FCC
et ICES-003, 4 e édition d'Industrie Canada. Son fonctionnement
est soumis aux deux conditions suivantes:
(1) Cet appareil ne doit pas causer d'interférences nuisibles et
(2) Cet appareil doit accepter toute interférence reçue, y compris
les interférences qui peuvent perturber le fonctionnement.
Note: Cet équipement a été testé et trouvé conforme aux limites
pour un dispositif numérique de classe B, conformément à la
Partie 15 des règlements de la FCC. Ces limites sont conçues
pour fournir une protection raisonnable contre les interférences
nuisibles dans une installation résidentielle. Cet équipement
génère, utilise et peut émettre des fréquences radio et, s'il n'est
pas installé et utilise en conformité avec les instructions, peut
causer des interférences nuisibles aux communications radio.
Cependant, il n'existe aucune garantie que des interférences ne se
produiront pas dans une installation particulière. Si cet équipement
provoque des interférences nuisibles à la réception radio ou de
télévision, qui peut être déterminé en mettant l'équipement hors
tension, l'utilisateur est encouragé à essayer de corriger
l'interférence par un ou plusieurs des mesures suivantes:
• Réorienter ou déplacer l'antenne de réception.
• Augmenter la distance entre l'équipement et le récepteur.
• Branchez l'appareil dans une prise sur un circuit différent de celui
auquel le récepteur est connecté.
• Consulter le revendeur ou un technicien radio / TV.
Universal WiFi BAT Installation Guide (rev 1.0) 30

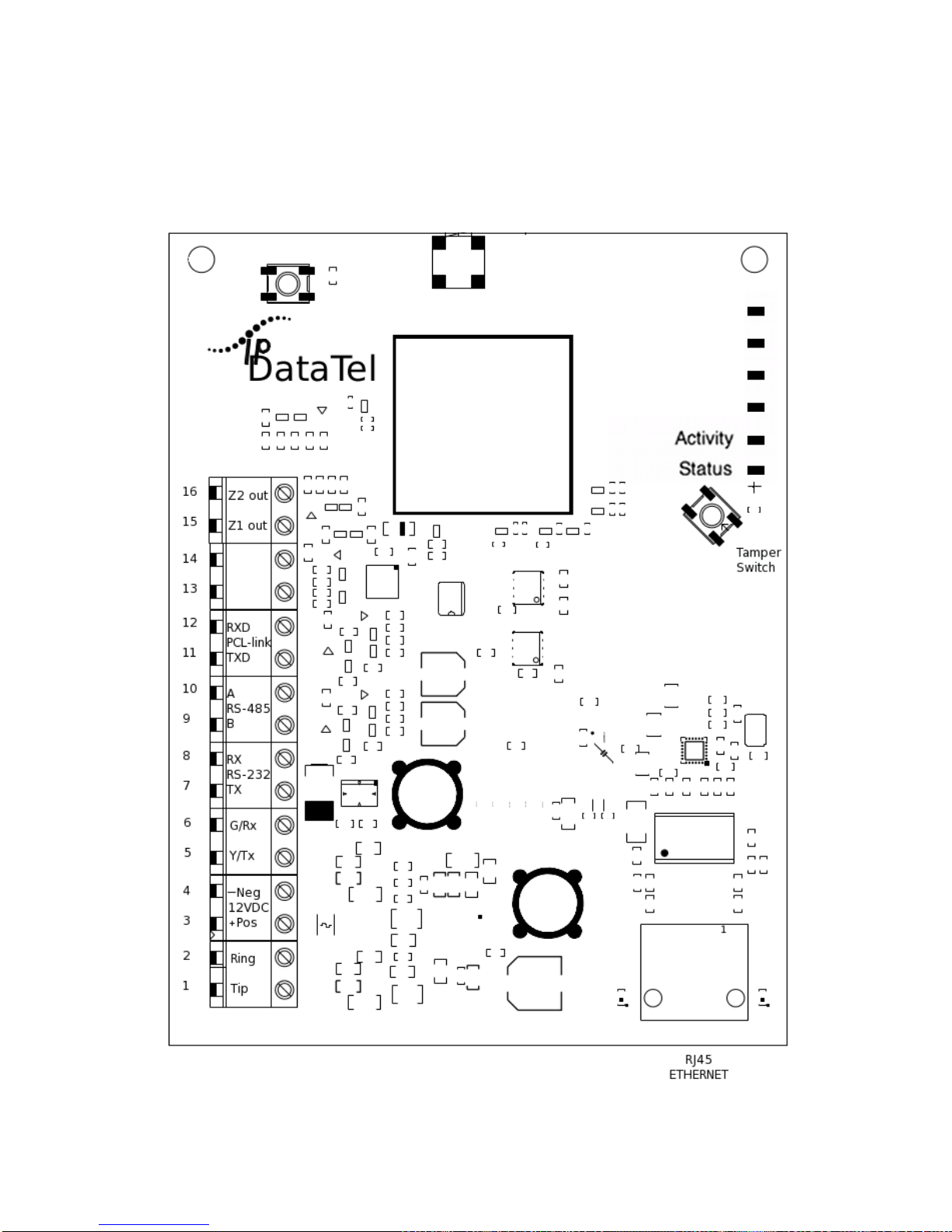

Universal WiFi BAT Circuit Board Detail
Universal WiFi BAT Installation Guide (rev 1.0) 31
Specifications
Frequency:
WiFi 802.11bg(mixed mode)
Power:
Externally provided 12v DC
Typical Current 130 mA
Max Current 185mA
Environmental:
Temperature Range - 30° to +70° C (- 22° to +158° F)
Humidity 0 to 95% non-condensing
Physical:
Height 7.05 inches
Width 4.45 inches
Depth 1.5 inches
Security Protocols Supported:
WPA
WPAII
WEP
Go to www.ipDatatel.com to view on-line installation videos.
ipDatatel, LLC
13110 Southwest Freeway
Sugar Land, TX 77478
Toll Free: 866-896-1818
www.ipDatatel.com
9/13
Loading...
