IP-COM W75AP User Manual
802.11n lndoor Wireless Access Point
1
Copyright Statement
is the registered trademark of IP-COM Networks, Inc. All the products and product names
mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of
the whole product as integration, including its accessories and software, belongs to IP-COM Networks,
Inc. No part of this publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any means without the prior written permission of IP-COM
Networks, Inc. If you would like to know more about our product information, please visit our website at
www.ip-com.com.cn.
802.11n lndoor Wireless Access Point
2
Disclaimer of Warranties
Pictures, images and product specifications herein are for references only. To improve internal design,
operational function, and/or reliability, IP-COM reserves the right to make changes to the products
described in this document without obligation to notify any person or organization of such revisions or
changes. IP-COM does not assume any liability that may occur due to the use or application of, the
product or circuit layout(s) described herein. Every effort has been made in the preparation of this
document to ensure accuracy of the contents, but all statements, information and recommendations in
this document do not constitute the warranty of any kind, express or implied.
802.11n lndoor Wireless Access Point
I
Contents
Chapter 1 Product Overview ............................................................................................................................ 2
1.1 Product Features ....................................................................................................................................... 2
1.2 Package Contents...................................................................................................................................... 2
1.3 LEDs and Interfaces .................................................................................................................................. 3
Chapter 2 Installation ........................................................................................................................................ 4
Chapter 3 Configuration Guidelines ................................................................................................................ 5
3.1 IP Configuration ......................................................................................................................................... 5
3.2 Web Login .................................................................................................................................................. 5
3.2 Status ......................................................................................................................................................... 5
3.2.1 System Status ..................................................................................................................................... 5
3.2.2 Wireless Status ................................................................................................................................... 6
3.2.3 Traffic Statistics ................................................................................................................................... 6
3.2.4 Wireless Clients .................................................................................................................................. 7
3.3 Network ...................................................................................................................................................... 8
3.3.1 LAN Settings ....................................................................................................................................... 8
3.4 Wireless ..................................................................................................................................................... 8

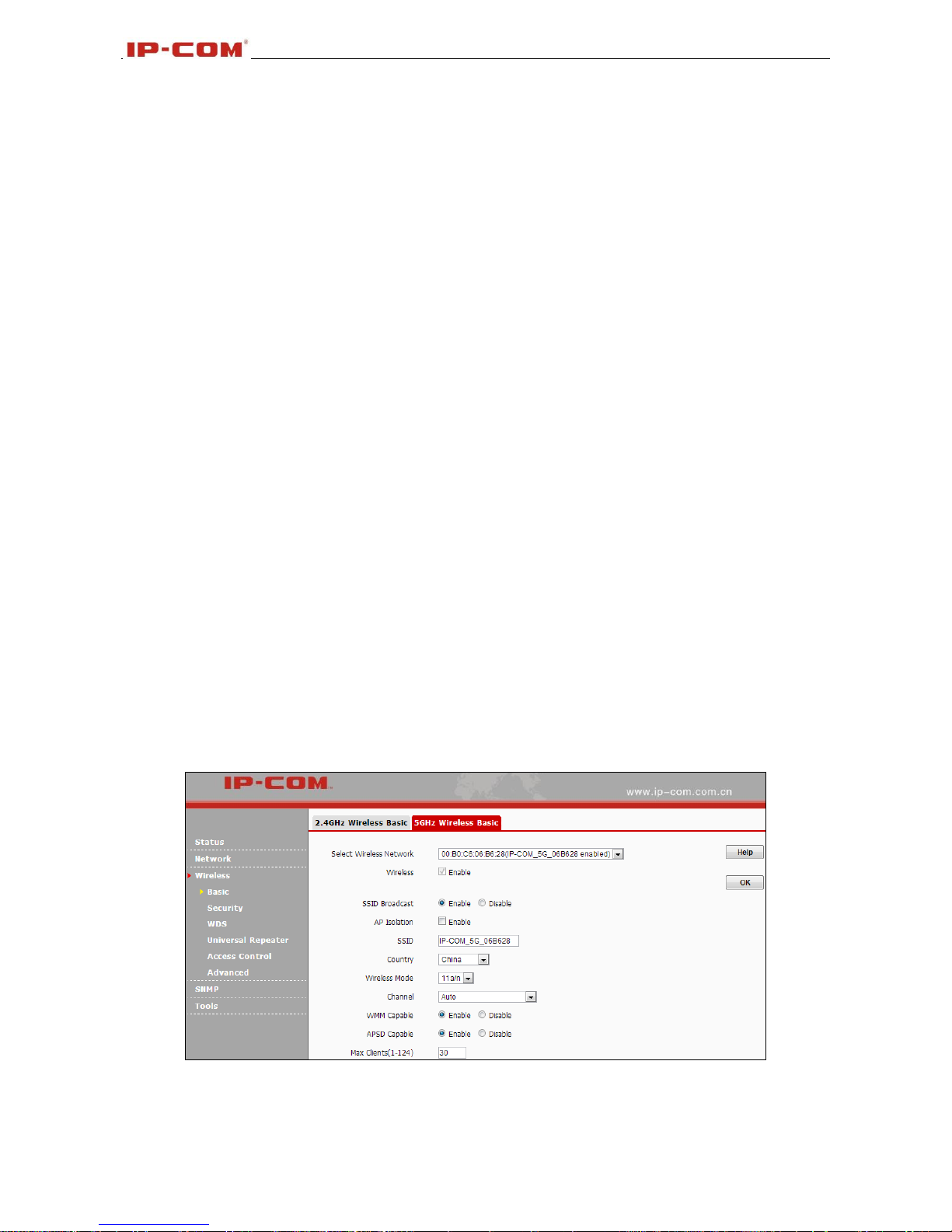

3.4.1 Basic ................................................................................................................................................... 8

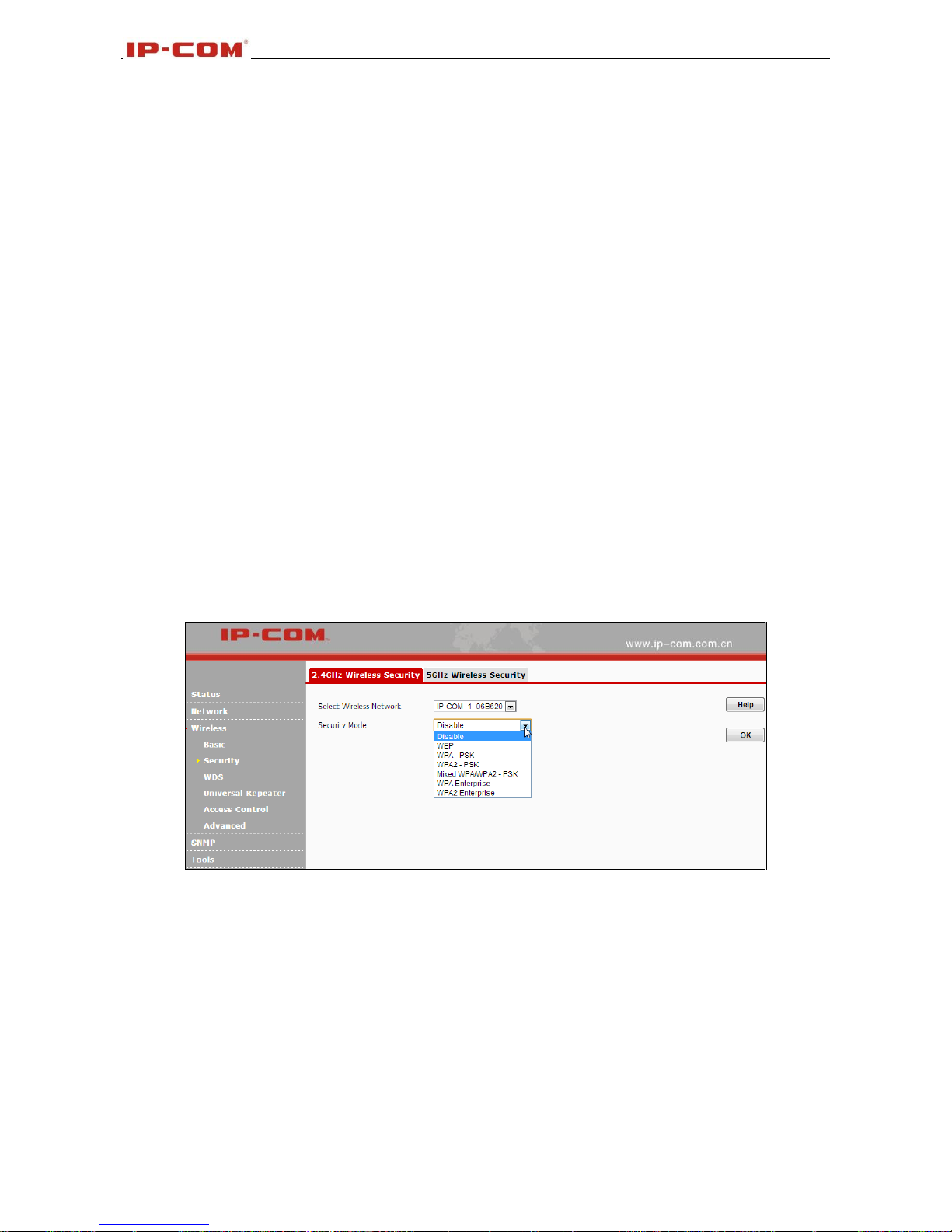

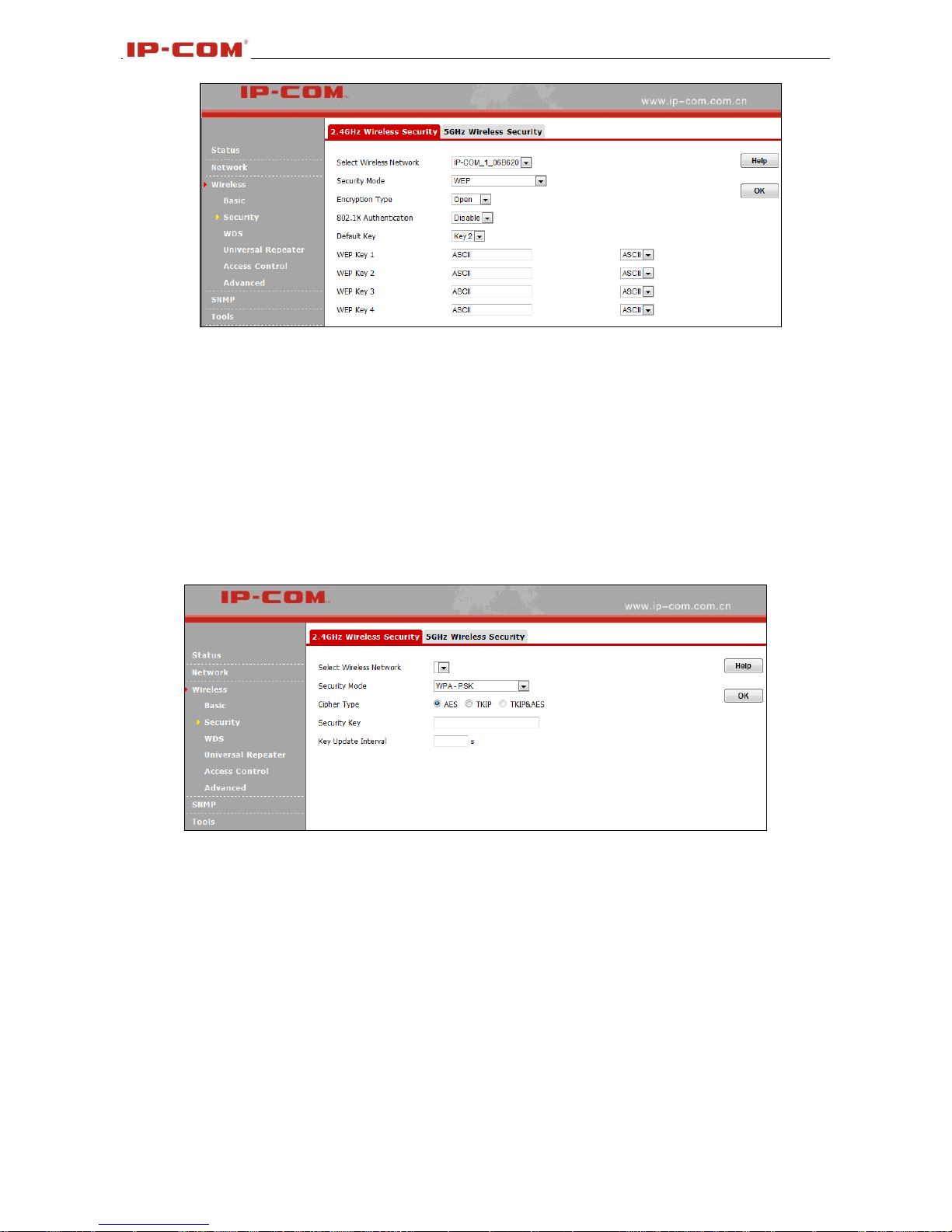

3.4.2 Security ............................................................................................................................................. 10

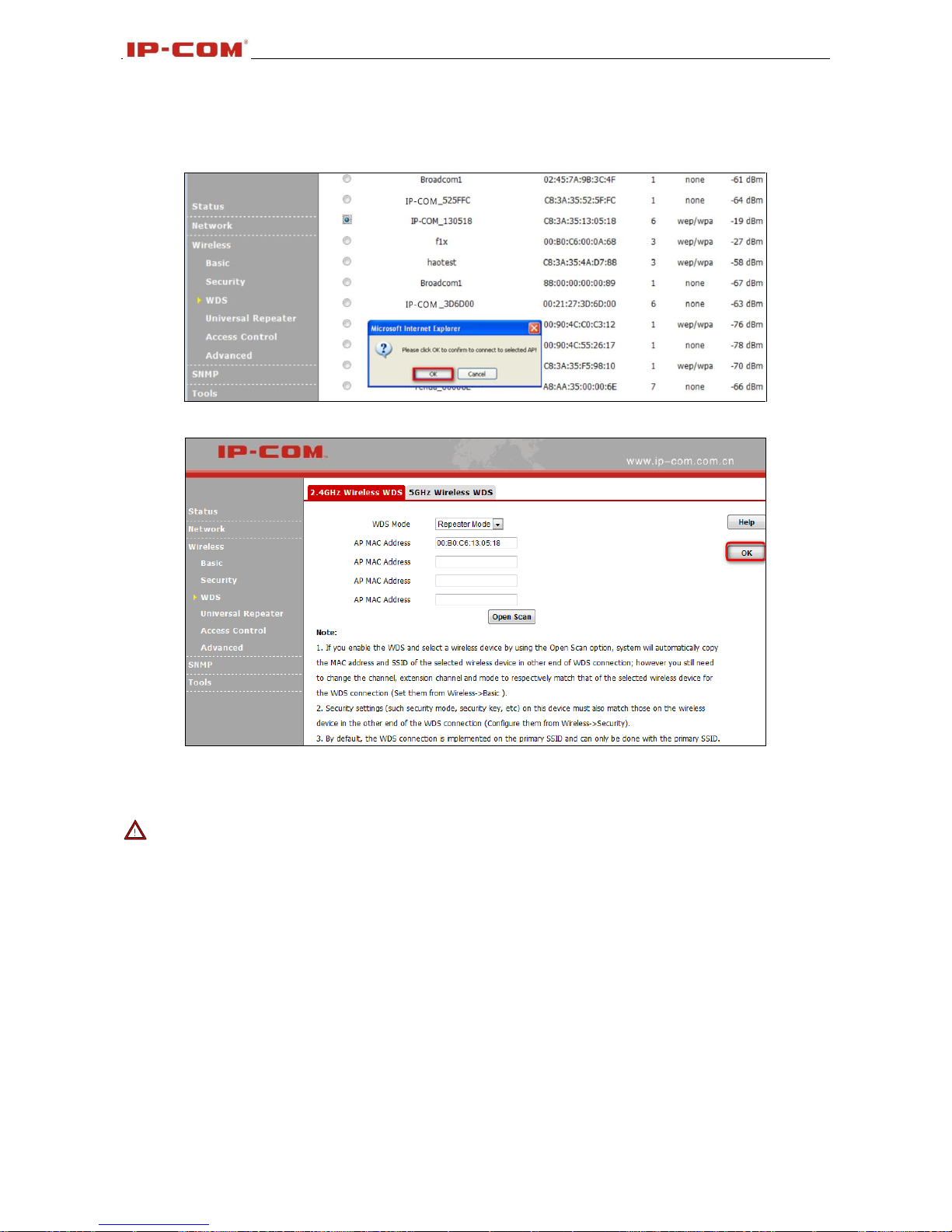

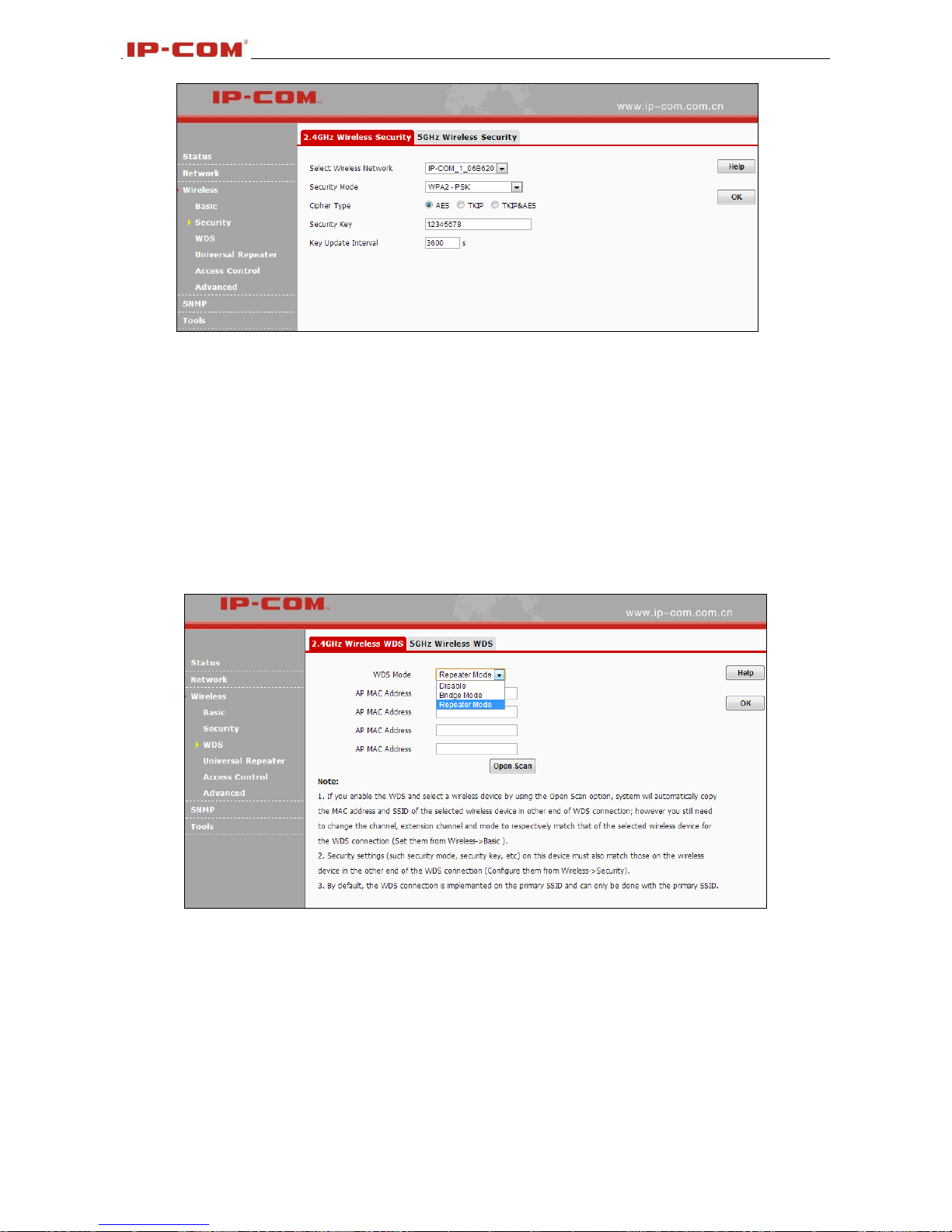

3.4.3 WDS .................................................................................................................................................. 12

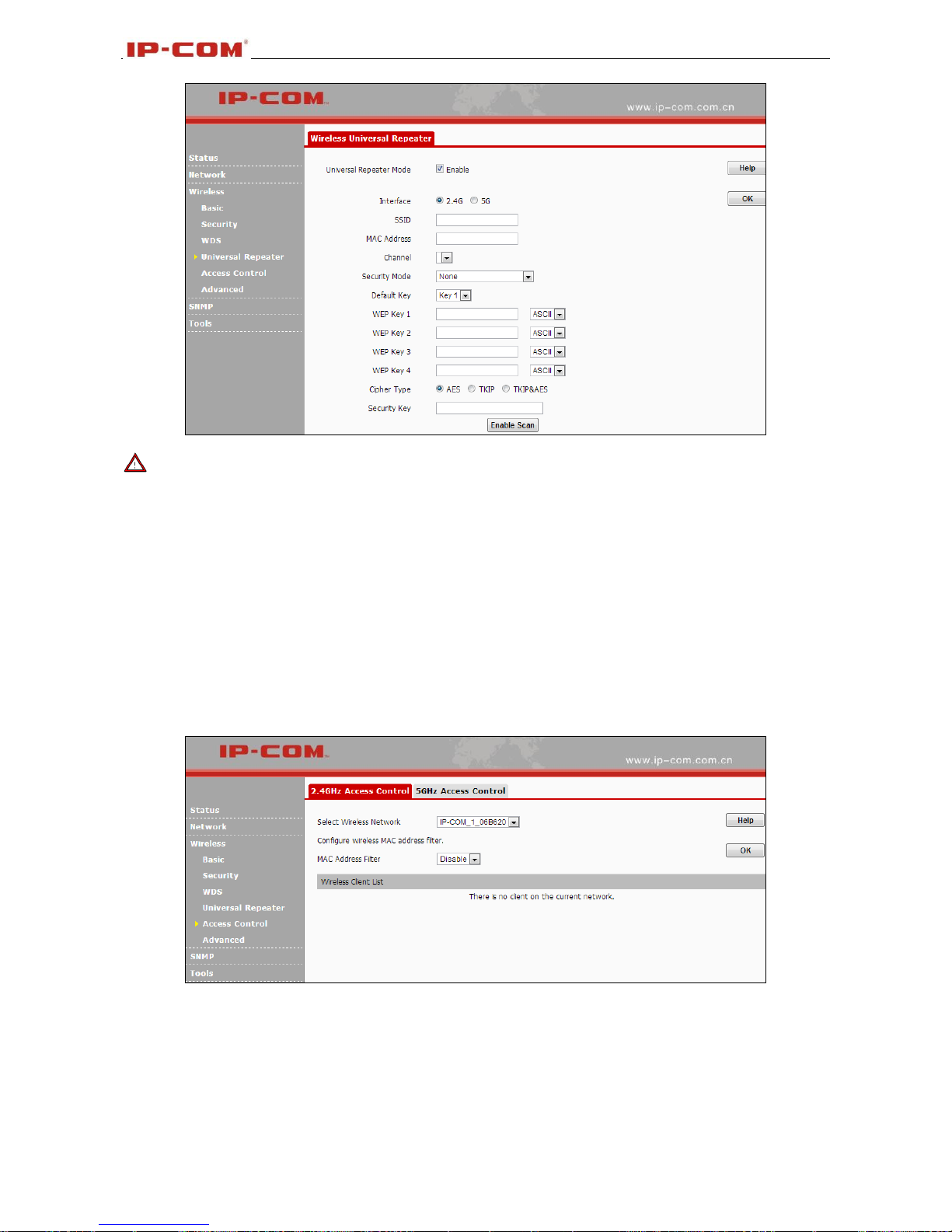

3.4.4 Universal Repeater ........................................................................................................................... 13
3.4.5 Access Control .................................................................................................................................. 14

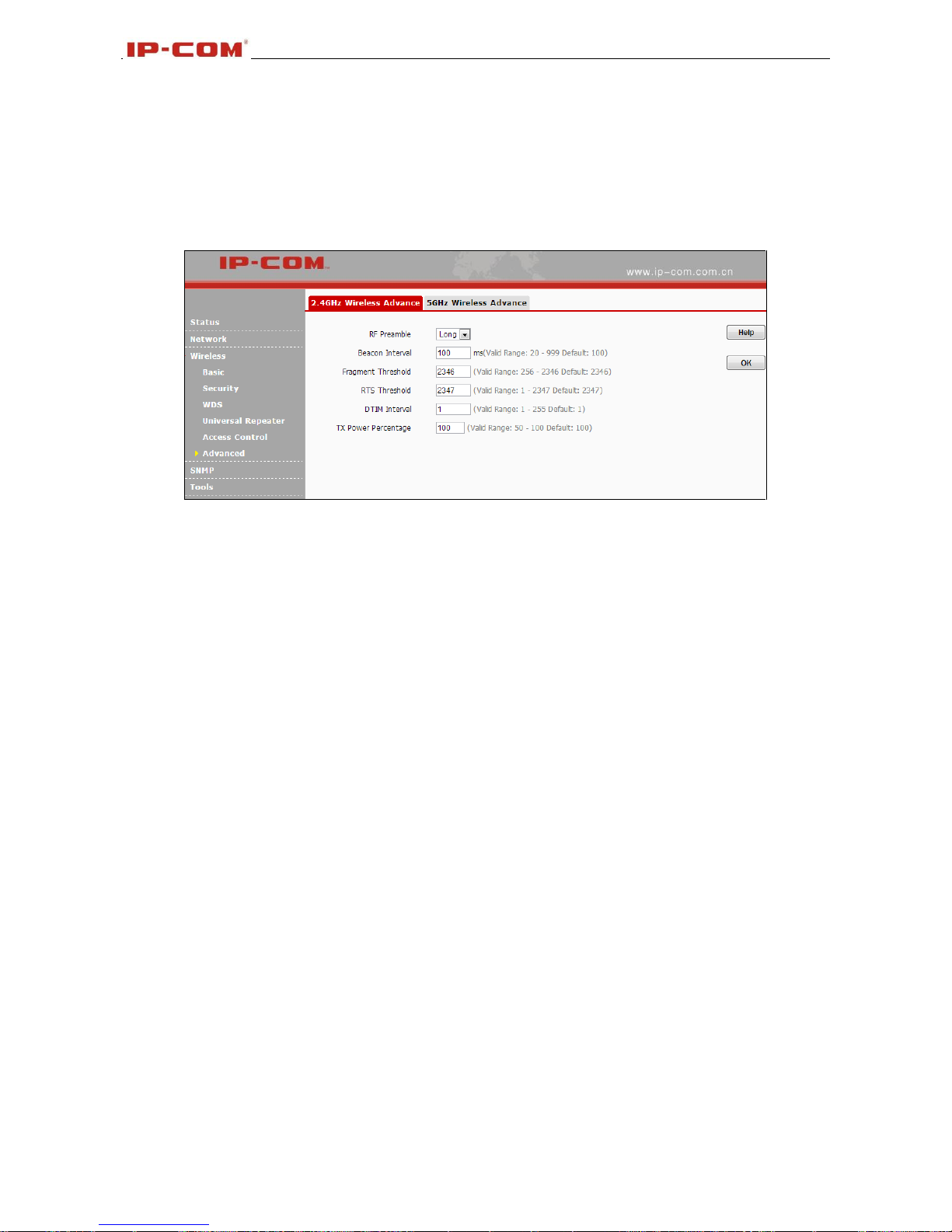

3.4.6Advanced ........................................................................................................................................... 15

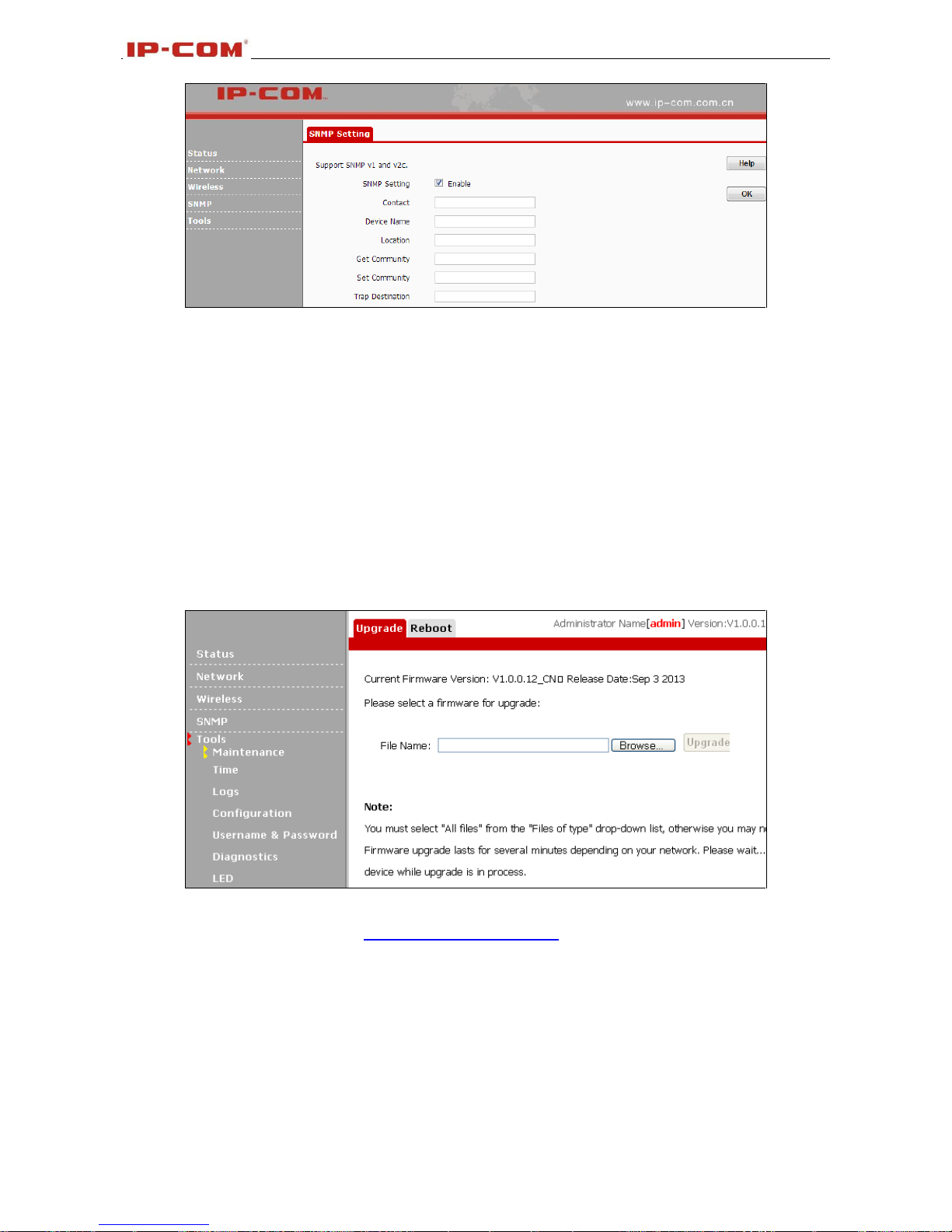

3.5 SNMP ....................................................................................................................................................... 15
3.6 Tools ......................................................................................................................................................... 16

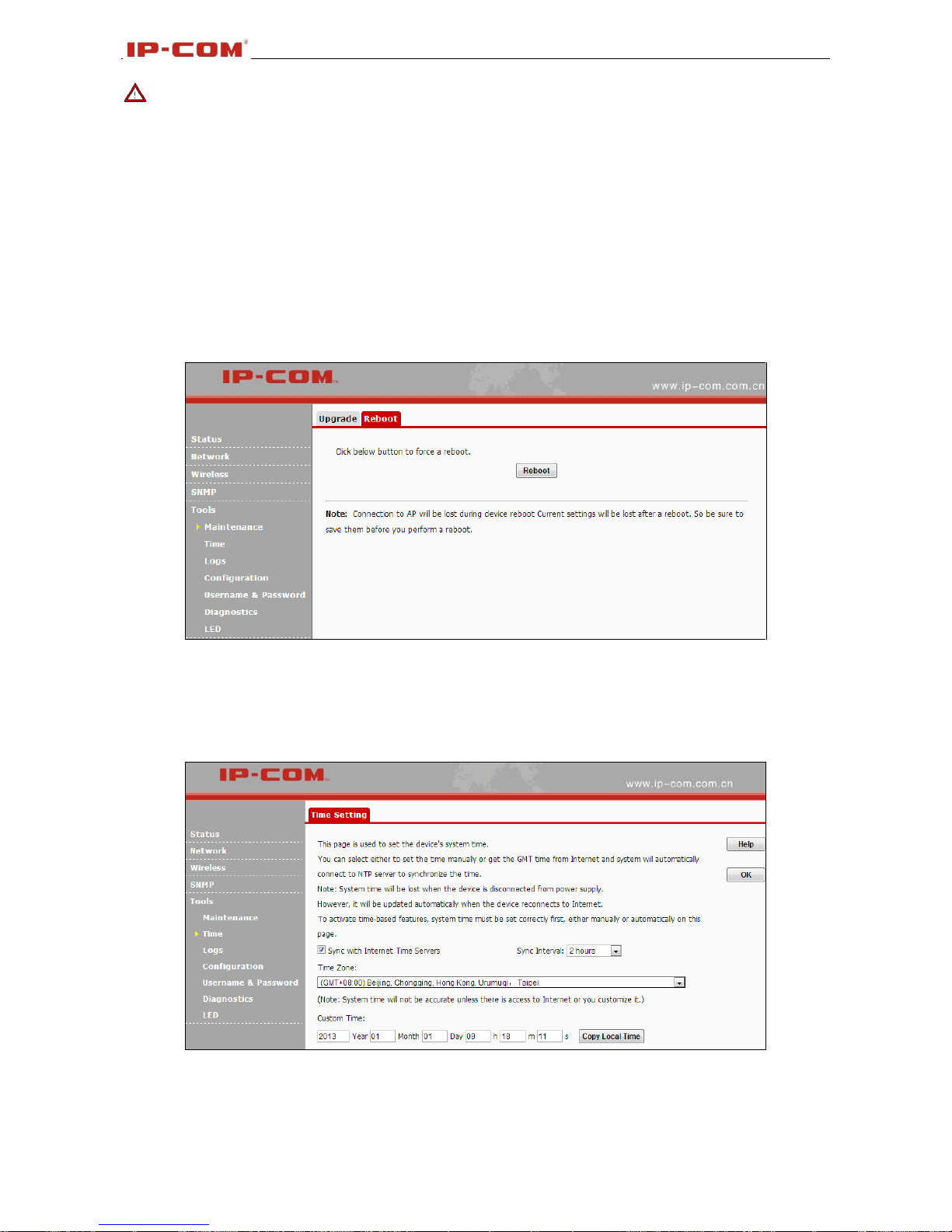

3.6.1 Maintenance...................................................................................................................................... 16
3.6.2 Time .................................................................................................................................................. 17
3.6.3 Logs .................................................................................................................................................. 18
3.6.4 Configuration ..................................................................................................................................... 18
3.6.5 User Name & Password .................................................................................................................... 19
3.8.6 Diagnostics ........................................................................................................................................ 20
3.8.7 LED ................................................................................................................................................... 20
Appendix 1 Glossary ....................................................................................................................................... 21
Appendix 2 Configure PC ............................................................................................................................... 22

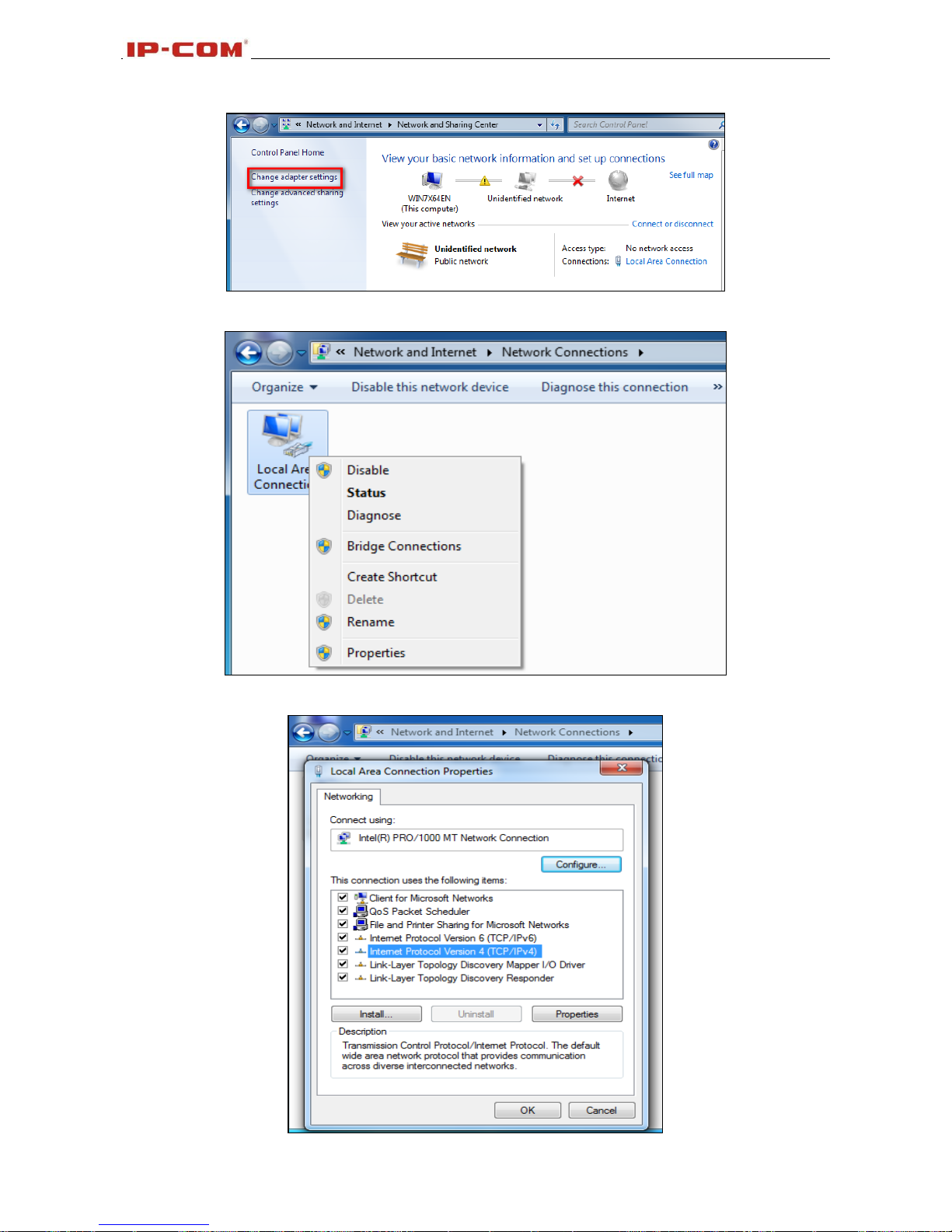

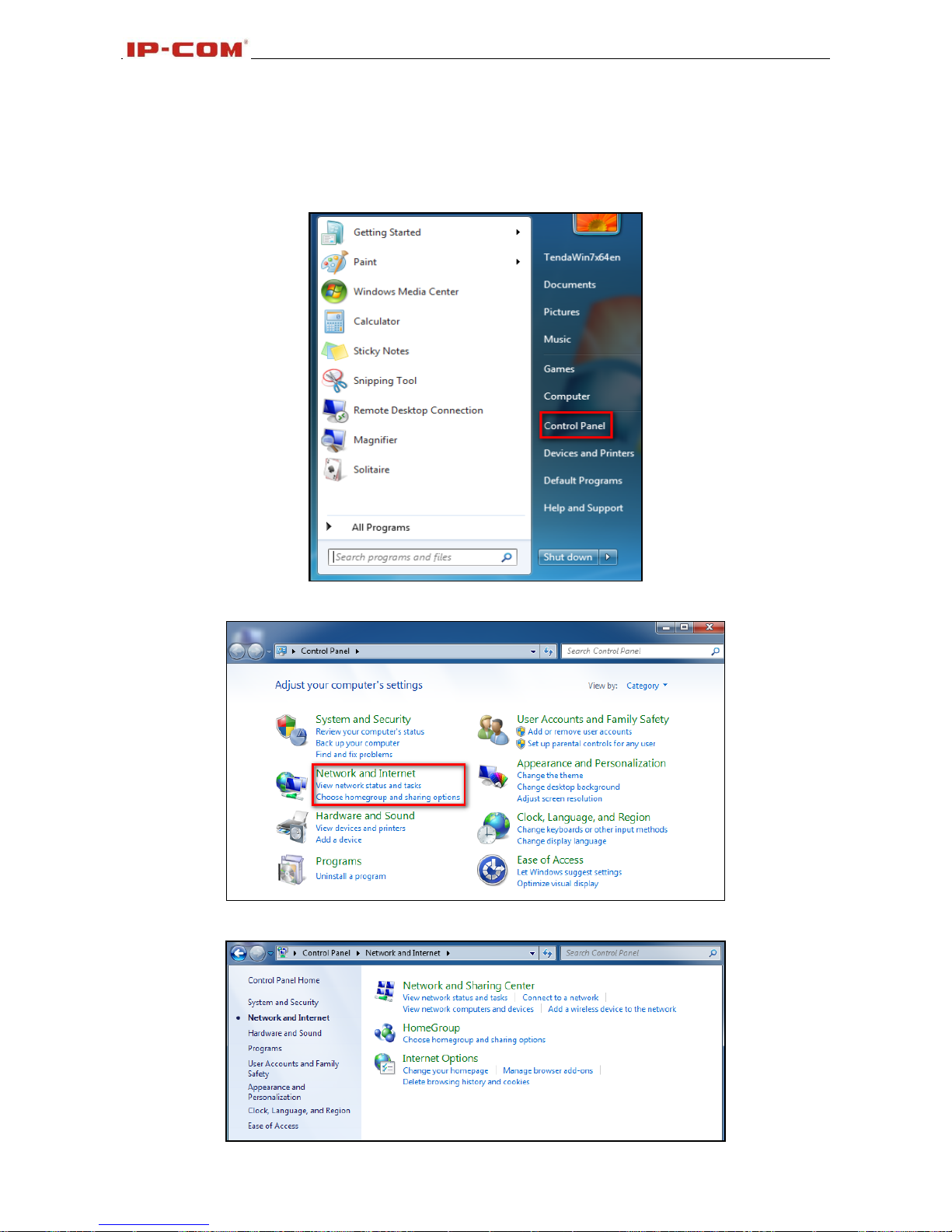

WIN7 OS Configuration ............................................................................................................................... 22

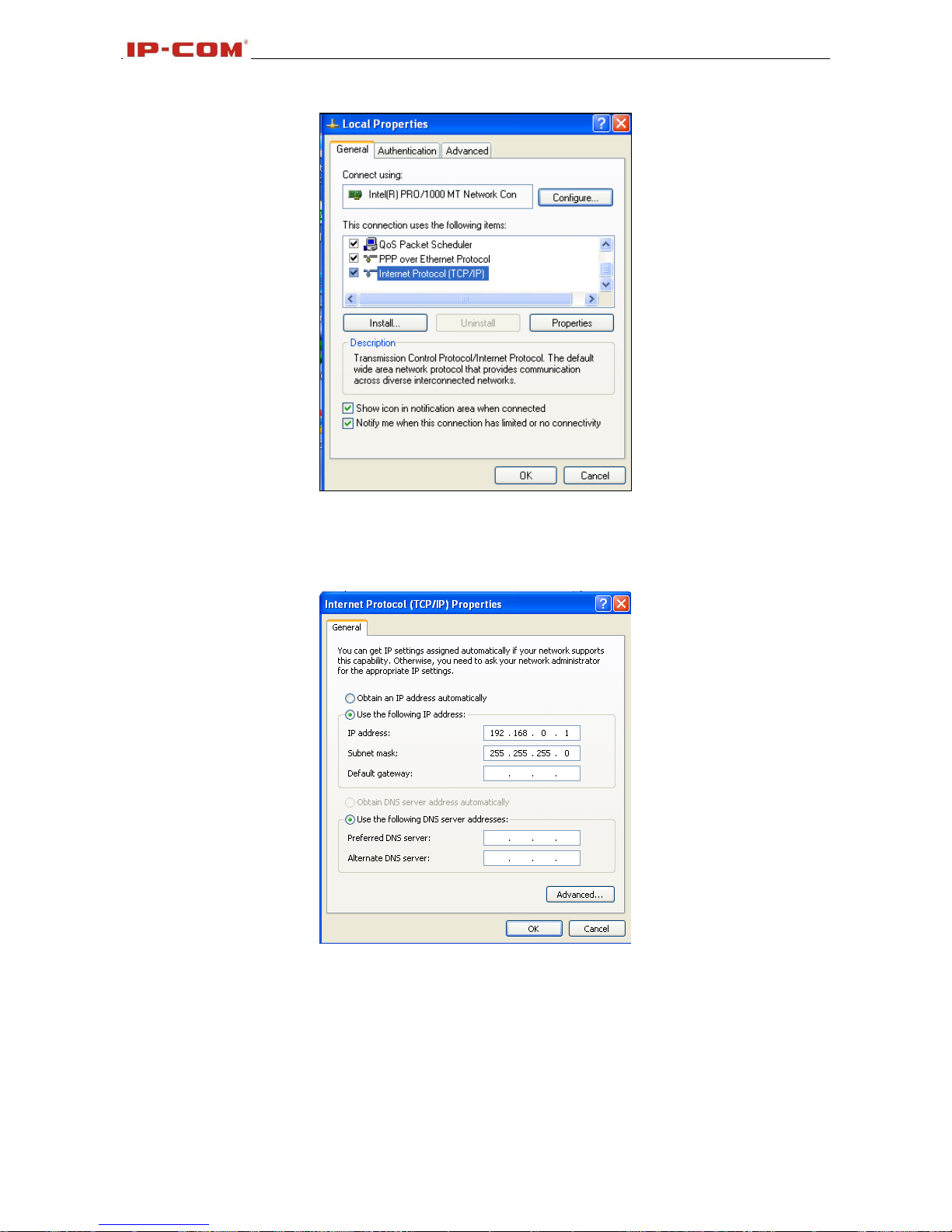

Windows XP OS Configuration .................................................................................................................. 24
Appendix 3 Safety and Emission Statement ................................................................................................. 26
802.11n lndoor Wireless Access Point
2
Chapter 1 Product Overview
The Wireless AP is a best-in-class 802.11n indoor access point designed specifically for wireless
projects. With suspension installation and existed structure, the device saves time and costs. Versatile
and powerful, the Wireless AP offers multiple security modes and supports 802.11n and 802.3at PoE
power supply, which makes your data transmission safe. Plus, the provided unified management utility
based on X86 allows network administrators to centrally manage IP addresses, SSID and security
settings, etc. of APs on LAN, thus enabling a highly manageable and extremely robust wireless network.
1.1 Product Features
Supports IEEE802.11n, IEEE802.11g，IEEE 802.11b and IEEE802.11a；
1000M Ethernet port for wired LAN connection;
PoE Port for connecting to power supply or connecting to IEEE802.3at PoE_PSE switch;
One RJ-45 10/100/1000 IEEE802.3ab、IEEE802.3u、IEEE802.3 auto-sensing Gigabit port for data
transmission or power supply;
Wireless rates of up to 450Mbps;
Unified Management allows network administrators to centrally manage APs on LAN;
Supports IP address, wireless SSID, device name, channel, wireless security and domain
diagnostics;
WEP, WPA-PSK, WPA2-PSK and WPA-PSK/WPA2-PSK encryptions secure wireless network
against unauthorized accesses;
Can be configured to select an optimum channel for device to operate on;
Can be configured to adjust transmitting power;
Supports AP and WDS mode.
1.2 Package Contents
Please verify that the package contains the following items:
Wireless AP
Power Adapter
PoE Injector
4 screws
Ethernet Cable
Bracket
Resource CD
Quick Installation Guide
If any of the above items are incorrect, missing, or damaged, please contact your reseller for immediate
replacement.
802.11n lndoor Wireless Access Point
3
1.3 LEDs and Interfaces
Side Panel:
Power
Solid: Receiving electrical power;
Blinking: Functioning properly;
Off: Receiving no electrical power or LED is disabled manually.
2.4GHz, 5GHz
Solid: Wi-Fi is enabled;
Blinking: Transferring data;
Back Panel:
RESET
Restores the device to the factory default settings when pushed and held for 7 seconds (This button has
been hidden by the bracket of this device. Before pressing this button, you should remove the bracket.).
PoE
PoE Port for connecting to power supply or connecting to IEEE802.3at switch;
LAN
1000M Ethernet Port for connecting to an Ethernet LAN device such as a PC or switch, etc.
802.11n lndoor Wireless Access Point
4
Chapter 2 Installation
Installation procedures:
1. Connecting the Ethernet cable to the PoE port on this device.
2. Connecting the injector to the power adapter.
3. Connecting the PoE port of the injector to the PoE port on this device with Ethernet cable.
4. Connecting the LAN port of the injector to the switch.
5. Hang the AP:
⑴ Install the bracket onto the ceiling.
⑵ Fix the AP onto the bracket.
The network topology is shown below:
802.11n lndoor Wireless Access Point
5
Chapter 3 Configuration Guidelines
3.1 IP Configuration
The default IP address of your wireless access point is 192.168.0.254. If you are using the default IP
subnet, the computer you are using to connect to the device should be configured with an IP address
that starts with 192.168.0.x (where x can be any number between 1~253) and a Subnet Mask of
255.255.255.0; if you have changed the subnet of the wireless access point, the computer you are using
to connect must be within the same subnet. If you are not clear about this configuration, please refer to
Appendix 2: Configure PC.
3.2 Web Login
To connect to the Wireless AP using the defaults IP address:
1. Open a Web browser.
2. Enter 192.168.0.254 into your browser.
3. Enter the default User Name admin and default Password admin into the login window.
4. Click Login and your Web browser shall automatically display the home page.
3.2 Status
3.2.1 System Status
This screen displays this device’s current system status.
802.11n lndoor Wireless Access Point
6
1. Device Name: Displays this device’s name.
2. System Time: Displays system’s current time.
3. Up Time: Displays the device’s uptime.
4. Number of Wireless Clients: Displays the information of connected wireless clients (if any).
5. Firmware Version: Displays Device’s current firmware version.
6. Hardware Version: Displays Device’s current hardware version.
7. MAC Address: Displays device’s LAN MAC address.
8. IP Address: Displays device’s LAN IP address.
9. Subnet Mask: Displays device’s subnet mask.
3.2.2 Wireless Status
This section displays 2.4GHz and 5GHz wireless status.
1. Network Mode: Displays device’s current network mode.
2. Channel: Displays device’s current channel.
3. SSID: Displays device’s network name.
4. MAC Address: Displays connected wireless client’s MAC address.
5. Security Mode: Displays device’s current security mode.

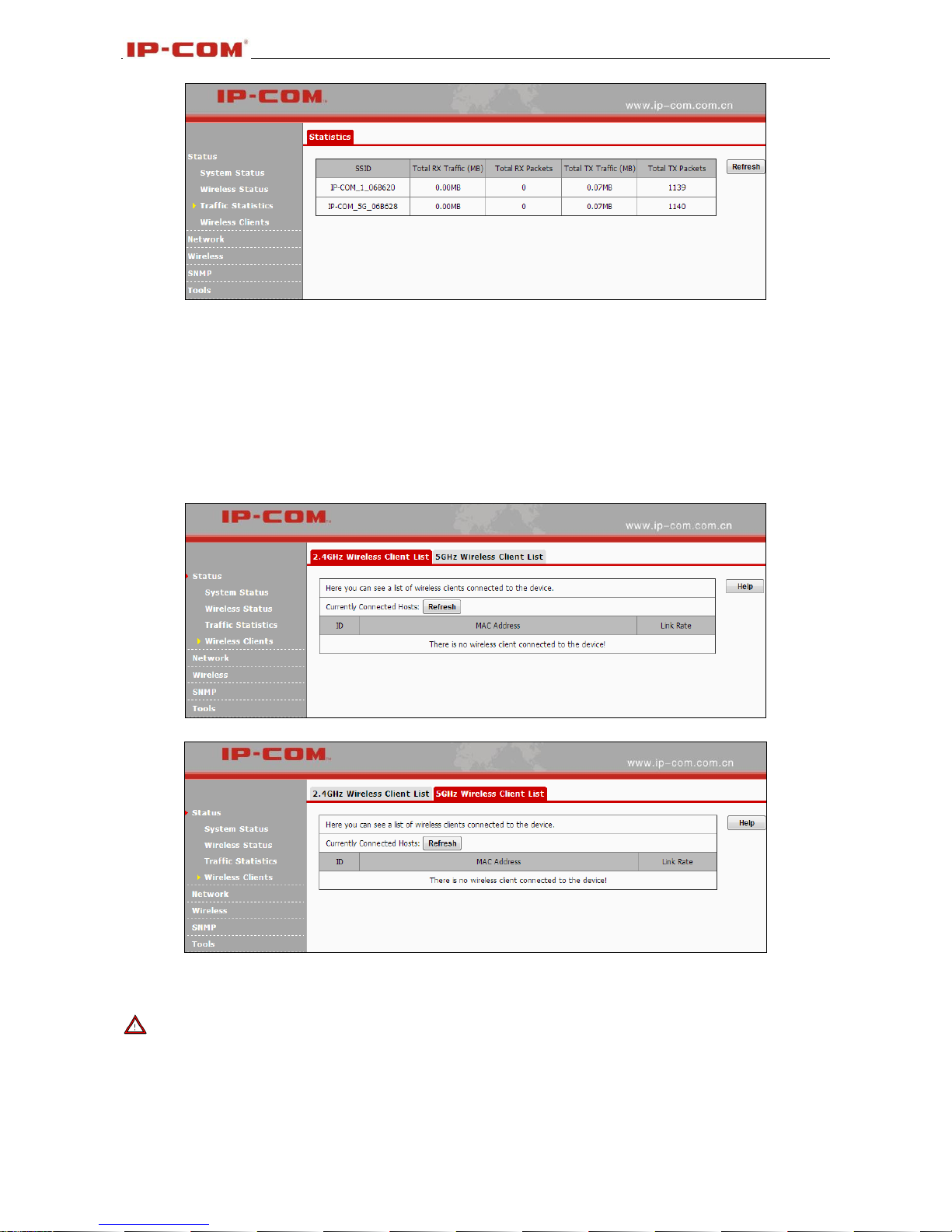

3.2.3 Traffic Statistics
This section displays each SSID’s traffic statistics.
