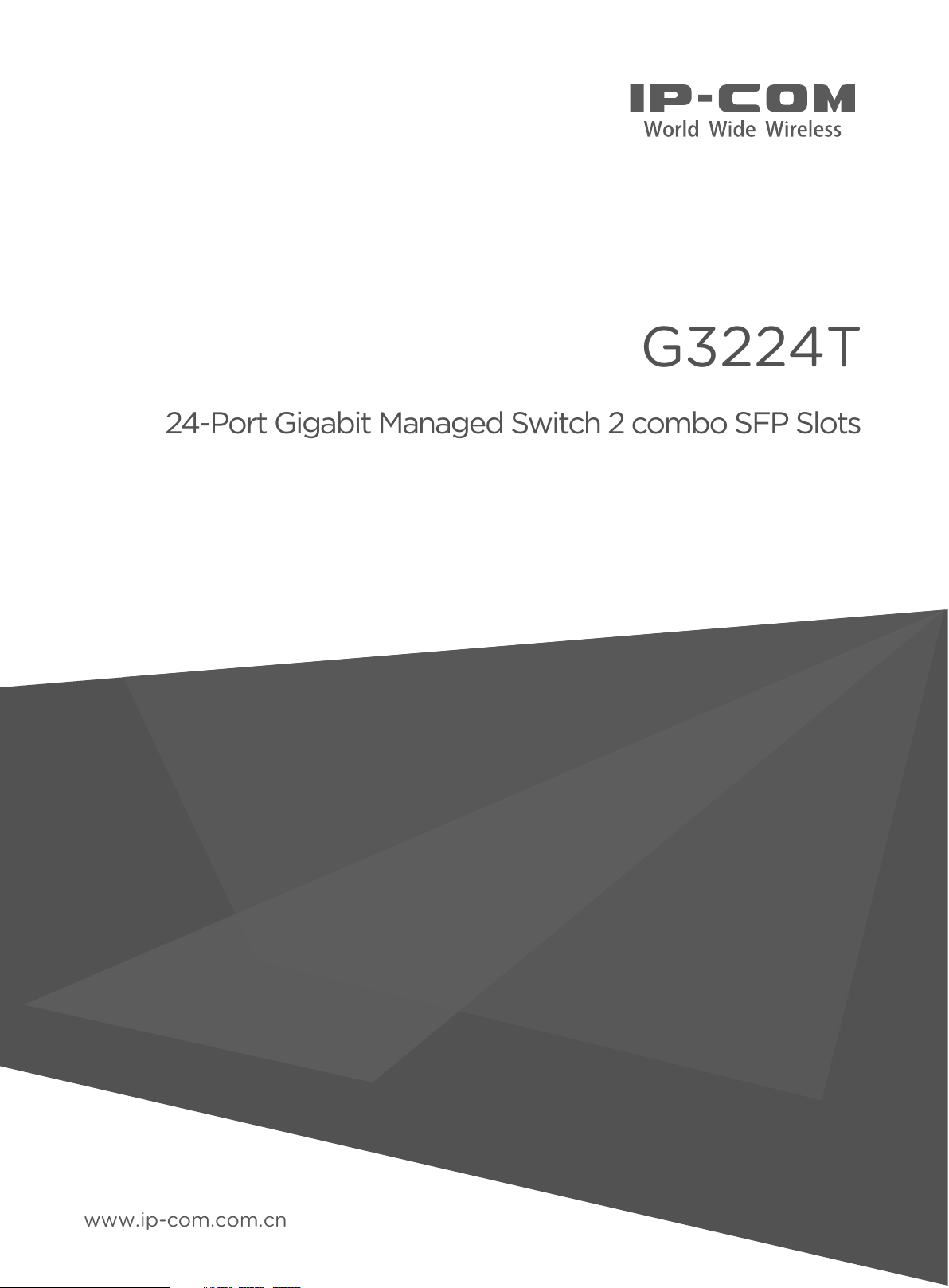

Page 1
G3224T
24-Port Gigabit Managed Switch 2 combo SFP Slots
www.ip-com.com.cn

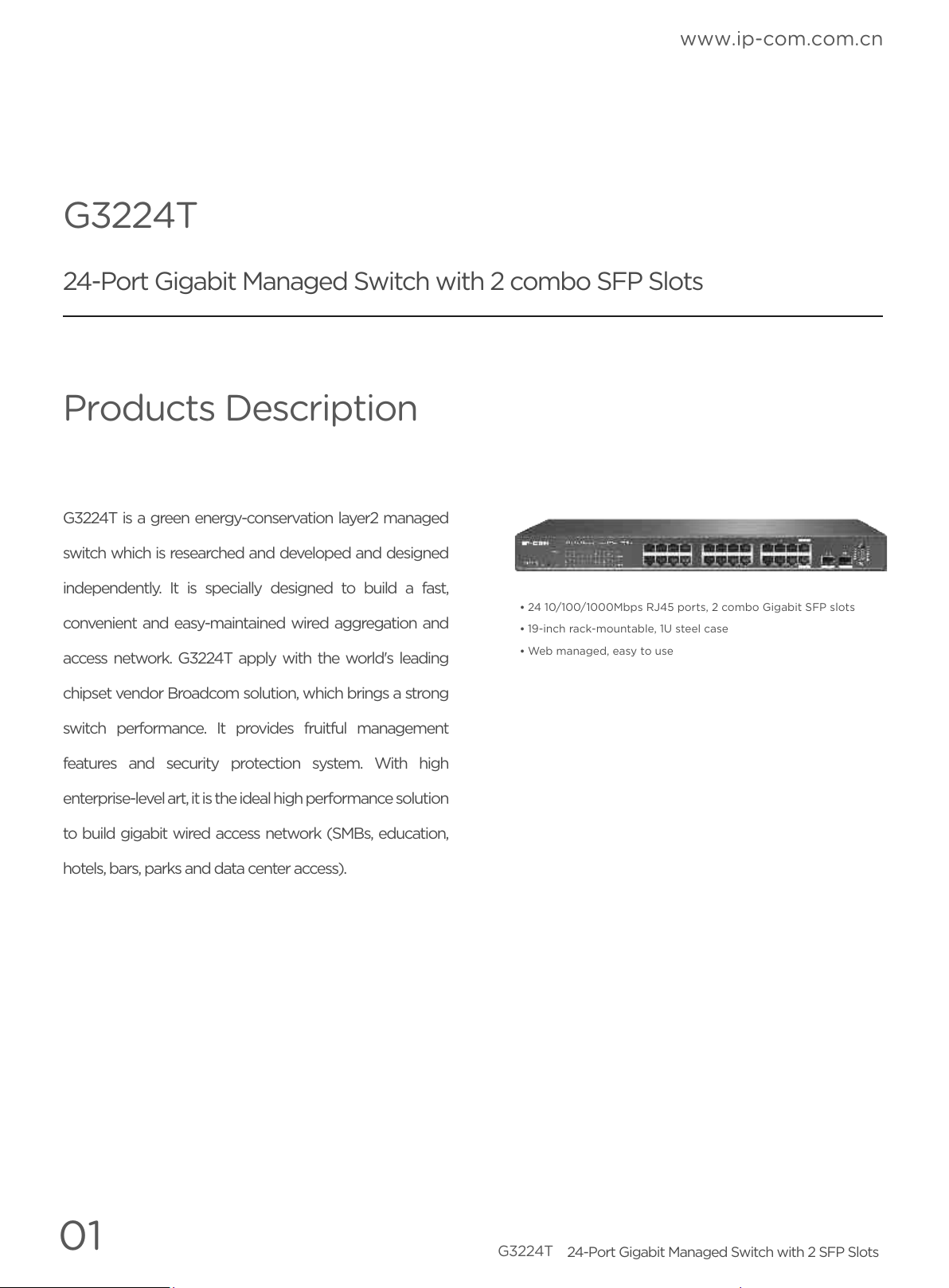

Page 2
www.ip-com.com.cn
G3224T
24-Port Gigabit Managed Switch with 2 combo SFP Slots
Products Description
G3224T is a green energy-conservation layer2 managed
switch which is researched and developed and designed
independently. It is specially designed to build a fast,
convenient and easy-maintained wired aggregation and
access network. G3224T apply with the world's leading
chipset vendor Broadcom solution, which brings a strong
switch performance. It provides fruitful management
features and security protection system. With high
enterprise-level art, it is the ideal high performance solution
to build gigabit wired access network (SMBs, education,
hotels, bars, parks and data center access).
• 24 10/100/1000Mbps RJ45 ports, 2 combo Gigabit SFP slots
• 19-inch rack-mountable, 1U steel case
• Web managed, easy to use
01
G3224T
24-Port Gigabit Managed Switch with 2 SFP Slots

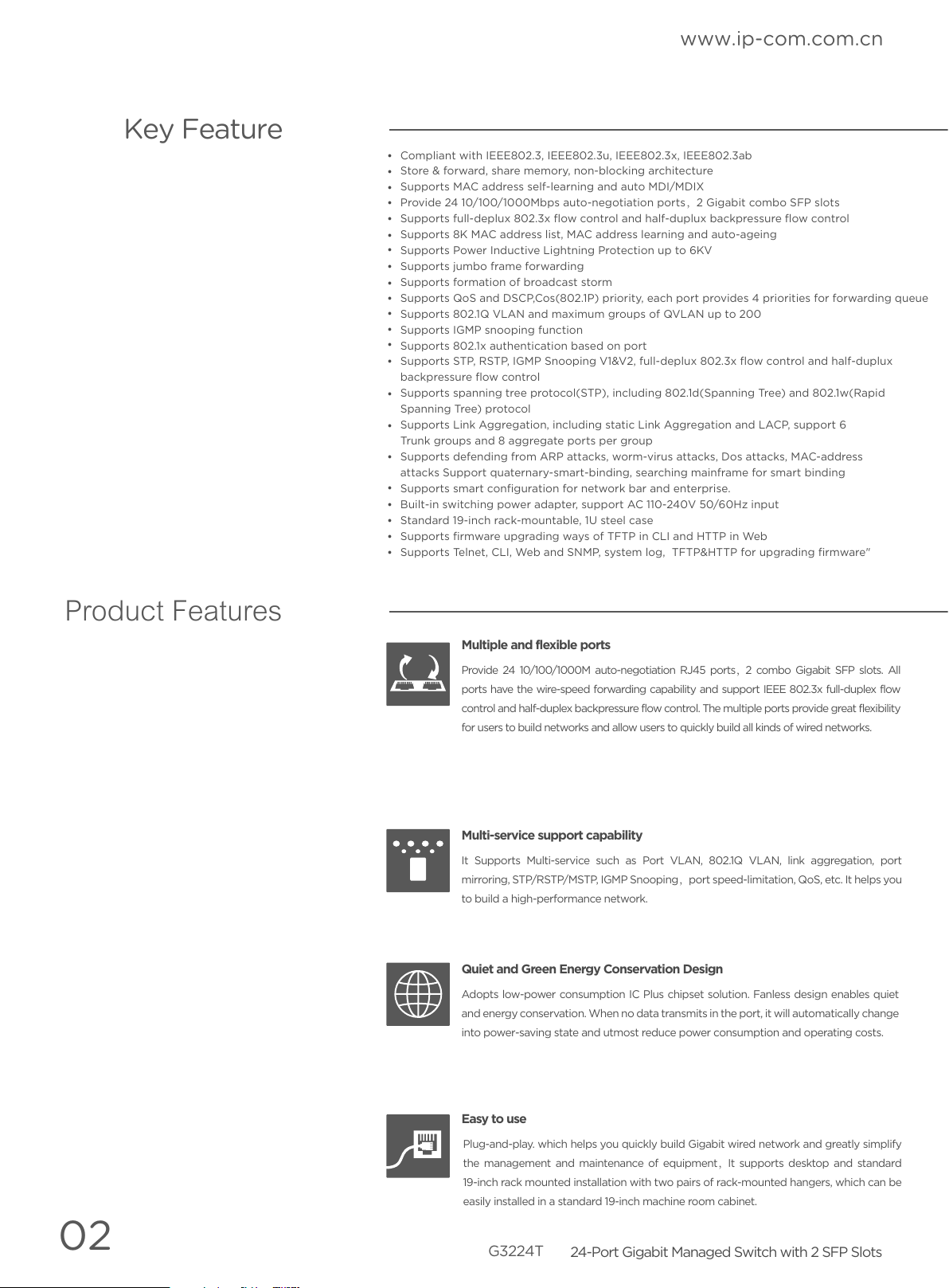

Page 3
Key Feature
www.ip-com.com.cn
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
•
Store & forward, share memory, non-blocking architecture
•
Supports MAC address self-learning and auto MDI/MDIX
•
•
Provide 24 10/100/1000Mbps auto-negotiation ports，2 Gigabit combo SFP slots
•
Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
Supports 8K MAC address list, MAC address learning and auto-ageing
•
•
Supports Power Inductive Lightning Protection up to 6KV
Supports jumbo frame forwarding
•
Supports formation of broadcast storm
•
Supports QoS and DSCP,Cos(802.1P) priority, each port provides 4 priorities for forwarding queue
•
•
Supports 802.1Q VLAN and maximum groups of QVLAN up to 200
•
Supports IGMP snooping function
•
Supports 802.1x authentication based on port
•
Supports STP, RSTP, IGMP Snooping V1&V2, full-deplux 802.3x flow control and half-duplux
backpressure flow control
Supports spanning tree protocol(STP), including 802.1d(Spanning Tree) and 802.1w(Rapid
•
Spanning Tree) protocol
Supports Link Aggregation, including static Link Aggregation and LACP, support 6
•
Trunk groups and 8 aggregate ports per group
Supports defending from ARP attacks, worm-virus attacks, Dos attacks, MAC-address
•
attacks Support quaternary-smart-binding, searching mainframe for smart binding
•
Supports smart configuration for network bar and enterprise.
•
Built-in switching power adapter, support AC 110-240V 50/60Hz input
•
Standard 19-inch rack-mountable, 1U steel case
•
Supports firmware upgrading ways of TFTP in CLI and HTTP in Web
•
Supports Telnet, CLI, Web and SNMP, system log, TFTP&HTTP for upgrading firmware"
Product Features
Multiple and flexible ports
Provide 24 10/100/1000M auto-negotiation RJ45 ports，2 combo Gigabit SFP slots. All
ports have the wire-speed forwarding capability and support IEEE 802.3x full-duplex flow
control and half-duplex backpressure flow control. The multiple ports provide great flexibility
for users to build networks and allow users to quickly build all kinds of wired networks.
Multi-service support capability
It Supports Multi-service such as Port VLAN, 802.1Q VLAN, link aggregation, port
mirroring, STP/RSTP/MSTP, IGMP Snooping，port speed-limitation, QoS, etc. It helps you
to build a high-performance network.
Quiet and Green Energy Conservation Design
Adopts low-power consumption IC Plus chipset solution. Fanless design enables quiet
and energy conservation. When no data transmits in the port, it will automatically change
into power-saving state and utmost reduce power consumption and operating costs.
02
Easy to use
Plug-and-play. which helps you quickly build Gigabit wired network and greatly simplify
the management and maintenance of equipment，It supports desktop and standard
19-inch rack mounted installation with two pairs of rack-mounted hangers, which can be
easily installed in a standard 19-inch machine room cabinet.
G3224T
24-Port Gigabit Managed Switch with 2 SFP Slots
Page 4

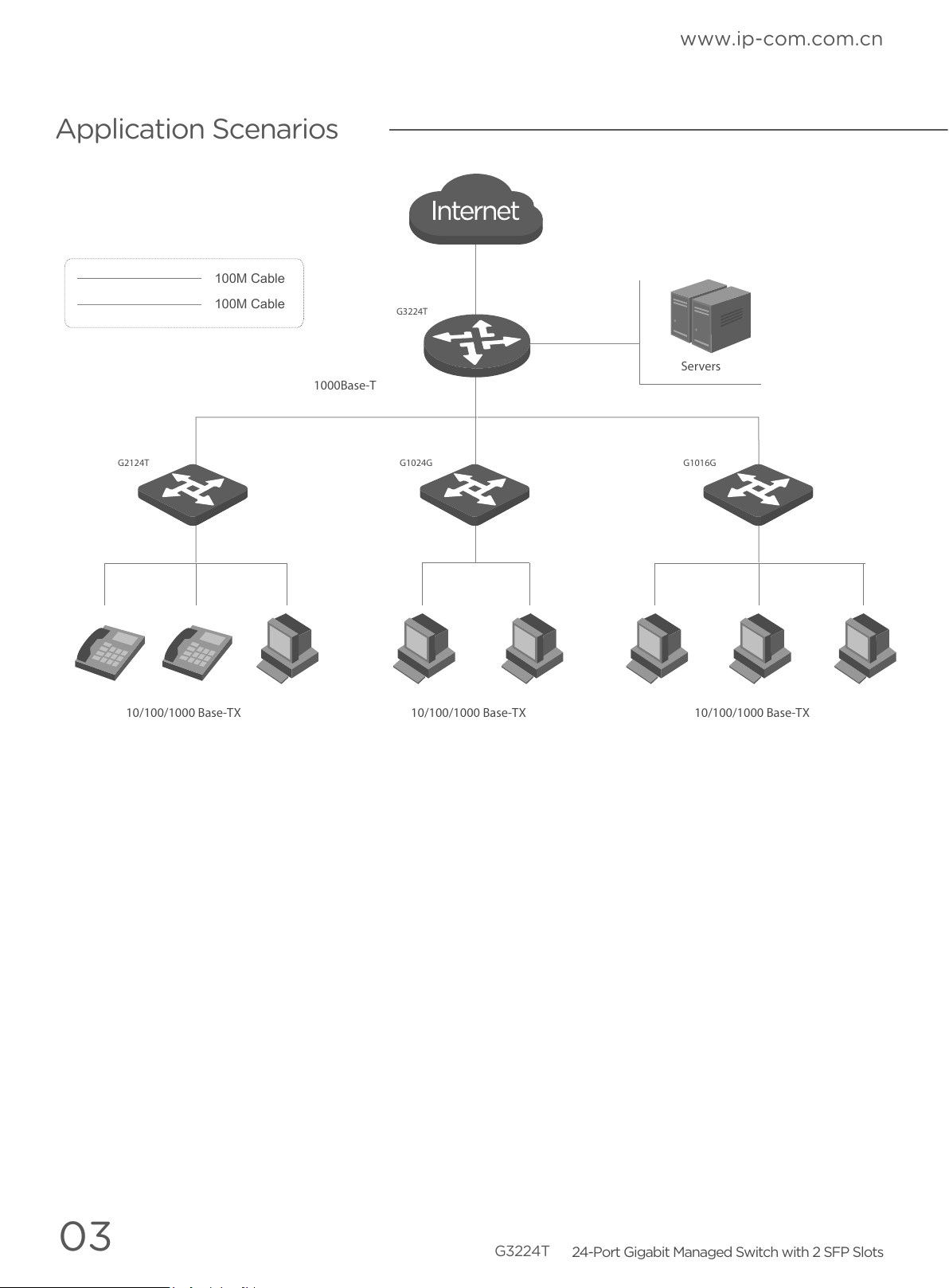

Application Scenarios
100M Cable
100M Cable
1000Base-T
www.ip-com.com.cn
G3224T
Servers
G2124T
10/100/1000 Base-TX 10/100/1000 Base-TX 10/100/1000 Base-TX
G1024G G1016G
03
G3224T
24-Port Gigabit Managed Switch with 2 SFP Slots

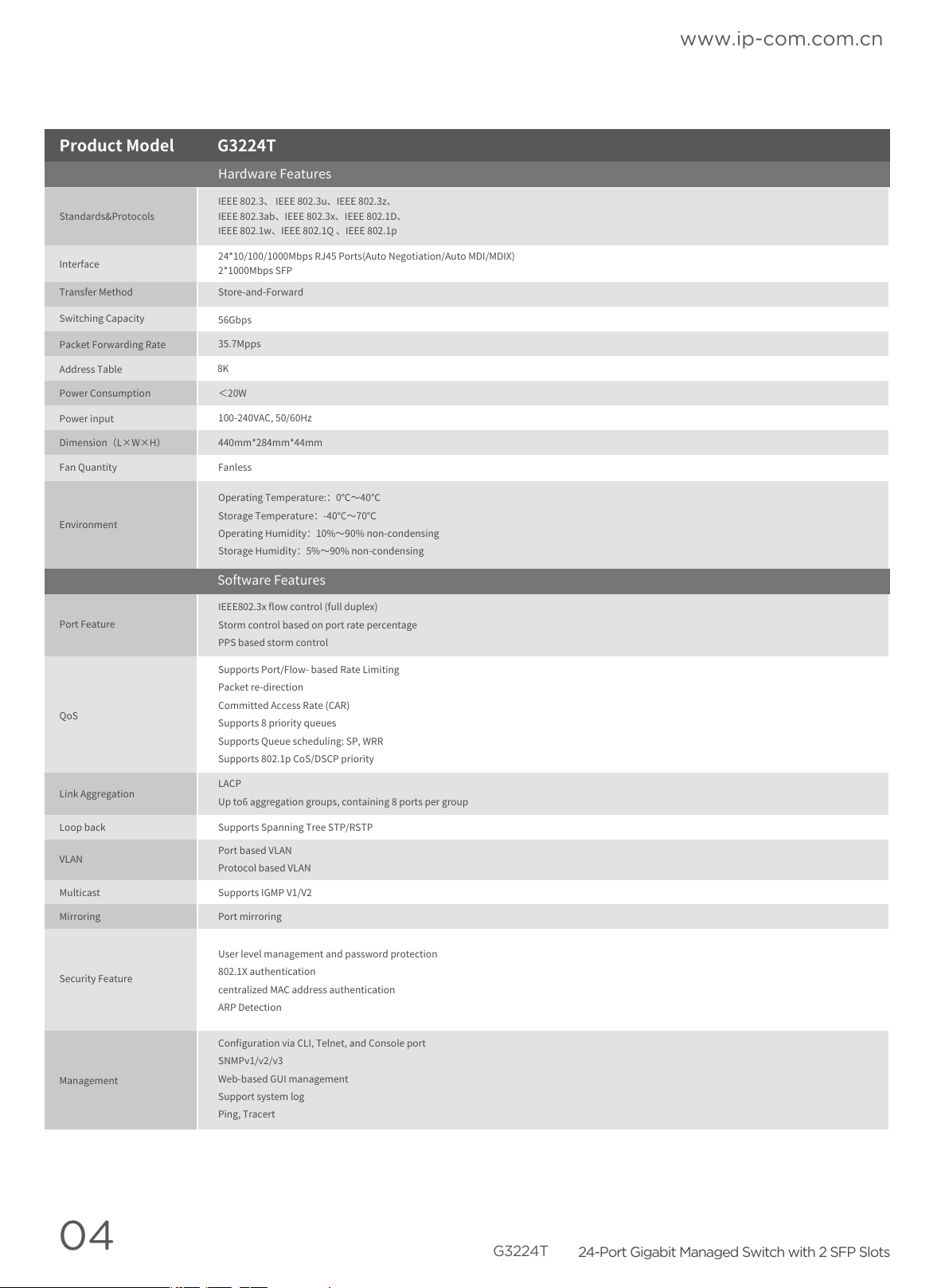

Page 5
Product ModelG3224T
Hardware Features
IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、
Standards&Protocols
Interface
Transfer Method
Switching Capacity
Packet Forwarding Rate
Address Table
Power Consumption
Power input
Dimension（L×W×H）
Fan Quantity
Environment
IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、
IEEE 802.1w、IEEE 802.1Q 、IEEE 802.1p
24*10/100/1000Mbps RJ45 Ports(Auto Negotiation/Auto MDI/MDIX)
2*1000Mbps SFP
Store-and-Forward
56Gbps
35.7Mpps
8K
＜20W
100-240VAC, 50/60Hz
440mm*284mm*44mm
Fanless
Operating Temperature:：0℃～40℃
Storage Temperature：-40℃～70℃
Operating Humidity：10%～90% non-condensing
Storage Humidity：5%～90% non-condensing
www.ip-com.com.cn
Port Feature
QoS
Link Aggregation
Loop back
VLAN
Multicast
Mirroring
Security Feature
Management
Software Features
IEEE802.3x flow control (full duplex)
Storm control based on port rate percentage
PPS based storm control
Supports Port/Flow- based Rate Limiting
Packet re-direction
Committed Access Rate (CAR)
Supports 8 priority queues
Supports Queue scheduling: SP, WRR
Supports 802.1p CoS/DSCP priority
LACP
Up to6 aggregation groups, containing 8 ports per group
Supports Spanning Tree STP/RSTP
Port based VLAN
Protocol based VLAN
Supports IGMP V1/V2
Port mirroring
User level management and password protection
802.1X authentication
centralized MAC address authentication
ARP Detection
Configuration via CLI, Telnet, and Console port
SNMPv1/v2/v3
Web-based GUI management
Support system log
Ping, Tracert
04
G3224T
24-Port Gigabit Managed Switch with 2 SFP Slots

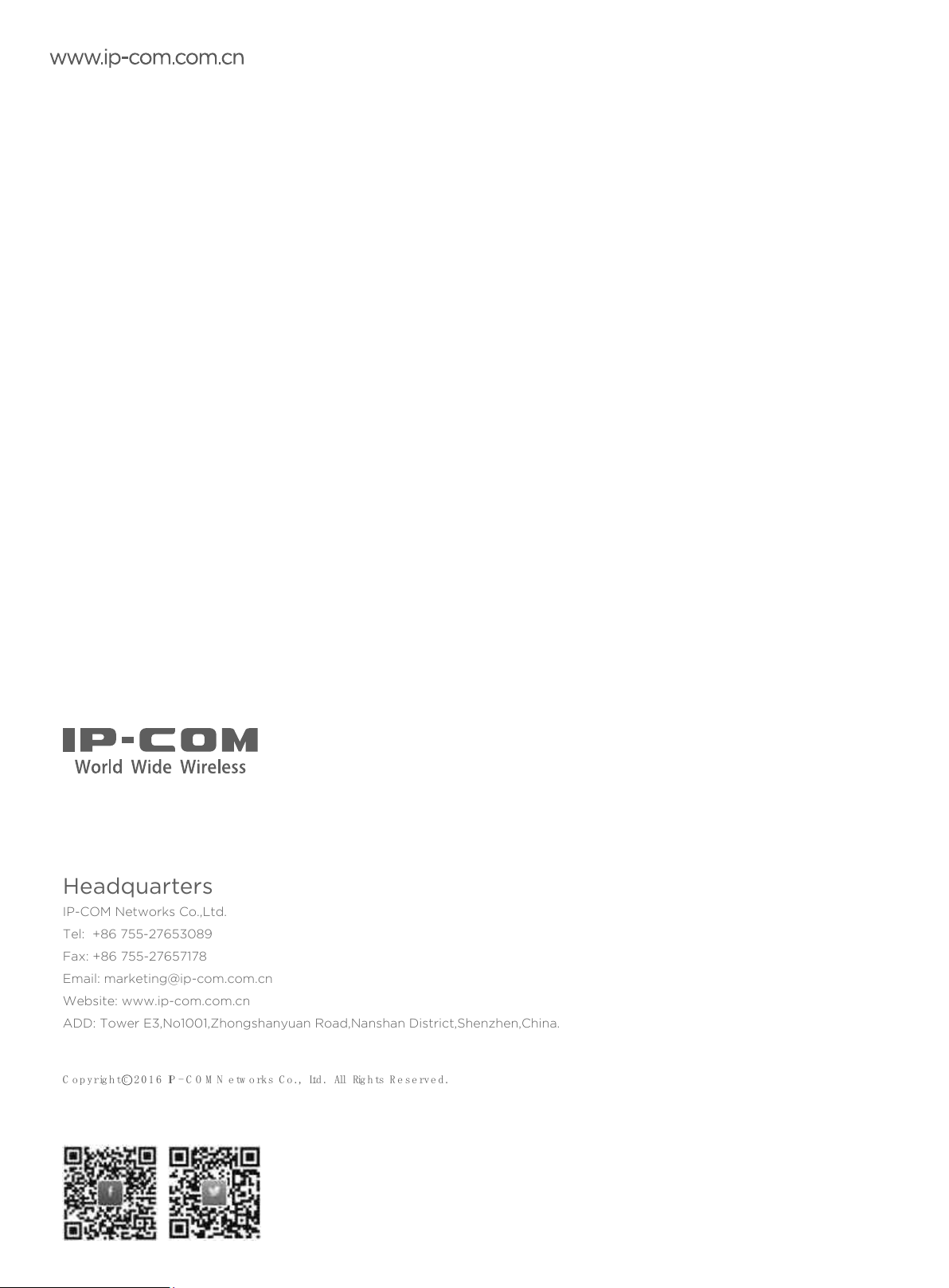

Page 6
Headquarters
IP-COM Networks Co.,Ltd.
Tel: +86 755-27653089
Fax: +86 755-27657178
Email: [email protected]
Website: www.ip-com.com.cn
ADD: Tower E3,No1001,Zhongshanyuan Road,Nanshan District,Shenzhen,China.
C o p yrigh t 2 0 1 6 IP - C O M N e tw ork s C o ., Ltd . All Rig h ts R e s e rve d .
