G1116P-16-150W
16-Port Gigabit Desktop/Rackmount Switch
With 16-Port PoE
www.ip-com.com.cn
Page 2
www.ip-com.com.cn
G1116P-16-150W
16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE

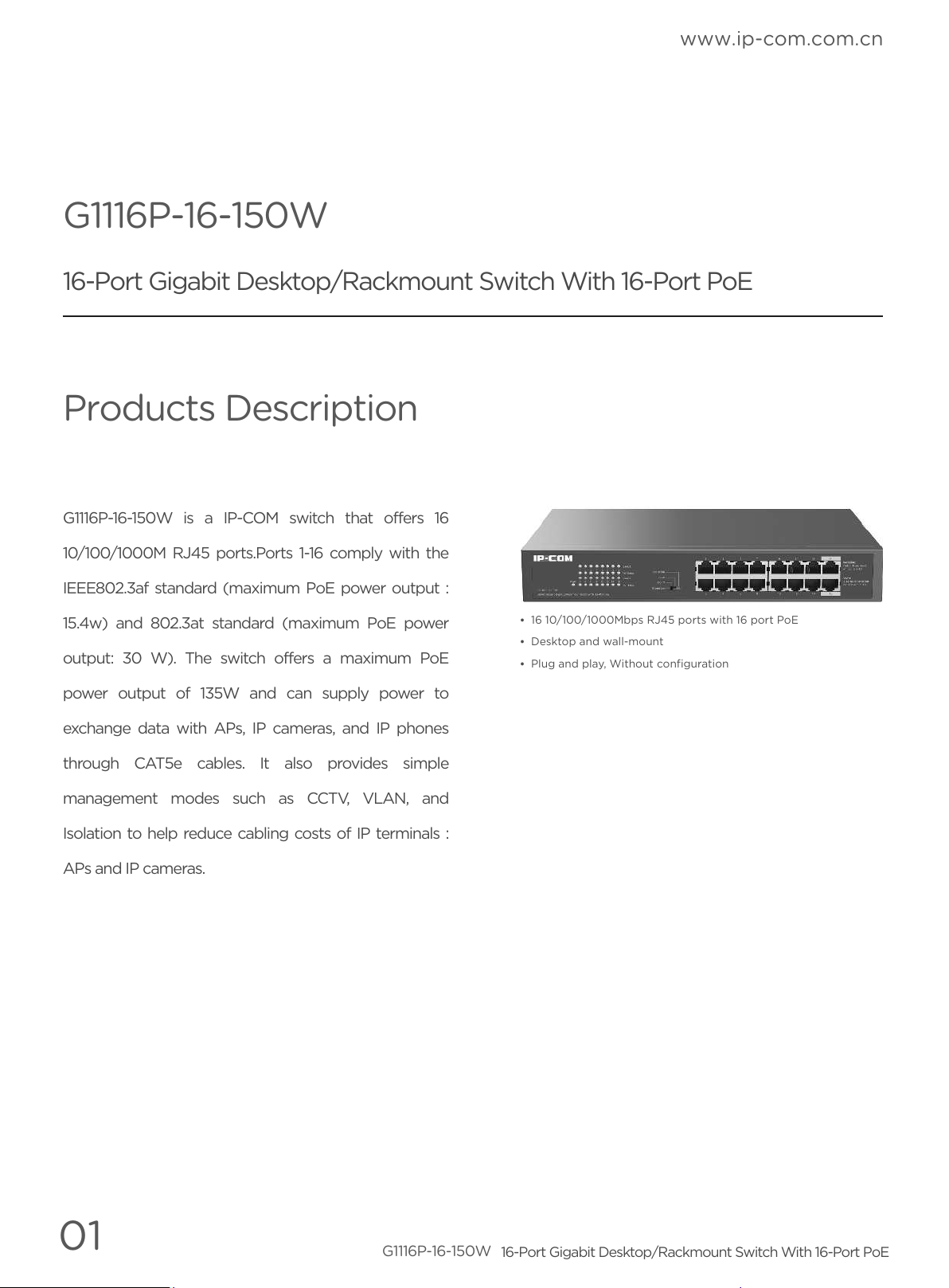

Products Description
G1116P-16-150W is a IP-COM switch that offers 16
10/100/1000M RJ45 ports.Ports 1-16 comply with the
IEEE802.3af standard (maximum PoE power output :
15.4w) and 802.3at standard (maximum PoE power
output: 30 W). The switch offers a maximum PoE
power output of 135W and can supply power to
exchange data with APs, IP cameras, and IP phones
through CAT5e cables. It also provides simple
management modes such as CCTV, VLAN, and
Isolation to help reduce cabling costs of IP terminals :
APs and IP cameras.
• 16 10/100/1000Mbps RJ45 ports with 16 port PoE
• Desktop and wall-mount
• Plug and play, Without configuration
01
G1116P-16-150W
16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE
Page 3

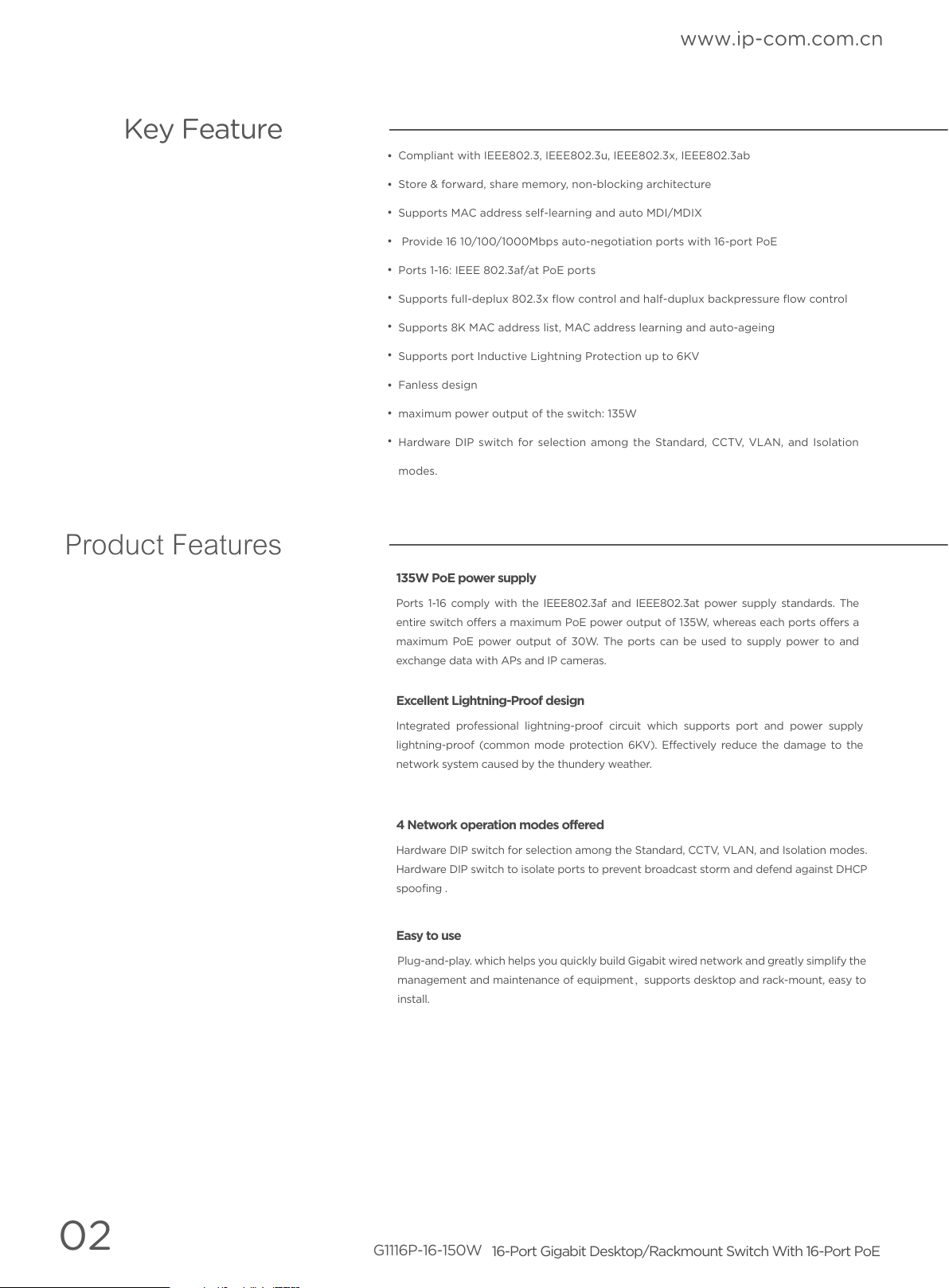

Key Feature
www.ip-com.com.cn
•
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
•
Store & forward, share memory, non-blocking architecture
•
Supports MAC address self-learning and auto MDI/MDIX
•
Provide 16 10/100/1000Mbps auto-negotiation ports with 16-port PoE
•
Ports 1-16: IEEE 802.3af/at PoE ports
•
Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
•
Supports 8K MAC address list, MAC address learning and auto-ageing
•
Supports port Inductive Lightning Protection up to 6KV
•
Fanless design
•
maximum power output of the switch: 135W
•
Hardware DIP switch for selection among the Standard, CCTV, VLAN, and Isolation
modes.
Product Features
135W PoE power supply
Ports 1-16 comply with the IEEE802.3af and IEEE802.3at power supply standards. The
entire switch offers a maximum PoE power output of 135W, whereas each ports offers a
maximum PoE power output of 30W. The ports can be used to supply power to and
exchange data with APs and IP cameras.
Excellent Lightning-Proof design
Integrated professional lightning-proof circuit which supports port and power supply
lightning-proof (common mode protection 6KV). Effectively reduce the damage to the
network system caused by the thundery weather.
4 Network operation modes offered
Hardware DIP switch for selection among the Standard, CCTV, VLAN, and Isolation modes.
Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP
spoofing .
Easy to use
Plug-and-play. which helps you quickly build Gigabit wired network and greatly simplify the
management and maintenance of equipment，supports desktop and rack-mount, easy to
install.
02
G1116P-16-150W
16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE
Page 4

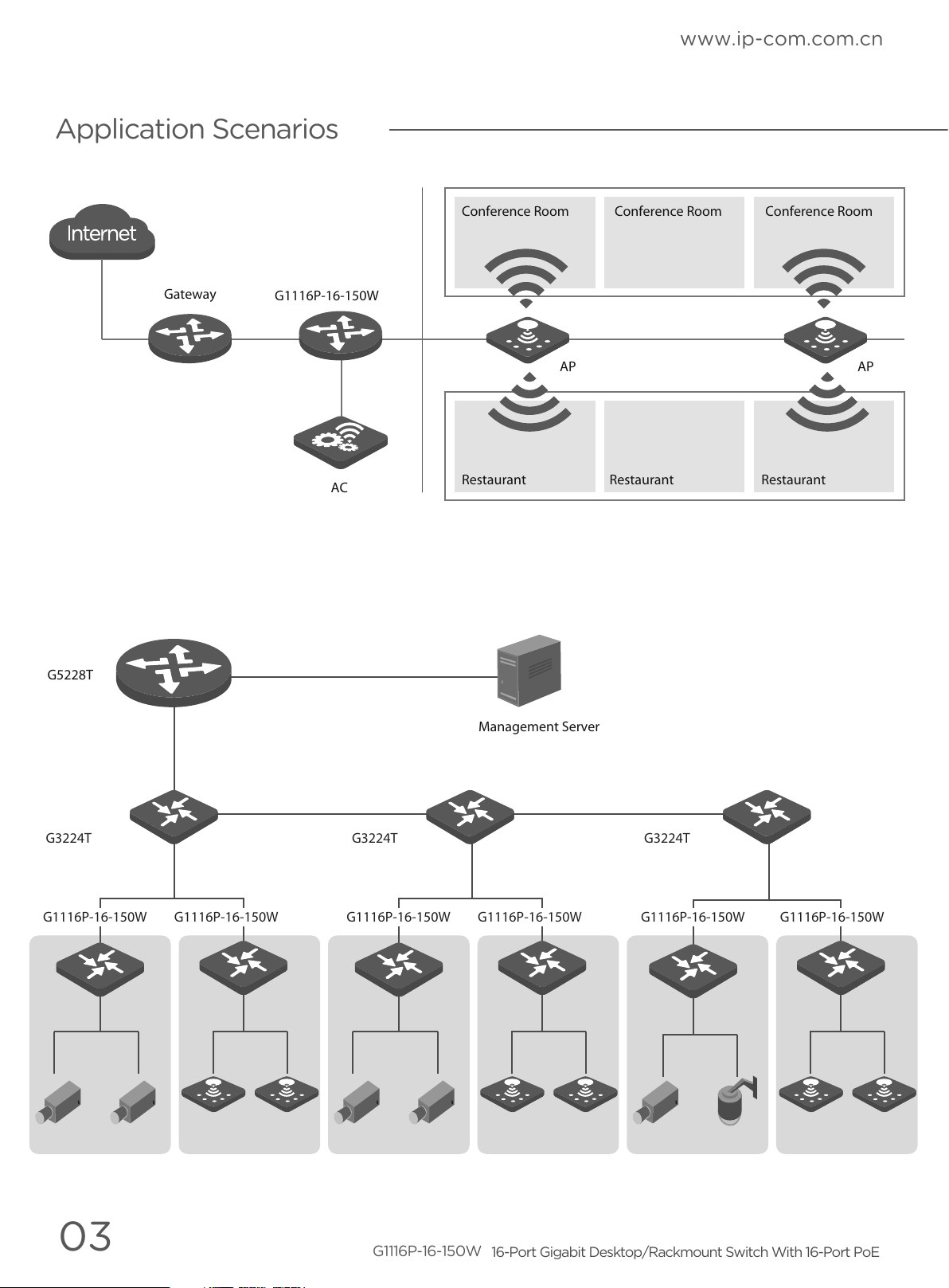

Application Scenarios
www.ip-com.com.cn
Conference Room Conference Room Conference Room
G5228T
Gateway
G1116P-16-150W
AC
AP AP
Restaurant Restaurant Restaurant
Management Server
G3224T G3224T G3224T
G1116P-16-150W G1116P-16-150W G1116P-16-150W G1116P-16-150W G1116P-16-150W G1116P-16-150W
03
G1116P-16-150W
16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE
Page 5

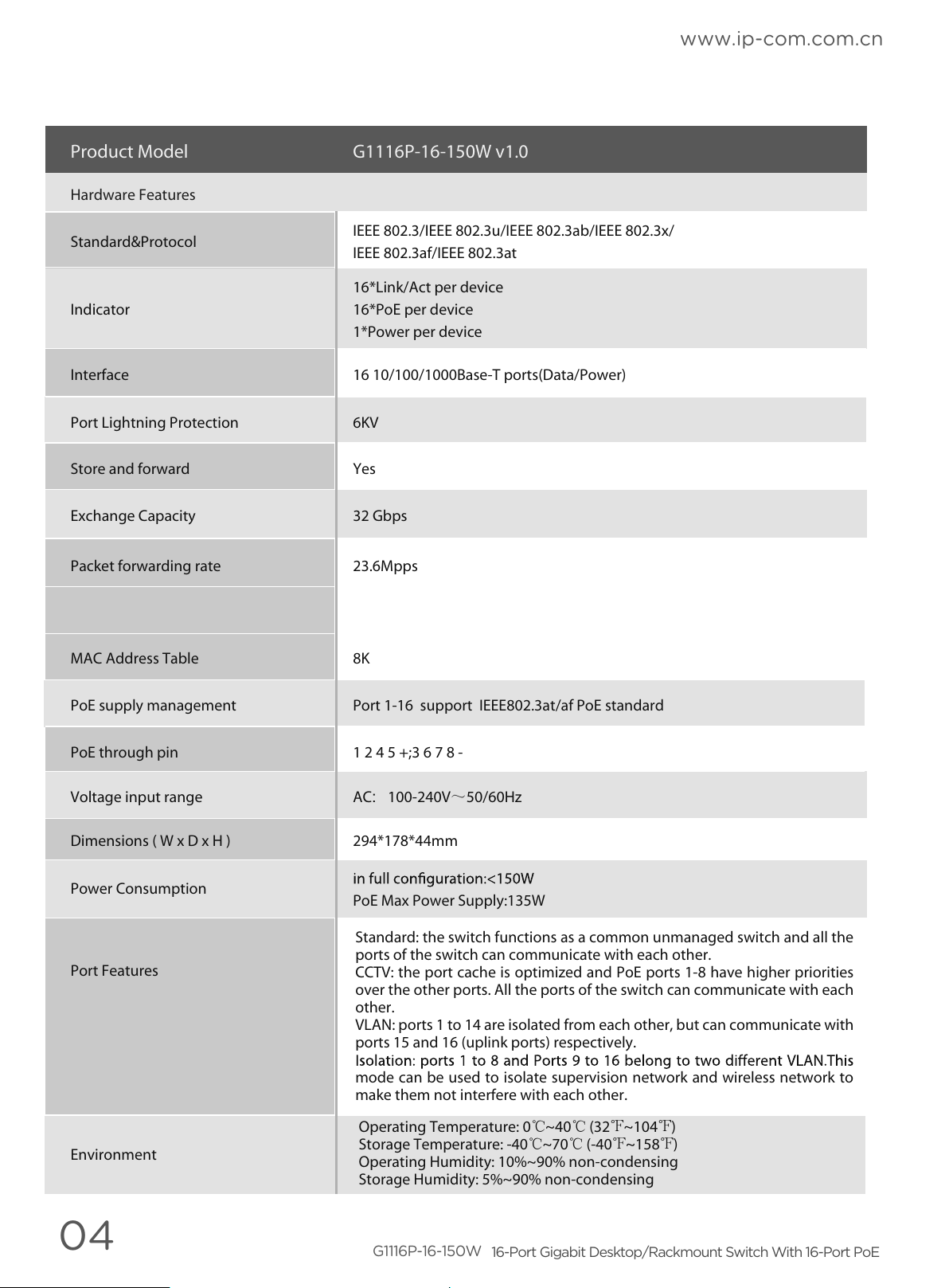

Product Model G1116P-16-150W v1.0
Hardware Features
www.ip-com.com.cn
Standard&Protocol
Indicator
Interface 16 10/100/1000Base-T ports(Data/Power)
Port Lightning Protection 6KV
Store and forward Yes
Exchange Capacity 32 Gbps
Packet forwarding rate 23.6Mpps
MAC Address Table 8K
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/
IEEE 802.3af/IEEE 802.3at
16*Link/Act per device
16*PoE per device
1*Power per device
PoE supply management Port 1-16 support IEEE802.3at/af PoE standard
PoE through pin 1 2 4 5 +;3 6 7 8 -
Voltage input range AC: 100-240V～50/60Hz
Dimensions ( W x D x H ) 294*178*44mm
Power Consumption
Port Features
Environment
PoE Max Power Supply:135W
Standard: the switch functions as a common unmanaged switch and all the
ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities
over the other ports. All the ports of the switch can communicate with each
other.
VLAN: ports 1 to 14 are isolated from each other, but can communicate with
ports 15 and 16 (uplink ports) respectively.
mode can be used to isolate supervision network and wireless network to
make them not interfere with each other.
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
04
G1116P-16-150W
16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE
Page 6
