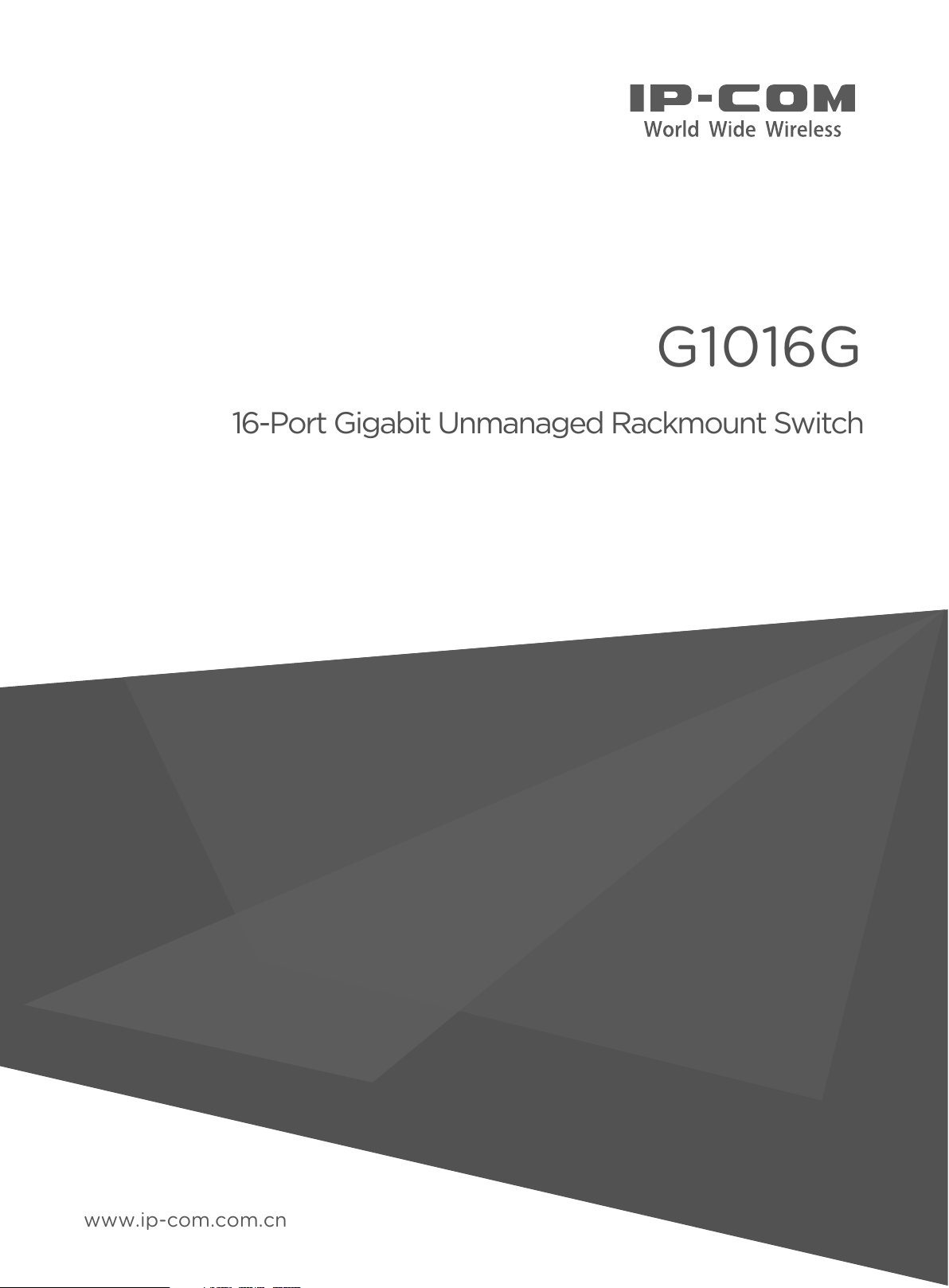

Page 1
G1016G
16-Port Gigabit Unmanaged Rackmount Switch
www.ip-com.com.cn
Page 2
G1016G
16-Port Gigabit Unmanaged Rackmount Switch

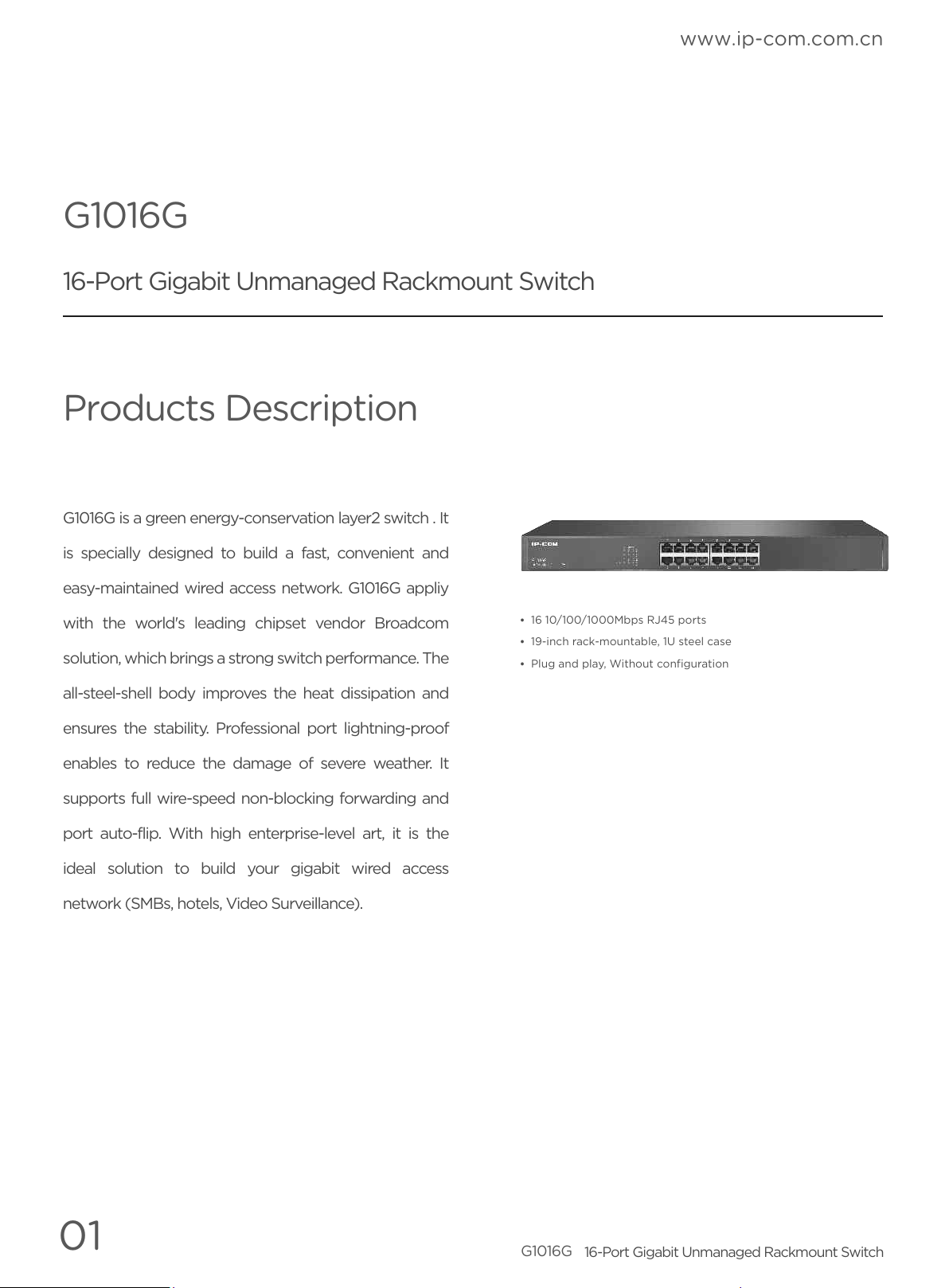

Products Description
www.ip-com.com.cn
G1016G is a green energy-conservation layer2 switch . It
is specially designed to build a fast, convenient and
easy-maintained wired access network. G1016G appliy
with the world's leading chipset vendor Broadcom
solution, which brings a strong switch performance. The
all-steel-shell body improves the heat dissipation and
ensures the stability. Professional port lightning-proof
enables to reduce the damage of severe weather. It
supports full wire-speed non-blocking forwarding and
port auto-flip. With high enterprise-level art, it is the
ideal solution to build your gigabit wired access
network (SMBs, hotels, Video Surveillance).
• 16 10/100/1000Mbps RJ45 ports
• 19-inch rack-mountable, 1U steel case
• Plug and play, Without configuration
01
G1016G
16-Port Gigabit Unmanaged Rackmount Switch
Page 3

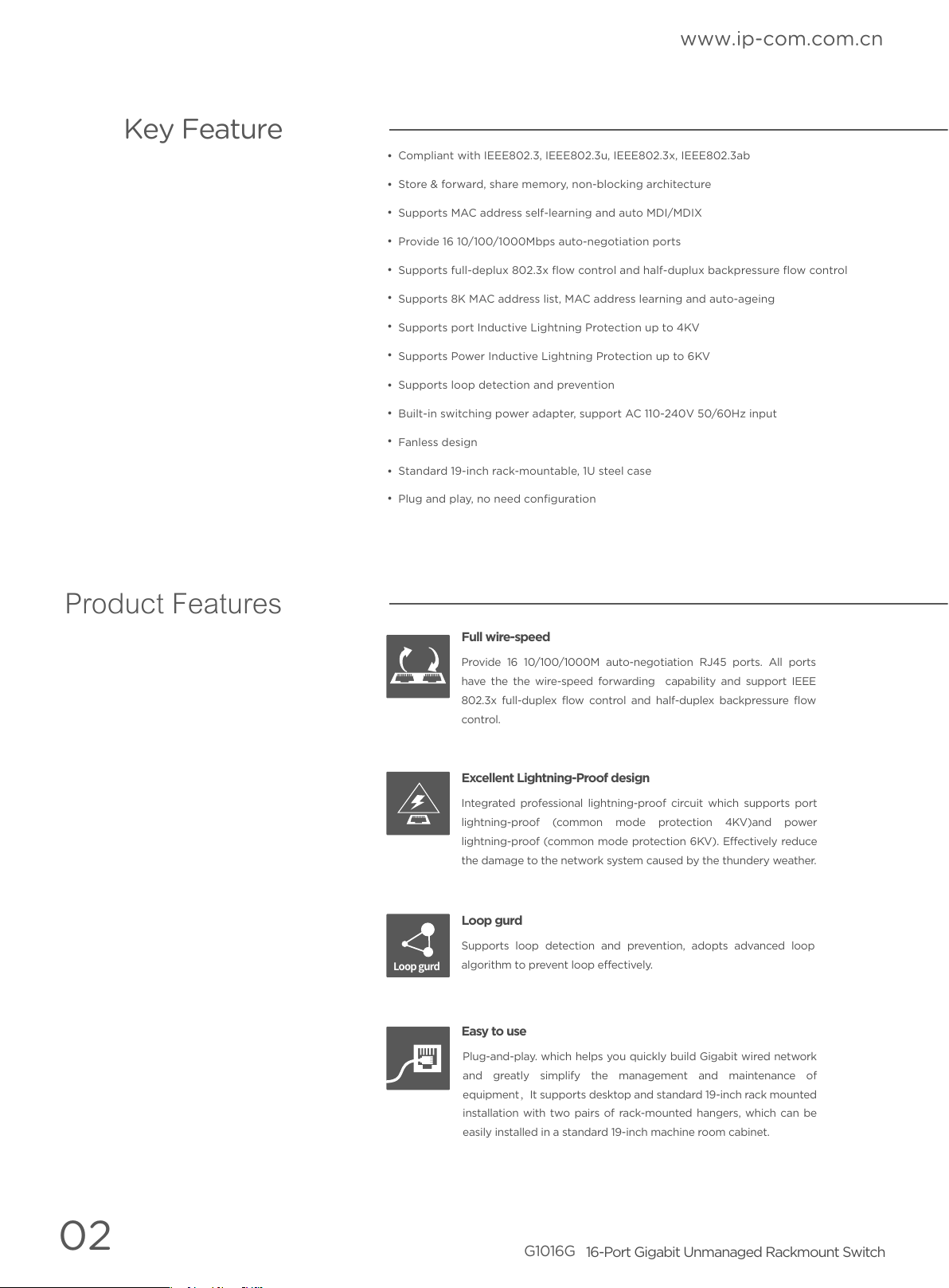

Key Feature
www.ip-com.com.cn
•
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
•
Store & forward, share memory, non-blocking architecture
•
Supports MAC address self-learning and auto MDI/MDIX
•
Provide 16 10/100/1000Mbps auto-negotiation ports
•
Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
•
Supports 8K MAC address list, MAC address learning and auto-ageing
•
Supports port Inductive Lightning Protection up to 4KV
•
Supports Power Inductive Lightning Protection up to 6KV
•
Supports loop detection and prevention
•
Built-in switching power adapter, support AC 110-240V 50/60Hz input
•
Fanless design
Standard 19-inch rack-mountable, 1U steel case
•
•
Plug and play, no need configuration
Product Features
Loop gurd
Full wire-speed
Provide 16 10/100/1000M auto-negotiation RJ45 ports. All ports
have the the wire-speed forwarding capability and support IEEE
802.3x full-duplex flow control and half-duplex backpressure flow
control.
Excellent Lightning-Proof design
Integrated professional lightning-proof circuit which supports port
lightning-proof (common mode protection 4KV)and power
lightning-proof (common mode protection 6KV). Effectively reduce
the damage to the network system caused by the thundery weather.
Loop gurd
Supports loop detection and prevention, adopts advanced loop
algorithm to prevent loop effectively.
Easy to use
Plug-and-play. which helps you quickly build Gigabit wired network
and greatly simplify the management and maintenance of
equipment，It supports desktop and standard 19-inch rack mounted
installation with two pairs of rack-mounted hangers, which can be
easily installed in a standard 19-inch machine room cabinet.
02
G1016G
16-Port Gigabit Unmanaged Rackmount Switch
Page 4

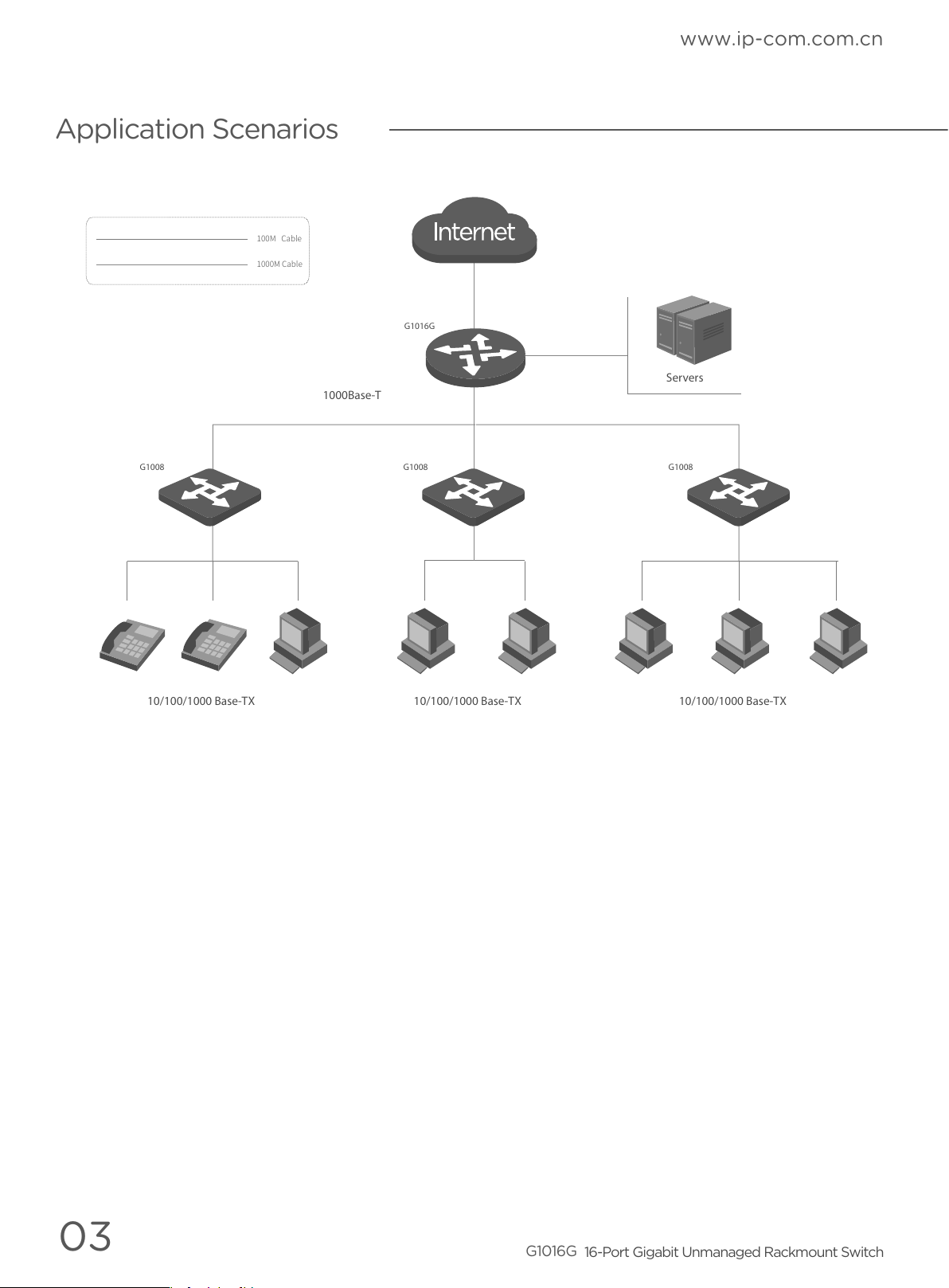

Application Scenarios
100M Cable
1000M Cable
1000Base-T
www.ip-com.com.cn
G1016G
Servers
G1008
10/100/1000 Base-TX 10/100/1000 Base-TX 10/100/1000 Base-TX
G1008 G1008
03
G1016G
16-Port Gigabit Unmanaged Rackmount Switch
Page 5
www.ip-com.com.cn

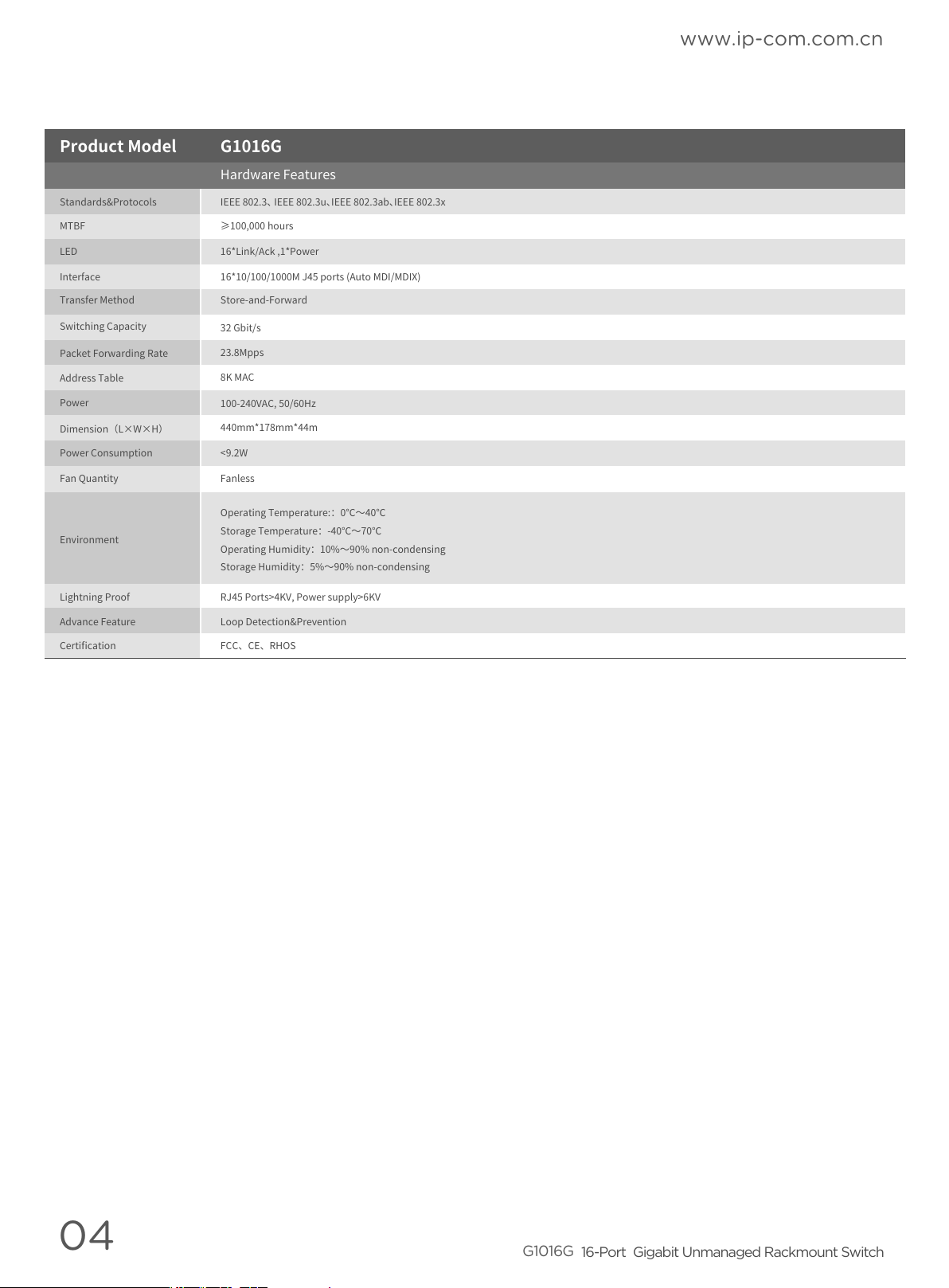

Product Model
G1016G
Hardware Features
IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3xStandards&Protocols
MTBF
LED16*Link/Ack ,1*Power
Interface16*10/100/1000M J45 ports (Auto MDI/MDIX)
Transfer Method
Switching Capacity
Packet Forwarding Rate
Address Table
Power
Dimension（L×W×H）
Power Consumption<9.2W
Fan QuantityFanless
Environment
Lightning ProofRJ45 Ports>4KV, Power supply>6KV
Advance FeatureLoop Detection&Prevention
CertificationFCC、CE、RHOS
≥100,000 hours
Store-and-Forward
32 Gbit/s
23.8Mpps
8K MAC
100-240VAC, 50/60Hz
440mm*178mm*44m
Operating Temperature:：0℃～40℃
Storage Temperature：-40℃～70℃
Operating Humidity：10%～90% non-condensing
Storage Humidity：5%～90% non-condensing
04
G1016G
16-Port Gigabit Unmanaged Rackmount Switch
Page 6

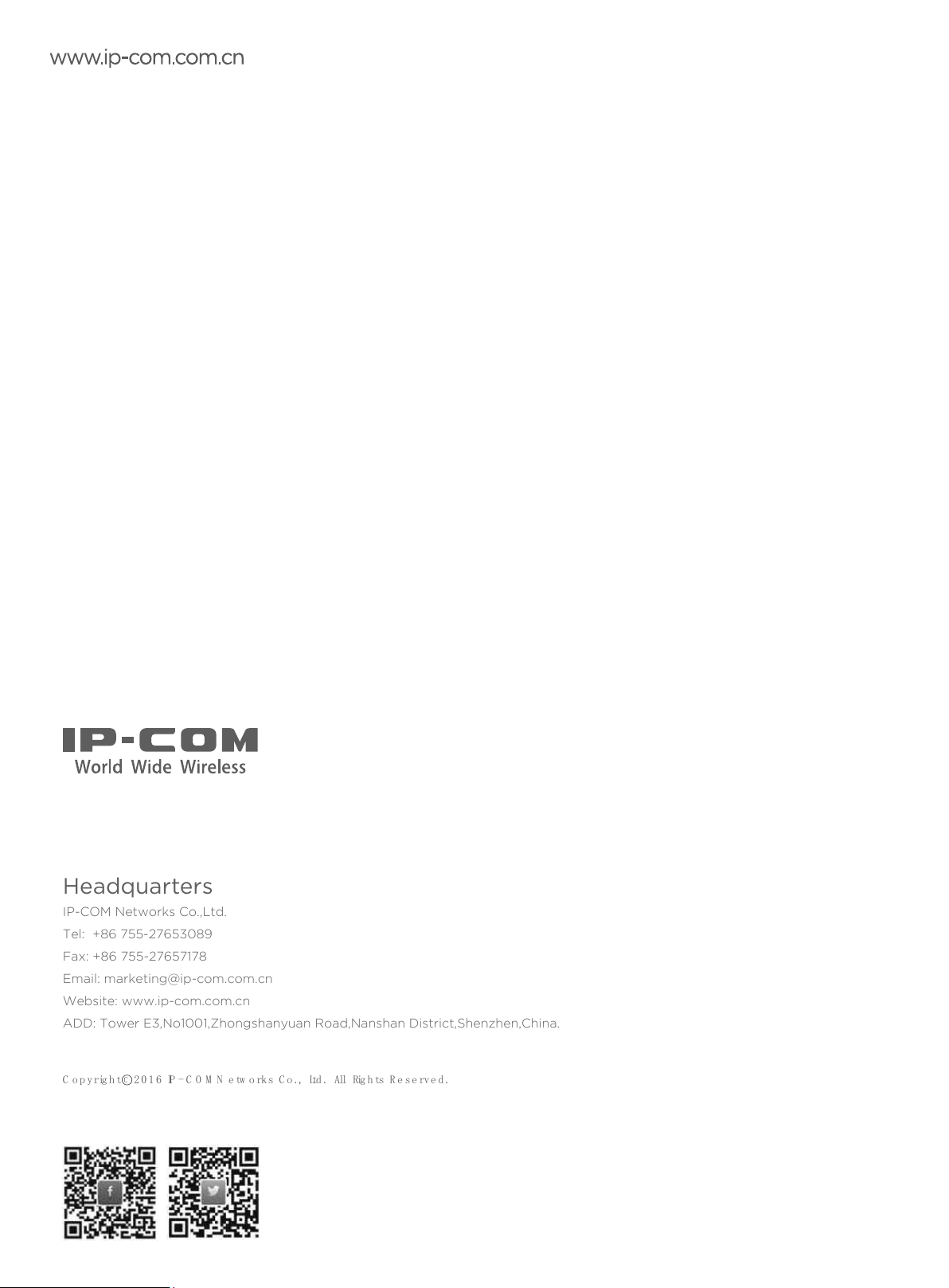

Headquarters
IP-COM Networks Co.,Ltd.
Tel: +86 755-27653089
Fax: +86 755-27657178
Email: [email protected]
Website: www.ip-com.com.cn
ADD: Tower E3,No1001,Zhongshanyuan Road,Nanshan District,Shenzhen,China.
C o p yrigh t 2 0 1 6 IP - C O M N e tw ork s C o ., Ltd . All Rig h ts R e s e rve d .
