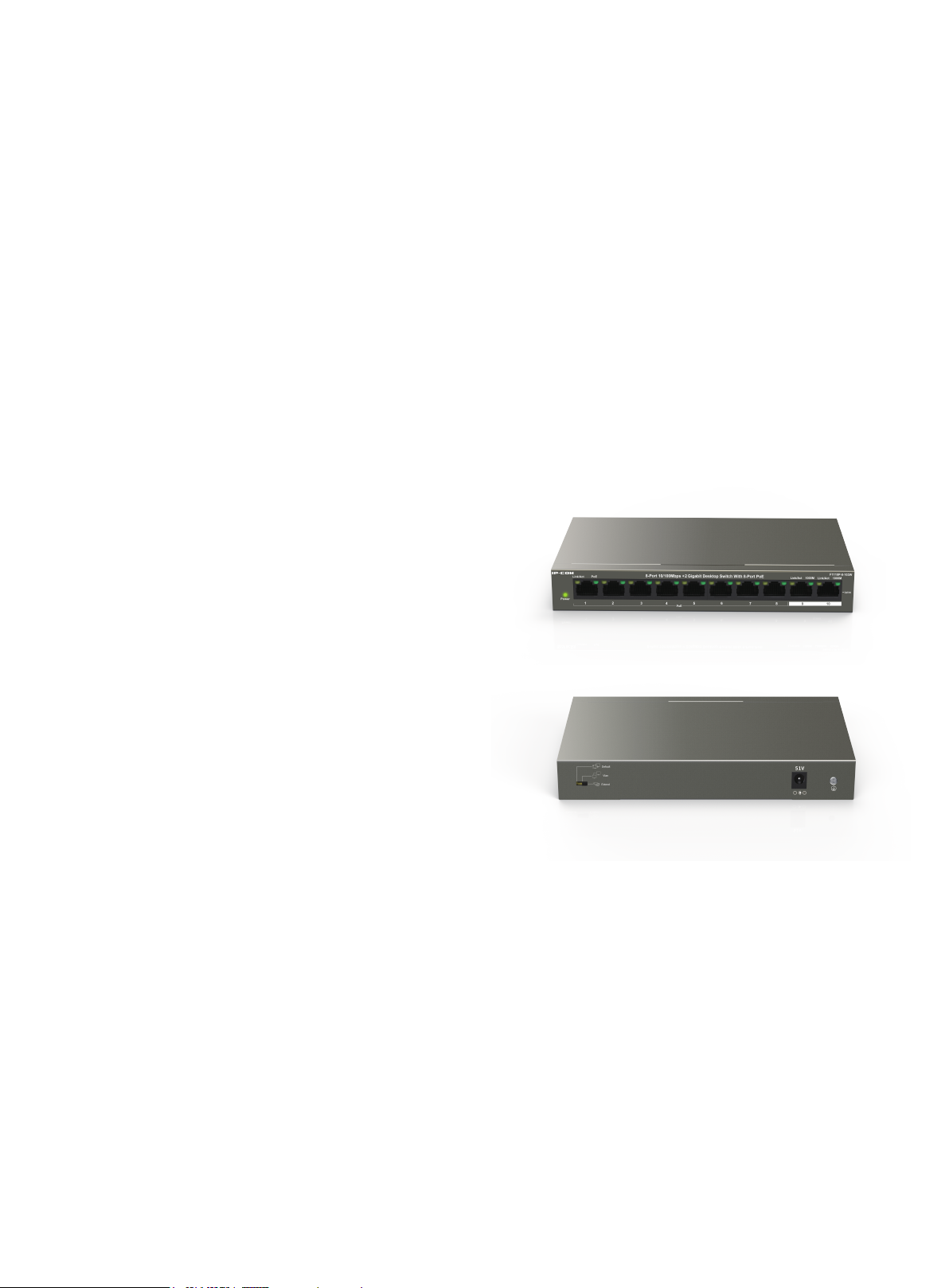

Products Description
TEF1110P-8-102W is an 8-port 10/100Mbps+2-port gigabit desktop PoE switch developed by Tenda. It provides 8 10/100 BASE-TX
RJ45 ports and 2 10/100/1000 BASE-T RJ45
ports. Ports 1-8 support IEEE 802.3at PoE
standard with each port providing power of
15.4W, or support IEEE 802.3af PoE+
standard with each port providing power of
30W. The whole device can provide power of
up to 99W. By using CAT5 twisted pairs, it can
provide power and data transmission to APs, IP
cameras, IP phones, and so on. In addition, all
the ports support lightning protection of 6kV
and long distance data transmission and
powering of 250m, which decreases deploy-
ment difficulty and time thus decreases cost.
01
F1110P-8-102W v1.0
8-Port10/100Mbps+2 Gigabit Desktop Switch With 8-Port PoE
Page 3
Key Feature
www.ip-com.com.cn
8 10/100BASE-TX RJ45 ports, 2 10/100/1000BASE-T RJ45 ports ;
6KV lightning protection;
Up to 8 ports of IEEE 802.3af/802.3at devices powered;
Supports PoE Power up to 30.8 watts for each PoE port;
Each port supports 51V DC power to PoE Powered Device;
99-watt PoE budget;
Extend Ethernet mode with 250m transmission distance;
Plug and play design, no configuration required;
Mark
6KV
AT/AF
250M
Lightning Protection 6kV
The ports and embedded power can provide lightning protection of up to
6kV. It also provides PSE shortcircuiting protection, PoE overloading, power
over temperature, over voltage and surge current protection.
PoE+ and Dual Gigabit Uplink
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides
PoE power of up to 30W each port and up to 99W the whole device. The two
gigabit uplink ports are capable for cascade connection of more devices.
250 Meters Transmission
With 8-pin and the professional network extension technology, the transmis-
02
sion distance of power and data can be up to 250 meters, which can work in
place of network extender or some optical fiber to expand the network with-
out additional cost.
F1110P-8-102W v1.0
8-Port10/100Mbps+2 Gigabit Desktop Switch With 8-Port PoE
Page 4

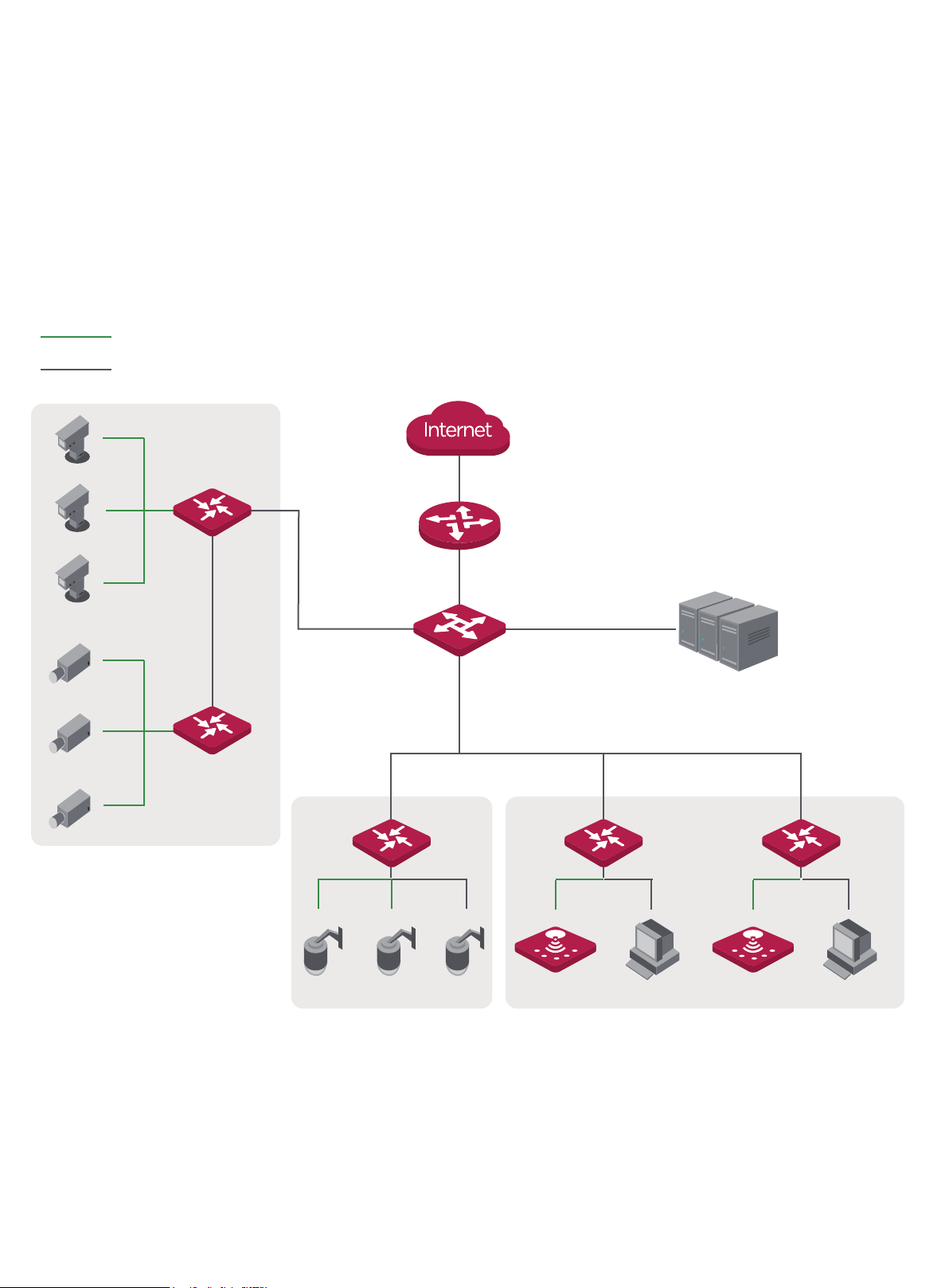

Application
POE
1000M Cat-5e
www.ip-com.com.cn
100m
250m
Dual Gigabit Uplink
F1110P-8-102W
F1110P-8-102W
300W Network Camera
F1110P-8-102W
Core switch
F1110P-8-102W F1110P-8-102W
03
300W Network Camera
F1110P-8-102W v1.0
450Mbps Wireless Access Point
8-Port10/100Mbps+2 Gigabit Desktop Switch With 8-Port PoE
Page 5
Specification
www.ip-com.com.cn
Model
Standard
MTBF
Indicators
Interfaces
Capacity
PoE Supply
Dimensions(W × D × H)
Input Voltage
Fixed Ports
lightning
protection
Wire-speed
forwarding
Switching
capacity
Mac Address
Table
F1110P-8-102W v1.0
HARDWARE FEATURES
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
≥50,000 hours(about 5 years)
Link/Act, PoE Status, Power, 1000M
8个10/100Base-TX RJ45 Ports(Data/Power)
2个10/100/1000Base-T RJ45 Port(Data)
6KV
Support
5.6 Gbit/s
4K MAC
Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)，
PoE power type is end-span(1245+, 3678- line pair)
in full configuration：<102W
PoE Max Power Supply：99W
177.5mm*104mm*26mm
AC：100－240V～ 50/60Hz
DC：51V /2.1A （Power Adapter ）
Operating Temperature: 0℃~40℃ (32℉~104℉)
Environment
One-key Mode
Certification 3C、FCC、CE、RHOS
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm
to increase forwarding rate of frame.
Extend Mode: If Extend mode is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively (10Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).
